rollease acmeda RF401s User manual

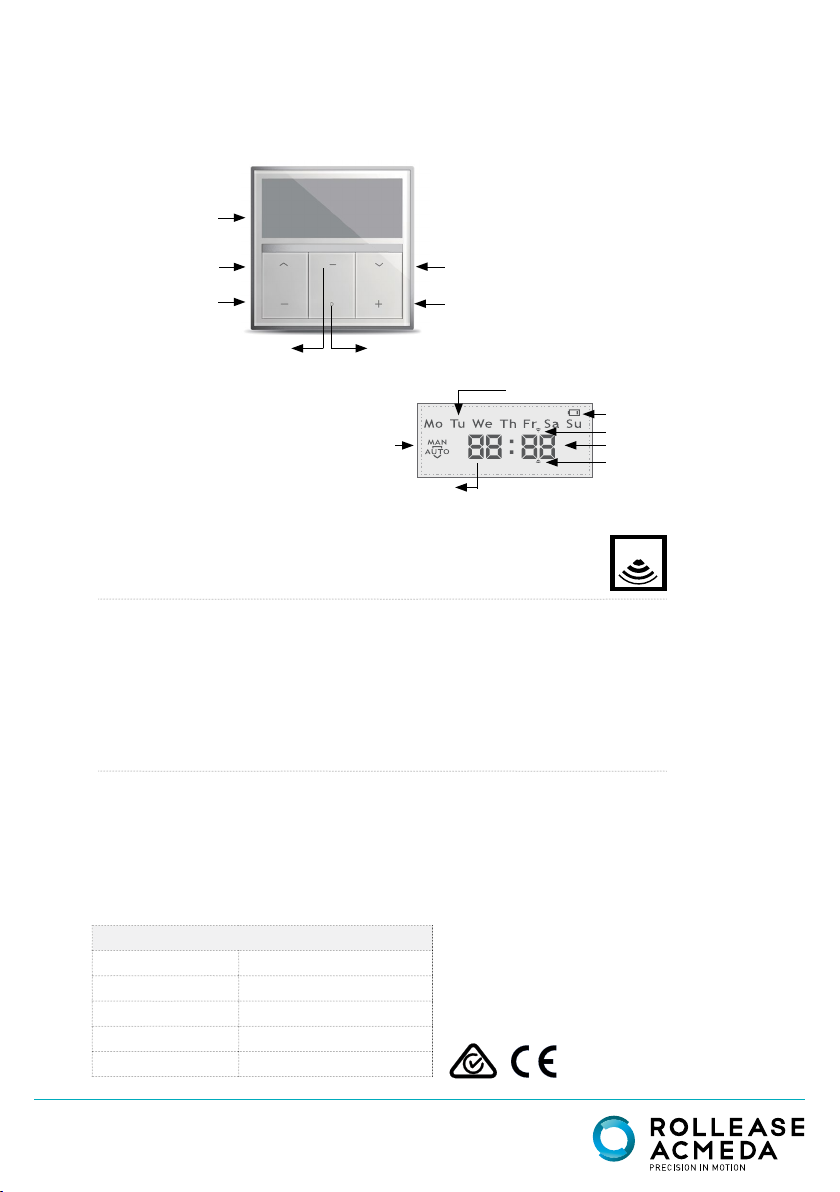

AUTOMATE RF401s REMOTE INSTRUCTIONS
RF401s Single Channel Remote Control / With Timer
DESCRIPTION
AUTOMATE RF401s is a Single channel 433MHz wall mounted control-
ler compatible with the AUTOMATE EL motor range. It includes a daily
Timer Function and large LCD display.
433MHz
• Wall mount transmitter
• Magnetic holder & fixing screws
• Instruction Manual
• 3V - CR2430 Battery
TECHNICAL SPECIFICATIONS
Voltage: 3V (CR2430)
Frequency: 433.92 MHz
Transmitting Power: 10 milliwatt
Operating Temperature: -5˚C - 50˚C
Transmission Distrance: up to 200 meters (open space)
CONTENTS
INSTR.RB24-9015-069001_OCTOBER 2015 v1.1
UP
LCD Screen
CH ()
STOP MODE BUTTON
DOWN
CH (+)
MANUAL / AUTO / RANDOM MODE
WEEK
HOUR
POWER
DOWN COMMAND
UP COMMAND
MINUTE
TIME SETTING BUTTIME CONFIRMATION BUT
Page. 1 of 8
P/N: RB24-9015-069001

© 2016 Rollease Acmeda
CONTENTS
Pair RF401s wall controller to EL motor p3
Setting top & bottom limits to EL motor p4
Copy channels from an existing primary transmitter p5
Manual / Auto & Random timer modes p6
Time & Day setting p6
Timer Settings p7
Troubleshooting p8
DISPOSAL
Do not dispose of in general waste. Please recycle batteries and damaged electrical products appropriately
CAUTION
Do not expose to moisture or extreme temperatures
Replace with correct battery type as specified
Do not allow children to play with this device or battery.
Use or modification outside the scope of this instruction manual will void warranty.
Page. 2 of 8

Press & quickly release button on motor head
*
PROCEED TO SETTING LIMITS
Press & hold button on
motor head * for 4secs
Power OFF for 5 seconds
& return to start and
reverse blind direction.
Check blind direction
OK
Power ON
IF POWER IS ALREADY ON
© 2016 Rollease Acmeda

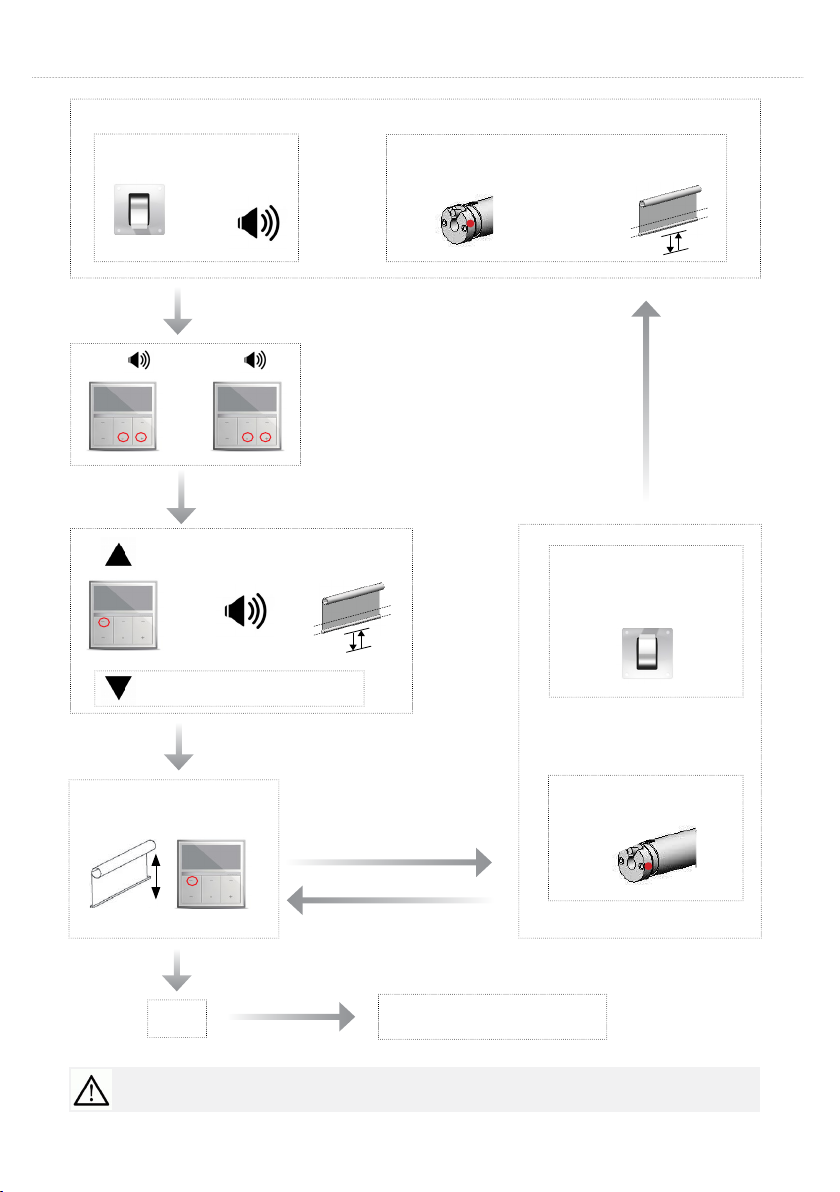

PAIR RF401s WALL CONTROLLER TO EL MOTOR
Operation
Item Item Operation Result Illustration
Setup
bottom
limit
1
Keep pressing the
LIMIT key on the
primary transmitter for
6 seconds above
The motor sounds "KA
KA"
2 Release the key The motor is under the
status of Limit setting
3Press the DOWN key
on the transmitter The motor runs down
4
When the motor is
running close to the
end-point of lower limit,
press STOP
The motor stops running
5Press either UP or
DOWN key
The motor runs step by
step to adjust lower limit
accurately
6Press CONFIRM key
on the transmitter
The motor sounds "KA
KA", the setting has
complete.
Setup
upper limit
7Press UP key on
primary transmitter The motor runs up
8
When the motor is
running close to the
end-point of upper limit,
press STOP
The motor stops running
9Press either UP or
DOWN
The motor runs step by
step to adjust lower limit
accurately
10 Press CONFIRM key
on the transmitter
The motor sounds "KA
KA", the setting has
complete.
Charging
The motor work with Li-ion battery, please have it charged when the motor stop working or work
faltering. Please plug the charger into the charger hole on the motor head, the charging time is
5 to 6 hours.
FAQ
If nothing works, please check:
●if the motor does not working or works faltering, please charging the motor battery firstly
●If the motor runs to a direction continually, the user didn't setup limit successfully, please re-set
limit.
For instructional purposes, the following options have been shown:
Easy-Lock Chain Winder 'AC' Installation Brackets.
Top Fix installation.
'AC' BracketCover Caps
40mm Motor - Somfy.
Somfy Drive & Crown Wheels.
INSTALLATION
ROLLER BLINDS 40mm MOTORISATION
ENSURE 'NOTCH' OF CROWN WHEEL
LOCKS WITHIN GAP OF MOTOR HEAD.
ASSEMBLY INSTRUCTIONS
STEP 1:
Install Crown Wheel onto40mm Motor. Ensure 'notch' of Crown
Wheellocks within gap of Motor Head.
STEP 2:
Install Drive Wheelonto40mm Motor.
NOTE:
* For Elero Motors, use 'O' ring supplied by Elero to lock Drive Wheel to
40mm Motor.
* For Gaposa Motors, use Gaposa Retaining Clipto lock Drive Wheel
to40mm Motor.
* For Selve Motors, use plastic retaining clip supplied by Selve to lock
Drive Wheelto 40mm Motor.
STEP 3:
Mount 40mm Motor Disk Adaptor onto Motor headwith Counter
Sunk Screws.
ONLY USE WITH GAPOSA
Page 57
=Beep
+
OR
For instructional purposes, the following options have been shown:
Easy-Lock Chain Winder 'AC' Installation Brackets.
Top Fix installation.
'AC' BracketCover Caps
40mm Motor - Somfy.
Somfy Drive & Crown Wheels.
INSTALLATION
ROLLER BLINDS 40mm MOTORISATION
ENSURE 'NOTCH' OF CROWN WHEEL
LOCKS WITHIN GAP OF MOTOR HEAD.
ASSEMBLY INSTRUCTIONS
STEP 1:
Install Crown Wheel onto40mm Motor. Ensure 'notch' of Crown
Wheellocks within gap of Motor Head.
STEP 2:
Install Drive Wheelonto40mm Motor.
NOTE:
* For Elero Motors, use 'O' ring supplied by Elero to lock Drive Wheel to
40mm Motor.
* For Gaposa Motors, use Gaposa Retaining Clipto lock Drive Wheel
to40mm Motor.
* For Selve Motors, use plastic retaining clip supplied by Selve to lock
Drive Wheelto 40mm Motor.
STEP 3:
Mount 40mm Motor Disk Adaptor onto Motor headwith Counter
Sunk Screws.
ONLY USE WITH GAPOSA
Page 57
=
Beep
+
TO REVERSE
DIRECTION
OR
UP
TO REVERSE DIRECTION IF REQUIRED
=
P2 P2
within 4 seconds
within 4 seconds
Jog
Jog
© 2016 Rollease Acmeda
For instructional purposes, the following options have been shown:
Easy-Lock Chain Winder 'AC' Installation Brackets.
Top Fix installation.
'AC' BracketCover Caps
40mm Motor - Somfy.
Somfy Drive & Crown Wheels.
INSTALLATION
ROLLER BLINDS 40mm MOTORISATION
ENSURE 'NOTCH' OF CROWN WHEEL
LOCKS WITHIN GAP OF MOTOR HEAD.
ASSEMBLY INSTRUCTIONS
STEP 1:
Install Crown Wheel onto40mm Motor. Ensure 'notch' of Crown
Wheellocks within gap of Motor Head.
STEP 2:
Install Drive Wheelonto40mm Motor.
NOTE:
* For Elero Motors, use 'O' ring supplied by Elero to lock Drive Wheel to
40mm Motor.
* For Gaposa Motors, use Gaposa Retaining Clipto lock Drive Wheel
to40mm Motor.
* For Selve Motors, use plastic retaining clip supplied by Selve to lock
Drive Wheelto 40mm Motor.
STEP 3:
Mount 40mm Motor Disk Adaptor onto Motor headwith Counter
Sunk Screws.
ONLY USE WITH GAPOSA
Page 57
Page. 3 of 8
1
1
Cutting power before limit setting process is complete will result in loss of pairing.
To reset motor P2 + STOP + P2. Removes all emitters & deletes limits.

Please cycle blind up and down to settle fabric prior to setting limits
© 2016 Rollease Acmeda

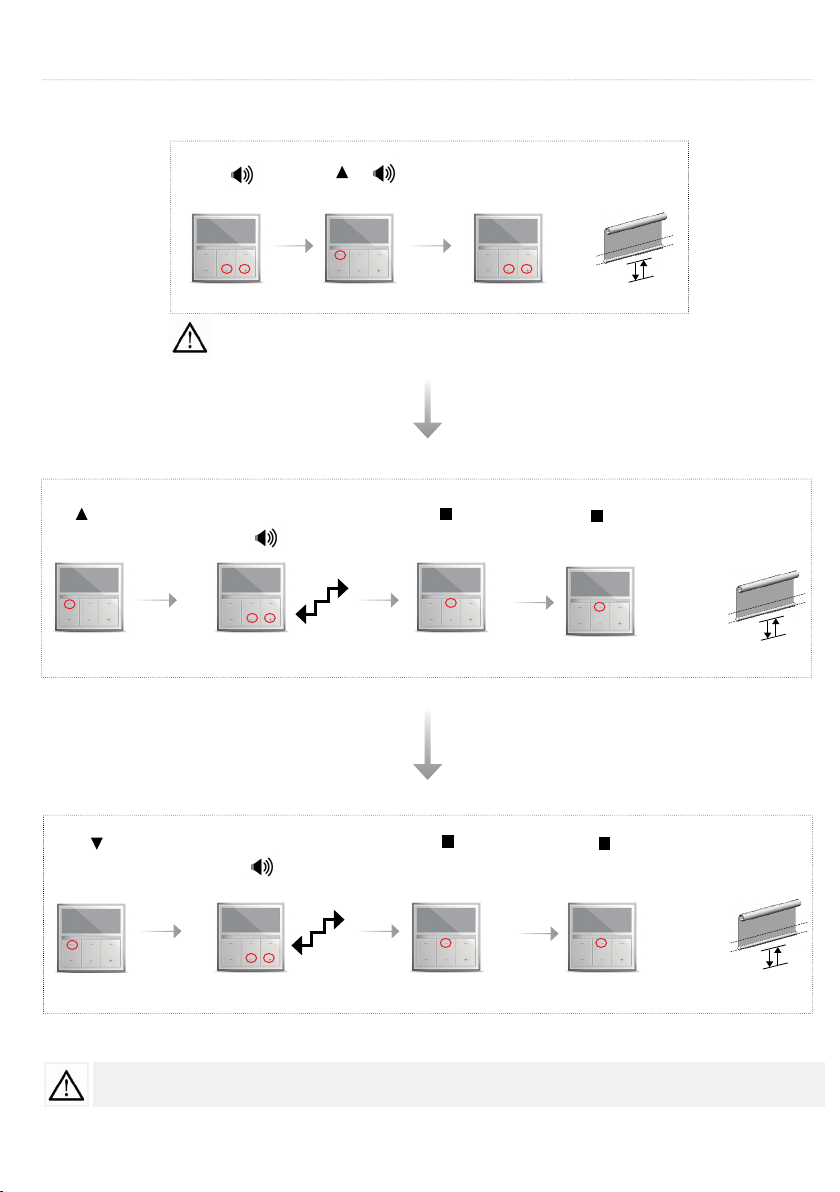

SETTING TOP & BOTTOM LIMITS TO AUTOMATE EL MOTOR
Press stop
SET TOP LIMIT
P2 UP P2
SET BOTTOM LIMIT
(as blind approaches
P2
ENTER LIMIT SETTING MODE
Hold stop for 5 secsDrive blind Enter step mode
Press stop
(as blind approaches limit)
Hold stop for 5 secsEnter step mode
Drive blind down
1
P2
=
1
Jog
=
Jog
Jog
=
DOWN
UP STOP
STOP x5 secsSTOP
Page. 4 of 8
1
If pairing multiple motors to a single channel ensure power is switched off prior to proceeding to the next motor.

© 2016 Rollease Acmeda
COPY CHANNEL FROM AN EXISTING PRIMARY TRANSMITTER.
+
P2 P2
ON PRIMARY TRANSMITTER
P2 = zero & CH (+)
=
1
Jog
ON NEW TRANSMITTER
HOW TO ACTIVATE P2 FUNCTION
Press P2
RF400sRF500s
P2
On primary & secondary multi - channel remotes ensure desired channel is active first.
© 2016 Rollease Acmeda Page. 5 of 8

© 2016 Rollease Acmeda
MANUAL MODE.
AUTOMATIC TIMER MODE.
RANDOM AUTOMATIC TIMER MODE.
(Signal is emitted within 15min. of the set time).
MANUAL / AUTO / RANDOM MODES
TIME & DAY SETTING
Hold MODE for 2 sec.
TO SWITCH BETWEEN MODES
Hold TIME SETTING BUTTON for 3 sec.
Adjust by pressing UP or DOWN
Befor starting ensure
MANUAL mode is
active first.
ENTER SETTING MODE
Press TIME SETTING BUTTON again
to toggle between HOUR / MINUTE or
DAY settings.
Hold TIME CONFIRM button >3 sec.
(HOUR & MIN FLASHES)
EXIT SETTING MODE
Short press TIME SETTING button
to start clock. The seconds indicator
“:”will start to flash
ADJUST TIME & DAY
The RF401s wall controller can operate in three different modes.
Page. 6 of 8

© 2016 Rollease Acmeda
TIMER SETTINGS
Hold TIME SETTING BUTTON for 3 sec.
Before starting ensure
AUTO mode is active.
Adjust setting by pressing UP or DOWN
ENTER TIMER SETTING MODE
PRESS ACTION
(-) Switch between HOUR or MINUTE
(O) Switch between UP & DOWN command
(+) Switch DAY
Hold TIME CONFIRM button >3 sec or wait 60 seconds. (HOUR & MIN FLASHES)
CONFIRM AND EXIT TIMER SETTING MODE
SET UP & DOWN COMMAND FOR EACH DAY
To Switch between Functions & Settings press the following buttons:
© 2016 Rollease Acmeda Page. 7 of 8
DAY
HOUR DOWN COMMAND
UP COMMAND
MINUTE
SETTING TIME TO “--:--” WILL DISABLE TIMER FUNCTION FOR A PARTICULAR EVENT SETTING.
TIMER SETTING MODE WILL AUTOMATICALLY EXIT AFTER 60 SECONDS.
A MINIMUM INTERVAL OF 32 MINUTES IS REQUIRED BETWEEN UP & DOWN COMMANDS. SETTING
AN UP / DOWN INTERVAL WITHIN 32 MINUTES WILL RESULT IN AN ERROR “ER01”

© 2016 Rollease Acmeda
TROUBLESHOOTING
PROBLEM CAUSE REMEDY
Motor is not responding Transmitter battery is dis-
charged
Replace battery
Battery is inserted incorrectly Check battery polarity
Radio interference / Shielding Ensure transmitter is positioned away from metal objects and
that aerial on motor or receiver is kept straight and away from
metal.
Receiver distance is too far
from transmitter
Move transmitter to a closer position.
Power failure Check power supply to motor is connected and active.
Incorrect wiring Check wiring is connected correctly (refer to motor installation
instructions)
“ER01” appears on LCD Timer UP & DOWN settings
are within 32 minutes to each
other.
Re-program timer settings. UP & DOWN times must be great-
er than 32 minutes of each other.
How to delete all transmitters & limits. P2 + STOP + P2.
Page. 8 of 8
