Rollei Actioncam 5s Plus User manual

Actioncam
5s Plus
USER GUIDE
FOR ENGLISH | GERMAN | FRENCH
SPANISH | ITALIAN | PORTUGUESE | GREEK
DUTCH | CZECH | SLOVAK | HUNGARIAN
SWEDISH | FINNISH | NORWEGIAN | DANISH
www.rollei.de

2
ENGLISH
Attention
1. This product is a high-precision product, do not drop or hit it anywhere. Please use the under-
water case which is included in the delivery to protect the camera.
2. Do not place the camera near to strong magnetism, such as magnets and motors. Please avoid
to place the product near anything emitting strong radio waves, a strong magnetic field may
cause the product to malfunction or damage the image and sound.
3. Do not place the camera at high temperatures or direct sunlight.
4. Use brand Micro SD cards as ordinary cards do not guarantee the proper use.
5. Do not use Micro SD cards in or near magnetic places to avoid loss of data.
6. During the charging process, if there is overheating, smoke or odor, please unplug the power
immediately and stop charging to avoid fire.
7. Please keep away the camera and its accessories from children to avoid choking or electric
shocks.
8. Store the product in a cool and dry place.
9. Do not use the camera when it is low power or in charging.
10. Do not attempt to open the case of the camera or modify it in any way, the warranty will be lost.
Product Features
1. 4K@30fps, 2.7K@30fps, 1080P@120fps, 720P@240fps
2. 2” TFT display screen
3. Waterproof underwater housing to a depth of 40 meters
4. Removable battery for easy replacement
5. Supports Micro SD memory cards up to 64GB
6. WiFi connection by App to control the camera

3

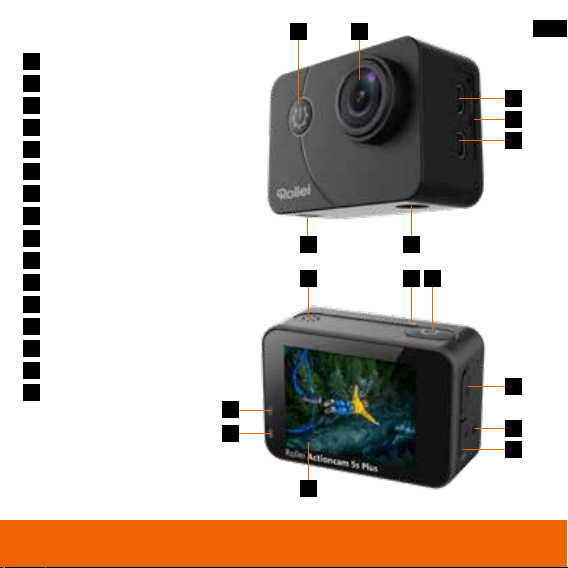

Camera Description
Lens
Power / Mode Button
Battery compartment cover
1/4“ Tripod Connection
Micro HDMI Slot
Micro SD Slot
Micro USB Slot
Built-in Microphone
Charging Indicator
Operation Indicator
Display
Down
Built-in Speaker
Up / WiFi
Shutter / Select Button
WiFi Indicator
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1
8
11
16 15
2
3 4
5
12
9
10
6
13
7
14

4
ENGLISH
Waterproof Case
• Insert Camera into Waterproof Case
1. Ensure the case is dry and clean.
2. Insert the camera and make sure the lens fits neatly in the lens cavity.
3. Close the locking clamps.
4. The camera can be mounted using the accessories provided.
Battery
Before using the device for the first time, you must fully charge the battery.
• Charging the Battery
1. Connect the camera to a computer or USB power supply (5V/2A).
2. The charging status light turns on while the battery is charging.
3. The charging status light turns off when the battery is fully charged.
• Changing the Battery
1. Hold the camera so that you can see the camera display and slide the battery cover to the
right to open the battery compartment.
2. Remove the battery.
3. lnsert the new battery so the contacts line up with those of the camera.
Getting Started
• Turn On: Press and hold the Power/Mode Button for 3 seconds.
When the camera is turned on, the Operation Indicator turns on.
• Turn Off: Press and hold the Power/Mode Button for 3 seconds.

5
Overview Menu
Turn camera on and press the Shutter/Select
Button for 3 seconds to access the following ca-
mera menu. Use the Up and Down buttons to select
the different modes.To select a mode,
press again the Shutter/Select Button:
1. Mode Menu: Video or Photo
2. Playback video and photo
3. System Settings
4. Return to previous screen

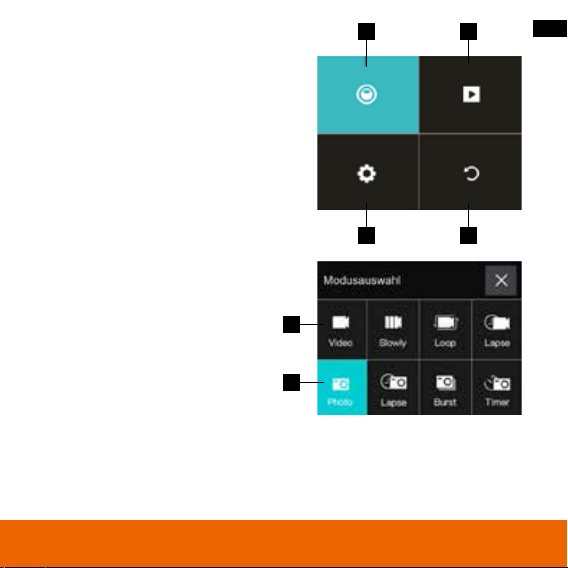

1. Mode Menu:
Here you can choose the different video (1.1) or
photo (1.2) modes. Use the Up and Down keys to
select the various options. Select the requested
option by pressing the Shutter/Select Button.
1
3
2
4
1.2
1.1

6
ENGLISH

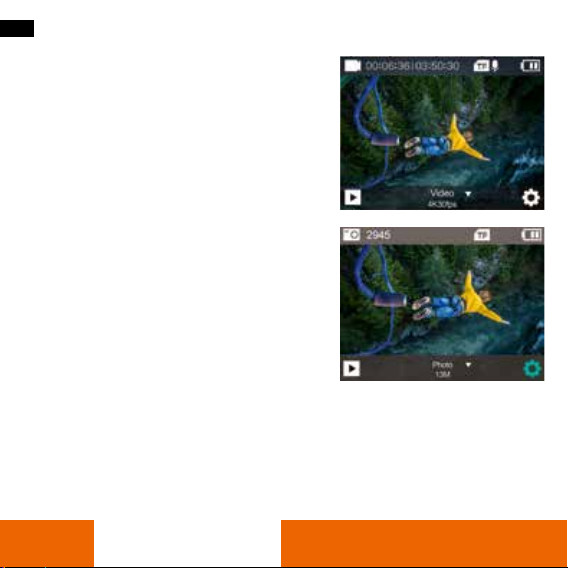

1.1 Video Mode
Press the Shutter/Select Button when power on
to start recording. A red light on the screen will
flash while recording. Press Shutter/Select Button
again to stop recording.
1.2 Photo Mode
Press the Shutter/Select Button to take a single
picture.

7
2. Playback Video and Photo
In the playback mode you can preview
the videos and photos taken.
Playback Files on Camera
Make sure the camera is in Video or Photo
Playback menu. Press the Up/Down Button
to cycle the videos or photos, then press
the Shutter/Select Button to playback and
pause the videos. Press the Power/Mode Button
to go back.
Delete Files on Camera
Press and hold the Shutter/Select Button for seconds to delete the optional file.
To exit playback mode, press the Power/Mode Button to the main preview menu, press the
Power/Mode Button again to switch to setting menu.

8
ENGLISH
3. System Settings
In the System Setting mode you can enter the settings for the system and choose different
parameters for the camera.

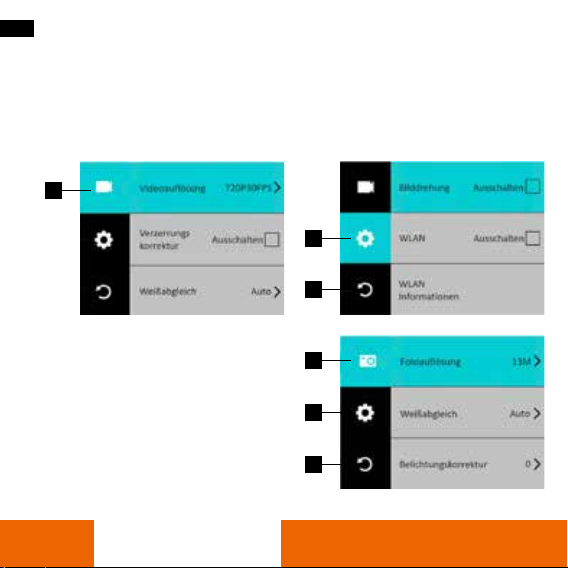

In the video mode you can press the Power/Mode Button to select the recording parameter
settings (a) or the recording system settings (b). To return to the video mode, press the
Shutter/Select Button (c) in the third tab.
In the photo mode you can press the Power/
Mode Button to select the shooting para-
meter settings (d) or the shooting system
settings (e). To return to the photo mode,
press the Shutter/Select Button (f) in the
third tab.
b
a
c
d
e
f

9
4. Return to Previous Screen
Press the Shutter/Select Button to exit the menu.
Storage/Micro Cards
This camera is compatible with 8GB, 16GB, 32GB and 64GB capacity Micro SD and Micro SDXC
memory card. You must use a micro SD card with a CLASS 10 (80M/S) speed rating at least. We
recommend using brand-name memory cards for maximum reliability in high vibration activities.
Tips:
• Memory card is not included in the standard package, you will need to buy an extra memory card.
• Please format the Micro SD or Micro SDXC memory card on the camera before using.
• Please restart the camera after formating.
• Please insert the memory card in correct way, otherwise the card slot maybe damaged.

10
ENGLISH
WiFi Setting
You can connect your camera with your smartphone by using the integrated WiFi connection.Turn the
camera on and press and hold the up key (14), or open the system settings to activate the wireless
network. The camera‘s WiFi is activated, the WiFi indicator lights up and the WiFi information (net-
work name and network password ”1234567890“) appears on the camera‘s monitor. Then connect
the camera to the smartphone by going to the WiFi settings of your smartphone and selecting the
camera‘s network and connecting it. Download and install to your phone the free app „Rollei 5s/6s
Plus“ from Google play or Apple App store. After installing it, open the app and select the camera
network from the list. You will see the camera on the phone‘s screen. To exit WiFi mode press the Up
Button shortly.
Disposal
Dispose of packaging: For disposal, separate packaging into different types. Cardboard
and board must be disposed of as paper and foil must be recycled.
Disposal of Waste Electrical and Electronic Equipment and/or Battery by users
in private households in the European Union. This symbol on the product or on the
packaging indicates that this cannot be disposed of as a household waste. You must dispose
of your waste equipment and/or battery by handling it over to the applicable take-back
scheme for the recycling of electrical and electronic equipment and/or battery. For more information
about recycling of this equipment and/or battery, please contact your city office, the shop where you
purchased the equipment or your household waste disposal service. The recycling of materials will
help to conserve natural resources and ensure that it is recycled in a manner that protects human
health and environment.
