Rollei 410 User manual





 







RolleiActionCamera410

UserManual










3
What’sinthebox
Pleaseensuretheproductpackagehasthefollowingcontents:

ARolleiActioncam410FFlatmount
BWristRemotecontrollerGTripod
CWaterproofcaseHLockBolt
DPortablecameraframeIQuickReleaseMount
ECurvedmountJUSBCable









4
ProductDiagram
AWI‐FIActivation(Downselect)FPOWER(andmenu)
BLEDpowerindicatorGUSBinterface
CLCDscreenHMicroSDcardport
DSHOOT(menuselect)IMiniHDMIinterface
EMicrophoneJRemovableLi‐Battery


 
 
LeftSideRightSide

5
RemoteDiagram
Pleasenote:withtheremotecontrolleryoucannotturnthecameraon.Please
ensurethecameraisswitchedonbeforeusingtheremote.
ALEDIndicators
BShootPhoto
CRecordVideo
DPowerOff
EMicroUSBChargeportonthebackofremote

Pressandholdthe“PowerOff”buttonaround4sec.toturnthecameraoff.
Tousetheremote,pleasecodefirstbeforepoweronthecamera.
Codingprocedures:
1. Pressandholdthe“Picture”&“Video”keysoftheremoteatthesametime,
thenturnthecameraon;
2. Whenthecameraentersintotherealliveinterface,releasethe“Picture”&
“Video”keys;
3. Themiddleblueindicatorlightsup,thenthecodingisfinished.

Note:
zPleasekeepholdingthe“Picture”&“Video”keysduringcoding;
zOnlyneedtocodeonce,afterwordsthecamerawillrecognize
automatically;
zWi‐Fifunction&remotecontrollercannotbeusedsimultaneously.

6
SetupYourRolleiActioncam410
Turnthecameraon‐pressandholdthePOWERbuttonforseveralseconds.

Whenthecameraison,theRolleilogowillappearonthescreenandthethree
redLEDlightswillglowred.Thecameraisnowinvideomode.

 





 


RedLED light
RedLED light
RedLED light

7
VideoMode
 
Videomodescreen

Oncethecameraisturnedon,itgoestothevideocapturemodebydefault.
PressSHOOTbuttontostartrecording.Whentherecordingstarts,youwillsee
theredlightsstartflashing.Toendrecording,presstheSHOOTbuttonagain.

ToentertheSettingsmenu,pressthePOWERbutton(pressandrelease
immediately‐ifitisheldtoolongthecamerawillswitchoff).

Note:TheSetupmenuisdependingontheactivemode.Ifthevideomodeis
active,itwilldisplayvideocapturesettingsorifthePicturemodeisactive,it
willdisplaytheImagecapturesettings.
Bydefault,videomodeistheactivemodewhenyouturnthedeviceon.

8
VideoSettings
 
VideoSettingsScreen

ThisallowsusertoadjustVideoqualitysettings.
Navigation:UseWi‐Fibuttontonavigate,SHOOTbuttontoEnter/Confirm
selection,POWERbuttontogoback.

Resolution
Thisallowsusertosettherecordingvideoresolution:
z1080P60fps
z1080P30fps
z720P120fps
z720P60fps

VideoLooping
Thisallowsusertosetrecordduration
zOFF‐Inthismode,camerawillgeneratenewfileonevery25mins
z1Min‐Inthismode,camerawillgeneratenewfileonevery1mins
z3Mins‐Inthismode,camerawillgeneratenewfileonevery3mins

9
z5Mins‐Inthismode,camerawillgeneratenewfileonevery5mins

WhiteBalance
FactorydefaultisAuto.IfyouswitchAutoOFF,remembertoadjustwhen
lightingconditionschange.
Followingpre‐setmodesarealsoavailable
Daylight,Cloudy,Tungsten,Fluor

Microphone
SELECTOutdoororCartorecordindifferentsceneswithbetteraudioeffect,
SELECTOFFforvideoonly.

DateStamp
zOff:toturnoffdisplayingdatestamponcaptures
zDate:todisplaydateoncaptures
zDate&Time:todisplaydate&timeoncaptures


10
GeneralSettings

GeneralSettingsScreen(Page1)


Thisallowsusertoadjustthegeneraldevicesettings.

ToenterGeneralSettings,entertheSettingsmenufirstbypressingPOWER
button,thenpressandholdtheSHOOTbuttonfor3secs.
Navigation:UseWi‐Fibuttontonavigate,SHOOTbuttontoEnter/Confirm
selection,POWERbuttontogoback.

AutoLCDOff
ThiswilldetermineiftheLCDwillturnoffafter1min,3minor5min.Pressany
keytoturnthescreenon.
SelectOFFtokeepthescreenalwaysON.

AutoPowerOff
TosetAutoPowerofffunction

11
Date&Time
Thisallowsusertoadjustthedate&time.
Note:UsetheWi‐Fibuttontochangethedateandtime,useSHOOTbuttonto
confirm.ThedateisenteredinYear/Month/Dayformat.Timeisbasedona
24hrclock.

Language
Toselectthedevicelanguage.

LightFrequency
Selectingthecorrectlightfrequencywillavoidthepossibilityforstrobing.



GeneralSettingScreen(Page2)

Screenrotation
Torotatethescreen


12
Timelapse
Thisfeatureallowsyoutosettheintervals/frequencyatwhichaframeis
captured.YoucansetthetimeFrequencyhere.

System
zFactoryReset;toresetthecameratofactorydefault.
zSystemInfo;tocheckthefirmwareversion.
zCardInfo;toseetheSDcardinformation.

Wi–FiPassword
SetupyournewWi–FiPassword.
Note:ThedefaultWi–FiPasswordis1234567890.
UsetheWi‐Fibuttontonavigate,useSHOOTbuttontoconfirm.

Wi‐FiSSID
SetupyournewWi‐Finame.
Note:UsetheWi‐Fibuttontonavigate,useSHOOTbuttontoconfirm.The
nameisenteredin“Wi‐Fi_Cam_000”format,youcanonlychangethelast
threenumberswhicharedisplayedwithcyclenumbers.


13


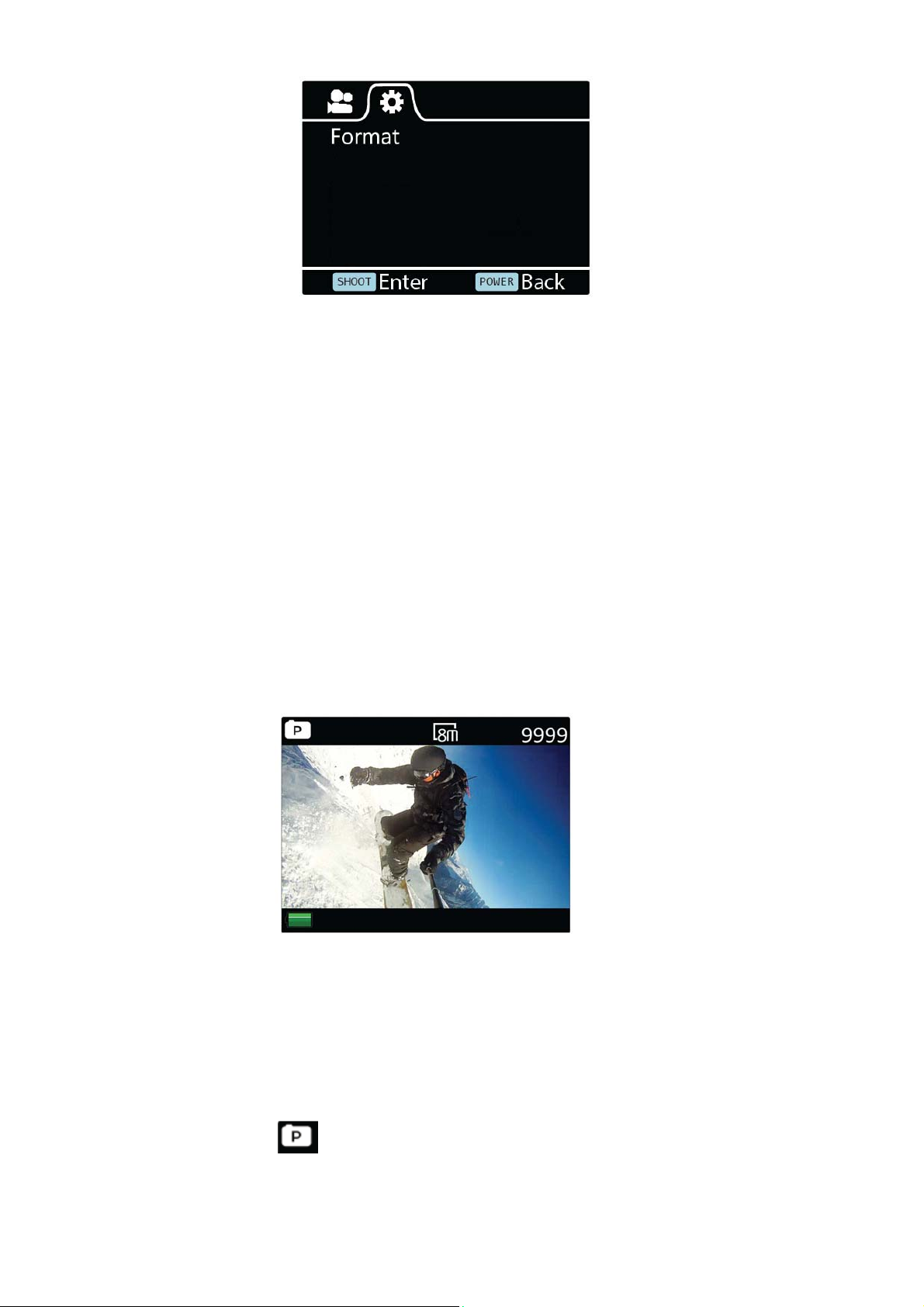

GeneralSettingScreen(Page3)
Format
Thisistoformatthecard.Choosingtoformatthecardwillpermanentlyerase
alldataonthecard.

PictureMode
Thismodewillallowuserstotakesnapshots

PictureModeScreen
Toactivatethismode:
zTurnthecameraon
zPressandholdtheSHOOTbuttonfor3secs
zYouwillseeP()ontopleftcornerofthescreen
zPressSHOOTbuttontotakesnapshots

14

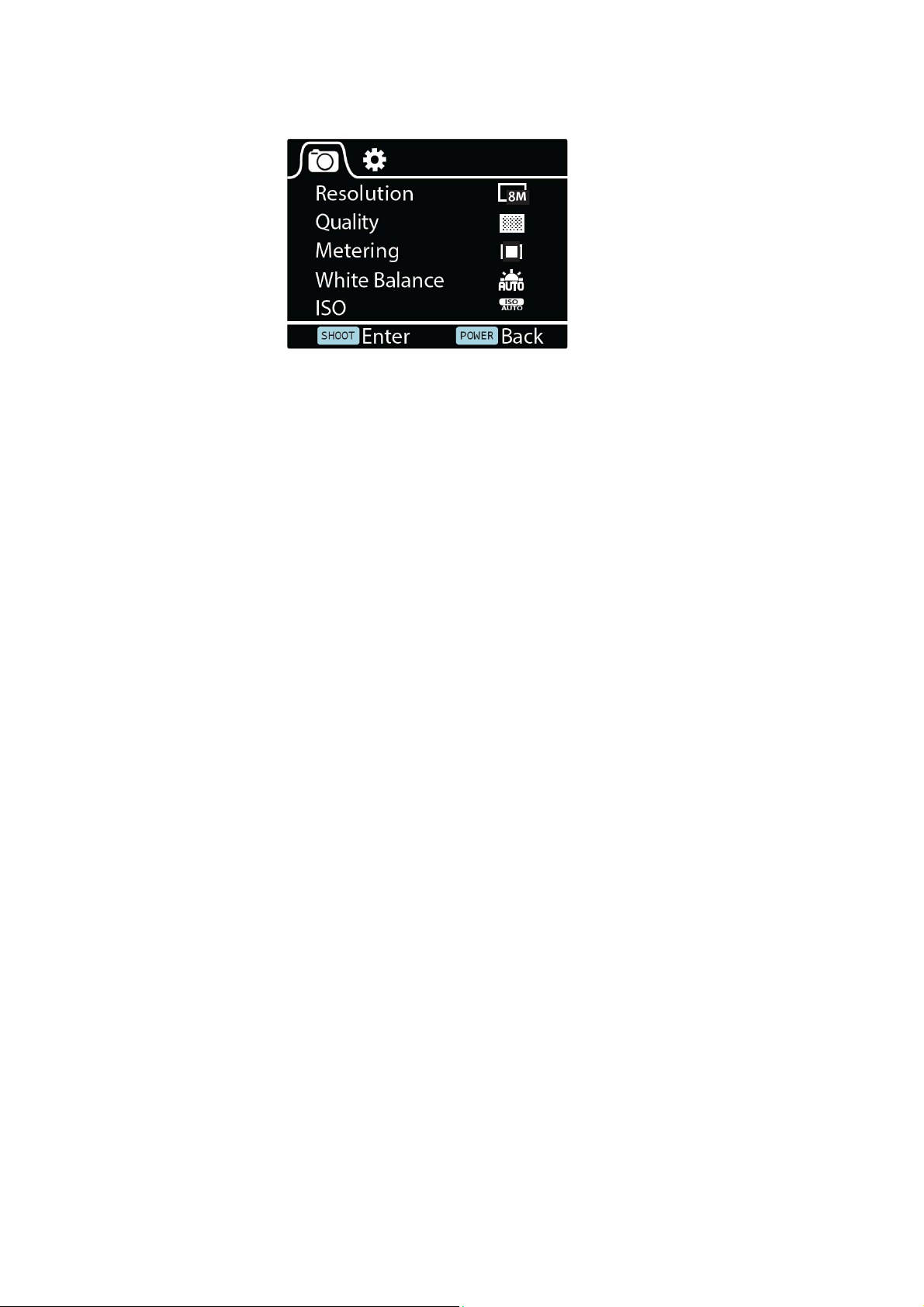

PictureSettings

PictureSettingScreen1

ToentertheSETUPmenuforPictureMode,pressPOWERbutton(pressand
releaseimmediately‐ifitisheldtoolongthecamerawillswitchoff).

Resolution
Toselecttheimageresolution.

Quality
Tosettheimagequality.

Metering
Meteringmodereferstothewayinwhichacameradeterminestheexposure.


15
WhiteBalance
FactorydefaultisAuto.IfyouswitchAutoOFF,remembertoadjustwhen
lightingconditionschange.

ISO
Thisisthemeasurementofhowsensitiveadigitalcamera’ssensoristolight.



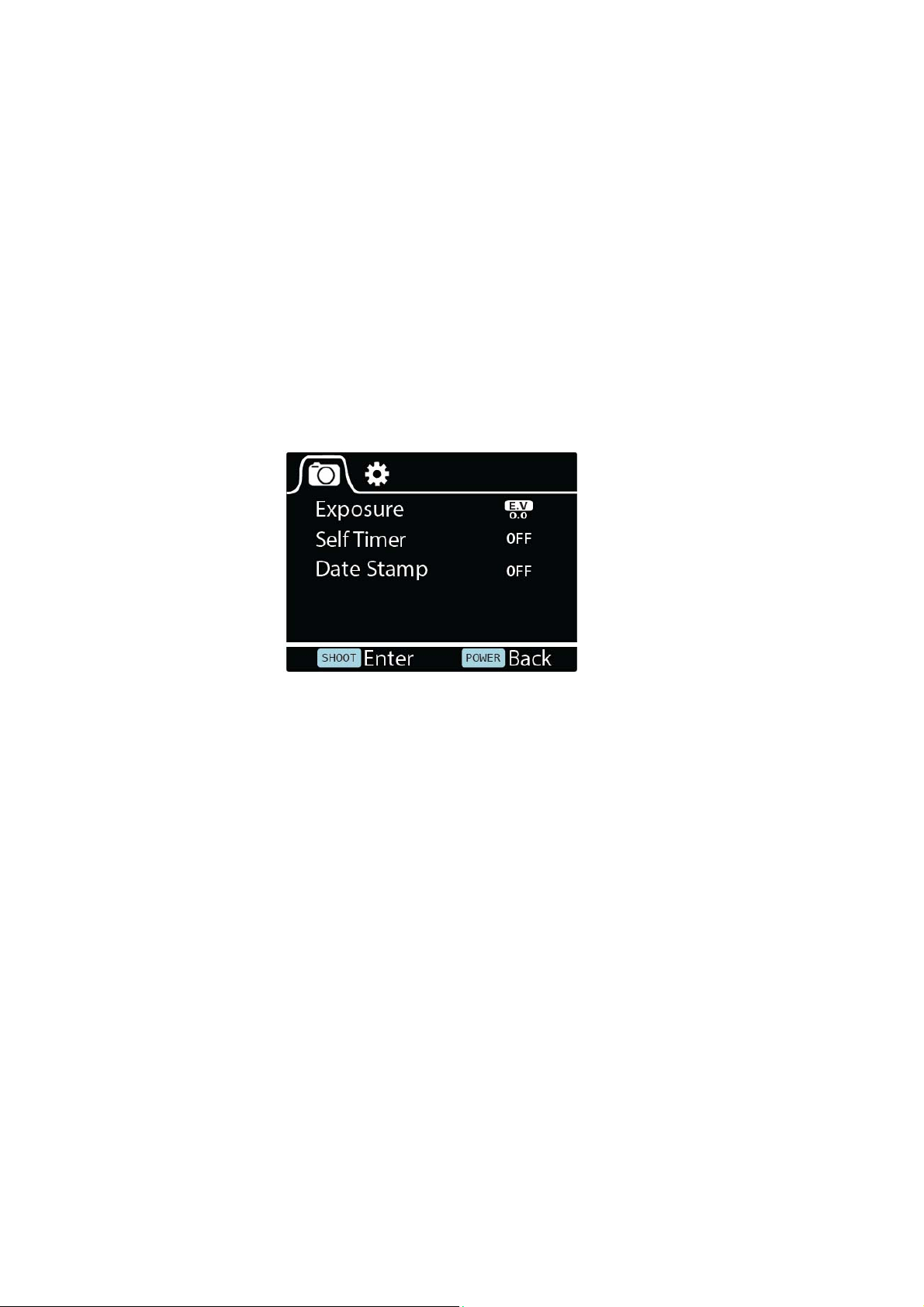

PictureSettingScreen2
Exposure
Thisallowsusertosetthelightexposurevalue.

Self‐timer
Thisallowsusertosetthetimerforautoimagecapture.

DateStamp
zOff:toturnoffdisplayingdatestamponcaptures

16
zDate:todisplaydateoncaptures
zDate&Time:todisplaydate&timeoncaptures

UsingYourRolleiActioncam410
Preparation
Chargingthebattery
BeforeusingtheRolleiActioncam410forthefirsttimeyoushouldfullycharge
thebattery.
Procedure:
1. ConnectRolleiActioncam410toacomputer(orotherUSBpowersource)
usingtheUSBcable(provided).
2.A:IftheCameraisonwhencharging,3redlightswillglowreduntilthe
batteryisfullycharged.
B:Onlyoneredlightwillglowredifthecameraisoffwhencharging.
3. Acompletelyflatbatterywilltakeabout5hourstobefullycharged.Thered
indicatorlightswillturnoffwhenthebatteryisfullycharged.

Whenthebatteryisnearlyrunningflat,somefunctionsofthecamerawillbe
notallowedtouse,suchasWififunction.

InserttheMicroSD*
zItisrecommendedtouseClass6(orhigher)MicroSDcardtoshootsmooth

17
videofiles.Lowerclasscardsmaycausethevideotobeblurryorjerky.

zThereisonlyonecorrectdirectiontoinserttheMicroSDcardintotheslot.
Donotforcethecardintothecardslot,asitmaydamageboththecamera
andthecard.

zItisrecommendedtoformatnewcardsofcardsthathavebeenpreviously
usedinothercameras.ToformattheMicroSDcard:
Note:Formattingthecardwillpermanentlydeletethecontents.

VideoRecording
Oncethecameraisturnedon,itgoestothevideocapturemodebydefault.
PressSHOOTbuttontostartrecording.Whentherecordingstarts,youwillsee
theredlightsstartflashing.Toendrecording,presstheSHOOTbuttonagain.

ImageCapturing
Totakesnapshot,youwillneedtoswitchthecamerafromvideomodetoimage
capturemode.Toenterthismode:
zTurnthecameraon
zPressandholdtheSHOOTbuttonfor3secs
zYouwillseeontopleftcornerofthescreen


18
PlaybackMode
Navigation:UseWi‐Fibuttontonavigate,SHOOTbuttontoEnter/Confirm
selection,POWERbuttontogoback.
Thiswillallowyoutowatchthecapturedvideos&images.EnterthePicture
modefirst,thenpressandholdtheSHOOTbuttonfor3secs.

Towatchacapturedvideo,gotoVIDEOandselectthefile.

Toviewacapturedimage,gotoIMAGE.

Toviewalooprecording,gotoLOOP

Todeletetheimage,selectthefileandPressPOWERbutton.Youwillseedelete
optionthere.Youcanselecttheoptiontodeleteasinglefileorallfiles.

ToexitPlaybackmodepressandholdtheSHOOTbuttontoreturntothe
normalrecordingmode.

ConnectingtoTV
YoucandisplaythecameraLCDscreenonaTVscreen.
Note:YouwillneedaMiniHDMItoHDMIcable.

zTurnthecameraon

19
zConnectMiniHDMIendtotheportoncameraandHDMIendtoHDMIport
ontheTV
zSelecttherightsourceontheTV
zTurnthecameraon

Wi‐FiSetup
TheRolleiActioncam410allowsfullcameracontrol,livepreviewingand
playbackofphotos/videosonmostSmartphonesandTablets.

1.DownloadtheApp“Rollei400/410”from“GooglePlay”orfromtheApple
“AppStore”.

Rollei400/410

2.ActivateWi‐FionyourRolleiActioncam410bypressingWi‐Fibutton.

3.GototheWi‐FisettingsonyourPhone,youwillseeWi‐Fi_CAM_000inthe
listofavailableWirelessnetworks.
Note:YoucanchangetheWi‐Finameinthemenusetting.

4.ConnectyourPhonetothe“Rollei400/410”viaWi‐Fi.

5.ThedefaultWi‐FiPasswordfortheRolleiActioncam410is:

20
1234567890
Note:YoucanchangetheWi‐Fipasswordinthemenusetting.

6.Opentheapp“Rollei400/410”
Important:BeforeconnectingcameraviaWi‐Fi,youneedtodownloadthe
“Rollei400/410”Apponyoursmartphoneortablet.

AppInterfaceDiagram(ForiPhone)

 


Note:Towatchtherecordedvideosonyourphone,youneedtodownload
themfirst.

SavingandViewingOptions
TransferringfilestoPC
TurntheRolleiActioncam410first,thenusetheUSBcablesupplied(J)to
Batter
y
IconVideoResolutionSettings
SwitchPhoto/Mode
Record
PlaybackMode

21
connectthecameratoyourcomputer.
ThecameraLCDwilldisplayMSDCiconandyourcomputerwillseeyourcamera
asanexternalstoragedevice.AlternativelyyoucanremovetheMicroSDcard
anduseacardreader(notincluded)toachievethesameresult.

1.Selectthefile(s)youwanttotransfertoyourcomputerbyhighlightingthem.
2.Eitherdragthefilestothedesiredplaceonyourcomputer(thiswillmakea
copyofthefileonyourcomputer)ORright‐clickthefile,select“Copy”and
right‐clickinthedesiredplaceinyourcomputerandselect“Paste”.
Note:Youcanalsotransferentirefoldersofpictures/videostoyourcomputer.

InstallingRolleiActioncam410intowaterproofcase

TheRolleiActioncam410isdesignedtobeusedinthewaterproofcase(C).
BeforeinsertingtheRolleiActioncam410inthecase,selectvideoorpicture
mode.

Notes:
zEnsurethecaseisdryandclean.
zInsertRolleiActioncam410,ensuringthelensfitsneatlyinthelenscavity.
zClosethesecuritylatch.
zTheRolleiActioncam410canbemountedusingtheaccessoriesprovided.


