Rollei Actioncam 400 User manual



 


RolleiActionCamera400

UserManual






3

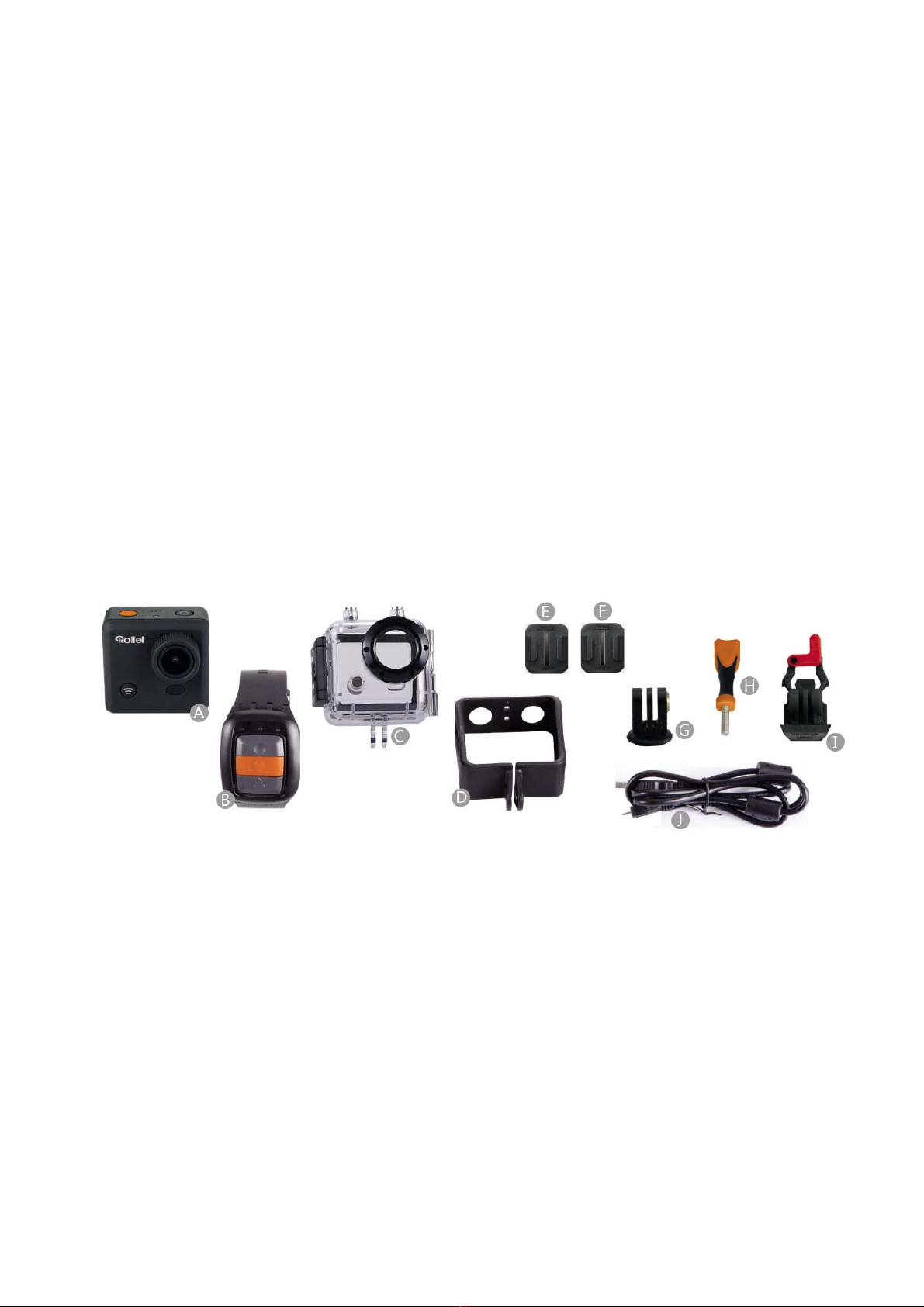

What’sinthebox
Pleaseensuretheproductpackagehasthefollowingcontents:

ARolleiActioncam400FFlatmount
BWristRemotecontrollerGTripod
CWaterproofcaseHLockBolt
DPortablecameraframeIQuickReleaseMount
ECurvedmountJUSBCable











4

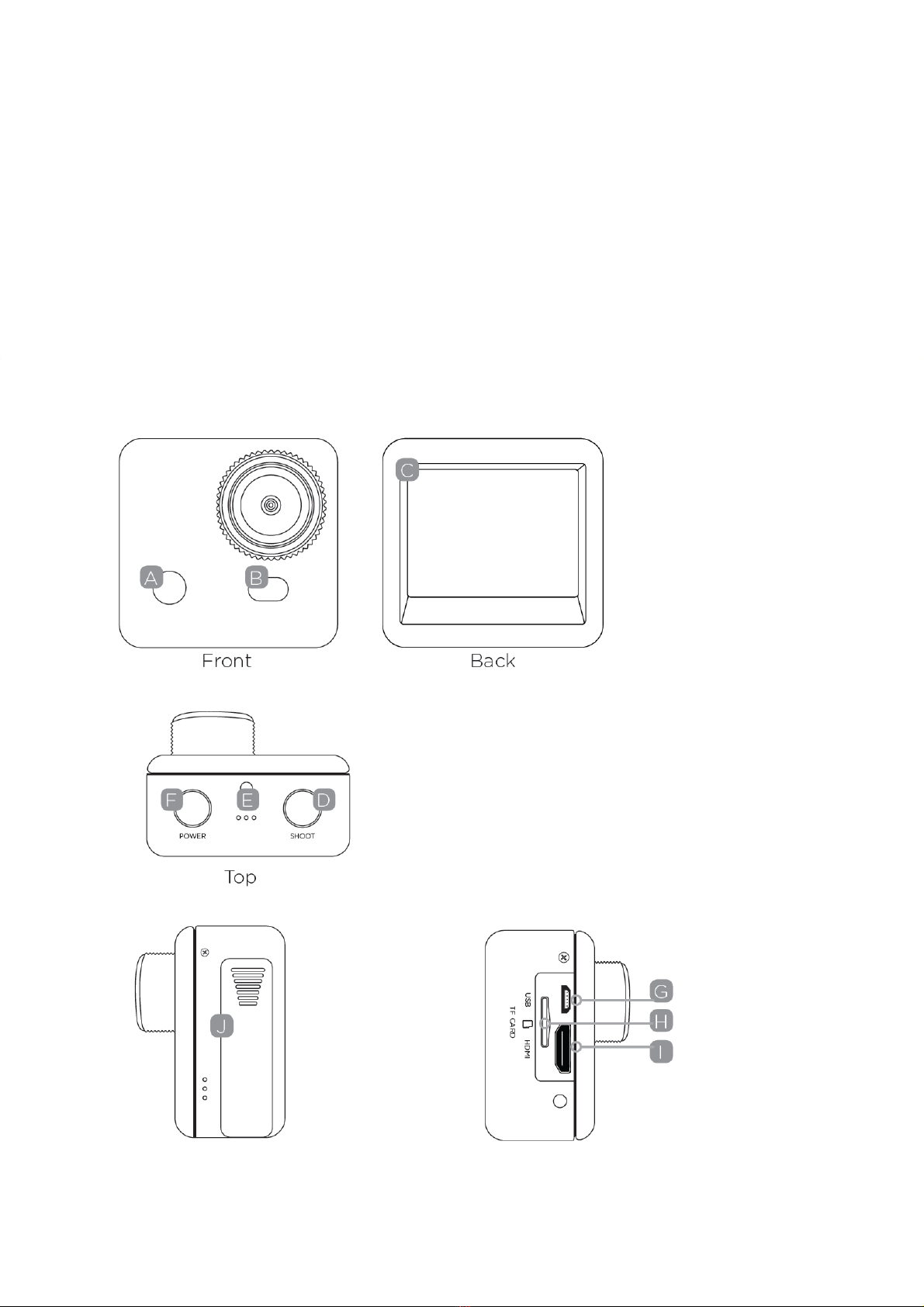

ProductDiagram
AWI‐FIActivation(Downselect)FPOWER(andmenu)
BLEDpowerindicatorGUSBinterface
CLCDscreenHMicroSDcardport
DSHOOT(menuselect)IMiniHDMIinterface
EMicrophoneJRemovableLi‐Battery


 
 
LeftSideRightSide

5

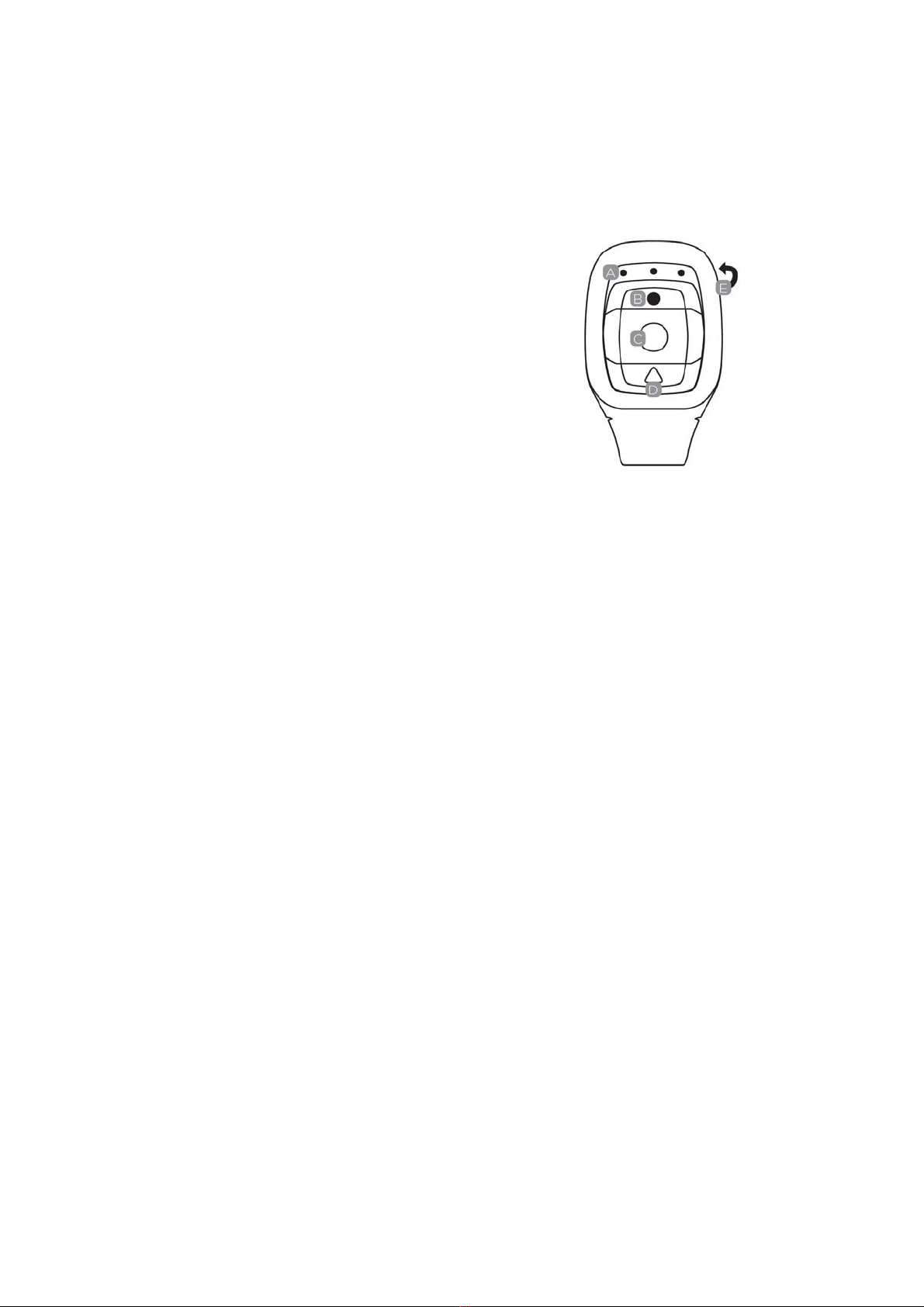

RemoteDiagram
Pleasenote:withtheremotecontrolleryoucannotturnthecameraon.Please
ensurethecameraisswitchedonbeforeusingtheremote.
ALEDIndicators
BShootPhoto
CRecordVideo
DPowerOff
EMicroUSBChargeportonthebackofremote

Pressandholdthe“Poweroff”buttonaround4sec.toturnthecameraoff.
Tousetheremote,pleasecodefirstbeforepoweronthecamera.
Codingprocedures:
1. Pressandholdthe“Picture”&“Video”keysoftheremoteatthesametime,
thenturnthecameraon;
2. Whenthecameraentersintotherealliveinterface,releasethe“Photo”&
“Video”keys;
3. Themiddleblueindicatorlightsup,thenthecodingisfinished.

Note:
zPleasekeepholdingthe“Photo”&“Video”keysduringcoding;
zOnlyneedtocodeonce,afterwordsthecamerawillrecognize
automatically;
zWi–Fifunction&remotecontrollercannotbeusedsimultaneously.

6
SetupYourRolleiActioncam400
Turnthecameraon‐pressandholdthePOWERbuttonforseveralseconds.

Whenthecameraison,theRolleilogowillappearonthescreenandthethree
redLEDlightswillglowred.Thecameraisnowinvideomode.

 



 

RedLED light
RedLED light
RedLED light

7
VideoMode
 
Videomodescreen

Oncethecameraisturnedon,itgoestothevideocapturemodebydefault.
PressSHOOTbuttontostartrecording.Whentherecordingstarts,youwillsee
theredlightsstartflashing.Toendrecording,presstheSHOOTbuttonagain.

ToentertheSettingsmenu,pressthePOWERbutton(pressandrelease
immediately‐ifitisheldtoolongthecamerawillswitchoff).

Note:TheSetupmenuisdependingontheactivemode.Ifthevideomodeis
active,itwilldisplayvideocapturesettingsorifthePicturemodeisactive,it
willdisplaytheImagecapturesettings.

Bydefault,videomodeistheactivemodewhenyouturnthedeviceon.


8

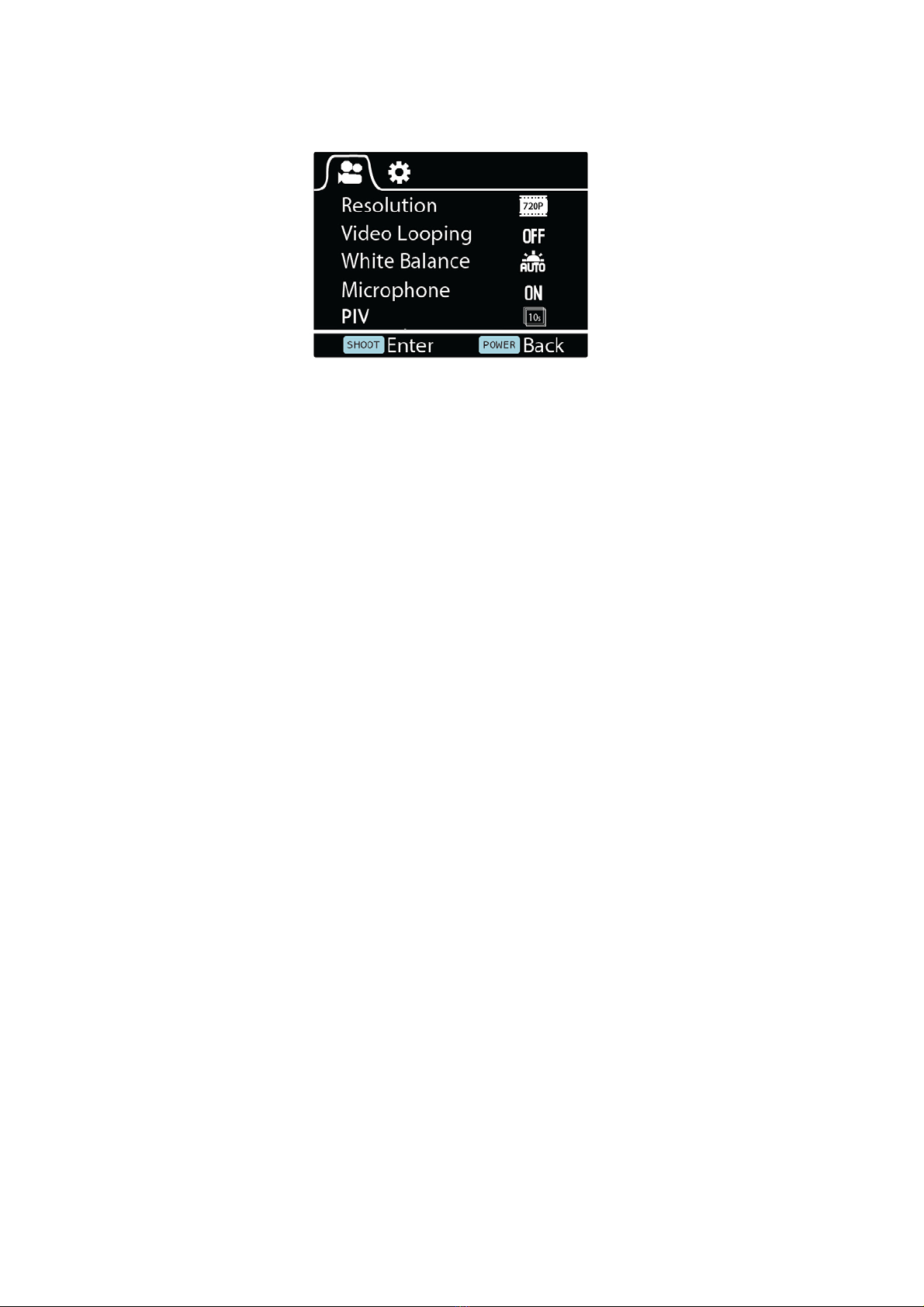

VideoSettings
 
VideoSettingsScreen(Page1)
ThisallowsusertoadjustVideoqualitysettings.
Navigation:UseWi‐Fibuttontonavigate,SHOOTbuttontoEnter/Confirm
selection,POWERbuttontogoback.

Resolution
Thisallowsusertosettherecordingvideoresolution:
z1080P30fps
z720P30fps
z720P60fps

VideoLooping
Thisallowsusertosetrecordduration
zOFF‐Inthismode,camerawillgeneratenewfileonevery30mins

9
z2Min‐Inthismode,camerawillgeneratenewfileonevery2mins
z5Min‐Inthismode,camerawillgeneratenewfileonevery5mins

WhiteBalance
FactorydefaultisAuto.IfyouswitchAutoOFF,remembertoadjustwhen
lightingconditionschange.
Followingpre‐setmodesarealsoavailable
Daylight,Cloudy,Tungsten,Fluor

Microphone
SELECTOutdoororCartorecordindifferentsceneswithbetteraudioeffect,
SELECTOFFforvideoonly.

PIV
Thiswillenableautoimagecaptureduringthevideorecording:
zOff‐DisableAutoImageCapture
z10Sec‐Autocaptureonevery10sec
z20Sec‐Autocaptureonevery20sec
z30Sec‐Autocaptureonevery30sec
z60Sec‐Autocaptureonevery60sec


10
 
VideoSettingsScreen(Page2)
DateStamp
zOff:toturnoffdisplayingdatestamponcaptures
zDate:todisplaydateoncaptures
zDate&Time:todisplaydate&timeoncaptures

GeneralSettings
 
GeneralSettingsScreen(Page1)


Thisallowsusertoadjustthegeneraldevicesettings
ToenterGeneralSettings,entertheSettingsmenufirstbypressingPOWER
button,thenpressandholdtheSHOOTbuttonfor3secs

11
Navigation:UseWi‐Fibuttontonavigate,SHOOTbuttontoEnter/Confirm
selection,POWERbuttontogoback.

AutoPowerOff
TosetAutoPowerofffunction

AutoLCDOff
ThiswilldetermineiftheLCDwillturnoffafter1min,3minor5min.Pressany
keytoturnthescreenon.
SelectOFFtokeepthescreenalwaysON.

ScreenRotation
Torotatethescreen.

Date&Time
Thisallowsusertoadjustthedate&time.
Note:UsetheWi‐Fibuttontochangethedateandtime,useSHOOTbuttonto
confirm.ThedateisenteredinYear/Month/Dayformat.Timeisbasedona
24hrclock.

12
Language
Toselectthedevicelanguage

 

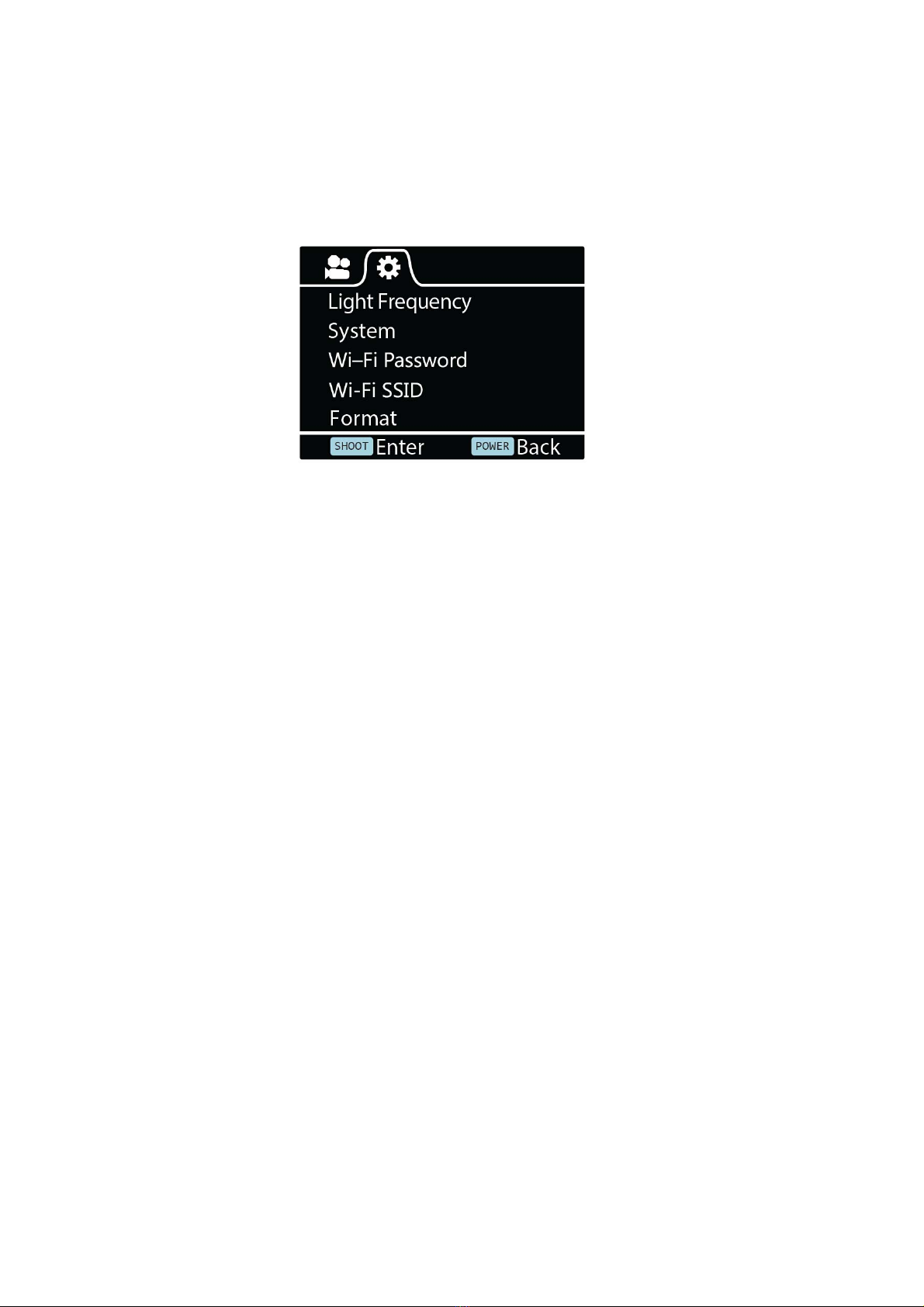

GeneralSettingScreen(Page2)
LightFrequency
Selectingthecorrectlightfrequencywillavoidthepossibilityforstrobing.

System
zFactoryReset;toresetthecameratofactorydefault.
zSystemInfo;tocheckthefirmwareversion
zCardInfo;toseetheSDcardinformation

Wi–FiPassword
SetupyournewWi–FiPassword.
Note:ThedefaultWi–FiPasswordis1234567890.
UsetheWi‐Fibuttontonavigate,useSHOOTbuttontoconfirm.

13
Wi‐FiSSID
SetupyournewWi‐Finame.
Note:UsetheWi‐Fibuttontonavigate,useSHOOTbuttontoconfirm.The
nameisenteredin“Wi‐Fi_CAM_000”format,youcanonlychangethelast
threenumberswhicharedisplayedwithcyclenumbers.

Format
Thisistoformatthecard.Choosingtoformatthecardwillpermanentlyerase
alldataonthecard.

PictureMode
Thismodewillallowuserstotakesnapshots
 
PictureModeScreen
Toactivatethismode:
zTurnthecameraon
zPressandholdtheSHOOTbuttonfor3secs.
zYouwillseeP()ontopleftcornerofthescreen

14
zPressSHOOTbuttontotakesnapshots


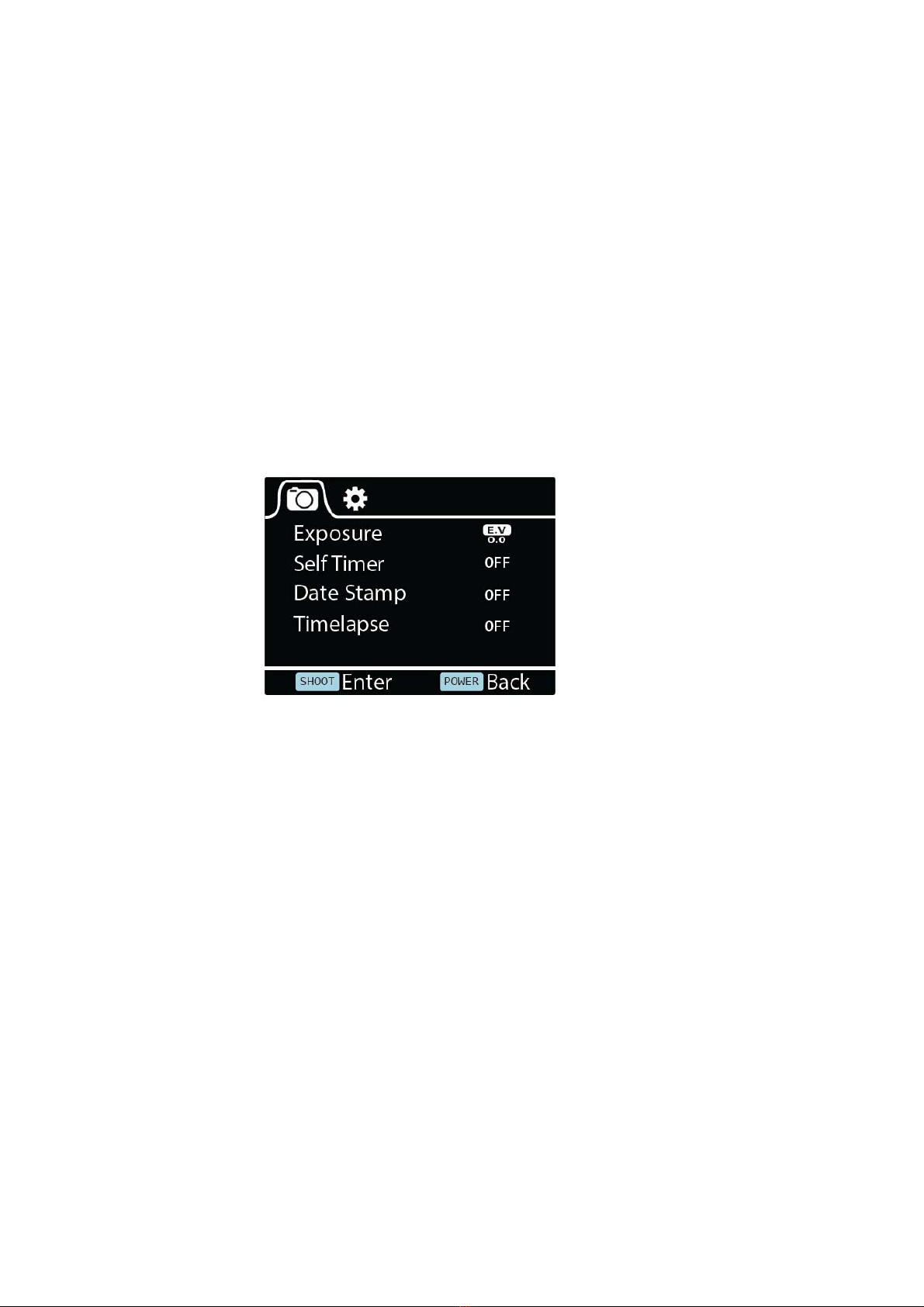

PictureSettings
 
PictureSettingScreen(Page1)

ToentertheSETUPmenuforPictureMode,pressPOWERbutton(pressand
releaseimmediately‐ifitisheldtoolongthecamerawillswitchoff).

Resolution
Toselecttheimageresolution.

Quality
Tosettheimagequality.

Metering
Meteringmodereferstothewayinwhichacameradeterminestheexposure.

15
WhiteBalance
FactorydefaultisAuto.IfyouswitchAutoOFF,remembertoadjustwhen
lightingconditionschange.

ISO
Thisisthemeasurementofhowsensitiveadigitalcamera’ssensoristolight.

 
PictureSettingScreen(Page2)

Exposure
Thisallowsusertosetthelightexposurevalue

SelfTimer
Thisallowsusertosetthetimerforautoimagecapture


16
DateStamp
zOff:toturnoffdisplayingdatestamponcaptures
zDate:todisplaydateoncaptures
zDate&Time:todisplaydate&timeoncaptures

Timelapse
Thisfeatureallowsyoutosettheintervals/frequencyatwhichaframeis
captured.YoucansetthetimeFrequencyhere.

UsingYourRolleiActioncam400
Preparation
Chargingthebattery
BeforeusingtheRolleiActioncam400forthefirsttimeyoushouldfullycharge
thebattery.
Procedure:
1. ConnectRolleiActioncam400toacomputer(orotherUSBpowersource)
usingtheUSBcable(provided).
2.A:IftheCameraisonwhencharging,3redlightswillglowreduntilthe
batteryisfullycharged.
B:Onlyoneredlightwillglowredifthecameraisoffwhencharging.
3. Acompletelyflatbatterywilltakeabout5hourstobefullycharged.Thered

17
indicatorlightswillturnoffwhenthebatteryisfullycharged.

Whenthebatteryisnearlyrunningflat,somefunctionsofthecamerawillbe
notallowedtouse,suchasWififunction.

InserttheMicroSD*
zItisrecommendedtouseClass6(orhigher)MicroSDcardtoshootsmooth
videofiles.Lowerclasscardsmaycausethevideotobeblurryorjerky.

zThereisonlyonecorrectdirectiontoinserttheMicroSDcardintotheslot.
Donotforcethecardintothecardslot,asitmaydamageboththecamera
andthecard.

zItisrecommendedtoformatnewcardsofcardsthathavebeenpreviously
usedinothercameras.ToformattheMicroSDcard:
Note:Formattingthecardwillpermanentlydeletethecontents.

VideoRecording
Oncethecameraisturnedon,itgoestothevideocapturemodebydefault.
PressSHOOTbuttontostartrecording.Whentherecordingstarts,youwillsee
theredlightsstartflashing.Toendrecording,presstheSHOOTbuttonagain.


18
ImageCapturing
Totakesnapshot,youwillneedtoswitchthecamerafromvideomodetoimage
capturemode.Toenterthismode:
zTurnthecameraon
zPressandholdtheSHOOTbuttonfor3secs
zYouwillseeontopleftcornerofthescreen

PlaybackMode
Navigation:UseWi‐Fibuttontonavigate,SHOOTbuttontoEnter/Confirm
selection,POWERbuttontogoback.
Thiswillallowyoutowatchthecapturedvideos&images.EnterthePicture
modefirst,thenpressandholdtheSHOOTbuttonfor3secs.

Towatchacapturedvideo,gotoVIDEOandselectthefile.

Toviewacapturedimage,gotoIMAGE.

Toviewalooprecording,gotoLOOP.

Todeletetheimage,selectthefileandPressPOWERbutton.Youwillseedelete
optionthere.Youcanselecttheoptiontodeleteasinglefileorallfiles.


19
ToexitPlaybackmodepressandholdtheSHOOTbuttontoreturntothe
normalrecordingmode.

ConnectingtoTV
YoucandisplaythecameraLCDscreenonaTVscreen.
Note:YouwillneedaMiniHDMItoHDMIcable.
zTurnthecameraon
zConnectMiniHDMIendtotheportoncameraandHDMIendtoHDMIport
ontheTV
zSelecttherightsourceontheTV
zTurnthecameraon

Wi‐FiSetup
TheRolleiActioncam400allowsfullcameracontrol,livepreviewingand
playbackofphotos/videosonmostSmartphonesandTablets.
1.DownloadtheApp“Rollei400/410”from“GooglePlay”orfromtheApple
“AppStore”.

Rollei400/410

2.ActivateWi‐FionyourRolleiActioncam400bypressingWi‐Fibutton.

20
3.GototheWi‐FisettingsonyourPhone,youwillseeWi‐Fi_CAM_000inthe
listofavailableWirelessnetworks.
Note:YoucanchangetheWi‐Finameinthemenusetting.

4.ConnectyourPhonetothe“Rollei400/410”viaWi‐Fi.

5.ThedefaultWi‐FiPasswordfortheRolleiActioncam400is:
1234567890
Note:YoucanchangetheWi‐Fipasswordinthemenusetting.

6.Opentheapp“Rollei400/410”
Important:BeforeconnectingcameraviaWi‐Fi,youneedtodownloadthe
‘Rollei400/410’Apponyoursmartphoneortablet.
AppInterfaceDiagram
 

Note:Towatchtherecordedvideosonyourphone,youneedtodownload
themfirst.
BatteryIconVideoResolution Settings
SwitchPhoto/Mode
Record
PlaybackMode

21
SavingandViewingOptions
TransferringfilestoPC
UsetheUSBcable(J)suppliedtoconnectthecameratoyourcomputer.
ThecameraLCDwilldisplayMSDCiconandyourcomputerwillseeyourcamera
asanexternalstoragedevice.AlternativelyyoucanremovetheMicroSDcard
anduseacardreader(notincluded)toachievethesameresult.

1.Selectthefile(s)youwanttotransfertoyourcomputerbyhighlightingthem.
2.Eitherdragthefilestothedesiredplaceonyourcomputer(thiswillmakea
copyofthefileonyourcomputer)ORright‐clickthefile,select“Copy”and
right‐clickinthedesiredplaceinyourcomputerandselect“Paste”.
Note:Youcanalsotransferentirefoldersofpictures/videostoyourcomputer.

UsingthecameraasaWebcam
ConnectthecameratoPCusingsuppliedUSBcable(J),whenyouseeMSDCon
thecameraLCDscreen,pressandholdtheSHOOTbuttonfor3secs.Thenyou
willseePCCAMonthecameraScreen.
Note:YouwillnotbeabletorecordwhenthecameraisonPCCAMmode.


