Roller Cycle CSG 350 Quick setup guide

INSTRUCTIONS FOR USE AND INSTALLATION
GAS CREPE MACHINES
CSG 350 / CSG 400 / CDG 350 / CDG 400
Made in France
April 2011

GAS CREPE MACHINES
CSG 350 / CSG 400 / CDG 350 / CDG 400
Congratulations for the acquisition of this upmarket appliance made in France. You
chose an appliance which alloys the best technical qualities with a big user-
friendliness. We wish you the biggest contentment
1. SECURITY INSTRUCTIONS
Please respect these instructions scrupulously to avoid any risk of fire, scald or other
wounds and damage. During the use of this appliance, fundamental circumspection of
security must always be noticed, such as:
-Take into account the instructions to be systematically kept with the appliance.
-Install the appliance always in instructions respect. A 10 cm distance minimum with
the partition or the wall is necessary.
-This appliance is marked out for outside use or inside use in a well ventilated room
or under a cooker hood
-Protect the appliance from direct light of the sun, frost and humidity.
-Never leave the appliance within the reach of children or disabled persons without
surveillance.
-Never move the appliance when it is working or when the surfaces of cooking are
still hot.
-Do not touch the hot surfaces of the appliance. The temperature of the hot surfaces
can be very important when the appliance is working. Always use handles and con-
trol knobs.
-Do not use the appliance for other functions than determined use.
-Do not leave the pipe or hose (purchased separately from a specialised shop) in
the contact of hot surfaces.
-The appliance should not be used close to combustible materials.
-During use, look after not to obstruct hearings of aeration of the appliance
-Do not bend or clip the pipe or hose
-Entrust compensations only to a skilled person.
-Use only spare parts of origin.
-At the end of cooking, before cleaning the appliance, do not forget to disconnect the
gas inlet.
2. CONTENTS OF CARDBOARD PACKAGING
Device: a crepe machine
Accessories: -A wooden crepe rake
-A set of natural gas injectors
-The present note
217

16
Nomenclature CDG 400
Spare parts CDG 400
Rep Code Qty Pièce Spare part
1B02050SE 2Disque émaillé diam 400 Enamelled cast iron plate 400
2E01016 2Brûleur Burner
368038 1Plateau disque Griddle plate
468039 1Ceinture Casing
568042 1Bandeau Control panel
6A13017 4Pied Foot
768040 1Fond socle Bottom casing
8A14077 2Bouton 9 HKnob 9 H
9E02212 2Piezo Piezo
10 E02016 2Injecteur GN (145) Injector GN (145)
E02019 2Injecteur BP (100) Injector BP (100)
11 68036 2Support brûleur Burner holder
12 E02219 1Rampe complète Main supply assembly
13 68034 1Renfort disque Plate holder
14 F05017 1Râteau en bois Wooden scraper

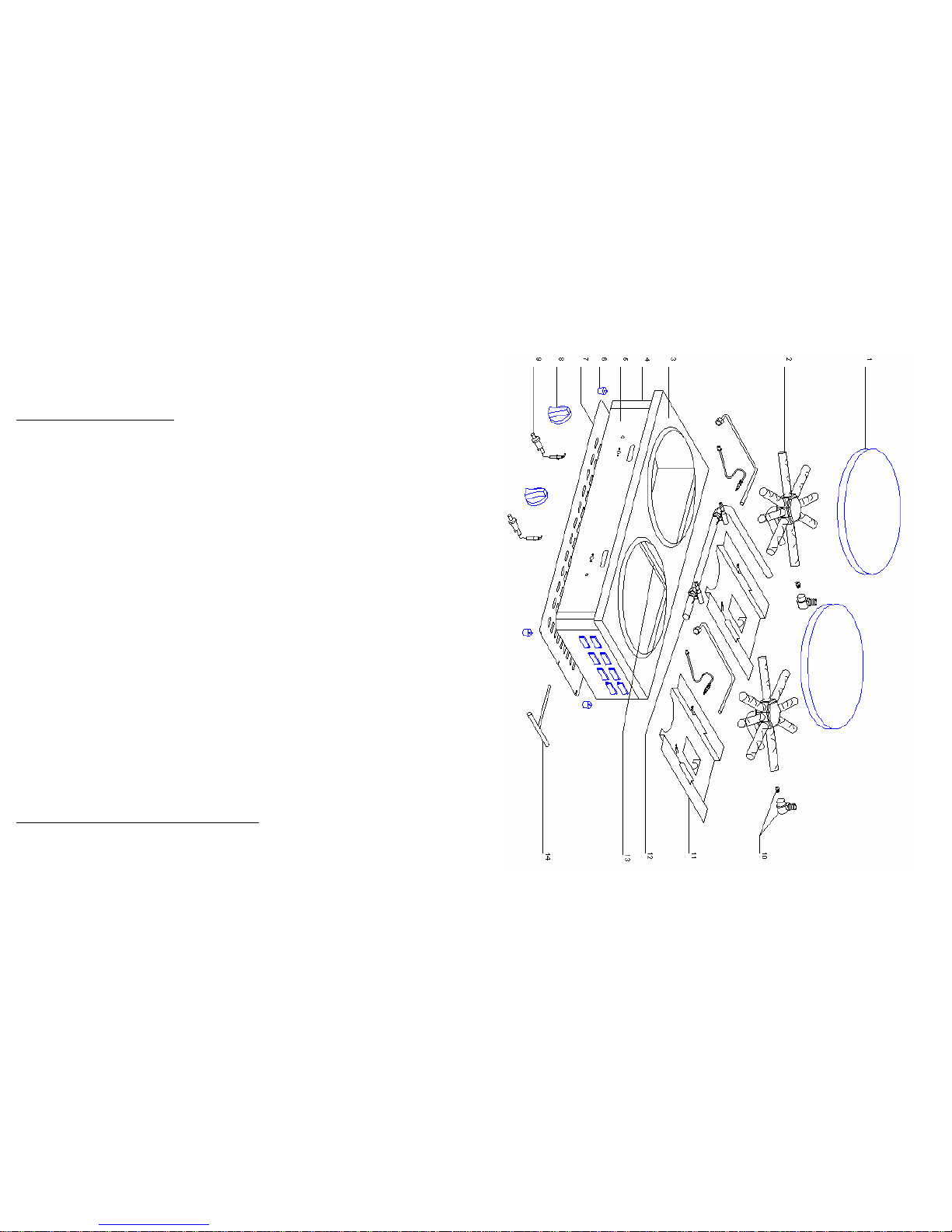

See exploded view for CSG 350/CSG 400/CDG 350/CDG 400 at the end of the do-
cument.
3. CONFORMITY OF USE
Use the device only to cook crepes, pancakes, buckwheat cakes...
4. WAY OF FUNCTIONING
This crepe machine is a strong cooktop in enamelled cast iron. The strong thickness
of the plate and its specific drawing ensure an excellent homogeneity and a stability
of the temperature. The plate’s smooth surface provides direct heat transfer to the
food being cooked, without heat loss at the centre as in the periphery thanks to star-
shaped burner that covers the entire cooking surface.

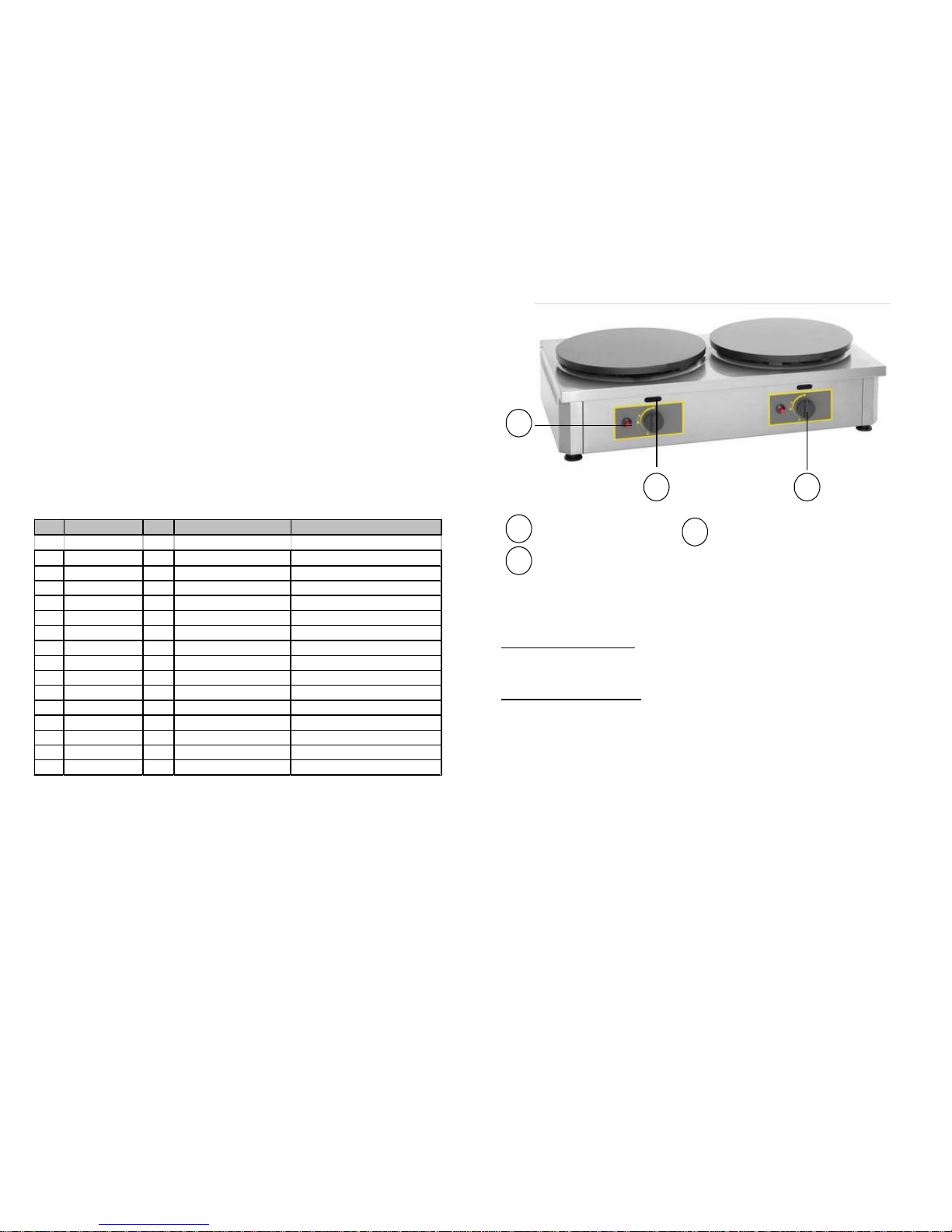

To turn on and preheat the plate, just switch on the burner by pressing on the power
control knob (n°3 on picture) opposite the star position for a few seconds and on the
piezo (n°1 on picture) several times if required.
If the piezo (n°1 on picture) no longer generates the required series of sparks, you
can use a gas lighter or a long matchstick by holding it near the oblong hole (n°2 on
picture) and keeping the knob pressed (n°3 on picture) facing the star position as
indicated above.
3
Piezo knob Opening for lighting with a matchstick
Power control knob
1
3
2
1
2 3

While cooking, the temperature can be regulated using the control knob (n°3 on pic-
ture) from high flame to low flame in order to avoid over-cooking.
A safety thermocouple cuts the gas supply if the burner is extinguished. The low flame
of the appliance is pre-adjusted in the factory, it must not be changed. This extinction
can mainly occur when there is a lot of wind. In this particular case, just repeat the
switching-on procedures described on previous page.
5. FUNCTIONING / HANDLING
a) Installation/Assembly:
-Unpack carefully the machine from its packaging.
-Place the device on a plane and heatproof surface.
-Never place the device near a wall or near a partition makes of combustible materials
even if it is very well isolated.
-A distance of minimum 10 cm with the partition or the wall is necessary.
b) First starting:
Before the first use, remove the anti-corrosion protection fat with a cleaner and a wet
sponge.
During the first use, grease your plate with oil and preheat the crepe machine during
about 15 min. Once preheating is finished, set the power on the wished temperature.
First cleaning
Clean the device before the first use. (See 6 Cleaning)
Gas connection
The appliances run on the following gases: Butane G30, Propane G31, Natural gas
G20/G25. The appliances are originally delivered with a Butane/Propane injector corre-
sponding to the category II2E+3+. The connection is made thanks to a thread 3/8.
The heat release rate of the appliance is CSG 350 / CSG 400 3.6 Kw
CDG 350 / CDG 400 7.2 Kw
415

14
Nomenclature CDG 350
Spare parts CDG 350
Rep Code Qty Pièce Spare part
1B02016+PERCAGE 2Disque émaillé diam 350 Enamelled cast iron plate 350
2E01016 2Brûleur Burner
368044 1Plateau disque Griddle plate
468039 1Ceinture Casing
568042 1Bandeau Control panel
6A13017 4Pied Foot
768040 1Fond socle Bottom casing
8A14077 2Bouton 9 HKnob 9 H
9E02212 2Piezo Piezo
10 E02016 2Injecteur GN (145) Injector GN (145)
E02019 2Injecteur BP (100) Injector BP (100)
11 68036 2Support brûleur Burner holder
12 E02219 1Rampe complète Main supply assembly
13 68034 1Renfort disque Plate holder
14 F05017 1Râteau en bois Wooden scraper
For a use in natural gas, change the injectors. They are delivered in a small plastic
bag placed in the package.
Connect the appliance to the gas supply pipe, interposing a stop valve which enables
the appliance to be insulated from the rest of the installation.
Check the supply pressure using a manometer when the burner is lit. It must be
equal to the indications on the rating plate.
The fresh air flow required for combustion air supply is:
-CSG 350 / CSG 400 7.2 m3/h
-CDG 350 / CDG 400 14.4 m3/h
General conditions of installation
The installation and maintenance of the appliance must be carried out in compliance
with the statutory texts and good practices in force, mainly:
General specifications
For all appliances:
Article GZ Installation with combustible gases and liquefied hydrocarbons.
Then, according to use:
Article CH Heating, ventilation, refrigeration
Air conditioning and domestic hot water steam generation.
Article GC Installation of appliances to be used for catering
Specific provisions for each type of establishment to which the public is admitted
(hospitals, shops, etc…)
Important: Never change the diameter of the injectors.
5

6
Gas category table, according to the country of destination of the appliance.
Injector N° Gas Pressures Diameter
Injector n°1 G30 / G31 Butane/Propane 28-30/37 100/100
Injector n°2 G30 / G31 Butane/Propane 50 90/100
Injector n°3 G20 / G25 Natural gas 20-25 145/100
Injector n°4 G25 Natural gas 25 145/100
Injector n°5 G25 Natural gas 20 150/100
Injector n°6 G31 Propane 50 90/100
Country of destination Category Gas Pressures Diameter of
injector
France/Luxembourg II2E+3+
II2E+3B/P
G20/G25
G30/G31
G20/G25
G30/G31
20/25
28-30/37
20/25
50
145
100
140
90
Germany II2E+3B/P G20 /G25
G30/G31 20 50 140 90
Austria II2H3B/P G20
G30/G31 20 50 140 90
Belgium I3+
I2E G30/G31 G20/G25 28-30/37 20/25 100 145
Sweden, Denmark,
Finland II2H3B/P G20 G30/G31 20 28-30/30 145 100
Spain II2H3+
II2H3P
G20
G30/G31
G20
G31
20
28-30/37
20
50
145
100
145
90
Netherlands II2L3B/P
II2L3P
G25
G30/G31
G25
G31
25
28-30/37
25
50
145
100
145
90
Norway I3B/P G30/G31 28-30/30 100
Iceland/Greece/United
Kingdom/Italy/Portugal II2H3+ G20 G30/G31 20 28-30/37 145 100
Poland II2E3P G20/25
G31 20 37
145
100
13

12
Nomenclature CSG 400
Spare parts CSG 400
Rep Code Qty Pièce Spare part
1B02050 1Disque émaillé diam 400 Enamelled cast iron plate 400
2E01016 1Brûleur Burner
368030 1Plateau disque Griddle plate
468031 1Ceinture Casing
568037 1Bandeau Control panel
6A13017 4Pied Foot
768032 1Fond socle Bottom casing
8A14077 1Bouton 9 HKnob 9 H
9E02212 1Piezo Piezo
10 E02016 1Injecteur GN (145) Injector GN (145)
E02019 1Injecteur BP (100) Injector BP (100)
11 E02220 1Rampe complète Main supply assembly
12 68036 1Support brûleur Burner holder
13 F05017 1Râteau en bois Wooden scraper
Air adjustment
Injectors were conceived to avoid any air adjustments and that whatever the gas you
use.
c) Use of device :
Elements of command and display
Switching-on
Press the power control knob (n°3 on picture) opposite the star position for a few
seconds.
Press on the piezo (n°1 on picture) to light the burner.
Keep the control knob (n°3 on picture) pressed for some more seconds.
The burner then remains lit and it is now possible to increase the power by turning
the power control knob (n°3 on picture).
Grease the plate before each cooking.
Temperature setting
Once the burner is lit; set the appliance to the desired power by turning the control
knob (n°3 on picture).
It is not necessary to leave the device switched on at full power. It is necessary
to adapt the temperature to products to be cooked to limit the gas consumption.
Stopping the appliance
Set each control knob (n°3 on picture) to 0: the appliance is completely switched-
off.
Close the butane or propane cartridge
Clean the appliance. (See 6. Cleaning)
Command/Display Function
Piezo
(n°1 on picture) Switches on the appliance (simultaneously with the set knob)
Set knob
(n°3 on picture) Switches on the appliance (knob pressed simultaneously with piezo)
Controls power (low flame = low power, high flame = high
power)
Opening
(n° 2 on picture) Can replace the piezo and thus helps to switch on the appliance using a large matchstick or a gas lighter (simultaneously with
the set knob kept pressed for a few seconds)
7
145
100
145
145

d) Breakdown / repair:
In case of breakdown or of damaged part, please call your after-sales service and
confide any technical operation to qualified person.
When you contact the after-sales service of your distributor or your store, give him
the complete reference of your device (commercial name, type and serial number).
This information appears on the visible descriptive plate behind the device.
6 CLEANING AND MAINTENANCE
Cut the gas supply.
-Let cool completely the device before any technical intervention or cleaning.
-Clean your crepe machine regularly after each use to avoid phenomenon of cala-
mine coming the cooking of the sugar and from some dough which accumulates very
quickly, and creates a film on the plate which harms in the quality of the cooking.
- For cleaning, only use non-abrasive products, clean regularly the external walls of
your device with warm water and wash liquid: avoid the abrasive towelling. Rinse
your device with a wet sponge. Dry it with a soft cloth
-Never clean the device under a water jet, the infiltrations would risk to damage it in
a irreparable way.
-During a prolonged non-use, we recommend you strongly to keep the device
shielded from the humidity and to grease the plate.
7. TECHNICAL SPECIFICATIONS
8
Model CSG 350
Outside dimen-
sions 450x500x240
Weight 16 Kg
Power 3600 W
No of burners 1
CSG 400
450x500x240
18.5 Kg
3600 W
1
CDG 350
860x500x240
32 Kg
7200 W
2
CDG 400
860x500x240
34 Kg
7200 W
2
11

10
Nomenclature CSG 350
Spare parts CSG 350
Rep Code Qty Pièce Spare part
1B02016+PERCAGE 1Disque émaillé diam 350 Enamelled cast iron plate 350
2E01016 1Brûleur Burner
368043 1Plateau disque Griddle plate
468031 1Ceinture Casing
568037 1Bandeau Control panel
6A13017 4Pied Foot
768032 1Fond socle Bottom casing
8A14077 1Bouton 9 HKnob 9 H
9E02212 1Piezo Piezo
10 E02016 1Injecteur GN (145) Injector GN (145)
E02019 1Injecteur BP (100) Injector BP (100)
11 E02220 1Rampe complète Main supply assembly
12 68036 1Support brûleur Burner holder
13 F05017 1Râteau en bois Wooden scraper
8. GUARANTEE
Conditions of guarantee
The guarantee applicable to any device is the commercial guarantee of the dis-
tributor or the retailer. Please contact the store where you bought your device to
know the precise conditions.
The guarantee grants no right for damages.
The dispositions which follow are not exclusive of the profit of the legal guarantee
planned by articles 1641 and following ones of the Civil code relative to the defects
and the latent defects.
Exclusion clauses of the guarantee
Bad installation and bad maintenance, in particular if they do not respect cur-
rent regulations or instructions appearing in this user guide.
Cannot benefit from the guarantee the repairs required as a result of false opera-
tions, of inappropriate use, of carelessness or of excess loads of the device, as
well as those resulting from variations of the power supply, over tension or from
defective installations.
The damage due to shocks, bad weather is not flatware by the guarantee. The ma-
terial travels at the risks of the user; in case of delivery by carrier, the consignee
has to have reservations towards the carrier before any delivery of the device.
The guarantee comes to an end in case of intervention, of repair, of modification by
no qualified persons, or of use in inappropriate purposes.
9
