Introduction

Congratulations on your purchase of this Hi-Fi Card reader.

Before operating the unit, please read this manual

thoroughly and retain it for future reference.

This Hi-Fi Card reader allows you to listen to MP3 music

with your home Hi-Fi or PC speakers directly from your

USB Flash drives or SD/MMC memory cards. This Hi-Fi

Card reader is compatible with USB 1.1/2.0 Flash drive, SD

memory cards and Multimedia Card with MP3 music.

Main Features

zPlay MP3 music with your Hi-Fi Stereo system or PC

speakers

zSimply insert a compatible USB Flash drive or memory

card into the card reader to play MP3 music

zCompatible Memory cards include USB 1.1 / 2.0 Flash

drive, Secure digital (SD) and Multimedia (MMC)cards

zDownload MP3 music from PC to SD/MMC card via

the USB port

Hi-FiCardReaderUser’sGuide&Manual

Precautions & Maintenance

zThe Card Reader is for indoor use only.

zPlease do not listen to music at extremely loud level,

Exposure to loud noise for a prolong period of time

may be hazardous to your health.

zTo reduce the risk of fire or electric shock, do not

expose this unit to rain or moisture.

zDo not block the ventilation holes on the back of the

Card Reader at any time.

zKeep your Card Reader out of sunlight.

zDo not open the case of the Card Reader. This is a risk

of electric shock.

zOpening the case will void your warranty.

zFor safety issue , please be careful for the Lithium

Battery on the remote control

RISK OF EXPLOSION IF BATTERY IS REPLACED

WITH AN INCORRECT TYPE.

Hi-FiCardReaderUser’sGuide&Manual

Getting Started

1. Power adapter

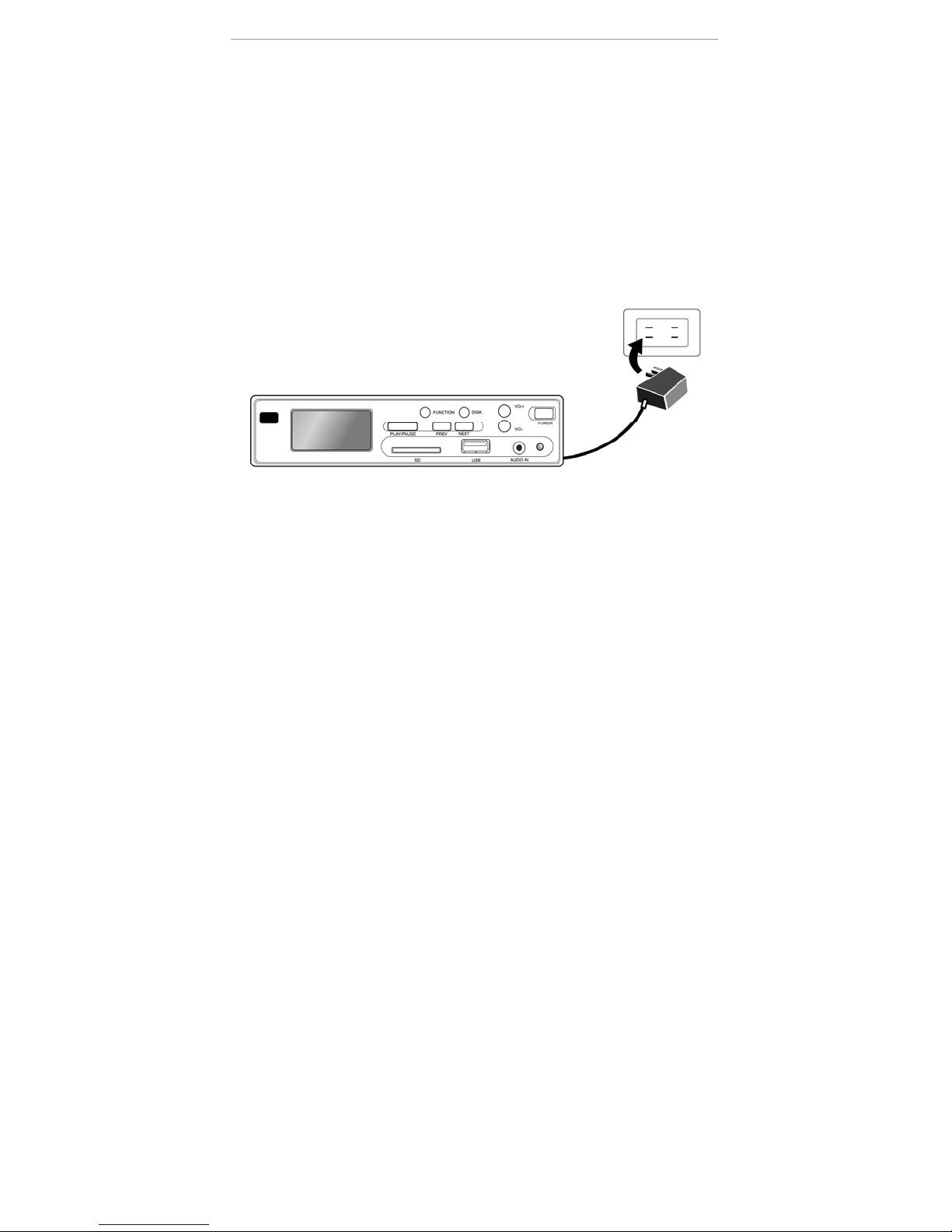

Plug the power adapter into an electrical outlet. Only

use the adapter that comes with the unit.

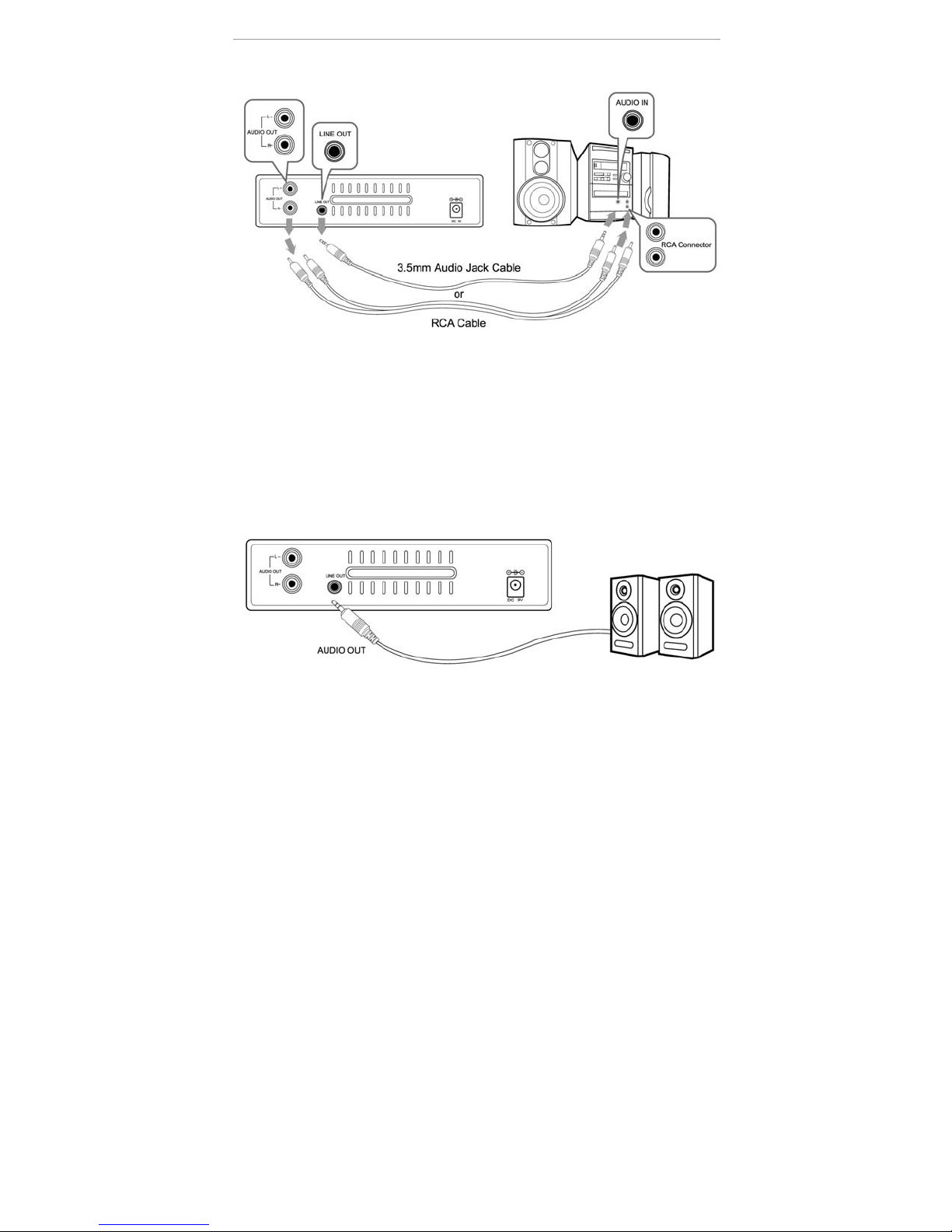

2. Hi-Fi connection

Use the supplied RCA cable to connect the card reader

to a Hi-Fi RCA jack. Alternatively you may also use the

3.5 mm audio jack cable to connect the card reader to

your Hi-Fi Audio-in jack

(Turn off both the card reader and the Hi-Fi before you

Hi-FiCardReaderUser’sGuide&Manual

proceed with the line connection).

3. Speaker connection

Connect speakers to the RCA jack or 3.5mm audio-out

jack on the back side of the Card Reader.

Hi-FiCardReaderUser’sGuide&Manual

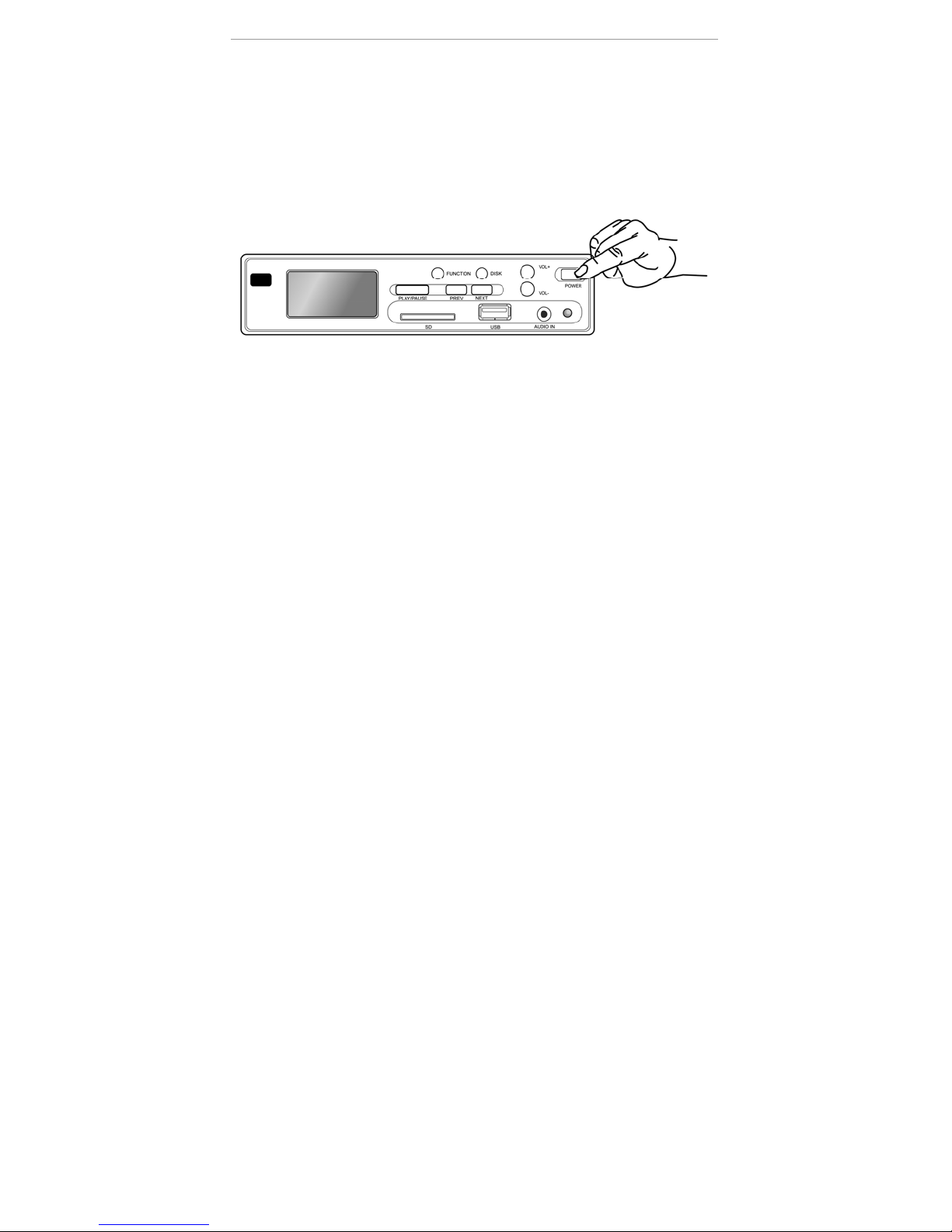

4. Power On

Turn on the Card Reader by pressing the power button

on the upper right corner.

5. Inserting Memory Cards

The Card Reader is compatible with the following

Memory cards:

zUSB Flash drive 1.1 or 2.0 standard

zSecure digital TM (SD) Card

zMultimedia TM( MMC) Card

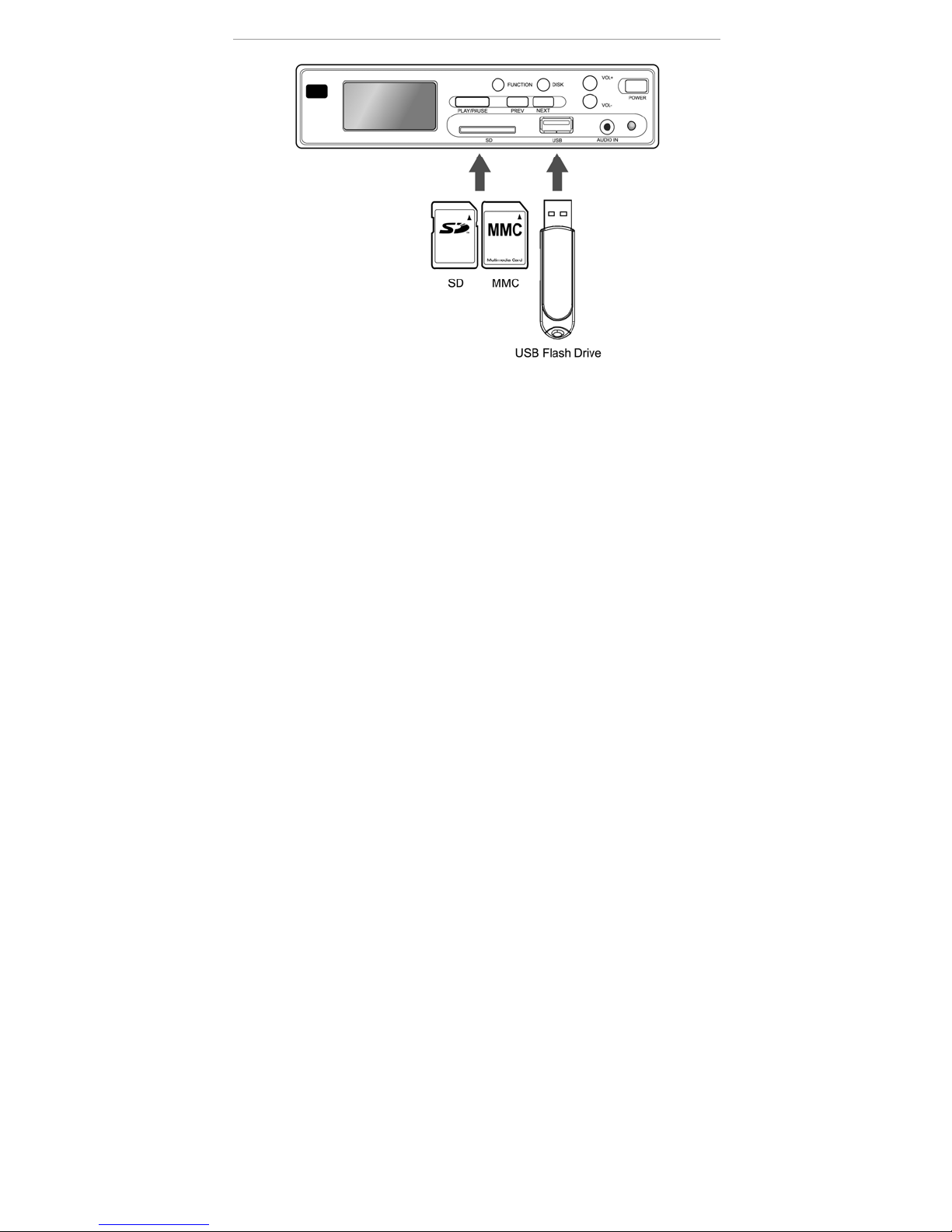

Insert the USB Flash drive and memory card with the

label facing top side.

Hi-FiCardReaderUser’sGuide&Manual

Note: The Card Reader will only recognize MP3 format

music files, digital music in other formats will be ignored

by the device.

Hi-FiCardReaderUser’sGuide&Manual

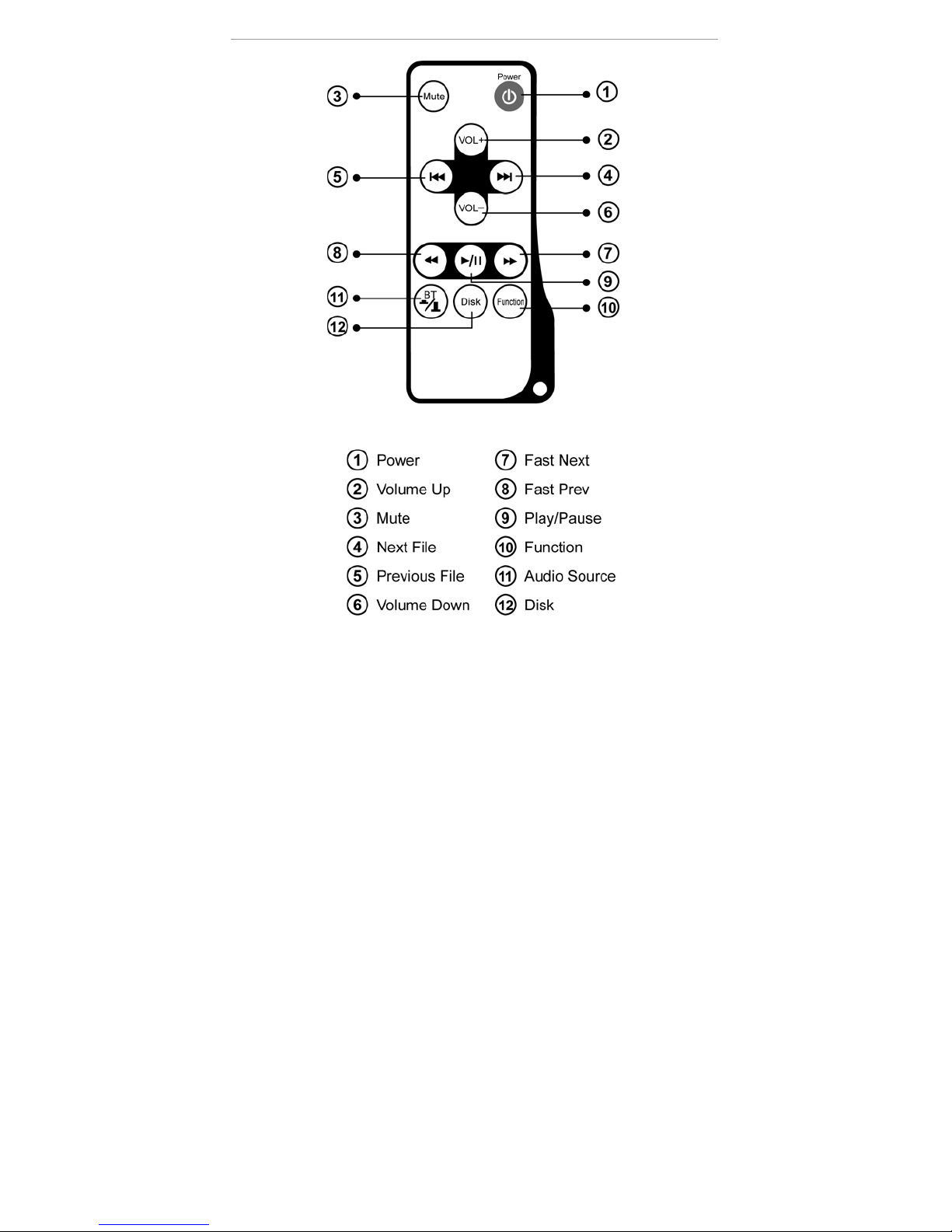

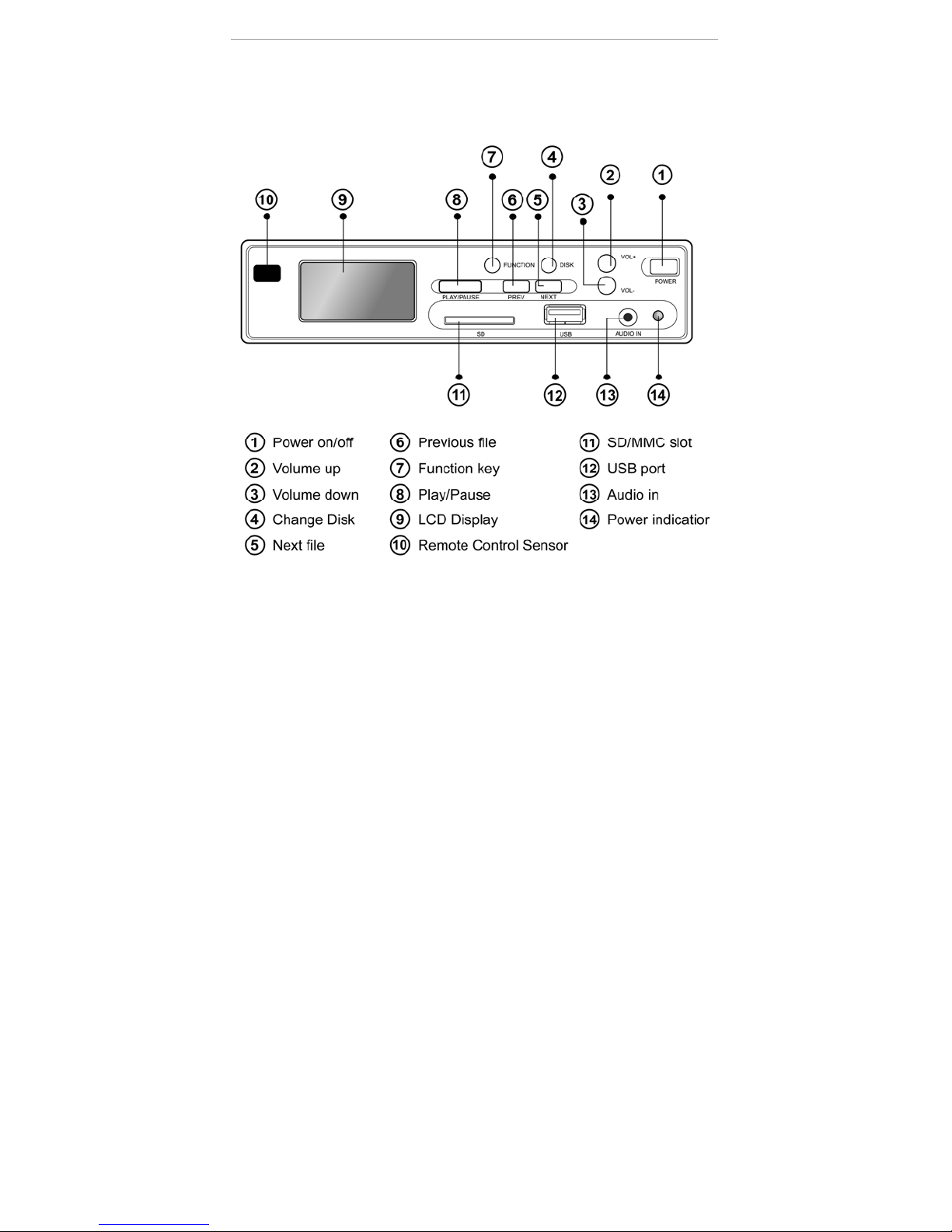

6. Location of Controls

Hi-FiCardReaderUser’sGuide&Manual

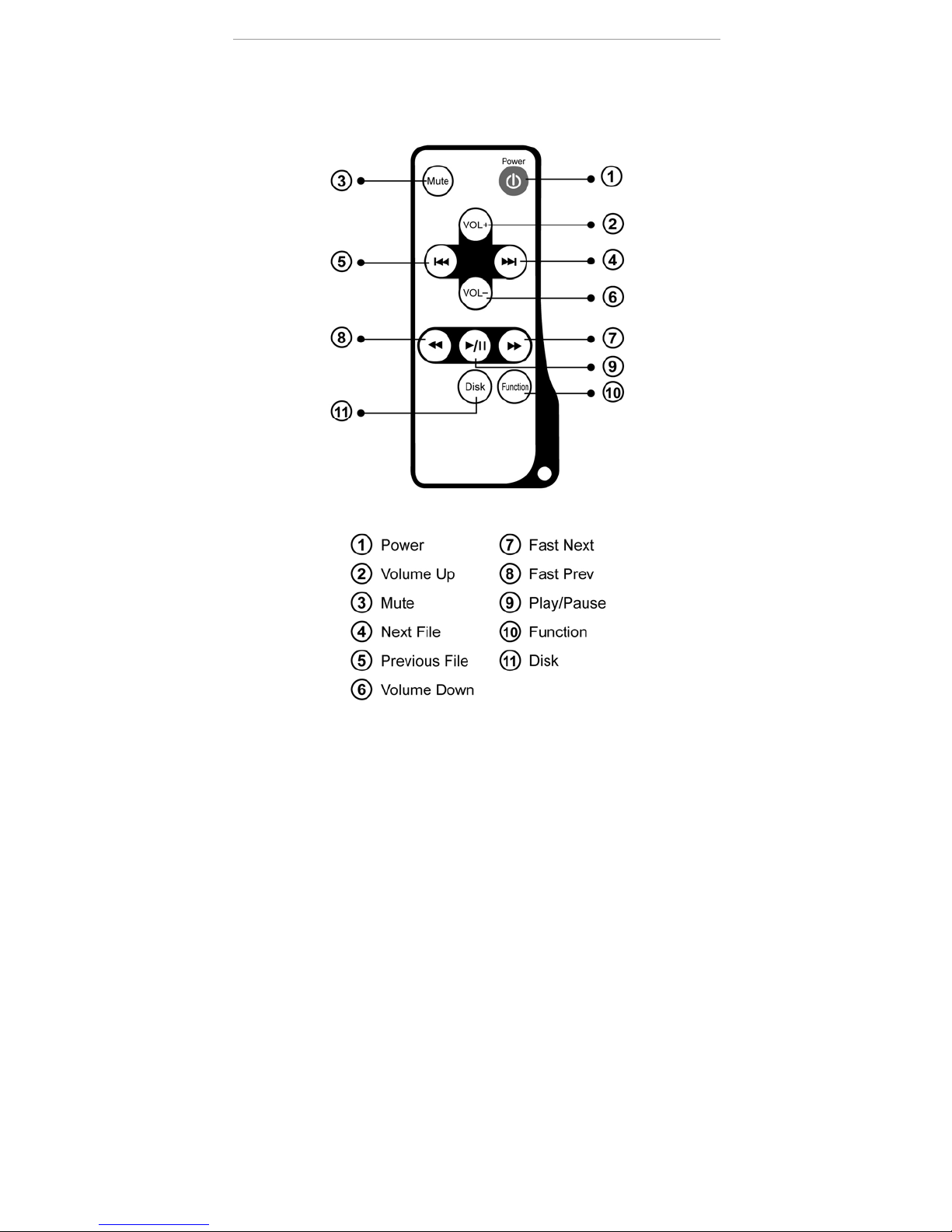

6.1 Remote Control

Hi-FiCardReaderUser’sGuide&Manual

7. Listening to MP3 music

Before you start, you must first store MP3 music files

onto a USB Flash drive or SD/MMC memory card.

7.1 Insert the memory media into the Card Reader.

7.2 Press the Play / Pause button on the remote

control or on the Card Reader front panel.

7.3 Adjust the volume by using the Volume +/-

buttons.

7.4 Track forward and backward by pressing the Prev

/ Next buttons.

7.5 Fast forward or fast rewind by pressing the Prev /

Next button for 2 seconds.

7.6 Press Disk button to alternate between storage

media (USB →SD/MMC or SD/MMC→USB)

7.7 Press Function button to enter advance setting

mode. Pressing the Function button will allow you to

switch between three modes:

1. Normal play mode (shown by the music symbol)

2. Repeat setting (shown by the circular symbol)

3. EQ setting (shown by EQ symbol)

Hi-FiCardReaderUser’sGuide&Manual

Adjusting the settings will not interfere with music

playing. When under Repeat or EQ setting, please

following the instructions below:

7.7.1 Repeat mode : press the Prev / Next button to

choose between RPT1 (repeat current file), RAND

(Random play), RPTAll (repeat all files)

7.7.2 EQ setting: press the Prev / Next button to

choose between Jazz, Rock, Bass, Normal, Classic

mode.

After you have finished the settings, please remember

to set the function back to Normal mode (indicated by

the music symbol), or else the Prev and Next button will

lose its functions.

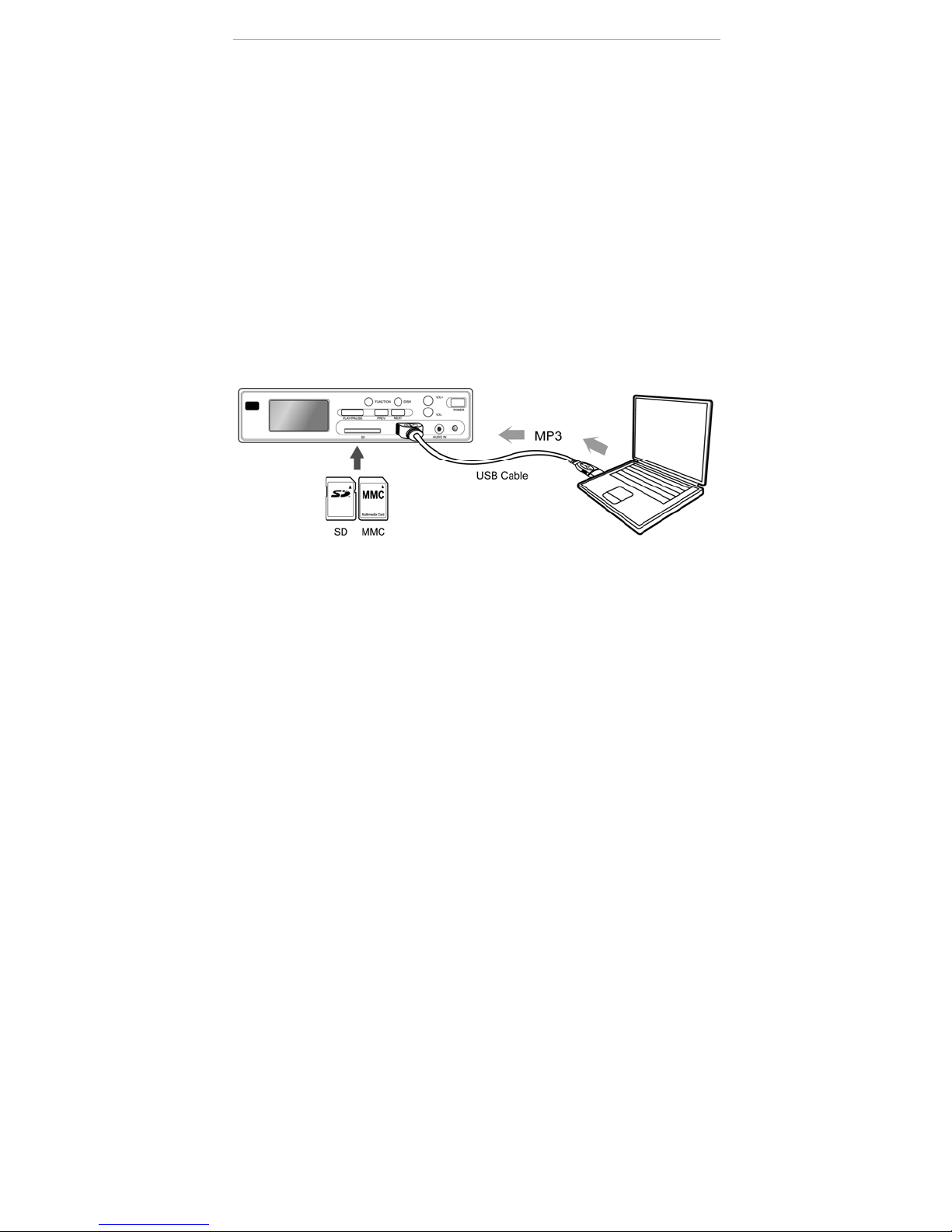

7.8 Download MP3 music from PC

7.8.1 Use the supplied USB cable to connect the Card

Reader to the Computer’s USB (1.1 or 2.) port.

7.8.2 Double click “My Computer” and you will be able

to see the drive icon representing the Card Reader

7.8.3 Insert a SD / MMC card into the SD/MMC slot.

7.8.4 Copy MP3 files from your PC to the SD/MMC

Hi-FiCardReaderUser’sGuide&Manual

memory card.

8. Audio Input

If you would like to utilize your home stereo speakers to

play the music on your portable MP3 music device,

using a 3.5mm audio line, simply connect the MP3

device to the audio-in jack on the lower-right corner of

the front panel. Music from audio-in will take

precedence over SD/MMC and USB music. If you

would like resume music from SD/MMC or USB, please

remove the 3.5mm audio line from the front panel audio

jack.

9. PC link and System requirements

If you would like to transfer music from your PC to the

SD within the Hi-Fi Card Reader, please strictly follow

these steps:

1. Power off the Hi-Fi Card Reader.

2. Insert SD/MMC card and use USB cable to connect

the PC and Hi-Fi Card Reader.

3. Power on the Hi-Fi Card Reader.

4. The LCD will display “PC” and your PC will also

Hi-FiCardReaderUser’sGuide&Manual

detect new hardware found which will be your SD

card drive. Now you are ready to transfer music

files.

5. After file transfer, please power off the Hi-Fi Card

Reader then remove the USB cable.

6. Power on the Hi-Fi Card Reader to start playing

music.

PC link is subject to the system requirements below:

OS: Windows 2000/XP or Mac OS 9 and higher

Interface: a available USB 1.1 or 2.0 port

10. Bluetooth Functionality (Optional)

Listen to music from your Bluetooth phone’s built-in

MP3 player over your home Hi-Fi system speakers (for

Hi-FiCardReaderUser’sGuide&Manual

phones that support streaming stereo music over

Bluetooth using A2DP profile). Play MP3s from your

home computer or laptop (equipped with Bluetooth) and

listen to them over your home Hi-Fi system speakers.

10.1System requirements

There are three types of devices that may connect via

Bluetooth to the Hi-Fi Card Reader:

1. PC with Bluetooth adapter supporting A2DP

profile

2. Bluetooth phone with A2DP profile

3. Bluetooth transmitter with A2DP profile

It is recommended to use Bluetooth Spec v1.2 or above

to achieve optimum sound quality.

10.2Pairing:

Upon power on, the Hi-Fi Card Reader is ready in

pairing mode. This will allow a compatible Bluetooth

Stereo device to search and pair with Hi-Fi Card Reader.

Bluetooth function will remain on until the Hi-Fi Card

Reader is powered off.

Bluetooth device name: BT Card Reader

Pin Code: 0000

Hi-FiCardReaderUser’sGuide&Manual

After pairing is complete, use the remote control to

toggle between Bluetooth audio and Card Reader

(USB/SD/MMC) audio (remote control button 11).

Hi-FiCardReaderUser’sGuide&Manual

10.3Connecting with Computer or Laptop

1. Power on the Hi-Fi Card Reader, as this will also

initiate the Bluetooth function. Make sure your

Computer/Laptop and the Hi-Fi Card Reader is

as close as possible.

2. Initiate Bluetooth software on your Computer and

follow the Bluetooth software’s instruction to pair

with another device. Search for device named

BT Card Reader.

3. Establish connection with the Card Reader

4. Open your music player and start playing music.

10.4Connecting with Bluetooth Phone

1. Power on the Hi-Fi Card Reader, as this will also

initiate the Bluetooth function.

2. Follow your Bluetooth phone’s instruction for

searching and pairing with another Bluetooth

device.

3. Establish connection with the Card Reader

4. Open the phone’s music player and start playing

music.

10.5Connecting with Bluetooth Audio Transmitter

1. Power on the Hi-Fi Card Reader, as this will also

Hi-FiCardReaderUser’sGuide&Manual

initiate the Bluetooth function. Make sure your

Bluetooth Audio Transmitter and the Hi-Fi Card

Reader is as close as possible and that no other

Bluetooth devices is within the area

2. Initiate pairing on your BluetoothAudio

Transmitter.

3. The LED indicators on your Bluetooth Audio

Transmitter will indicate a successful connection.

4. Plug the Audio Transmitter into a music source

and start playing music on your music source

Thank you for purchasing the Hi-Fi Card Reader.

FCC Caution:

1. This device complies with Part 15 of the FCC rules. Operation

is subject to the following two conditions:

a. This device may not cause harmful interference, and

b. This device must accept any interference received,

including interference that may cause undesired

operation.

Hi-FiCardReaderUser’sGuide&Manual

2. This device and its antenna(s) must not be co-located or

operating in conjunction with any other antenna or

transmitter.

3. Changes or modifications to this unit not expressly approved

by the party responsible for compliance could void the user

authority to operate the equipment.


