Rompa 17274 User manual

1. Product Name
Super Interactive Switch Box
2. Product Code
17274
3. Colour
As shown
4. Brief Description
This Super Interactive Switch Box controls the Maxi, Aquatic, Ball and Midi Bubble Tubes,
Bubble Wall and ROMPA® Waterless Rainbow Tube. Choose the colours and the flow of the
bubbles by pressing appropriate buttons.
5. Contents
•1 x Interactive Switch
6. Snoezelen® Stimulations
Sight

Sound
7. Best Use
Use indoors, connected to ROMPA Maxi and Midi bubble tubes.
8. Compatible ROMPA® Products
This Super Interactive Switch Box can be used with the Maxi, Aquatic, Ball and Midi Bubble
Tubes, Bubble Wall and ROMPA® Waterless Rainbow Tubes from ROMPA®. See
www.rompa.com to view the full selection of sizes and widths of different bubble tubes as
well as for switches.
9. Starting Up
Connect to Bubble Tube/Wall
Adjust settings on the underside of the Switch Box
10. Detailed Description
The controls on the underside of the Switch Box allow control over the speed of colour change as
well as when the bubbles are activated. For further interactivity, this switch box can be used with
different ROMPA® switches, giving the user nine different display variations. Note: When used
with a switch, the switch overrides the circular switching box provided. There is a feedback click
when the switches are pressed.
11. Safety
•Always supervise the use of this product.
•Install indoors in a dry environment.
12. Technical Specification
Size: 37cm Diameter X 12cmH
Material: Latex Free
Power: This switch draws power from the Bubble Tube/Wall and so does not require
batteries or connection to the mains.

13. Installation
1. Switch off the Bubble Tube completely. Connect the 5 Button Switch Box to the RJ45
socket in the base of the Bubble Tube (the socket to the right of the SPEED dial). The
protective cover will have to be removed first and stored in a safe place so it can be
replaced after use.
2. To select a coloured light press one of the four buttons (red, green, yellow, blue) on the
top. The selected colour will only be activated for a few seconds (the exact time depends
on how you have set the SPEED and DELAY buttons) before the cycle of colours resumes.
The selected colour will not remain indefinitely till another colour is selected using the
switch box. Experiment with the SPEED and DELAY buttons until you find a setting that
best suits your requirements. For example, set SPEED to a minimum to keep the colour
change as slow as possible.
3. To stop the bubbles press the central button on the top. Release the button to make the
bubbles start again. On the underside of the Switch Box there is a dial labelled BUBBLES
with two options –NORMALLY ON and NORMALLY OFF. Switch between these so that one
way the bubbles start if the central button is pressed and the other way the bubbles will
stop if the central button is pressed.
4. To adjust the speed of the light change/flash rate use the SPEED and DELAY buttons
underneath labelled COLOURS.
YOU CAN ADD AN EXTERNAL SWITCH (JACK) –When a ROMPA® switch is plugged into the
Jack Socket on the side of Push Button Switch Box, most other controls will be over-
ridden, i.e. Push Buttons, Colours etc.

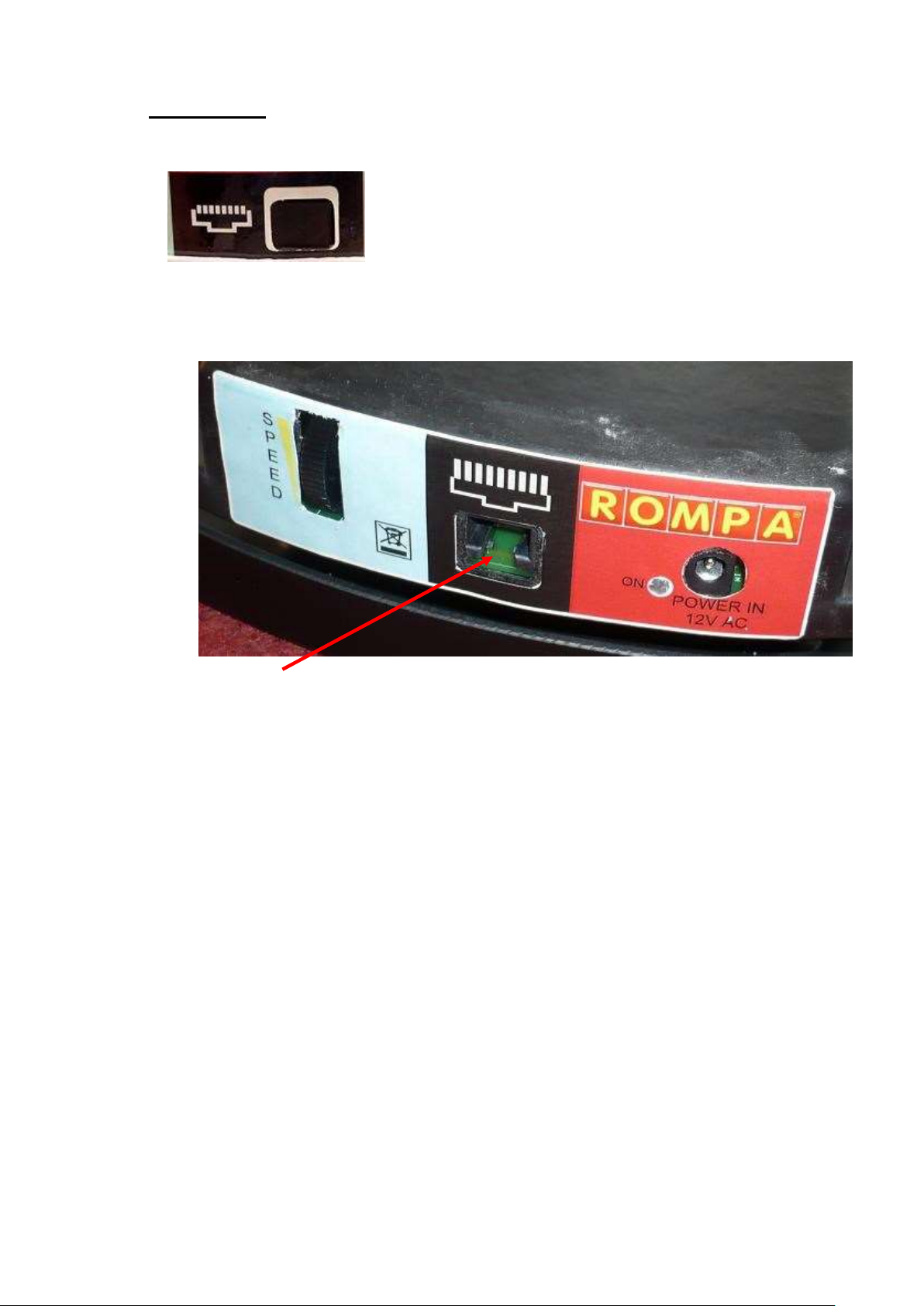

RJ45 socket

There are nine possible options when a ROMPA® switch is used. Use the dials on the
underside of the Super Interactive Switch Box:
1. With the left hand dial set to COLOURS and the right hand one to FLASH ON, then the
Bubbles will be on all of the time and the Lights will come on when the ROMPA® switch is
activated.
2. With the left hand dial set to BUBBLES and the right hand one to FLASH ON, then the
Lights will be on all of the time and the Bubbles will come on when the ROMPA® switch is
activated.
3. With the left hand dial set to COLOURS and the right hand one to FLASH OFF, then the
Bubbles and Lights will be on all of the time and the lights will stop when the ROMPA®
switch is activated.
4. With the left hand dial set to BUBBLES and the right hand one to FLASH OFF, then the
Bubbles and Lights will be on all of the time and the Bubbles will stop when the ROMPA®
switch is activated.
5. With the left hand dial set to COLOURS and the right hand one to HOLD, then the
Bubbles will be on all of the time and the Lights will start when the ROMPA® switch is
activated and will only stop when the ROMPA® switch is activated again.
6. With the left hand dial set to BUBBLES and the right hand one to HOLD, then the Lights
will be on all of the time and the Bubbles will start when the ROMPA® switch is activated
and will only stop when the ROMPA® switch is activated again.

7. With the left hand dial set to BOTH and the right hand one to FLASH ON, then the
Bubbles and Lights will be off and they will only come on when the ROMPA® switch is
activated.
8. With the left hand dial set to BOTH and the right hand one to FLASH OFF, then the
Bubbles and Lights will be on all of the time and the Lights and Bubbles will stop when the
ROMPA® switch is activated.
9. With the left hand dial set to BOTH and the right hand one to HOLD, then the Lights and
Bubbles will be on all of the time and both will stop when the ROMPA® switch is activated
and will only start when the ROMPA® switch is activated again.
14. Care and Maintenance
Wipe clean with a damp cloth.
Dry thoroughly immediately after wiping.
15. Troubleshooting
Not applicable.
Further copies of these instructions can be downloaded at www.rompa.com
We hope you find our instructions invaluable. If you have any suggestions for improving
them further your comments will be greatly received –please contact us at
[email protected]
SUPER INTERACTIVE SWITCH BOX 17274, July 2015
Copyright ROMPA® Ltd
