Ronde & Schwarz R&S FPL1014 User manual

R&S®FPL1000
Spectrum Analyzer
User Manual
1178337002
Version 11
(;ÜQÔ2)
Sie haben Fragen oder wünschen eine Beratung? Angebotsanfrage unter 07121 / 51 50 50 oder über [email protected]
Distributed by:

This manual applies to the following R&S®FPL1000 models with firmware version 1.80 and later:
●R&S®FPL1003 (1304.0004K03) - FPL1000 with maximum frequency 3 GHz
●R&S®FPL1007 (1304.0004K07) - FPL1000 with maximum frequency 7.5 GHz
●R&S®FPL1014 (1304.0004K14) - FPL1000 with maximum frequency 14 GHz
●R&S®FPL1026 (1304.0004K26) - FPL1000 with maximum frequency 26.5 GHz
In addition to the base unit, the following options are described:
●R&S FPL1-B4, OCXO (1323.1902.02)
●R&S FPL1-B5, Additional Interfaces (1323.1883.02)
●R&S FPL1-B9, Internal Generator (1323.1925Kxx)
●R&S FPL1-B10, GPIB interface (1323.1890.02)
●R&S FPL1-B11, YIG preselector bypass (1323.1619.02)
●R&S FPL1-B22, preamplifier (1323.1719.02)
●R&S FPL1-B25, electronic attenuator (1323.1990.02)
●R&S FPL1-B30, DC power supply (1323.1877.02)
●R&S FPL1-B31, Li-Ion battery pack and charger (1323.1725.02)
●R&S FPL1-K9, Power sensor support (1323.1754.02)
●R&S FPL1-K54, EMI measurements (1323.1783.02)
© 2021 Rohde & Schwarz GmbH & Co. KG
Mühldorfstr. 15, 81671 München, Germany
Phone: [phone] - 0
Email: [email protected]
Internet: www.rohde-schwarz.com
Subject to change – data without tolerance limits is not binding.
R&S® is a registered trademark of Rohde & Schwarz GmbH & Co. KG.
Trade names are trademarks of the owners.
1178.3370.02 | Version 11 | R&S®FPL1000
Throughout this manual, products from Rohde & Schwarz are indicated without the ® symbol , e.g. R&S®FPL1000 is indicated as
R&S FPL1000, R&S® FPL1-Bxx/-Kxx is indicated as R&S FPL1-Bxx/-Kxx.

Contents
R&S®FPL1000
3User Manual 1178.3370.02 ─ 11
Contents
1 Safety and Regulatory Information...................................................... 7
1.1 Safety Instructions........................................................................................................7
1.2 Labels on R&S FPL1000............................................................................................. 10
1.3 Korea Certification Class A........................................................................................ 11
2 Documentation Overview....................................................................12
2.1 Getting Started Manual...............................................................................................12
2.2 User Manuals and Help...............................................................................................12
2.3 Service Manual............................................................................................................ 12
2.4 Instrument Security Procedures................................................................................13
2.5 Printed Safety Instructions........................................................................................ 13
2.6 Data Sheets and Brochures....................................................................................... 13
2.7 Release Notes and Open Source Acknowledgment (OSA).....................................13
2.8 Application Notes, Application Cards, White Papers, etc.......................................13
2.9 Calibration Certificate.................................................................................................14
3 Welcome to the R&S FPL1000............................................................ 15
3.1 Key Features................................................................................................................15
4 Getting Started..................................................................................... 16
4.1 Preparing for Use........................................................................................................ 16
4.2 Instrument Tour........................................................................................................... 30
4.3 Trying Out the Instrument.......................................................................................... 42
4.4 Operating the Instrument........................................................................................... 60
5 Applications, Measurement Channels, and Result Displays........... 79
5.1 Available Applications................................................................................................ 79
5.2 R&S MultiView............................................................................................................. 81
5.3 Defining Channel Setups............................................................................................81
5.4 Running a Sequence of Measurements.................................................................... 83
5.5 Channel Setup Overview............................................................................................ 87
5.6 Configuring Result Displays...................................................................................... 88
6 The Spectrum Application (RF Measurements)................................ 94
6.1 Configuration Overview..............................................................................................94

Contents
R&S®FPL1000
4User Manual 1178.3370.02 ─ 11
6.2 Measurements and Results........................................................................................96
6.3 Receiving Data Input and Providing Data Output.................................................. 276
6.4 Frequency and Span Configuration........................................................................ 303
6.5 Amplitude and Vertical Axis Configuration............................................................ 310
6.6 Bandwidth, Filter and Sweep Configuration...........................................................319
6.7 Trigger and Gate Configuration............................................................................... 334
6.8 Adjusting Settings Automatically............................................................................346
6.9 Marker Usage.............................................................................................................348
6.10 Trace Configuration.................................................................................................. 390
6.11 Display and Limit Lines............................................................................................ 424
6.12 Zoomed Displays...................................................................................................... 443
6.13 Importing and Exporting Measurement Results for Evaluation........................... 450
6.14 Independent CW Source Settings........................................................................... 461
7 Data Management.............................................................................. 463
7.1 Restoring the Default Instrument Configuration (Preset)..................................... 463
7.2 Storing and Recalling Instrument Settings and Measurement Data.................... 464
7.3 Import/Export Functions.......................................................................................... 474
7.4 Creating Screenshots of Current Measurement Results and Settings................477
7.5 Working with Test Reports....................................................................................... 492
8 General Instrument Setup................................................................. 508
8.1 Reference Frequency................................................................................................508
8.2 Display Settings........................................................................................................ 509
8.3 Language Settings.................................................................................................... 519
8.4 System Configuration Settings................................................................................519
8.5 Service Functions..................................................................................................... 525
8.6 Toolbar Configuration...............................................................................................530
8.7 Transducers...............................................................................................................531
8.8 Alignment...................................................................................................................542
9 Network Operation and Remote Control..........................................548
9.1 Remote Control Interfaces and Protocols.............................................................. 548
9.2 Status Reporting System......................................................................................... 552
9.3 GPIB Languages....................................................................................................... 564

Contents
R&S®FPL1000
5User Manual 1178.3370.02 ─ 11
9.4 Network and Remote Control Settings................................................................... 566
9.5 How to Set Up a Network and Remote Control...................................................... 577
10 Remote Commands........................................................................... 599
10.1 Conventions Used in SCPI Command Descriptions..............................................599
10.2 Common Suffixes......................................................................................................600
10.3 Common Commands................................................................................................ 600
10.4 Commands for Remote Instrument Operation....................................................... 605
10.5 Selecting the Operating Mode and Application..................................................... 606
10.6 Configuring and Performing Measurements.......................................................... 614
10.7 Remote Commands for Result Displays.................................................................739
10.8 Setting Basic Spectrum RF Measurement Parameters......................................... 748
10.9 Managing Settings and Results...............................................................................910
10.10 Configuring the R&S FPL1000................................................................................. 951
10.11 Emulating Other Instruments' Commands............................................................. 974
10.12 Using the Status Register...................................................................................... 1007
10.13 Deprecated Commands.......................................................................................... 1019
11 Troubleshooting............................................................................... 1021
11.1 Error Information.....................................................................................................1021
11.2 Error Messages in Remote Control Mode.............................................................1022
11.3 Troubleshooting Remote Operation......................................................................1023
11.4 Miscellaneous Troubleshooting Hints.................................................................. 1024
11.5 System Recovery.................................................................................................... 1026
11.6 Collecting Information for Support........................................................................1026
11.7 Contacting Customer Support...............................................................................1028
12 Maintenance, Storage, Transport and Disposal............................ 1030
12.1 Cleaning................................................................................................................... 1030
12.2 Changing Fuses...................................................................................................... 1030
12.3 Handling Batteries.................................................................................................. 1031
12.4 Storage.....................................................................................................................1031
12.5 Transporting............................................................................................................ 1031

Contents
R&S®FPL1000
6User Manual 1178.3370.02 ─ 11
12.6 Disposal................................................................................................................... 1032
List of Commands (Spectrum mode)............................................. 1033
Index..................................................................................................1051

Safety and Regulatory Information
R&S®FPL1000
7User Manual 1178.3370.02 ─ 11
1 Safety and Regulatory Information
The product documentation helps you use the product safely and efficiently. Follow the
instructions provided here and in the following chapters.
Intended use
The product is intended for the development, production and verification of electronic
components and devices in industrial, administrative, and laboratory environments.
Use the product only for its designated purpose. Observe the operating conditions and
performance limits stated in the data sheet.
Where do I find safety information?
Safety information is part of the product documentation. It warns you of potential dan-
gers and gives instructions on how to prevent personal injury or damage caused by
dangerous situations. Safety information is provided as follows:
●In Chapter 1.1, "Safety Instructions", on page 7. The same information is provi-
ded in many languages as printed "Safety Instructions". The printed "Safety
Instructions" are delivered with the product.
●Throughout the documentation, safety instructions are provided when you need to
take care during setup or operation.
1.1 Safety Instructions
Products from the Rohde & Schwarz group of companies are manufactured according
to the highest technical standards. To use the products safely, follow the instructions
provided here and in the product documentation. Keep the product documentation
nearby and offer it to other users.
Use the product only for its intended use and within its performance limits. Intended
use and limits are described in the product documentation such as the data sheet,
manuals and the printed "Safety Instructions". If you are unsure about the appropriate
use, contact Rohde & Schwarz customer service.
Using the product requires specialists or specially trained personnel. These users also
need sound knowledge of at least one of the languages in which the user interfaces
and the product documentation are available.
Never open the casing of the product. Only service personnel authorized by
Rohde & Schwarz are allowed to repair the product. If any part of the product is dam-
aged or broken, stop using the product. Contact Rohde & Schwarz customer service at
http://www.customersupport.rohde-schwarz.com.
Lifting and carrying the product
The maximum weight of the product is provided in the data sheet. To move the product
safely, you can use lifting or transporting equipment such as lift trucks and forklifts. Fol-
low the instructions provided by the equipment manufacturer.
Safety Instructions

Safety and Regulatory Information
R&S®FPL1000
8User Manual 1178.3370.02 ─ 11
Choosing the operating site
Only use the product indoors. The product casing is not waterproof. Water that enters
can electrically connect the casing with live parts, which can lead to electric shock,
serious personal injury or death if you touch the casing. If Rohde & Schwarz provides
accessories designed for your product, e.g. a carrying bag, you can use the product
outdoors.
Unless otherwise specified, you can operate the product up to an altitude of 2000 m
above sea level. The product is suitable for pollution degree 2 environments where
nonconductive contamination can occur. For more information on environmental condi-
tions such as ambient temperature and humidity, see the data sheet.
Setting up the product
Always place the product on a stable, flat and level surface with the bottom of the prod-
uct facing down. If the product is designed for different positions, secure the product so
that it cannot fall over.
If the product has foldable feet, always fold the feet completely in or out to ensure sta-
bility. The feet can collapse if they are not folded out completely or if the product is
moved without lifting it. The foldable feet are designed to carry the weight of the prod-
uct, but not an extra load.

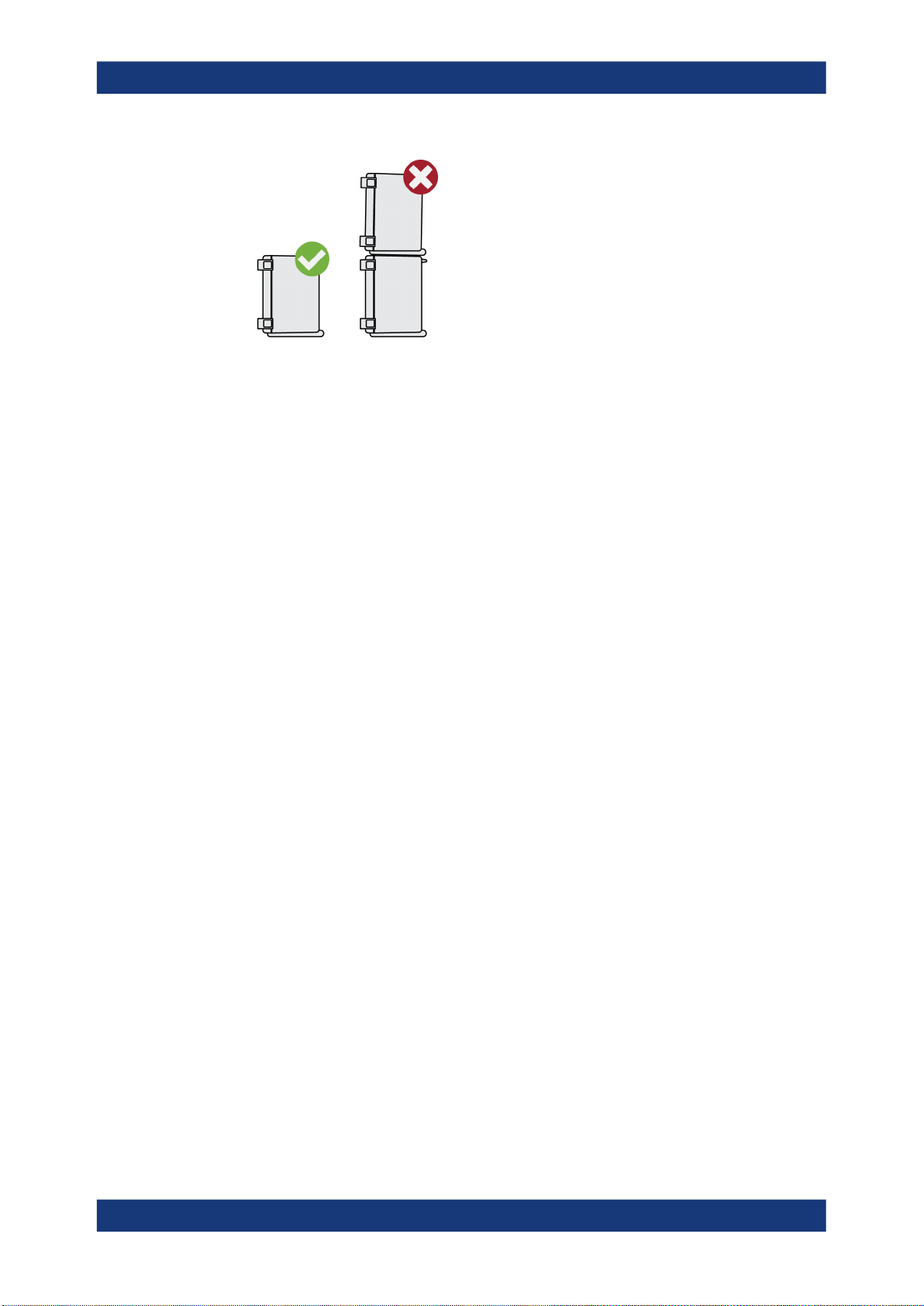

If stacking is possible, keep in mind that a stack of products can fall over and cause
injury.
If you mount products in a rack, ensure that the rack has sufficient load capacity and
stability. Observe the specifications of the rack manufacturer. Always install the prod-
ucts from the bottom shelf to the top shelf so that the rack stands securely. Secure the
product so that it cannot fall off the rack.
Connecting to power
The product is an overvoltage category II product. Connect the product to a fixed
installation used to supply energy-consuming equipment such as household applian-
ces and similar loads. Keep in mind that electrically powered products have risks, such
as electric shock, fire, personal injury or even death.
Take the following measures for your safety:
●Before switching on the product, ensure that the voltage and frequency indicated
on the product match the available power source. If the power adapter does not
adjust automatically, set the correct value and check the rating of the fuse.
●If a product has an exchangeable fuse, its type and characteristics are indicated
next to the fuse holder. Before changing the fuse, switch off the instrument and dis-
connect it from the power source. How to change the fuse is described in the prod-
uct documentation.
●Only use the power cable delivered with the product. It complies with country-spe-
cific safety requirements. Only insert the plug into an outlet with protective conduc-
tor terminal.
●Only use intact cables and route them carefully so that they cannot be damaged.
Check the power cables regularly to ensure that they are undamaged. Also ensure
that nobody can trip over loose cables.
Safety Instructions

Safety and Regulatory Information
R&S®FPL1000
9User Manual 1178.3370.02 ─ 11
●If the product needs an external power supply, use the power supply that is deliv-
ered with the product or that is recommended in the product documentation or a
power supply that conforms to the country-specific regulations.
●Only connect the product to a power source with a fuse protection of maximum
20 A.
●Ensure that you can disconnect the product from the power source at any time.
Pull the power plug to disconnect the product. The power plug must be easily
accessible. If the product is integrated into a system that does not meet these
requirements, provide an easily accessible circuit breaker at the system level.
Handling batteries safely
The product contains exchangeable or built-in lithium polymer or lithium ion cells or
batteries. The use of the word battery in the following always means all types. Only the
battery contents are potentially hazardous. As long as a battery is undamaged and the
seals remain intact, there is no danger.
Impact, shock or heat can cause damage such as dents, punctures and other deforma-
tions. A damaged battery poses a risk of personal injury. Handle a damaged or leaking
battery with extreme care. Immediately ventilate the area since the battery releases
harmful gases. If you come into contact with the battery fluid, immediately remove all
contaminated clothing. Irritation can occur if the battery fluid comes in contact with your
skin or eyes. Immediately and thoroughly rinse your skin or eyes with water and seek
medical aid.
For safe handling, follow these rules:
●Do not short-circuit the battery.
●Do not mechanically damage the battery. Do not open or disassemble the battery.
●Do not expose the battery to high temperatures such as open flames, hot surfaces
and sunlight.
●Only use the battery with the designated Rohde & Schwarz product.
●Only use the appropriate Rohde & Schwarz charger to charge the batteries. If the
batteries are improperly charged, there is a risk of explosion. For charging and dis-
charging temperature ranges, see the product documentation.
●Replace exchangeable batteries only with the same battery type.
●Store the battery in the product or use the product packaging.
●Dispose of exchangeable batteries separately from normal household waste as
specified by the local waste disposal agency.
If you disregard these rules, you risk serious personal injury or even death due to
explosion, fire or hazardous chemical substances. The product documentation pro-
vides further details.
If exchangeable batteries or products with built-in batteries are defective, contact the
Rohde & Schwarz customer service. Rohde & Schwarz classifies the severity of the
defect. When returning batteries or Rohde & Schwarz products containing batteries,
use a carrier qualified to transport dangerous goods and notify the carrier of this classi-
fication. Follow the carrier’s transport stipulations in line with IATA-DGR, IMDG-Code,
ADR or RID.
Safety Instructions

Safety and Regulatory Information
R&S®FPL1000
10User Manual 1178.3370.02 ─ 11
Connecting headphones
Take the following measures to prevent hearing damage. Before using headphones,
check the volume and reduce it if necessary. If you monitor varying signal levels, take
off the headphones and wait until the signal has settled. Then adjust the volume.
Cleaning the product
Use a dry, lint-free cloth to clean the product. When cleaning, keep in mind that the
casing is not waterproof. Do not use liquid cleaning agents.
Meaning of safety labels
Safety labels on the product warn against potential hazards.
Potential hazard
Read the product documentation to avoid personal injury or product damage.
Electrical hazard
Indicates live parts. Risk of electric shock, fire, personal injury or even death.
Hot surface
Do not touch. Risk of skin burns. Risk of fire.
Protective conductor terminal
Connect this terminal to a grounded external conductor or to protective ground. This connec-
tion protects you against electric shock if an electric problem occurs.
1.2 Labels on R&S FPL1000
Labels on the casing inform about:
●Personal safety, see "Meaning of safety labels" on page 10
●Product and environment safety, see Table 1-1
●Identification of the product, see Chapter 4.2.2.14, "Device ID", on page 42
Table 1-1: Labels regarding R&S
FPL1000 and environment safety
Labeling in line with EN 50419 for disposal of electrical and electronic equipment after the prod-
uct has come to the end of its service life. For more information, see the product user manual,
chapter "Disposal".
Labeling in line with directive 2006/66/EC for disposal of batteries after they have come to the
end of their service life. For more information, see the R&S FPL1000 user manual, chapter
"Disposal".
Labels on R&S FPL1000

Safety and Regulatory Information
R&S®FPL1000
11User Manual 1178.3370.02 ─ 11
1.3 Korea Certification Class A
이 기기는 업무용(A급) 전자파 적합기기로서 판매자 또는 사용자는 이 점을 주의하시기
바라며, 가정외의 지역에서 사용하는 것을 목적으로 합니다.
Korea Certification Class A

Documentation Overview
R&S®FPL1000
12User Manual 1178.3370.02 ─ 11
2 Documentation Overview
This section provides an overview of the R&S FPL1000 user documentation. Unless
specified otherwise, you find the documents on the R&S FPL1000 product page at:
www.rohde-schwarz.com/manual/FPL1000
2.1 Getting Started Manual
Introduces the R&S FPL1000 and describes how to set up and start working with the
product. Includes basic operations, typical measurement examples, and general infor-
mation, e.g. safety instructions, etc.
A printed version is delivered with the instrument. A PDF version is available for down-
load on the Internet.
2.2 User Manuals and Help
Separate user manuals are provided for the base unit and the firmware applications:
●Base unit manual
Contains the description of all instrument modes and functions. It also provides an
introduction to remote control, a complete description of the remote control com-
mands with programming examples, and information on maintenance, instrument
interfaces and error messages. Includes the contents of the getting started manual.
●Firmware application manual
Contains the description of the specific functions of a firmware application, includ-
ing remote control commands. Basic information on operating the R&S FPL1000 is
not included.
The contents of the user manuals are available as help in the R&S FPL1000. The help
offers quick, context-sensitive access to the complete information for the base unit and
the firmware applications.
All user manuals are also available for download or for immediate display on the Inter-
net.
2.3 Service Manual
Describes the performance test for checking the rated specifications, module replace-
ment and repair, firmware update, troubleshooting and fault elimination, and contains
mechanical drawings and spare part lists.
The service manual is available for registered users on the global Rohde & Schwarz
information system (GLORIS):
Service Manual

Documentation Overview
R&S®FPL1000
13User Manual 1178.3370.02 ─ 11
https://gloris.rohde-schwarz.com
2.4 Instrument Security Procedures
Deals with security issues when working with the R&S FPL1000 in secure areas. It is
available for download on the Internet.
2.5 Printed Safety Instructions
Provides safety information in many languages. The printed document is delivered with
the product.
2.6 Data Sheets and Brochures
The data sheet contains the technical specifications of the R&S FPL1000. It also lists
the firmware applications and their order numbers, and optional accessories.
The brochure provides an overview of the instrument and deals with the specific char-
acteristics.
See www.rohde-schwarz.com/brochure-datasheet/FPL1000
2.7 Release Notes and Open Source Acknowledgment
(OSA)
The release notes list new features, improvements and known issues of the current
firmware version, and describe the firmware installation.
The open-source acknowledgment document provides verbatim license texts of the
used open source software.
See www.rohde-schwarz.com/firmware/FPL1000
2.8 Application Notes, Application Cards, White Papers,
etc.
These documents deal with special applications or background information on particu-
lar topics.
See www.rohde-schwarz.com/application/FPL1000
Application Notes, Application Cards, White Papers, etc.

Documentation Overview
R&S®FPL1000
14User Manual 1178.3370.02 ─ 11
2.9 Calibration Certificate
The document is available on https://gloris.rohde-schwarz.com/calcert. You need the
device ID of your instrument, which you can find on a label on the rear panel.
Calibration Certificate

Welcome to the R&S FPL1000
R&S®FPL1000
15User Manual 1178.3370.02 ─ 11
3 Welcome to the R&S FPL1000
The R&S FPL1000 is a Rohde & Schwarz signal and spectrum analyzer developed to
meet demanding customer requirements. Offering low phase noise, wide analysis
bandwidth and straightforward and intuitive operation, the analyzer makes measure-
ments fast and easy.
This user manual contains a description of the functionality that the instrument pro-
vides, including remote control operation. The latest version is available for download
at the product homepage (http://www.rohde-schwarz.com/product/FPL1000).
3.1 Key Features
The R&S FPL1000 sets standards in RF performance and usability. Outstanding key
features are:
One instrument for multiple applications
●Spectrum analysis
●Signal analysis of analog and digitally modulated signals
●Power measurements with power sensors
●Noise figure and gain measurements
Solid RF performance
●Low spurious response
●Low displayed average noise level (DANL)
●40 MHz signal analysis bandwidth
●Low level measurement uncertainty
●Precise spectral measurements due to low phase noise
Intuitive user interface
●High-resolution display
●Multipoint touchscreen
●Flexible arrangement of results and MultiView
●Toolbar
●Quiet operation
Fully portable
●Battery pack and 12 V/24 V power supply
●Carrying bag and shoulder harness
●Low power consumption
Key Features

Getting Started
R&S®FPL1000
16User Manual 1178.3370.02 ─ 11
4 Getting Started
Note: the following chapters are identical to those in the printed R&S FPL1000 Getting
Started manual.
4.1 Preparing for Use
Here, you can find basic information about setting up the product for the first time.
●Lifting and Carrying.................................................................................................16
●Unpacking and Checking........................................................................................ 16
●Choosing the Operating Site...................................................................................17
●Setting Up the R&S FPL1000................................................................................. 17
●Connecting to Power...............................................................................................19
●Switching On or Off.................................................................................................22
●Connecting to LAN..................................................................................................23
●Connecting a Keyboard...........................................................................................24
●Connecting an External Monitor..............................................................................24
●Windows Operating System....................................................................................26
●Logging On..............................................................................................................27
●Checking the Supplied Options...............................................................................29
●Performing a Self-Alignment................................................................................... 29
●Considerations for Test Setup.................................................................................30
4.1.1 Lifting and Carrying
The carrying handles are designed to lift or carry the instrument. Do not apply exces-
sive external force to the handles.
See "Lifting and carrying the product" on page 7.
4.1.2 Unpacking and Checking
1. Unpack the R&S FPL1000 carefully.
2. Retain the original packing material. Use it when transporting or shipping the
R&S FPL1000 later.
3. Using the delivery notes, check the equipment for completeness.
4. Check the equipment for damage.
If the delivery is incomplete or equipment is damaged, contact Rohde & Schwarz.
Preparing for Use

Getting Started
R&S®FPL1000
17User Manual 1178.3370.02 ─ 11
4.1.3 Choosing the Operating Site
Specific operating conditions ensure proper operation and avoid damage to the prod-
uct and connected devices. For information on environmental conditions such as ambi-
ent temperature and humidity, see the data sheet.
See also "Choosing the operating site" on page 8.
Electromagnetic compatibility classes
The electromagnetic compatibility (EMC) class indicates where you can operate the
product. The EMC class of the product is given in the data sheet under "General data".
●Class B equipment is suitable for use in:
– Residential environments
– Environments that are directly connected to a low-voltage supply network that
supplies residential buildings
●Class A equipment is intended for use in industrial environments. It can cause
radio disturbances in residential environments due to possible conducted and radi-
ated disturbances. It is therefore not suitable for class B environments.
If class A equipment causes radio disturbances, take appropriate measures to
eliminate them.
4.1.4 Setting Up the R&S FPL1000
The R&S FPL1000 is designed for use either on a bench top or in a rack, or as a porta-
ble instrument (with optional battery operation) in a transport bag in the field.
See also:
●"Setting up the product" on page 8
●"Intended use" on page 7
4.1.4.1 Placing the R&S FPL1000 on a Bench Top
To place the product on a bench top
1. Place the product on a stable, flat and level surface. Ensure that the surface can
support the weight of the product. For information on the weight, see the data
sheet.
2. CAUTION! Foldable feet can collapse. See "Setting up the product" on page 8.
Always fold the feet completely in or out. With folded-out feet, do not place any-
thing on top or underneath.
3. CAUTION! The product can fall over and cause injury. The top surface is too small
for stacking. Never stack another product on top of the product.
Preparing for Use

Getting Started
R&S®FPL1000
18User Manual 1178.3370.02 ─ 11
As an alternative, you can mount several products in a rack.
4. NOTICE! Overheating can damage the product.
Prevent overheating as follows:
● Keep a minimum distance of 10 cm between the fan openings of the product
and any object in the vicinity.
● Do not place the product next to heat-generating equipment such as radiators
or other products.
4.1.4.2 Mounting the R&S FPL1000 in a Rack
To prepare the rack
1. Observe the requirements and instructions in "Setting up the product" on page 8.
2. NOTICE! Insufficient airflow can cause overheating and damage the product.
Design and implement an efficient ventilation concept for the rack.
To mount the R&S FPL1000 in a rack
1. Use an adapter kit to prepare the R&S FPL1000 for rack mounting.
a) Order the rack adapter kit designed for the R&S FPL1000. For the order num-
ber, see the data sheet.
b) Mount the adapter kit. Follow the assembly instructions provided with the
adapter kit.
2. Lift the R&S FPL1000 to shelf height.
3. Grab the handles and push the R&S FPL1000 onto the shelf until the rack brackets
fit closely to the rack.
4. Tighten all screws in the rack brackets with a tightening torque of 1.2 Nm to secure
the R&S FPL1000 in the rack.
To unmount the R&S FPL1000 from a rack
1. Loosen the screws at the rack brackets.
2. Remove the R&S FPL1000 from the rack.
Preparing for Use

Getting Started
R&S®FPL1000
19User Manual 1178.3370.02 ─ 11
3. If placing the R&S FPL1000 on a bench top again, unmount the adapter kit from
the R&S FPL1000. Follow the instructions provided with the adapter kit.
4.1.4.3 Portable Operation
An optional carrying bag designed specifically for the R&S FPL1000 allows you to pro-
tect the instrument while working in the field. The bag includes ventilation areas at the
position of the ventilation outlets in the casing to ensure air circulation. The transparent
cover allows you to operate the instrument without removing it from the bag. With the
help of the optional vest holster, you can carry the R&S FPL1000 in its bag and keep
your hands free. Together with the optional battery pack (see Chapter 4.1.5.3,
"Optional Battery Pack (R&S FPL1-B31)", on page 21), and packed in the dedicated
carrying bag, the R&S FPL1000 is ideally suited for operation directly in the field, even
in rough environments.
► Inspect the carrying bag for wear and tear before placing the instrument in it.
For details on optional accessories, see the R&S FPL1000 data sheet.
4.1.5 Connecting to Power
There are various options to supply power to the R&S FPL1000.
●The R&S FPL1000 is equipped with an AC power supply connector.
●The R&S FPL1000 can also be equipped with an optional (internal) DC power sup-
ply connector (R&S FPL1-B30).
Preparing for Use

Getting Started
R&S®FPL1000
20User Manual 1178.3370.02 ─ 11
●The R&S FPL1000 allows for battery operation if option R&S FPL1-B31 is installed.
4.1.5.1 Connecting the AC Power
The R&S FPL1000 can be used with different AC power voltages and adapts itself
automatically to it. Refer to the datasheet for the requirements of voltage and fre-
quency.
For safety information, see "Connecting to power" on page 8.
To connect the AC power
1. Plug the AC power cable into the AC power connector on the rear panel of the
instrument. Only use the AC power cable delivered with the R&S FPL1000.
2. Plug the AC power cable into a power outlet with ground contact.
The required ratings are listed next to the AC power connector and in the data
sheet.
For details on the connector, refer to Chapter 4.2.2.1, "AC Power Supply Connection
and Main Power Switch", on page 38.
4.1.5.2 Connecting an Optional DC Power Supply (R&S FPL1-B30)
The R&S FPL1000 can also be equipped with an optional DC power supply connector
(R&S FPL1-B30). If installed, the R&S FPL1000 can be operated by a DC voltage of
+12 V to +24 V. For details on the connector see Chapter 4.2.2.2, "Li-Ion Battery Packs
and DC Power Connector", on page 38.
If you use an external power supply unit to supply safety extra-low DC voltage (SELV)
to the instrument, be sure to meet the requirements for reinforced/double insulation in
accordance with DIN/EN/IEC 61010 (UL 3111, CSA C22.2 No. 1010.1) or DIN/EN/IEC
60950 (UL 1950, CSA C22.2 No. 950). Provide current limitation in accordance with
DIN EN 61010-1 Appendix F2.1. Use a cable no longer than 3 m.
Also see "Connecting to power" on page 8.
Preparing for Use
