Ronde & Schwarz R&S FPL1000 User manual

R&S®FPL1000
Spectrum Analyzer
User Manual
User Manual
Version 09
1178337002
(;ÜQÔ2)

This manual applies to the following R&S®FPL1000 models with firmware version 1.60 and later:
●R&S®FPL1003 (1304.0004K03) - FPL1000 with maximum frequency 3 GHz
●R&S®FPL1007 (1304.0004K07) - FPL1000 with maximum frequency 7.5 GHz
In addition to the base unit, the following options are described:
●R&S FPL1-B4, OCXO (1323.1902.02)
●R&S FPL1-B5, Additional Interfaces (1323.1883.02)
●R&S FPL1-B9, Internal Generator (1323.1925Kxx)
●R&S FPL1-B10, GPIB interface (1323.1890.02)
●R&S FPL1-B22, preamplifier (1323.1719.02)
●R&S FPL1-B25, electronic attenuator (1323.1990.02)
●R&S FPL1-B30, DC power supply (1323.1877.02)
●R&S FPL1-B31, Li-Ion battery pack and charger (1323.1725.02)
●R&S FPL1-K9, Power sensor support (1323.1754.02)
●R&S FPL1-K54, EMI measurements (1323.1783.02)
© 2020 Rohde & Schwarz GmbH & Co. KG
Mühldorfstr. 15, 81671 München, Germany
Phone: [phone] - 0
Fax: [phone]
Email: [email protected]
Internet: www.rohde-schwarz.com
Subject to change – Data without tolerance limits is not binding.
R&S® is a registered trademark of Rohde & Schwarz GmbH & Co. KG.
Trade names are trademarks of the owners.
1178.3370.02 | Version 09 | R&S®FPL1000
Throughout this manual, products from Rohde & Schwarz are indicated without the ® symbol , e.g. R&S®FPL1000 is indicated as
R&S FPL1000, R&S® FPL1-Bxx/-Kxx is indicated as R&S FPL1-Bxx/-Kxx.

Contents
R&S®FPL1000
3User Manual 1178.3370.02 ─ 09
Contents
1 Preface.................................................................................................... 7
1.1 Key Features..................................................................................................................7
2 Safety and Regulatory Information...................................................... 8
2.1 Safety Instructions........................................................................................................8
2.2 Labels on R&S FPL1000............................................................................................. 11
2.3 Korea Certification Class A........................................................................................12
3 Documentation-Overview....................................................................13
3.1 Getting Started Manual...............................................................................................13
3.2 User Manuals and Help...............................................................................................13
3.3 Service Manual............................................................................................................ 13
3.4 Instrument Security Procedures................................................................................14
3.5 Basic Safety Instructions........................................................................................... 14
3.6 Data Sheets and Brochures....................................................................................... 14
3.7 Release Notes and Open Source Acknowledgment (OSA).....................................14
3.8 Application Notes, Application Cards, White Papers, etc.......................................14
3.9 Calibration Certificate.................................................................................................15
4 Welcome to the R&S FPL1000............................................................ 16
5 Getting Started..................................................................................... 17
5.1 Preparing for Use........................................................................................................ 17
5.2 Instrument Tour...........................................................................................................30
5.3 Trying Out the Instrument.......................................................................................... 42
5.4 Operating the Instrument........................................................................................... 60
6 Applications, Measurement Channels, and Result Displays........... 79
6.1 Available Applications................................................................................................ 79
6.2 R&S MultiView............................................................................................................. 81
6.3 Defining Channel Setups............................................................................................81
6.4 Running a Sequence of Measurements.................................................................... 83
6.5 Channel Setup Overview............................................................................................ 87
6.6 Configuring Result Displays...................................................................................... 88

Contents
R&S®FPL1000
4User Manual 1178.3370.02 ─ 09
7 The Spectrum Application (RF Measurements)................................ 94
7.1 Configuration Overview..............................................................................................94
7.2 Measurements and Results........................................................................................96
7.3 Receiving Data Input and Providing Data Output.................................................. 275
7.4 Frequency and Span Configuration........................................................................ 301
7.5 Amplitude and Vertical Axis Configuration............................................................ 307
7.6 Bandwidth, Filter and Sweep Configuration...........................................................316
7.7 Trigger and Gate Configuration............................................................................... 331
7.8 Adjusting Settings Automatically............................................................................343
7.9 Marker Usage.............................................................................................................345
7.10 Trace Configuration.................................................................................................. 386
7.11 Display and Limit Lines............................................................................................ 418
7.12 Zoomed Displays...................................................................................................... 437
7.13 Importing and Exporting Measurement Results for Evaluation........................... 444
7.14 Optimizing Measurements....................................................................................... 455
8 Data Management.............................................................................. 456
8.1 Restoring the Default Instrument Configuration (Preset)..................................... 456
8.2 Storing and Recalling Instrument Settings and Measurement Data.................... 457
8.3 Import/Export Functions.......................................................................................... 467
8.4 Creating Screenshots of Current Measurement Results and Settings................470
8.5 Working with Test Reports.......................................................................................485
9 General Instrument Setup................................................................. 501
9.1 Reference Frequency................................................................................................501
9.2 Display Settings........................................................................................................ 502
9.3 Language Settings.................................................................................................... 511
9.4 System Configuration Settings................................................................................512
9.5 Service Functions..................................................................................................... 517
9.6 Toolbar Configuration...............................................................................................522
9.7 Transducers...............................................................................................................523
9.8 Alignment...................................................................................................................534
10 Network and Remote Operation....................................................... 539
10.1 Remote Control Basics.............................................................................................539

Contents
R&S®FPL1000
5User Manual 1178.3370.02 ─ 09
10.2 GPIB Languages....................................................................................................... 577
10.3 Network and Remote Control Settings................................................................... 578
10.4 How to Set Up a Network and Remote Control...................................................... 591
11 Remote Commands........................................................................... 612
11.1 Conventions Used in SCPI Command Descriptions..............................................612
11.2 Common Suffixes......................................................................................................613
11.3 Common Commands................................................................................................ 613
11.4 Commands for Remote Instrument Operation....................................................... 617
11.5 Selecting the Operating Mode and Application..................................................... 618
11.6 Configuring and Performing Measurements.......................................................... 626
11.7 Remote Commands for Result Displays.................................................................749
11.8 Setting Basic Spectrum RF Measurement Parameters......................................... 758
11.9 Managing Settings and Results...............................................................................917
11.10 Configuring the R&S FPL1000................................................................................. 955
11.11 Emulating Other Instruments' Commands............................................................. 977
11.12 Using the Status Register...................................................................................... 1010
11.13 Deprecated Commands.......................................................................................... 1022
12 Troubleshooting............................................................................... 1024
12.1 Error Information.....................................................................................................1024
12.2 Error Messages in Remote Control Mode.............................................................1025
12.3 Troubleshooting Remote Operation......................................................................1026
12.4 Miscellaneous Troubleshooting Hints.................................................................. 1027
12.5 System Recovery.................................................................................................... 1029
12.6 Collecting Information for Support........................................................................1029
12.7 Contacting Customer Support...............................................................................1031
13 Transporting..................................................................................... 1033
14 Maintenance, Storage and Disposal...............................................1034
14.1 Cleaning................................................................................................................... 1034
14.2 Changing Fuses...................................................................................................... 1034
14.3 Handling Batteries.................................................................................................. 1035
14.4 Storage.....................................................................................................................1035

Contents
R&S®FPL1000
6User Manual 1178.3370.02 ─ 09
14.5 Disposal................................................................................................................... 1035
List of Commands (Spectrum mode)............................................. 1037
Index..................................................................................................1055

Preface
R&S®FPL1000
7User Manual 1178.3370.02 ─ 09
1 Preface
1.1 Key Features
The R&S FPL1000 sets standards in RF performance and usability. Outstanding key
features are:
One instrument for multiple applications
●Spectrum analysis
●Signal analysis of analog and digitally modulated signals
●Power measurements with power sensors
●Noise figure and gain measurements
Solid RF performance
●Low spurious response
●Low displayed average noise level (DANL)
●40 MHz signal analysis bandwidth
●Low level measurement uncertainty
●Precise spectral measurements due to low phase noise
Intuitive user interface
●High-resolution display
●Multipoint touchscreen
●Flexible arrangement of results and MultiView
●Toolbar
●Quiet operation
Fully portable
●Battery pack and 12 V/24 V power supply

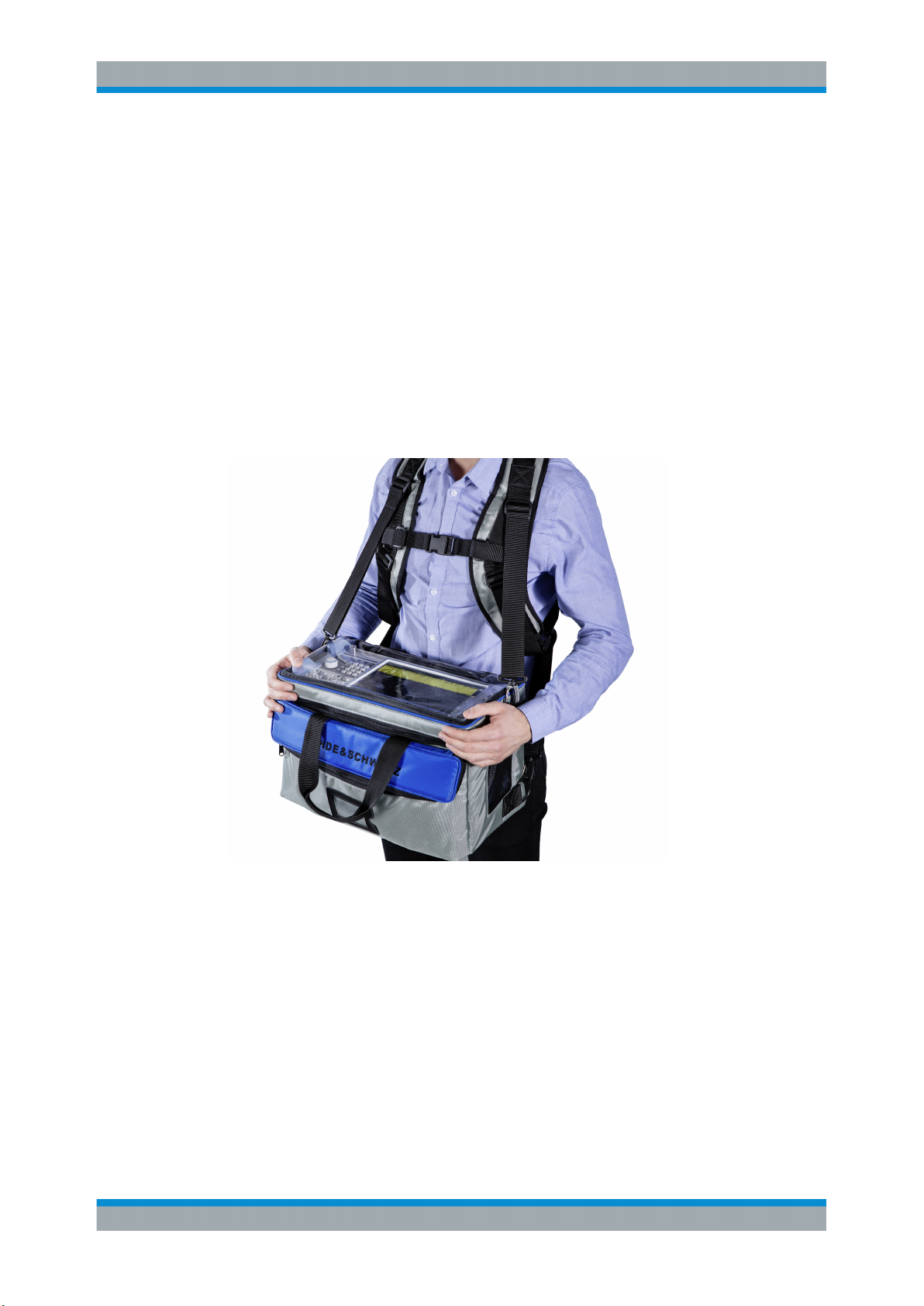

●Carrying bag and shoulder harness
●Low power consumption
Key Features

Safety and Regulatory Information
R&S®FPL1000
8User Manual 1178.3370.02 ─ 09
2 Safety and Regulatory Information
The product documentation helps you use the product safely and efficiently. Follow the
instructions provided here and in the Chapter 2.1, "Safety Instructions", on page 8.
Intended use
The product is intended for the development, production and verification of electronic
components and devices in industrial, administrative, and laboratory environments.
Use the product only for its designated purpose. Observe the operating conditions and
performance limits stated in the data sheet.
Where do I find safety information?
Safety information is part of the product documentation. It warns you of potential dan-
gers and gives instructions on how to prevent personal injury or damage caused by
dangerous situations. Safety information is provided as follows:
●In Chapter 2.1, "Safety Instructions", on page 8. The same information is provi-
ded in many languages as printed "Safety Instructions". The printed "Safety
Instructions" are delivered with the product.
●Throughout the documentation, safety instructions are provided when you need to
take care during setup or operation.
2.1 Safety Instructions
Products from the Rohde & Schwarz group of companies are manufactured according
to the highest technical standards. To use the products safely, follow the instructions
provided here and in the product documentation. Keep the product documentation
nearby and offer it to other users.
Use the product only for its intended use and within its performance limits. Intended
use and limits are described in the product documentation such as the data sheet,
manuals and the printed safety instructions. If you are unsure about the appropriate
use, contact Rohde & Schwarz customer service.
Using the product requires specialists or specially trained personnel. These users also
need sound knowledge of at least one of the languages in which the user interfaces
and the product documentation are available.
If any part of the product is damaged or broken, stop using the product. Never open
the casing of the product. Only service personnel authorized by Rohde & Schwarz are
allowed to repair the product. Contact Rohde & Schwarz customer service at http://
www.customersupport.rohde-schwarz.com.
Lifting and carrying the product
The maximum weight of the product is provided in the data sheet. To move the product
safely, you can use lifting or transporting equipment such as lift trucks and forklifts. Fol-
low the instructions provided by the equipment manufacturer.
Safety Instructions

Safety and Regulatory Information
R&S®FPL1000
9User Manual 1178.3370.02 ─ 09
Choosing the operating site
Only use the product indoors. The product casing is not waterproof. Water that enters
can electrically connect the casing with live parts, which can lead to electric shock,
serious personal injury or death if you touch the casing. If Rohde & Schwarz provides a
carrying bag designed for your product, you can use the product outdoors.
Unless otherwise specified, you can operate the product up to an altitude of 2000 m
above sea level. The product is suitable for pollution degree 2 environments where
nonconductive contamination can occur. For more information on environmental condi-
tions such as ambient temperature and humidity, see the data sheet.
Setting up the product
Always place the product on a stable, flat and level surface with the bottom of the prod-
uct facing down. If the product is designed for different positions, secure the product so
that it cannot fall over.
If the product has foldable feet, always fold the feet completely in or out to ensure sta-
bility. The feet can collapse if they are not folded out completely or if the product is
moved without lifting it. The foldable feet are designed to carry the weight of the prod-
uct, but not an extra load.
If stacking is possible, keep in mind that a stack of products can fall over and cause
injury.
If you mount products in a rack, ensure that the rack has sufficient load capacity and
stability. Observe the specifications of the rack manufacturer. Always install the prod-
ucts from the bottom shelf to the top shelf so that the rack stands securely. Secure the
product so that it cannot fall off the rack.
Connecting to power
The product is an overvoltage category II product and has to be connected to a fixed
installation used to supply energy-consuming equipment such as household applian-
ces and similar loads. Be aware that electrically powered products have risks, such as
electric shock, fire, personal injury or even death.
Take the following measures for your safety:
●Before switching on the product, ensure that the voltage and frequency indicated
on the product match the available power source. If the power adapter does not
adjust automatically, set the correct value and check the rating of the fuse.
●If a product has an exchangeable fuse, its type and characteristics are indicated
next to the fuse holder. Before changing the fuse, switch off the instrument and dis-
connect it from the power source. How to change the fuse is described in the prod-
uct documentation.
●Only use the power cable delivered with the product. It complies with country-spe-
cific safety requirements. Only insert the plug into an outlet with protective conduc-
tor terminal.
●Only use intact cables and route them carefully so that they cannot be damaged.
Check the power cables regularly to ensure that they are undamaged. Also ensure
that nobody can trip over loose cables.
Safety Instructions

Safety and Regulatory Information
R&S®FPL1000
10User Manual 1178.3370.02 ─ 09
●If the product needs an external power supply, use the power supply that is deliv-
ered with the product or that is recommended in the product documentation or a
power supply that conforms to the country-specific regulations.
●Only connect the product to a power source with a fuse protection of maximum
20 A.
●Ensure that you can disconnect the product from the power source at any time.
Pull the power plug to disconnect the product. The power plug must be easily
accessible. If the product is integrated into a system that does not meet these
requirements, provide an easily accessible circuit breaker at the system level.
Cleaning the product
Use a dry, lint-free cloth to clean the product. When cleaning, keep in mind that the
casing is not waterproof. Do not use liquid cleaning agents.
Meaning of safety labels
Safety labels on the product warn against potential hazards.
Potential hazard
Read the product documentation to avoid personal injury or product damage.
Electrical hazard
Indicates live parts. Risk of electric shock, fire, personal injury or even death.
Hot surface
Do not touch. Risk of skin burns. Risk of fire.
Protective conductor terminal
Connect this terminal to a grounded external conductor or to protective ground. This protects
you against electric shock should an electric problem occur.
Handling batteries safely
The product contains lithium polymer or lithium ion cells or batteries. The use of the
word battery in the following always means all types. Only the battery contents are
potentially hazardous. As long as a battery is undamaged and the seals remain intact,
there is no danger.
Impact, shock or heat can cause damage such as dents, punctures and other deforma-
tions. A damaged battery poses a risk of personal injury. Handle a damaged or leaking
battery with extreme care. Immediately ventilate the area since the battery releases
harmful gases. If you come into contact with the battery fluid, immediately remove all
contaminated clothing. Irritation can occur if the battery fluid comes in contact with your
skin or eyes. Immediately and thoroughly rinse your skin or eyes with water and seek
medical aid.
For safe handling, follow these rules:
●Do not short-circuit the battery.
●Do not mechanically damage the battery. Do not open or disassemble the battery.
Safety Instructions

Safety and Regulatory Information
R&S®FPL1000
11User Manual 1178.3370.02 ─ 09
●Do not expose the battery to high temperatures such as open flames, hot surfaces
and sunlight.
●Only use the battery with the designated Rohde & Schwarz product.
●Only use the appropriate Rohde & Schwarz charger to charge the batteries. If the
batteries are improperly charged, there is a risk of explosion. For charging and dis-
charging temperature ranges, see the product documentation.
●Store the battery at room temperature (approximately 20 °C) enclosed in the origi-
nal packaging.
●Dispose of batteries separately from normal household waste as specified by the
local waste disposal agency.
If you disregard these rules, you risk serious personal injury or even death due to
explosion, fire or hazardous chemical substances. The product documentation pro-
vides further details.
When replacing a defective battery, only use the same Rohde & Schwarz battery type.
When returning batteries to Rohde & Schwarz subsidiaries, choose a carrier qualified
to transport dangerous goods and follow the carrier’s transport stipulations in line with
IATA-DGR, IMDG-Code, ADR or RID. If you need assistance, contact the carrier or
Rohde & Schwarz customer service.
Connecting headphones
Take the following measures to prevent hearing damage. Before using headphones,
check the volume and reduce it if necessary. If you monitor varying signal levels, take
off the headphones and wait until the signal has settled. Then adjust the volume.
2.2 Labels on R&S FPL1000
Labels on the casing inform about:
●Personal safety, see "Meaning of safety labels" on page 10
●Product and environment safety, see Table 2-1
●Identification of the product, see Chapter 5.2.2.14, "Device ID", on page 42
Table 2-1: Labels regarding R&S
FPL1000 and environment safety
Labeling in line with EN 50419 for disposal of electrical and electronic equipment after the prod-
uct has come to the end of its service life. For more information, see the product user manual,
chapter "Disposal".
Labeling in line with directive 2006/66/EC for disposal of batteries after they have come to the
end of their service life. For more information, see the R&S FPL1000 user manual, chapter
"Disposal".
Labels on R&S FPL1000

Safety and Regulatory Information
R&S®FPL1000
12User Manual 1178.3370.02 ─ 09
2.3 Korea Certification Class A
이 기기는 업무용(A급) 전자파 적합기기로서 판매자 또는 사용자는 이 점을 주의하시기
바라며, 가정외의 지역에서 사용하는 것을 목적으로 합니다.
Korea Certification Class A

Documentation-Overview
R&S®FPL1000
13User Manual 1178.3370.02 ─ 09
3 Documentation-Overview
This section provides an overview of the R&S FPL1000 user documentation. Unless
specified otherwise, you find the documents on the R&S FPL1000 product page at:
www.rohde-schwarz.com/manual/FPL1000
3.1 Getting Started Manual
Introduces the R&S FPL1000 and describes how to set up and start working with the
product. Includes basic operations, typical measurement examples, and general infor-
mation, e.g. safety instructions, etc.
A printed version is delivered with the instrument. A PDF version is available for down-
load on the Internet.
3.2 User Manuals and Help
Separate user manuals are provided for the base unit and the firmware applications:
●Base unit manual
Contains the description of all instrument modes and functions. It also provides an
introduction to remote control, a complete description of the remote control com-
mands with programming examples, and information on maintenance, instrument
interfaces and error messages. Includes the contents of the getting started manual.
●Firmware application manual
Contains the description of the specific functions of a firmware application, includ-
ing remote control commands. Basic information on operating the R&S FPL1000 is
not included.
The contents of the user manuals are available as help in the R&S FPL1000. The help
offers quick, context-sensitive access to the complete information for the base unit and
the firmware applications.
All user manuals are also available for download or for immediate display on the Inter-
net.
3.3 Service Manual
Describes the performance test for checking the rated specifications, module replace-
ment and repair, firmware update, troubleshooting and fault elimination, and contains
mechanical drawings and spare part lists.
The service manual is available for registered users on the global Rohde & Schwarz
information system (GLORIS):
Service Manual

Documentation-Overview
R&S®FPL1000
14User Manual 1178.3370.02 ─ 09
https://gloris.rohde-schwarz.com
3.4 Instrument Security Procedures
Deals with security issues when working with the R&S FPL1000 in secure areas. It is
available for download on the Internet.
3.5 Basic Safety Instructions
Contains safety instructions, operating conditions and further important information.
The printed document is delivered with the instrument.
3.6 Data Sheets and Brochures
The data sheet contains the technical specifications of the R&S FPL1000. It also lists
the firmware applications and their order numbers, and optional accessories.
The brochure provides an overview of the instrument and deals with the specific char-
acteristics.
See www.rohde-schwarz.com/brochure-datasheet/FPL1000
3.7 Release Notes and Open Source Acknowledgment
(OSA)
The release notes list new features, improvements and known issues of the current
firmware version, and describe the firmware installation.
The open-source acknowledgment document provides verbatim license texts of the
used open source software.
See www.rohde-schwarz.com/firmware/FPL1000
3.8 Application Notes, Application Cards, White Papers,
etc.
These documents deal with special applications or background information on particu-
lar topics.
See www.rohde-schwarz.com/application/FPL1000
Application Notes, Application Cards, White Papers, etc.

Documentation-Overview
R&S®FPL1000
15User Manual 1178.3370.02 ─ 09
3.9 Calibration Certificate
The document is available on https://gloris.rohde-schwarz.com/calcert. You need the
device ID of your instrument, which you can find on a label on the rear panel.
Calibration Certificate

Welcome to the R&S FPL1000
R&S®FPL1000
16User Manual 1178.3370.02 ─ 09
4 Welcome to the R&S FPL1000
The R&S FPL1000 is a new Rohde & Schwarz signal and spectrum analyzer devel-
oped to meet demanding customer requirements. Offering low phase noise, wide
analysis bandwidth and straightforward and intuitive operation, the analyzer makes
measurements fast and easy.
This user manual contains a description of the functionality that the instrument pro-
vides, including remote control operation. The latest version is available for download
at the product homepage (http://www.rohde-schwarz.com/product/FPL1000).

Getting Started
R&S®FPL1000
17User Manual 1178.3370.02 ─ 09
5 Getting Started
5.1 Preparing for Use
This chapter describes the basic steps to be taken when setting up the product for the
first time.
●Lifting and Carrying.................................................................................................17
●Unpacking and Checking........................................................................................ 17
●Choosing the Operating Site...................................................................................18
●Setting Up the R&S FPL1000................................................................................. 18
●Connecting to Power...............................................................................................20
●Switching On or Off.................................................................................................23
●Connecting to LAN..................................................................................................24
●Connecting a Keyboard...........................................................................................24
●Connecting an External Monitor..............................................................................25
●Windows Operating System....................................................................................27
●Logging On..............................................................................................................28
●Checking the Supplied Options...............................................................................29
●Performing a Self-Alignment................................................................................... 29
●Considerations for Test Setup.................................................................................30
5.1.1 Lifting and Carrying
The carrying handles are designed to lift or carry the instrument. Do not apply exces-
sive external force to the handles.
See "Lifting and carrying the product" on page 8.
5.1.2 Unpacking and Checking
1. Unpack the R&S FPL1000 carefully.
2. Retain the original packing material. Use it when transporting or shipping the
R&S FPL1000 later.
3. Using the delivery notes, check the equipment for completeness.
4. Check the equipment for damage.
If the delivery is incomplete or equipment is damaged, contact Rohde & Schwarz.
Preparing for Use

Getting Started
R&S®FPL1000
18User Manual 1178.3370.02 ─ 09
5.1.3 Choosing the Operating Site
Specific operating conditions ensure accurate measurements and avoid damage to the
product and connected devices. For information on environmental conditions such as
ambient temperature and humidity, see the data sheet.
See also "Choosing the operating site" on page 9.
Electromagnetic compatibility classes
The electromagnetic compatibility (EMC) class indicates where you can operate the
product. The EMC class of the product is given in the data sheet under "General data".
●Class B equipment is suitable for use in:
– Residential environments
– Environments that are directly connected to a low-voltage supply network that
supplies residential buildings
●Class A equipment is intended for use in industrial environments. It can cause
radio disturbances in residential environments due to possible conducted and radi-
ated disturbances. It is therefore not suitable for class B environments.
If class A equipment causes radio disturbances, take appropriate measures to
eliminate them.
5.1.4 Setting Up the R&S FPL1000
The R&S FPL1000 is designed for use either on a bench top or in a rack, or as a porta-
ble instrument (with optional battery operation) in a transport bag in the field.
See also:
●"Setting up the product" on page 9
●"Intended use" on page 8
5.1.4.1 Placing the R&S FPL1000 on a Bench Top
To place the product on a bench top
1. Place the product on a stable, flat and level surface. Ensure that the surface can
support the weight of the product. For information on the weight, see the data
sheet.
2. CAUTION! Foldable feet can collapse. See "Setting up the product" on page 9.
Always fold the feet completely in or out. If they are folded out, do not place any-
thing on top or underneath.
3. CAUTION! The product can fall over and cause injury. The top surface is too small
for stacking. Never stack another product on top of the product.
Preparing for Use

Getting Started
R&S®FPL1000
19User Manual 1178.3370.02 ─ 09
As an alternative, you can mount several products in a rack.
4. NOTICE! Overheating can damage the product.
Prevent overheating as follows:
● Keep a minimum distance of 10 cm between the fan openings of the product
and any object in the vicinity.
● Do not place the product next to heat-generating equipment such as radiators
or other products.
5.1.4.2 Mounting the R&S FPL1000 in a Rack
To prepare the rack
1. Observe the requirements and instructions in "Setting up the product" on page 9.
2. NOTICE! Insufficient airflow can cause overheating and damage the product.
Design and implement an efficient ventilation concept for the rack.
To mount the R&S FPL1000 in a rack
1. Use an adapter kit to prepare the R&S FPL1000 for rack mounting.
a) Order the rack adapter kit designed for the R&S FPL1000. For the order num-
ber, see data sheet.
b) Mount the adapter kit. Follow the assembly instructions provided with the
adapter kit.
2. Lift the R&S FPL1000 to shelf height.
3. Grab the handles and push the R&S FPL1000 onto the shelf until the rack brackets
fit closely to the rack.
4. Tighten all screws in the rack brackets with a tightening torque of 1.2 Nm to secure
the R&S FPL1000 in the rack.
To unmount the R&S FPL1000 from a rack
1. Loosen the screws at the rack brackets.
2. Remove the R&S FPL1000 from the rack.
Preparing for Use

Getting Started
R&S®FPL1000
20User Manual 1178.3370.02 ─ 09
3. If placing the R&S FPL1000 on a bench top again, unmount the adapter kit from
the R&S FPL1000. Follow the instructions provided with the adapter kit.
5.1.4.3 Portable Operation
An optional carrying bag designed specifically for the R&S FPL1000 allows you to pro-
tect the instrument while working in the field. The bag includes ventilation areas at the
position of the ventilation outlets in the casing to ensure air circulation. The transparent
cover allows you to operate the instrument without removing it from the bag. With the
help of the optional vest holster, you can carry the R&S FPL1000 in its bag and keep
your hands free. Together with the optional battery pack (see Chapter 5.1.5.3,
"Optional Battery Pack (R&S FPL1-B31)", on page 22), and packed in the dedicated
carrying bag, the R&S FPL1000 is ideally suited for operation directly in the field, even
in rough environments.
► Inspect the carrying bag for wear and tear before placing the instrument in it.
For details on optional accessories, see the R&S FPL1000 data sheet.
5.1.5 Connecting to Power
There are various options to supply power to the R&S FPL1000.
●The R&S FPL1000 is equipped with an AC power supply connector.
●The R&S FPL1000 can also be equipped with an optional (internal) DC power sup-
ply connector (R&S FPL1-B30).
Preparing for Use
