Ronix 5604 User manual

5604
ELECTRIC TABLE SAW

USER MANUAL 1
TECHNICAL SPECIFICATION
Model 5604
Power 2000W
Voltage 220-240V
Frequency 50-60Hz
No Load Speed 4800RPM
Disc Diamiter 250mm
Tilt Range 0° To 45°
Saw Blade Size φ250xφ30x2.8mm
Max Cutting Capacity 0°: 72mm
45°: 50mm
Main Table Size 546x643mm
Sliding Extension Table 85x643mm
Table Material Aluminum profile
Total Length 920mm
Weight (N.W) 21Kg
Includes
Saw blade & laser, 3pcs wrench,
1set angle ruler, 1set guide ruler,
1pc push rod

ELECTRIC TABLE SAW
2
PART LIST
Cross cutting fence
Plastic hook
Cable winding
hook
ON/OFF
Switch
Table insert plate
Blade guard seat
Side table lock
Side table extension
Bevel angle lock
Push stick
Depth of cut handle
Bevel angle
Adjustment wheel
Table saw stand
Stand rubber foot
Blade Fence/Rip fence
Blade
guard
SYMBOLS
The rating plate on your tool may show symbols. These represent
important information about the product or instructions on its use.
Wear hearing protection.
Wear eye protection.
Wear respiratory protection.
Conforms to relevant safety standards.
Double insulated for additional protection.

USER MANUAL 3
Read the instruction manual.
Dangerous voltage.
Caution! -Laser radiation. Do not look into beam
Cutting danger.
Product conforms to RoHs requirements
General warning.
Waste electrical products should not be Disposed of with
household waste.
Please recycle where facilities exist. Check with your Local
Authority or retailer for recycling advice.
Do not touch the moving blade
Do not approach the machine with loose clothing
Danger! Splinter casing
Do not clean, lubricate or repair while the machine is running
Protect the machine from foul weather
Do not remove safety guards and with the machine operating device
GENERAL POWER TOOL SAFETY WARNINGS
WARNING!
- Read all safety warnings and all instructions. Failure to follow the

ELECTRIC TABLE SAW
4
warnings and instructions may result in electric shock, fire, and or
serious injury.
- Save all warnings and instructions for future reference.
- The term “power tool” in the warnings refers to your mains-operated
(corded) power tools or battery-operated (cordless) power tools.
WORK AREA SAFETY
- Keep the work area clean and well-lit. Cluttered or dark areas invite
accidents.
- Don’t operate power tools in explosive atmospheres, such as in the
presence of flammable liquids, gases, or dust. Power tools create sparks
that may ignite dust or fumes.
- Keep children and bystanders away while operating a power tool.
Distractions can cause you to lose control.
ELECTRIC SAFETY
- Power tool plugs must match the outlet. Never modify the plug in any
way. Don’t use any adaptor plugs with earthed (grounded) power tools.
Unmodified plugs and matching outlets will reduce the risk of electric shock.
- Avoid body contact with earthed or grounded surfaces such as pipes,
radiators, ranges, and refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
- Don’t expose power tools to rain or wet conditions. Water entering a
power tool will increase the risk of electric shock.
- Don’t abuse the cord. Never use the cord for carrying, pulling, or
unplugging the power tool. Keep the cord away from heat, oil, sharp
edges, or moving parts. Damaged or entangled cords increased the risk
of electric shock.
- When operating a power tool outdoors, use an extension cord suitable
for outdoor use. Using a cord suitable for outdoor use will reduce the risk
of electric shock.

USER MANUAL 5
-If operating a power tool in a damp location is unavoidable, use a
residual current device (RCD) protected supply. The use of an RCD
reduces the risk of electric shock.
- Use of power supply via an RCD is always recommended.
PERSONAL SAFETY
- Stay alert, watch what you are doing, and use common sense when
operating a power tool. Don’t use a power tool while you are tired or under
the influence of drugs, alcohol, or medication. A moment of inattention
while operating power tools may result in serious personal injury.
- Use personal protective equipment. Always wear eye protection.
Protective equipment such as dust masks, non-skid safety shoes, hard
hats, or hearing protection used for appropriate conditions will reduce
personal injuries.
- Prevent unintentional starting. Ensure the switch is in the off-position
before connecting to a power source and/or battery pack, picking up, or
carrying the tool. Carrying power tools with your finger on the switch or
energizing power tools that have the switch on invites accidents.
- Remove any adjusting key or wrench before turning the power tool on.
A wrench or a key left attached to a rotating part of the power tool may
result in personal injury.
- Don’t overreach. Keep proper footing and balance at all times. This
enables better control of the power tool in unexpected situations.
- Dress properly. Don’t wear loose clothing or jewelry. Keep your hair,
clothing, and gloves away from moving parts. Loose clothes, jewelry, or
long hair can be caught in moving parts.
- If devices are provided for connection of dust extraction and collection
facilities, ensure these are connected and properly used. The use of
dust collection can reduce dust-related hazards.
POWER TOOL USE AND CARE
- Don’t force the power tool. Use the correct power tool for your

ELECTRIC TABLE SAW
6
application. The correct power tool will do the job better and safer at the
rate for which it was designed.
- Don’t use the power tool if the switch doesn’t turn on and off. Any
power tool that cannot be controlled with the switch is dangerous and
must be repaired.
- Disconnect the plug from the power source and/or the battery pack from
the power tool before making any adjustments, changing accessories,
or storing power tools. Such preventive safety measures reduce the risk
of starting the power tool accidentally.
- Store idle power tools out of the reach of children and don’t allow
persons unfamiliar with a power tool or these instructions to operate the
power tool. Power tools are dangerous in the hands of untrained users.
- Maintain power tools. Check for misalignment or binding of moving
parts, breakage o parts, and any other condition that may affect the
power tool’s operation. If damaged, have the power tool repaired before
use. Many accidents are caused by poorly maintained power tools.
- Keep cutting tools sharp and clean. Properly maintained cutting tools
with sharp cutting edges are less likely to bind and are easier to control.
- Use the power tool, accessories and tool bits, etc. following the
instruction, taking into account the working conditions and the work to
be performed. Use of the power tool for operations different from those
intended could result in a hazardous situation.
SERVICE
- Have your power tool serviced by a qualified repair person using only
identical replacement parts. This will ensure that the safety of the power
tool is maintained.
- Follow instructions for lubricating and changing accessories.
- Keep handles dry, clean, and free from oil and grease.

USER MANUAL 7
GUARDING RELATED WARNINGS
- Keep guards in place. Guards must be in working order and properly
mounted. A guard that is loose, damaged, or not functioning correctly
must be repaired or replaced.
- Always use a saw blade guard, and riving knife for every through-cutting
operation. For through-cutting operations where the saw blade cuts
completely through the thickness of the workpiece, the guard and other
safety devices help reduce the risk of injury.
- Immediately reattach the guarding system after completing an
operation (such as rabbeting or resawing cuts) which requires removal
of the guard, and riving knife. The guard and riving knife help to reduce
the risk of injury.
- Make sure the saw blade is not contacting the guard, riving knife, or the
workpiece before the switch is turned on. Inadvertent contact of these
items with the saw blade could cause a hazardous condition.
- Adjust the riving knife as described in this instruction manual. Incorrect
spacing, positioning, and alignment can make the riving knife ineffective
in reducing the likelihood of kickback.
- For the riving knife to work, they must be engaged in the workpiece.
The riving knife is ineffective when cutting workpieces that are too short
to be engaged with the riving knife. Under these conditions, a kickback
cannot be prevented by the riving knife.
- Use the appropriate saw blade for the riving knife. For the riving knife
to function properly, the sawblade diameter must match the appropriate
riving knife and the body of the saw blade must be thinner than the
thickness of the riving knife and the cutting width of the saw blade must
be wider than the thickness of the riving knife.
CUTTING PROCEDURES WARNINGS
DANGER!
Never place your fingers or hands in the vicinity or in line with the saw

ELECTRIC TABLE SAW
8
blade. A moment of inattention or a slip could direct your hand toward
the saw blade and result in serious personal injury.
- Feed the workpiece into the saw blade or cutter only against the
direction of rotation. Feeding the workpiece in the same direction that
the saw blade is rotating above the table may result in the workpiece
and your hand, being pulled into the saw blade.
- Never use the meter gauge to feed the workpiece when ripping and
do not use the rip fence as a length stop when cross-cutting with the
meter gauge. Guiding the workpiece with the rip fence and the mitre
gauge at the same time increases the likelihood of saw blade binding
and kickback.
- When ripping, always apply the workpiece feeding force between the
fence and the saw blade. Use a push stick when the distance between
the fence and the saw blade is less than 150mm, and use a push block
when this distance is less than 50mm. work helping devices will keep
your hand at a safe distance from the saw blade.
- Use only the push stick provided by the manufacturer or constructed
in accordance with the instructions. This push stick is provided by the
manufacturer or constructed in accordance with the instructions. This
push stick provides a sufficient distance of the hand from the saw blade.
Never use a damaged or cut push stick. A damaged push stick may
break causing your hand to slip into the saw blade.
Never reach around or over a rotating saw blade. Reaching for the
workpiece may lead to accidental contact with the moving saw blade.
- Provide auxiliary workpiece support to the rear and/or sides of the saw
table for long and/or wide workpieces to keep them level. A long and/
or wide workpiece tends to pivot on the table’s edge, causing loss of
control, saw blade binding, and kickback.
- Feed the workpiece at an even pace. Do not bend or twist the
workpiece. If jamming occurs, turn the tool off immediately, unplug the
tool then clear the jam. Jamming the saw blade by the workpiece can
cause kickback or stall the motor.
- Do not remove pieces of cut-off material while the saw is running.

USER MANUAL 9
The material may become trapped between the fence or inside the saw
blade guard and the saw blade pulling your fingers into the saw blade.
Turn the saw off and wait until the saw blade stops before removing the
material.
- Use an auxiliary fence in contact with the tabletop when ripping
workpieces less than 2mm thick. A thin workpiece may wedge under
the rip fence and create a kickback.
KICKBACK CAUSES AND RELATED WARNINGS
- Never stand directly in line with the saw blade. Always position your
body on the same side of the saw blade as the fence. Kickback may
propel the workpiece at high velocity toward anyone standing in front
and line with the saw blade.
- Never reach over or in the back of the saw blade to pull or support the
workpiece. Accidental contact with the saw blade may occur or kickback
may drag your fingers into the saw blade.
- Never hold and press the workpiece that is being cut off against the
rotating saw blade. Pressing the workpiece being cut off against the saw
blade will create a binding condition and kickback.
- Alight the fence to be parallel with the saw blade. A misaligned fence
will pinch the workpiece against the saw blade will create a binding
condition and kickback.
- Align the fence to be parallel with the saw blade. A misaligned fence
will pinch the workpiece against the saw blade and create a kickback.
- Use a feather board to guide the workpiece against the table and fence
when making non-through cuts such as rabbeting, or resawing cuts. A
feather board helps to control the workpiece in the event of a kickback.
- Use extra caution when cutting to blind areas of assembled workpieces.
The protruding saw blade may cut objects that can cause kickback.
- Support large panels to minimize the risk of saw blade pinching and
kickback. Large panels tend to sag on their own. Support(s) must be
placed under all portions of the panel overhanging the tabletop.

ELECTRIC TABLE SAW
10
- Use extra caution when cutting a workpiece that is twisted, knotted,
warped, or does not have a straight edge to guide it with a meter gauge
or along the fence. A warped, knotted, or twisted workpiece is unstable
and causes misalignment of the kerf with the saw blade, binding, and
kickback.
- Never cut more than one workpiece, stacked vertically or horizontally.
The saw blade could pick up one or more pieces and cause kickback.
- When restarting the saw with the saw blade in the workpiece, center
the saw blade in the kerf so that the saw teeth are not engaged in the
material. If the saw blade binds, it may lift the workpiece and cause
kickback when the saw is restarted.
- Keep saw blades clean, sharp, and with a sufficient set. Never use
warped saw blades or saw blades with cracked or broken teeth. Sharp
and properly set saw blades minimize binding, stalling, and kickback.
.TABLE SAW OPERATING PROCEDURE WARNINGS
- Turn off the table saw and disconnect the power cord when removing
the table insert, changing the saw blade, or making adjustments to the
riving knife or saw blade guard, and when the machine is left unattended.
Precautionary measures will avoid accidents.
- Never leave the table saw running unattended. An unattended running
saw is an uncontrolled hazard.
- Locate the table saw in a well-lit and level area where you can maintain
good footing and balance. It should be installed in an area that provides
enough room to easily handle the size of your workpiece. Cramped, dark
areas and uneven slippery floors invite accidents.
- Frequently clean and remove sawdust from under the saw table and/
or the dust collection device Accumulated sawdust is combustible and
may self-ignite.
- The table saw must be secured. A table saw that is not properly secured
may move or tip over.
- Remove tools, wood scraps, etc. from the table before the table saw is
turned on. Distractions or a potential jam can be dangerous.

USER MANUAL 11
- Always use saw blades with the correct size and shape (diamond
versus round) of arbor holes. Saw blades that do not match the mounting
hardware of the saw will run off-center, causing a loss of control.
- Never use damaged or incorrect saw blade mounting means such
as flanges, saw blade washers, bolts, or nuts. These mounting means
were specially designed for your saw, for safe operation and optimum
performance.
- Never stand on the table saw, do not use it as a stepping stool. Serious
injury could occur if the tool is tipped or if the cutting tool is accidentally
contacted.
- make sure that the saw blade is installed to rotate in the proper
direction. Do not use grinding wheels, wire brushes, or abrasive wheels
on a table saw. Improper saw blade installation or use of accessories
not recommended may cause serious injury.
.INTENDED USE
- The bench-type circular saw is designed for the slitting and
cross-cutting of all types of timber, commensurate with the
machine’s size.
- The machine is not to be used for cutting any type of roundwood.
-The machine is to be used only for its prescribed purpose. Any use
other than that mentioned is considered to be a case of misuse.
- The user/operator and not the manufacturer shall be liable for any
damage or injury resulting in such cases of misuse.
- The machine is to be operated only with suitable saw blades. It is
prohibited to use any type of cutting-off wheel. To use the machine
properly you must also observe the safety regulations, the assembly
instructions and the operating instructions to be found in this manual. All
persons who use and service the machine have to be acquainted with
this manual and must be informed about its potential hazards. It is also
imperative to observe the accident prevention regulations in force in
your area. The same applies to the general rules of occupational health
and safety.

ELECTRIC TABLE SAW
12
- Important! When using the equipment, a few safety precautions must
be observed to avoid injuries and damage. Please read the complete
operating instructions and safety regulations with due care.
- Keep this manual in a safe place, so that the information is available at
all times. If you give the equipment to any other person, hand over these
operating instructions and safety regulations as well. We cannot accept
any liability for damage or accidents which arise due to a failure to follow
these instructions and the safety instructions.
.BEFORE STARTING THE EQUIPMENT
- The equipment must be set up where it can stand securely.
- All covers and safety devices have to be properly fitted before the
equipment is switched on.
- It must be possible for the blade to run freely.
- When working with wood that has been processed before, watch out
for foreign bodies such as nails or screws, etc.
- Before you press the ON/OFF switch check that the saw blade is
fitted correctly. Moving parts must run smoothly.Before you connect the
equipment to the power supply make sure the data on the rating plate is
identical to the mains data.
INSTALLATION AND USE INSTRUCTIONS
.ACCESSORIES OF BOX
01
06
02 06x1
x1
x4
x1 x2

USER MANUAL 13
09 10
x1 x1
11 x1
12 x2
19 x2
13 x4
x4
x2
x2
x2
x2
x36
Foot
A-upper
A-under
B-Upper
B-Under
Screw

ELECTRIC TABLE SAW
14
.STAND ASSEMBLY
A-upper B-upper
A-under
Foot
Foot
13
B-under
A-upper
A-under
Foot
x2

USER MANUAL 15
B-under
B-under
A-under
A-under

ELECTRIC TABLE SAW
16
.EXTENSION TABLE ASSEMBLY
STO P
LOCK
x2
x4
07
18

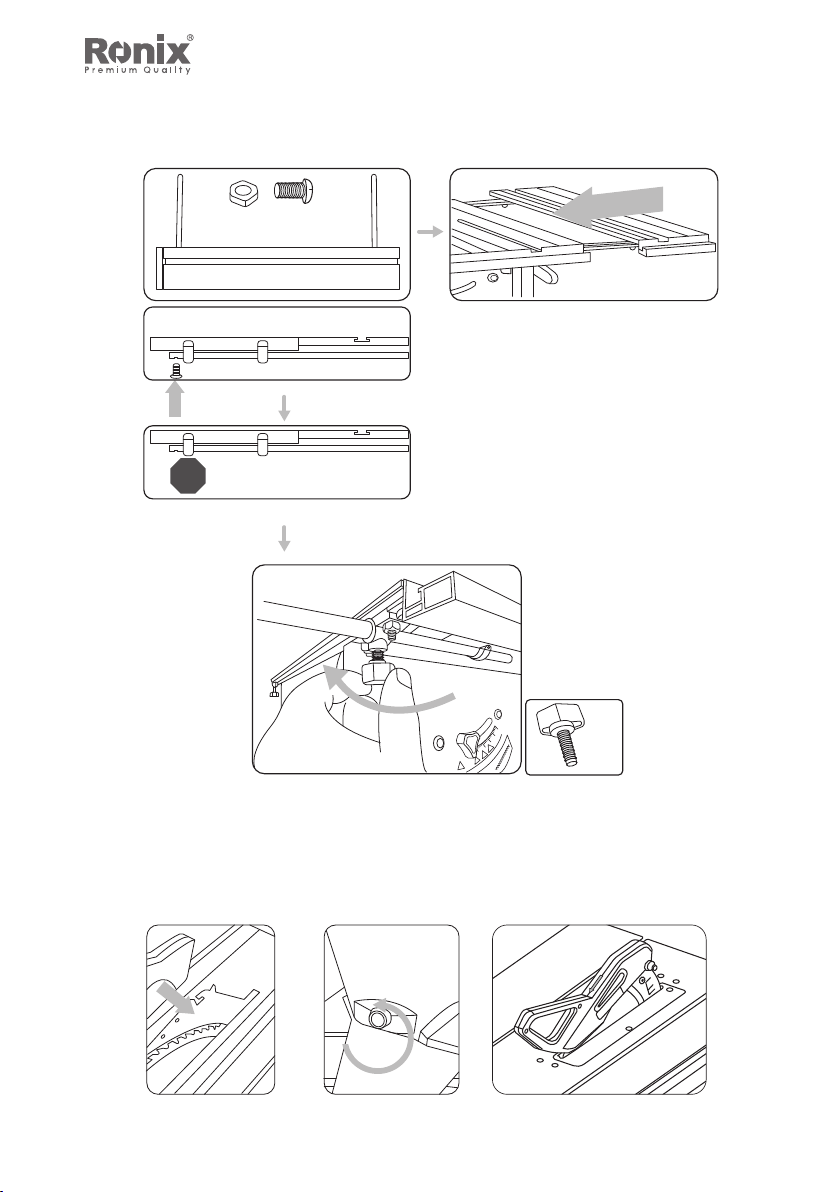

.ACCESSORY ASSEMBLY AND USING
02 x1

USER MANUAL 17
01 x1
06 x1
08 x1
0-45°
.SAW BLADE ADJUSTING
14 x1
15˚
20˚
30˚

ELECTRIC TABLE SAW
18
15
16
x1
x1
15˚
20˚
30˚
0-45°
90°
POWER SWITCH ON/OFF
17 x1
VACUUM CONNECTION
22 x1
