Ronix 5620 User manual
TILE SAW
5620
USER MANUAL 1
SPECIFICATION
Model 5620
Power 800W
Voltage 230V
Frequency 50Hz
Product Dimention Length: 1230mm×Width:
690mm×Height: 820mm
Table Dimention 890×394mm
Disk Diameter φ200×φ25.4×2.4mm
Table Material Aluminum Prole
Disk Material 65Mn, Corundum, Metal Powder
No Load Speed 2990RPM
Angle Cutting
0-45°
0°: 32mm
45°: 28mm
Max Cutting Length 620mm
Supplied in color box
Weight
23.45Kgs (Excluding Color box
and Accessories)
27.20Kgs(Excluding Color box)
Include
Rubber Feet 4pcs, Support Legs
4pcs, Legs Locking Knob 4pcs,
Angle Ruler 1set, Wrench 2pcs,
Water Plug 1pc
TILE SAW
2
PART LIST
Support
Legs
Leg locking
knob
Work Table
Angle rotation
Plate
Guide ruler
Locking
knob
Angle
Ruler
Cutting blade
Water tank
Blade
Cover
Engine
Handle
Guide
Beam
SAFETY SYMBOL
WARNING!
Attention! Read and remember the following graphic safety symbols. They
inform you of the actions you must take to ensure the safety of those around
you and yourself, as well as the measures needed to ensure the safe and
lasting operation of the tile machine.
Read the operation manual carefully before using the tile machine.
Use personal protective equipment. Always wear products
to protect your eyesight and hearing.
Use safety shoes, gloves and helmets.
USER MANUAL 3
The danger of electric shock.
If this instruction is not observed, the tile cutting machine is in danger
of injury or damage.
SAFETY RULES
.PLACE OF WORK
- Familiar with the environment around the workplace.
- Possible danger due to noise from tile cutting machinery.
- Do not use tile cutting machines in wet places, water vapor environments
and close places.
- Avoid using tile cutting machines in areas with high humidity, wet
environments, and conned spaces where ammable liquids and gases
are stored.
- Make sure there are no people (especially children) and animals
nearby. They can Injury by scattered particles of materials processed by
ceramic tile cutting machine.
- Only work in a good visibility environment, or provide a workplace
Enough light.
.RUNTIME
- To prevent damage, the air humidity should not exceed 70-80% (when
the temperature is 25°C).
- The indoor temperature shall not be lower than +5°Cand higher than
+ 35°C. On the contrary in this case, the engine may be overcooled or
overheated.
- Do not wear loose clothes, jewelry, etc. at work to cover long ones
Hair, because all of these can be captured by the moving part of the tile
cutting. Wear strong non-slip shoes, strong trousers, protective gloves,
goggles (normal goggles are not protective) or protective masks,
respirators (if dust is generated during work), headphones (if noise
TILE SAW
4
increases), and safety helmets (if related hazards).
- Make sure that when you open it, you don’t keep custom and xing
tools, wrenches, etc.
- Avoid unintentional launches. Before connecting the tile cutter to the
plug the socket puts the start key in the closed position.
ATTENTION!
Cheer up and work responsibly! Do not use a tile cutter if you are tired,
or if you are affected by alcohol or reaction reducing drugs and other
drugs!
- When working, choose a comfortable, stable and continuous one
under your control location.
- Protect all parts of your body, mainly ngers, from possible contact
with the moving part of tile cutting.
ATTENTION! Wait for the inertial parts of the tile machine to stop
completely after closing, and don’t try to stop them by hand!
- The tile cutting machine should not be overloaded and should only be
used according to the technical specications to ensure reliable and
safe operation.
- To prevent overheating, the machine should be used intermittently and
not continuously.
- Compliance with the parameters specied in the technical specications
is necessary for safe and effective use of the machine.
- Observe the vents (grooves) of the motor housing It has always been
open and pure.
ATTENTION!
When the power grid is suddenly cut off, the start key should be adjusted to
the disconnected position immediately to avoid accidental operation of the
ceramic tile machine when re-supplying power.
USER MANUAL 5
- Turn off the tile machine and take out the plug every time you work and rest.
.ELECTRICAL SAFETY
- The equipment plug should match the socket.
- The plug should not be modied in any way to reduce the risk of
electric shock.
- Proper sockets that are unmodified can help reduce the risk of
electric shock.
- It is important to use unmodied plugs and proper sockets to prevent
electric shock.
- Do not use transition plugs for power tools with protective devices.
- Take necessary precautions against electric shock.
- Avoid contact between tool housing and ground surface, such as
heating pipes, refrigerators.
- Protect equipment from rain and humidity. Equipment inlet water
increases the risk of electric shock.
- Do not allow ropes to be used for other purposes, such as transportation
or hang the power tool, or pull the plug from the socket. Protect the power
cord from high temperature, oil stains, sharp edges or movable parts of
power tools.
- Damaged or entangled wires can increase the risk of electric shock.
When working outdoors, use extension cords with appropriate connectors.
- If you cannot apply the instrument only in dry weather, please pass
Automatic protection device (protection cut-off device). RCD fault
current protection switch is adopted to reduce the risk of electrical
failure.
- When the length of extension cable is large and the cross section is
small, there is an extra voltage drop in the lead, which may lead to
unstable operation of the tile motor. Cable length and cross sectional
dimensions in the table: according to the required current, the wire
refers to the distance between the switchboard connecting the tile
machine and its power cable plug. In this case, it doesn’t matter whether
the power is supplied to the tile cutting machine through the xed lead,
TILE SAW
6
the extension cable or the combination of the xed cable and the extension
cable. The extension cord should have a plug at one end and a socket
compatible with the ceramic tile electromechanical plug at the other end.
Relationship between cable length and conductor section size and
consumed current.
Section (mm2) Rated current of cable (A)
0.75 6
1.00 10
1.50 15
2.50 20
4.00 25
ATTENTION!
Ceramic tiles have double insulation. This means that all external metal
components are electrically insulated from conductive components.
This is achieved by placing additional insulation barriers between electrical
and mechanical components, which eliminates the need for tools to be
grounded. Please remember that double insulation cannot replace the
conventional precautions required when using this tool. This insulation
system provides additional protection against potential damage to the
electrical insulation inside the tool.
Power supply
voltage (V)
Comsumed
Current (A)
Cable length (m)
7.5 15 25 30 45 60
Rated current of cable (A)
220
2.0 – 0 6 6 6 6 6 6
3.4 – 2.1 6 6 6 6 6 6
5.0 – 3.5 6 6 6 6 10 15
7.0 – 5.1 10 10 10 10 15 15
12.0 – 7.1 15 15 15 15 20 20
20.0 – 12.1 20 20 20 20 25 -
USER MANUAL 7
.SPECIAL SECURITY RULES
- Avoid unintentional launches. Always disconnect the network cable
from the socket, before performing any tool maintenance or disk
replacement work.
- Use only the drive recommended by the manufacturer for a given drive
models.
- Only the attached pressure washer can be used. The maximum allowable
speed specied on the cutting disc shall be greater than the maximum
speed of the tool spindle.
- Never lean on a tool, this can lead to injuries.
- Always wear protective gloves when operating disks.
- Always check the tools for damage. When discovered Replace damaged
parts immediately. Ensure that the moving parts of the tool are not stuck,
Check their center.
- Always observe the service direction. Only in the direction opposite to
the direction in which the disk rotates.
- Don’t leave the tool open without control and ofine working mode.
- Always wait until the shaft rotation stops completely before leaving an
unattended instrument. Always disconnect the cable from the power
network at the end of the work.
- Never lock the protective sleeve of the saw blade to block the saw
blade debris and dust. If this happens, stop the tool and disconnect it
from the network until the jammed shield is released.
- Do not use bent, deformed or other damaged ones.
- The use of segmented cutting discs is not recommended.
- Do not use disks that do not meet technical requirements.
- try to slow down the rotation of the disk by exerting force on the side wall.
- At the beginning of repairing tools, replacing disks and T.P. always
removes the wire plug from the network socket.
- Verify that the tool spindle diameter matches the landing hole of the disk.
- Ensure that the tool spindle diameter is consistent with the landing hole
of the disk.
- According to the technical inspection: Fill the tank with water.
TILE SAW
8
.BEFORE WORKING, MAKE SURE
1- The power supply voltage of the instrument motor matches the power
supply network voltage.
2- The power grid socket is grounded. It is recommended to connect
through ROS tool (maximum value Leakage current 30mA).
3- Sockets, extension cords, power cords and their plugs are in good
condition, electrical insulation is not damaged, and contact is good.
4- The tile cutter stands rmly on a at, horizontal surface.
5- A protective cover is installed.
6- There is no damage to the cutting disk.
7- here is enough water in the water tray to make the cutting tray moist
during operation.
BEFORE OPERATION
.INSTALL SUPPORTING LEGS
1- Invert the water tank (13) and put it on a at and stable surface.
2- Insert four supporting legs in the seat at the corner of the water tank.
3- Tighten four legs locking knobs.
4- Turn the ready made supported base over to a at and stable surface.
13
NOTE:
The tile cutter shall be mounted on a at horizontal surface, taking into
account the
weight of the tile cutter and the workpiece.
USER MANUAL 9
INSTALLATION OF PUMP
1- Install the water tank on the base. Fix its position with locking knobs.
2- Install the water pump inside the water tank.
3- Press the pump body gently until it clicks.
Click to indicate that the pump is xed.
4- Lay hoses and cords around the pump.
5- Connect the water supply hose of the water pump to the disc.
Check the connection to the pump and outlet nozzle at the cutting disc.

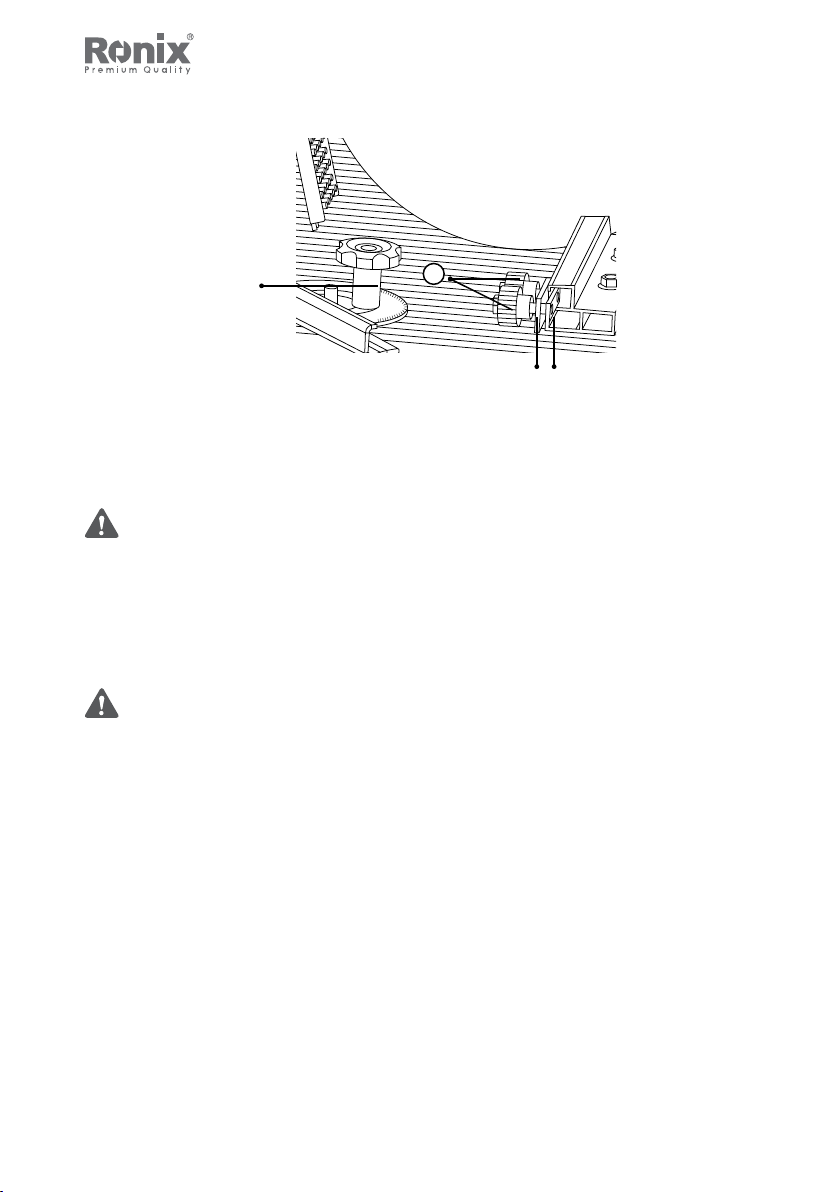

.INSTALLATION ANGLE SCALE
1- Get out 1 set angle ruler from package.
2- Loose two knobs (C) to keep certain gap distance between angle
ruler xing plate(A)
and locking block (B), Then push it into guide ruler follow the direction of
the arrow.
3- Set the required distance, fasten two knobs (C) again.
4- Loose angle ruler knob (I), set the required distance, fasten knobs (I) again.
TILE SAW
10
A
I
B
C
.FILL THE TANK WITH WATER
Electric ceramic tile machine equipped with special cooling water tank.
Cut diamond disks.
ATTENTION!
It is strictly forbidden to operate the tile cutting machine without cooling
the cutting plate with water!
1- Pour clear water into the tank to the maximum water level specied
on the tank.
ATTENTION!
Water can only be injected on disconnected instruments!
2- Before cutting tiles, turn on the tile cutter and make sure that water is
delivered to the cutting plate.
3- Check the water level in the container regularly. Water should be
higher than the pump level and the low point of the cutting disk.
4- Maintain the water level during operation. Prevent the liquid level
indicated on the tank from dropping.
5- When starting up, the feed water pump will automatically start up.
USER MANUAL 11
CUTTING DISC INSTALLATION
ATTENTION!
Before replacing the cutting disc, be sure to turn off the tile cutter and
disconnect the plug from the socket.
1- Remove the protective cover of the cutting disc by loosening the
screw.
2- Loosen the nut (left hand thread) with two wrenches. The wrench may
not match.
3- Remove the outer ange and move the cutting disc onto the inner
ange on the spindle.
4- Install a new cutting disc, and the arrows on the cutting disc and
protective sleeve should be in the same direction.
5- Use a special wrench to install the outer ange and nut in place.
Install the protective cover.
ATTENTION!
Never use a ceramic tile machine without a protective cover.
.OPERATION
1- Before opening the ceramic tile cutting machine, please ensure that
the cutting disc has nothing to stir and has the function of free rotation.
Check if the ceramic tile cutter is damaged, assembled correctly, and
installed reliably.
2- Ensure that there is sufcient water in the container to supply the
cutting disc.
3- Make sure the power cord is dry and laid in such a way that no water
splashes on the power cord while the tile machine is working.
4- Mark the position/direction of the cut on the workpiece to be
machined, and install the machined tile on the workbench, close to
the groove corner support and rack.
5- Adjust the position of groove rack and check whether the cutting is
correct.
TILE SAW
12
6- Connect the tile machine to the 220V power network.
7- Open the tile cutting machine, wait for the maximum speed of the
cutting disk, hold the motor moving handle tightly, and smoothly move
the motor and cutting disk block on the guide rail frame for cutting.
.START
1- Connect the power tool to the power supply.
2- Press the green button (I) of the switch(D) to turn on the tile machine.
3- Disconnect the red button (0) of the power tool switch (D).
4- Before clicking the ‘Release’ button, ensure that the cutting disc is not
disturbed and can rotate freely. Before placing the workpiece into the
cutting disc, please wait for it to completely overclock. After working,
remove the tiles when the disc is completely stopped.
5- Install the tool to the required position, and then tighten all xing bolts.
6- Loosen retaining nut (E).
7- Remove transport support locking knob (F).
D
F
E
USER MANUAL 13
.STRAIGHT LINE CUTTING
1- Pour water into the tank.
2- Tighten all xing bolts.
3- Mark cutting lines on the machined parts.
4- Put the tile on the table and press it tightly against the support of the
guide rail and the rack at the corner inclined plane. Adjust the angle
ruler if necessary inclined plane.
5- Turn on the tile cutter and wait for the maximum speed of the cutting
plate.
6- Hold the handle and move the motor with the handle.
ATTENTION!
Do not press on the cutting plate.
The disc must pass through the materials a constant speed. Depending
on the thickness and type of tile, cutting may take different times. Never
try to push the cutting disc through the tile, which may cause the motor
to stop, the cutting speed to slow down and the edges to be uneven.

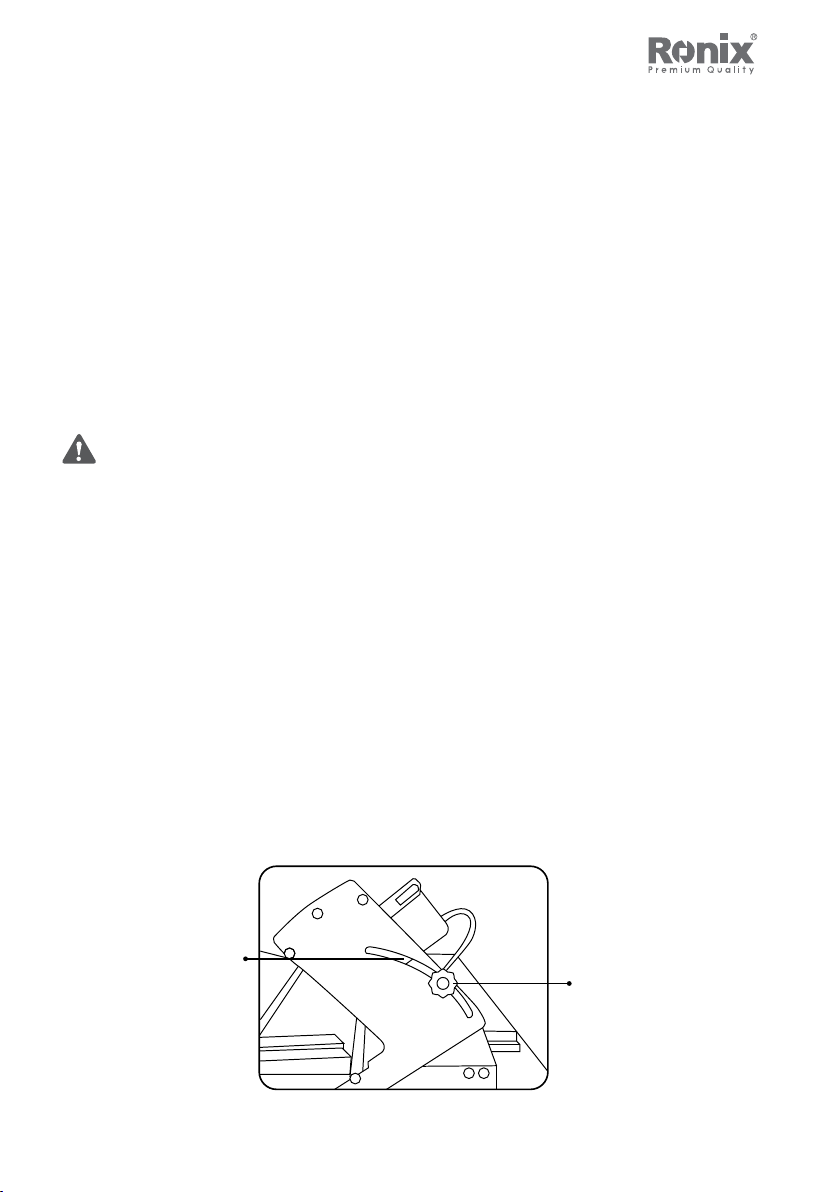

.OBLIQUE CUT
1- Operation procedure is the same as straight line cutting.
2- For chamfering, loosen the knob(G).
3- Tilt the guide rail to the desired angle under the guidance of angle
scale (H).
4- Tighten retaining knob(G).
G
H
TILE SAW
14
IJ
ANGULAR CUTTING
1- Operating procedure is same as the straight line cutting.
2- To perform angle cutting, set the bevel angle rack (J) to the required
angle,using ruler knob (I).
.SUGGESTIONS ON HOW TO HANDLE CERAMIC TILES
- After opening the tool, start cutting the tiles after the spindle is fully
rotated.
Keep the tiles in a horizontal position, especially at the beginning of sawing.
- Pay attention to the water level in the sink and add water if necessary.
- Do not allow the power cord to approach the mobile node of the tool.
- It is not recommended to use excessively long extension cords; When
using the extension wire on the coil, it must be completely released.
- Do not close the vent of the tool, pay attention to its cleanliness.
- Do not touch the disk until it completely stops and cools down.
- Never apply pressure to the side of the diamond disc, as this may
cause the disc to rupture.
Flying saucer fragments may cause serious injury
- During the work process, always ensure that the entire surface of the
workpiece is against the desktop.
- Ensure that the workpiece remains in a horizontal position, especially
during the initial stage of work. In this case, the diamond disc will not
bounce during the cutting process.
- Carefully carry out maintenance work. Ensure that the tools are sharp
USER MANUAL 15
and clean. This will make the cutting more precise and safe.
.MAINTENANCE AND REPAIR
- After work, before cleaning, replace diamond disc or tank with
Disconnect the cable plug from the network socket with water.
- The tile cutting machine must be cleaned immediately after the work is
nished. For this the following steps need to be taken:
1- Disconnect the power cord plug from the network socket
2- Remove the water tank and discharge dirty water
3- Remove the protective cover and clean it
4- Release the handwheel, move the workbench and wipe the
whole tool.
5- Wipe dirt and dust with soft cloth or napkin on tool shell and vent.
Suggestions on sustainable pollution
Soak soft tissue in soapy water to eliminate it.
ATTENTION!
Solvents are not allowed to eliminate pollution: gasoline, alcohol, etc.
- The tool does not require additional lubricant. All maintenance work
can only be carried out in special service facilities Center.
- Regularly check whether the power cord plug and network socket are
in good condition. Also check the extension cord regularly. Do not use
tile cutting machine if there are protective devices or switches Failure.
- If any trouble is found, please contact the service center.
Malfunction Possible causes Elimination measures
Non-engine Start
No voltage of power
grid Nutrition
Check for presence
or absence Grid
voltage
Circuit breaker fault Contact service
center
The motor windings
are burnt out
Contact service
center
TILE SAW
16
The engine is not
running at full speed,
nor is it running at
full power
Low voltage Check the grid
voltage
Network congestion Check the grid
voltage
Winding fracture Contact service
center
It's too long.
Extension cord
Replace the extender
with a shorter
extender
Engine overheating,
stop, disconnect fuse
Engine overload
Reduce engine
load & maintain this
operating condition
Winding burnt or
broken
Contact service
center
Insufcient power of
fuse or circuit breaker
Install fuses or circuit
breakers with
appropriate power
Elevation Vibration,
clearance Cutting
disc
Disk imbalance
(cutting disk with
debris)
Replace cutting disc
Poor cutting disc
Fixed
Installing disc rear
fastening ange nut
Odor of smoke and
insulation burning Rotor or stator
winding fault
Contact service
center
There is no cooling
water supply on the
disc
- Low water level
Pallet
- Disconnect the feed
hose
- pump failure
- Add water to the
maximum
- Check the hose and
its Connect
- Contact the service
center
STORAGE
- Before storing tiles for a long time, it is recommended to lubricate them
with machines. Unoiled worktable surface, hinged threaded joint of tile
cutting machine (except cutting disk), for anticorrosion.
USER MANUAL 17
- Tile cutting machine, user manual, and all accessories should follow
Store in a dry and safe place. This provides an opportunity to get all the
details and all the necessary information in the future.
- Tools should be kept in the manufacturer’s packaging, heated, Ventilated
spaces inaccessible to children at temperatures of + 5°C to +35°C and
relative humidity not exceeding 85% (+ 25°C), excluding direct sunlight.
- The tools in the manufacturer’s packaging can transport all kinds of covered
ones Transportation when the air temperature is -10°C to + 40°C and the
relative humidity is 85% (the temperature is + 25°C).
- During transportation, any possible impact should be avoided, and
move the kit inside the vehicle.
Table of contents
Other Ronix Saw manuals
