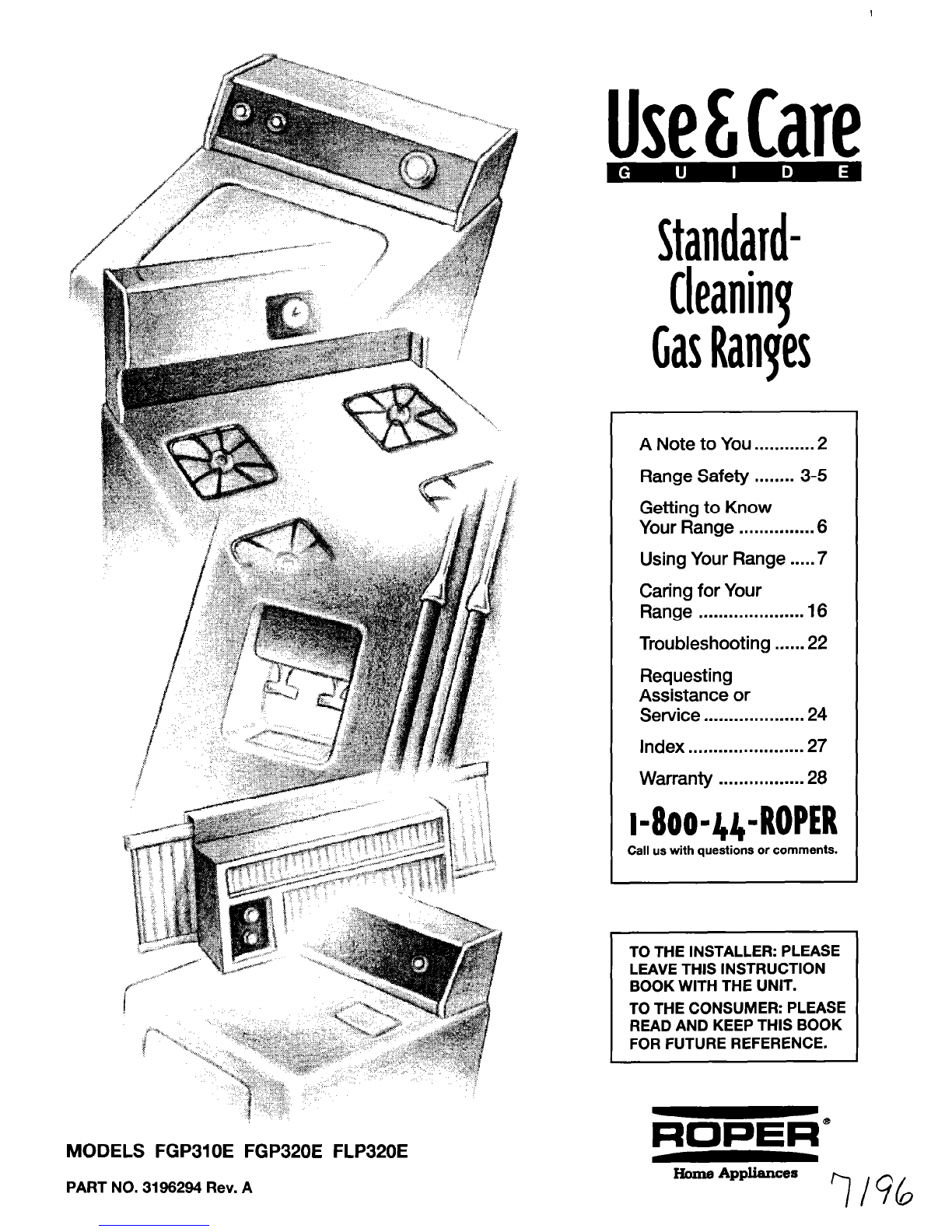

Roper FGP31OE User manual

MODELS FGP31OE FGP320E FLP320E
PART NO. 3196294 Rev. A
Standard-
.
Cleaning
GasRanges
A Note to You ............2
Range Safety ........ 3-5
Getting to Know
Your Range ...............6
Using Your Range .....7
Caring for Your
Range ..................... 16
Troubleshooting ......22
Requesting
Assistance or
Service ....................24
Index ....................... 27
Warranty .................28
Call us with questions or comments.
TO THE INSTALLER: PLEASE
LEAVE THIS INSTRUCTION
BOOK WITH THE UNIT.
TO THE CONSUMER: PLEASE
READ AND KEEP THIS BOOK
FOR FUTURE REFERENCE.
Home Appliances
3

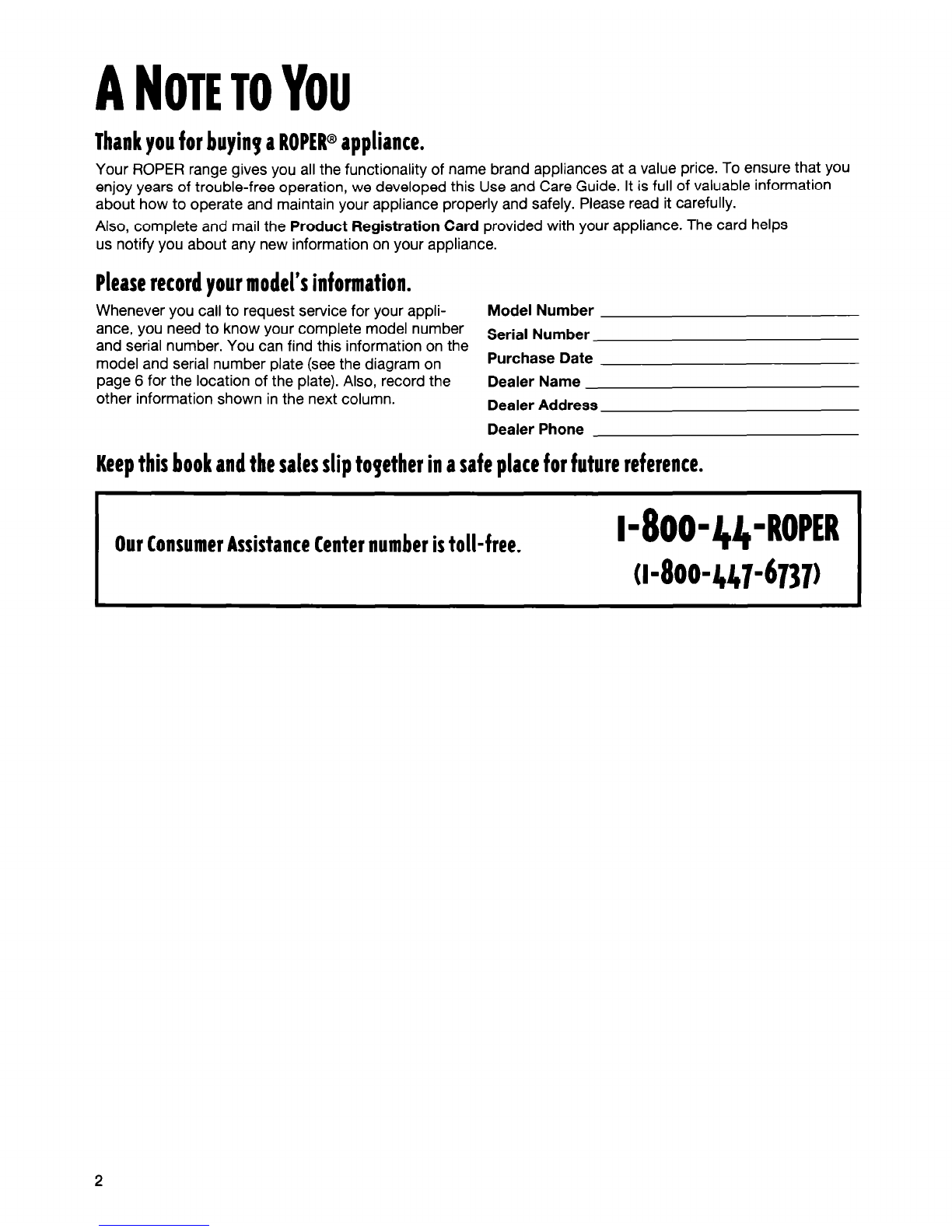

ANOTETOYou
Thankyoufor buyingaROPER@appliance.
Your ROPER range gives you all the functionality of name brand appliances at a value price. To ensure that you
enjoy years of trouble-free operation, we developed this Use and Care Guide. It is full of valuable information
about how to operate and maintain your appliance properly and safely. Please read it carefully.
Also, complete and mail the Product Registration Card provided with your appliance. The card helps
us notify you about any new information on your appliance.
Pleaserecordyourmodel’sinformation.
Whenever you call to request service for your appli- Model Number
ante, you need to know your complete model number
and serial number. You can find this information on the Serial Number
model and serial number plate (see the diagram on Purchase Date
page 6 for the location of the plate). Also, record the Dealer Name
other information shown in the next column. Dealer Address
Dealer Phone
KeepthisbookandthesalessliptoTetherinasafeplacefor futurereference.
OurConsumerAssistanceCenternumberistoll-free.
I-800~b&ROPER
<I-800-447-6737,

RANGE SAm
Yoursafetyisimportantto us.
This guide contains safety statements under warning This symbol alerts you to hazards such as
symbols. Please pay special attention to these sym-
bols and follow any instructions given. Here is a brief n ! fire, electrical shock, or other injuries.
explanation of the use of the symbol. 0
Tip Over Hazard
Connect anti-tip bracket to the range.
Reconnect anti-tip bracket, if the range is moved.
Do not push down on the open oven door.
Follow the Installation Instructions.
Do not let children climb onto the oven door.
Failure to follow these instructions can result in death, burns, or other injury.
For more information, see “The anti-tip bracket” on page 15.
IMPORTANTSAFETYINSTRUCTIONS
READANDSAVETHESEINSTRUCTIONS
Gas ranges have been thoroughly tested for safe and efficient operation. However, as with any appliance,
there are specific installation and safety precautions which must be followed to ensure safe and satisfactory
operation.
WARNING: If the information in this manual is not followed exactly, a fire or
explosion may result causing property damage, personal injury or death.
- Do not store or use gasoline or other flammable vapors and liquids in the vicinity
of this or any other appliance.
-WHAT TO DO IF YOU SMELL GAS
l Do not try to light any appliance.
l Do not touch any electrical switch; do not use any phone in your building.
l Immediately call your gas supplier from a neighbor’s phone. Follow the gas
supplier’s instructions.
l If you cannot reach your gas supplier, call the fire department.
- Installation and service must be performed by a qualified installer, service
agency or the gas supplier.
continued on next page

General
l Install or locate the range only in accordance with
the provided Installation Instructions. The range
must be installed by a qualified installer. The
range must be properly connected to the proper
gas supply and checked for leaks.
l Gas fuels and their use in appliances can cause
minor exposures to benzene, formaldehyde,
carbon monoxide, and soot, primarily from
incomplete combustion. Significant exposure to
these substances could cause cancer or repro-
ductive harm. Properly adjusted burners with a
blue, rather than a yellow, flame will minimize
incomplete combustion. Venting with a hood or
an open window will further minimize exposure.
0 Do not store things children might want above the
range. Children could be burned or injured while
climbing on it.
0 Do not leave children alone or unattended in area
where the range is in use. They should never be
allowed to sit or stand on any part of the range.
They could be burned or injured.
0 Do not operate the range if it is damaged or not
working properly.
0 Do not use the range for warming or heating the
room. Persons could be burned or injured, or a
fire could start.
l Use the range only for its intended use as
described in this manual.
0 Do not touch surface burners, areas near surface
burners, or interior surfaces of oven. Areas near
surface burners and interior surfaces of an oven
become hot enough to cause burns. During and
after use, do not touch, or. let clothing or other
flammable materials contact surface burners,
areas near surface burners, or interior surfaces of
oven until they have had sufficient time to cool.
Other surfaces of the range, such as the oven
vent opening, the surface near the vent opening,
the cooktop, and the oven door, could also
become hot enough to cause burns.
l Do not wear loose or hanging garments when
using the range. They could ignite if they touch an
open flame and you could be burned.
0 Use only dry pot holders. Moist or damp pot
holders on hot surfaces could result in burns from
steam. Do not let pot holder touch an open flame.
Do not use a towel or bulky cloth for a pot holder.
It could catch on fire.
0 Keep range vents unobstructed.
0 Do not heat unopened containers. They could
explode. The hot contents could cause burns and
container particles could cause injury.
l Use only cookware approved for oven use. Follow
cookware manufacturer’s instructions, especially
when using glass or plastic cookware.
0 Do not store flammable materials on or near the
range. The fumes could create an explosion and/
or fire hazard.
0 Do not use the oven for storage.
l Do not use aluminum foil to line area around
burners, oven bottom, or any other part of
the range.
0 Never use a match or other flame to look for a gas
leak. Explosion and injury could result.
0 Know where your main gas shutoff valve is
located.
Whenusingthecooktop
l Make sure the cookware you use is large enough
to contain food and avoid boilovers and spill-
overs. Heavy splattering or spillovers left on a
range could ignite and burn you. Pan size is
especially important in deep fat frying.
0 Check to be sure glass cookware is safe for
use on the range. Only certain types of glass,
glass-ceramic, ceramic, earthenware, or other
glazed cookware are suitable for cooktops
without breaking due to the sudden change
in temperature.
l Never leave surface burners unattended at high
heat settings. A boilover could result and cause
smoking and greasy spillovers that could ignite.
4

0 Turn pan handles inward, but not over other
surface burners. This will help reduce the chance
of burns, igniting of flammable materials, and
spills due to bumping of the pan.
0 Do not use decorative covers or trivets over the
surface burners.
Whenusingtheoven
l Always position the oven rack(s) in desired
location while oven is cool.
l Use care when opening oven door. Let hot air or
steam escape before removing or replacing food.
Crease
Careandcleaninp
l Do not clean door heat seal. It is essential for a
good seal. Care should be taken not to rub,
damage, or move the seal. Clean only parts
recommended in this Use and Care Guide.
l Do not repair or replace any part of the range
unless specifically recommended in this manual.
All other servicing should be referred to a qualified
technician.
l Any additions, changes, or conversions required
in order for this appliance to satisfactorily meet
the application needs must be made by a
Roper service company or Qualified Agency.
0 Disconnect the gas supply at the shutoff valve
near the range before servicing the range.
l Grease is flammable. Do not allow grease to
collect around cooktop or in vents. Wipe spill-
overs immediately.
l Do not use water on grease fires. Never pick up
a flaming pan. Smother flaming pan by covering
with a well-fitting lid, cookie sheet, or flat tray.
Flaming grease outside of pan can be extinguished
with baking soda or, if available, a multipurpose
dry chemical or foam-type extinguisher.
- READANDSAVETHESElNSTRUCTlONS-
5

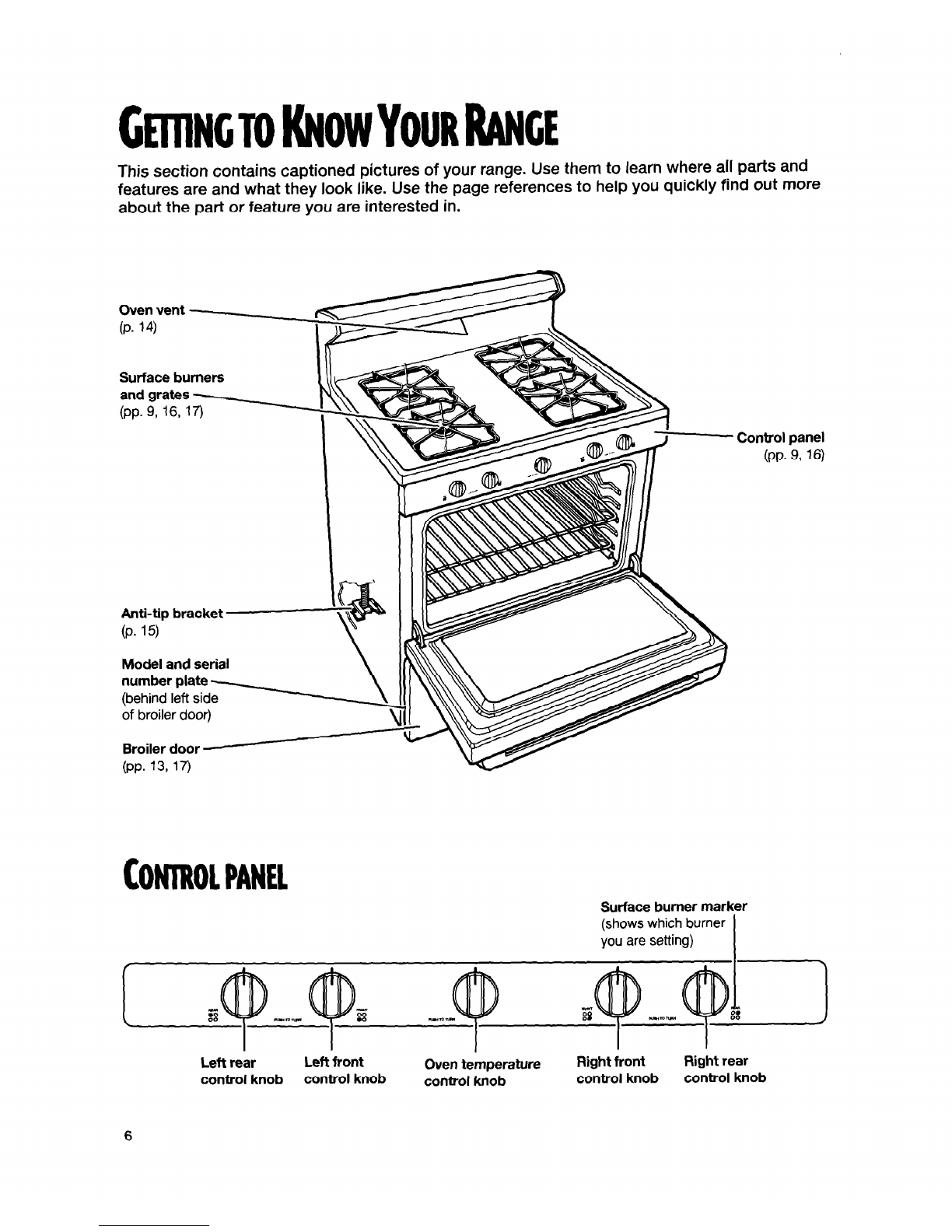

CEIIINGTDKNOWYOURRANCE
This section contains captioned pictures of your range. Use them to learn where all parts and
features are and what they look like. Use the page references to help you quickly find out more
about the part or feature you are interested in.
Oven vent
(P. 14)
Surface burners
Anti-tip bracket
(P. 15)
Model and serial
number plate -
(behind left side
of broiler door)
Broiler door M
(PP. 73, 17)
CONTROLPANEL
Control panel
(PP. 9, 16)
Surface burner marker
(shows which burner
you are setting)
Left rear Left front Oven temperature Right front Right rear
control knob control knob control knob control knob control knob
6

USINGYOUR RANGE
To get the best cooking results, you should use your range the correct way. This section tells
you what you need to know to use your range safely and efficiently.
Your range comes with standing pilots. When you
first use your range, you have to light the standing
pilot. The pilot light will stay lit when you turn off
the burners.
Tolightsurfaceburnerpilots:
1. Make sure all controls are turned off. 4. If the pilot flame needs adjustment, turn the pilot
adjustment screw located
midway down the length
of the manifold pipe,
behind the control panel.
ner grates from the
cooktop. Lift up the
cooktop. (See “Lift-up
cooktop and surface
burners” on page 18.)
replace the grates before
using the surface burners.
3. To light, hold a lit match over the pilot light
located between the
front and back burners.
The pilot flame should
be % to % inch high.
7

kHTlNCSTANDINGPILOTS(CONT.)
Tolight theovenburnerpilot:
1. Make sure the oven temperature control knob is
turned off.
2. Open the broiler door.
I I
3. Remove the broiler pan and grid.
4. Hold a lit match over the oven burner pilot located
at the rear of the burner.
NOTE: To make it easier
to reach the pilot, use a
long (fireplace) match.
5. After the oven burner pilot is burning steadily,
check the burner
lighting by turning the
oven temperature control
knob to a temperature at
or above 250°F. The
burner will take 50-60
seconds to light.
6. Replace the broiler pan and grid and close
the door.
8

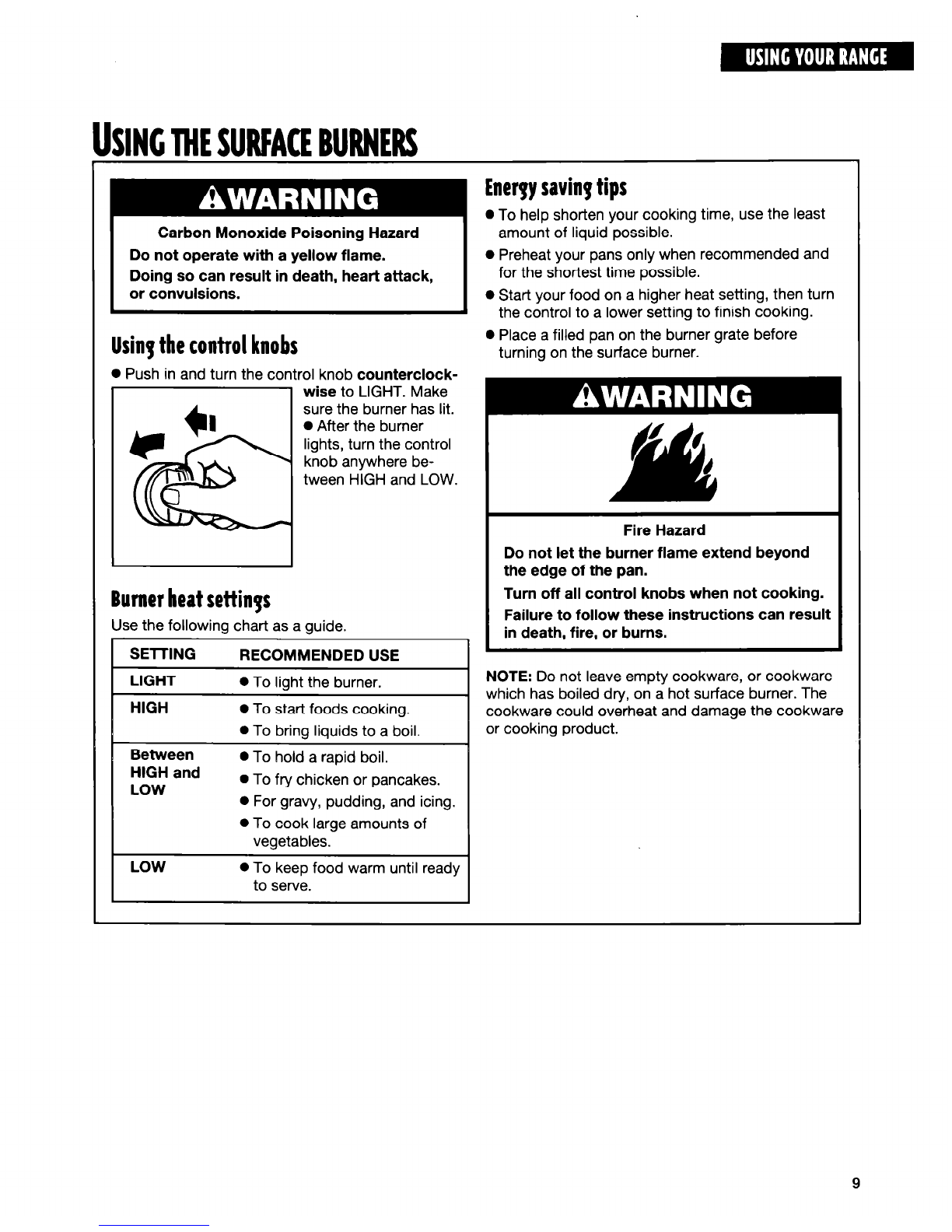

Carbon Monoxide Poisoning Hazard
Do not operate with a yellow flame.
Doing so can result in death, heart attack,
or convulsions.
Usingthecontrolknobs
0 Push in and turn the con trol knob counterclock-
wise to LIGHT. Make
sure the burner has lit.
0 After the burner
lights, turn the control
knob anywhere be-
tween HIGH and LOW.
Burnerheatsettinpr
Use the following chart as a guide.
Energysavinytips
0 To help shorten your cooking time, use the least
amount of liquid possible.
0 Preheat your pans only when recommended and
for the shortest time possible.
0 Start your food on a higher heat setting, then turn
the control to a lower setting to finish cooking.
0 Place a filled pan on the burner grate before
turning on the surface burner.
Fire Hazard
Do not let the burner flame extend beyond
the edge of the pan.
Turn off all control knobs when not cooking.
Failure to follow these instructions can result
in death, fire, or burns.
SETTING
LIGHT
.__-..
RECOMMENDED USE
0 To liaht the burner. NOTE: Do not leave empty cookware, or cookware
, which has boiled dry, on a hot surface burner. The
HIGH
0 To start foods cooking. I cookware could overheat and damage the cookware
l To brine liquids to a boil. or cooking product.
Between
HIGH and
LOW
0 To hold a rapid boil. I
0 To fry chicken or pancakes.
0 For gravy, pudding, and icing.
0 To cook large amounts of
vegetables. I
LOW 0 To keep food warm until ready
to serve.
9

Homecanninginformation Cookwaretips
The large diameter of most water-bath or pressure
canners combined with high heat settings for long
periods of time can cause damage to the cooktop.
To protect your range:
l For best results, use a canner which can be
centered over the surface burner.
l Do not place your canner on 2 surface burners
l The pan should have a flat bottom, straight sides,
and a well-fitting lid.
0 Choose medium to heavy gauge (thickness)
cookware.
at the same time. Too
much heat will build
up and will damage
the cooktop.
l Start with hot water.
This reduces the time
the control is set on
high. Reduce the heat
setting to the lowest
position needed to
keep the water boiling.
0 The pan material (metal or glass) affects how
quickly and evenly the pan heats.
l When using glass or ceramic cookware, check to
make sure it is suitable for use on surface burners.
0 To avoid tipping, make sure pots and pans are
centered on the grates.
l Refer to your canner manual for specific instructions.
USINGMESURFACEBURNERS(CONT.)
Generalguidelines
Follow this section carefully to get the best
cooking results.
l Before turning on the oven, place oven racks
where you need them.
l To move a rack, pull it out to the stop, raise the
front edge, and lift it out.
0 Be sure the rack(s) is level.
0 Use pot holders or oven mitts to protect your
hands if rack(s) must be moved while the
oven is hot.
l When baking/roasting with 1 rack, place the
rack so the top of the food will be centered in
the oven.
l When baking/roasting on 2 racks, arrange the
racks on the 2nd and 4th rack guides from
the bottom.
l Do not place items on the oven door when it
is open.
RackPlacementforspecificfoods:
POSITIONINGRACKS ANDPANS
FOdD
I
RACK POSITION
Frozen pies, large
roasts, turkeys, angel
food cakes
1st or 2nd rack
guide from bottom
Bundt cakes, most
quick breads, yeast
breads, casseroles,
meats
2nd rack guide
from bottom
Cookies, biscuits,
muffins, cakes,
nonfrozen pies
2nd or 3rd rack
guide from bottom
10

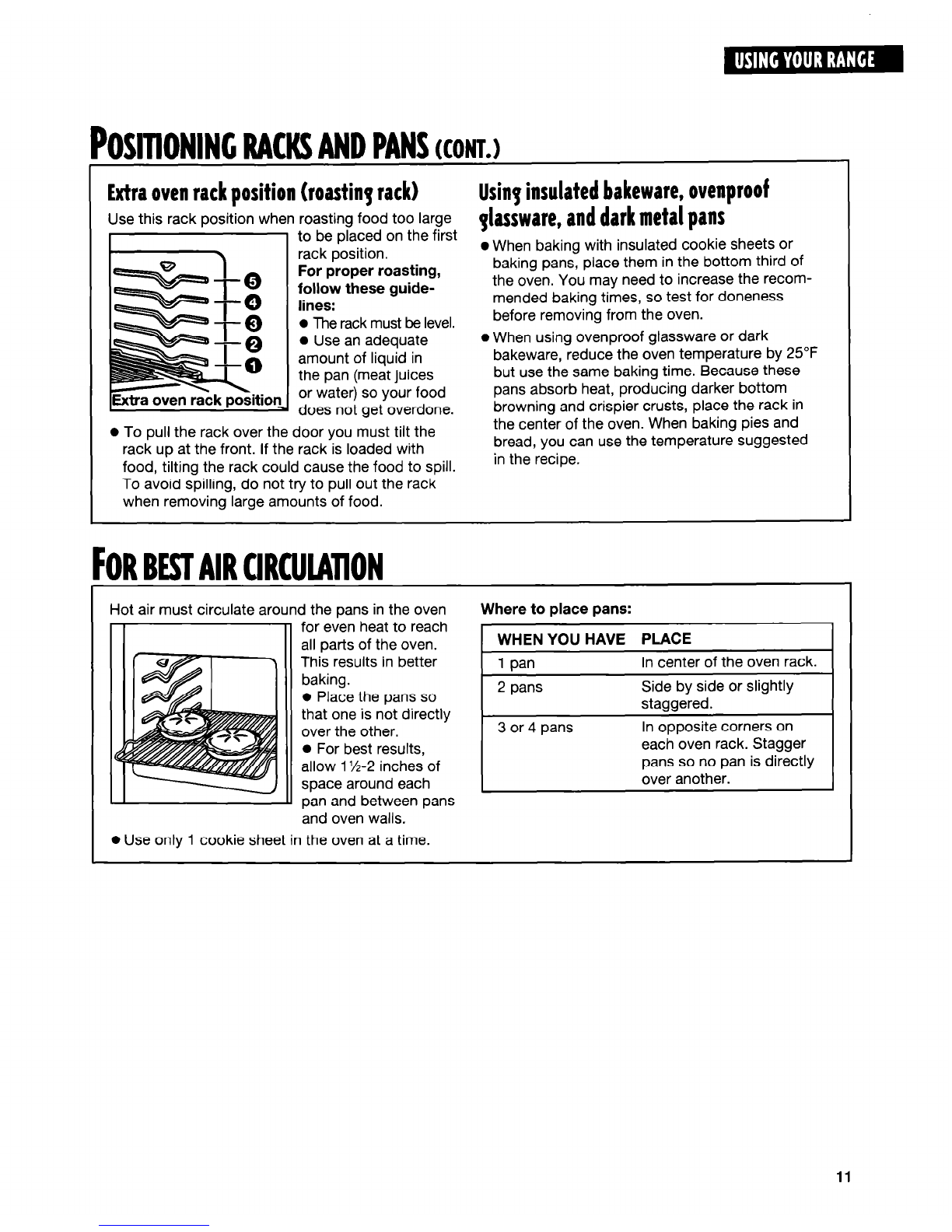

Extraovenrackposition(roastingrack) Usinpinsulatedbakeware,ovenproof
Use this rack position when roasting food too large qlassware,anddarkmetalpans
- to be placed on the first
rack position. ; When baking with insulated cookie sheets or
For proper roasting, baking pans, place them in the bottom third of
follow these guide- the oven. You may need to increase the recom-
lines: mended baking times, so test for doneness
l The rack must be level. before removing from the oven.
l Use an adequate
amount of liquid in
the pan (meat juices
or water) so your food
* does not get overdone.
0 To pull the rack over the door you must tilt the
rack up at the front. If the rack is loaded with
food, tilting the rack could cause the food to spill.
l When using ovenproof glassware or dark
bakeware, reduce the oven temperature by 25°F
but use the same baking time. Because these
pans absorb heat, producing darker bottom
. . .I
browning and cnsprer crusts, place rne rack in
the center of the oven. When baking pies and
bread, you can use the temperature suggested
in the recipe.
POSITIONINGRACKSANDPANS (CONT.)
To avoid spilling, do not try to pull out the rack
when removing large amounts of food.
Hot air must circulate around the pans in the oven Where to place pans:
for even heat to reach
all parts of the oven.
This results in better
baking.
l Place the pans so
that one is not directly
over the other.
0 For best results,
allow l %-2 inches of
space around each
pan and between pans
and oven walls.
0 Use only 1 cookie sheet in the oven at a time.
FORBESTAIRClRCUlATlON
WHEN YOU HAVE PLACE
1 pan
2 pans
3 or 4 pans
In center of the oven rack.
Side by side or slightly
staggered.
In opposite corners on
each oven rack. Stagger
pans so no pan is directly
over another.
11

BAKING/ROASTING
1
. Place racks where you need them. For more 3. When baking, preheat the oven for 10 minutes, then
put your food in the oven.
NOTE: Do not place your
food directly on the oven
bottom. If you want, place
the food on the rack at
the extra rack position.
During baking/roasting,
the oven burner will turn
on and off to keep the
same temperature setting.
1
Rear
2 I. Push in and turn the oven temperature control
information, see “Posi-
tioning racks and pans”
on pages 10and 11.
knob counterclockwise
to the baking/roasting
temperature you want.
The oven burner will
light by itself in
50-60 seconds.
4. After baking/roasting, turn the oven temperature
control knob clockwise
to OFF.
i
flerpysavingtips
0
0
0
0
0
“Oven peeking” can make cooking times longer
and affect food quality.
Rely on a timer to keep track of cooking time.
Plan your meals for the most efficient use of the
oven by cooking more than one food at a time.
If possible, plan to bake while the oven is still hot
after cooking.
You don’t have to preheat the oven when broiling
or roasting.
Roastingtips
0 For even cooking, place the meat on a rack in a
shallow pan. This keeps the meat out of the drip-
pings and allows the heat to circulate better.
0 Use a meat thermometer for the most accurate
doneness. Insert it so the tip is in the center of the
largest muscle or thickest portion of the meat or
poultry. Make sure the thermometer is not touching
bone, fat, or the bottom of the pan.
12

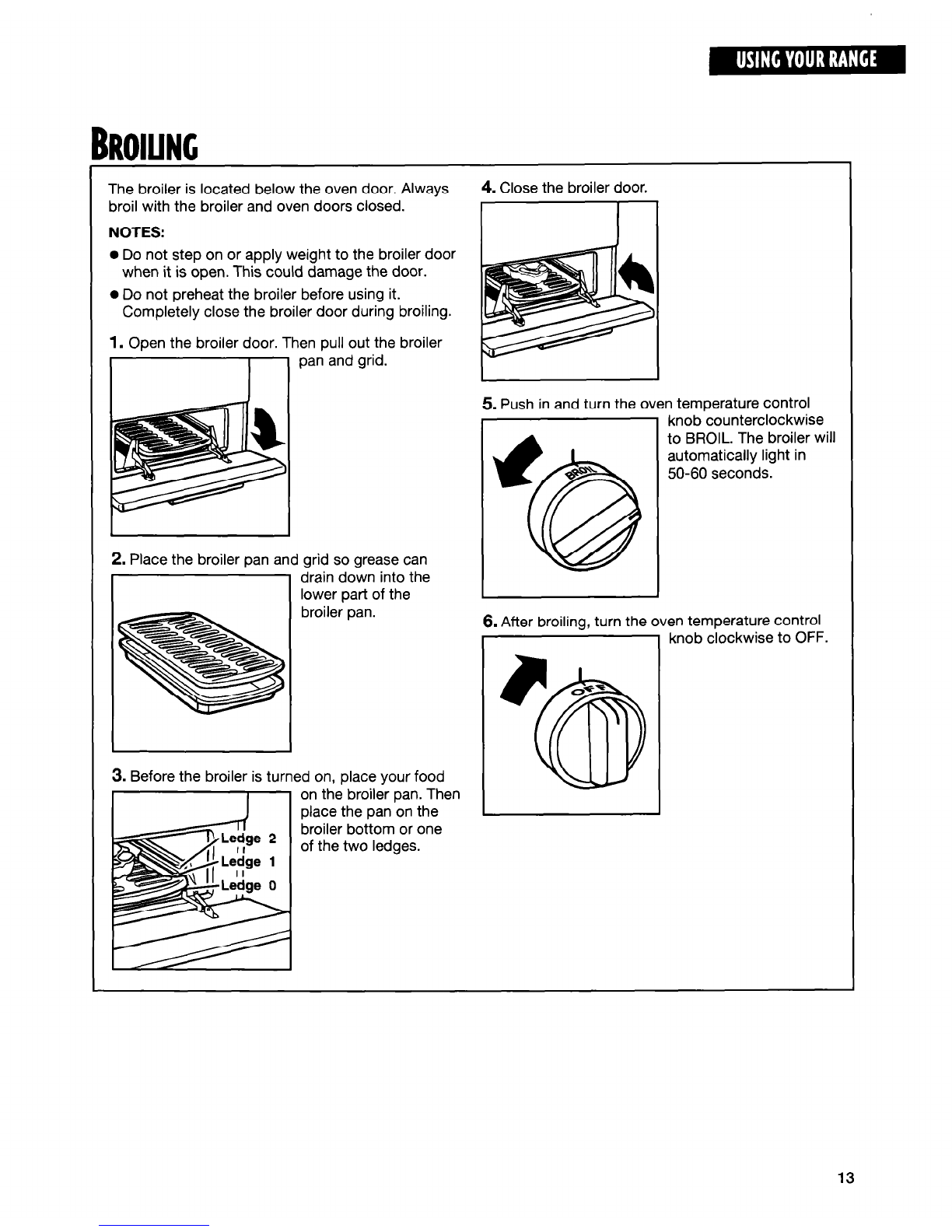

The broiler is located below the oven door. Always
broil with the broiler and oven doors closed.
NOTES:
l Do not step on or apply weight to the broiler door
when it is open. This could damage the door.
0 Do not preheat the broiler before using it.
Completely close the broiler door during broiling.
1. Open the broiler door. Then pull out the broiler
pan and grid.
2. Place the broiler pan and grid so grease can
drain down into the
lower part of the
broiler pan.
3. Before the broiler is turned on, place your food
on the broiler pan. Then
place the pan on the
broiler bottom or one
of the two ledges.
4. Close the broiler door.
5. Push in and turn the oven temperature control
knob counterclockwise
to BROIL. The broiler will
automatically light in
50-60 seconds.
L
6. After broiling, turn the oven temperature control
- knob clockwise to OFF.
13

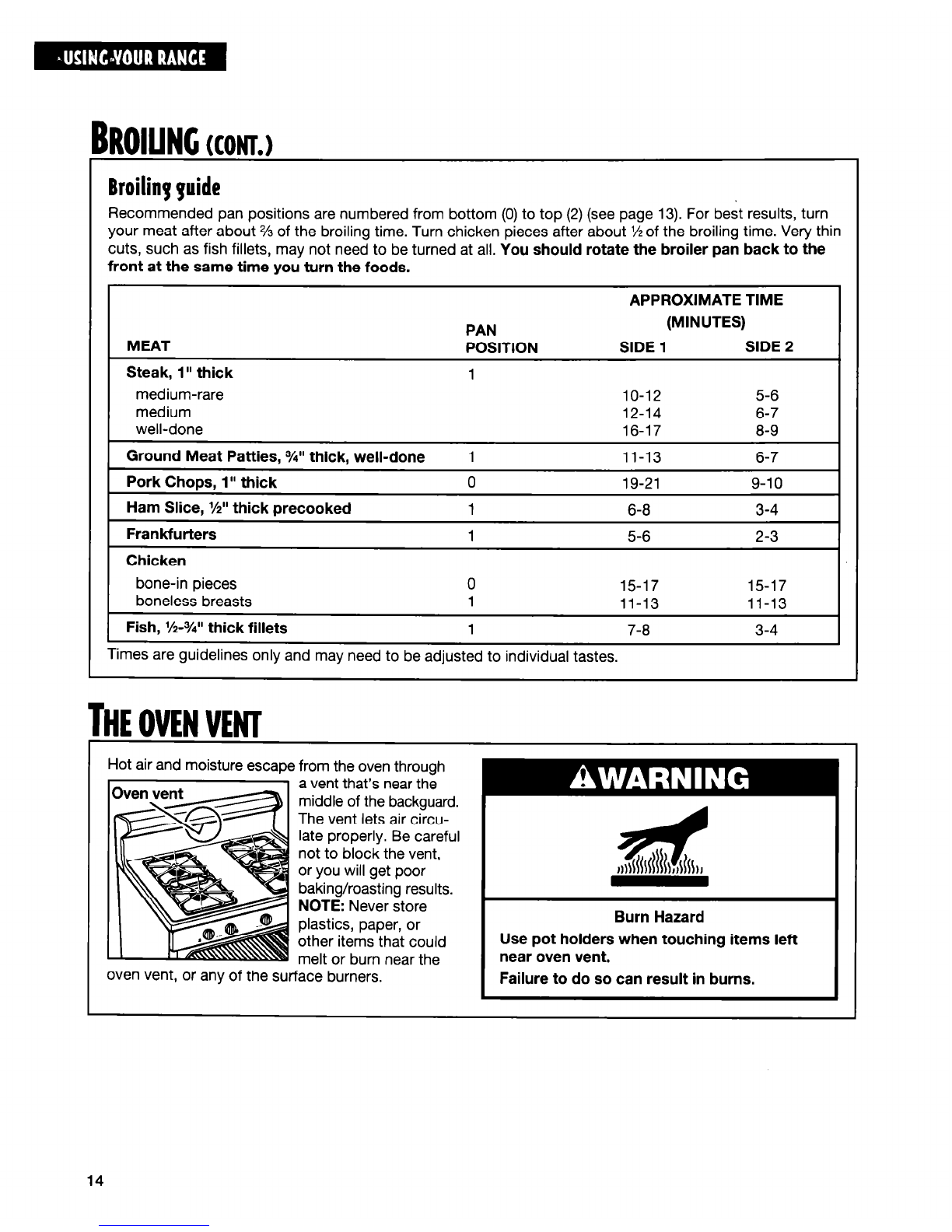

BROIUNG NM-I
- -NW --I m - ,w-.....
Broihg guide
Recommended pan positions are numbered from bottom (0) to top (2) (see page 13). For be& results, turn
your meat after about % of the broiling time. Turn chicken pieces after about l/zof the broiling time. Very thin
cuts, such as fish fillets, may not need to be turned at all. You should rotate the broiler pan back to the
front at the same time you turn the foods.
APPROXIMATE TIME
PAN (MINUTES)
MEAT POSITION SIDE 1 SIDE 2
Steak, 1” thick 1
medium-rare 10-12 5-6
medium 12-14 6-7
well-done 16-17 8-9
Ground Meat Patties, %I” thick, well-done 1 11-13 6-7
Pork Chops, 1” thick 0 19-21 9-10
Ham Slice, l/2” thick precooked 1 6-8 3-4
Frankfurters 1 5-6 2-3
Chicken
bone-in pieces 0 15-17 15-17
boneless breasts 1 11-13 11-13
Fish , ‘/&?I!$”thick fillets 1 7-8 3-4
Times are guidelines only and may need to be adjusted to individual tastes.
rHEOVENVENT
Hot air and moisture escape from the oven through
a vent that’s near the
middle of the backguard.
The vent lets air circu-
late properly. Be careful
not to block the vent,
or you will get poor
baking/roasting results.
NOTE: Never store
plastics, paper, or
other items that could
melt or burn near the
oven vent, or any of the surface burners.
4
,n~l((ll~ll~,,d((~~,
Burn Hazard
Use pot holders when touching items left
near oven vent.
Failure to do so can result in burns.
14

The range will not tip during normal use. However,
the range can tip if you apply too much force or
weight to the open door without the anti-tip bracket
fastened down properly.
Tomakesuretheanti-tip bracketisfastened
intoplace:
0 Look under the range (you may need a flashlight).
Check that a leveling
foot is positioned
under the bracket.
l See the Installation
Instructions for further
details.
A&
Tip Over Hazard
Connect anti-tip bracket to the range.
Reconnect anti-tip bracket, if the range is
moved.
Do not push down on the open oven door.
Follow the Installation Instructions.
Do not let children climb onto the oven door.
Failure to follow these instructions can
result in death, burns, or other injury.
15

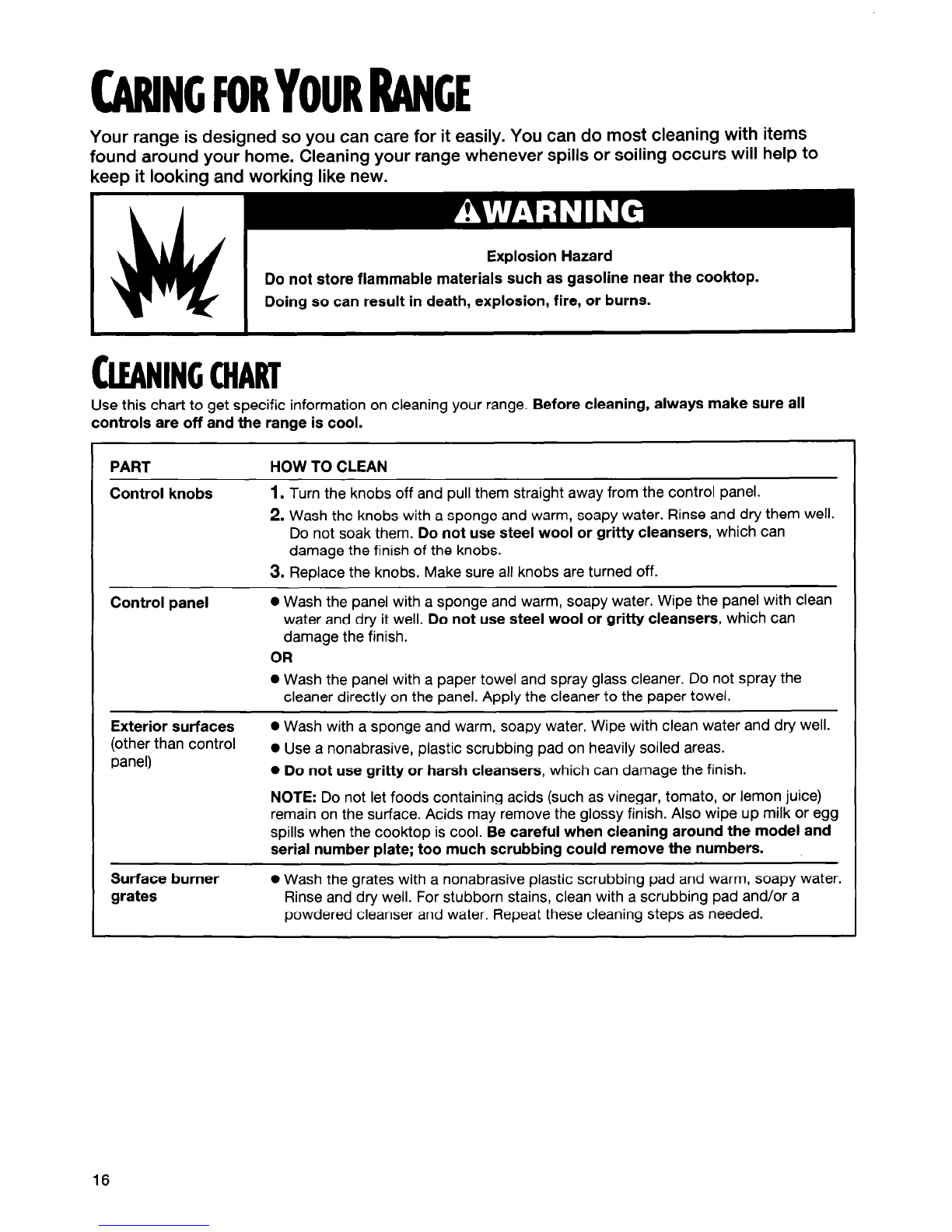

CARINGFORYOURRANGE
Your range is designed so you can care for it easily. You can do most cleaning with items
found around your home. Cleaning your range whenever spills or soiling occurs will help to
keep it looking and working like new.
Explosion Hazard
Do not store flammable materials such as gasoline near the cooktop.
Doing so can result in death, explosion, fire, or burns.
CLEANINGCHART
Use this chart to get specific information on cleaning your range. Before cleaning, always make sure all
controls are off and the range is cool.
PART
Control knobs
HOW TO CLEAN
1. Turn the knobs off and pull them straight away from the control panel.
2. Wash the knobs with a sponge and warm, soapy water. Rinse and dry them well.
Do not soak them. Do not use steel wool or gritty cleansers, which can
damage the finish of the knobs.
3. Replace the knobs. Make sure all knobs are turned off.
Control panel 0 Wash the panel with a sponge and warm, soapy water. Wipe the panel with clean
water and dry it well. Do not use steel wool or gritty cleansers, which can
damage the finish.
OR
0 Wash the panel with a paper towel and spray glass cleaner. Do not spray the
cleaner directly on the panel. Apply the cleaner to the paper towel.
Exterior surfaces
(other than control
panel)
0 Wash with a sponge and warm, soapy water. Wipe with clean water and dry well.
0 Use a nonabrasive, plastic scrubbing pad on heavily soiled areas.
0 Do not use gritty or harsh cleansers, which can damage the finish.
NOTE: Do not let foods containing acids (such as vinegar, tomato, or lemon juice)
remain on the surface. Acids may remove the glossy finish. Also wipe up milk or egg
spills when the cooktop is cool. Be careful when cleaning around the model and
serial number plate; too much scrubbing could remove the numbers.
Surface burner
grates 0 Wash the grates with a nonabrasive plastic scrubbing pad and warm, soapy water.
Rinse and dry well. For stubborn stains, clean with a scrubbing pad and/or a
powdered cleanser and water. Repeat these cleaning steps as needed.
16

CIIANINCww (CONT.)
I
PART HOW TO CLEAN
Surface burners
(see “Lift-up cooktop
and surface burners”
on page 18 for more
information)
1. Lift up the cooktop. (See page 18.)
2. Wipe off spills with a sponge and warm, soapy water right after the burner has
cooled.
For cooked-on food:
1. Remove the shipping screws (one on each side of both ignitors) with a Phillips
screwdriver. Remove the burner from the support bracket.
2. Wash the burner with warm, soapy water and a nonabrasive plastic scrubbing
pad or soak in a vinegar and water solution for 20-30 minutes. Then scrub it
with a plastic scrubbing pad. For stubborn stains, clean with a scrubbing pad
and/or a powdered cleanser and water. Repeat these cleaning steps as needed.
3. Rinse the burner with clean water and dry well.
4. If the ports are clogged, clean them with a straight pin. Do not enlarge or
distort the ports. Do not use a wooden toothpick.
NOTE: Do not clean the surface burner in a dishwasher.
Broiler pan and grid 0 Wash the pan and grid with a steel-wool pad and warm, soapy water. Rinse
and dry well.
OR
0 Wash the pan and grid in a dishwasher.
Broiler
1. Make sure the broiler is cool before cleaning.
2. After each use, wipe the interior with a warm, damp sponge. For heavily soiled
areas, use a soapy steel-wool pad.
Oven racks 0 Wash with a steel-wool pad and warm, soapy water. Rinse and dry well.
Oven door glass 0 Wash with a paper towel and spray glass cleaner or a nonabrasive plastic
(Model FGP31 OE) scrubbing pad and warm, soapy water. Wipe with clean water and dry well.
0 Follow the directions that come with the cleaner.
Oven cavity 0 Wash with a sponge or steel-wool pad and warm, soapy water. Wipe with clean
water and dry well.
OR
1. Clean heavily soiled areas with a commercial oven cleaner. Follow the direc-
tions that come with the oven cleaner. (Place newspaper on the floor to protect
the floor surface.)
2. Wipe well with clean water.
NOTES:
0 Use oven cleaners in a well-ventilated room.
0 Do not let commercial oven cleaners contact the heat seal, thermostat, or
exterior surfaces of the range. This will cause damage.
0 For easier cleaning you can remove the oven door. Carefully follow the instruc-
tions on page 19.
17

hl=UP COOKTOPANDSURFACEBURNERS
1. Remove the surface burner grates.
I 1 I
2. Lift the front of cooktop at both front corners
until the support rods
lock into place.
NOTE: Do not drop the
cooktop. Damage could
result to the porcelain
and the cooktop frame.
3. Wipe the surface under the cooktop with warm,
pad on heavily soiled -
areas.
4. Wipe off the surface burners with warm, soapy
water and a sponge
after each use. To
remove cooked-on food,
soak the burners in a
vinegar and water
solution for 20-30 min-
utes. Then scrub them
with a plastic scrubbing
pad. (See page 17 for
more information.)
Carbon Monoxide Poisoning Hazard
Do not operate with a yellow flame.
Doing so can result in death, heart attack,
or convulsions.
5. Check the burner flames once in a while for proper
size and shape as shown.
Ports A good flame is blue in
yA q
color. If flames lift away
-l’Y--
from ports, are yellow,
or are noisy, turn off the
- burner. Allow the burner
.v.v. .u.u.u to cool and follow Step 6.
- If you still have a problem,
contact an authorized
Whirlpool service techni-
cian to check the air/gas
mixture or see the Installation Instructions.
6. If the ports are clogged, clean with a straight
clog the ports.
I . I
18

7. To lower the cooktop, lift the cooktop from both
8. Replace the surface burner grates.
sides while pressing the
support rods back to
unlock them. Lower the
cooktop into place.
bFT-UPCOOKTOPANDSURFACEBURNERSKONT.)
For normal use of your range, you do not need to
remove the door. However, if you have to remove
the door follow the instructions in this section.
Insert nail or
screw here \
Oven Hinge
hanger
Toremove:
1. Open the door about halfway. Insert nails or
screws into both hinge
hangers. Do not
remove them while
the door is removed
from the range.
3. Rotate the door toward the range. Lift up the door
until it stops. Do not use
the door handle to lift the
door. Rotate the door
toward the floor and pull
it toward you.
2. Close the door as far as the nails or screws will
let you.

Toreplace:
NOTE: The nails or screws you inserted must still be
in both sides of the door.
1. Grasp the door on the sides with your fingers
on the front of the door and your thumbs on the
inside surface.
2. Rest the hinge hanger so that it is flat (at the
bottom of the hinge hanger on the bottom of
the front frame slot).
3. Position the door with the hinge hanger slots
almost parallel to the front frame.
4. Push up and in until the hinge hanger slots
become fastened to the range. Lower the door
and rotate it slightly from the front to the back
until the slots are fully fastened. The hinge
hanger will be close to the bottom of the front
frame slot.
5. Pull door open about halfway and remove the
nails or screws.
6. Close the door.
&MOVINGMEOVENDOOR(CONT.)
Remove nail
or screw
, Range
Hinge
+ hanger
Hinge
hanger
- flat
’ Front frame
slot bottom
20
