Roper FGP210V User manual

Gas Range
Useand
CareGuide
ROPER
Appliances
FGPZlOV FLP320V
FLPZlOV FGP325V
FGP215V FLP330V
FGP310V FGP335V
FLP310V FGP345V
FGP315V FGP355V
FGP320V FGC355V
Thank you for choosing a
Roper appliance.
This Useand CareGuide will help you
operate and maintain your new, quality-
built Roperrange. Keepthis Useand
CareGuide in a safeplace for future
reference.
Complete and mail the
Product Registration Card.
This card enters your warranty into our
warranty system that ensures efficient
claim processing, can be used asa proof
of purchase for insurance claims and
helps Roperto contact you immediately
in the unlikely event of aproduct-safety
recall.
You are responsible for
NOTE: Becausethis Useand CareGuide
covers several models, not all
illustrations shown or features discussed
will apply to your specific model.
It is your responsibility to be sure that
your range:
Hasbeen properly installed where
it is protected from the elements,
and on a floor strong enough to
support its weight. (Seethe
Installation Instructions.)
Is not used by anyone unable to
operate it properly.
Is properly maintained.
Is used only for jobs expected of a
home range.
Is secured by properly installed
anti-tip bracket(s), with rear
leveling leg(s) positioned under
bracket(s).
Contents
Important Safety Instructions
Parts And Features
Using Your Range
Using the surface burners
Lighting standing pilots
Setting the clock and timer
Using the oven controls

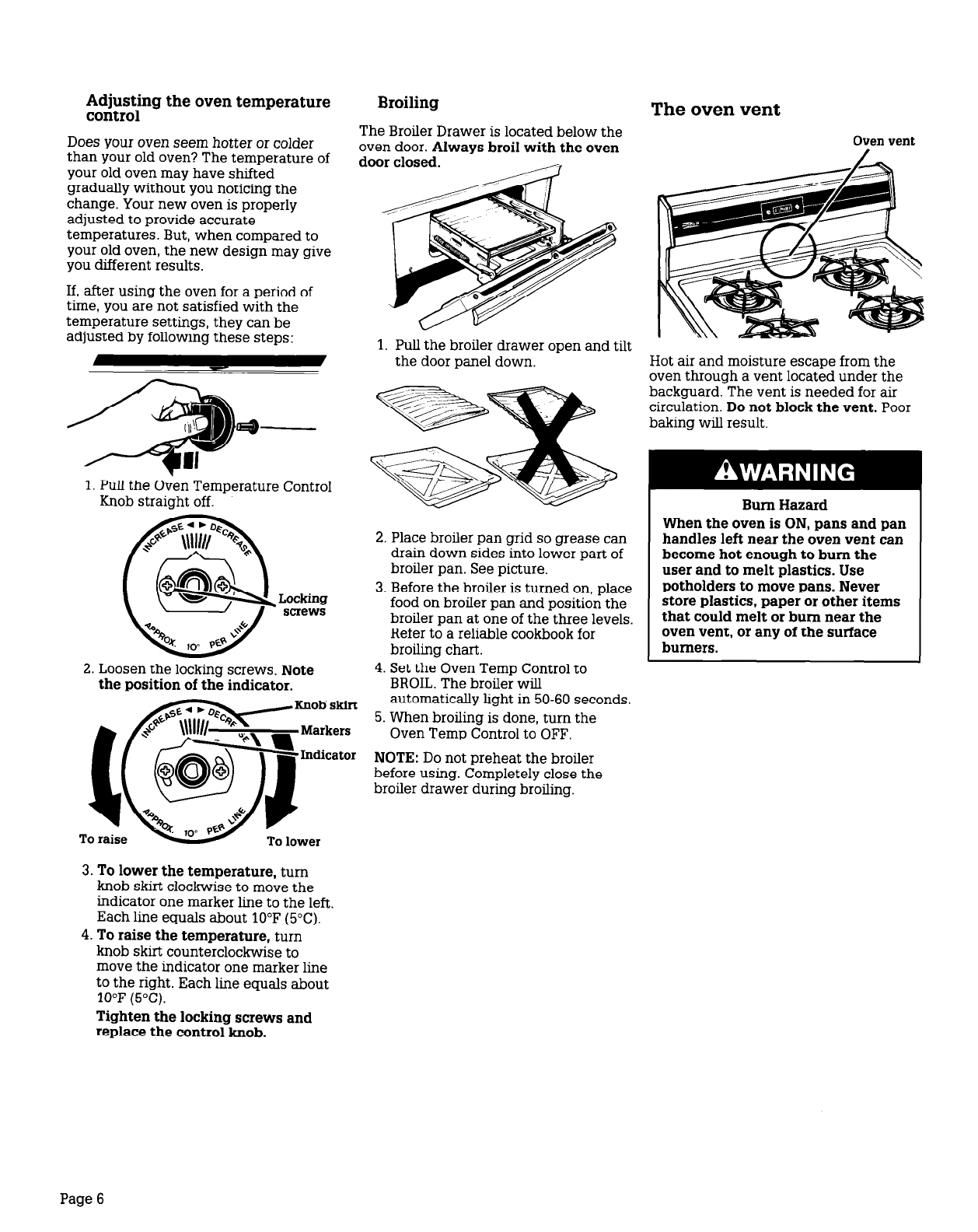

The oven vent

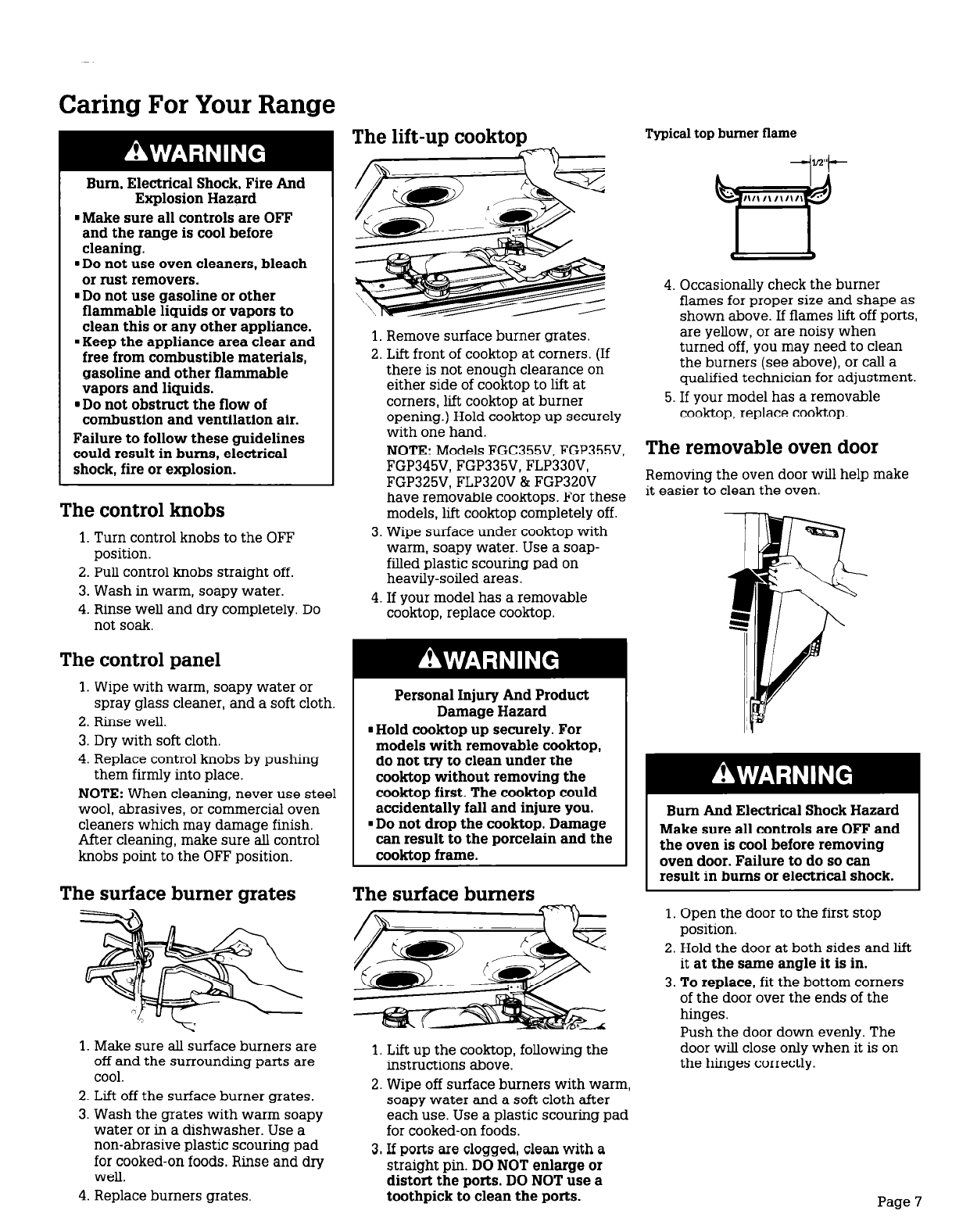

Caring For YOUI Range
The control knobs
The control panel
The surface burner grates
The lift-up cooktop
The surface burners
The removable oven door
The standard-cleaning oven
The continuous-cleaning oven

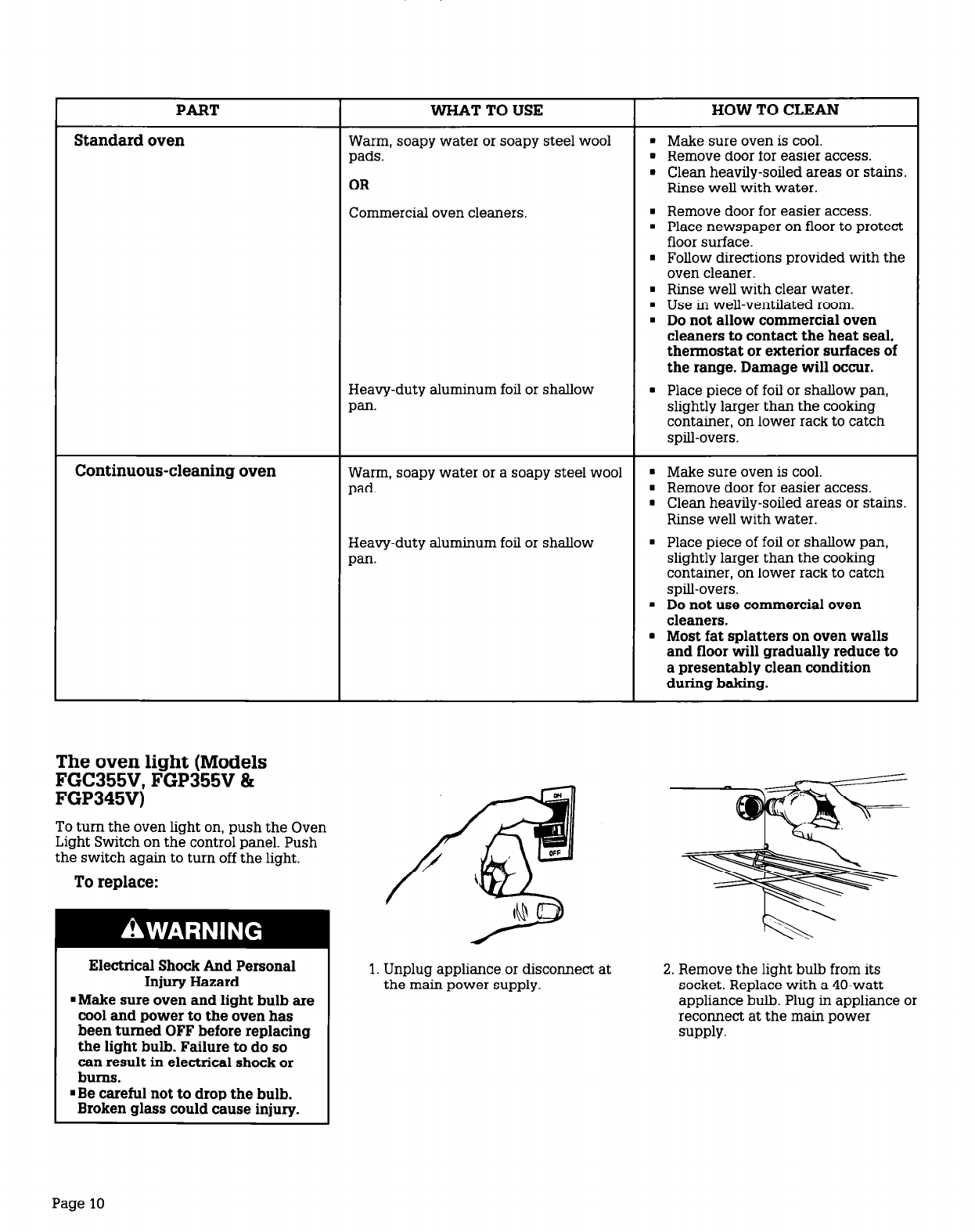

Cleaning chart
The oven light
BeforeYou Call For Service
WmaIlty
How to get service or assistance

Important Safety Instructions
Gasranges have been thoroughly tested for safeand efficient operation. However, aswith any appliance, there are specific
installation and safety precautions which must be followed to ensure safeand satisfactory operation.
To reduce the risk of fire, electrical shock, injury to persons, or damage when using
the range, follow basic precautions, including the following:
. FOR YOUR SAFETY.
DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS AND LIQUIDS IN
THE VICINITY OF THIS OR ANY OTHER APPLIANCE. THE FUMES CAN CREATE A FIRE
HAZARD OR EXPLOSION.
. FOR YOUR SAFETY .
IF YOU SMELL GAS:
1. OPEN WINDOWS.
2. DON’T TOUCH ELECTRICAL SWITCHES.
3. EXTINGUISH ANY OPEN FLAMES.
4. IMMEDIATELY CALL YOUR GAS SUPPLIER.
IMPROPER INSTALLATION, ADJUSTMENT, ALTERATION, SERVICE OR MAINTENANCE
CAN CAUSE INJURY OR PROPERTY DAMAGE. REFER TO THIS MANUAL. FOR
ASSISTANCE OR ADDITIONAL INFORMATION CONSULT A QUALIFIED INSTALLER,
SERVICE AGENCY, MANUFACTURER (DEALER) OR THE GAS SUPPLIER.
. IMPORTANT .
TO THE INSTALLER: PLEASE LEAVE THIS INSTRUCTION BOOK WITH THE UNIT.
TO THE CONSUMER: PLEASE READ AND KEEP THIS BOOK FOR FUTURE REFERENCE.
1.Install or locate the range only in
accordancewith the provided
Installation Instructions. It is
recommendedthat the range be
installed by a qualified installer. The
range must be properly connected to
the proper gas supply and checked
for leaks. If needed,the range must
alsobe properly connected to
electrical supply and grounded.
2. To reduce the risk of tipping ofthe
appliance, the appliance must be
secured by properly installed anti-tip
bracket(s). To check if the bracket(s)
is installed properly, shine a
flashlight under range toward rear
corners and verify that the anti-tip
bracket(s) is engaged. See
Installation Instructions for further
details.
3. Gasfuels and combustion can result
in potential exposure to chemicals
known to causecancer or
reproductive harm. For example,
benzene is a chemical which is a
part of the gas supplied to the
range. It is consumed in the flame
during combustion. However,
exposure to a small amount of
benzene is possible if a gas leak
occurs.Formaldehyde, carbon
monoxide and soot areby-products
of incomplete combustion. Properly
adjusted burners with a bluish rather
than a yellow flame will minimize
incomplete combustion.
4. DONOT operate the range if it is not
working properly, or if it has been
damaged.
5. DONOT use the range for warming or
heating the room. Personscould be
burned or injured, or a fire could start.
6. Usethe range only for its intended
use asdescribed in this manual.
7. DONOT wear loose or hanging
garments when using the range. They
could ignite if they touch a surface
burner and you could be burned.
8. DONOT touch surface burners, areas
near burners or interior surfacesof
oven. Areas near surface burners and
interior surfacesof an oven become
hot enough to causeburns. During
use, DONOT touch, or let clothing or
other flammable materials contact
surface burners, areasnear surface
burners or interior surfacesof oven.
Other surfacesof the range may
becomehot enough to causebums;
such as,the oven vent opening, the
surface near the vent opening, the
cooktop, the oven door and window.
9. Make sure the utensils you use are
large enough to contain food and
avoid boil-overs and spi&overs. Heavy
splattering or spill-overs left on a
range can ignite and bum you. Pan
size is especially important in deep fat
frying.
10. Turn pan handles inward, but not
over other surface burners. This will
help reduce the chance of burns,
igniting of flammable materials, and
spills due to bumping of the pan.
11. Useonly dry potholders. Moist or
damp potholders on surface burners
may result in burns from steam.DO
NOT let potholder touch surface
burners. DONOT use atowel or
bulky cloth for a potholder. They
could catch on fire.
12. Checkto be sure glass cooking
utensils are safefor use on the
cooktop. Only certain types of glass,
glass-ceramic, ceramic, earthenware
or other glazed utensils are suitable
for cooktops without breaking due to
the sudden change in temperature.
13. DONOT use decorative covers or
trivets over the surface burners.
14. DONOT heat unopened containers.
They could explode. The hot
contents could causeburns and
container particles could cause
injury.
15. Grease is flammable and should be
handled carefully. Let fat cool before
attempting to handle it. DO NOT
allow grease to collect around
cooktop or in vents. Wipe spill-overs
immediately.
16. DONOT use water on greasefires.
Never pick up aflaming pan.
Smotherflaming pan on range by
covering with awell-fitted lid, cookie
sheet or flat tray. Flaming grease
outside of pan can be extinguished
with baking sodaor, if available, a
multipurpose dry chemical or foam-
type extinguisher.
Continued on next page
3ge2

17.Never leave surface burners 23.DONOT leave children alone or 29.DONOT clean door seal.It is
unattended at high heat settings. A unattended in areawhere the range essential for a good seal. Careshould
boil-over could result and cause is in use. They should never be be taken not to rub, damage,or move
smoking and greasy spill-overs that allowed to sit or stand on any part of the seal. Clean only parts
may ignite. the range. They could be burned or recommended in this Useand Care
18.Make sure surface burners are off injured. Guide.
when you arefinished, and when 24. NEVER use a match or other flame to 30.DONOT use oven cleaners on
you aren’t watching. look for a gas leak. Explosion and continuous-cleaning ovens. No
19.Usecarewhen opening oven door. injury could result. commercial oven cleaner or oven liner
Let hot air or steam escapebefore 25.Know where your main gas shut off protective coating of any kind should
removing or replacing food. valve is located. be used in or around any part of the
20.Always position oven rack(s)in 26.Keeprange vents unobstructed. oven.
desired location while oven is cool. 27.Clean your range regularly. Seecare 31.DONOT repair or replace any part of
21.DONOT store flammable materials and cleaning instructions in this the range unless specifically
on or near the range. They could manual. recommended in this manual. All
explode or burn. 28.Besure all range parts are cool before other servicing should be referred to
22.DONOT store things children might cleaning. a qualified technician.
want abovethe range. Children 32.Disconnect the electrical supply
could be burned or injured while before servicing the range.
climbing on it.
. SAVE THESE INSTRUCTIONS .
Parts 81Features
Models FGC355V,FGP355V,FGP345V
(shown), FGP335V,FLP33OV,FGP325V
FLP32OV& FGP320V
Surfaceburners
(Models FGC355V,
FGP355V,FGP345V
& FGP335V)
(not shown)
Removable
Broiler drawer
Models FGP315V,FLPIlOV, FGPllOV
(shown), FGP215V,FLPllOV & FGPllOV
Oven vent
Surfaceburners
Surfaceburner
Removable
Broiler drawer
Page3

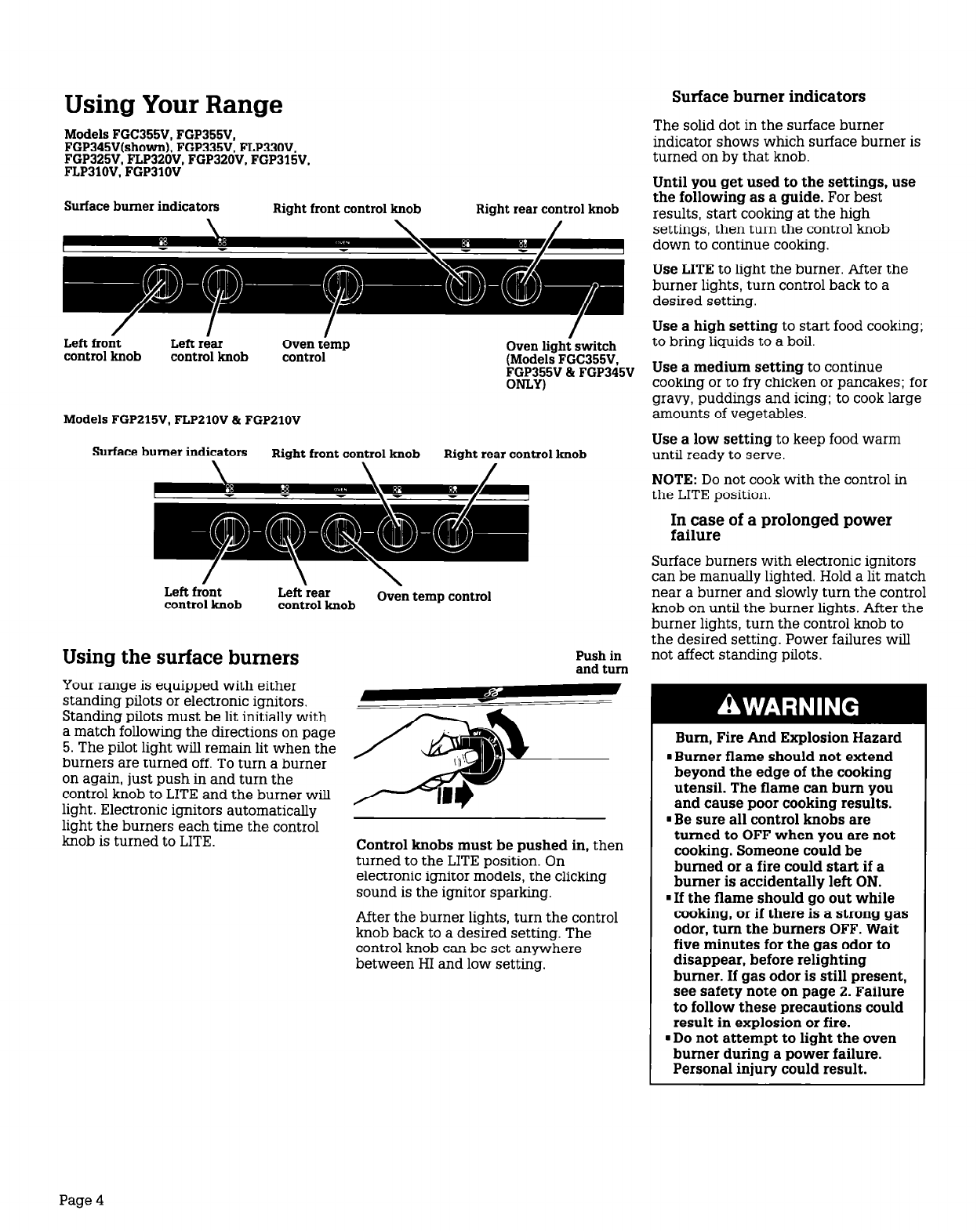

Using Your Range
Models FGC355V,FGP355V,
FGP345V(shown),FGP335V,FLP330V.
FGP325V,FLP320V,FGP320V,FGP315V.
FLP310V.FGPllOV
Surfaceburner indicators Right front control knob Right rear control knob
c
p
Left front
control knob Left rear
control knob Oven tamp control Oven light switch
(Models FGC355V,
FGP355V& FGP345V
ONLY)
Models FGP215V,FLPllOV & FGPllOV
Surfaceburner indicaton Right front control knob Right rear control knob
Left front
control knob Left rear .
control knob Oven temp control
Using the surface burners
Push in
and turn
Your range is equipped with either -
standing pilots or electronic ignitors. ;I
Standing pilots must be lit initially with
amatch following the directions on page
5.The pilot light will remain lit when the
burners are turned off. To turn a burner
on again, just push in and turn the
control knob to LITE and the burner will
light. Electronic ignitors automatically
light the burners eachtime the control
knob is turned to LITE.
Control knobs must be pushed in, then
turned to the LITE position. On
electronic ignitor models, the clicking
sound is the ignitor sparking.
After the burner lights, turn the control
knob back to a desired setting. The
control knob can be set anywhere
between HI and low setting.
Surface burner indicators
The solid dot in the surface burner
indicator shows which surface burner is
turned on by that knob.
Until you get used to the settings, use
the following as a guide. For best
results, start cooking at the high
settings, then turn the control knob
down to continue cooking.
Use LITE to light the burner. After the
burner lights, turn control back to a
desired setting.
Use a high setting to start food cooking;
to bring liquids to aboil.
Use a medium setting to continue
cooking or to fry chicken or pancakes; for
gravy, puddings and icing; to cooklarge
amounts of vegetables.
Use a low setting to keep food warm
until ready to serve.
NOTE: Donot cookwith the control in
the LITE position.
In case of a prolonged power
failure
Surfaceburners with electronic ignitors
can be manually lighted. Hold a lit match
near a burner and slowly turn the control
knob on until the burner lights. After the
burner lights, turn the control knob to
the desired setting. Power failures will
not affect standing pilots.
Bum, Fire And Explosion Hazard
. Burner flame should not extend
beyond the edge of the cooking
utensil. The flame can bum you
and cause poor cooking results.
. Be sure all control knobs are
turned to OFF when you are not
cooking. Someone could be
burned or a fire could start if a
burner is accidentally left ON.
. If the flame should go out while
cooking, or if there is a strong gas
odor, turn the burners OFF. Wait
five minutes for the gas odor to
disappear, before relighting
burner. If gas odor is still present,
see safety note on page 2. Failure
to follow these precautions could
result in explosion or fire.
. Do not attempt to light the oven
burner during a power failure.
Personal injury could result.
Page4

Lighting standing pilots
(Models FLP320V, FGP320V,
FGP310V & FGPZlOV)
To light range pilots:
1.Make sure alI controls are OFF.
2.Removethe surface burner grates
from the cooktop. Lift the cooktop.
(See“The lift-up cooktop” on
page 7.)
3. To light, hold alit match over the
pilot light located between the
front and back burners. The pilot
flame should be l/4 to 3/8 in.
(.6- 1cm)high.
4.If the pilot flame needs adjustment,
turn the pilot adjustment screw
midway down the length of the
manifold pipe, under the control
panel.
5.Lower the cooktop and replace the
grates before using the surface
burners.
To light oven burner pilot:
1.Make sure the Oven Temp Control
is OFF.
2.Removethe broiler drawer. Slide
drawer out to stops, lift both sides,
then slide the rest of the way out.
3.Hold a lit match over the oven
burner pilot located at the rear of
the burner.
4.After the oven burner pilot is
burning steadily, check burner
lighting by turning the Oven Temp
Control to atemperature above
140°F(60°C).The burner wilI take
50-60secondsto light.
5.Replacethe broiler drawer.
Setting the clock and timer
(Models FGC355V, FGP355V,
FGP345V 81FGP335V)
The clock/timer acts asboth a time-of-
day clock and asaminute timer.
Toset time of day:
When the range is connected to power,
the clock display wilI blink at 88:88 until
the time-of-day is set. To set time-of-
day, depress the SetButton once. The
triangle and clock signal lights on the
display wilI light up and remain lit until
the time is set. Within 15seconds,turn
the Clock/Timer Knob to the correct
time.
Tosetthe timer:
Turn the Clock/Timer Knob clockwise to
the desired setting, up to 9 hours 50
minutes. (Knob must be turned four or
five clicks before time will advance.) The
triangle and bell signal lights wiIl light
up. The timer wilI count down the time
while flashing the time-of-day every 12
seconds.Three beeps will sound at the
end of the set time and the signal lights
will go off.
Using the oven controls
Baking
1.Position the rack(s)properly before
turning on the oven. To change
rack position, pull rack out to stop,
raise front edge and lift out.
The rack(s) should be placed sothe
top of the food will be centered in
the oven. Always leave at least
1 l/2 to 2 inches (4-5cm)between
the sides of the pan and the oven
walls and other pans.
2.Setthe Oven Temp Control to the
baking temperature you want. The
oven burner wiIl automatically light
in 50-60seconds.
3.Preheat the oven for 10minutes.
Put food in the oven.
NOTE: Donot place food directly on
the oven bottom.
/ ‘)
L
J
4. During baking, the oven burner
turn on and off to maintain the
temperature setting.
5.When baking is done, turn the
Oven Temp Control to OFF.
Witl
Page5

Adjusting the oven temperature
control
Doesyour oven seemhotter or colder
than your old oven? The temperature of
your old oven may have shifted
gradually without you noticing the
change. Your new oven is properly
adjusted to provide accurate
temperatures. But, when comparedto
your old oven, the new design may give
you different results.
If, after using the oven for a period of
time, you are not satisfied with the
temperature settings, they can be
adjusted by following these steps:
1.Pull the Oven Temperature Control
Knob straight off.
,Locking
screws
2. Loosenthe locking screws. Note
the position of the indicator.
Broiling The oven vent
The Broiler Drawer is located below the
oven door. Always broil with the oven
d Oven vent
1. Pull the broiler drawer open and tilt
the door panel down.
2.Placebroiler pan grid sogrease can
drain down sides into lower part of
broiler pan. Seepicture.
3.Beforethe broiler is turned on, place
food on broiler pan and position the
broiler pan at one of the three levels.
Referto a reliable cookbookfor
broiling chart.
4. Setthe Oven Temp Control to
BROIL.The broiler will
automatically light in 50-60seconds.
5.When broiling is done, turn the
Oven Temp Control to OFF.
3. To lower the temperature, turn
knob skirt clockwise to movethe
indicator one marker line to the left.
Eachline equals about 10°F(5°C).
4. To raise the temperature, turn
knob skirt counterclockwise to
move the indicator one marker line
to the right. Eachline equals about
10°F(5°C).
Tighten the locking screws and
replace the control knob.
NOTE: Donot preheat the broiler
before using. Completely closethe
broiler drawer during broiling.
Hot air and moisture escapefrom the
oven through a vent located under the
backguard. The vent is needed for air
circulation. Do not block the vent. Poor
baking will result.
Bum Hazard
Whenthe ovenis ON,pans and pan
handles left near the oven vent can
become hot enough to bum the
user and to melt plastics. Use
potholders to move pans. Never
store plastics, paper or other items
that could melt or bum near the
oven vent, or any of the surface
burners.
Page6

Caring For Your Range
Bum, Electrical Shock, Fire And
Explosion Hazard
. Make sure all controls are OFF
and the range is cool before
cleaning.
mDo not use oven cleaners, bleach
or rust removers.
. Do not use gasoline or other
flammable liquids or vapors to
clean this or any other appliance.
. Keep the appliance area clear and
free from combustible materials,
gasoline and other flammable
vapors and liquids.
. Do not obstruct the flow of
combustion and ventilation air.
Failure to follow these guidelines
could result in bums, electrical
shock, fire or explosion.
The control knobs
1.Turn control knobs to the OFF
position.
2.Pull control knobs straight off.
3.Washin warm, soapy water.
4. Rinse well and dry completely. Do
not soak.
The control panel
1.Wipe with warm, soapy water or
spray glass cleaner, and a soft cloth.
2.Rinse well.
3.Dry with soft cloth.
4. Replacecontrol knobs by pushing
them firmly into place.
NOTE: When cleaning, never use steel
wool, abrasives, or commercial oven
cleaners which may damagefinish.
After cleaning, make sure all control
knobs point to the OFFposition.
The surface burner grates
1.Make sure all surface burners are
off and the surrounding parts are
cool.
2.Lift off the surface burner grates.
3.Washthe grates with warm soapy
water or in a dishwasher. Usea
non-abrasive plastic scouring pad
for cooked-onfoods. Rinse and dry
well.
4.Replaceburners grates.
The lift-up cooktop
1.Removesurface burner grates.
2.Lift front of cooktop at corners. (If
there is not enough clearance on
either side of cooktop to lift at
corners, lift cooktop at burner
opening.) Hold cooktop up securely
with one hand.
NOTE: Models FGC355V,FGP355V,
FGP345V,FGP335V,FLP330V,
FGP325V,FLP320V& FGP320V
have removable cooktops.For these
models,lift cooktop completely off.
3.Wipe surface under cooktop with
warm, soapy water. Usea soap-
filled plastic scouring pad on
heavily-soiled areas.
4.If your model has a removable
cooktop, replace cooktop.
Personal Injury And Product
Damage Hazard
mHold cooktop up securely. For
models with removable cooktop,
do not try to clean under the
cooktop without removing the
cooktop first. The coolctop could
accidentally fall and injure you.
. Do not drop the cooktop. Damage
can result to the porcelain and the
cook-top frame.
The surface burners
1.Lift up the cooktop, following the
instructions above.
2.Wipe off surface burners with warm,
soapy water and a soft cloth after
eachuse. Usea plastic scouring pad
for cooked-onfoods.
3,If ports are clogged, clean with a
straight pin. DO NOT enlarge or
distort the ports. DO NOT use a
toothpick to clean the ports.
Typical top burner flame
I’
‘-A,,I\
1,111,
d
n?
4. Occasionally checkthe burner
flames for proper size and shape as
shown above. If flames lift off ports,
are yellow, or are noisy when
turned off, you may need to clean
the burners (seeabove),or call a
qualified technician for adjustment.
5.If your model has a removable
cooktop, replace cooktop.
The removable oven door
Removing the oven door will help make
it easier to clean the oven.
Bum And Electrical Shock Hazard
Make sure all controls are OFF and
the oven is cool before removing
oven door. Failure to do so can
result in bums or electrical shock.
1.Open the door to the first stop
position.
2.Hold the door at both sides and lift
it at the same angle it is in.
3. To replace, fit the bottom corners
of the door over the ends of the
hinges.
Push the door down evenly. The
door wih closeonly when it is on
the hinges correctly.
Page7

The standard-cleaning oven
Cleaning tips
The Standard Oven has to be hand
cleaned. Usewarm soapywater, soapy
steel wool pads or a commercial oven
cleaner. See“Cleaning Chart”on page 10
for further instructions.
1.The oven window and racks are not
coated. Clean them by hand.
2. The oven door doesnot get ashot
asthe walls. Somehand cleaning
may be needed.
Usefoil during cooking to keep oven
clean. See“Using foil” below for more
information.
The continuous-cleaning
oven (Model FGC355V)
Standard oven walIs are coated with
smooth porcelain. Your Continuous-
Cleaning oven walls are coated with a
special, rougher porcelain, A fat spatter
beads up on the smooth surface, but
spreadsout on the rougher surface. The
bead of fat on the smooth surface chars
and turns black. The spread-out fat on
the rough surface gradually burns away
at medium to high baking tempera-
tures sothe oven can return to a
presentably clean condition.
Fat spatter
beads up.
Turns black.
Standard
porcelain
Fat spatter
spreads out.
Bums away. Continuous-
cleaning
porcelain
3.If you do more broiling than baking,
hand cleaning may be needed.
4.Usealuminum foil or a shallow pan
on the lower rack according to
instructions below. Spill-overs may
not burn away and could stain the
bottom.
Hand cleaning
Personal Injury Hazard
Do not use oven cleaning products
in a continuous-cleaning oven.
Some can become trapped in the
porcelain surface and give off
harmful fumes.
WINDOW (Models FGC355V,FGP355V
& FGP345V)- Keepclean with warm
soapywater or spray glass cleaner. Use
a plastic scouring pad for heavily-soiIed
areas.Rinse well. Do not use steel wool
or abrasive cleansers.
WALLS AND DOOR - Washwith warm
soapy water. Use a steel wool pad or
plastic scouring pad for heavily-soiled
areas.Rinse well.
Using foil (standard and
continuous-cleaning ovens)
To catch sugar or starchy spills from pies
and casseroles,use apiece of heavy-
duty aluminum foil or a shallow pan on
the lower rack (on models with more
than one rack), slightly larger than the
cooking container. On models with only
one rack, place foil or shallow pan on
rack under food container. This may,
however, result in poor baking.
Bum, Electrical Shock And
Product Damage Hazard
. Make sure all controls are OFF
and the oven is cool before using
foil. Failure to do so can result in
bums or electrical shock.
. Do not use foil to cover oven floor
or to completely cover a rack.
Good air circulation is needed for
the oven to operate properly. Poor
cooking results and damage to
the oven could occur.
1. Turn off all controls.
2. Position foil or pan under the
cooking container. Make sure the
foil is centered and large enough to
catch any spill-overs.
RACKS - Usea soapy steel wool pad for
best cleaning results. Rinse well.
Page8

Cleaning chart
Bum And Electrical Shock Hazard
Make sure all controls are OFF and the range is cool before cleaning. Failure to do so can
result in bums or electrical shock.
PART
Exterior surfaces WHAT TO USE
Warm,soapy water and a soft cloth.
Non-abrasive plastic scouring pad for
heavily-soiled areas.
HOW TO CLEAN
. Wipe off regularly when range is
cool.
. Do not allow food containing acids
(such as vinegar, tomato, lemon
juice or milk) to remain on surface.
Acids may remove the glossy
finish.
. Do not use abrasive or harsh
cleansers.
Surface burner grates
Surface burners
Warm,soapy water and a non-abrasive
plastic scouring pad.
Clean in a dishwasher.
Warm,soapy water and a soft cloth.
. Washwith other cooking utensils.
. Dry completely.
. Do not use abrasive or harsh
cleansers.
. Lift-up the cooktop (seepage 7).
. Wipe off spills immediately after
burner has cooled.
Warm, soapywater and anon-abrasive
plastic scouring pad.
For cooked-on food:
. Removeburner from manifold with
phillips screwdriver.
. Washwith warm, soapy water and
aplastic scouring pad.
. Rinse and dry well.
m If ports are clogged, clean with a
straight pin. Do not enlarge or
distort ports. Do not use a wooden
toothpick.
. Do not clean surface burner in
dishwasher.
Control knobs
Control panel and trim
Warm,soapy water and soft cloth.
Warm, soapywater or spray glass
cleaner, and a soft cloth.
. Wash,rinse and dry well.
. Do not soak.
. Wash,rinse and dry well.
. Follow directions provided with
cleaner.
Broiler drawer, pan and grid
Oven racks
Warm,soapywater or a soapy steel wool
pad.
Warm,soapy water or soapy steel wool
pads.
. Clean after eachuse.
. Wash,rinse and dry well,
. After broiler is cool, wipe interior
with warm, damp cloth. For heavily-
soiled areas,use a soapy steel wool
pad.
. Wash,rinse and dry well. Usesoapy
steel wool pads for heavily-soiled
areas.
Oven door glass (Models
FGC355V, FGP355V & FGP345V)
Sprayglass cleaner or warm, soapy . Make sure oven is cool.
water and a non-abrasive plastic .
scouring pad. Follow directions provided with the
cleaner.
n Wash,rinse and dry well.
Continued on next page
Page9

r
PART
Standard oven WHAT TO USE
Warm,soapy water or soapy steel wool
pads.
OR
HOW TO CLEAN
n Make sure oven is cool.
n Removedoor for easier access.
. Clean heavily-soiled areasor stains.
Rinse well with water.
Commercial oven cleaners.
Heavy-duty aluminum foil or shallow
Pan
n Removedoor for easier access.
. Placenewspaper on floor to protect
floor surface.
. Follow directions provided with the
oven cleaner.
. Rinse well with clear water.
. Usein well-ventilated room.
. Do not allow commercial oven
cleaners to contact the heat seal,
thermostat or exterior surfaces of
the range. Damage will occur.
. Placepiece of foil or shallow pan,
slightly larger than the cooking
container, on lower rack to catch
spill-overs.
Continuous-cleaning oven
Warm,soapy water or a soapy steel wool
pad.
n Make sure oven is cool.
. Removedoor for easier access.
m Clean heavily-soiled areasor stains.
Rinse well with water.
Heavy-duty aluminum foil or shallow
Pa-n . Placepiece of foil or shallow pan,
slightly larger than the cooking
container, on lower rack to catch
spill-overs.
n Do not use commercial oven
cleaners.
l Most fat splatters on oven walls
and floor will gradually reduce to
a presentably clean condition
during baking.
The oven light (Models
FGC355V, FGP355V &
FGP345V)
To turn the oven light on, push the Oven
Light Switch on the control panel. Push
the switch again to turn off the light.
To replace:
Electrical Shock And Personal
Injury Hazard
. Make sure oven and light bulb are
cool and power to the oven has
been turned OFF before replacing
the light bulb. Failure to do so
can result in electrical shock or
bums.
. Be careful not to drop the bulb.
Broken glass could cause injury.
1.Unplug appliance or disconnect at
the main power supply. 2.Removethe light bulb from its socket. Replacewith a 40-watt
appliance bulb. Plug in appliance or
reconnect at the main power
supply.
Page10

Before You Call For Service
If you are having an operating problem,
checkthe chart to seewhat the cause
might be before you call for assistance.
OPERATING PROBLEM
Nothing operates.
Oven will not operate.
Burner fails to light.
CHECK IF WHAT TO DO
. Rangeis properly connected to gas and
n Reconnectrange to gas and/or electrical
electrical supplies. supplies. (SeeInstallation Instructions.)
n Fuse has blown or circuit breaker has
n Replacefuse or reset circuit breaker. In
tripped. caseof prolonged power failure, manu-
ally light burners (seepage 5).
. Control knob is set in the correct . Setcontrol knob correctly, if needed.
position.
. The flow of combustion and /or ventila-
n Removeblockage to air flow to and
tion air to the range is blocked. around range.
L Oven Temp Control is turned to atem-
n Turn Oven Temp Control to the desired
perature setting. temperature setting, if needed.
. Rangeis connected to electrical power.
n Reconnectrange to electrical supply.
(SeeInstallation Instructions.)
. Fuse has blown or circuit breaker has
n Replacefuse or reset circuit breaker. In
tripped. caseof prolonged power failure, manu-
ally light burners (seepage 5).
. Burner ports are clogged. . Clean with a straight pin (seepages 7
and 9).
Burner flames are uneven.
. Burner ports are clogged.
n Clean with a straight pin (seepages 7
and 9).If this fails, call an authorized
RoperSM
service technician for service.
Burner flames lift off ports, are . Contact an authorized RoperSMservice
yellow, or are noisy when
technician to check air/gas mixture.
turned off.
Burner makes popping noise
when on.
. Burner is wet from washing. . Let dry.
Control knob(s) will not turn.
. You pushed in knob(s) before trying to . Push in knob(s) before turning.
turn.
Soil is visible on Continuous-
. You broil often.
n The special finish is designed to gradu-
Cleaning oven finish. ally
reduce oven soil during normal
baking or roasting. It is not designed to
keep your oven spotless, only presenta-
bly clean. If you broil often, you may see
oven soil. Follow hand cleaning tips on
page 8.
n Soil is on door. . The door is cooler than the oven walls.
Soilwill be more visible on the door
than other areasin the oven. Seehand
cleaning tips on page 8.
. Soilis caused by sugar and starchy . Sugarand starchy spills may leave
spills. stains. Seepage 8for hand cleaning
tips. Use foil on lower rack to catch
these spills.
Cooking results aren’t what
you expected.
. Flame size fits the cooking utensil . Adjust flame size to fit cooking utensil.
being used.
. Pansare the size called for in the . Usecorrect-size pans.
recipe.
. You are following atested recipe from . Modify recipe or find a new recipe.
a reliable source.
. The cooking utensils have smooth, flat . Usecooking utensils with smooth, flat
bottoms and fit the surface burners. bottoms.
n When baking, you have preheated the . Preheat the oven according to recipe’s
oven asthe recipe calls for. specifications.
. When baking, you have allowed 1 l/2 . Reposition pans for best air circulation.
to 2 inches (4-5cm)on all sides of the
pans for air circulation.
m When broiling, you have completely
closed the broiler drawer. w Completely closebroiler drawer.
Page1

LIMITED WARRANTY
ROPER
Appliances
LENGTH OF WARRANTY
(Fromdate of Durchase)
PRODUCTSCOVERED WHAT WE WILL PAY FOR
FULL ONE YEAR WARRANTY
All RoperAppliances Replacement parts and repair labor to
correct defects in materials or
workmanship.
FULL FIVE YEAR WARRANTY
Refrigerators
Freezers
Air Conditioners
Dehumidifiers
Replacementparts and repair labor for
the sealedrefrigeration system
(compressor,evaporator, condenser,
drier or connecting tubing) which we
find to be defective in materials or
workmanship.
LIMITED 2ND-5TH YEAR
WARRANTY
Microwave Ovens Repair or replacement of magnetron
tube which we find to be defective in
materials or workmanship.
LIMITED 2ND-5TH YEAR
WARRANTY
Automatic Washers Repair or replacement of any part of
the gear caseassembly which we find
to be defective in materials or
workmanship.
WHAT WE WILL NOT PAY FOR
A. SERVICECALLSTO:
1. Correct the installation of your appliance.
2. Instruct you how to use your appliance.
3. Replacehouse fuses or correct house wiring or plumbing.
4. Replaceowner accessiblelight bulbs.
B. Repairswhen appliance is used in other than normal, single-family household use.
C. Pick up and delivery. Your appliance is designed to be repaired in the home.
D. Damageto appliance caused by accident, misuse, fire, flood, acts of God,or use of product not approved by us.
E. Any labor costs during the limited warranties.
This Roperappliance is warranted by Whirlpool Corporation. Under no circumstances shall it be liable under this warranty for
incidental or consequential damagesand alI implied warranties are limited to the sametime periods stated in the express
warranties for RoperBrand Appliances. Somestates do not ahow the exclusion or limitation of incidental or consequential damages
or limitations of how long an implied warranty may last, sothe above limitations or exclusions may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
Outside the United States,a different warranty may apply. For details, please contact your franchised Roperdistributor or military
exchange.
HOW TO GET SERVICE OR ASSISTANCE
If you need service, first seethe “Before You Call For Service” section ofthis book. If you still need service after checking this
section, additional help can be found if you:
. Contact your selling dealer for the authorized servicer in your area:
OR
.Phone l-EOO-44-ROPER(l-800-447-6737)between 8:00 a.m.and 4:30 p.m. Eastern Time, Monday through Friday?
OR
.For further information, write to: Consumer Relations Dept., RoperBrand Appliances, 2000M-63 North, Benton Harbor, MI 490221’
*When requesting assistance, please provide the model and serial numbers, date of purchase, and a complete description of the
problem. The model and serial numbers are located beneath the lift-up cooktop (seeillustrations on page 3).
If you are not satisfied with the service received, contact the Major Appliance ConsumerAction Panel (MACAP). MACAP is a group
of independent consumer experts that voices consumer views at the highest levels ofthe major appliance industry.
Contact MACAP only when the dealer, authorized servicer or RoperBrand Appliance warrantor have failed to resolve your problem:
Major Appliance Consumer Action Panel
20North WackerDrive
Chicago, IL 60606
MACAP will in turn inform us of your action.
Part No. 76543-00/4315645Rev.A
01990 Whirlpool Corporation SMServiceMark of Whirlpool Corporation Printed in U.S.A
