Roper FGS337G User manual

M
BY WHIRLPOOL CORPORATION
SELF-CLEANING
GAS RANGE
Use& CareGuide
For questions about features, operation/performance,
parts, accessories or service, call: 1-800-44-ROPER {1-800-447-6737).
or visit our website at...
www.roperappliances.com
Table of Contents ................................................... 2
TO THE INSTALLER: PLEASE LEAVE THIS
INSTRUCTION BOOK WITH THE UNIT,
TOTHE CONSUMER: PLEASE READ AND KEEP
THIS BOOK FOR FUTURE REFERENCE.
MODEL FGS337G
_22_7

TABLEOF CONTENTS
RANGE SAFETY ............................................................... 3
The Anti-Tip Bracket ......................................................... 4
PARTS AND FEATURES .................................................. 5
COOKTOP USE ................................................................... 6
Cooktop Controls .............................................................. 6
Sealed Surface Burners .................................................... 6
Home Canning .................................................................. 7
Cookware .......................................................................... 7
OVEN USE ........................................................................... 8
Electronic Clock/Timer ...................................................... 8
Display............................................................................... 8
Clock ................................................................................. 8
Timer.................................................................................. 8
Oven Temperature Control ............................................... 8
Aluminum Foil.................................................................... g
Positioning Racks and Bakeware ..................................... 9
Bakeware .......................................................................... 9
Oven Vent ........................................................................ 10
Baking and Roasting....................................................... 10
Broiling............................................................................ 10
RANGE CARE .................................................................... 11
Self-Cleaning Cycle......................................................... 11
General Cleaning............................................................. 12
Oven Door ....................................................................... 13
Storage Drawer ............................................................... 13
TROUBLESHOOTING ....................................................... 14
ASSISTANCE OR SERVICE ............................................. 15
WARRANTY ....................................................................... 16

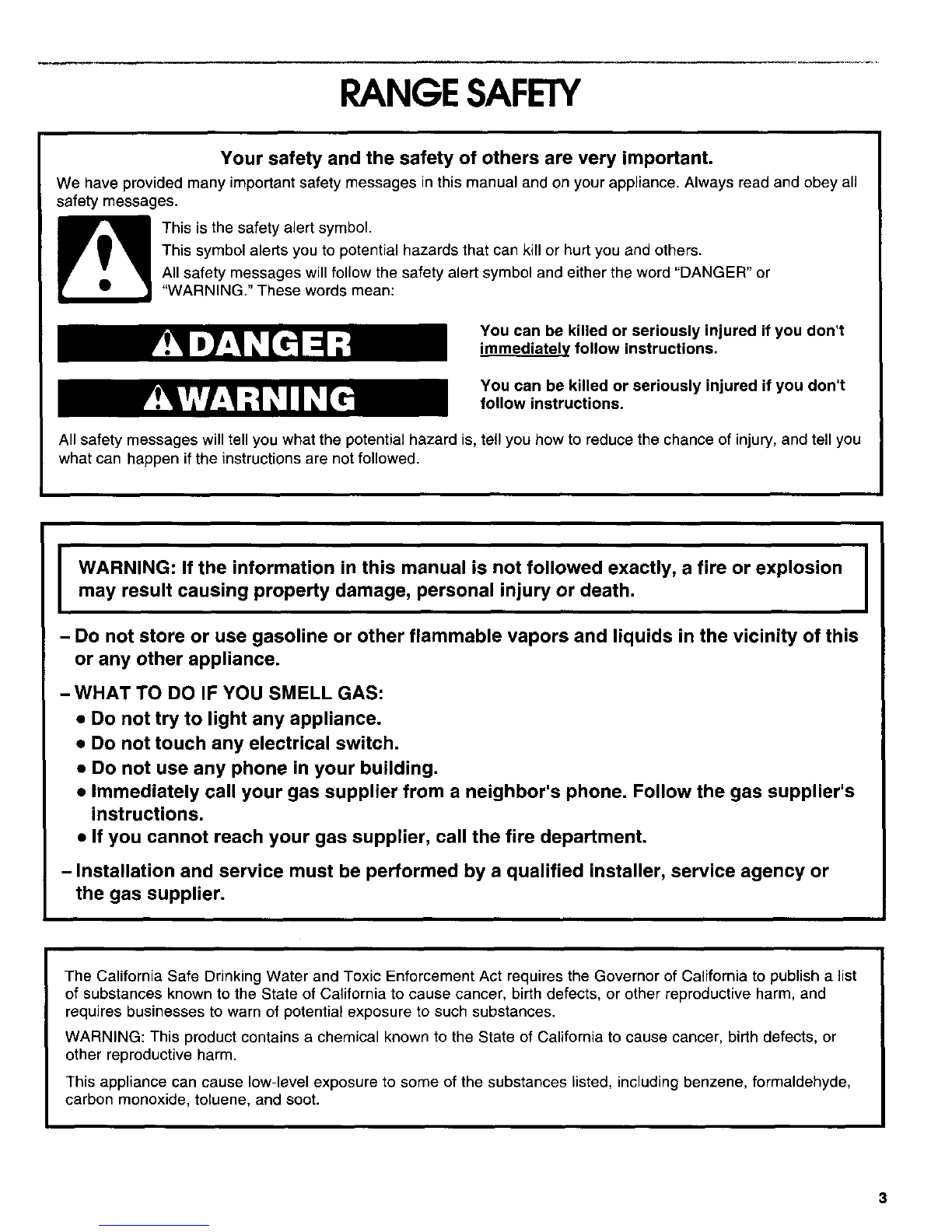

RANGESAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all
safety messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word "DANGER" or
"WARNING." These words mean:
You can be killed or seriously injured if you don't
immediately follow instructions,
You can be killed or seriously injured if you don't
follow instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you
what can happen if the instructions are not followed.
I WARNING: If the information in this manual is not followed exactly, a fire or explosion I
I
may result causing property damage, personal injury or death. I
- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this
or any other appliance.
- WHAT TO DO IF YOU SMELL GAS:
•Do not try to light any appliance.
•Do not touch any electrical switch.
•Do not use any phone in your building.
•Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's
instructions.
•If you cannot reach your gas supplier, call the fire department.
- Installation and service must be performed by a qualified installer, service agency or
the gas supplier.
The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of California to publish a list
of substances known to the State of California to cause cancer, birth defects, or other reproductive harm, and
requires businesses to warn of potential exposure to such substances.
WARNING: This product contains a chemical known to the State of California to cause cancer, birth defects, or
other reproductive harm.
This appliance can cause low-level exposure to some of the substances listed, including benzene, formaldehyde,
carbon monoxide, toluene, and soot.

TheAnti-TipBracket
The range will nottip during normal use. However,the range can tip if you applytoo much force or weight to the open door
without the anti-tip bracket fastened down properly.
Anti-Tip Bracket
Range Foot
Tip Over Hazard
A child or adult can tip the range and be killed.
Connect anti-tip bracket to rear range foot.
Reconnect the anti-tip bracket, if the range is moved.
See the installation instructions for details.
Failure to follow these instructions can result in death or serious burns to children
and adults.
Making sure the anti-tip bracket is installed:
•Slide range forward.
•Look for the anti-tip bracket securely attached to floor.
•Slide range back so rear range foot is under anti-tip bracket.
IMPORTANT SAFETY INSTRUCTIONS
WARNING: To reduce the risk of fire, electrical
shock, injury to persons, or damage when using the
range, follow basic precautions, including the
following:
•WARNING: TO REDUCE THE RISK OF
TIPPING OF THE RANGE, THE RANGE MUST BE
SECURED BY PROPERLY INSTALLED ANTI-TIP
DEVICES. TO CHECK IF THE DEVICES ARE
INSTALLED PROPERLY, SLIDE RANGE FORWARD,
LOOK FOR ANTI-TIP BRACKET SECURELY
A'I-I-ACHED TO FLOOR, AND SLIDE RANGE BACK
SO REAR RANGE FOOT IS UNDER ANTI-TIP
BRACKET.
•CAUTION: Do not store items of interest to
children in cabinets above a range or on the
backguard of a range - children climbing on the
range to reach items could be seriously injured.
= Proper Installation - The range, when installed, must
be electrically grounded in accordance with local
codes or, in the absence of local codes, with the
National Electrical Code, ANSI/NFPA 70.Be sure the
range is properly installed and grounded by a
qualified technician.
• This range is equipped with a three-prong grounding
plug for your protection against shock hazard and
should be plugged directly into a properly grounded
receptacle. Do not cut or remove the grounding prong
from this plug.
• Disconnect the electrical supply before servicing the
appliance.
• Never Use the Range for Warming or Heating the
Room.
• injuries may result from the misuse of appliance doors
or drawers such as stepping, leaning, or sitting on the
doors or drawers.
= Maintenance - Keep range area clear and free from
combustible materials, gasoline, and other flammable
vapors and liquids.
• Storage in or on the Range -Flammable materials
should not be stored in an oven or near surface units.
• Top burner flame size should be adjusted so it does
not extend beyond the edge of the cooking utensil.
For self-cleaning ranges -
a Before Self-Cleaning the Oven - Remove broiler pan
and other utensils. Wipe off all excessive spillage
before initiating the cleaning cycle.
SAVE THESE INSTRUCTIONS

Control Panels PARTSAND FEA'IIJRES
1
[2
1. Electronic Clock/Timer 2. Oven Indicator Lights 3. Oven Temperature Control
Range
tw
2
3
4
5
.o0®®0 0®
_ _ oo
iI J
3 4 5
1. Surface Burner Locator
2. Left Rear Control 3. Left Front Control
\\\
4. Right Front Control
5. Right Rear Control
10
I1
12
13
14
15
1. Oven Vent
2. Left Rear Surface Burner
3. Left Front Surface Burner
4. Surface Burner Grate
5. Anti-Tip Bracket
6. Door Stop Clip
7, Model and Serial Number Plate
(behind left side of storage drawer)
8, Storage Drawer
9. Oven Control
10. Right Rear Surface Burner
11. Right Front Surface Burner
12. Cooktop Control Panel
13. Door Gasket
14. Self-Clean Latch
15. Gas Regulator
5

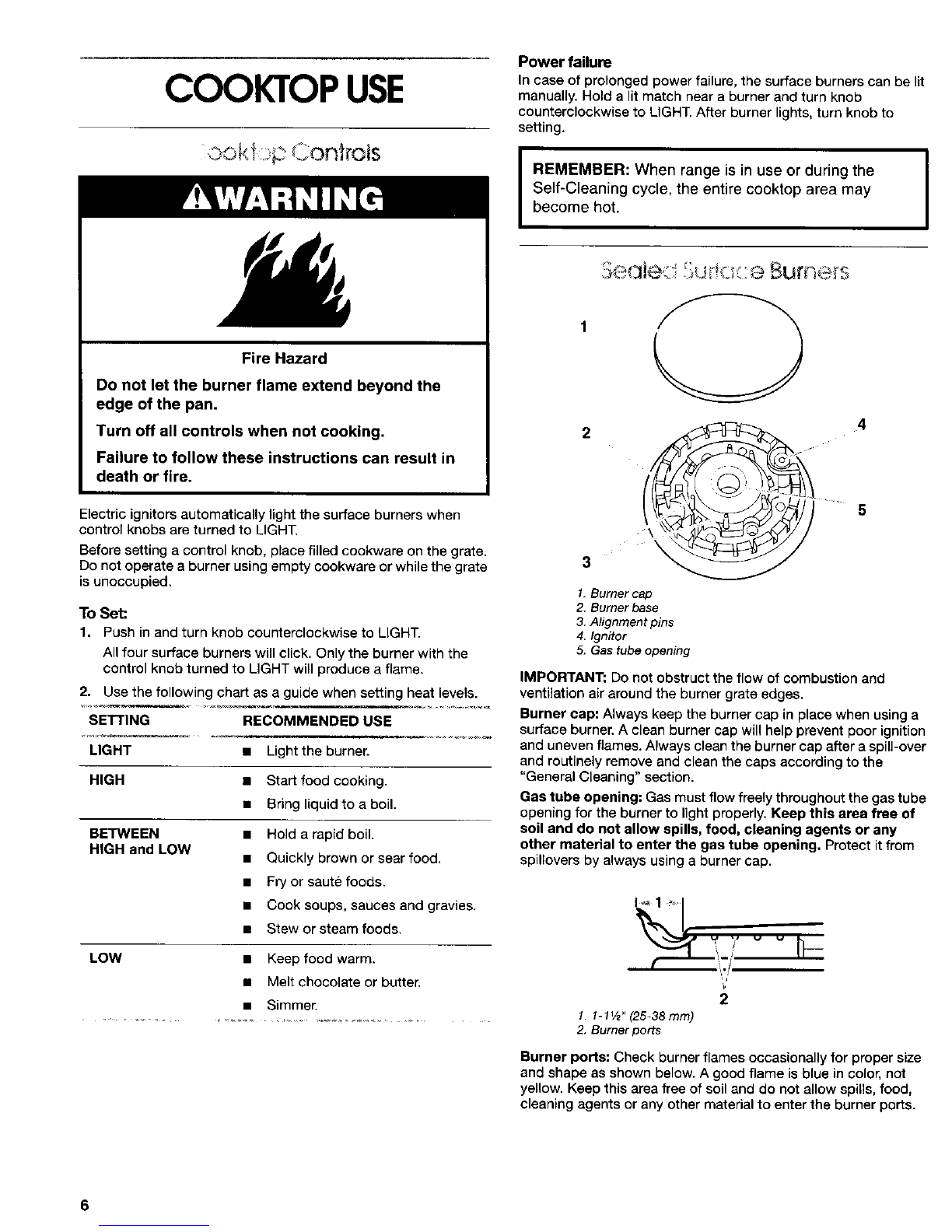

Power failure
In case of prolonged power failure, the surface burners can be lit
manually. Hold a lit match near a burner and turn knob
counterclockwise to LIGHT. After burner lights, turn knob to
setting.
I REMEMBER: When range is in use or during the
Self-Cleaning cycle, the entire cooktop area may
become hot.
Fire Hazard
Do not let the burner flame extend beyond the
edge of the pan.
Turn off all controls when not cooking,
Failure to follow these instructions can result in
death or fire.
Electric ignitors automatically light the surface burners when
control knobs are turned to LIGHT.
Before setting a control knob, place filled cookware on the grate.
Do not operate a burner using empty cookware or while the grate
is unoccupied.
To Set:
1. Push in and turn knob counterclockwise to LIGHT.
All four surface burners will click. Only the burner with the
control knob turned to LIGHT will produce a flame.
2. Use the following chart as a guide when setting heat levels.
SETTING RECOMMENDED USE
LIGHT •
HIGH
BETWEEN
HIGH and LOW
LOW
•Stew or steam foods.
• Keep food warm.
• Melt chocolate or butter.
• Simmer.
Light the burner.
Start food cooking.
Bring liquid to a boil.
Hold a rapid boil.
Quickly brown or sear food.
Fry or saute foods.
Cook soups, sauces and gravies.
3
I. Burner cap
2. Burner base
3. Alignment pins
4. Ignitor
5. Gas tube opening
•4
IMPORTANT: Do not obstruct the flow of combustion and
ventilation air around the burner grate edges.
Burner cap: Always keep the burner cap in place when using a
surface burner. A clean burner cap will help prevent poor ignition
and uneven flames. Always clean the burner cap after a spill-over
and routinely remove and clean the caps according to the
"General Cleaning" section.
Gas tube opening: Gas must flow freely throughout the gas tube
opening for the burner to light properly. Keep this area free of
soil and do not •llow spills, food, cle•ning •gents or any
other material to enter the gas tube opening, Protect it from
spiUoversby •lw•ys using a burner cap.
_u
i_ !"
2
I. 1-1V2"(25-38 ram)
2. Burner ports
Burner ports: Check burner flames occasionally for proper size
and shape as shown below. A good flame is blue in color, not
yellow. Keep this area free of soil and do not allow spills, food,
cleaning agents or any other material to enter the burner ports.
6

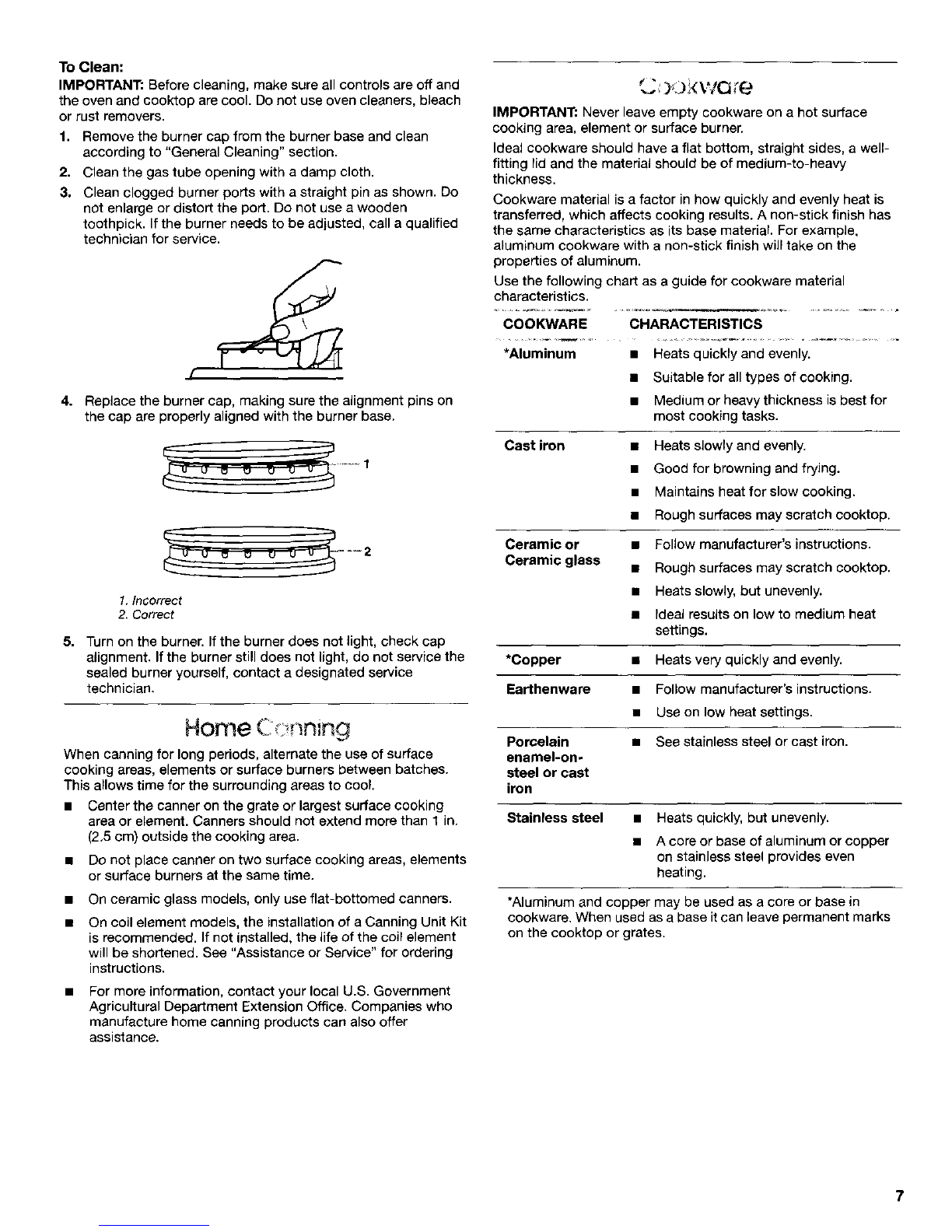

To Clean:
IMPORTANT: Before cleaning, make sure all controls are off and
the oven and cooktop are cool. Do not use oven cleaners, bleach
or rust removers.
1. Remove the burner cap from the burner base and clean
according to "General Cleaning" section.
2. Clean the gas tube opening with a damp cloth.
3. Clean clogged burner ports with a straight pin as shown. Do
not enlarge or distort the port. Do not use a wooden
toothpick. If the burner needs to be adjusted, call a qualified
technician for service.
4. Replace the burner cap, making sure the alignment pins on
the cap are properly aligned with the burner base.
..... 2
1. Incorrect
2. Correct
5. Turn on the burner. If the burner does not light, check cap
alignment. If the burner still does not light, do not service the
sealed burner yourself, contact a designated service
technician.
Home C -,nning
When canning for long periods, alternate the use of surface
cooking areas, elements or surface burners between batches.
This allows time for the surrounding areas to cool.
a Center the canner on the grate or largest surface cooking
area or element. Canners should not extend more than 1 in.
(2,5 cm) outside the cooking area.
= Do not place canner on two surface cooking areas, elements
or surface burners at the same time.
• On ceramic glass models, only use flat-bottomed canners.
• On coil element models, the installation of a Canning Unit Kit
is recommended. If not installed, the life of the coil element
will be shortened. See "Assistance or Service" for ordering
instructions.
For more information, contact your local U.S. Government
Agricultural Department Extension Office. Companies who
manufacture home canning products can also offer
assistance.
IMPORTANT: Never leave empty cookware on a hot surface
cooking area, element or surface burner.
Ideal cookware should have aflat bottom, straight sides, a well-
fitting lid and the material should be of medium-to-heavy
thickness.
Cookware material is a factor in how quickly and evenly heat is
transferred, which affects cooking results. A non-stick finish has
the same characteristics as its base material. For example,
aluminum cookware with a non-stick finish will take on the
properties of aluminum.
Use the following chart as a guide for cookware material
characteristics.
COOKWARE CHARACTERISTICS
*Aluminum =
Cast iron •
a
Ceramic or
Ceramic glass
*Copper
Earthenware
Porcelain
enamel-on-
steel or cast
iron
Heats quickly and evenly.
Suitable for all types of cooking.
Medium or heavy thickness is best for
most cooking tasks.
Heats slowly and evenly.
Good for browning and frying.
Maintains heat for slow cooking.
•Rough surfaces may scratch cooktop.
•Follow manufacturer's instructions.
•Rough surfaces may scratch cooktop.
•Heats slowly, but unevenly.
• Ideal results on low to medium heat
settings.
•Heats very quickly and evenly.
=Follow manufacturer's instructions.
•Use on low heat settings.
•See stainless steel or cast iron.
Stainless steel = Heats quickly, but unevenly.
• A core or base of aluminum or copper
on stainless steel provides even
heating.
*Aluminum and copper may be used as a core or base in
cookware. When used as a base it can leave permanent marks
on the cooktop or grates.
7

OVEN USE
Electronic Clock/Timer
1
ED
8
5
/
TIMER
2 3
@,3
m
4
Timer
The Timer can be set in minutes and seconds or hours and
minutes and counts down the set time. The Timer does not start
or stop the oven.
To Set:
1. Press TIMER.
The colon will flash during Timer programming.
To display the time of day while the Timer is counting down,
press CLOCK. Time of day will be displayed 5 seconds
before returning to the Timer countdown.
2. Press the "up" or "down" arrow pads to set length of time.
3. Press TIMER.
The Timer will begin counting down 5 seconds after the time
is set.
When there is one minute of time remaining, a single tone will
sound and the display will begin counting down in seconds.
When the Timer reaches zero, the display will show "End"
and four 1-second tones will sound.
To Cancel: Press TIMER twice in the Timer mode.
1. Clock 3. Increase
2. Display 4. Decrease
5. Timer
Display
When power is first supplied to the appliance, everything on the
display will light up for 5 seconds. Then, the time of day and "PF"
will appear on the display.
Any other time "PF" appears, a power failure occurred. Reset the
clock. See "Clock" section.
When the oven is not in use, the display will show the time of day.
Cl k
This is a 12 hour clock and does not show a.m. or p.m,
To Set:
Before setting, make sure the oven and Timer are off.
1, Press CLOCK.
The colon will flash during clock programming.
2. Press the "up" or "down" arrow pads to set the time of day.
The time can be changed in either small or 10 minute
increments by pressing a pad briefly or by pressing and
holding a pad.
3. Press CLOCK. The colon will stop flashing when the clock is
active.
IMPORTANT: Do not use a thermometer to measure oven
temperature because opening the oven door and element or
burner cycling may give incorrect readings.
The oven provides accurate temperatures; however, it may cook
faster or slower than your previous oven, so the temperature
calibration can be adjusted. It can be changed in Fahrenheit only.
A minus sign means the oven will be cooler by the displayed
amount. No sign means the oven will be warmer by the displayed
amount. Use the following chart as a guide.
ADJUSTMENT °F COOKS FOOD
10°F ...a little more
2O°F ...moderately more
3O°F ...much more
-1O°F ...a little less
-2O°F ...moderately less
-30°F ...much less
To Adjust Oven Temperature Calibration:
1. Press and hold CLOCK until the oven display shows the
current calibration, for example, "00", if not yet adjusted or
about 5 seconds.
2. Press the "up" or "down" arrow pads to increase or to
decrease the temperature in 5°F amounts. The adjustment
can be set between 35°F and -35°1.
3. Press CLOCK to enter the new temperature.
8

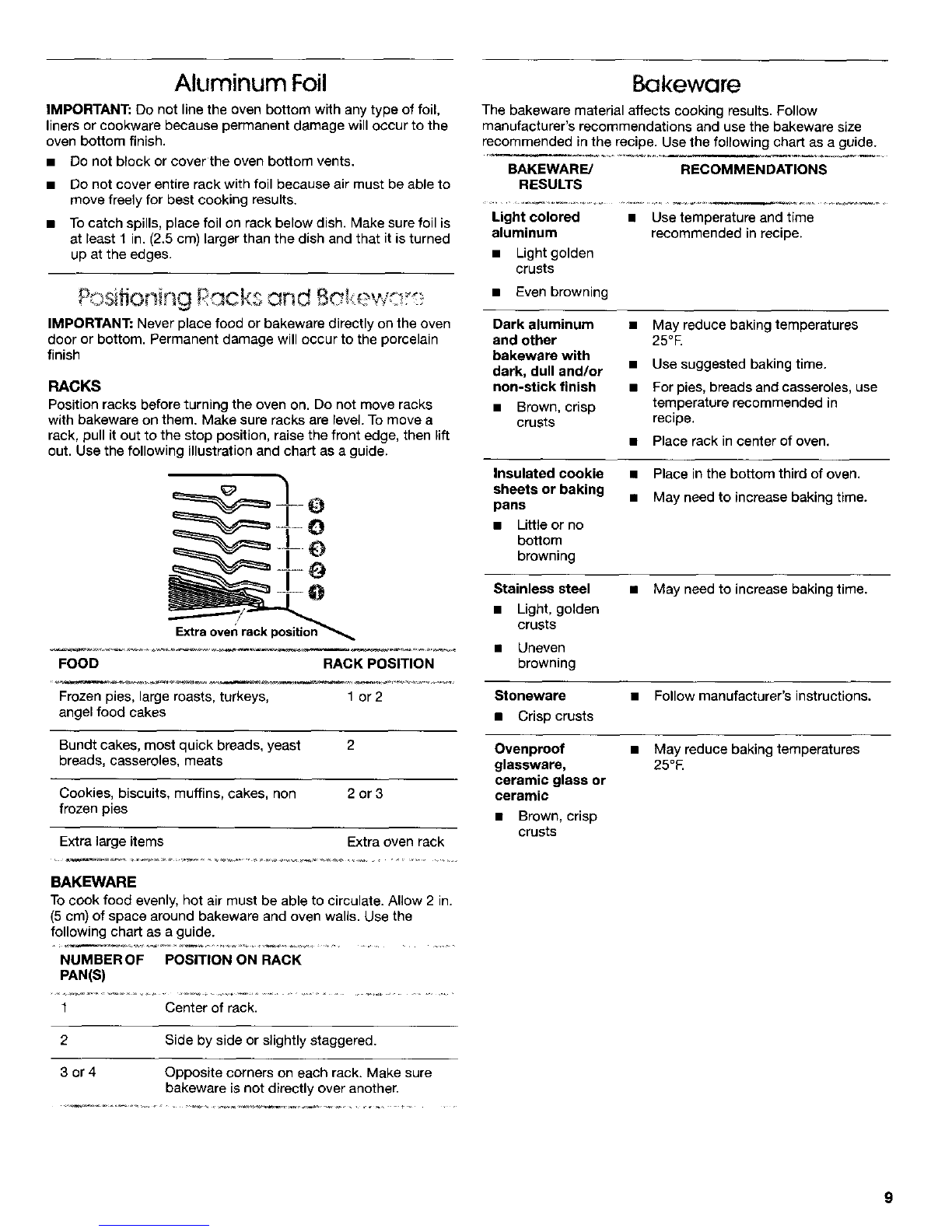

Aluminum Foil
IMPORTANT: Do not line the oven bottom with any type of foil,
liners or cookware because permanent damage will occur to the
oven bottom finish.
• Do not block or cover the oven bottom vents.
Do not cover entire rack with foil because air must be able to
move freely for best cooking results.
To catch spills, place foil on rack below dish. Make sure foil is
at least 1 in. (2.5 cm) larger than the dish and that it is turned
up at the edges.
IMPORTANT: Never place food or bakeware directly on the oven
door or bottom. Permanent damage will occur to the porcelain
finish
RACKS
Position racks before turning the oven on. Do not move racks
with bakeware on them. Make sure racks are level. To move a
rack, pull it out to the stop position, raise the front edge, then lift
out. Use the following illustration and chart as a guide,
Extra ovenrack
FOOD RACK POSITION
Frozen pies, large roasts, turkeys, 1 or 2
angel food cakes
Bundt cakes, most quick breads, yeast 2
breads, casseroles, meats
Cookies, biscuits, muffins, cakes, non 2 or 3
frozen pies
Extra large items Extra oven rack
BAKEWARE
To cook food evenly, hot air must be able to circulate. Allow 2 in.
(5 cm) of space around bakeware and oven walls. Use the
following chart as a guide.
NUMBER OF POSITION ON RACK
PAN(S)
1 Center of rack.
2 Side by side or slightly staggered.
3 or 4 Opposite corners on each rack. Make sure
bakeware is not directly over another.
Bakeware
The bakeware material affects cooking results. Follow
manufacturer's recommendations and use the bakeware size
recommended in the recipe. Use the following chart as a guide.
BAKEWARE/ RECOMMENDATIONS
RESULTS
Light colored aUse temperature and time
aluminum recommended in recipe.
• Light golden
crusts
• Even browning
Dark aluminum
and other
bakeware with
dark, dull and/or
non-stick finish
• Brown, crisp
crusts
• May reduce baking temperatures
25°E
• Use suggested baking time.
• For pies, breads and casseroles, use
temperature recommended in
recipe.
• Place rack in center of oven.
Insulated cookie
sheets or baking
pans
• Little or no
bottom
browning
= Place in the bottom third of oven.
a May need to increase baking time.
Stainless steel • May need to increase baking time.
= Light, golden
crusts
n Uneven
browning
Stoneware • Follow manufacturer's instructions.
• Crisp crusts
Ovenproof • May reduce baking temperatures
glassware, 25°F.
ceramic glass or
ceramic
• Brown, crisp
crusts
9

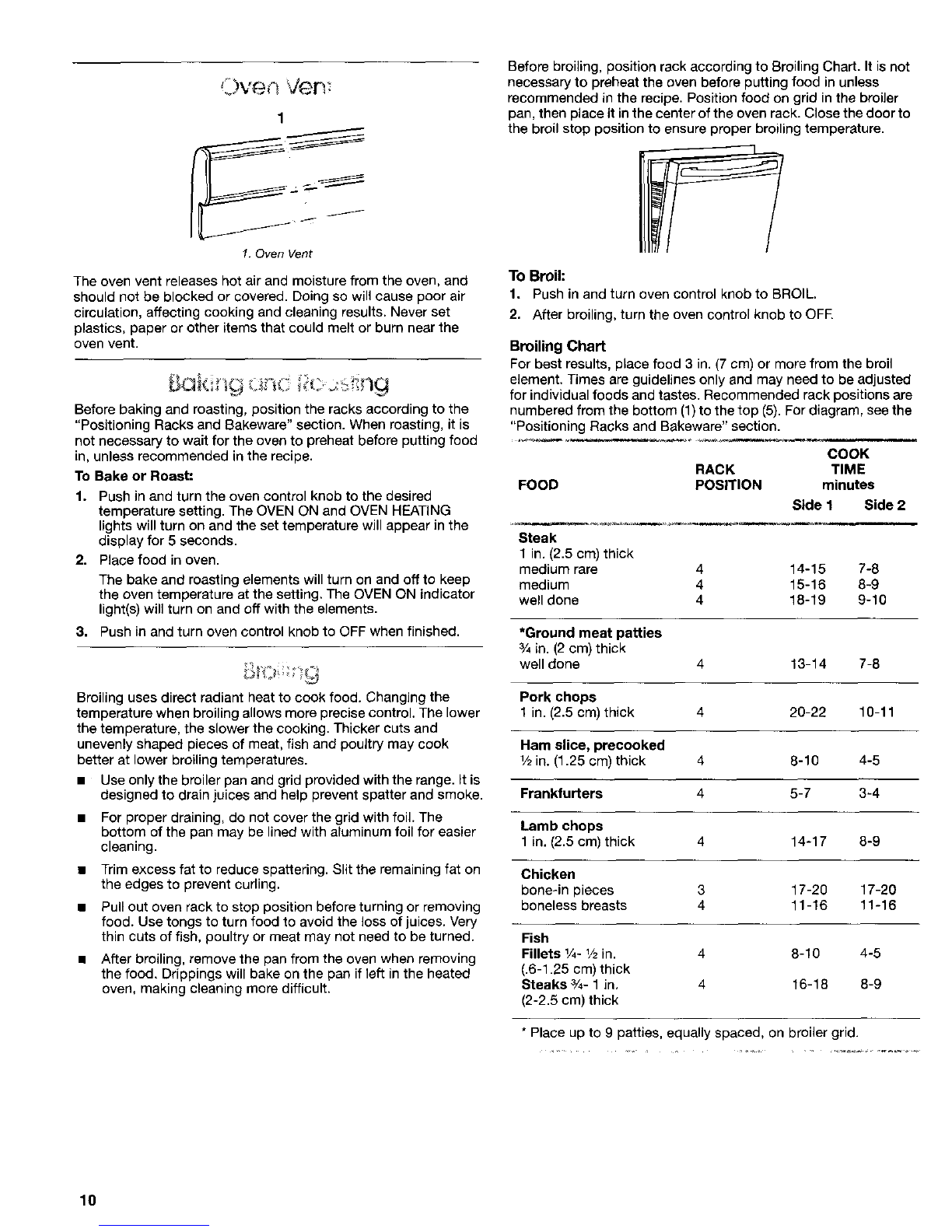

,[)ven Ven
I
1.Oven Vent
The oven vent releases hot air and moisture from the oven, and
should not be blocked or covered. Doing so will cause poor air
circulation, affecting cooking and cleaning results. Never set
plastics, paper or other items that could melt or burn near the
oven vent.
Before baking and roasting, position the racks according to the
"Positioning Racks and Bakeware" section. When roasting, it is
not necessary to wait for the oven to preheat before putting food
in, unless recommended in the recipe.
To Bake or Roast:
1. Push in and turn the oven control knob to the desired
temperature setting. The OVEN ON and OVEN HEATING
lights will turn on and the set temperature will appear in the
display for 5 seconds.
2. Place food in oven.
The bake and roasting elements will turn on and off to keep
the oven temperature at the setting. The OVEN ON indicator
light(s) will turn on and off with the elements.
3. Push in and turn oven control knob to OFF when finished.
Broiling uses direct radiant heat to cook food. Changing the
temperature when broiling allows more precise control. The lower
the temperature, the slower the cooking. Thicker cuts and
unevenly shaped pieces of meat, fish and poultry may cook
better at lower broiling temperatures.
m Use only the broiler pan and grid provided with the range. It is
designed to drain juices and help prevent spatter and smoke.
• For proper draining, do not cover the grid with foil. The
bottom of the pan may be lined with aluminum foil for easier
cleaning.
• Trim excess fat to reduce spattering. Slit the remaining fat on
the edges to prevent curling.
• Pull out oven rack to stop position before turning or removing
food. Use tongs to turn food to avoid the loss of juices. Very
thin cuts of fish, poultry or meat may not need to be turned.
• After broiling, remove the pan from the oven when removing
the food. Drippings will bake on the pan if left in the heated
oven, making cleaning more difficult.
Before broiling, position rack according to Broiling Chart. It is not
necessary to preheat the oven before putting food in unless
recommended in the recipe. Position food on grid in the broiler
pan, then place it in the center of the oven rack. Close the door to
the broil stop position to ensure proper broiling temperature.
To Broil:
1. Push in and turn oven control knob to BROIL.
2. After broiling, turn the oven control knob to OFE
Broiling Chart
For best results, place food 3 in. (7 cm) or more from the broil
element. Times are guidelines only and may need to be adjusted
for individual foods and tastes. Recommended rack positions are
numbered from the bottom (1)to the top (5). For diagram, see the
"Positioning Racks and Bakeware" section.
COOK
RACK TIME
FOOD POSITION minutes
Side I Side 2
Steak
1 in. (2.5 cm) thick
medium rare 4 14-15 7-8
medium 4 15-16 8-9
well done 4 18-19 9-10
*Ground meat patties
3/4in. (2 cm) thick
well done 4 13-14 7-8
Pork chops
1 in. (2.5 cm) thick 4 20-22 10-11
Ham alice, precooked
V2in. (1.25 ca) thick 4 8-10 4-5
Frankfurters 4 5-7 3-4
Lamb chops
1 in. (2.5 ca) thick 4 14-17 8-9
Chicken
bone-in pieces 3 17-20 17-20
boneless breasts 4 11-16 11-16
Fish
Fillets 1/4-V2in. 4 8-10 4-5
(.6-1.25 cm) thick
Steaks 3/4-1 in, 4 16-18 8-9
(2-2.5 cm) thick
* Place up to 9 patties, equally spaced, on broiler grid.
10

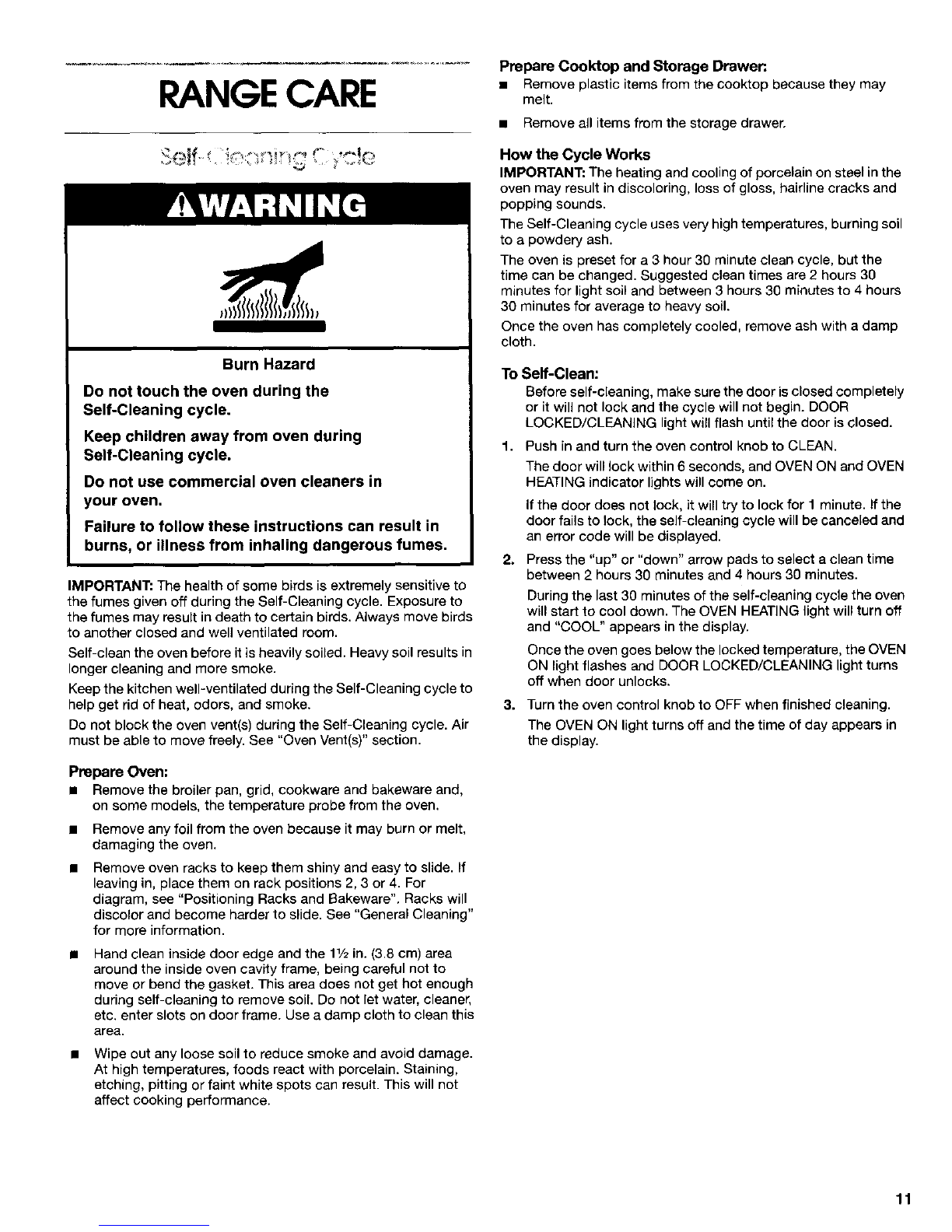

RANGE CARE
Burn Hazard
Do not touch the oven during the
Self-Cleaning cycle.
Keep children away from oven during
Self-Cleaning cycle.
Do not use commercial oven cleaners in
your oven.
Failure to follow these instructions can result in
burns, or illness from inhaling dangerous fumes.
IMPORTANT: The health of some birds is extremely sensitive to
the fumes given off during the Self-Cleaning cycle. Exposure to
the fumes may result in death to certain birds. Always move birds
to another closed and well ventilated room.
Self-clean the oven before it is heavily soiled. Heavy soil results in
longer cleaning and more smoke.
Keep the kitchen well-ventilated during the Self-Cleaning cycle to
help get rid of heat, odors, and smoke.
Do not block the oven vent(s) during the Self-Cleaning cycle. Air
must be able to move freely. See "Oven Vent(s)" section.
Prepare Oven:
• Remove the broiler pan, grid, cookware and bakeware and,
on some models, the temperature probe from the oven.
• Remove any foil from the oven because it may burn or melt,
damaging the oven.
Remove oven racks to keep them shiny and easy to slide. If
leaving in, place them on rack positions 2, 3 or 4. For
diagram, see "Positioning Racks and Bakeware", Racks will
discolor and become harder to slide. See "General Cleaning"
for more information.
Hand clean inside door edge and the 11/2in. (3.8 cm) area
around the inside oven cavity frame, being careful not to
move or bend the gasket. This area does not get hot enough
during self-cleaning to remove soil. Do not let water, cleaner,
etc. enter slots on door frame. Use a damp cloth to clean this
area.
• Wipe out any loose soil to reduce smoke and avoid damage.
At high temperatures, foods react with porcelain. Staining,
etching, pitting or faint white spots can result. This will not
affect cooking performance,
Prepare Cooktop and Storage Drewer:.
•Remove plastic items from the cooktop because they may
melt.
• Remove all items from the storage drawer.
How the Cycle Works
IMPORTANT: The heating and cooling of porcelain on steel inthe
oven may result in discoloring, loss of gloss, hairline cracks and
popping sounds.
The Self-Cleaning cycle uses very hightemperatures, burning soil
to apowdery ash.
The oven is preset for a 3 hour 30 minute clean cycle, but the
time can be changed. Suggested clean times are 2hours 30
minutes for light soil and between 3 hours 30 minutes to 4 hours
30 minutes for average to heavy soil.
Once the oven has completely cooled, remove ash with a damp
cloth.
To Self-Clean:
Before self-cleaning, make sure the door isclosed completely
or itwill not lock and the cycle will not begin. DOOR
LOCKED/CLEANING light will flash untilthe door is closed.
1. Push in and turn the oven control knob to CLEAN.
The door will lock within 6 seconds, and OVEN ON and OVEN
HEATING indicator lights will come on.
If the door does not lock, it will try to lock for 1 minute. If the
door fails to lock, the self-cleaning cycle will be canceled and
an error code will be displayed.
2. Press the "up" or "down" arrow pads to select aclean time
between 2 hours 30 minutes and 4 hours 30 minutes.
During the last 30 minutes of the self-cleaning cycle the oven
will start to cool down. The OVEN HEATING light will turn off
and "COOL" appears in the display.
Once the oven goes below the locked temperature, the OVEN
ON light flashes and DOOR LOCKED/CLEANING light turns
off when door unlocks.
3. Turn the oven control knob to OFF when finished cleaning.
The OVEN ON light turns off and the time of day appears in
the display.
11

General Cleaning
IMPORTANT: Before cleaning, make sure all controls are off and
the oven and cooktop are cool. Always follow label instructions
on cleaning products.
Soap, water and a soft cloth or sponge are suggested first unless
otherwise noted.
EXTERIOR PORCELAIN ENAMEL SURFACES
(on some models)
Food spills containing acids, such as vinegar and tomato, should
be cleaned as soon as the entire appliance is cool. These spills
may affect the finish.
•Glass cleaner, mild liquid cleaner or non-abrasive scrubbing
pad:
Gently clean around the model and serial number plate
because scrubbing may remove numbers.
STAINLESS STEEL (on some models)
Do not use soap-filled scouring pads, abrasive cleaners, Cooktop
Polishing Creme, steel-wool pads, gritty wash cloths or some
paper towels. Damage may occur.
Rub in direction of grain to avoid damaging.
• Stainless Steel Cleaner & Polish (not included):
See "Assistance or Service" section to order.
• Liquid detergent or all-purpose cleaner:
Rinse with clean water and dry with soft, lint-free cloth.
• Vinegar for hard water spots
OVEN DOOR EXTERIOR
• Glass cleaner and paper towels or non-abrasive plastic
scrubbing pad:
Apply glass cleaner to soft cloth or sponge, not directly on
panel.
PORCELAIN-COATED GRATES AND CAPS
Food spills containing acids, such as vinegar and tomato, should
be cleaned as soon as the cooktop, grates and caps are cool.
These spills may affect the finish.
To avoid chipping, do not bang grates and caps against each
other or hard surfaces such as cast iron cookware.
Do not reassemble caps on burners while wet.
Do not clean in the Self-Cleaning cycle.
• Non-abrasive plastic scrubbing pad and mildly abrasive
cleanser:
Clean as soon as cooktop, grates and caps are cool.
• Dishwasher (grates only, not caps):
Use the most aggressive cycle.
SURFACE BURNERS
Sealed Burner models
See "Sealed Surface Burners" section.
Open Burner models
See "Open Burners" section.
COOKTOP CONTROLS
Do not use steel wool, abrasive cleansers or oven cleaner.
Do not soak.
When replacing knobs, make sure knobs are in the OFF position.
On some models, do not remove seals under knobs.
• Soap and water or dishwasher:
Pull knobs straight away from control panel to remove.
CONTROL PANEL
Do not use abrasive cleaners, steel-wool pads, gritty wash cloths
or some paper towels. Damage may occur.
• Glass cleaner and soft cloth or sponge:
Apply glass cleaner to soft cloth or sponge, not directly on
panel.
OVEN CAVITY
Do not use commercial oven cleaners.
Food spills should be cleaned when oven cools. At high
temperatures, foods react with porcelain and staining, etching,
pitting or faint white spots can result.
• Self-Cleaning cycle:
See "Self-Cleaning Cycle" first.
OVEN RACKS
• Self-Cleaning cycle:
See "Self-Cleaning Cycle" first. Racks will discolor and
become harder to slide. After cleaning, a light coating of
vegetable oil applied to the rack guides wilt help them slide.
• Steel wool pad
BROILER PAN AND GRID
Do not clean in the Self-Cleaning cycle.
• Mildly abrasive cleanser:
Scrub with wet scouring pad.
• Solution of V2cup (125 mL) ammonia to 1 gallon (3.75 L)
water:
Soak for 20 minutes, then scrub with scouring or steel wool
pad.
• Oven cleaner:
Follow product label instructions.
Porcelain enamel only, not chrome
•Dishwasher
STORAGE DRAWER
Make sure drawer is cool and empty before cleaning.
For more information, see "Storage Drawer" section.
• Mild detergent
12

Oven Door
For normal range use, it is not suggested to remove the oven
door. However, if necessary, follow these instructions. The oven
door is heavy.
Before Removing:
1. Use a putty knife or screwdriver and insert it at the bottom
corner of the door stop clip.
To Replace:
1. Grasp the door on the sides with your fingers on the front of
the door and your thumbs on the inside surface.
2. Hold oven door so that the top edge of each hinge hanger is
horizontal. Insert hinge hangers into the front frame hinge
slots.
3. Tilt top of door toward range. Slide hinge hangers down onto
front frame support pins. Make sure the hinge hangers are
fully seated and engaged on the support pins.
2. Pry door stop clip free and remove from front frame hinge
slot. Take care not to scratch finish.
3. Repeat procedure for other door stop clip.
To Remove:
1. Open the oven door. Insert door removal pins, included with
your range, into both hinge hangers. Do not remove the pins
while the door is removed from the range.
2. Carefully close the door until it rests against the door removal
pins.
3. Grasp the door on the sides with your fingers on the front of
the door and your thumbs on the inside surface.
4, Pull door straight up, then toward you. Hinge hangers will
slide out of front frame hinge slot. Do not remove door
removal pins until the door is replaced on the range.
4. Insert the door stop clip with the angular surface at the top of
the frame hinge slot, then push in the bottom of the clip until
flanges are flush with the front frame.
5. Open the door completely and remove the door removal pins.
Save door removal pins for future use.
6. Close the door.
>re,age Drawer
The storage drawer can be removed. Before removing, make sure
drawer is cool and empty.
To Remove:
1. Pull drawer straight out to the first stop,
2. Lift up the back of the drawer and pull out.
To Replace:
1. Fit the ends of the drawer rails into the guides in the cavity.
2. Slide the drawer closed.
13

TROUBLESHOOTING
Try the solutions suggested here first in order to avoid the
cost of an unnecessary service call,
Nothing will operate
•Is the power supply cord unplugged?
Plug into a grounded 3 prong outlet.
lHas a household fuse been blown or has the circuit
breaker been tripped?
Replace the fuse or reset the circuit•
Surface burners will not operate
•Is this the first time the surface burners have been used?
Turn on any one of the surface burner knobs to release air
from the gas lines.
•Is the control knob set correctly?
Push in knob before turning to a setting.
•Are the burner ports clogged?
On sealed burner models, see "Sealed Surface Burners"
section.
Surface burner flames are uneven, yellow and/or noisy
•Are the burner ports clogged?
On sealed burner models, see "Sealed Surface Burners"
section•
eOn models with caps, are the burner caps positioned
properly?.
See "Sealed Surface Burners" section.
Is the burner damaged?
On models with caps, look for awarped cap. If cap will spin
freely on aflat surface, painted side down, the cap is warped•
Switch cap with a different surface burner to check for further
warping• Contact a service technician or see "Assistance or
Service" section.
Is propane gas being used?
The appliance may have been converted improperly.
Contact a service technician or see "Assistance and Service"
section.
Surface burner makes popping noises
Is the burner wet?
Let it dry.
Surface burner sparks
Is the control knob in the LIGHT position?
It is normal for all four burners to spark when a burner has
been turned on and the knob is in the LIGHT position.
Is there continuous sparking?
Continuous sparking may be caused by a faulty module or
spark switch• Contact a service technician or see "Assistance
and Service" section•
Excessive heat around cookware on cooktop
•Is the cookware the proper size?
Use cookware about the same size as the surface cooking
area, element or surface burner. Cookware should not extend
more than 1 in. (2.5 cm) outside the cooking area.
Cooktop cooking results not what expected
=Is the proper cookware being used?
See "Cookware" section.
=Is the control knob set to the proper heat level?
See "Cooktop Controls" section.
•Isthe appliance level?
Level the appliance• See the Installation Instructions•
Oven will not operate
•Is this the first time the oven has been used?
Turn any one of the surface burner knobs on to release air
from the gas lines.
•Is the Electronic Clock/Timer set correctly?
See "Electronic Clock/rimer" section.
Oven burner flames are yellow or noisy
•Is propane gas being used?
The appliance may have been converted improperly• Contact
a service technician or see "Assistance or Service" section•
Cooling fan runs during baking, broiling or cleaning
•It is normal for the fan to automatically run while the oven is in
use to cool the electronic control.
Oven temperature too high or too low
•Does the oven temperature calibration need adjustment?
See "Oven Temperature Control" section•
Oven indicator lights flash
•Do the OVEN ON and OVEN HEATING indicator lights
flash?
See "Assistance or Service" section•
•Do the OVEN HEATING and DOOR LOCKED/CLEANING
indicator lights flash?
The door lock has failed• See "Assistance or Service"
sections.
Self-Cleaning cycle will not operate
•Is the oven door open?
Close the oven door all the way.
•Has the function been entered or have the controls been
properly set?
See "Self-Cleaning Cycle" section.
Oven will not operate
•Is the electronic clock/timer set correctly?
See "Electronic Clock/Timer" section.
14

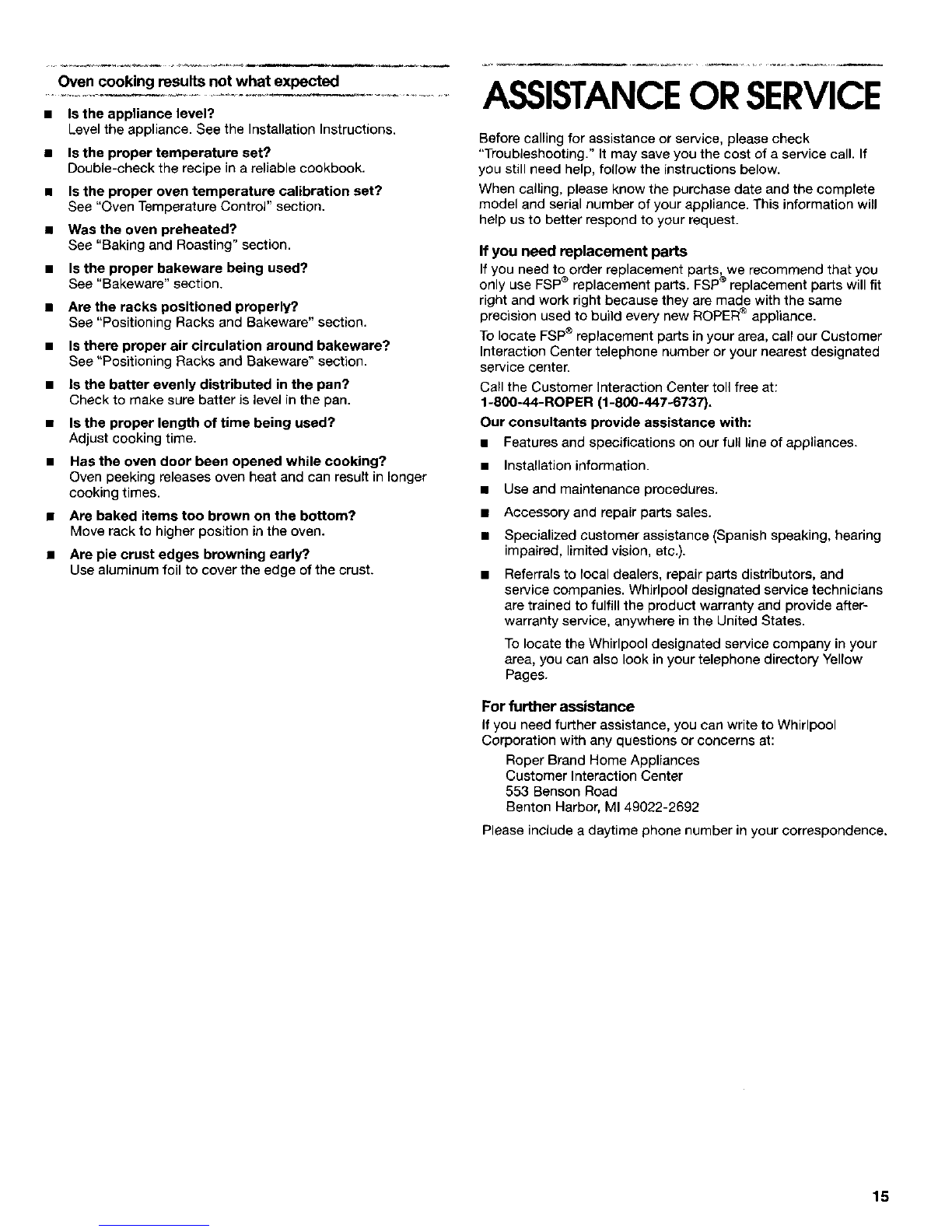

Oven cooking results not what expected
msthe appliance level?
Levelthe appliance. See the Installation Instructions.
Is the proper temperature set?
Double-check the recipe in a reliable cookbook.
Is the proper oven temperature calibration set?
See "Oven Temperature Control" section.
Was the oven preheated?
See "Baking and Roasting" section.
Is the proper bakeware being used?
See "Bakeware" section.
Are the racks positioned properly?
See "Positioning Racks and Bakeware" section.
Is there proper air circulation around bakeware?
See "Positioning Racks and Bakeware" section.
Is the batter evenly distributed in the pan?
Check to make sure batter is level in the pan.
Is the proper length of time being used?
Adjust cooking time.
Has the oven door been opened while cooking?
Oven peeking releases oven heat and can result in longer
cooking times.
• Are baked items too brown on the bottom?
Move rack to higher position in the oven.
•Are pie crust edges browning early?.
Use aluminum foil to cover the edge of the crust.
ASSISTANCEORSERVICE
Before calling for assistance or service, please check
"Troubleshooting." It may save you the cost of a service call. If
you still need help, folrow the instructions below.
When calling, please know the purchase date and the comprete
model and serial number of your appliance. This information will
help us to better respond to your request.
If you need replacement parts
If you need to order replacement parts, we recommend that you
only use FSP® replacement parts. FSP®replacement parts will fit
right and work right because they are made with the same
precision used to build every new ROPER ®appliance.
To locate FSP®replacement parts in your area, calf our Customer
Interaction Center telephone number or your nearest designated
service center.
Call the Customer Interaction Center toll free at:
1-800-44-ROPER (1-800-447-6737).
Our consultants provide assistance with:
•Features and specifications on our full line of appliances.
•Installation information.
Use and maintenance procedures,
Accessory and repair parts sales.
Specialized customer assistance (Spanish speaking, hearing
impaired, limited vision, etc.).
Referrars to focal dealers, repair parts distributors, and
service companies. Whirlpool designated service technicians
are trained to fulfill the product warranty and provide after-
warranty service, anywhere in the United States.
To locate the Whirlpool designated service company in your
area, you can also look in your telephone directory Yelrow
Pages.
For further assistance
If you need further assistance, you can write to Whirlpool
Corporation with any questions or concerns at:
Roper Brand Home Appliances
Customer Interaction Center
553 Benson Road
Benton Harbor, MI 49022-2692
Please include a daytime phone number in your correspondence.
15

ROPEPRANGEWARRANTY
ONE-YEAR FULL WARRANTY
For one year from the date of purchase, when this appliance is operated and maintained according to instructions attached to or
furnished with the product, Whirlpool Corporation will pay for FSP®replacement parts and repair labor costs to correct defects in
materials or workmanship. Service must be provided by a Whirlpool designated service company.
Whirlpool Corporation will not pay for:
1. Service calls to correct the installation of your appliance, to instruct you how to use your appliance, to replace house fuses or
correct house wiring or plumbing, or to replace light bulbs.
2. Repairs when your appliance is used in other than normal, single-family household use.
3. Pickup and delivery. Your appliance is designed to be repaired in the home.
4. Damage resulting from accident, alteration, misuse, abuse, fire, flood, improper installation, acts of God, or use of products not
approved by WhirlpoolCorporation.
5. Repairs to parts or systems resulting from unauthorized modifications made to the appliance.
6. Replacement parts or repair labor cost for units operated outside the United States.
WHIRLPOOL CORPORATION SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES.
Some states do not allow the exclusion or limitation of incidental or consequential damages, so this exclusion or limitation may not
apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
Outside the 50 United States this warranty does not apply. Contact your authorized Roper dealer to determine if another
warranty applies.
If you need service, first see the "Troubleshooting" section of this book. After checking "Troubleshooting," additional help can be found
by checking the "Assistance or Service" section or by calling the Customer Interaction Center toll free at t-800-44-ROPER
(1-800-447-6737) from anywhere in the U.S.A. Outside the U.S., contact your authorized Roper dealer. 10/00
Keep this book and your sales slip together for future
reference. You must provide proof of purchase or
installation date for in-warranty service,
Write down the following information about your appliance to
better help you obtain assistance or service if you ever need it.
You will need to know your complete model number and serial
number. You can find this information on the model and serial
number label/plate, located on your appliance as shown in the
"Parts and Features" section.
Dealer name
Address
Phone number
Model number
Serial number
Purchase date
85224O7
© 2000 Whirlpool Corporation. 12/00
All rights reserved. ®Registered TradematWTM Trademark of Whid pool, U.S.A, printed in U.SJ_,
