Rosen DS-HD0820 User manual

In-Dash Multi-Media /
Navigation System
In-Dash Multi-Media /
Navigation System
Honda Civic Quick Start Guide
DS-HD0820
System Features
 High resolution, touch-screen LCD display
 Navigation includes text-to-speech voice and visual turn-by-turn
directions, 5 Million+ Points-Of-Interest library, 3D route and building views
for major cities, plus 3 language options (English, Spanish, French-Canadian)
 Play DVD movies, audio CDs or discs with MP3 music files
 AM-FM stereo tuner with 24 station presets (18 FM, 6 AM)
 Bluetooth Hands-Free interface with built-in microphone
 iPodTM interface
 XM Satellite Radio ready
 Supports the vehicle’s steering wheel controls
 USB & SD Card ports for multi-media playback (SD on some models)
 Back-Up Camera and/or sensor ready
 Dual Zone interface for optional rear seat displays
 Custom DVD Splash Screen capable

Notices
NOTICE OF INTENDED USE
Some features of Rosen Entertainment Systems are not intended for viewing by the driver when the vehicle is in motion,
such as movie playback. When using navigation, minimize the amount of time spent viewing the screen and use voice
prompts as much as possible. Avoid prolonged use of the touch screen controls. Such use might distract the driver or
interfere with the driver’s safe operation of the vehicle, and thus result in serious injury or death. Such use might also
violate state or local laws.
Rosen Entertainment Systems disclaims any liability for
any bodily injury or property damage that might result
from any improper or unintended use.

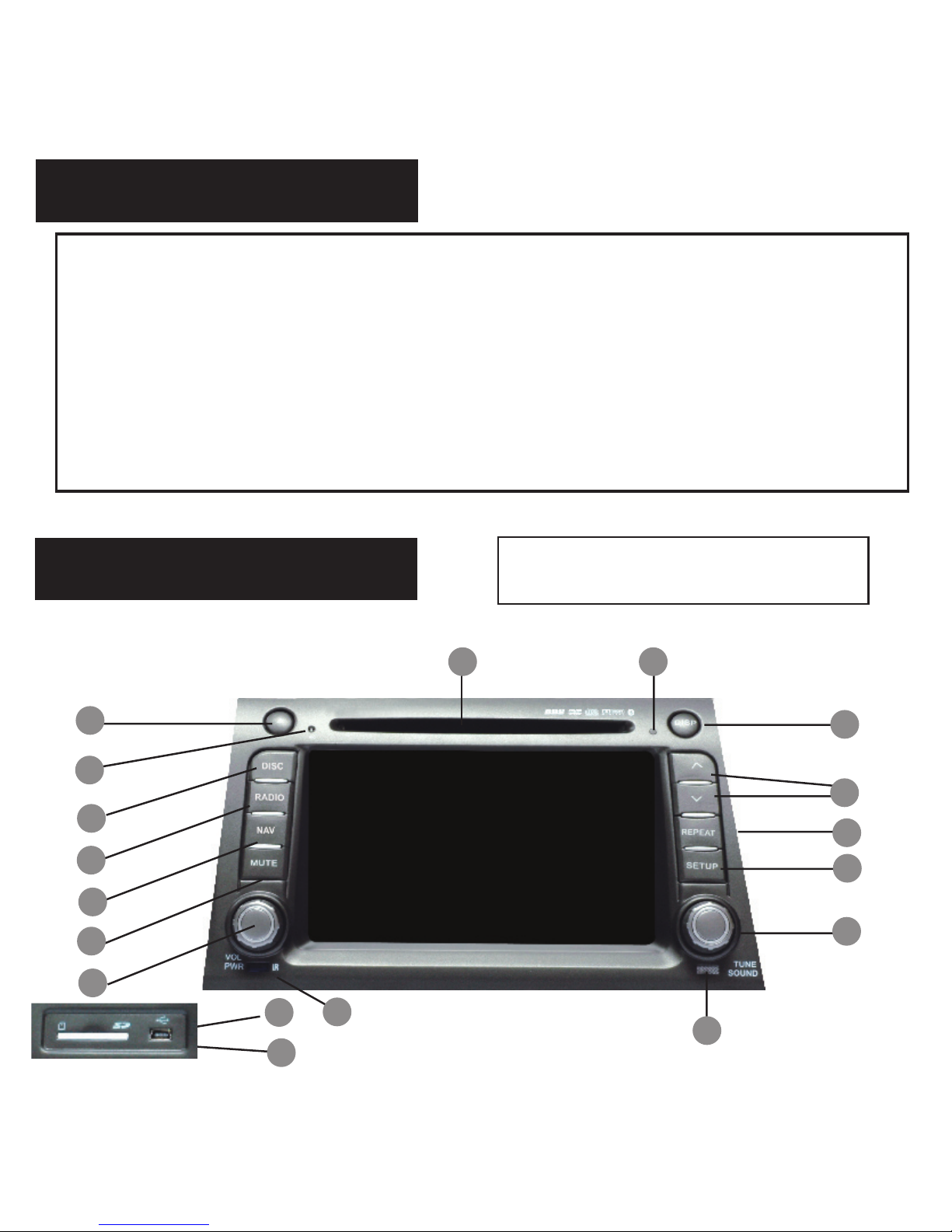

Controls & Basic Operations - IMPORTANT -
More detailed system operating instructions
are located in the Owner’s Manuals
Figure 1.
1
8
910
13
1
2
3
4
5
6
7
14
15
16
11
12
1718

2
Control Button Details (as shown in Figure 1.)
Eject button for DVD Mode.
Microphone for Bluetooth hands-free
Press repeatedly to cycle through
DVD and USB Modes.
Press to go to Radio Mode or Satellite
Radio (if equipped).
Enter/Exit Navigation Mode (naviga-
tion can only be exited by pressing
this button).
Mute/unmute audio.
Turn the knob to adjust the volume.
Press to turn system ON/OFF.
SD Card Slot (for navigation only).
Mini USB for external media device.
Photo sensor used for auto-dimming.
IR sensor for remote control.
When in Radio Mode, turn the knob
to select the station. Press to select
equalizer modes.
Press to go to set up menu
Press to repeat song, chapter or
CD/DVD.
When in Radio Mode, press to play
the Next/Previous Preset station.
Press and hold to seek for stations.
When in DVD or iPodTM Mode, press
to select the Next/Previous song or
chapter.
Press to enable NIGHT MODE. Press
again to turn display off/on.
System reset (if required). Use a
paper clip (or similar) to press.
CD/DVD/MP3 Disc Slot.
1
2
3
4
5
6
7
8
9
10
11
12
14
15
16
17
13
18

Turn System On/Off
Vehicle ignition must be On or in ACC Mode to
operate system.
Press the Left Knob on the panel to turn the
system ON/OFF (Figure 2).
Volume Adjustment
Turn the Left Knob on the panel to adjust the
volume (Figure 2.).

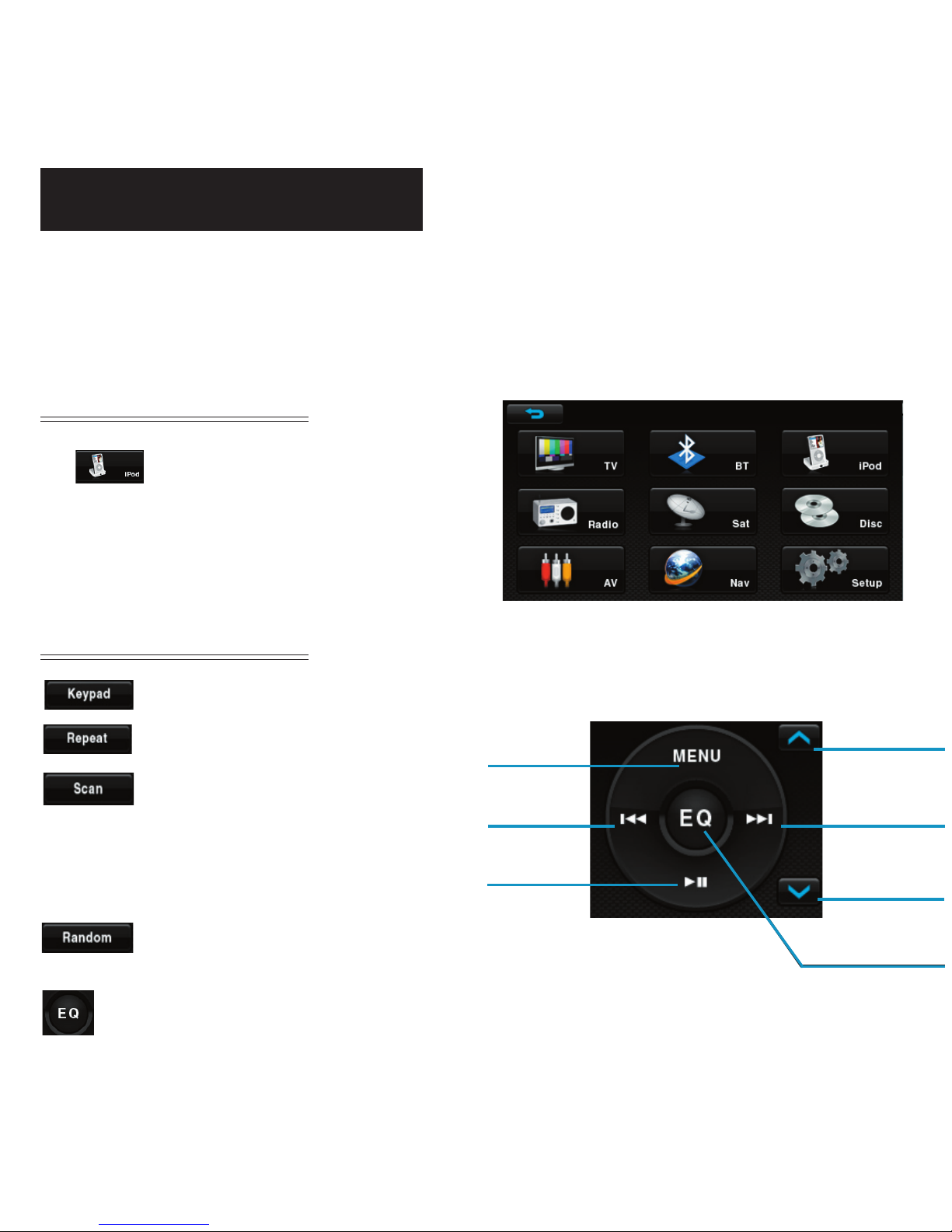

Main Menu
From any other screen, touch to enter
For detailed information of these functions, please refer to the “User’s Manual”.
TV Bluetooth iPodTM AM/FM Radio SAT Radio
DVD Auxiliary Input Navigation System Setup Return
Figure 3.
3
Figure 2.
Main Menu (Figure 3.) The Main Menu
includes TV, Bluetooth, iPodTM, Radio,
XM, DVD, AV, Navigation and Setup.

4
Navigation
Before using the Rosen Navigation software, read this entire manual. Make sure that you are
familiar with the system’s features and know how to operate the system.
Glance at the screen only when necessary and safe to do so. Let the computer voice guide you. If
prolonged viewing is necessary, pull off the road to a safe location.
Introduction to Your Rosen Navigation
Rosen Navigation provides turn-by-turn visual and voice assistance to direct you to your selected
destination. It quickly calculates step-by-step directions to any destination available on the in-
cluded navigation map.
Rosen Navigation uses Global Positioning System (GPS) satellites, and a digital roadway map da-
tabase to calculate and display travel directions. The system’s GPS antenna receives signals from
a constellation of 24 satellites orbiting the earth and uses the strongest of signals, to determine
your position to within meters.
_______________________________________________________
Before operating your Rosen Navigation system, please carefully read and follow the
instructions provided in the “Safety Information and Precautions”
located on Page 14 of this Quick Start Guide.
_______________________________________________________
For Complete Operating Instructions
Please refer to the Rosen Navigation User’s Manual to find complete instructions on the operation
and many features of the Rosen Navigation System.
Initial Touch Screen Calibration
You may need to calibrate the touch screen when the system is first used. To do this, enter the
Navigation Mode immediately after you turn the system on. Follow the Information screens as
indicated.

5

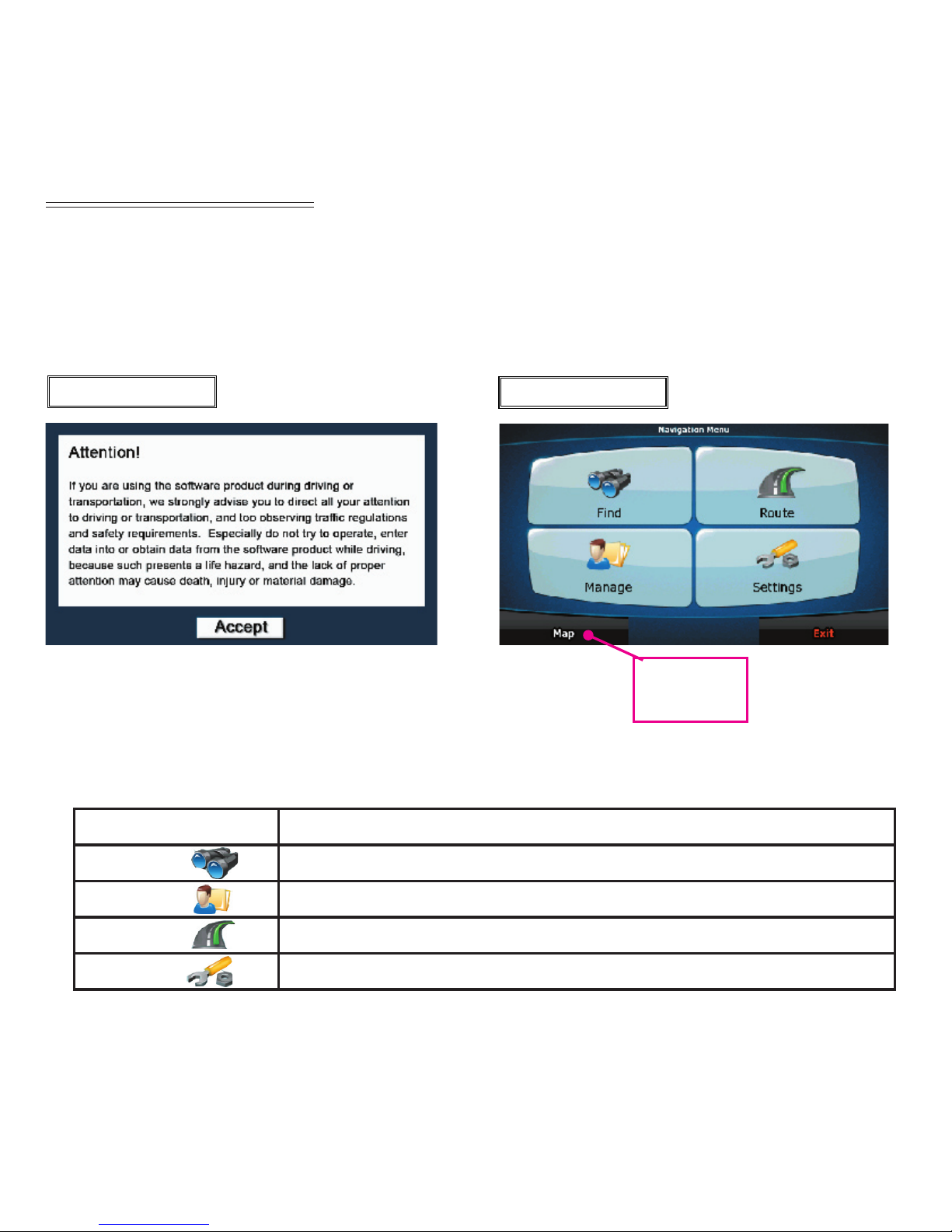

Start Up/Main Menu
When the Rosen Navigation software starts, you will see the reminder warning to use your
Rosen Navigation software safely and lawfully.
Note: Please refer to the User’s Manual for additional information and warning on the proper
use of the Rosen Navigation product.
The Attention screen is displayed each
time the system is turned ON as a reminder
to make use of the navigational aids in a
safe manner.
Warning Screen Main Menu
Select to
display the
map view
Main Menu Option Select this Option to...
Find Pick a destination for routing
Manage Organize or select saved routes or Points-Of-Interest
Route Edit or cancel a route in progress
Settings Set preferences for routing, map, screen, navigation and more

6
65
Select state name
Select from previously used city
Select from previously used city
Enter street name
Enter street address number
Previous screen

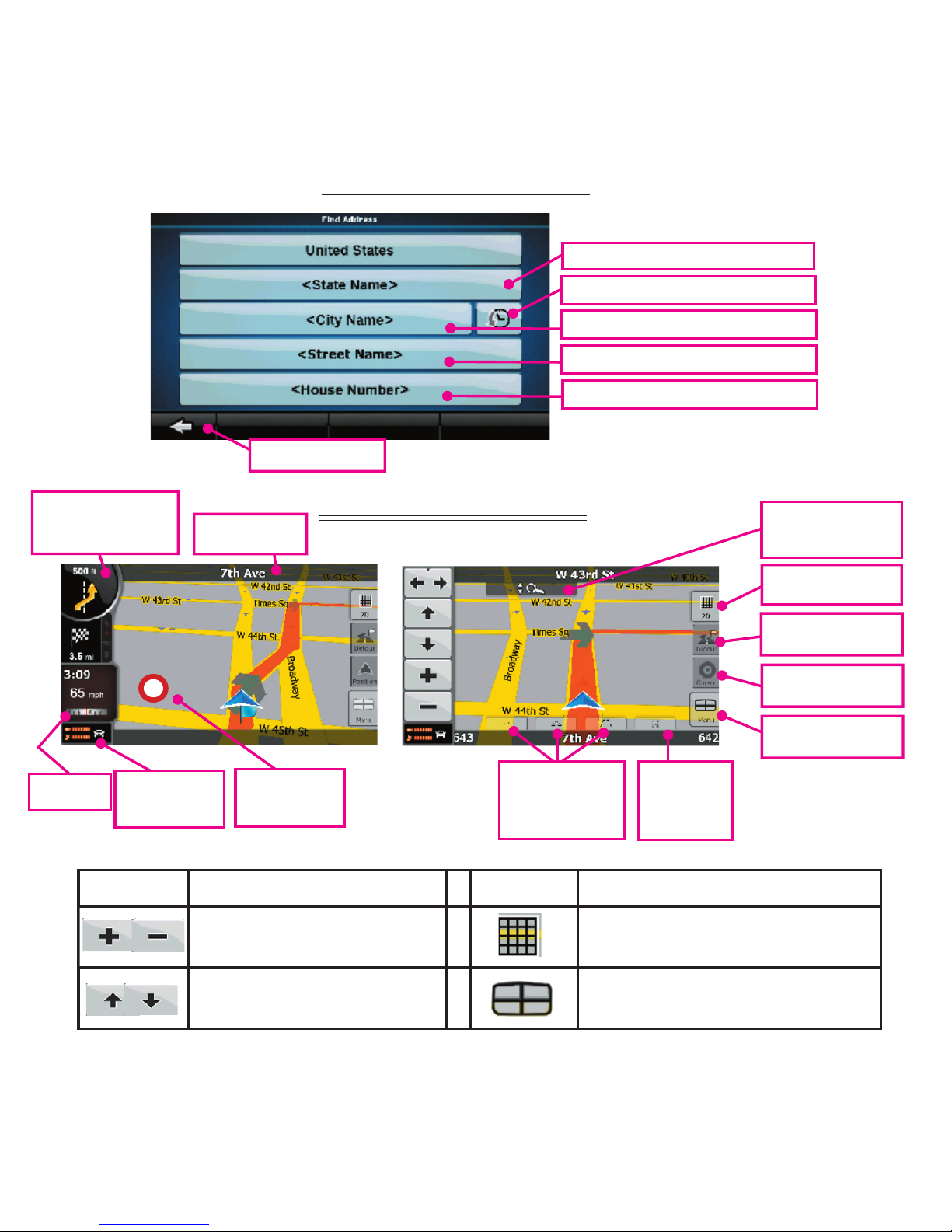

Find Address Screen
Map View Screens
Compass GPS strength
and quick
menu option
Indicates
posted HWY
speed
Indicates distance
to and direction of
next turn
Next turn street
or HWY
2D/3D map view
options
To avoid delays or
change route
Opens cursor menu
Return to navi
menu
Touch here to bring
up arrow and 3D
options
3 screen view op-
tions can modify
toyour preference
Return to
current GPS
position
Button Select this Option to... Button Select this Option to...
Zoom the map view in
and out
Switch map display between
2D and 3D views.
Horizon up/down adjust-
ment for 3D view
Display menu, jump to Main
Menu

7
Points of Interest Screen
POI Menu Option Select this Option to...
Around Address Find POI by state, city and address
Around Cursor Find POI by a cursor or location you have selected
Around GPS Position Locate POI by your current satellite location
Around Destination Find POI around your final destination
Along Route Find POI along your current route
NOTE: Once you have selected your POI Menu Option and entered the
requested data, the screen will switch to the POI Category Screen.

8

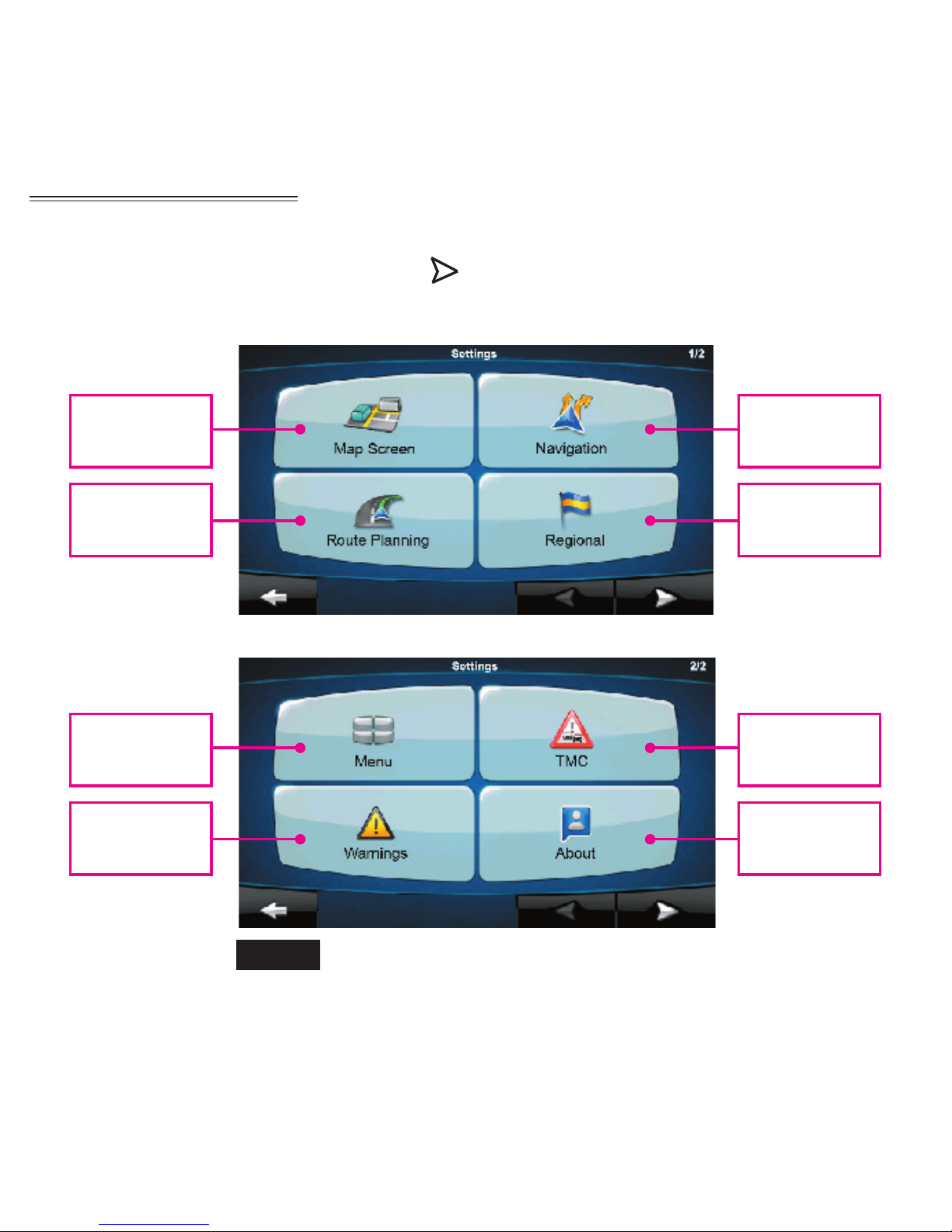

Set-Up Menu
You may customize the Rosen Navigation software to your own preferences. Select Settings
from the Navigation Menu. You have 8 user preference categories shown on 2 screens, the
second located by pressing the right arrow . In each of the 8 user preference categories,
there are numerous options that can be changed.
Screen 2
Screen 1
Fine tune the
appearance of the
map screen
Route settings
Set how the system
navigates
Change settings for
language, voice,
measurements,
time, etc.
Modify look and
behavior of menu
screens
Enable and disable
driving warnings
such as speeding
Set connection to
TMC receiver (if
equipped)
Information on
maps and licenses
included
Help For further explanations of screen options,
press the Help button located on the lower
Right Hand side of screen (if shown).

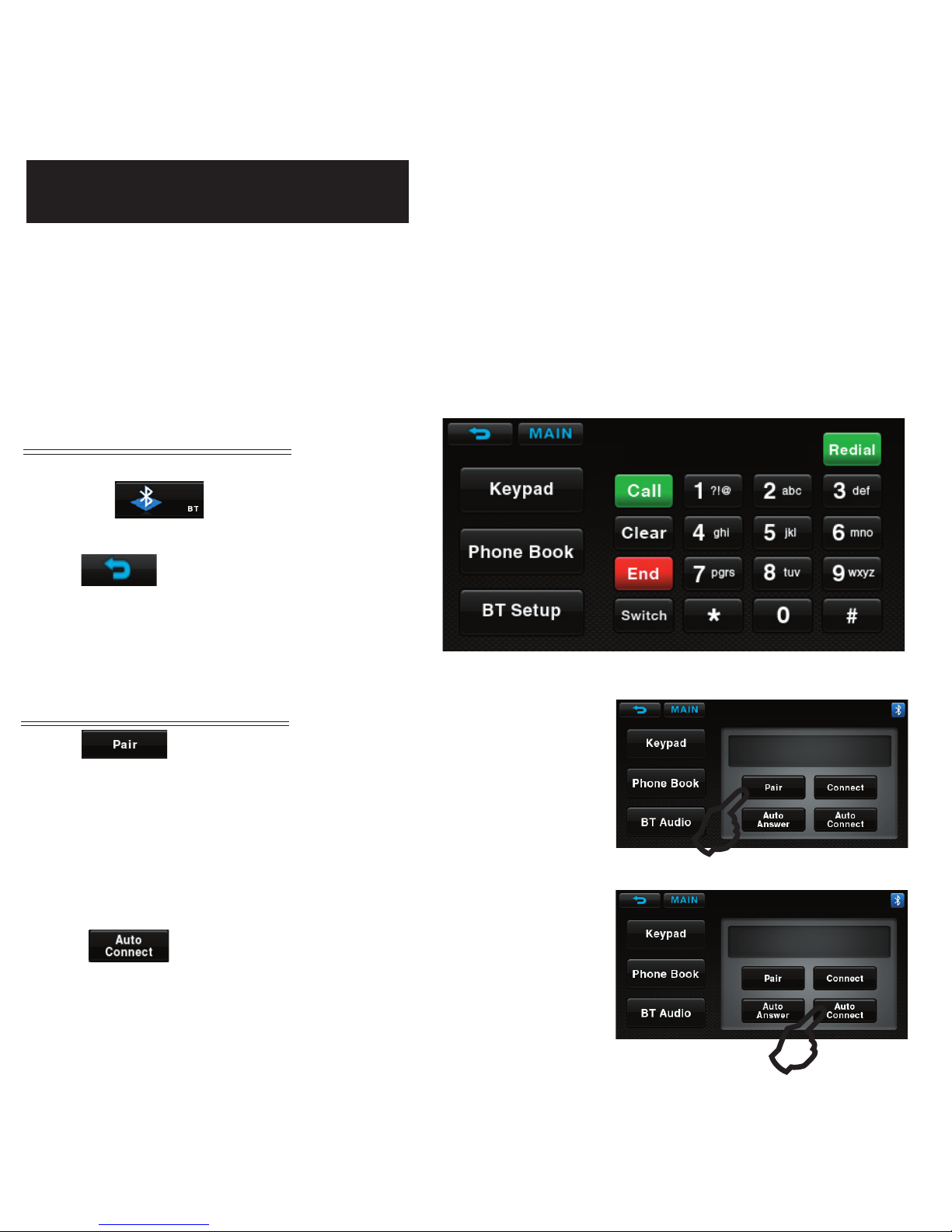

Bluetooth Hands-Free
The system provides Bluetooth Hands-Free communication function. If your mobile phone is
Bluetooth enabled, it can establish a point-to-point connection with the system, providing tele-
phone dial up, call answering, Phonebook and Bluetooth music play functions.
Note: Bluetooth modules and software of cell-phones vary by brand and date of manufacture.
Some functions may be different or not compatible with this system during actual use.
Enter/Exit
To Enter: From Main Menu (Figure 3.)
touch the icon.
To Exit: From Bluetooth screen (Figure 4)
touch button in the
upper left hand corner.
Figure 4.
Pairing Your Phone
Touch Open the Bluetooth function of your cell
phone and enable the Bluetooth device search function.
“Pairing” will be displayed on the screen. After the
connection succeeds, your cell phone will display (Rosen).
Connect to the device by entering the password (1234). The
system will indicate “Linking” and then “Connected.” When
your phone is connected its name will be displayed on the unit.
Touch (Figure 6.) if you desire the system’s Bluetooth
feature to automatically detect your cell phone when the
vehicle and system are turned on.
Figure 5.
Figure 6.


9
