DETOUR User Guide (v3.0) Introduction • 7
Introduction
This guide covers the installation, configuration, and use of the DETOUR. The following chapters are included:
•“Introduction” summarizes the guide and provides important terms, and conventions.
•“Before You Begin” provides an overview of the DETOUR features.
• “Installation” describes the DETOUR hardware, physical connections, and provides instructions for the basic
physical installation of the DETOUR in your system.
•“Configuration” provides information on the setup requirements for the DETOUR.
•“DashBoard Menus” provides a brief summary of the DashBoard menus available for DETOUR.
•“Warranty and Repair” provides information on the warranty and repair policy for your DETOUR.
•“Technical Specifications”provides the technical specifications for your DETOUR.
Documentation Conventions
Special text formats are used in this guide to identify parts of the user interface, text that a user must enter, or a
sequence of menus and sub-menus that must be followed to reach a particular command.
Interface Elements
Bold text is used to identify a user interface element such as a dialog box, menu item, or button. For example:
In the Edit dialog, click Apply.
User Entered Text
Courier text is used to identify text that a user must enter. For example:
In the Language box, enter English.
Referenced Guides
Italic text is used to identify the titles of referenced guides, manuals, or documents. For example:
For more information, refer to the DAC-9516 User Manual.
Menu Sequences
Menu arrows are used in procedures to identify a sequence of menu items that you must follow. For example, if a
step reads “File > Save As,” you would select the File menu and then select Save As.
Important Instructions
Star icons are used to identify important instructions or features. For example:
Contact your IT department before connecting to your facility network to ensure that there are no conflicts. They
will provide you with an appropriate value for the IP Address, Subnet Mask, and Gateway for your DETOUR.
Contacting Technical Support
At Ross Video, we take pride in the quality of our products, but if problems occur, help is as close as the nearest
telephone.
Our 24-hour Hot Line service ensures you have access to technical expertise around the clock. After-sales service
and technical support is provided directly by Ross Video personnel. During business hours (Eastern Time),

8 • Introduction DETOUR User Guide (v3.0)
technical support personnel are available by telephone. After hours and on weekends, a direct emergency technical
support phone line is available. If the technical support person who is on call does not answer this line immediately,
a voice message can be left and the call will be returned shortly. This team of highly trained staff is available to
react to any problem and to do whatever is necessary to ensure customer satisfaction.
•Technical Support: ([phone]
•After Hours Emergency: ([phone]
•E-mail: [email protected]
•Website: http://www.rossvideo.com

DETOUR User Guide (v3.0) Before You Begin • 9
Before You Begin
If you have questions pertaining to the operation of DETOUR, contact us at the numbers listed in “Contacting
Technical Support” on page 7. Our technical staff is always available for consultation, training, or service.
Overview
DETOUR is a is a 12G capable point of use distribution amplifier with relay bypass. The bypass relay allows the
unit to be used as a failsafe device to provide guaranteed on-air service in the case of a power failure.
DETOUR provides four active SDI outputs. This adds cable reach, signal conditioning and re-timing to MADI,
SD-SDI, HD-SDI, 3G-SDI and UHD-SDI signals.
A micro USB port provides an additional power source connection and may be configured as the alarm state
detection method. This is particularly useful when coupled with an Ultrix router. If Ultrix loses power, then the
USB connection between Ultrix and DETOUR can trigger the bypass state.
Four LED indicators show the alarm state, signal presence, USB power and main external power.
Simplified Block Diagram

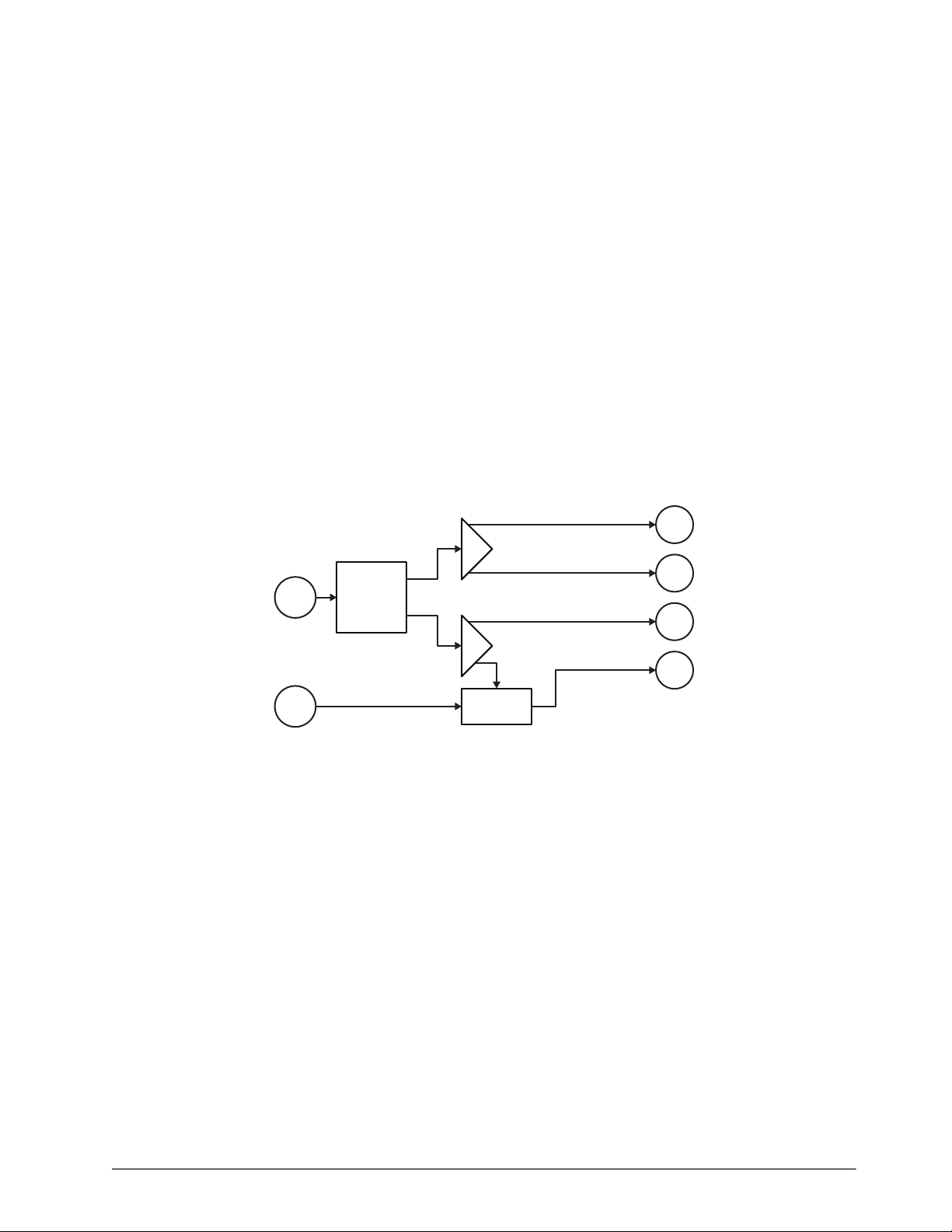

Figure 2.1 Simplified Block Diagram of DETOUR Workflow
Features
DETOUR includes the following features:
• HD-BNC connectors enabling optimal signal quality
• Supports SDI data rates 270Mbps to 11.88Gbps
• Support for MADI audio transport
• Provides one micro USB port for power/fault detection
• Alarm general purpose output
• On-air failsafe operation in the event of power failure or primary input signal loss
• Dual power supply (USB and/or 5V universal adapter)
• Configure and monitor via DashBoard
• Small brick form factor
• 3-year warranty
SDI
IN
SDI
BYPASS
IN
CABLE EQ
SDI
OUT 3
SDI
OUT 4
SDI
OUT 1*
SDI
OUT 2
RELAY
*Or BYPASS OUT

10 • Before You Begin DETOUR User Guide (v3.0)
Operation
DETOUR has built in hysteresis mitigating bypass relay ‘chattering’ as a result of bypass error conditions coming
and going. DETOUR offers two modes for the bypass relay logic: Fast Recovery and Standard Failover.
Fast Recovery Mode
The bypass relay acts immediately on the first two bypass error condition state changes (e.g. error, error cleared),
then applies a user-configurable timer to prevent multiple state change triggers. (Figure 2.2)

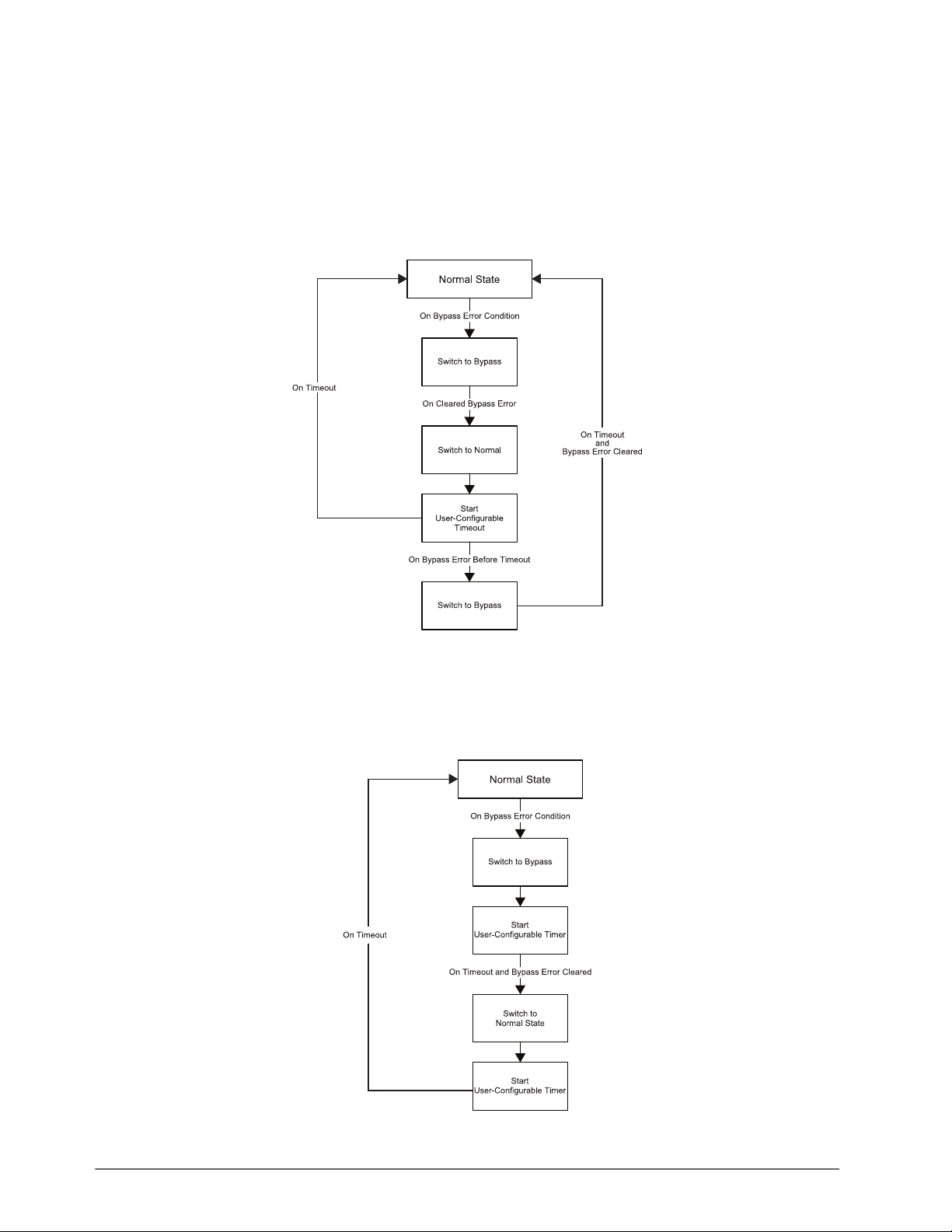

Figure 2.2 DETOUR — Fast Recovery Mode Workflow
Standard Failover Mode
The bypass relay acts immediately on the first bypass error condition state change, then applies a user-configurable
timer before acting on further error condition state changes. (Figure 2.3)
Figure 2.3 DETOUR — Standard Failover Mode Workflow

DETOUR User Guide (v3.0) Installation • 11
Installation
This chapter provides information on the DETOUR hardware components and instructions for the basic physical
installation of the DETOUR in your system.
Static Discharge
Throughout this chapter, please heed the following cautionary note:
Power Adapter and Supply
DETOUR may be powered from its USB connector1, or an external 5V power supply. However, DETOUR
operation is dependent on the connected power source (or absence thereof) as follows:
• OUT 1 and failsafe operation is available when either power source is connected. DETOUR functions as a
reclocker with relay bypass.
• OUT 2, 3 and 4 are available for use when the external 5V power source is connected. DETOUR functions as
1x4 Reclocking DA with relay bypass.
• When no power is available to DETOUR from either USB or external sources, the relay bypass allows the
BYPASS IN signal to connect to OUT 1.
Connecting to a 5V PSU
Connect the PS-9000 power adapter to the power supply connector. The PS-9000 provides regulated +5V DC (5%)
@ up to 2A. The DC power cord has a locking connector that securely fastens into the power supply DC jack on the
DETOUR. The DETOUR has a standard miniature power jack (center pin positive). Refer to the document
“Important Regulatory and Safety Notices to Service Personnel” that accompanied your module for details.
Using the USB as the Power Source
Connect the DETOUR to a USB Power Source via the mini-B connector on the DETOUR chassis.
Ensure that the USB Power Source supports the power consumption requirements listed in Table 7.5 on page 31.
ESD Susceptibility — Static discharge can cause serious damage to sensitive semiconductor
devices. Avoid handling circuit boards in high static environments such as carpeted areas and when
synthetic fiber clothing is worn. Always exercise proper grounding precautions when working on circuit
boards and related equipment.
1. OUT 2, 3, and 4 are not available when operating on USB power only.

12 • Installation DETOUR User Guide (v3.0)

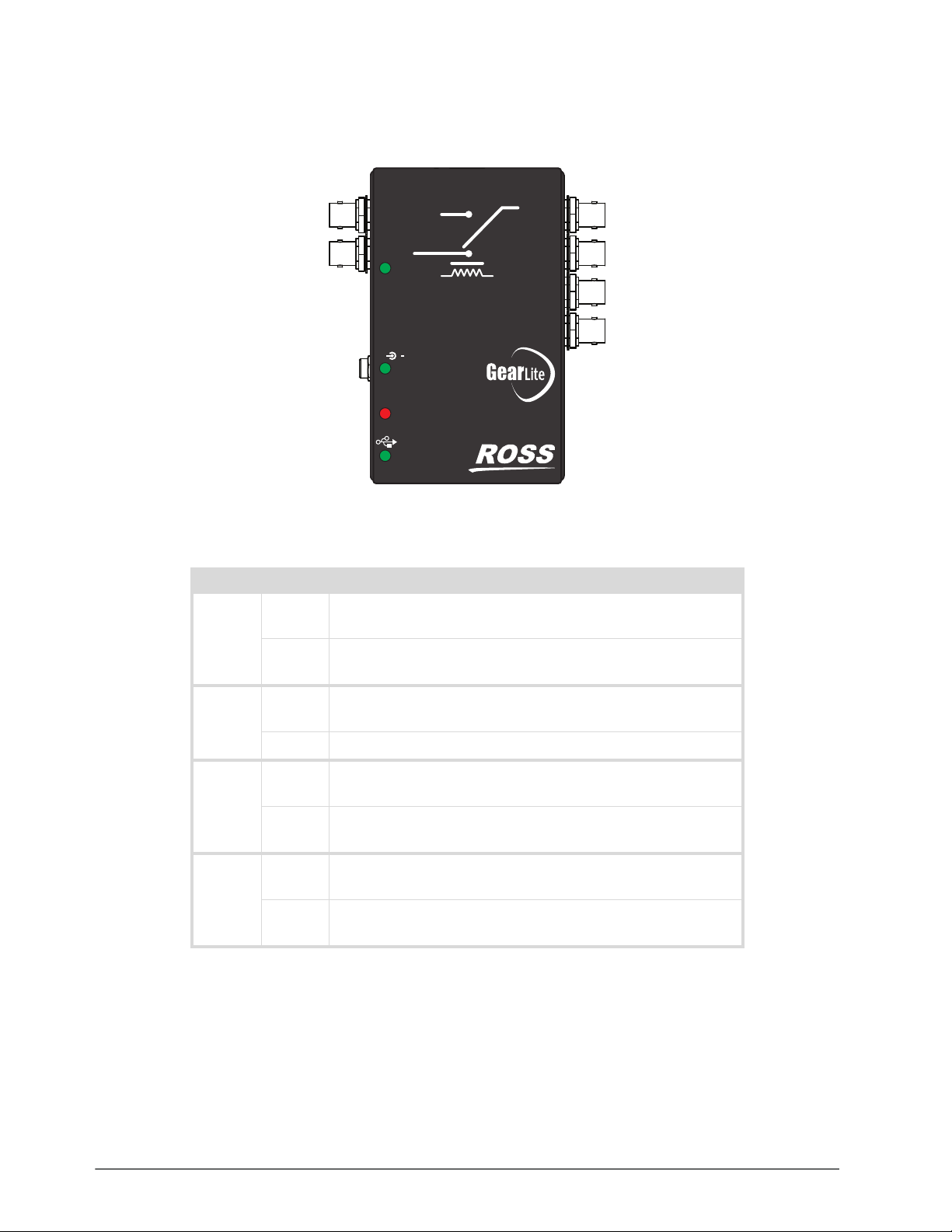

Cable Connections Overview
There are ten connections to the DETOUR:
• One HD-BNC jack for the SDI input
• One HD-BNC jack for the SDI Bypass input
• One HD-BNC jack for each SDI output
• One 10/100 Ethernet RJ45 jack
•One GPIO alarm connector
• One USB mini-B connector
• A power supply connection to the GearLite PS-9000 power adapter
Figure 3.1 and Figure 3.2 illustrate the connection locations on the chassis.
SDI IN Connection
Connect the main SDI source to the SDI IN HD-BNC. This signal is equalized for cable effects and buffered to
OUT 1-4.
If the input source is successfully detected, the SDI IN LED will light solid green.
BYPASS IN Connection
There is a power fail relay from the BYPASS IN HD-BNC to OUT 1. The purpose of this relay is as follows:
• If the DETOUR loses power, the video still passes through.
• When the DETOUR boots, the relay will be left in Bypass mode until the DETOUR can generate a valid output.
Once the DETOUR is up and functional, the relay is disabled.
Connect the bypass SDI source to the BYPASS IN HD-BNC. This signal is passively linked to OUT 1 when in the
alarm state. You may want to provide a valid input of the desired output format on BYPASS IN.
SDI OUT Connections
Connect the main SDI output destination to the OUT 1 HD-BNC. Normally an active equalized and buffered
version of the SDI IN signal. In an alarm state, this is connected to the SDI BYPASS IN signal.
OUT 2, 3 and 4 are the active equalized and buffered version of the SDI IN 1 HD-BNC.
OUT 2, 3, and 4 are not available when operating on USB power only.
Figure 3.1 SDI Output and ENET
Connections
Figure 3.2 Inputs and Power
Connections
OUT 2
OUT 1
(BYPASS)
OUT 3
OUT 4
ENET
POWER
SUPPLY
SDI IN
BYPASS IN
USB
ALARM

DETOUR User Guide (v3.0) Installation • 13
ENET Connection
Optionally, there is an 10/100 Ethernet port for connecting to your facility network. This connection is used to
communicate with a DashBoard client for configuration and monitoring purposes.
Connect DETOUR to the same network as your DashBoard client computer or to a network that has a route to
the network your DashBoard client computer is on.
USB Connection
The micro USB connection is used for alarm detection and as a limited power input source.
Alarm Connection
The ALARM port is a general purpose output that provides contact closure alarm state monitoring. Under normal
operation, the Center pin (2) is connected to Pin1 (normally closed). An alarm condition connects pin 2 to pin 3.
Figure 3.3 De-energized or Alarm State Equivalent Circuit
Refer to Figure 3.4 and Tab le 3.1 for the pinout assignment of the ALARM port on the chassis.
Figure 3.4 ALARM Port on DETOUR — Pinout Assignment
Refer Figure 3.5 to for the signal pinouts for the 3-pin connector plug.
Figure 3.5 Connector Plug — Pinouts for Alarm Port
Table 3.1 Alarm Pinouts
Pin Number Function
1 Normally closed
2 Common
3 Normally open
PIN 2
PIN 3
PIN 1
3
2
1
Connector
End View
Connector
Side View
Cable
Connector
Tie Wrap
Connector
Top Views
(without cable)

14 • Installation DETOUR User Guide (v3.0)
Status LEDs
The chassis faceplate of the DETOUR includes LEDs that display the status of power, SDI input, and
communication activity.
Figure 3.6 DETOUR Chassis Status LEDs
Table 4 describes the status LEDs available on the DETOUR.
Table 4 Status LED Descriptions
LED Color Function
SDI IN Green When the LED is continually lit when the DETOUR determines
that there is a valid SDI signal on the input HD-BNC.
Off When unlit, this LED indicates the DETOUR is not locked to a
valid SDI signal.
+5V 2A Green When this LED is continually lit green, the DETOUR is
receiving +5VDC on the POWER (DC) port of its chassis.
Off When this LED is unlit, the POWER port is not receiving power.
ALARM Red When lit red, this LED indicates that the unit is experiencing an
error condition and is in Bypass mode.
Off When unlit, this LED indicates that the unit is operating
correctly without errors.
USB Green When lit green, this LED indicates that a +5VDC power source
is detected on the micro USB port.
Off When unlit, this LED indicates that the micro USB port is
currently not connected to a power source.
SDI IN
+5V 2A
+
OUT 4
ENET
ALARM
OUT 3
OUT 1
(BYPASS)
OUT 2
DETOUR
BYPASS IN

DETOUR User Guide (v3.0) Configuration • 15
Configuration
DETOUR groups the configuration and monitoring features in a Tree View in the DashBoard client window.
Using DashBoard
DashBoard must run on a computer that has a physical wired ethernet connection. Wireless connections do not
allow device discovery. The DashBoard software and user manual are available from the Ross Video website.
For More Information on...
• installing the DashBoard client software, refer to the DashBoard User Manual.
To launch DashBoard
1. Ensure that you are running DashBoard software version 8.1 or higher.
2. Launch DashBoard by double-clicking its icon on your desktop.
Using Walkabout to Assign the Initial IP Address to DETOUR
Once DETOUR is physically installed and cabled to your facility network, you will need to assign it an initial static
IP Address to enable DashBoard to locate it on your network. Establishing an initial IP Address enables DashBoard
to communicate with DETOUR and update the Basic Tree View with the DETOUR node.
Contact your IT Department before connecting DETOUR to your facility network to ensure that there are no
conflicts. They will provide you with an appropriate value for the IP Address, Subnet Mask, and Gateway for
your DETOUR.
To assign the initial static IP address for DETOUR
1. Launch DashBoard.
2. From the DashBoard client main toolbar, select File > Show Walkabout.
The DashBoard window displays the Walkabout table.
3. Click Refresh, located at the bottom of the Walkabout table, to ensure the list in the Walkabout table is current.
4. In the Walkabout table, find the entry for the DETOUR you want to configure.
5. Use the Name field to assign a unique identifier to the DETOUR module. This will be the name displayed in
the Tree View of DashBoard.
After you edit a setting in the Walkabout table, it is recommended to wait up to 1 minute, then click Refresh to
apply the new setting.
6. Use the Address field to specify the IP Address supplied by your IT Department for this device. By default,
each DETOUR is shipped with the IP Address set to 192.168.20.121.
7. Ensure the Network field is set to match your network requirements.
8. Use the Gateway field to specify the IP Address for your gateway for connection outside of the local area
network (LAN).
9. Click Reboot in the row of the Walkabout table for the DETOUR.
Adding DETOUR to the Tree View in DashBoard
Once you have assigned DETOUR a static IP Address, you can then manually add it to the Tree View in
DashBoard. Manually adding DETOUR displays its node in the Tree View, granting you access to its configuration
and monitoring interfaces.

16 • Configuration DETOUR User Guide (v3.0)
To manually add DETOUR to the Tree View in DashBoard
1. In the Basic Tree View toolbar of DashBoard, click .
The Select Equipment or Service Type to Add dialog opens.
2. Expand the openGear/DashBoard Connect node.
3. Select TCP/IP DashBoard Connect or openGear Device.
4. Click Next >.
The TCP/IP DashBoard Connect/openGear Device dialog opens.
5. Select the JSON radio button as the Protocol.
6. In the IP Address field, enter the IP Address for the DETOUR that you configured in the procedure “To assign
the initial static IP address for DETOUR” on page 15.
7. Perform one of the following steps:
• In the text fields provided, enter the display name for the DETOUR, and port of the module you wish to add.
•Click
Detect Frame Information to automatically retrieve the connection details.
8. Click Finish.
The DETOUR displays in the Tree View.
Accessing the DETOUR Interfaces in DashBoard
The DETOUR interfaces are accessed by double-clicking the DETOUR node in the DashBoard Tree View and
selecting the appropriate tab in the Device View window. By default, the interfaces (tabs) are organized into status
tabs (on the left), and configuration tabs (on the right).
To access the DETOUR interfaces in DashBoard
1. Locate the DETOUR in the Tree View of DashBoard.
2. Expand the DETOUR node in the Tree View.
3. Double-click the Slot 0: DETOUR sub-node to display the tabs in the Device View of the DashBoard window.
4. Click a tab to displays its contents.

DETOUR User Guide (v3.0) Configuration • 17
Updating the Network Settings for DETOUR
Once you establish initial communications with the DETOUR, and it displays in the DashBoard Tree View, you
may wish to review or change the IP Address and other settings according to your facility network requirements.
This section is not applicable if your DETOUR is already set to the correct IP Address.
To update the network settings for the DETOUR
1. Locate the DETOUR node in the Tree View of DashBoard.
2. Double-click the DETOUR node.
3. Select the Network tab in the far-right of the DashBoard window.
4. Use the IP Address field to specify the new static IP Address for the DETOUR.
5. Use the Subnet Mask field to specify the Subnet Mask for your network.
6. Use the Default Gateway field to specify the gateway for communications outside of the LAN.
7. Click Apply.
Re-naming DETOUR in the DashBoard Tree View
By default, DETOUR ships with the name “DETOUR” automatically set. Each DETOUR can be given a unique
name that is used on internal menus and as the identifier in the tree views of DashBoard.
To re-name DETOUR in DashBoard
1. From the Device View, select the Network tab.
2. Enter a unique identifier in the Device Name field for your DETOUR. This name displays in the Tree View and
the Device Name in the Product Status tab for the module.
3. Click Apply to save the new settings.
Configuring the Bypass Relay
DETOUR includes a bypass relay between BYPASS IN and OUT 1. This protects your on-air feed when the
module is off-line and ensures critical program content is not lost. The bypass relay can be enabled or disabled via
the options in DashBoard.
To configure the bypass relay
1. From the Device View, select the Setup tab.
2. Use the Relay Status options to specify an operating mode for DETOUR. Choose from the following:
•Normal — DETOUR is not in Bypass mode (the bypass relay is disabled). The input signal available on the
SDI IN HD-BNC is used.
•Bypass — DETOUR is in Bypass mode. The input signal available on the BYPASS IN HD-BNC is used.
3. Select the Relay Auto Reset box to enable DETOUR to automatically switch to Normal mode when a valid
input signal is detected on the SDI IN HD-BNC.
4. Select the Relay Bypass on LOS box to enable DETOUR to automatically switch to Bypass mode when a loss
of input signal is detected on the SDI IN HD-BNC.
5. Select the Relay Bypass on Lock Error box to enable DETOUR to automatically switch to Bypass mode
when:
• the SDI reclocker loses lock; or
• the reclocker rate is fixed to a different standard than is currently being received. Refer to the section refer to
the section “Configuring the Reclocker” on page 18 for details on setting the rate.

18 • Configuration DETOUR User Guide (v3.0)
The Relay Bypass on Lock Error feature has an adjustable time out hysteresis to prevent a bypass on every lock
error. The hysteresis may be varied in sensitivity to prevent bypass relay “chattering” on a signal that contains
noise that makes it difficult for the reclocker to lock to. Set the slider to 1 for very sensitive, or to 100 for less
sensitive.
6. Select Bypass on USB power loss box to enable DETOUR to automatically switch to Bypass mode when the
power from the USB connection is lost.
7. Select a Failover mode to specify how DETOUR responds to multiple bypass error trigger events. Refer to the
section “Setup Tab” on page 23 for details.
8. Use the Failover Hysteresis slider to specify the number of seconds that DETOUR uses for the timeout to
prevent multiple bypass error trigger events.
Configuring the Equalizer
You can choose to enable or bypass the equalizer for the SDI input. The equalizer enables DETOUR to compensate
for noise and signal losses inherent in long coaxial cable runs.
You must bypass the equalizer when using signals of less than 125Mbps (such as SMPTE 310 signals). For
signals 125Mbps and greater (such as SDI signals), you must enable the equalizer.
To configure the equalizer
1. From the Device View, select the Setup tab.
2. Select the EQ Enable box.
The box displays a check-mark.
To bypass the equalizer
1. From the Device View, select the Setup tab.
2. Clear the EQ Enable box.
The box does not display a check-mark. The EQ settings are not applied to the SDI input.
Configuring the Reclocker
This section summarizes how to select a data rate for the reclocker. This enables the DETOUR to reclock at a
specific data rate or automatically detect and reclock the data rate. It also sets the input signal type that the
DETOUR will process. Note that reclocking does not convert the signal, it selects the appropriate signal slew rate
only. The reclocking outputs are only active when they are enabled and DETOUR is not in bypass mode.
To enable the reclocker
1. From the Device View, select the Setup tab.
2. Use the Reclocker Rate options to specify a data rate. Choose from the following:
•Auto — The DETOUR reclocks at the detected rate on the SDI input automatically.
•MADI — The DETOUR is set to reclock at MADI data rate of 125Mbps only. This is the required setting
when using MADI signals.
•SD — The DETOUR is set to reclock at a data rate of 270Mbps.
•HD — The DETOUR is set to reclock at a data rate of 1.485Gbps.
•3G — The DETOUR is set to reclock at a data rate of 2.97Gbps.
•6G — The DETOUR is set to reclock at a data rate of 5.94Gbps.
•12G — The DETOUR is set to reclock at a data rate of 11.88Gbps.

DETOUR User Guide (v3.0) Configuration • 19
Configuring the Outputs
If you have an unused output, it is recommended to disable the output via the Setup tab in DashBoard.
To disable an output
1. From the Device View, select the Setup tab.
2. Locate the OUTPUTS area located near the bottom of the Setup tab.
3. Clear the Enable box for the output you wish to disable.
The box does not display a check-mark.
To enable the cable boost
1. From the Device View, select the Setup tab.
2. Locate the OUTPUTS area located near the bottom of the Setup tab.
3. If the DETOUR is driving long cable lengths or patch bays, select the Cable Boost box to add a pre-emphasis
to the output signal.
The box displays a check-mark.
Configuring the LOS Alarm
DETOUR provides options for monitoring the input signal status, and the power supplies. You can choose to enable
or disable these alarms as required.
The input signal status is displayed on the DETOUR DashBoard node and well as in the Card State field on the
main Detour Configuration tab. An alarm condition will also trigger the general purpose interface (GPI) state.
Enabling the LOS Alarm in DashBoard
When enabled, this feature will indicate an alarm condition (red) in the corresponding Device Status field of the
Hardware tab in DashBoard. This occurs if the DETOUR does not detect a valid input signal on the SDI IN 1
HD-BNC.
To enable the alarm for an invalid input signal
1. From the Device View, select the Setup tab.
2. Select the Alarm on LOS box.
The box displays a check-mark.
Enabling the Power Loss Alarms
You can power the DETOUR chassis via the DC jack or the USB port, and enable DashBoard to monitor the power
supply and report an error condition should a loss of power occur on the specified power supply port.
For More Information on...
• connecting an external power supply, refer to the section “Power Adapter and Supply” on page 11.
• the USB port, refer to the section “USB Connection” on page 13.
Enabling the External Power Loss Alarm
When enabled, this feature will indicate an alarm condition (red) in the External Power field of the Hardware tab
in DashBoard. This occurs if the DETOUR does not detect a valid external power supply is connected and
supplying +5V on the DC jack.

20 • Configuration DETOUR User Guide (v3.0)
To enable the alarm for the external power supply
1. From the Device View, select the Setup tab.
2. Select the Alarm on External Power Loss box.
The box displays a check-mark.
Enabling the USB Power Loss Alarm
When enabled, this feature will indicate an alarm condition (red) in the corresponding USB Power field of the
Hardware tab in DashBoard. This occurs if the DETOUR does not detect a valid power supply signal on the USB
port.
To enable the alarm for a USB Power Loss
1. From the Device View, select the Setup tab.
2. Select the Alarm on USB Power Loss box.
The box displays a check-mark.
Loading the Factory Defaults
If required, DETOUR menu parameters can be reset to the factory default values using the option available in
DashBoard. Refer to the chapter “DashBoard Menus” on page 21 for information on the defaults.
To reset DETOUR to the factory default configuration in DashBoard
1. From the Device View, select the Setup tab.
2. Click Factory Settings Restore to display the Confirm dialog.
3. Perform one of the following steps:
•Click
Yes to load the factory defaults; or
•Click
No to cancel the load and close the dialog.
Software Upgrades
The DETOUR can be upgraded in the field via DashBoard. Note that DashBoard version 8.0 or higher is required.
To upgrade the software on DETOUR
1. Contact Ross Technical Support for the latest software version file.
2. Double-click the DETOUR indicator in the Basic Tree View.
3. From the Device View, click Upload to display the Select file for upload dialog. This button is located at the
bottom of the DETOUR interface in the DashBoard window.
4. Navigate to the *.bin upload file you wish to upload.
5. Click Open.
6. Click Finish to display the Uploading to Selected Devices dialog.
7. Monitor the upgrade via the Uploading to Selected Devices dialog.
8. Click OK to complete the upgrade.
DETOUR is temporarily taken off-line during the re-boot process. The process is complete once the status
indicators for the Card State and Connection fields return to their previous status.
