Rossmax NBR-10 User manual

Model: NBR-10
Rossmax 3 IN 1 Reader
Instruction Manual
www.rossmax.com
IN0NBR100000000XX
OBM_IB_NBR10_EN_ver1421
Manufacturer: Rossmax Swiss GmbH,
Tramstrasse 16, CH-9442 Berneck,
Switzerland
Warranty
This instrument is covered by a 2 year guarantee from the
date of purchase. The guarantee is valid only on presenta-
tion of the guarantee card completed by the dealer con-
rming date of purchase or the receipt. Batteries are not
included. Opening or altering the instrument invalidates
the guarantee. The guarantee does not cover damage,
accidents or non-compliance with the instruction manual.
Please contact your distributor.
Date of purchase:
Store where purchased:
Price Paid (excl. Tax):
WARNING: The symbol on this product means that it's an electronic product
and following the European directive 2012/19/EU the electronic products
have to be dispose on your local recycling centre for safe treatment.
Introduction
Rossmax NBR-10 is built with Bluetooth Smart technology
which enables to transmit the measurement data from Ross-
max health device (Blood pressure monitors, activity moni-
tors and body fat analyzer) to smart phones.
Note: Smart phones require to be compatible with IOS 7.0
or above with Bluetooth Smart support.
Name/Function of Each Part
AC adaptor jack
Communication
area
Low battery indicator
On/Off/Communication mode
switching key
Start to Use
1. To transfer the data, you need to download “Healthstyle”
app from the App Store as .
2. Turning on the bluetooth in smartphone as .
3. Setting the connection between smart phone and Reader
as .
3.1 Powering on the Reader and the LED will ash blue to
indicate it is ready for use.
3.2 Clicking the icon“Data Transfer”on app.
3.3 The LED will ash blue on Reader while establishing
the connection.
3.4 When the LED on Reader stays on blue, and screen
displays "Connect successfully", it indicates a “good
connection”.
3.5 When the LED on Reader stays on red, and screen
displays "Error. Lost connection", it indicates a “fail
connection”.
Note: If it fails to connect, please turn off the Reader, restart
“Healthstyle” app and refer to the step 3 to reestab-
lish the connection.
4. Starting to transmit the measured values as .
4.1 Hold the NFC symbol of NFC-enagled healthy
devices close to the communication area of th
Reader.
4.2 The LED will ash blue on Reader while transmitting
data.
Note: For body fat analyzer, you should choose the meas-
urement data in which memory zone to be transmit-
ted by pressing " " button to select "P1, P2, P3 or
P4" and to press "M" key.
5. After nishing the transmission:
5.1 If transmission successful, the Reader appears blue LED
and app displays result as -1.
5.2 If transmission fail, the Reader appears red LED as
-2 .
Note: If it fails to transmit, turn off the Reader, close the
reminder dialog box and them click "Data Transfer"
icon to retransmit the data.
Using the AC Adaptor (Optional)
1. Connect the AC Adaptor with the AC Adaptor jack on the
right side of the unit.
2.Plug the AC Adaptor into the socket. (AC Adaptors with
required voltage and current indicated near the AC Adap-
tor jack.)
Caution:
1. Please unload the batteries when operating with the
AC mode for a longer period of time . Leaving the bat-
teries in the compartment for a long time may cause
leakage, which may lead to damage of the unit.
2. No batteries are needed when operating with the AC
mode.
3. AC Adaptors are optional. Please contact the distribu-
tor for the compatible AC Adaptors.
4. Use only the authorized AC Adaptor with this blood
pressure monitor. Information for the authorized AC
adaptor, please refer to APPENDIX 1.
Installing Batteries
1. Press down and lift the battery cover in the direction of the
arrow to open the battery compartment.
2. Install or replace 4 “AAA” sized batteries in the battery
compartment according to the indications inside the com-
partment.
3. Replace the battery cover by clicking in the bottom hooks
rst, then push in the top end of the battery cover.
4. Replace the batteries in pairs. Remove batteries when unit
is not in use for extended periods of time.
You need to replace the batteries when:
1. low battery LED started ashing red.
2. the On/OFF/ Communication key is pressed and the LED
not ash blue on the Reader.
Caution:
1. Batteries are hazardous waste. Do not dispose them
together with the household garbage.
2. There are no user serviceable parts inside. Batteries or
damage from old batteries are not covered by war-
ranty.
3. Use exclusively brand batteries. Always replace with
new batteries together. Use batteries of the same
brand and same type.
Specications
Transmission
protocol
Bluetooth Smart technology
Work distance About 0-10 meters
Operation
Environment
10°C~40°C (50°F~104°F);
40%~85% RH; 700~1060 hPa
Storage and
Transportation
Environment
-10°C~60°C (14°F~140°F);
10%~90% RH; 700~1060 hPa
DC Power Source DC 6V four AAA Batteries
AC Power Source DC 6V, ≥600mA(Plug size: outer(-) is
Ø4.0, inner(+) is Ø1.7)
Dimensions 152 (L) x 75 (W) x 33 (H) mm
Weight 101g (G.W.) (w/o Batteries)
Troubleshooting
Problem Cause Correction
No data
is trans-
ferred.
App is not download-
ed or it has not been
started.
Refer to section of
“Start to Use”
Battery power weak
or exhausted
Replace them with four
new batteries.
The NFC mark on the
healthy device is not
aligned to the NFC
mark on the Reader.
Match the NFC marks
on the healthy device
and the Reader.
The connection be-
tween the Reader and
smart phone is not
connected properly.
Power on the Reader,
restart app to reconnect
the Reader and smart
phone.
Data transfer was at-
tempted near a mag-
netic source.
Transfer data in a loca-
tion not affected by an
electromagnetic inter-
ference.
Note: If the unit still does not work, return it to your dealer.
Under no circumstance should you disassemble and repair
the unit by yourself.
Cautionary Notes
1. The unit contains high-precision assemblies. Therefore,
avoid extreme temperatures, humidity, and direct sunlight.
Avoid dropping or strongly shocking the main unit, and
protect it from dust.
2. Clean the Reader body and the cuff carefully with a slight-
ly damp, soft cloth.
3. Leaky batteries can damage the unit. Remove the batteries
when the unit is not used for a long time.
4. The unit should not be operated by children so to avoid
hazardous situations.
5. If the unit is stored near freezing, allow it to acclimate at
room temperature before use.
6. This unit is not eld serviceable. You should not use any
tool to open the device nor should you attempt to ad-
just anything inside the device. If you have any problems,
please contact the store or the doctor from whom you
purchased this unit or please contact Rossmax Interna-
tional Ltd.
7. Electromagnetic interference: The device contains sensi-
tive electronic components. Avoid strong electrical or elec-
tromagnetic elds in the direct vicinity of the device (e.g.
microwave ovens).
8. Dispose of device, batteries, components and accessories
according to local regulations.
9. This monitor may not meet its performance specication
if stored or used outside temperature and humidity ranges
specied in Specications
Free download
"Healthstyle" APP
and turn on APP
Turn on Bluetooth
in smartphone
3.1 - Power on
the Reader
Connect the Reader to Smartphone via Bluetooth
Turn off the Reader,
restart “Healthstyle”
app and go back to
step 3 to reestablish
the connection.
Pressing " " button to
select "P1, P2, P3 or P4"
to be transmitted,then
pressing "M" key to con-
rm which memory zone
you want to transmit the
data.
Measurement
data number
Hold the NFC symbol of your activity monitor, Blood pressure monitor and body fat analyzer
close to the NFC symbol of Reader
3.2 - Click “Data
transfer”on APP
3.3 - Connection OK
OR
3.4 - Connection fail
1
3
2
*Requires IOS 7.0 or above and Bluetooth Smart for iPhone and iPad.
Activity monitor
Blood pressure monitor
Quick Guide Model: NBR-10
Wait for
transferring
4
Transmission Fail
Close the reminder dialog box and then click “ Data Transfer ”
icon to retransmit the data
Red LED
OR
body fat analyzer
Transmission OK
Measurement data are displayed on APP
Blue LED
5 -1 5 -2
Healthstyle
Blue LED Red LED

Popular Card Reader manuals by other brands

IDTECK Star RF30 user manual

IDTECK

IDTECK Star RF30 user manual

Bosch ARD-FPBEW2-H3 installation manual

Bosch

Bosch ARD-FPBEW2-H3 installation manual

Stanley Sonitrol GS3MTM installation guide

Stanley

Stanley Sonitrol GS3MTM installation guide

Tyco KT-MUL-MT-KP manual

Tyco

Tyco KT-MUL-MT-KP manual

Axis A4020-E installation guide

Axis

Axis A4020-E installation guide

Manhattan 100762 user manual

Manhattan

Manhattan 100762 user manual

Magtek ADYNAMO Programmer's reference

Magtek

Magtek ADYNAMO Programmer's reference

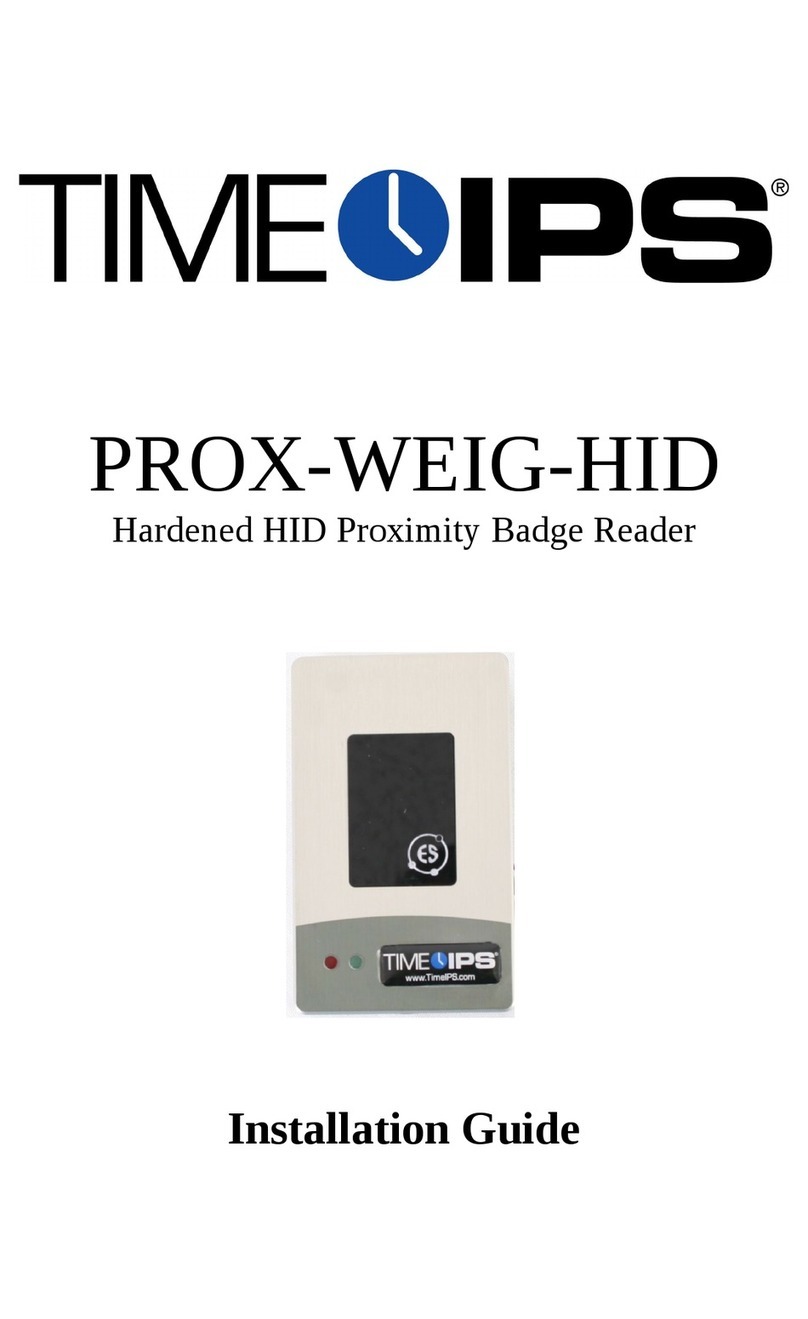

TimeIPS PROX-WEIG-HID installation guide

TimeIPS

TimeIPS PROX-WEIG-HID installation guide

Schlage MT20 user guide

Schlage

Schlage MT20 user guide

Hama 90780 operating instructions

Hama

Hama 90780 operating instructions

Bosch ARD-FPBEW2-IC installation guide

Bosch

Bosch ARD-FPBEW2-IC installation guide

Promag MF7S quick start guide

Promag

Promag MF7S quick start guide

UIC BEZEL8-S manual

UIC

UIC BEZEL8-S manual

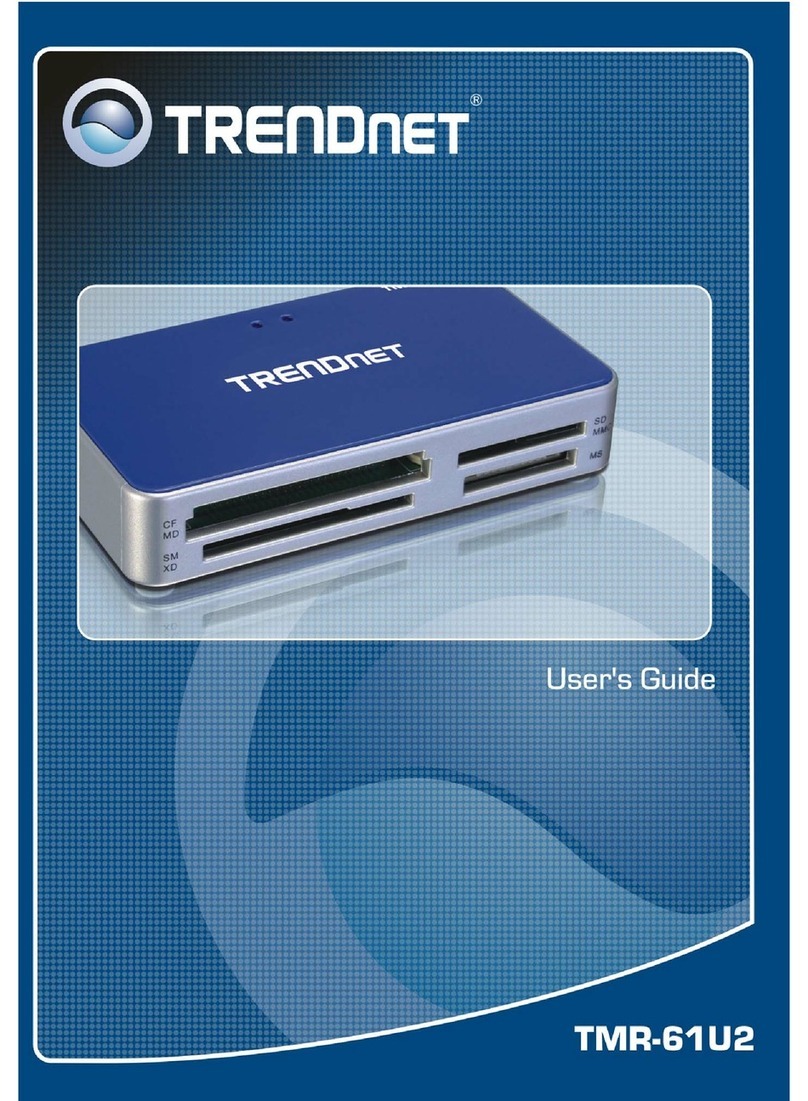

TRENDnet TMR-61U2 user guide
