Rotel RB-1090-3 User manual

Technical
Manual
STEREO POWER AMPLIFIER
RB-1090-3
Table of Contents
Specification
Specification.....................................1
Parts List..........................................2 ~ 6
Adjustment.......................................7 ~ 8
PCB Assembly.................................9
Schematic Diagram..........................10
Continuous Power Output 380 wats/ch into 8 ohms
(20-20kHz, < 0.03%) 700 wats/ch into 4 ohms
Total Harmonic Distortion(20-20kHz, 8 ohms) < 0.03 %
Intermodulation Distortion(60Hz : 7kHz, 4:1) < 0.03 %
Frequency Responce (1dB) 10 Hz - 100 KHz
Dampning Factor(20-20,000kHz, 8 ohms) 1000
Speaker Impedance(combined load) 4 ohms minimum
Signal to Noise Ratio(IHF A network) 125 dB
Input Impedance / Sensitivity 33 k ohms / 1.8 volt
Power Requirement 115 volts 60 Hz or
230 volts 50 Hz
Power Consumption 800 watts
Panel Height
432 x 237 x 406 mm
171/8 x 93/9 x 15 inches
Dimensions(W x H x D)
221 mm
Weight (net) 38 kg, 83.6 Lb.
BUNZAN-SHINSEN-BLD. 4F 10-10 SHINSEN-CHO, SHIBUYA-KU,
TOKYO 150-0045, JAPAN
Serial. NO.
®
Quality Uncompromised
Y-316D-0209/pdf
Begining 2311001

LEFT INPUT
UNBALANCED
BALANCED
RIGHT INPUT
UNBALANCED
BALANCED
LEFT SPEAKERRIGHT SPEAKER
UNBALANCED
BALANCED
POWER
WARNING: TO REDUCE THE RISK OF FIRE
OR ELECTRICAL SHOCK, DO NOT EXPOSE
THIS EQUIPMENT TO RAIN OR MOISTURE.
POWER AMPLIFIER
MODEL NO. RB-1090
POWER CONSUMPTION: 800W
RB-1090
PROTECTION
POWER
POWER AMPLIFIER
RB1090
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
AVIS: RISQUE DE CHOC ELECTRIQUE–NE PAS OUVRIR
LR

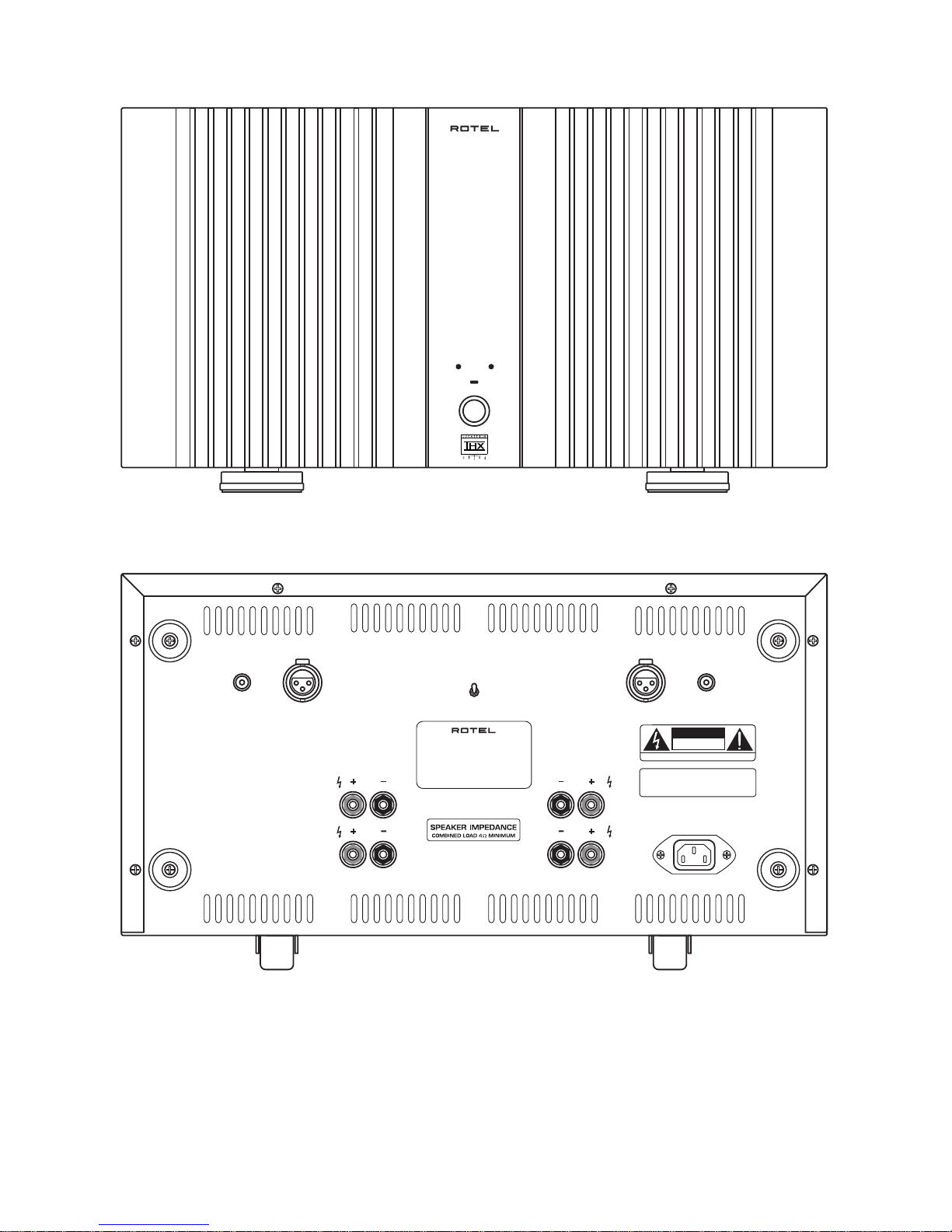

Appearance RB-1090

Parts List 1/3
SYMBOL PARTS NO. DESCRIPTION
501 X-1271D PCB ASSY
L601-602 021 TRL-380 SPEAKER COIL 1.6F 9T
IC701,702 031 MPC1237HA IC (PROTECTION)
IC501,502 031 OPA134PA IC (OPEAMP)
Q621,622 032 A1932 TRANSISTOR 2SA1932
Q619,620 032 C5174 TRANSISTOR 2SC5174
Q613,614,667,668 033 A1209-ST TRANSISTOR 2SA1209-ST
Q902 033 B631-EF TRANSISTOR 2SB631K-EF
Q615,616,669,670 033 C2911-ST TRANSISTOR 2SC2911-ST
Q901 033 D600-EF TRANSISTOR 2SD600K-EF
Q607-612,657-662,747-750 033 TA1016-FG TRANSISTOR 2SA1016KAA-FG
Q751-754 033 TA1376A-LKU TRANSISTOR 2SA1376AT-LKU
Q601-606,651-656,745,746 033 TC2362-FG TRANSISTOR 2SC2362KAA-FG
Q755-758 033 TC3478A-LKU TRANSISTOR 2SC3478AT-LKU
D609-612,903,904 034 T1N4003-TB DIODE 1N4003-E
D601-608,615,616 034 T1N4148-86 DIODE 1N4148TAP-50
D701,702,713,714 034 T1N4148-86 DIODE 1N4148TAP-50
D751-754 034 T1N4148-86 DIODE 1N4148TAP-50
D905,906 034 TRD16JST1 ZENER DIODE 16V (AB2)
D902 034 W02M POWER DIODE 1.5A200V
C910,911 041 25BGF470M ELECTROLYTIC CAPACITOR 25V470uF
C611,612 041 35ZA10MTZ ELECTROLYTIC CAPACITOR 35V10uF
C601,602 041 35ZA4R7MTZ ELECTROLYTIC CAPACITOR 35V4.7uF
C607,608,505-508 041 TEEUFC1E101SB ELECTROLYTIC CAPACITOR 25V100uF
C703,704 041 TUTES1E221-TF ELECTROLYTIC CAPACITOR 25V220uF
C707,708 041 TUTES1E470-TF ELECTROLYTIC CAPACITOR 25V47uF
C717,718 041 TUTES1H100-TF ELECTROLYTIC CAPACITOR 50V10uF
C701,702 041 TUTES1H220-TF ELECTROLYTIC CAPACITOR 50V22uF
C705,706 041 TUTES1H4R7-TF ELECTROLYTIC CAPACITOR 50V4.7uF
C903,904 041 TUTES1J221-TS ELECTROLYTIC CAPACITOR 63V220uF
C623-626 041 VX2A102S ELECTROLYTIC CAPACITOR 100V1000uF
C709,710 042 TP50V223J MYLAR CAPACITOR 0.022uF
C613-616 044 FSC160V221H STYROL CAPACITOR 160V220pF
C627,628 044 FSC160V471H STYROL CAPACITOR 160V470pF
C691,692 044 KT18-2E104J MP CAPACITOR MKT1818-410/254
C501,502 044 S50V100PJ STYROL CAPACITOR 50V100pF
C603,604 044 TFKP2-2A681H P.P CAPACITOR FKP2-100V681H
VR601-604 051 SFR001-222 SEMI-FIXED RESISTOR VM6CKPH1S-2.2K
R1 054 ERQ2ABJP220S FUSE RESISTOR 2W 22
R777,778 054 TMFR401K2 METAL FILM RESISTOR 1/4W 1.2K
R607-610,615-618,908,909 054 TMFR401K5 METAL FILM RESISTOR 1/4W 1.5K
R785,786 054 TMFR401K8 METAL FILM RESISTOR 1/4W 1.8K
R715-730 054 TMFR4010R METAL FILM RESISTOR 1/4W 10
R623,624,629,630 054 TMFR4100R METAL FILM RESISTOR 1/4W 100
R687-690,697,698 054 TMFR4100K METAL FILM RESISTOR 1/4W 100K
R701,702,705,706 054 TMFR4100K METAL FILM RESISTOR 1/4W 100K
R505-508,711,712,(R905) 054 TMFR4010K METAL FILM RESISTOR 1/4W 10K
R703,704 054 TMFR4120K METAL FILM RESISTOR 1/4W 120K
R621,622,643,644,733,734 054 TMFR4150K METAL FILM RESISTOR 1/4W 150K
R775,776 054 TMFR4015K METAL FILM RESISTOR 1/4W 15K
R509,510,631,632,731,732,R766 054 TMFR4001K METAL FILM RESISTOR 1/4W 1K
R691,692 054 TMFR4001M METAL FILM RESISTOR 1/4W 1M
R611,612,619,620,667-670 054 TMFR4220R METAL FILM RESISTOR 1/4W 220
R501-504,699,700,707,708 054 TMFR4022K METAL FILM RESISTOR 1/4W 22K
R627,628 054 TMFR403K9 METAL FILM RESISTOR 1/4W 3.9K
R773,774 054 TMFR4033K METAL FILM RESISTOR 1/4W 33K
R787,788 054 TMFR404K7 METAL FILM RESISTOR 1/4W 4.7K
R633,634 054 TMFR4047R METAL FILM RESISTOR 1/4W 47
R671-686,693-696,781-784 054 TMFR4047K METAL FILM RESISTOR 1/4W 47K
016 X-1271D01-08 PCB ASSY

Parts List 2/3
SYMBOL PARTS NO. DESCRIPTION
R771,772,779,780,613,614 054 TMFR4560R METAL FILM RESISTOR 1/4W 560
R657,658 054 TMFR4056K METAL FILM RESISTOR 1/4W 56K
R713,714,625,626 054 TMFR406K8 METAL FILM RESISTOR 1/4W 6.8K
(R905) 054 TMFR406K8 METAL FILM RESISTOR 1/4W 6.8K
R709,710 054 TMFR4068K METAL FILM RESISTOR 1/4W 68K
R663,664 054 1WS10JF METAL OXIDE FILM RESISTOR 1W 10
R789,790 054 1WS330JF METAL OXIDE FILM RESISTOR 1W 330
R655,656 054 3WS10JF METAL OXIDE FILM RESISTOR 3W 10
R659-662 054 3WS6.8KJF METAL OXIDE FILM RESISTOR 3W 6.8K
R763-765,767-770 054 MF16-1001-A MOF RESISTOR 1/6W 1K
R751-758 054 MF16-22R0-A MOF RESISTOR 1/6W 22
R759-762 054 MF16-6801-A MOF RESISTOR 1/6W 6.8K
R665,666 054 TMF3300 MOF RESISTOR 330
R635-642,645-652 054 MPC74-0.22F RESISTOR PLATE 5W 0.22
R653,654 054 MPC71-1F RESISTOR PLATE 5W 1
R601,602 054 TRC55Z1501F RESISTOR RC55Z 1.5K
R603,604 054 TRC55Z3302F RESISTOR RC55Z 33K
R613,R614 054 TRC55Z5600F RESISTOR RC55Z 560
S901 061 C-4176A07 POWER SWITCH PS3-22-L3AV TV-8 (4P PCB)
RY601,602 063 DE2TU-24 RELAY DE24D2-OT(M)
S401 064 C-4613A01 TOGGLE SWITCH 200DP1T2B2M7RE
DJ1,DJ2 066 C-4575A01 3P CANON JACK (FEMALE) YKF52-5006
CON1,CON2 068 C-3683#2 PCB TERMINAL 3P P7.5 TP WE-12 I-753NA
N1,N2,P1,P2,OUT1,OUT2 069 C-4446A00 PCB TERMINAL Y-105
501 X-1291E PCB ASSY
T101 022 T-1075N02 SUB TRANSFORMER (with 016 X1291E)
D101 034 W02M POWER DIODE 1.5A 200V
F101 036 5ST500 FUSE 250VT500MA
F903 036 R251-250 FUSE F250MA
C101 041 TUTES1E471-TS ELECTROLYTIC CAPACITOR 25V470uF
R106 054 1WS120JF MOF RESISTOR 1W 120
K104 068 C-3681#1 WRAPPING TERMINAL 2P
AC1.AC5 068 C-4422A01 WRAPPING TERMINAL 2P
501 E-1328A PCB ASSY
TH902 034 SCK2R512 SURGE CURRENT THERMISTOR 5Ω
D910 034 TIN4148-86 DIODE 1N4148TAP-50
C920 044 DE1307E472M SPARK KILLER 4700pF
R901 054 RWH20G10RJ RESISTOR 20W 10 (for 230V VERSION)
R901 054 RWH20G5RJ RESISTOR 20W 5 (for 115V VERSION)
RY901 063 OZT-SS-112LM1 RELAY DC 12V TV8 OZT-SS-112LM1
TH901 063 UI300B THERMOSTAT UI-2
TM1,TM4,TM5,TM6 068 C-3683#1 PCB TERMINAL 2P P7.5 TP WE-11 I-752NA
TM2,TM3 068 C-3683#3 WRAPPING PIN TERMINAL 4P
ACN,ACL 069 C-4370A00 PCB TERMINAL Y-102
501 X-1348-A PCB ASSY
T11 032 TA608-FG TRANSISTOR 2SA608KAA-FG
T12 032 TC536-FG TRANSISTOR 2SC536KAA-F
D11 034 TRD4.7JST1 ZENER DIODE 4.7V (AB2)
C11 041 TUTES1H100-TF ELECTROLYTIC CAPACITOR 50V10uF
R11,12,14 053 CR14-103J-A CARBON RESISTOR 1/4W 10K
R13 053 CR14-334J-A CARBON RESISTOR 1/4W 330K
K13 068 C-3681#3 WRAPPING TERMINAL 4P
Q617,618 032 D1953 TRANSISTOR 2SD1953
Q633,634 033 A1294-OY TRANSISTOR 2SA1294-OY
Q623-630 033 A1295-OY TRANSISTOR 2SA1295-OY
016 X-1348A00 PCB ASSY (Delay)
016 X-1291_01-02 PCB ASSY
016 E-1328A00 PCB ASSY (Surge Absorber)
HEAT SINKER ASSEMBLY

Parts List 3/3
SYMBOL PARTS NO. DESCRIPTION
Q635,636 033 C3263-OY TRANSISTOR 2SC3263-OY
Q637-644 033 C3264-OY TRANSISTOR 2SC3264-OY
019 TO-3P INSULATION SHEET(S)
019 TO-3P2 INSULATION SHEET(L)
011 FP-499A-B BLACK PANEL ASSY
011 FP-499A-S SILVER PANEL ASSY
011 SG4-02C00 H/S PANEL
012 RV4-09A00 PUSH BUTTON 14F (BLACK)
012 RV4-09A01 PUSH BUTTON 14F (SILVER)
013 SG4-05A00 SUB PANEL SUPPORT(BLACK) .
013 SG4-05A01 SUB PANEL SUPPORT(SILVER) .
014 SG3-18A00 UPPER COVER
015 RP-354C REAR CHASSIS
019 C-4638A00 CASTER 32Φ
019 C-670#18 FELT 56Φ(for FOOT)
019 C-4418A00 PLASTIC FOOT 26Φ
019 PK4-07A00T METAL FOOT 60Φ
T001 022 T-1061U01 POWER TRANSFORMER
T002 022 T-1064U01 POWER TRANSFORMER
D004,D005 034 BR254 POWER SIODE 25A 400V
034 LTL1214A LED (RED) 2Φ
034 SEL1124R LED (RED) 1X5
034 SEL1E24W LED (BLU) 1X5
036 5ST10 FUSE 250V10A
C001-C008 041 ALS30S1072MF ELECTROLYTIC CAPACITOR 100V22000uF
SP2A,SP2B 067 C-4717A02 SPEAKER TERMINAL (BLACK)
SP2A,SP2B 067 C-4717A01 SPEAKER TERMINAL (RED))
069 C-4637A00 AC INLET(3P) 0707-1-CW
072 C-4392A04 AC CORD SET (SJT AWG14) for USA
072 C-4393A03 AC CORD SET for EUROPE
072 C-4423A03 AC CORD SET for AUSTRALIA
072 C-4639A01 AC CORD SET for U.K.
081 SG3-22B01 INSIDE CARTON -V01
081 SG3-23B01 SHIPPING CARTON -V01
081 SG4-24A00 PACKING (for INSIDE CARTON)
081 Z-200 STYROL MOULDING
082 OMRB-1090-1 OWNER'S MANUAL(EFGISD)
O T H E R S

RB1090
SYMBOL PARTS DESCRIPTION
011 FP-499A-B BLACK PANEL ASSY
011 FP-499A-S SILVER PANEL ASSY
011 SG4-02C00 H/S PANEL H221
012 RV4-09A00 PUSH BUTTON 14F (BLK)
012 RV4-09A01 PUSH BUTTON 14F (SLV)
013 SG4-05A00 SUB PANEL CHASSIS (BLK)
013 SG4-05A01 SUB PANEL CHASSIS (SLV)
034 SEL1124R LED (RED) 1X5
034 SEL1E24W LED (BLU) 1X5
Addendum List for Black and Silver
3
1
2

4
Adjustment
Instruments : DC milli– voltmeter
Notes : Prior to Bias Adjustment, run about 5minutes with rated output(8ohms) and
warm up Power Transistor and Heat Sink. Set input off.
Step
L CH OUT
R CH OUT
TP1
X-1271-01 PCB
X-1271-02 PCB
X-1271-01 PCB
1
2
3
TP2 X-1271-02 PCB
VR603
VR604
VR601
VR6024
Coupling AdjustLocation Adjust for
DC milli– voltmeter reads 0mV
DC milli– voltmeter reads 5mV
ECB ECB
B1
2
3
4
5
678
CE
BCE
BCE
1234
8765

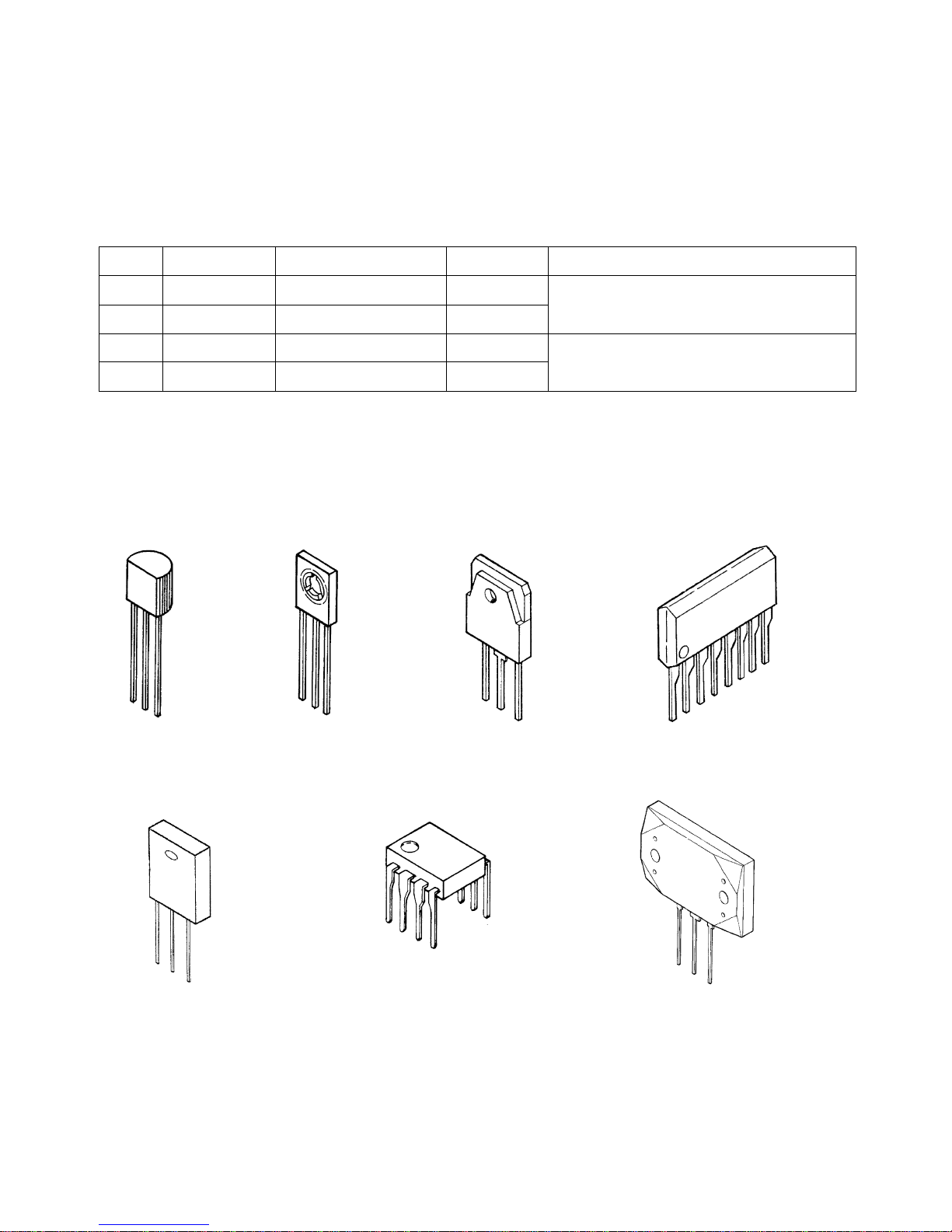

2SC5174
2SA1932 AD711JN
OPA134PA
2SA1294
2SC3263
2SA1016K
2SC2362K
2SB631K
2SD600K
2SA1209
2SC2911
2SD1953
UPC1237HA
2SA1295
2SC3264
RB-1090

Memo

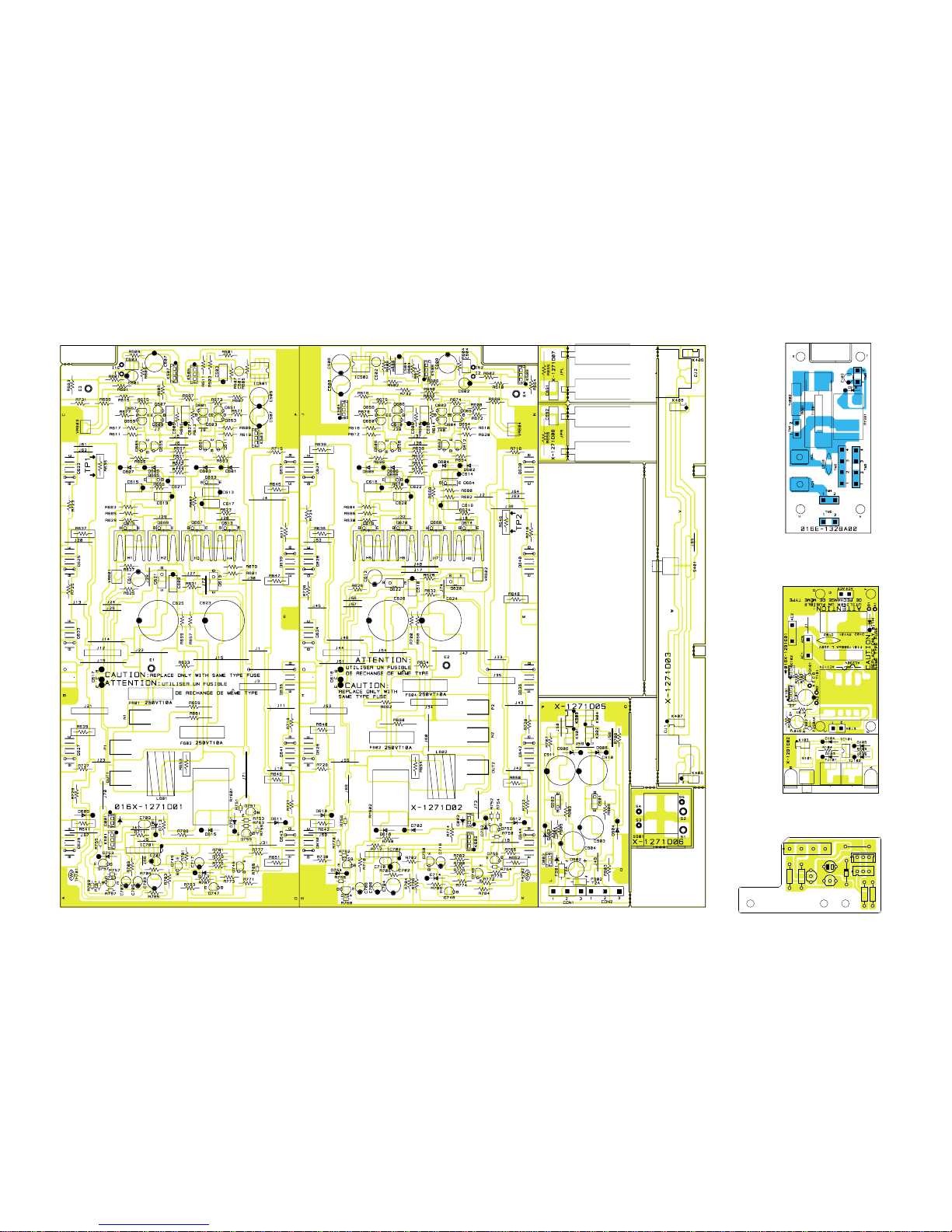

PCB Assembly 016 X-1271D01-08 RB-1090
016 X-1291E01-02
016 E-1328A00
016 X-1348A00
4321
016X-1348A00
T11
J11
T12
C11
D11
R14
R11 R12
R13
K11
K12
K13
BA

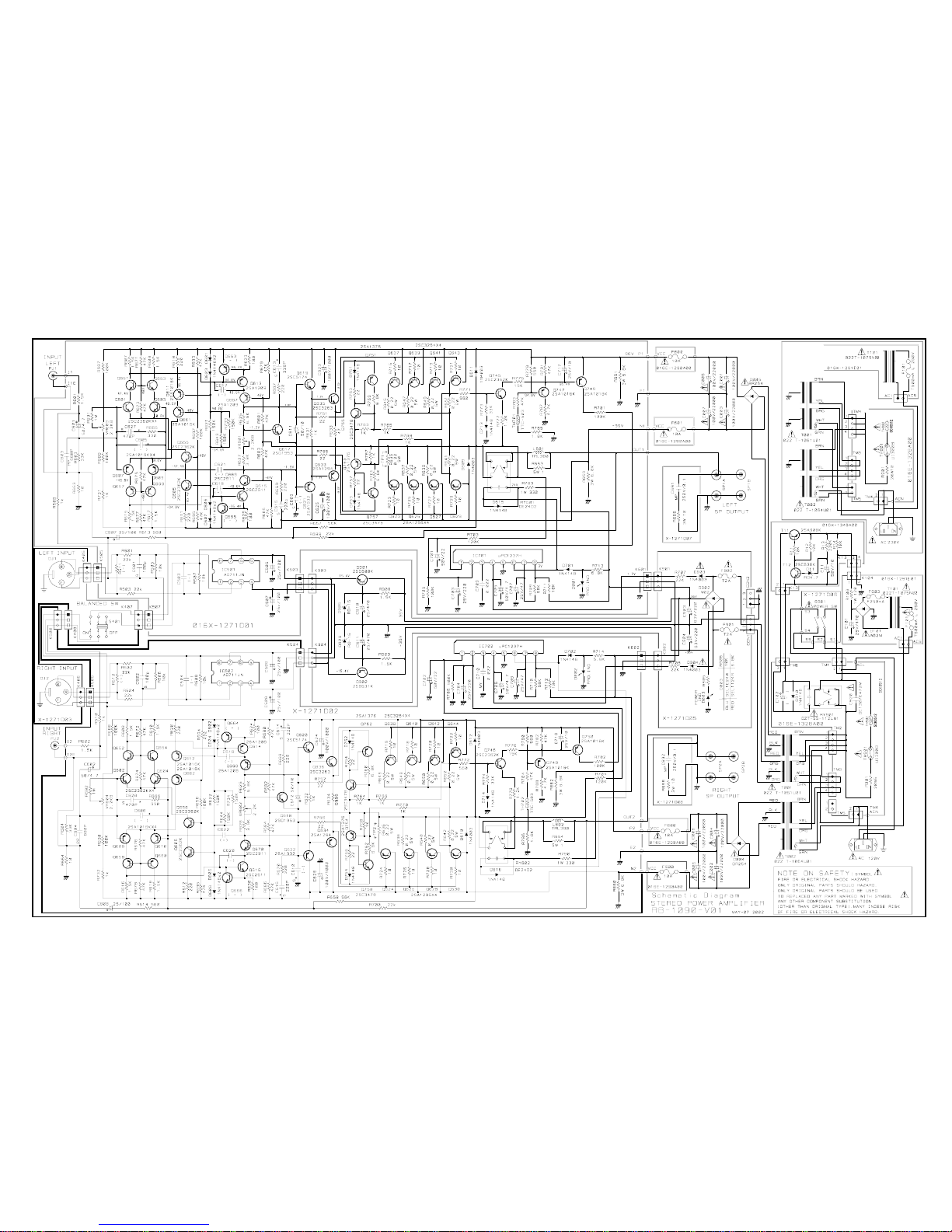

Schematic Diagram RB-1090-2,3
RB-1090
