Owner’s Manual
RA‑1592
Stereo Integrated Amplifier
A B

2RA‑1592 Stereo Integrated Amplier

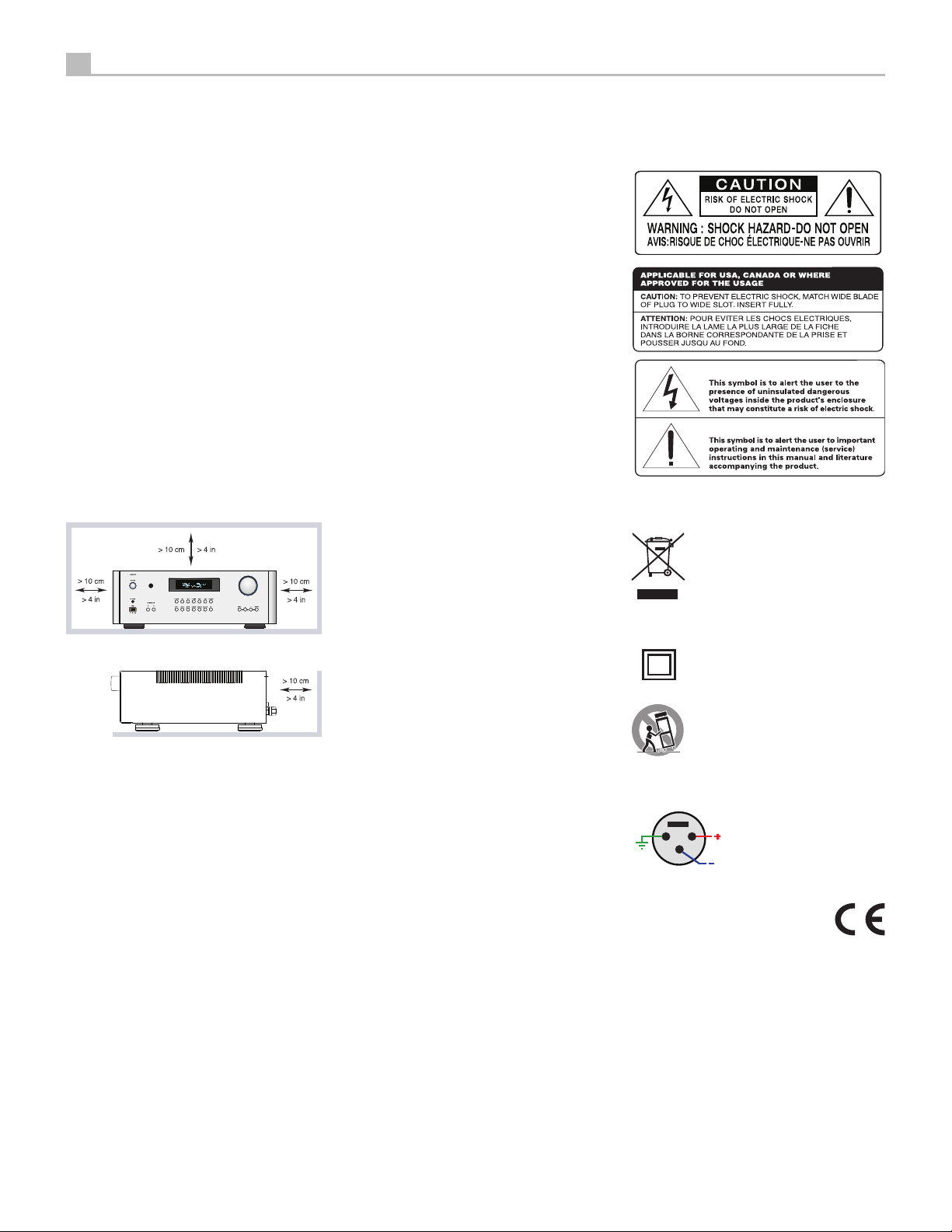

Notice
The RS232 connection should be handled by authorized persons only.
WARNING: There are nouser serviceable parts inside. Referall servicing
to qualified service personnel.
WARNING: To reduce the risk of fireor electric shock, do notexpose the
unit to moisture or water. Do not expose the unit to dripping or splashing.
Do not place objects filled with liquids, such as vases, on the unit. Do
not allow foreign objects to get into the enclosure. If the unit is exposed
to moisture, or a foreign object gets into the enclosure, immediately
disconnect the power cord from the wall. Take the unit to a qualified
service person for inspection and necessary repairs.
Read all the instructions before connecting or operating the component.
Keep this manual so you can refer to these safety instructions.
Heed all warnings and safety information in these instructions and on
the product itself. Follow all operating instructions.
Clean the enclosure only with a dry cloth or a vacuum cleaner.
Do not use this unit near water.
You must allow a minimum 10 cm or 4 inches of unobstructed
clearance around the unit.
Do not place the unit on a bed, sofa, rug, or similar surface that could
block the ventilation openings. If the unit is placed in a bookcase or
cabinet, there must be ventilation of the cabinet to allow proper cooling.
Keep the component away from radiators, heat registers, stoves, or any
other appliance that produces heat.
Rotel products are designed to comply with
international directives on the Restriction of
Hazardous Substances (RoHS) in electrical and
electronic equipment and the disposal of Waste
Electrical and Electronic Equipment (WEEE). The
crossed wheelie bin symbolindicates compliance and
that the products must be appropriately recycled
or processed in accordance with these directives.
This symbol means that this unit is double insulated.
An earth connection is not required.
Important Safety Instructions
WARNING: The rear panel power cord connector is the mains power
disconnect device. The device must be located in an open area that
allows access to the cord connector.
The unit must be connected to a power supply only of the type and
voltage specified on the rear panel. (USA: 120 V/60Hz, EC: 230V/50Hz)
Connect the component to the power outlet only with the supplied
power supply cable or an exact equivalent. Do not modify the supplied
cable. A polarized plug has two blades, with one wider than the other. A
grounding plug has two blades plus a third grounding prong. These are
provided for your safety. Do not defeat grounding and/or polarization
safety provisions. If the supplied plug does not fit your outlet, please
consult an electrician for replacement of the obsolete outlet. Do not
use extension cords.
The mains plug is the disconnect of the unit. In order to completely
disconnect the unit from the supply mains, remove the main plug from
the unit and the AC power outlet. This is the only way to completely
remove mains power from the unit.
Do not route the power cord where it will be crushed, pinched, bent,
exposed to heat,or damaged inany way. Payparticular attentionto the
power cord at the plug and where the cord exits the back of the unit.
The power cord should be unplugged from the wall outlet during a
lightningstorm orif theunit isto beleft unusedfor along periodof time.
Use only accessories specified by the manufacturer.
Use only with a cart, stand, rack, bracket or shelf system strong
enough to support the unit. Use caution when moving the unit in a
stand or rack to avoid injury or damage to the unit.
Use Class 2 wiringfor speaker connections toensure proper installation
and minimize the risk of electrical shock.
Immediately stop using the component and have it inspected and/or
serviced by a qualified service agency if:
• The power supply cord or plug has been damaged.
• Objects have fallen or liquid has been spilled into the unit.
• The unit has been exposed to rain.
• The unit shows signs of improper operation.
• The unit has been dropped or damaged in any way.
The batteries in the remote control should not be exposed to excessive
temperature such as sunshine, fire or other heat sources.
A B
Place the unit on a on a fixed, level surface strong
enough to support its weight. Do not place it on a
moveable cart that could tip over.
12
3
Pin Assignments
Balanced Audio (3 pole XLR):
Pin 1: Ground / Screen
Pin 2: In phase / +ve / Hot
Pin 3: Out of phase / ‑ve / Cold

9
About Rotel
Our story began over 50 years ago. Over the decades, we have received
hundreds of awards for our products and satised hundreds of thousands
of people who take their entertainment seriously - like you!
Rotel was founded by a family whose passionate interest in music led them
to manufacture high-delity components of uncompromising quality. Through
the years, that passion has remained undiminished and the family goal of
providing exceptional value for audiophiles and music lovers, regardless
of their budget, is shared by all Rotel employees.
Rotel’s engineers work as a close team, listening to, and ne tuning, each
new product until it reaches their exacting musical standards. They are
free to choose components from around the world in order to make that
product the best they can. You are likely to nd capacitors from the United
Kingdom and Germany, semiconductors from Japan or the United States,
while toroidal power transformers are manufactured in Rotel’s own factory.
We all have concerns about our environment. And, as more and more
electronics are produced it is especially important for a manufacturer to do all
it can to engineer products that have a minimum impact on the environment.
At Rotel, we are proud to do our part. We have reduced the lead content
in our products by using special lead-free ROHS solder and components.
Our engineers continually strive to improve power supply efciency without
compromise to quality. When in standby mode Rotel products use minimal
power to meet global Standby Power Consumption requirements.
The Rotel factory is also doing their part to help the environment through
constant improvements to product assembly methods for a cleaner and
greener manufacturing processes.
All of us at Rotel thank you for buying this product. We are sure it will bring
you many years of enjoyment.
A Word About Watts
This amplier’s power output is rated as 200 watts for each channel, when
both channels are operating together at full power. Rotel has chosen to
specify the power output in this way because, in Rotel’s experience, it gives
the truest value of the receiver or amplier’s power capability.
When comparing specications for different products, you should be
aware that power output is often specied in other ways, so you may not
be comparing like with like. For example, the power output may be quoted
with only one channel operating, giving a higher maximum gure.
A loudspeaker’s impedance rating indicates the electrical resistance or
load it offers when connected to the amplier, usually 8 ohms or 4 ohms.
The lower the impedance, the more power the speaker will need. In effect,
a 4 ohm speaker will require twice as much power as an 8 ohm speaker.
However, Rotel ampliers are designed to work into any speaker impedance
between 8 and 4 ohms, and with all the channels working up to their full
power. Because Rotel designs are optimized for use with all channels operating
together, Rotel is able to specify the true power output for both channels.
Contents
Important Safety Instructions ..........................................2
Figure 1: Controls and Connections 3
Figure 2: RR‑AX150 Remote Control 4
Figure 3: Analog Inputs and Speaker Output Connections 5
Figure 4: Digital Input and 12 Volt Trigger out Connections 6
Figure 5: Balanced (XLR) Inputs 7
Figure 6: Front USB Input 7
Important notes 8
About Rotel .......................................................9
A Word About Watts ................................................9
Getting Started ...................................................10
A Few Precautions 10
Placement 10
Cables 10
The RR-AX150 Remote Control........................................10
Second Amplier Remote Code 10
Remote Control Batteries 10
AC Power and Control ..............................................11
AC Power Input [11
POWER Switch and Power Indicator 111
12V TRIGGER Connection r11
Input Signal Connections -up ..............................................11
Phono Input uand Ground Connection (GND) 11
Line Level Inputs u11
Balanced (XLR) Inputs p11
Digital Signal Inputs -11
Output Connections ................................................11
MONO SUB Output i11
Preamp Output o11
Speaker Outputs ].........................................................12
Speaker Selection 12
Speaker Wire Selection 12
Polarity and Phasing 12
Speaker Connections ]12
Headphone Output 5........................................................12
Remote Sensor 2...........................................................12
Display 3.................................................................12
Front USB Input 6..........................................................12
APTX Bluetooth Connection 0........................................12
Audio Controls ...................................................12
VOLUME Control 4D12
BALANCE Control 9C12
TONE Control Bypass 9C13
BASS and TREBLE Controls 9C13
Source Input Selector 8J13
Dimmer Control ...................................................13
Display Dimmer 9B13
PC-USB Input q............................................................13
RS232 t..................................................................14
Rotel Link w................................................................14
EXT REM IN Jack e.........................................................14
Network Connection =.............................................14
Protection Circuit ..................................................14
Settings Menu ....................................................14
Troubleshooting ...................................................16
Power Indicator Is Not Illuminated 16
Fuse Replacement 16
No Sound 16
Cannot Connect via Bluetooth 16
Playable Audio Formats 16
Specications ....................................................17

10 RA‑1592 Stereo Integrated Amplier
Getting Started
Thank you for purchasing the Rotel RA-1592 Stereo Integrated Amplier.
When used in a high-quality music audio system, your Rotel product will
provide years of musical enjoyment.
The RA-1592 is a full featured, high performance component. All aspects
of the design have been optimized to retain the full dynamic range and
subtle nuances of your music. The RA-1592 has a highly regulated power
supply incorporating a Rotel custom-designed toroidal power transformer
and custom-made slit foil capacitors. This low impedance power supply has
ample power reserves, which enables the RA-1592 to easily reproduce the
most demanding audio signals. This type of design is more expensive to
manufacture, but it is better for the music.
The printed circuit boards (PCB) are designed with Symmetrical Circuit Traces.
This insures that the precise timing of the music is maintained and faithfully
recreated. The RA-1592 circuitry uses metal lm resistors and polystyrene
or polypropylene capacitors in important signal paths. All aspects of this
design have been examined to ensure the most faithful music reproduction.
The main functions of the RA-1592 are easy to install and use. If you have
experience with other stereo systems, you shouldn’t nd anything perplexing.
Simply plug in the associated components and enjoy.
A Few Precautions
WARNING: To avoid potential damage to your system, turn off ALL
the components in the system when connecting or disconnecting the
loudspeakers or any associated components. Do not turn the system
components back on until you are sure all the connections are correct
and secure. Pay particular attention to the speaker wires. There must
be no loose strands that could contact the other speaker wires, or the
chassis of the amplier.
Please read this manual carefully. In addition to basic installation and
operating instructions, it provides valuable information on various RA-1592
system congurations as well as general information that will help you get
optimum performance from your system. Please contact your authorized
Rotel dealer for answers to any questions you might have. In addition, all
of us at Rotel welcome your questions and comments.
Save the shipping carton and all enclosed packing material for future use.
Shipping or moving the RA-1592 in anything other than the original packing
material may result in severe damage to your amplier.
If included in the box please ll out and send in the owner’s registration
card. Also be sure to keep the original sales receipt. It is your best record
of the date of purchase, which you will need in the event warranty service
is ever required.
Placement
Like all audio components that handle low-level signals, the RA-1592 can
be affected by its environment. Avoid placing the RA-1592 on top of other
components. Also avoid routing audio signal cables near power cords. This
will minimize the chance it will pick up hum or interference.
The RA-1592 generates heat as part of its normal operation. The heat sinks
and ventilation openings in the amplier are designed to dissipate this
heat. The ventilation slots in the top cover must be open. There should be
10 cm (4 inches) of clearance around the chassis, and reasonable airow
through the installation location, to prevent the amplier from overheating.
Remember the weight of the amplier when you select an installation location.
Make sure that the shelf or cabinet can support it. We recommend installing
the RA-1592 in furniture designed to house audio components. Such furniture
is designed to reduce or suppress vibration which can adversely affect
sound quality. Ask your authorized Rotel dealer for advice about component
furniture and proper installation of audio components.
The RA-1592 is supplied with an RR-AX150 remote control and must be
placed where the infrared signal from the remote can reach the front panel
Remote Sensor.
Cables
Be sure to keep the power cords, digital signal cables and analog audio
signal cables in your installation away from each other. This will minimize
the chance of the analog audio signal cables picking up noise or interference
from the power cords or digital cables. Using only high quality, shielded
cables will also help to prevent noise or interference from degrading the
sound quality of your system. If you have any questions see your authorized
Rotel dealer for advice about the best cable to use with your system.
The RR‑AX150 Remote Control
Some functions can be done with either the front panel controls, or the
supplied RR-AX150 remote control. When these operations are described,
the square call out numbers refer to the main unit, while the encircled letters
refer to the remote control.
Second Amplier Remote Code
The factory setting is remote code 1. If you nd that the remote is conicting
with other Rotel ampliers, you can change to remote code 2 with the
following steps.
1.From the remote control press Tuner Jand 2 Lat the same time to set
the remote control to send Audio Code 2.
2.Point the remote at the unit and press 2 Lbutton for 8 seconds. The unit
will show “Audio Custom Code 1 -> 2”.
3.Repeat the above procedure and press “1” button instead of “2” to change
the unit back to Code 1.
NOTE: The remote control can be used to operate the basic functions of
Rotel tuners and CD players. Remote control buttons labeled HILN
can be used to operate CD or Tuner functions in your system. For the
remote to operate properly, make sure both the remote and the CD or
Tuner are both in same remote code, either Code 1 or 2.
Remote Control Batteries
Two AA size batteries (supplied) must be installed before the remote control
can be used. To install the batteries, remove the cover on the back of the
RR-AX150. Install the batteries as shown in the illustration in the battery
well. Test the control for proper operation, then replace the cover. When
the batteries become weak the remote control won’t operate the RA-1592
consistently. Installing fresh batteries should eliminate the problem.

11
AC Power and Control
AC Power Input [
Your RA-1592 is congured at the factory for the proper AC line voltage in
the country where you purchased it (either 120 volts AC or 230 volts AC
with a line frequency of either 50 Hz or 60 Hz). The AC line conguration
is noted on a decal on the back panel.
NOTE: Should you move your RA‑1592 to another country, it is possible
to recongure your amplier for use on a different line voltage. Do not
attempt to perform this conversion yourself. Opening the enclosure of
the RA‑1592 exposes you to dangerous voltages. Consult a qualied
service person or the Rotel factory service department for information.
NOTE: Some products are intended for sale in more than one country
and as such are supplied with more than one AC cord. Please only use
the one appropriate for your country/region.
Because of its relatively high power rating, the RA-1592 can draw considerable
current. Therefore, it should be plugged directly into a 2-pin polarized wall
outlet. Do not use an extension cord. A heavy duty multi-tap power outlet
strip may be used if it (and the wall outlet) is rated to handle the current
demanded by the RA-1592 and all the other components connected to it.
If you are going to be away from home for an extended period of time
such as a month-long vacation, it is a sensible precaution to unplug your
amplier (as well as other audio and video components) while you are away.
POWER Switch and Power Indicator 1
Press the front panel Power Switch button, to turn the unit on. The Power
Indicator light is illuminated when the unit is on. Press Power Switch button
again to turn the unit off.
When the power switch is in the ON position, the remote control ON and
OFF buttons may be used to activate the RA-1592. In Standby mode the
power LED remains lit, but the display is turned off.
NOTE: Place the self adhesive ring over the light surrounding the Power
switch if the blue light is too bright.
12V TRIGGER Connection r
Some audio components can be turned on automatically when they receive
a 12V turn on signal. The two 12V Trigger Outputs of the RA-1592 provide
the required signal. Connect compatible components to the RA-1592 with
a conventional 3.5mm mini plug cable. When the RA-1592 is in turn off
mode, the trigger signal is interrupted, so the components controlled by it
are turned off.
NOTE: If you are using other units in the series with Rotel Link, please
use the Rotel Link connection to turn the units on or off. Do not connect
both the Rotel Link and 12V trigger cables. The 12V trigger’s power
on or off features will override the Rotel Link features.
Input Signal Connections -up
See Figure 3,4,5
NOTE: To prevent loud noises that neither you nor your speakers will
appreciate, make sure the system is turned off when you make any
signal connections.
Phono Input uand Ground Connection (GND)
See Figure 3
Plug the cable from the turntable into the appropriate left and right phono
inputs. If the turntable has a “ground” wire, connect it to the screw terminal
to the left of the Phono inputs. It will help prevent hum and noise.
Line Level Inputs u
See Figure 3
The CD, Tuner, and Aux inputs of the amplier are analog “line level” inputs.
These inputs are for connecting components such as CD players or other
audio playback devices with an analog audio output.
The left and right channels are clearly labeled and should be connected to
the corresponding channels of the source component. The Left connectors
are white, the Right connectors are red. Use high quality RCA cables for
connecting input source components to the RA-1592. Ask your authorized
Rotel dealer for advice about cables.
Balanced (XLR) Inputs p
See Figure 5
A pair of balanced XLR inputs accept audio signals from CD player, Blu-ray
player or other source components with XLR outputs.
NOTE: You should choose only one method of analog connection from
a source component to RA‑1592. Do not connect both the RCA and
XLR outputs of a source component to the RA‑1592 at the same time.
Digital Signal Inputs -
See Figure 4
There are three sets of digital inputs labeled 1, 2 and 3, for COAXIAL and
OPTICAL respectively. Connect the COAXIAL or OPTICAL PCM outputs of
your source component into these sockets. The digital signals will be decoded
and played by the RA-1592. The unit is capable of decoding PCM signals
up to 24 bit, 192kHz.
Output Connections
MONO SUB Output i
There are 2 connectors for mono subwoofer output to connect to a subwoofer.
These mono outputs are summed with both the left and right audio signal. They
are parallel outputs allowing 2 subwoofers to be connected to the RA-1592.
Preamp Output o
The RA-1592 has a set of preamp outputs labeled PRE OUT. The currently
selected source input is available from this output. Typically the PRE OUT
output is used to provide a signal to another integrated amplier or power
amplier, which is used to drive remote speakers.
NOTE: Changes to the settings of the Volume, Balance or Tone controls
affect the signal from the Preamp Output.

12 RA‑1592 Stereo Integrated Amplier
Speaker Outputs ]
See Figure 3
The RA-1592 has two sets of speaker outputs, labeled SPEAKER A and
SPEAKER B. The speaker outputs are controlled by the A-B speaker selector
buttons 7 on the front panel and the buttons Kon the remote control.
Speaker Selection
If only one set of speakers will be used at any given time, the speakers may
have an impedance as low as 4 ohms. If there are times when both the A
and B speakers will be used, all the speakers should have an impedance
of 8 ohms or more. Speaker impedance ratings are less than precise. In
practice, very few loudspeakers will present any problems for the RA-1592.
See your authorized Rotel dealer if you have any questions.
Speaker Wire Selection
Use insulated two-conductor stranded wire to connect the RA-1592 to the
speakers. The size and quality of the wire can have an audible effect on the
performance of the system. Standard speaker wire will work, but can result in
lower output or diminished bass response, particularly over longer distances.
In general, heavier wire will improve the sound. For best performance, you
may want to consider special high-quality speaker cables. Your authorized
Rotel dealer can help in the selection of cables for your system.
Polarity and Phasing
The polarity – the positive/negative orientation of the connections – for every
speaker and amplier connection must be consistent so all the speakers will
be in phase. If the polarity of one connection is reversed, bass output will
be very weak and stereo imaging degraded. All wire is marked so you can
identify the two conductors. There may be ribs or a stripe on the insulation
of one conductor. The wire may have clear insulation with different color
conductors (copper and silver). There may be polarity indications printed
on the insulation. Identify the positive and negative conductors and be
consistent with every speaker and amplier connection.
Speaker Connections ]
Turn off all the components in the system before connecting the speakers.
The RA-1592 has color-coded binding post type speaker connectors on the
back panel. These connectors accept bare wire, connector lugs, or dual
banana type connectors. (except in European Community countries where
their use is not permitted.)
Route the wire from the RA-1592 to the speakers. Give yourself enough slack
so you can move the components to allow access to the speaker connectors.
If you are using dual banana plugs, connect them to the wires and then
plug into the backs of the binding posts. The thumbscrews of the binding
posts should be screwed in all the way (clockwise).
If you are using terminal lugs, connect them to the wires. If you are attaching
bare wires directly to the binding posts, separate the wire conductors and
strip the insulation from the end of each conductor. Be careful not to cut into
the wire strands. Unscrew (turn counterclockwise) the binding post. Place
the connector lug or wire around the binding post shaft. Turn the binding
post clockwise to clamp the connector lug or wire rmly in place.
NOTE: Be sure there are no loose wire strands that could touch adjacent
wires or connectors.
Headphone Output 5
The headphone output allows you to connect headphones for private listening.
This output accepts a standard 3.5mm (1/8”) mini stereo headphone
connector. Plugging in a set of headphones does not cut off the signal to
the speakers. Use the front panel 7or remote control KA-B Speaker
Selector to turn off the speakers.
NOTE: Because the sensitivity of speakers and headphones can
vary widely, always reduce the volume level before connecting or
disconnecting headphones.
Remote Sensor 2
This remote sensor window receives IR commands from the remote control.
Please do not block this sensor.
Display 3
The front panel display shows the source selected, volume level and tone
settings. The display provides access to the setup and conguration menu
options of the amplier.
Front USB Input 6
See Figure 6
The front USB input can be connected to an iPhone, iPad or iPod device
providing music playback to the amplier. To enable audio playback using
one of these devices, simply plug the device into the front USB and select
USB as the desired source. The device remain active allowing search and
play functions.
APTX Bluetooth Connection 0
The Bluetooth Antenna 0on the RA-1592’s back panel is for wireless
streaming via Bluetooth, from your device (i.e. mobile phones, tablets or
computers). From your device, look for “Rotel Bluetooth” and connect to it.
Connection is normally automatic, but if prompted for a password, please
press “0000” on your device. The RA-1592’s supports both traditional
Bluetooth and APTX Bluetooth audio streaming.
Audio Controls
VOLUME Control 4D
Turn the knob clockwise to increase the volume, or counter clockwise to
decrease the volume. From the remote control press the volume + or - button
to turn the volume up or down. Press the MUTE Ebutton to completely
mute the volume.
BALANCE Control 9C
The Balance Control adjusts the left-to-right balance of the sound output. The
factory default is the center position or “0”. To change the balance from
the front panel, press the MENU 9 button to toggle the front display to
BALANCE SETTING mode. Then press the - or + buttons on the front panel to
change the value to LEFT or RIGHT. The value can change from L15 to R15.

13
NOTE: This setting is saved permanently including after powering off
the RA‑1592.
To make temporary changes not saved after power off, from the remote,
press the BAL Cbutton to access the BALANCE SETTING menu, then press
the up/down/left/right Garrow buttons to adjust. When nished, press
the BAL Cbutton again to exit the menu.
Tone Control Bypass 9C
Bass and Treble Control (Tone Control) circuits are bypassed at factory
default to ensure the purest possible sound. The front display will show TONE
BYPASS. To turn on the tone control from the front panel, press the MENU
9button to toggle to the Bypass control then press the - or + buttons on
the front panel to turn bypass on or off.
NOTE: This setting is saved permanently including after powering off
the RA‑1592.
To temporarily changes the Tone Control Bypass, press the BYPASS Cbutton
on the remote control to toggle the Bypass mode enabled and disabled.
Bass and Treble Controls 9C
Set the Bass or Treble controls from the front panel by pressing the MENU
9button to toggle to the BASS / TREBLE menu. Press ENTER 9button to
toggle between the options. Press the - or + 9button to adjust the value.
The Bass and Treble values range from -10 to +10.
NOTE: These settings are saved permanently including after powering
off the RA‑1592.
To temporarily change the Bass and Treble settings from the remote control,
press the BASS or TREB button C, then press the up/down/left/right G
arrow buttons on the remote to adjust the value.
NOTE: Bass and Treble changes are only available when Tone Bypass
is disabled (see Tone Control Bypass section).
A properly setup high-performance audio system produces the most natural
sound with little or no adjustment of the tone controls. Use these controls
sparingly. Be particularly careful when turning the controls up as this
increases the power output in the bass or treble range, increasing the load
on the amplier and speakers.
NOTE: Setting the Bass and Treble controls does not automatically turn
on the tone control. To turn on tone control, refer to previous section
Tone Control Bypass.
Source Input Selector 8J
Press the corresponding input button on the front panel 8or remote control
Jto select the desired listening source.
Push the front panel source buttons to toggle between Optical 1 - 3, Coaxial
1- 3 and Aux or use the dedicated source button on the remote control.
Dimmer Control
Display Dimmer 9B
To change the brightness of the front display, press the MENU 9button
to toggle to the Display Settings. Then press the - or + buttons on the front
panel to change the brightness.
NOTE: This setting is saved permanently including after powering off
the RA‑1592.
To temporarily change the display brightness, press the DIM Bbutton on
the remote.
PC‑USB Input q
Connect this input using the supplied USB cable to the USB socket of your
computer.
The RA-1592 supports both USB Audio Class 1.0 and USB Audio Class
2.0 modes. Windows computers do not require installation of a driver for
USB Audio Class 1.0 and support playback of audio up to 96kHz sampling
rates. The Factory Default setting is USB Audio Class 1.0.
To take advantage of USB Audio Class 2.0 audio playback supporting
up to 192kHz sampling rates you will need to install the Windows driver
supplied on the CD included with the RA-1592. You will also need to switch
the RA-1592 to USB Audio Class 2.0 playback mode with the following:
• Press MENU on the front panel until “PC-USB AUDIO CLASS” appears
on the display.
• Select “2.0” using the “-” button then press “ENTER”.
• Power cycle the RA-1592 and reboot your PC after changing the USB
Audio mode to ensure both units are properly congured.
Many audio playback applications do not support 192kHz sampling rate.
Please conrm your audio player supports 192kHz audio and you have
192kHz audio les to properly playback this sample rate. Also, you may
need to congure the audio driver in your PC to output 192kHz or your
computer may “down sample” to a lower audio sample rate. For more
information please refer to your audio player or operating system information.
NOTE: USB Audio Class 2.0 requires installation of the Windows PC
driver on the CD ROM included with the RA‑1592.
NOTE: MAC computers do not require a driver to support PC‑USB
1.0 or 2.0 audio.
NOTE: Upon successful installation of the driver, you may need to select
the ROTEL audio driver from the audio/speaker setup of your computer.
NOTE: The RA‑1592 supports both DSD and DOP audio playback
in 1X and 2X formats. Consult your audio player to conrm proper
operation for playback of these audio formats.
RS232 t
The RA-1592 can be controlled via RS232 for integration with automation
systems. The RS232 input accepts a standard straight DB-9 Male-to-Female
cable.
For additional information on the connections, software, and operating codes
for RS232 control of the RA-1592, contact your authorized Rotel dealer.

14 RA‑1592 Stereo Integrated Amplier
overheating condition. In very rare cases, highly reactive or extremely low
impedance speaker loads could cause the protection circuit to engage.
If the protection circuitry triggers repeatedly and you are unable to isolate
and correct the faulty condition, contact your authorized Rotel dealer for
assistance in troubleshooting.
Settings Menu
You can access the settings menu from the front panel by pressing the MENU
9button or Fon the remote. You can change the value of the selected
option by pressing the +/- button on the front panel or up/down/left/right
Garrow buttons on the remote. Step through the sub-menus by pressing
the MENU 9button on the front panel or Fon the remote.
• TONE Control: TONE BYPASS ON/OFF, BASS level and TREBLE levels
can be changed to desired settings. Press the ENTER button on the front
panel or on the remote to toggle between the tone setup options. (For
more information on Tone Control refer to the Tone Control Bypass, Bass
and Treble control sections.)
NOTE: These settings are stored permanently even after the RA‑1592
is powered off.
• BALANCE: Change left/right balance (For more information on Balance
sections refer to the Balance Control section).
NOTE: This setting is stored permanently even after the RA‑1592 is
powered off.
• DIMMER: Dims the display.
NOTE: This setting is stored permanently even after the RA‑1592 is
powered off.
• ROTEL LINK RCD: Selects how the CD player is connected to the amplier,
either CD (analog), COAX1, COAX2, or BAL-XLR. CD is the factory default.
• POWER ON MAX VOLUME: This sets the maximum volume level when
the unit is turned ON. “45” is the factory default.
NOTE: Power On Max Volume settings do not apply to sources
congured with Fixed Gain.
• POWER OPTION: Enables the RA-1592 to be controlled via the network
port when attached to an automation system. The power consumption is
higher in Quick Power mode. If network control is not required select the
Normal Power mode. “Normal” is the factory default.
Valid settings include: Normal, Quick.
NOTE: When the POWER OPTION is configured to Quick, the RA‑
1592 will consume additional power in standby mode.
• AUTO POWER OFF: The RA-1592 can be congured to automatically
power off if unused for a specied period. If no changes are made to the
unit within the specied “Auto Power Off” time the unit will automatically
go to STANDBY mode. The Auto Power Off timer will be restarted if
changes are made to the volume, source or playback. The default for
Auto Power Off is set to DISABLE.
Rotel Link w
The ROTEL LINK OUT connection can be made with the stereo 3.5 mm cable
(supplied) to a Rotel product with ROTEL LINK IN connection including a
CD player. While the ROTEL LINK IN can optionally attach to Rotel network
enabled products with ROTEL LINK OUT connections.
These allow the attached Rotel products to communicate with each other and
be controlled via the Rotel App (available for download on the iTunes®store).
NOTE: Only the Rotel Link cables supplied with this product should be
used. These 3.5 mm cables have WHITE connector ends and should
not be confused with the 12 Volt Trigger cables that have BLACK
connector ends.
EXT REM IN Jack e
This 3.5mm mini-jack receives command codes from industry-standard infrared
receivers via hard-wired connections. This feature could prove useful when
the unit is installed in a cabinet and the front-panel sensor is blocked. Consult
your authorized Rotel dealer for information on these external repeaters and
the proper wiring of a jack to t the mini-jack receptacle.
Network Connection =
The RA-1592 can be attached to a network using the rear panel NETWORK
socket =. The NETWORK congurations allow both STATIC and DHCP
IP addressing. See the Network section of this manual under Setting Menu
for IP address conguration information.
The NETWORK connection allows software updates to be downloaded from
the Internet. The NETWORK connection also allows IP control for integration
with automation systems.
For additional information on the IP control please contact your authorized
Rotel dealer.
Protection Circuit
The amplier has both thermal and over-current protection circuitry that
protects the amplier against damage in the event of extreme or faulty
operating conditions. The protection circuits are independent of the audio
signal and have no impact on sonic performance. Instead, the protection
circuits monitor the temperature of the output devices and shut down the
amplier if temperatures exceed safe limits.
Most likely, you will never see this protection circuitry in action. However,
should a faulty condition arise, the amplier will stop playing and will
display “AMP PROTECTION“ on the front panel.
If this happens, turn the amplier off. Let it cool down for several minutes,
and attempt to identify and correct the problem that caused the protection
circuitry to engage. When you turn the amplier back on, the protection
circuit will automatically reset.
In most cases, the protection circuitry activates because of a fault condition
such as shorted speaker wires, or inadequate ventilation leading to an

15
Valid settings include: DISABLE, 1 HOUR, 2 HOURS, 5 HOURS, 12 HOURS.
• FIXED GAIN: Congures a Fixed Volume level for a specied input. To
enable this feature press the +/- buttons to select the desired xed volume
level for Aux 1, USB, PC-USB, Optical 1, Optical 2, Coax 1, Coax 2 or
Bluetooth. When enabled and the input with a Fixed Volume is selected,
the Volume level will immediately be set to the specied level.
Valid settings include: VARIABLE, FIXED 01-95, FIXED MAX.
• AUX1 VOL: VARIABLE (disabled) is factory default.
• USB VOL: VARIABLE (disabled) is factory default.
• PC-USB VOL: VARIABLE (disabled) is factory default.
• OPT1 VOL: VARIABLE (disabled) is factory default.
• OPT2 VOL: VARIABLE (disabled) is factory default.
• COAX1 VOL: VARIABLE (disabled) is factory default.
• COAX2 VOL: VARIABLE (disabled) is factory default.
• BLUETOOTH VOL: VARIABLE (disabled) is factory default.
NOTE: The Volume knob on the front panel and Volume +/‑ buttons on
the IR remote are disabled when the volume is Fixed. To disable this
feature set the Fixed Volume level to “Variable”.
• PC-USB AUDIO CLASS: Change supported PC-USB Audio Class of the
attached device.
NOTE: Some computers attached to the PC‑USB do not support USB
Audio Class 2.0 and do not support 24/192 audio playback. If needed
the PC‑USB can be configured for USB Audio Class 1.0. Please refer
to your computer operating system for details.
• NETWORK: Shows the network connection status and to view/congure
the network settings. If the network is properly congured and attached,
“Connected” will be displayed. To view or modify the network settings,
press the ENTER button.
The RA-1592 supports both DHCP and STATIC IP addressing. Select the
desired IP address method and press ENTER.
If DHCP is selected you can refresh IP address by pressing ENTER or press
MENU to view IP address information. Press the MENU button to toggle
through IP address settings. If the IP address is renewed the network will
be tested and connection status reported.
If STATIC IP address mode is selected you must congure all settings for the
network including IP Address, Subnet Mask, Gateway and DNS Server. Use
the up/down/left/right or +/- buttons to adjust the values and press ENTER
to move to the next value. When the proper IP information is congured
press MENU to go to the next setting. After entering the STATIC IP address
information the network will be tested and connection status reported.
NOTE: For more information regarding network connection please
contact your authorized Rotel dealer.
NOTE: A network connection is not required for the RA‑1592 to
operate.
• MAIN: This shows the current software version loaded into the RA-1592.
The software can be updated if the RA-1592 is properly connected to
the Internet.
• Press ENTER to check if a new software version is available.
• If a new software version is available press the + button on the front
panel or the up/right button on the remote control to select YES then
press ENTER button to begin the software update process.
• The new software will be downloaded from the Internet. The RA-1592
will power cycle when the software update is complete.
NOTE: Do NOT power off the RA‑1592 during the software update
process.
NOTE: It is recommended to Reset Factory Defaults after the software
update is complete.
• PC-USB: This shows current loaded software version for PC-USB processor.
• SIGNAL SENSE: Check if a digital audio signal is present on the congured
Signal Sense input. When this input is selected as the active listening
source, the RA-1592 monitors the digital data stream to determine if
there is audio. If there is no audio detected for 10 minutes, the RA-1592
will enter Signal Sense Standby Mode. When in Signal Sense Standby
Mode and the RA-1592 detects audio on Signal Sense input, the unit
will automatically power on. To disable this function, select the DISABLE
option which is the factory default setting.
NOTE: To use the Signal Sense function, the RA‑1592 must be actively
listening to the configured Signal Sense source. If a source other than
the configured Signal Sense source is selected, the automatic power
off and power on functions will not be active. Example: if the Signal
Sense source is configured as COAX 1 and the unit is listening to OPT
2, the signal sense functions will not be activated.
NOTE: When the RA‑1592 enters standby mode via the remote
control, the Signal Sense function will not operate until the unit detects
the audio has stopped for the minimum 10 minute time‑out period. This
prevents the unit from immediately powering back on if there is still
active audio playing.
NOTE: When the SIGNAL SENSE function is activated, the RA‑1592
will consume additional power in signal sense standby mode.
• FACTORY DEFAULT: This sets the unit back to the original state as when
it left the factory. Press the + button on the front panel or RIGHT arrow
button on the remote control to select <YES> then press the “ENTER”
button on the front panel or on the remote control.
NOTE: All previously configured options will be erased and reset to
the factory default settings.

16 RA‑1592 Stereo Integrated Amplier
Troubleshooting
Most difculties in audio systems are the result of incorrect connections,
or improper control settings. If you encounter problems, isolate the area
of the difculty, check the control settings, determine the cause of the fault
and make the necessary changes. If you are unable to get sound from the
RA-1592, refer to the suggestions for the following conditions:
Power Indicator Is Not Illuminated
The Power Indicator ring around the power button and the basic items in the
Display window should be illuminated whenever the RA-1592 is plugged
into the wall power outlet and the POWER switch is pushed in. If it does not
light, test the power outlet with another electrical device, such as a lamp.
Be sure the power outlet being used is not controlled by a switch that has
been turned off.
Fuse Replacement
If another electrical device works when plugged into the power outlet, but
the Power Indicator still will not illuminated when the RA-1592 is plugged
into the wall outlet, it indicates that the internal power fuse may have blown.
If you believe this has happened, contact your authorized Rotel dealer to
get the fuse replaced.
No Sound
Check the signal source to see if it is functioning properly. Make sure the
cables from the signal source to the RA-1592 inputs are connected properly.
Check the wiring between the RA-1592 and the speakers.
Cannot Connect via Bluetooth
If you cannot pair your Bluetooth enabled device to the RA-1592, delete the
memory of the previous connection on your device. On your device this is
often listed as “Forget this Device”. Then try to make the connection again.
Playable Audio Formats
USB Apple (iPhone, iPod, iPad)
Format Notes
Any supported le
loaded to Apple
device.
Any supported le loaded to Apple device. Phone may
resample depending on stored format. May exclude
Apps designed to play formats not originally supported
by the sending device.
APTX Bluetooth
Format Notes
Any format supported
by the sending device.
May exclude Apps designed to play formats not originally
supported by the sending device.
PC-USB
Format Notes
Format determined
by the Media Player/
Server software that
you use.
Any supported format by the PC software
PCM Audio:
44.1k, 48k, 88.2k, 96k, 176.4k, 192k 384k
(16 bit, 24 bit and 32 bit)
DSD64 and DSD128
Coax/Optical
Format Notes
SPDIF LPCM 44.1k, 48k, 88.2k, 96k, 176.4k, 192k
16 bit, 24 bit

17
Specications
Continuous Power Output 200 watts/channel
(20 ‑ 20k Hz, < 0.03%, 8 ohms)
Total Harmonic Distortion < 0.03%
(20 Hz ‑ 20k Hz, 8 ohms)
Intermodulation Distortion < 0.03%
(60 Hz : 7kHz, 4:1)
Frequency Response:
Phono Input 20 Hz - 20kHz, 0 ± 0.5 dB
Line Level Inputs 10 Hz - 100kHz, 0 ± 0.5 dB
Damping Factor (20 Hz ‑ 20kHz, 8 ohms) 600
Input Sensitivity / Impedance
Phono Input (MM) 5.2 mV / 47k ohms
Line Level Inputs (RCA) 340 mV / 100k ohms
Line Level Inputs (XLR) 540 mV / 100k ohms
Input Overload
Phono Input (MM) 52 mV
Line Level Inputs (RCA) 3.5 V
Line Level Inputs (XLR) 5.5 V
Preamplifier Output Level / Impedance 1.9 V / 100 ohms
Signal to Noise Ratio (A weighted)
Phono Input (MM) 80 dB
Line Level Inputs 103 dB
Digital Section
Frequency Response 10 Hz - 90k Hz (0 ± 2 dB, Max)
Signal to Noise Ratio (IHF ”A” weighted) 102 dB
Input Sensitivity/Impedance 0 dBfs / 75 ohms
Preamplifier Output Level 1.4 V (at -20 dB)
Coaxial/Optical Digital Signals SPDIF LPCM
(up to 192k Hz 24 bit)
PC-USB USB Audio Class 1.0
(up to 96kHz 24bit)
USB Audio Class 2.0
(up to 384kHz 32bit)*
*Driver installation required
DSD and DoP support.
Power Requirements:
USA: 120 volts, 60 Hz
EC: 230 volts, 50 Hz
Power Consumption 500 watts
Standby Power Consumption < 0.5 watts
BTU (4 ohms, 1/8th power) 1239 BTU/h
Dimensions (W x H x D) 431 x 144 x 425 mm
( 17 x 5 7/8x 16 ins.)
Front Panel Height 3U (132.6 mm, 5 1/4ins)
Weight (net) 16.8 kg, 37.04 lbs.
All specifications are accurate at the time of printing.
Rotel reserves the right to make improvements without notice.
Rotel and the Rotel Hi-Fi logo are registered trademarks of The Rotel Co, Ltd., Tokyo,
Japan.
“Made for iPod,” and “Made for iPhone,” means that an electronic accessory
has been designed to connect specically to iPod or iPhone, respectively, and
has been certied by the developer to meet Apple performance standards.
Apple is not responsible for the operation of this device or its compliance with
safety and regulatory standards. Please note that the use of this accessory
with iPod, or iPhone may affect wireless performance.
iPhone, iPod, iPod classic, iPod nano, and iPod touch are trademarks of
Apple Inc., registered in the U.S. and other countries.
