10 RC‑1590 Stereo Control Amplier
About Rotel
Our story began over 50 years ago. Over the decades, we have received
hundreds of awards for our products and satised hundreds of thousands
of people who take their entertainment seriously - like you!
Rotel was founded by a family whose passionate interest in music led them
to manufacture high-delity components of uncompromising quality. Through
the years, that passion has remained undiminished and the family goal of
providing exceptional value for audiophiles and music lovers, regardless
of their budget, is shared by all Rotel employees.
Rotel’s engineers work as a close team, listening to, and ne tuning, each
new product until it reaches their exacting musical standards. They are
free to choose components from around the world in order to make that
product the best they can. You are likely to nd capacitors from the United
Kingdom and Germany, semiconductors from Japan or the United States,
while toroidal power transformers are manufactured in Rotel’s own factory.
We all have concerns about our environment. And, as more and more
electronics are produced it is especially important for a manufacturer to do all
it can to engineer products that have a minimum impact on the environment.
At Rotel, we are proud to do our part. We have reduced the lead content
in our products by using special lead-free ROHS solder and components.
Our engineers continually strive to improve power supply efciency without
compromise to quality. When in standby mode Rotel products use minimal
power to meet global Standby Power Consumption requirements.
The Rotel factory is also doing their part to help the environment through
constant improvements to product assembly methods for a cleaner and
greener manufacturing processes.
All of us at Rotel thank you for buying this product. We are sure it will bring
you many years of enjoyment.
Getting Started
Thank you for purchasing the Rotel RC-1590 Stereo Control Amplier. When
used in a high-quality music audio system, your Rotel product will provide
years of musical enjoyment.
The RC-1590 is a full featured, high performance component. All aspects
of the design have been optimized to retain the full dynamic range and
subtle nuances of your music. The RC-1590 has a highly regulated power
supply incorporating a Rotel custom-designed toroidal power transformer
and custom-made slit foil capacitors. This low impedance power supply has
ample power reserves, which enables the RC-1590 to easily reproduce the
most demanding audio signals. This type of design is more expensive to
manufacture, but it is better for the music.
The printed circuit boards (PCB) are designed with Symmetrical Circuit Traces.
This ensures that the precise timing of the music is maintained and faithfully
recreated. The RC-1590 circuitry uses metal lm resistors and polystyrene
or polypropylene capacitors in important signal paths. All aspects of this
design have been examined to ensure the most faithful music reproduction.
The main functions of the RC-1590 are easy to install and use. If you have
experience with other stereo systems, you shouldn’t nd anything perplexing.
Simply plug in the associated components and enjoy.
Contents
Important Safety Instructions ..........................................2
Figure 1: Controls and Connections 3
Figure 2: RR‑AX100 Remote Control 4

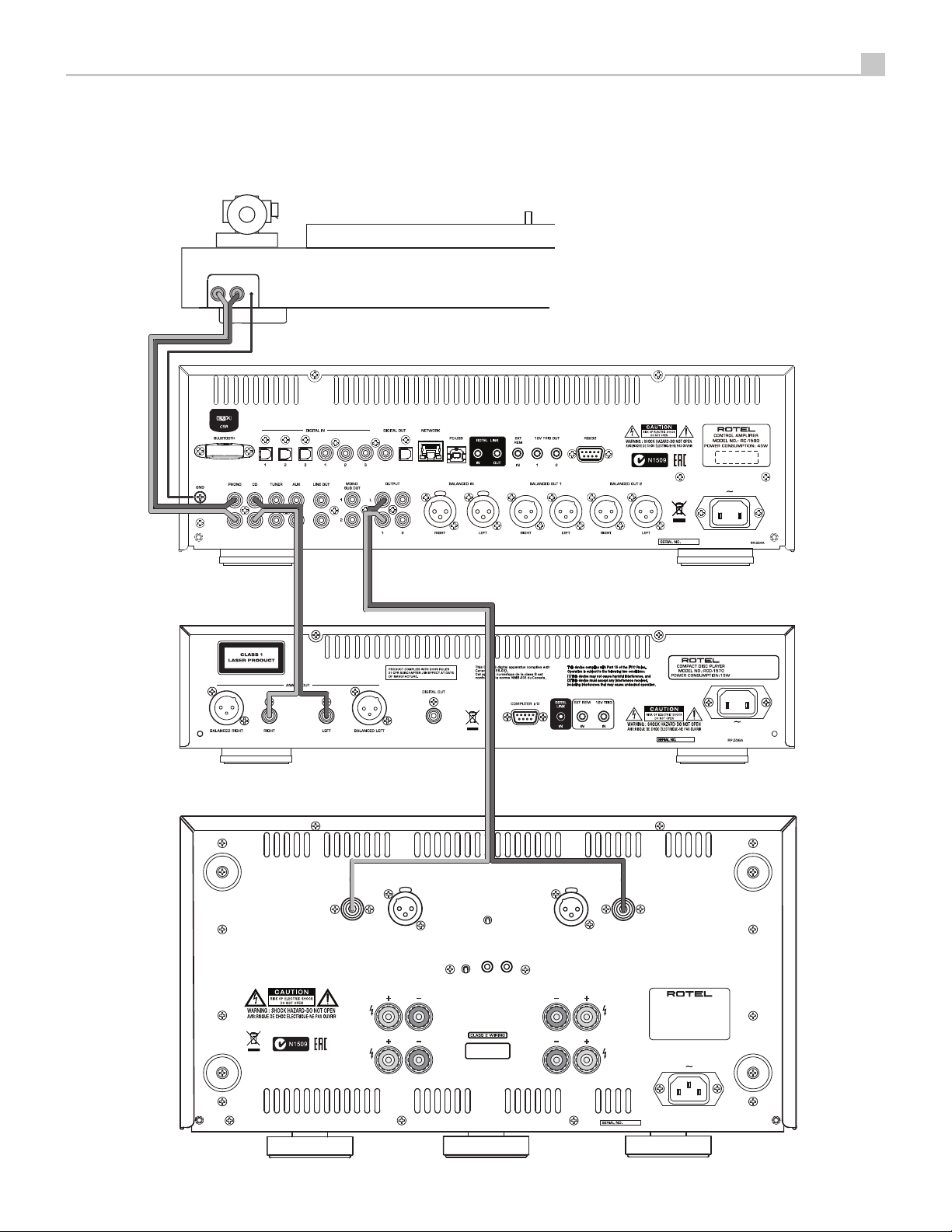

Figure 3: Analog Input and Output Connections 5

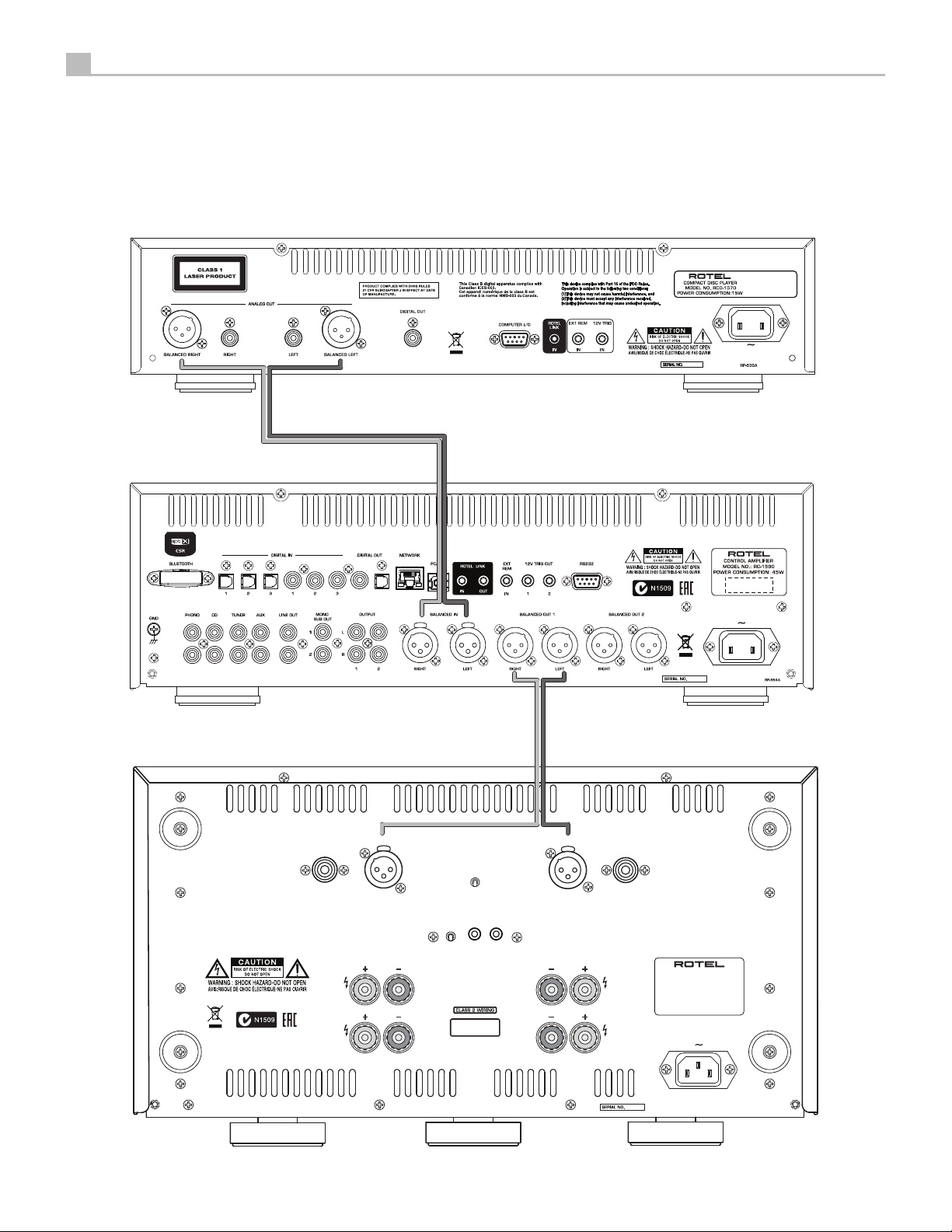

Figure 4: Balanced (XLR) Input and Output Connections 6
Figure 5: Digital Inputs and 12V Trigger Output 7
Figure 6: Front USB Input 8
Important Notes 9
About Rotel ......................................................10
Getting Started ...................................................10
A Few Precautions 11
Placement 11
Cables 11
The RR-AX100 Remote Control........................................11
Second Amplier Remote Code 11
Remote Control Batteries 11
AC Power and Control ..............................................11
AC Power Input s11
POWER Switch and Power Indicator 111
12V TRIGGER Connection t12
Input Signal Connections ............................................12
Phono Input iand Ground Connection (GND) u12
Line Level Inputs io 12
Balanced (XLR) Inputs \12
Digital Inputs -12
Output Connections ................................................12
Digital output =12
Line Output p12
MONO SUB Output [12
Preamp Output ]12
Balanced (XLR) Preamp Output a12
Headphone Output 5..............................................12
Remote Sensor 2................................................13
Display 3......................................................13
Front USB Input 6................................................13
APTX Bluetooth Connection 0........................................13
Audio Controls ...................................................13
Volume Control 4DE 13
Balance Control 9C13
Tone Control Bypass 9C13
Bass and Treble Controls 9C13
Function Control 8L13
Dimmer Control ...................................................13
Display Dimmer 9B13
Rotel Link e....................................................14
EXT REM IN Jack t...............................................14
RS232 y. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
PC-USB Input w..................................................14
Network Connection q.............................................14
Setup Menu ......................................................14
Troubleshooting ...................................................16
Power Indicator Is Not Illuminated 16
Fuse Replacement 16
No Sound 16
Playable Audio Format 16
Specications ....................................................17
