Rotel RDG-1520V02 User manual

Technical
Manual
DIGITAL GATEWAY
RDG-1520V02
Table of Contents
Specification......................................1
Parts List...........................................2~6
Upgrade Procedure..........................7~8
PCB Assembly..................................9~10

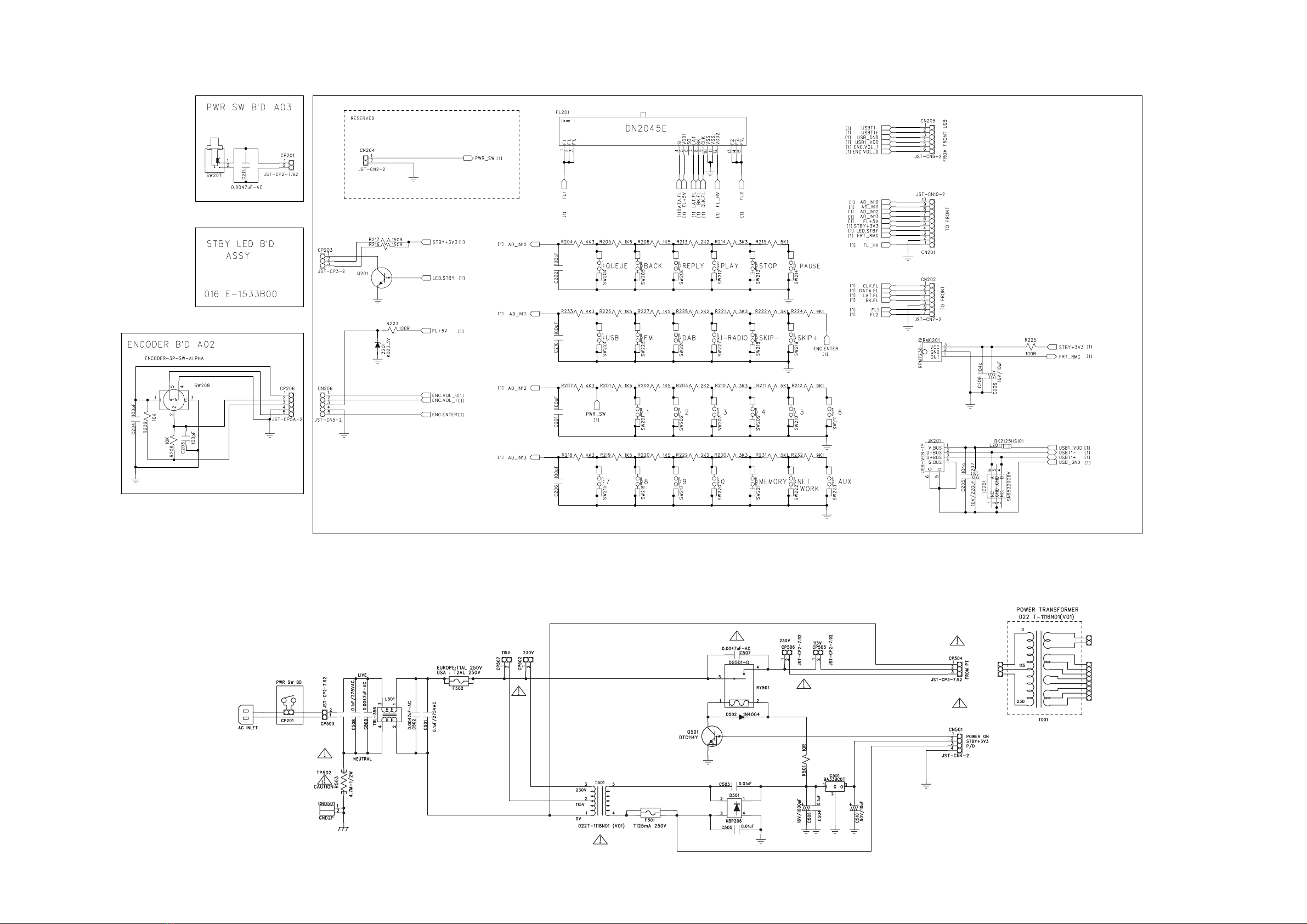

Schematic Diagram ..........................11~13
2F 6-12-21 MEGUROHON-CHO, MEGURO-KU,
TOKYO 152-0002, JAPAN
Serial. NO.
Beginning
®
Quality Uncompromised
Y-427B-1011/pdf
THE ROTEL CO., LTD.
Specifications
FM Tuner
Usable Sensitivity
22.2dBf
50dB Quieting Sensitivity
27.2dBf(mono)
Signal to Noise Ration (at 65 dBf)
63 dBf (mono)
60 dBf (stereo)
Harmonic Distortion (at 65 dBf)
0.2% (mono)
0.3% (stereo)
Frequency Response
10 Hz-15kHz, ±3dB
Stereo Separation
(100Hz/1kHz/10kHz)
40dB/45dB/35dB
Output level
1.1V
Antenna Input
75 ohms unbalanced
DAB Tuner
Sensitivity
-80dBm
Tuning Range
Band III
(174-240MHz)
Audio Data Rate
224Kbps (Max)
Frequency Response
20 - 20KHz +/- 1.0dB
Analog Output
2.1V at 0dBFS
Antenna Intput
75 ohms F connector
Audio USB(front)/AUX
General
Network connection
802.11b/g
Security
WEP, WPA1 (TKIP)
WPA2 (TKIP)
File formats
Real Audio, MP3,
Windows media
streams, OGG vorbis
AAC, WAV, AIFF
and AU.
Power consumption
12 watts
Power Requirements (AC)
120V, 60Hz(USA)
230V, 50Hz(Europe)
Weight
6.5 kgs 14.33 lbs
Dimensions (W x H x D)
431 x 99 x 312 mm 17x37/8x121/4 in
Front panel height
2U (31/2 in)
Signal to Noise Ratio (IHF-A)
90dB
Total Harmonic Distortion (0dBfs)
0.2%
Output Level (0dBfs)
2.2V
0441001 ~

QUEUE
PL AY
BAC K REP LY
SKIP --
PAUS ESTO P
NETWORK USBAUX
SKIP +
RDG-1520V02
123
456
789
MEMORY0 DAB i-RADIOFM
POWER
PUSH SELECT

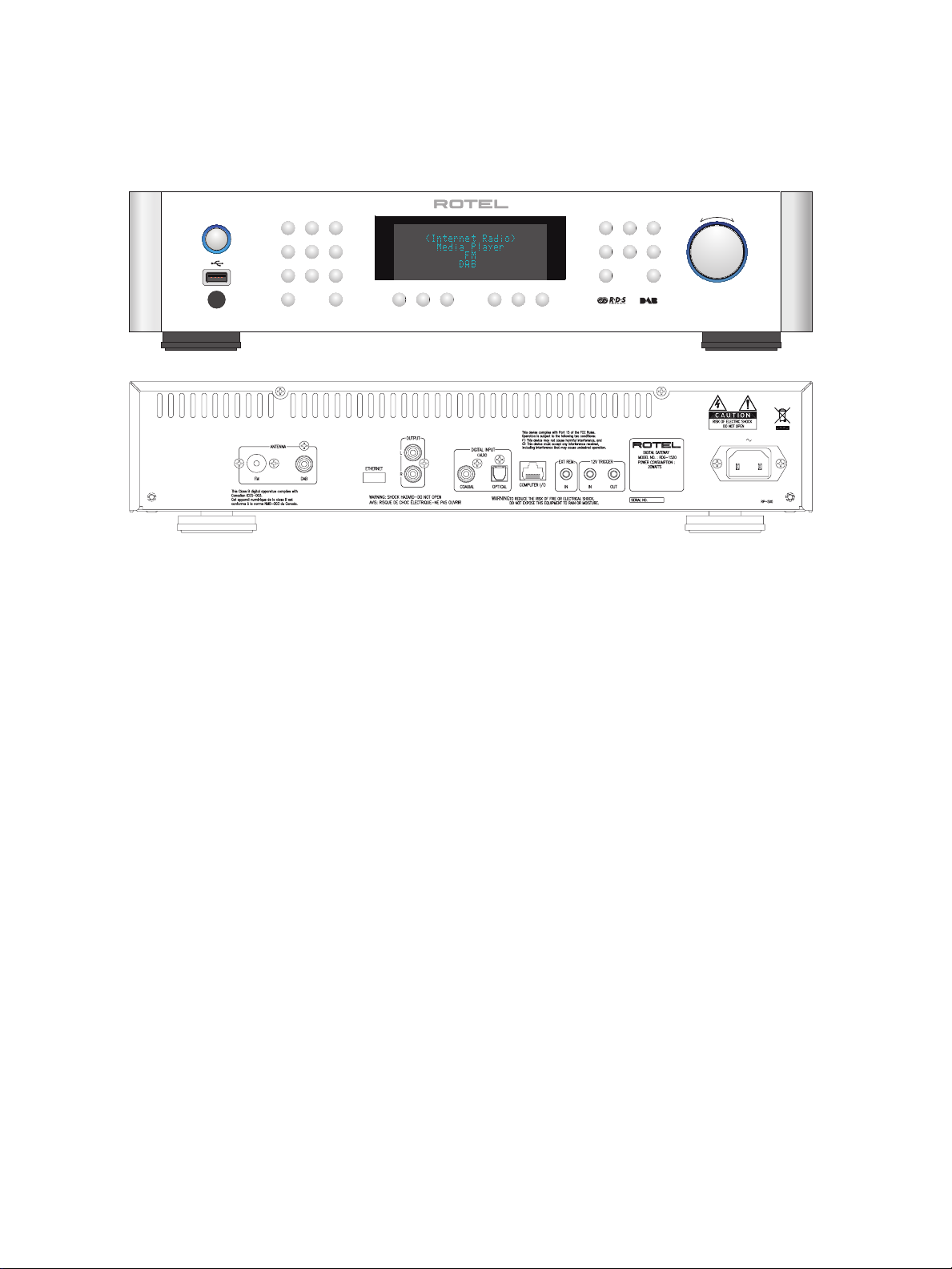

Appearance
RDG-1520V02
2

Parts List 1/4 RDG-1520V02
SYMBOL PARTS NO. DESCRIPTION
501 E-1568C-1 PCB ASSY (MAIN)
HS101,HS102 017 4TR-2792#3 SUB HEAT SINKER H=35
L103 021 2888100012 COIL TRANS PLUS
XT101 023 CY0600100 CRYSTAL ISXO-3E-24.576MHZ
XT102 023 CY0700400 CRYSTAL SMD SRXA-S1-18-4MHZ
L102 025 BK2125HS101 BEAD COIL BK2125HS101-T
L107,108,111,112,114,115 025 BK2125HS102 BEAD COIL BK2125HS102-T
L101,104-106,109,110,113 025 BK2125HS601 BEAD COIL CHIP
IC118 031 IC0001900 IC AK4114VQP SMD (D/A TRANSCEIVER)
IC113 031 IC0002910 IC EPROM AT24C16AN-10SU-2.7V
IC103,104 031 IC0007700 IC LTV817 (PHOTO COUPLER)
IC111 031 IC0010600 IC NJM7805FA(KIA7805API-U/P) (REG. +5VDC)
IC115 031 IC0010900 IC NJM7812FA(KIA7812API-U/P) (REG. +12VDC)
IC114 031 IC0011500 IC NJM7912FA(KIA7912PI-U/P) (REG. -12VDC)
IC106-108 031 IC0012700 IC OPA2604AP (OPE DUAL)
IC119,120 031 IC0025400 IC SN74LVC257APWR SMD (MULTIPLEXER)
IC112 031 IC0027600 IC SMD WM8740SEDS (DAC)
(IC117) 031 IC0028300 IC CPU STM32F101RCT6 LQFP64P 32-bit MCU
IC101 031 IC0028600 IC SN65220DBVR USB port Transient Suppressor
IC109 031 IC0028800 IC SN74HC4040PW 12-BIT ASYNC BYNARY COUNTER
IC105 031 IC0029000 IC SN75C3232PWR RS232 Line drivereceiver 3-5V
IC102,121 031 IC0029100 IC TPS2553DBVR Adjustable current limite S/W
IC110 031 IC0029200 IC REG KIA378R033PI 3A WITH S/W
IC116 031 KIA7805AF IC SMD (REG. +5VDC) 2169606121
Q104 032 KRA107S TRANSISTOR CHIP KRA107S-RTK/P
Q101,103,106,107,108 032 KRC107S TRANSISTOR CHIP KRC107S-RTK/P
Q105,109 032 TC3708-ST TRANSISTOR CHIP 2SC3708AA-ST
D103,106,107 034 DB0001000 POWER DIODE KBP206 (2A 600V)
D104,105,108,109,112-115 034 DD0000200 DIODE T1N4004-TB
D110 034 DD0000300 DIODE T1N4148-86
D101,102,111 034 DD0000500 DIODE CHIP KDS184RTK/P
DZ102 034 DZ0100121 ZENER DIODE HZS12NB3-TD-E
DZ104,105 034 DZ0100201 ZENER DIODE HZS20NB3-TD-E
DZ101 034 DZ0103R31 ZENER DIODE HZS3.3NB2-TD-E
DZ103 034 DZ0105R11 ZENER DIODE HZS5.1NB2-TD-E
C157,164,182,205 041 16SH47M+F ELECTROLYTIC CAPACITOR 16V47UF
C141,155,158,166,178,196 041 25SH10M+F ELECTROLYTIC CAPACITOR 25V10UF
C142-145 041 35ZA10MTZ ELECTROLYTIC CAPACITOR 35V10UF
C112,115 041 50ZL100M ELECTROLYTIC CAPACITOR 50V100UF
C174,179 041 EEUFC1E101SB ELECTROLYTIC CAPACITOR 25V100UF
C113,114,123-126 041 EEUFC1E221B ELECTROLYTIC CAPACITOR 25V220UF
C170,184 041 EEUFC1E222S ELECTROLYTIC CAPACITOR 25V2200UF
C140,153,160,C122 041 TUTES1C222-7TS ELECTROLYTIC CAPACITOR 16V2200UF
C195 041 TUTES1E470-7TF ELECTROLYTIC CAPACITOR 25V47UF
C104,201,208 041 TUTES1H100-7TF ELECTROLYTIC CAPACITOR 50V10UF
C206,207 041 TUTES1H220-7TF ELECTROLYTIC CAPACITOR 50V22UF
C194 041 TUTES1H221-7TS ELECTROLYTIC CAPACITOR 50V220UF
C200 041 TUTES1H4R7-7TF ELECTROLYTIC CAPACITOR 50V4.7UF
C197 041 TUTES1HR47-7TF ELECTROLYTIC CAPACITOR 50V0.47UF
C209 041 TUTES1J471-7TS ELECTROLYTIC CAPACITOR 63V470UF
C130,146,152,161,162,169,172,173 043 TC500V103 CERAMIC CAPACITOR 500V0.01UF
C151,156,159,163,165,167 043 TC50V473 CERAMIC CAPACITOR 50V0.047UF
C117-120 044 FSC160V220H POLYSTYRENE CAPACITOR 160V22PF
C132-139 044 FSCEX160V102H POLYSTYRENE CAPACITOR 160V1000PF
C185,186 047 3536200122 CERAMIC CAPACITOR CHIP 50V20PF
C210,211 047 ECJ2VC1H102J CERAMIC CAPACITOR CHIP 50V1000PF
C198 047 GRM216B11H103KA01D CERAMIC CAPACITOR CHIP 50V0.01UF
C101-103,105-111,116,121,127-129 047 GRM219F11H104ZA01D CERAMIC CAPACITOR CHIP 50V0.1UF
C131,147-150,154,168,171,175-177 047 GRM219F11H104ZA01D CERAMIC CAPACITOR CHIP 50V0.1UF
C180,181,183,187-193,199,202-204 047 GRM219F11H104ZA01D CERAMIC CAPACITOR CHIP 50V0.1UF
R186,201 054 1WS10JF MOR RESISTOR 1WS 10
016 E-1568C00 PCB ASSY
3

Parts List 2/4 RDG-1520V02
SYMBOL PARTS NO. DESCRIPTION
R150,166 054 1WS1JF MOR RESISTOR 1WS 1
R198 054 1WS4.7JF MOR RESISTOR 1WS 4.7
R221,223,224 054 TMF4R70 METAL RESISTOR 1/4W 4.7
R124,134,136,137,139 054 TMFR4001KI METAL RESISTOR MFR4 1/4W 1K
R125 054 TMFR4010RI METAL RESISTOR MFR4 1/4W 10
R222 054 TMFR402K2I METAL RESISTOR MFR4 1/4W 2.2K
R194-197 054 TMFR4047RI METAL RESISTOR MFR4 1/4W 47
R142,143,145,146 054 TMFR4056RI METAL RESISTOR MFR4 1/4W 56
R219,220 054 TMFR4220RI METAL RESISTOR MFR4 1/4W 220
R132,133 054 TMFR4560KI METAL RESISTOR MFR4 1/4W 560K
R147,148 054 TMFR4680RI METAL RESISTOR MFR4 1/4W 680
R162-165 054 TPR9372-01K5D METAL RESISTOR PR9372 1.5K
R154-161 054 TPR9372-470RD METAL RESISTOR PR9372 470
R135,138,141,144 054 TRC55D1001C METAL RESISTOR RC55D 1K
R129,130 054 TRC55Y1000C METAL RESISTOR RC55Y 100
R113,149,151-153,193,213 055 ERJ6ENF1000V RESISTOR CHIP 2012 1/10W 100
R111,123,191,207,209,212 055 ERJ6ENF1001V RESISTOR CHIP 2012 1/10W 1K
R101,112,116,127,169,171,174 055 ERJ6ENF1002V RESISTOR CHIP 2012 1/10W 10K
R178-182,187-190,204,211,218 055 ERJ6ENF1002V RESISTOR CHIP 2012 1/10W 10K
R229-231 055 ERJ6ENF1002V RESISTOR CHIP 2012 1/10W 10K
R199 055 ERJ6ENF1004V RESISTOR CHIP 2012 1/10W 1M
R102-104,170 055 ERJ6ENF10R0V RESISTOR CHIP 2012 1/10W 10
(R175) 055 ERJ6ENF1502V RESISTOR CHIP 2012 1/10W 15K
R119,120,172,175 055 ERJ6ENF1502V RESISTOR CHIP 2012 1/10W 15K
R106-109 055 ERJ6ENF1800V RESISTOR CHIP 2012 1/10W 180
(R175,176) 055 ERJ6ENF1802V RESISTOR CHIP 2012 1/10W 18K
R205 055 ERJ6ENF1802V RESISTOR CHIP 2012 1/10W 18K
R173 055 ERJ6ENF1803V RESISTOR CHIP 2012 1/10W 180K
R110 055 ERJ6ENF2200V RESISTOR CHIP 2012 1/10W 220
R118,121 055 ERJ6ENF22R0V RESISTOR CHIP 2012 1/10W 22
R200 055 ERJ6ENF3900V RESISTOR CHIP 2012 1/10W 390
R140 055 ERJ6ENF4700V RESISTOR CHIP 2012 1/10W 470
R114,115,126,128,183,184,206,208 055 ERJ6ENF4701V RESISTOR CHIP 2012 1/10W 4.7K
R214-217,225-228 055 ERJ6ENF4701V RESISTOR CHIP 2012 1/10W 4.7K
(R176) 055 ERJ6ENF4702V RESISTOR CHIP 2012 1/10W 47K
R122,176,177,210 055 ERJ6ENF4702V RESISTOR CHIP 2012 1/10W 47K
R117,131 055 ERJ6ENF75R0V RESISTOR CHIP 2012 1/10W 75
R105,167,168,185,202,232 055 ERJ6GEY0R00V RESISTOR CHIP 2012 1/8W 0
S101,S102 061 C-4679A03 TACT SWITCH 5MM GRY HV061050GS
RLY101,RLY102 063 EA2-12NU RELAY
JK101-JK103 065 YKB21-5406N 3.5DIA MINIATURE JACK (ST)
JK109 066 C-4733A03 1P PIN JACK BLACK
JK110 066 C-4764A01 2P PIN JACK AU (WHITE/RED)
JK107 066 C-5131A00 JACK USB 1P TYCO 292303-4 ANGLE
P1,P4 066 C-5133A20 CNT SOCKET P2.0 TM2502-DG-20P
P2 066 C-5133A32 CNT SOCKET P2.0 TM2502-DG-32P
P3 066 C-5133A40 CNT SOCKET P2.0 TM2502-DG-40P
JK104 066 SY010-8P/K RJ45 TERMINAL SY010-8P/K-01E/RH
JK105 066 TORX147L OPTICAL MODULE TORX147L (F,T)
JK108 067 C-5126A00 TERMINAL ANT 1P C1016002
JK106 067 SC0110101N ANTENNA TERMINAL 1P
CP201 068 B10B-PH-KS CONNECTOR POST 10P
CP105 068 B2P-VH CONNECTOR POST 2P
CP501 068 B4B-PH-KS CONNECTOR POST 4P
CP205 068 B6B-PH-KS CONNECTOR POST 6P
CP202 068 B7B-PH-KS CONNECTOR POST 7P
CP106 068 B8B-EH CONNECTOR POST 8P
501 X-1569C-1 PCB ASSY (FRONT)
L201 025 BK2125HS101 BEAD COIL BK2125HS102-T
IC201 031 IC0028600 IC SMD SN65220DBVR USB port Transient Suppressor
016 X-1569C01-03 PCB ASSY
4

Parts List 3/4 RDG-1520V02
SYMBOL PARTS NO. DESCRIPTION
RMC201 031 IC0030600 REMOCON SENSOR RPM7238-H9 3.3V
Q201 032 KRC231S TRANSISTOR SMD KRC231S-RTK/P
Z201 034 DZ0053R30 ZENER DIODE CHIP KDS184RTK/P
FL201 035 DN2045E FL TUBE DN2045
C211 044 3549472109 AC CAPACITOR 400V0.0047UF
C207 047 ECFS1A221M ELECTROLYTIC CAPACITOR SMD CHIP EC-FS 10V220UF
C209 047 ECFS1C100M ELECTROLYTIC CAPACITOR SMD CHIP EC-FS 16V10UF
C201-204,206,210 047 ECJ2VC1H101J CERAMIC CAP CHIP 2012 50V100PF
C205,208 047 ECJ2VF1H104Z CERAMIC CAP CHIP 2012 50V0.1UF
R223,225 055 ERJ6ENF1000V RESISTOR CHIP 2012 1/10W 100
R208,209 055 ERJ6ENF1002V RESISTOR CHIP 2012 1/10W 10K
R216,217 055 ERJ6ENF1500V RESISTOR CHIP 2012 1/10W 150
R201,202,205,206,219,220,226,227 055 ERJ6ENF1501V RESISTOR CHIP 2012 1/10W 1.5K
R203,213,228,229 055 ERJ6ENF2201V RESISTOR CHIP 2012 1/10W 2.2K
R210,214,221,230 055 ERJ6ENF3301V RESISTOR CHIP 2012 1/10W 3.3K
R204,207,218,233 055 ERJ6ENF4301V RESISTOR CHIP 2012 1/10W 4.3K
R211,215,222,231 055 ERJ6ENF5101V RESISTOR CHIP 2012 1/10W 5.1K
R212,224,232 055 ERJ6ENF9101V RESISTOR CHIP 2012 1/10W 9.1K
SW208 056 C-5136A00 ROTARY ENCODER (WITH DETENT SWITCH)
SW207 061 C-4176A08 POWER SWITCH TV-8
SW201-206,209-227 061 C-4679A03 TACT SWITCH 5H
JK201 066 C-5132A00 PIN JACK 1P
CP204 068 B2P3-VH CONNECTOR POST 2P
CP203 068 B3B-PH-KS CONNECTOR POST 3P
501 E-1564A-1 PCB ASSY (TELECHIPS)
XT302 023 CY0900100 CRYSTAL SMD 12MHz SRXA-SI-A8
L301,302 025 BK2125HS601 BEAD COIL CHIP
L303 025 CIL10J2R2K COIL CHIP 1608 2.2UH
IC305 031 IC0002703 IC SMD AME1117CCGTZ ABF (REGULATOR)
IC304 031 IC0002704 IC SMD AME1117ECGTZ AXH (REGULATOR)
IC306 031 IC0023900 IC SMD ES29LV160ET-70RTG (FLASH MEMORY)
(IC306) 031 IC0023902 IC SMD ES29LV160ET-G20 ESI 16M BIT WRITING
IC303 031 IC0024101 IC SMD K4S641632K-UC60 (MEMORY)
IC301 031 IC0030400 IC SMD MFI341S2164 I-POD 2.0 CP Authentication
IC302 031 IC0030500 IC SMD TCC8600 32-bit RISC for Host Player
C306 047 ECJ1VB1H122K CERAMIC CAP CHIP 50V1200PF
C307,308 047 ECJ1VC1H220J CERAMIC CAP CHIP 50V22PF
C305 047 ECJ1VC1H391J CERAMIC CAP CHIP 50V390PF
C309 047 ECJ1VF1C105Z CERAMIC CAP CHIP 16V1UF
C324 047 ECJ1VF1C105Z CERAMIC CAP CHIP 16V1UF
C310-313 047 ECJ1VF1H104Z CERAMIC CAP CHIP 50V0.1UF
C314-318,321-323,325-329,331-340 047 ECJ1VF1H104Z CERAMIC CAP CHIP 50V0.1UF
C301-304 047 TCSCS1A226M TANTAL CAP CHIP 3216
R318 055 ERJ3EKF1001V RESISTOR CHIP 1K
R327,328,333,336,337,340 055 ERJ3EKF1002V RESISTOR CHIP 10K
R305 055 ERJ3EKF1004V RESISTOR CHIP 1M
R322-325 055 ERJ3EKF1502V RESISTOR CHIP 15K
R301-304 055 ERJ3EKF22R1V RESISTOR CHIP 22.1
R317 055 ERJ3EKF4701V RESISTOR CHIP 4.7K
R319,320,330,331,334 055 ERJ3EKF4701V RESISTOR CHIP 4.7K
R332 055 ERJ3EKF4702V RESISTOR CHIP 47K
R335 055 ERJ3EKF56R0V RESISTOR CHIP 56
R306-316 055 EXB28V470JX RESISTOR CHIP ALLEY 2010
J301 068 C-5130A20 CNT PIN HEADER P2.0 TM2004-AG 20P
501 E-1577B-1 PCB ASSY (STANDBY)
L501 021 TRL-356 LINE CHOKE COIL LF-2217 150UH
T501 022 T-1118N01-V01 STBY TRANS SB-0236 5V-100mA
IC501 031 IC0031400 IC BA33BC0T 3V3 LDO
Q501 032 TDTC114YSA TRANSISTOR DTC114YSATP
016 E-1564A00 PCB ASSY
016 E-1577B00 PCB ASSY
5

Parts List 4/4 RDG-1520V02
SYMBOL PARTS NO. DESCRIPTION
D501 034 DB0001000 POWER DIODE KBP206 (2A 600V)
D502 034 DD0000200 DIODE 1N4004-F (AMMO) 1A 400V
(F502) 036 5T1L-250V FUSE 250VT1AL
F501 036 5T250ML-250V FUSE 250VT250mAL
(F502) 036 5T2L-250V FUSE 250VT2AL
C506 041 TUTES1C102-7TS ELECTROLYTIC CAPACITOR 16V1000UF
C510 041 TUTES1H100-7TF ELECTROLYTIC CAPACITOR 50V10UF
C503,505 043 TC50V103 CERAMIC CAPACITOR 50V0.01UF
C504 043 TC50V104 CERAMIC CAPACITOR 50V0.1UF
C502,507,509 044 3549472109 AC CAPACITOR 400V0.0047UF
(R503) 054 MSR1/2W4M7J METAL SURGE RESISTOR 4.7M
R501 054 TMF4R70 METAL RESISTOR 1/4W 4.7
RY501 063 DG1U-5-025W RELAY DG5D1-O(M)
CP504 068 4428503746 CONNECTOR POST
CP502,503,505-507 068 B2P3-VH CONNECTOR POST 2P
011 FP-661A-B BLACK PANEL ASSY
011 FP-661A-S SILVER PANEL ASSY
012 C-5009B00 TACT BUTTON 8.3F (BLACK)
012 C-5009B01 TACT BUTTON 8.3F (SILVER)
012 C-5026A01 KNOB 33F (BLACK)
012 C-5026A01S KNOB 33F (SILVER)
012 RV4-09A00 PUSH BUTTON 14F (BLACK)
012 RV4-09A01 PUSH BUTTON 14F (SILVER)
014 C-5004B03 UPPER COVER (BLACK)
014 C-5004B03S UPPER COVER (SILVER)
014 YM3-02A00 SIDE CAP (BLACK) 2U (88.1H)
014 YM3-02A01 SIDE CAP (SILVER) 2U (88.1H)
015 RP-500A REAR CHASSIS
019 4TSH-19#2 PLASTIC FOOT 50F (BLACK)
019 C-5017A00 TACT BUTTON BASE 15KEY
022 T-1115N01-V02 POWER TRANSFORMER
069 C-4629A01 AC 2P INLET 6102.3100 (WIRING)
071 MFH4X8BK MACHINE FLAT HEAD SCREW (BLACK)
071 MFH4X8NI MACHINE FLAT HEAD SCREW (SILVER)
072 C-4621A03 AC CORD SET SJT AWG16 UL 2P for USA
072 C-4622A02 AC CORD SET for AUSTRALIA
072 C-4623A02 AC CORD SET for UK
072 C-4624A03 AC CORD SET for EUROPE CEE 2P
081 ZE-220(T/B) ETHAFOAM MOULDING
081 ZL3-20A01 INSIDE CARTON
081 ZL3-21A01 SHIPPING CARTON
082 OMRDG-1520-81 OWNER'S MANUAL
092 C-4944A00 DAB Antenna
P1,P2,P3 092 C-5135A00 STINGRAY MODULE
092 RR-CX92 REMOTE UNIT
092 WL0115 USB WiFi Dongle WL0115
OTHERS
6

Main Software Upgrade Procedure
2. Use Hyper Terminal program of Microsoft original which has "Ymodem" protocol selection.
(1) execute Hyper Terminal > Name: xxxxx > OK (2) Connect To > COM1 > OK
(3) COM1 Properrties > 115200,8,None,1,None > OK (4) File > Properties
(5) Settings > ASCII Setup… (6) ASCII Setup > checking… > OK
1. Connect RDG-1520 and PC with RJ45/DB9 cable (Computer I/O cable). RJ45 jack should be connected to COMPUTER I/O port in RDG-1520 rear
panel. DB9 jack will be connected to PC serial port (ex. COM1 or COM2,,,).
RDG-1520V02
7

(7) typing "upgrade" and enter (8) display Main Menu > typing "1"
(8-1) ready for sending (9) Transfer > send file
(10) Send File > select "RDG1520 bin file" > "Ymodem" > Send (11) Sending
(12) Programming completed successfully. > Turn AC-power off and on.
RDG-1520V02
8

Main PCB 016 E-1568C00
RDG-1520V02
PCB Assembly 1/2
9

Front PCB 016 X-1569C01~03
Standby PCB 016 E-1577B00
RDG-1520V02
PCB Assembly 2/2
Telechips PCB 016 E-1564A00
Standby PCB 016 E-1577B00
10

Schematic Diagram 1/3 MAIN PCB (1/2) 016 E-1568C00
RDG-1520V02
11

Schematic Diagram 2/3
MAIN PCB (2/2) 016 E-1568C00
RDG-1520V02
12

Front PCB 016 X-1569C01~03
Schematic Diagram 3/3 RDG-1520V02
Standby PCB 016 E-1577B00
13
