Rotel RX-1050 User manual

Technical
Manual
STEREO RECEIVER
RX-1050
Table of Contents
Appearance.......................................2
Specifications....................................1
Wiring Diagram.................................11
Adjustment........................................9 ~ 10
PCB Assembly.................................12 ~ 15
Schematic Diagram..........................16 ~ 22
Parts List...........................................3 ~ 8
SHINSEN-BLD. 4F 10-10 SHINSEN-CHO, SHIBUYA-KU,
TOKYO 150-0045, JAPAN
Serial. NO.
Beginning
®
Quality Uncompromised
Y-358A-0112/W
THE ROTEL CO., LTD.
Specifications
Audio
Continuous Amplifier Power
100 watts/ch (20-20k Hz, <0.05% THD, 8 ohms)
Total Harmonic Distortion
<0.05%
Inter modulation Distortion (60 Hz:7 kHz)
<0.05%
Frequency Response
10 Hz - 70 kHz, ±3 dB (line level)
20 Hz - 20 kHz, ±1 dB (phono)
Signal to Noise Ratio (IHF A-weighted)
Input Overload
92 dB (line level), 74 dB (phono)
5 V (line Input)
120 mV (phono)
Input Sensitivity/Impedance
Line Level: 160 mV/47 kohms
Phono Level: 2.5 mV/47 kohms
Tone Contr ols (Bass/T reble)
±8 dB at 100 Hz/10 kHz
Preoutput Level
1.0 V (160 mV Input)
Video
Frequency Response
3 Hz-10 MHz, ± 3 dB
Signal to Noise Ratio
45 dB
Input Impedance
75 ohms
Output Impedance
75 ohms
Output Level
1 volt
AM T uner
Sensitivity
500 u V/m
Signal to Noise Ratio
40 dBf
Output level
250 mV
Antenna Input
Loop Antenna
General
Power Consumption:
300 watts
Power Requirements (AC)
115 volts, 60Hz (USA)
230 volts, 50Hz (CE)
Weight
10.3 Kg/ lb.
Dimensions (W x H x D)
432 x 121 x 362 mm
171/2 " x 6 1/4 " x 15 3/4 "
FM Tuner
Usable Sensitivity
14.2 dBf
Signal to Noise Ratio (at 65 dBf)
70 dBf
Har monic Distor tion (at 65 dBf)
0.03%
Stereo Separation (1 kHz)
45 dB
Output level
1.3 V
Antenna Input
75 ohms unbalanced

TAPE
IN
CD OUT
MON
IN
PRE
OUT
VIDEO 1
IN OUT
VIDEO 2
IN OUT
VIDEO 4 MON
OUT
VIDEO 3
ZONE 2
OUT
ZONE
REM
COMPUTER
I/O
12
EXT
REM 12V TRIG OUT
ANTENNA
AM
LOOP 1
2
RIGHT LEFT
RIGHT LEFT
PHONO CD TUNER TAPE VIDEO 1
VIDEO 2 VIDEO 3 VIDEO 4 ZONE REC
A
SPEAKER
B
MEMORY
TUNE/
PRESET
BAND
TUNING
MONO
POWER
PHONES BASS
TREBLE
AM/FM STEREO RECEIVER RX-1050
L
R
L
R
PHONO
L
R
L
R
IR
OUT
GND
A
SPEAKERS
B
SPEAKER IMPEDANCE MINIMUM
A OR B 4 OHMS PER SPEAKER
A AND B 8 OHMS PER SPEAKER
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTICAL SHOCK,
DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
SURROUND SOUND RECEIVER
MODEL NO. RX-1050
POWER CONSUMPTION: 500 WATTS
SWITCHED 200W MAX
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired operation.
Appearance
2

Parts List 1/6
SYMBOL PARTS NO. DESCRIPTION
HS1,HS2,HS3,HS4 017 C-4401A01 H/S BOARD SUB
LL201,LR201 021 TRL-331 SPEAKER COIL
Q221 032 KRC107M TRANSISTOR
QL203,204,QR203,204,Q218 032 KTA1266Y TRANSISTOR
QL217,QR217,Q219,220 032 KTC3198Y-AT TRANSISTOR
QL207,QR207 033 A1209-ST TRANSISTOR
QL212,QR212 033 A1667-OY TRANSISTOR
QL209,QR209 033 C2911-ST TRANSISTOR
QL211,QR211 033 C4381-OY TRANSISTOR
QL201,202,205,QR201,202,205 033 KTA1268-GRBL TRANSISTOR
QL206,208,QR206,208 033 KTC3200-GRBL TRANSISTOR
DL203,204,DR203,204 034 1N4004 DIODE
DL201,202,DR201,202,D205 034 T1N4148-86 DIODE
ZD201 034 TRD9.1JST1 ZENER DIODE
C215,CL207,CR207 041 TUTES1C471-TF ELECTROLYTIC CAPACITOR 16V470uF
C218 041 UTES1H010-FB ELECTROLYTIC CAPACITOR 50V1uF
CL210,213,CR210,213 041 UTES1H100-FB ELECTROLYTIC CAPACITOR 50V10uF
CL205,CR205 041 UTES1H220-FB ELECTROLYTIC CAPACITOR 50V22uF
CL204,CR204 041 UTES1H330-FB ELECTROLYTIC CAPACITOR 50V33uF
CL201,211,CR201,211 041 UTES1H4R7-FB ELECTROLYTIC CAPACITOR 50V4.7uF
CL208,209,CR208,209 041 UTES1J471 ELECTROLYTIC CAPACITOR 63V470uF
C216,217 041 UTES2A010 ELECTROLYTIC CAPACITOR 100V1uF
CL214,CR214 042 TP50V103J MYLAR CAPACITOR 0.01uF
CL212,CR212 043 TC50V102 CERAMIC CAPACITOR 1000pF
CL202,CR202 043 TC50V221 CERAMIC CAPACITOR 220pF
CL203,CR203 043 TC50V681 CERAMIC CAPACITOR 680pF
CL206,CR206 043 TC50VCH030 CERAMIC CAPACITOR 3pF
RL227,228,RR227,228 054 1WS47JF METAL OXIDE FILM RESISTOR 47R
RL235,245-247,RR235,245-247 054 NIR2-0.22JF NIR RESISTOR 0.22R
RL220,226,230,RR220,226,230 054 TMF1000 METAL RESISTOR 100R
RL201,RR201,R249 054 TMF1001 METAL RESISTOR 1K
RL210,RR210 054 TMF1002 METAL RESISTOR 10K
R246 054 TMF1003 METAL RESISTOR 100K
RL212,223,RR212,223 054 TMF1201 METAL RESISTOR 1.2K
RL203,204,RR203,204 054 TMF12R0 METAL RESISTOR 12R
RL209,RR209 054 TMF1500 METAL RESISTOR 150R
R252 054 TMF1501 METAL RESISTOR 1.5K
R253 054 TMF1503 METAL RESISTOR 150K
RL237-240,RR237-240 054 TMF2201 METAL RESISTOR 2.2K
RL221,222,RR221,222 054 TMF2202 METAL RESISTOR 22K
RL242,RR242 054 TMF2402 METAL RESISTOR 24K
R248 054 TMF3301 METAL RESISTOR 3.3K
RL202,211,229,RR202,211,229 054 TMF3302 METAL RESISTOR 33K
RL225,RR225 054 TMF3901 METAL RESISTOR 3.9K
RL231-234,RR231-234 054 TMF3R30 METAL RESISTOR 3.3R
RL217,RR217 054 TMF4701 METAL RESISTOR 4.7K
RL213-216,218,219,224 054 TMF5600 METAL RESISTOR 560R
RR213-216,218,219,224 054 TMF5600 METAL RESISTOR 560R
RL205,241,RR205,241 054 TMF6800 METAL RESISTOR 680R
RL244,RR244,R250 054 TMF6801 METAL RESISTOR 6.8K
R247 054 TMF6802 METAL RESISTOR 68K
RL208,RR208 054 TMF68R0 METAL RESISTOR 68R
RL206,207,RR206,207 054 TMF7500 METAL RESISTOR 750R
CP204,CP602 068 B2B-EH CONNECTOR POST 2P
CP201 068 B5B-PH-KS CONNECTOR POST 5P
GND201 069 C-4484A00 EARTH LUG
HS101 017 C-4682A02 H/S BOARD SUB
016 X-1321A00 AMPLIFIER PCB ASSY

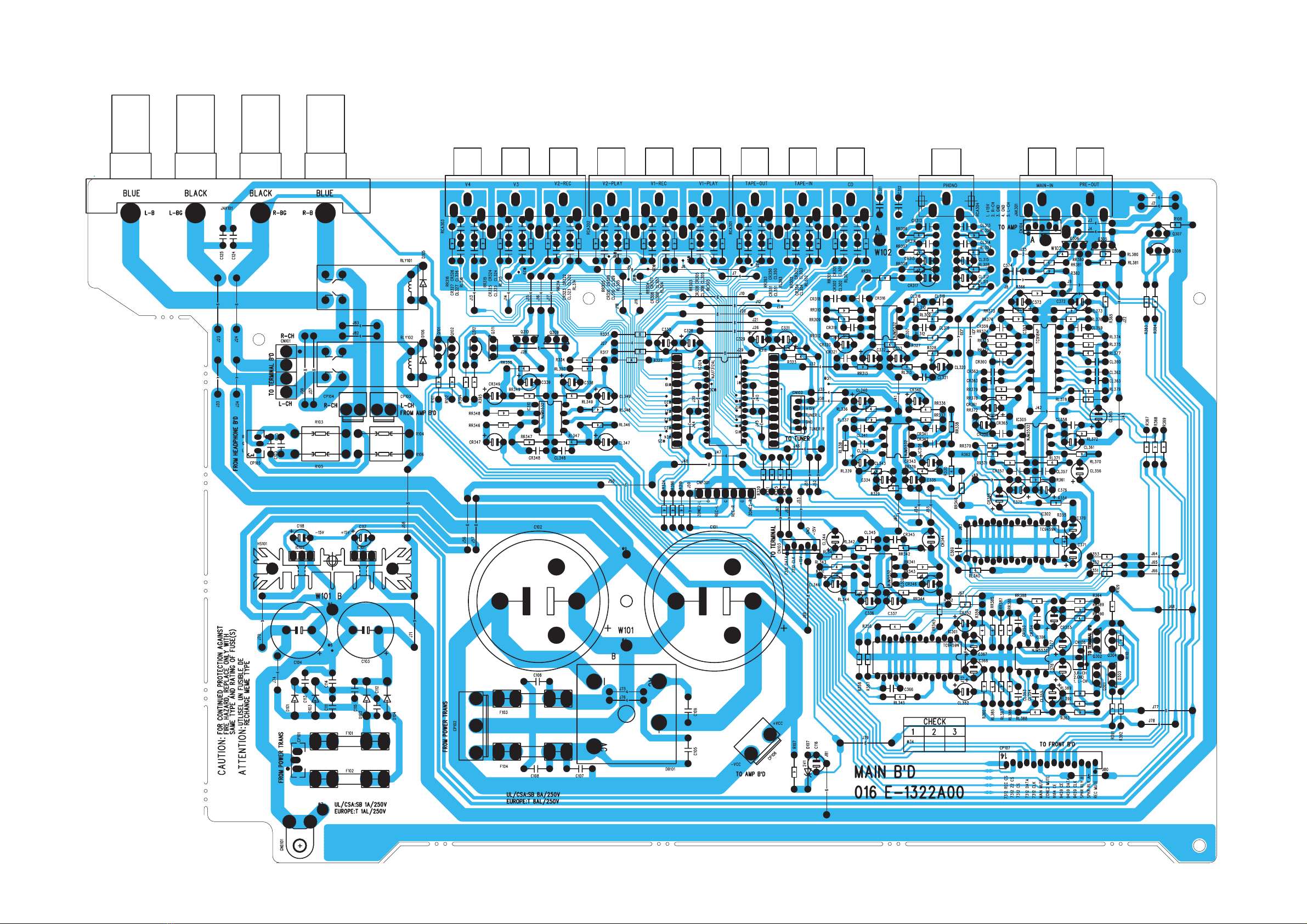

016 E-1322A00 MAIN PCB ASSY
3

Parts List 2/6
SYMBOL PARTS NO. DESCRIPTION
IC101 031 KIA7815PI IC (REGULATOR)
IC102 031 KIA7915PI IC (REGULATOR)
IC305-310 031 NJM5532D IC (OP AMP)
IC304 031 NJU7312AL IC (ANALOG SWITCH)
IC303 031 TC9184P IC (ELEC TONE)
IC301,302 031 TC9459N IC (ELEC VOLUME)
Q303,307,311 032 KRA107M TRANSISTOR
Q101,102,304,308,312 032 KTC3198Y-AT TRANSISTOR
Q301,302,305,306,309,310 032 TDTC323TS TRANSISTOR
D101-106 034 1N4004 DIODE
DB101 034 MP254W POWER DIODE
D107 034 TRD5.1JST1 ZENER DIODE
F101,F102 036 5ST1 FUSE 250V1A
F103,F104 036 5ST8 FUSE 250V8A
C101,102 041 AM1K123 ELECTROLYTIC CAPACITOR 80V12000uF
C328-339,367,368,370-373,375-378 041 UTES1E470-FB ELECTROLYTIC CAPACITOR 25V47uF
C117,118,CL365,CR365 041 UTES1H010-FB ELECTROLYTIC CAPACITOR 50V1uF
C116 041 UTES1H0R1-FB ELECTROLYTIC CAPACITOR 50V0.1uF
CL352,356,CR352,356 041 UTES1H100-FB ELECTROLYTIC CAPACITOR 50V10uF
CL317,CR317 041 UTES1H330-FB ELECTROLYTIC CAPACITOR 50V33uF
CL315,340,343,344,346,347,349,355,361 041 UTES1H4R7-FB ELECTROLYTIC CAPACITOR 50V4.7uF
CR315,340,343,344,346,347,349,355,361 041 UTES1H4R7-FB ELECTROLYTIC CAPACITOR 50V4.7uF
CL320,CR320 041 UTES1HR22-FB ELECTROLYTIC CAPACITOR 50V0.22uF
C103,104 041 UTES1V332 ELECTROLYTIC CAPACITOR 35V3300uF
CL360,CR360 042 TP50V123J MYLAR CAPACITOR 0.012uF
CL318,321,CR318,321 042 TP50V182J MYLAR CAPACITOR 1800pF
CL316,CR316 042 TP50V222J MYLAR CAPACITOR 2200pF
CL363,CR363 042 TP50V223J MYLAR CAPACITOR 0.022uF
CL362,CR362 042 TP50V272J MYLAR CAPACITOR 2700pF
C124,125 042 TP50V472J MYLAR CAPACITOR 4700pF
CL319,CR319 042 TP50V562J MYLAR CAPACITOR 5600pF
C105-109 043 TC500V103 CERAMIC CAPACITOR 0.01uF
C366,369 043 TC50V101 CERAMIC CAPACITOR 100pF
CL301-310,313,314,322-327,341,342,345 043 TC50V101 CERAMIC CAPACITOR 100pF
CL348,350,351,353,354,357 043 TC50V101 CERAMIC CAPACITOR 100pF
CR301-310,313,314,322-327,341,342,345 043 TC50V101 CERAMIC CAPACITOR 100pF
CR348,350,351,353,354,357 043 TC50V101 CERAMIC CAPACITOR 100pF
C312,374 043 TC50V104 CERAMIC CAPACITOR 0.1uF
C311 043 TC50V223 CERAMIC CAPACITOR 0.022uF
CL358,CR358 043 TC50V270 CERAMIC CAPACITOR 27pF
C110-115,123 044 50MSAN473J STACKED FILM CAPACITOR 0.047uF
CL359,CR359 044 50MSAN683J STACKED FILM CAPACITOR 0.068uF
R105,106 054 2WS10JF MOF RESISTOR 10R
R103,104 054 2WS470JF MOF RESISTOR 470R
RL336,340,345,350,370 054 TMF1000 METAL RESISTOR 100R
RR336,340,345,350,370 054 TMF1000 METAL RESISTOR 100R
R319-321,324-326,351-353,356-358,367-369,396 054 TMF1001 METAL RESISTOR 1K
RL301-306,314-316,341,346,381,385 054 TMF1001 METAL RESISTOR 1K
RL387,390,393 054 TMF1001 METAL RESISTOR 1K
RR301-306,314-316,341,346,381,385 054 TMF1001 METAL RESISTOR 1K
RR387,390,393 054 TMF1001 METAL RESISTOR 1K
RL338,RR338 054 TMF1002 METAL RESISTOR 10K
R108-110,382 054 TMF1003 METAL RESISTOR 100K
RL313,337,339,342,344,347,349,371,380,386,389 054 TMF1003 METAL RESISTOR 100K
RR313,337,339,342,344,347,349,371,380,386,389 054 TMF1003 METAL RESISTOR 100K
RL379,RR379 054 TMF1201 METAL RESISTOR 1.2K
R318,322,323,327-332,334,354,355 054 TMF2200 METAL RESISTOR 220R
R359-364 054 TMF2200 METAL RESISTOR 220R
R317,333 054 TMF2200 METAL RESISTOR 220R
RL377,RR377 054 TMF2702 METAL RESISTOR 27K
R101,102,391,394 054 TMF3301 METAL RESISTOR 3.3K
4

Parts List 3/6
SYMBOL PARTS NO. DESCRIPTION
RL374,RR374 054 TMF3902 METAL RESISTOR 39K
RL310,RR310 054 TMF4302 METAL RESISTOR 43K
R107,383,384,392,395 054 TMF4701 METAL RESISTOR 4.7K
RL343,348,376,388,RR343,348,376,388 054 TMF4701 METAL RESISTOR 4.7K
RL372,RR372 054 TMF4703 METAL RESISTOR 470K
R365,366,RL312,RR312 054 TMF5600 METAL RESISTOR 560R
RL378,RR378 054 TMF5601 METAL RESISTOR 5.6K
RL309,375,RR309,375 054 TMF5603 METAL RESISTOR 560K
RL311,RR311 054 TMF8200 METAL RESISTOR 820R
RL373,RR373 054 TMF8202 METAL RESISTOR 82K
RL307,308,RR307,308 054 TMF9102 METAL RESISTOR 91K
RLY101,102 063 DH2TU-24 RELAY
RCA304 066 4TR-2166#4 PIN JACK 2P
JAK301 066 4TR-2408#3 PIN JACK 4P
RCA301,302,303 066 4TR-3184 PIN JACK 6P
JAK101 067 C-4493A00 SPEAKER TERMINAL
CP102 068 4428503746 CONNECTOR POST (JE202B-1 T-3)
CP107 068 B14B-PH-KS CONNECTOR POST 4P
CP106 068 B2P3-VH CONNECTOR POST 7P
CP103,CP104 068 B2P-VH CONNECTOR POST 6P
CP108 068 B3B-EH CONNECTOR POST 3P
CP105 068 B3B-PH-KS CONNECTOR POST 5P
CNP301 068 C-4688A07 PIN PLUG
CNP301-1,CNP301-2 068 C-4688A11 PIN PLUG
F101-104 069 C-3417A FUSE CLIP
GND101 069 C-4484A00 EARTH LUG
T501 021 2648701170 LINE COIL
T502 022 T-1075N01 SUB TRANSFORMER
XT601 023 CST10.0MTW CERAMIC RESONATOR 10MHz
IC601* 031 CXP82812-1 IC (CPU MASKED) CXP82832-333Q
IC601* 031 CXP828P60Q-1 IC (CPU OTP)
IC405 031 HIN232CP IC (TRANSMITTER RECEIVER)
IC501 031 K1A7805P IC (REGULATOR)
IC403,404 031 LTV-817 IC (PHOTO COUPLER)
IC406,407 031 NJU7312AL IC (ANALOG SWITCH)
RMC601 031 SBX3010-52B IC (REMOTE MODULE)
IC401 031 TC9163AN IC (SWITCH ALLEY)
IC402 031 TK15420D IC (VIDEO AMP)
Q601 032 KRC107M TRANSISTOR
Q402,501 032 KTA1266Y TRANSISTOR
Q403,404,502,602-604 032 KTC3198Y-AT TRANSISTOR
Q401 032 TDTC323TS TRANSISTOR
D501-504,510 034 1N4004 DIODE
LED601,LED602 034 LTL1214A LED
D406-408,506,509,511,601-610,612 034 T1N4148-86 DIODE
D405,409-412 034 TRD12JST1 ZENER DIODE
D508 034 TRD30JST1 ZENER DIODE
D505 034 TRD4.3EST1 ZENER DIODE
D403,404 034 TRD5.6JST1 ZENER DIODE
D507 034 TRD9.1JST1 ZENER DIODE
FL601 035 SVR12MM18 FL TUBE
(F501) 036 5ST250 FUSE 250V250
(F501) 036 5ST315 FUSE 250V315
C601 041 SCDA5R5104V SUPER CAP 5.5V 0.1F
C501 041 UTES1E102 ELECTROLYTIC CAPACITOR 25V1000uF
C401,402,415,416 041 UTES1E470-FB ELECTROLYTIC CAPACITOR 25V47uF
C419-423,505,506 041 UTES1H010-FB ELECTROLYTIC CAPACITOR 50V1uF
C403,406,408-414,509 041 UTES1H100-FB ELECTROLYTIC CAPACITOR 50V10uF
C603 041 UTES1H3R3-FB ELECTROLYTIC CAPACITOR 50V3.3uF
016 X-1323B01-10 FRONT PCB ASSY
5

Parts List 4/6
SYMBOL PARTS NO. DESCRIPTION
C510 041 UTES1H470-FB ELECTROLYTIC CAPACITOR 50V47uF
C605 041 UTES1H4R7-FB ELECTROLYTIC CAPACITOR 50V4.7uF
C604 041 UTES1HR22-FB ELECTROLYTIC CAPACITOR 50V0.22uF
C429,430 042 TP50V472J MYLAR CAPACITOR 4700pF
C609,612,615-620 043 TC50V101 CERAMIC CAPACITOR 100pF
C417,418,602,606 043 TC50V103 CERAMIC CAPACITOR 0.01uF
C502-504,508,613,614 043 TC50V473 CERAMIC CAPACITOR 0.047uF
C426,427 043 TC50V561 CERAMIC CAPACITOR 560pF
C607,608,610,611 043 TC50V821 CERAMIC CAPACITOR 820pF
C428,512 044 3549472109 SPARK KILLER
C507,511 044 50MSAN104J STACKED FILM CAPACITOR 50V0.1uF
R501 054 1WS22J MOF RESISTOR 22R
R508 054 MOF12-3M3 CARBON RESISTOR 3.3M
R420,422,424,427,431,605 054 TMF1000 METAL RESISTOR 100R
R403-405,421,423,425,432,433,505,627 054 TMF1001 METAL RESISTOR 1K
R622-626 054 TMF1001 METAL RESISTOR 1K
R504,610,611,613,628-631 054 TMF1002 METAL RESISTOR 10K
R435,436,608 054 TMF1003 METAL RESISTOR 100K
R415,426,430 054 TMF10R0 METAL RESISTOR 10R
R401,402 054 TMF2200 METAL RESISTOR 220R
R407,434 054 TMF2202 METAL RESISTOR 22K
R614,615 054 TMF2R20 METAL RESISTOR 2.2R
R612,616,618,620 054 TMF3300 METAL RESISTOR 330R
R506 054 TMF3301 METAL RESISTOR 3.3K
R609 054 TMF3302 METAL RESISTOR 33K
R408,410,412-414,428 054 TMF4700 METAL RESISTOR 470R
R429,502,509,606,607,617,619 054 TMF4701 METAL RESISTOR 4.7K
R621,632-638 054 TMF4701 METAL RESISTOR 4.7K
R601-604 054 TMF4702 METAL RESISTOR 47K
R507 054 TMF47R0 METAL RESISTOR 47R
R503 054 TMF56R0 METAL RESISTOR 56R
R406,409,411,416-419 054 TMF75R0 METAL RESISTOR 75R
RO601-RO623 055 ERJ6GEYJ124V CHIP RESISTOR 120K
SW601 056 C-4678A01 ENCODER EC16B243040F (D25)
SW602,SW603 056 C-4678A03 ENCODER EC16B242040A (D20)
SW401 061 C-4176A08 POWER SWITCH
S601-618 061 C-4179A03 TACT SWITCH
RLY501 063 OZT-SS-112LMI RELAY
SW604 064 KSS02S DIP SWITCH
JAK406 065 C-3399#1 HEAD PHONE JACK 3P
JAK401-403 065 HSJ1002-01-1020 3.5F JACK
RCA401 066 4TR-2166#4 PIN JACK 2P
RCA404 066 4TR-2487#9 PIN JACK 1P
RCA402,RCA403 066 4TR-2964#10 PIN JACK 3P
JAK404 066 SY010-8P/K RJ45 TERMINAL
JAK405 067 C-4493A00 SPEAKER TERMINAL
CP503 068 4428503746 CONNECTOR POST 3P (JE202B-1 T-3)
CP604 068 B2B-PH-KS CONNECTOR POST 2P
CP501,CP502,CP505 068 B2P3-VH CONNECTOR POST 2P
CP108,CP601 068 B3B-PH-KS CONNECTOR POST 3P
CP504 068 B4B-EH CONNECTOR POST 4P
CP101 068 B4P-VH CONNECTOR POST 4P
CP103 068 B5B-PH-KS CONNECTOR POST 5P
CP606 068 B7B-PH-KS CONNECTOR POST 7P
CP603,CP605 068 B8B-PH-KS CONNECTOR POST 8P
CP607-2,CP608-2 068 C-4687A07 PCB CONNECTOR
CP607,CP607-1,CP608,CP608-1 068 C-4687A11 PCB CONNECTOR
F501 069 C-3417A FUSE CLIP
JAK407 (USA VERSION ONLY) 069 C-4372A00 AC OUTLET
GND501 069 C-4484A00 EARTH LUG
6

Parts List 5/6
SYMBOL PARTS NO. DESCRIPTION
L01 021 2648601430 MICRO INDUCTOR 20.8mH
T01 021 RLV152A00 AM ANT COIL (M7ZN-K5643A-KR)
T03 021 RLV154A00 AM IFT COIL (A7MC-K672713N4-KR)
T02 021 RLV155A00 AM OSC COIL (7BR-K111027X2-KR)
TL06,TR06 021 RLV156A00 MPX LPF COIL (253AGG-K5001-KR)
T04 021 RLV157A00 FM DET-A1 COIL (292BCA-K5713FKG)
T05 021 RLV158A00 FM DET-B1 COIL (292BCA-K5714X)
CF04 023 AHCFM2-450BL CERAMIC FILTER (AHCFM2-450BL)
X02 023 CSB456F11 CERAMIC FILTER
X01 023 HC49U-004 CRYSTAL 7.2MHZ
CF01-03 023 SFE10.7M-02 CERAMIC FILTER (SFE10.7MA5-A)
IC02 031 LA1266 IC
IC03 031 LA3401 IC
IC01 031 LM7001JUM IC
Q04,Q05,Q06,Q09 032 KRA107M TRANSISTOR
Q03 032 KTC3194Y TRANSISTOR
Q01,Q02,Q07 032 KTC3198Y-AT TRANSISTOR
QL08,QR08 032 TDTC323TS TRANSISTOR
VD01,VD02 034 SVC321SPA-B2 VARACTOR DIODE
D02 034 T1N4148-86 DIODE
ZD01 034 TRD5.1JST1 ZENER DIODE
C14,35,44 041 TUTES1C101-TF ELECTROLYTIC CAPACITOR 16V100uF
C05,11 041 TUTES1C470-TF ELECTROLYTIC CAPACITOR 16V47uF
C33,45,47 041 TUTES1H010-TF ELECTROLYTIC CAPACITOR 50V1uF
C20,39,49,53,CL51,CR51 041 TUTES1H100-TF ELECTROLYTIC CAPACITOR 50V10uF
C03,27 041 TUTES1H3R3-TF ELECTROLYTIC CAPACITOR 50V3.3uF
C26,28,41 041 TUTES1H4R7-TF ELECTROLYTIC CAPACITOR 50V4.7uF
C46 041 TUTES1HR22-TF ELECTROLYTIC CAPACITOR 50V0.22uF
C30,48 042 TP50V223J MYLAR CAPACITOR 0.022uF
C31 042 TP50V332J MYLAR CAPACITOR 3300pF
C32 042 TP50V393J MYLAR CAPACITOR 0.039uF
C38 043 TC50V101 CERAMIC CAPACITOR 100pF
C37 043 TC50V820 CERAMIC CAPACITOR 82pF
C16 043 TC50VCH150 CERAMIC CAPACITOR 15pF
C09 043 TC50VCH270 CERAMIC CAPACITOR 27pF
C08 043 TC50VCH330 CERAMIC CAPACITOR 33pF
C15 044 S50V470PJ STYROL CAPACITOR 47pF
TC01 045 TZ03N100 TRIMMER 10pF
C04,07,23 047 ECJ2VB1H103K CHIP CAP 0.01uF
C01,06,12,13,17,18,21,22,29,34,40 047 ECJ2VB1H223K CHIP CAP 0.022uF
C02,24,25,42 047 ECJ2VF1H473Z CHIP CAP 0.047uF
CLU52,CRU52 047 ECJ2VG1H100D CHIP CAP 10pF
C10 047 ECJ2VG1H101J CHIP CAP 100pF
CL50,CR50 047 ECJ2VG1H121J CHIP CAP 120pF
C36 047 ECJ2VG1H331J CHIP CAP 330pF
CL52,CR52 047 ECJ2VG1H680J CHIP CAP 68pF
C43 047 ECJ2VG1H681J CHIP CAP 680PF
CLU50,CRU50 047 ECJ2VG1H820J CHIP CAP 82pF
VR03 051 TRH063MCJ5R SEMI-FIXED VR 220K
VR01 051 TRH063MCS3R SEMI-FIXED VR 4.7K
VR02 051 TRH063MCS4R SEMI-FIXED VR 47K
R16,34,39 055 ERJ6GEYJ101V CHIP RESISTOR 100R
R10,17,18,19,38 055 ERJ6GEYJ102V CHIP RESISTOR 1K
R07,27 055 ERJ6GEYJ103V CHIP RESISTOR 10K
R01,04,06 055 ERJ6GEYJ104V CHIP RESISTOR 100K
RL57,RR57 055 ERJ6GEYJ152V CHIP RESISTOR 1.5K
R11 055 ERJ6GEYJ181V CHIP RESISTOR 180R
R35 055 ERJ6GEYJ182V CHIP RESISTOR 1.8K
R29,37 055 ERJ6GEYJ220V CHIP RESISTOR 22R
016 E-4002002301 TUNER PCB ASSY
7

Parts List 6/6
SYMBOL PARTS NO. DESCRIPTION
R28,41,43 055 ERJ6GEYJ223V CHIP RESISTOR 22K
R08,21 055 ERJ6GEYJ271V CHIP RESISTOR 270R
RL48,RR48 055 ERJ6GEYJ272V CHIP RESISTOR 2.7K
RL46,RR46,RL47,RR47 055 ERJ6GEYJ274V CHIP RESISTOR 270K
R20 055 ERJ6GEYJ331V CHIP RESISTOR 330R
R13,33,42,RL49,RR49 055 ERJ6GEYJ332V CHIP RESISTOR 3.3K
R31 055 ERJ6GEYJ392V CHIP RESISTOR 3.9K
R26 055 ERJ6GEYJ393V CHIP RESISTOR 39K
R05,15,22 055 ERJ6GEYJ471V CHIP RESISTOR 470R
R24,30 055 ERJ6GEYJ472V CHIP RESISTOR 4.7K
R36,40,44 055 ERJ6GEYJ473V CHIP RESISTOR 47K
R09,12,14 055 ERJ6GEYJ561V CHIP RESISTOR 560R
R02,32 055 ERJ6GEYJ562V CHIP RESISTOR 5.6K
R03 055 ERJ6GEYJ623V CHIP RESISTOR 62K
R25 055 ERJ6GEYJ683V CHIP RESISTOR 68K
ANT01 067 SC0210586N ANTENNA TERMINAL
CP20 068 B5B-PH-KS CONNECTOR POST 5P
CN10 068 B6B-PH-KS CONNECTOR POST 6P
068 DM-2GM-0 SHORT PLUG
JLE/U100,JRE/U100 068 TDB04SG BASE POST 4PIN
FE01 092 FTA4-460H FRONT-END
017 TZ3-07A00 HEAT SINKER BOARD
019 TO-126 MICA SHEET TBM-51W-15 #9524
019 TO-3P MICA SHEET TBM-51W-15 #9043
QL210,QR210 032 C4137-V TR
QL215,216 033 A1492-OPY TR 2SA1492-OPY (PAIR 2SC3856)
QL213,214 033 C3856-OPY TR 2SC3856-OPY (PAIR 2SA1492)
CP204 034 436302122031 POSISTOR P43T7D120BW20
505 FRX-1050 FRONT PANEL ASSY
011 TH3-01A00 H/S PANEL
012 C-4711A03 KNOB 43F
012 C-4751A00 KNOB 10F
012 RV4-09A00 PUSH BUTTON 14F BLK
012 TB3-18A00 TACT BUTTON 16 KEY
014 C-4716A00 SIDE CAP H=109MM BLK
014 C-4723A03 TOP COVER
019 4TSH-19#2 PLASTIC FOOT 50F BLK
019 C-4520A01 LED SPACER LH-5S-5
019 C-4520A02 LED SPACER LH-5S-6
021 RLA145A00 AM LOOP ANT(2608207360)
022 T-1088N01 POWER TRANSFORMER
034 LTL1214A LED (BRIGHT RED) 2F
034 SEL1124R LED (RED) 1X5
069 18-24 F CONNECTOR
069 C-4629A01 AC 2P INLET 6102.3100 (WIRING)
069 C-4783A00 JUMPER PLUG
072 C-4621A01 AC CORD SET SJT AWG16/2C
072 C-4622A01 AC CORD SET AUSTRALIA
072 C-4623A01 AC CORD SET U.K
072 C-4624A01 AC CORD SET EUROPE
072 4TR-3228 T TYPE ANTENNA
081 TZ3-10A00 INSIDE CARTON
081 Z-204 STYROL MOULDING
092 RR-939B REMOTE UNIT
O T H E R S
HEAT SINKER ASSEMBLY
8

Tuner Adjustment Method
FM Section
* Necessary measurement equipment
RDS/STEREO Multiplexer, FM/AM Signal Generator, Audio Analyzer, Oscilloscope, Digital Volt Meter (DVM)
(A) Center adjust
RDS/STEREO Multiplexer Setting
- MODE : MONO - Audio Frequency : 1KHz
FM Signal Generator Setting
- Deviation : 75KHz - Radio Frequency : 98.1MHz - Output Level : 66dB
RX-1050 Setting
- FM Frequency : 97.9MHz - FM MODE : MONO
1. Turn FM Signal Generator Modulation on
2. Connect DVM (+)(-) terminals to Jumper J7 and J8 and measure the volt.
3. If measured voltage is not adjusted within ±10mV, Make this measured volt '0' by adjusting T04 (FM-DET-A Coil).
: The adjustment should be within ± 10mV
4. After this adjustment, measure THD(Total Harmonic Distortion) with Audio Signal Generator
5. Adjust THD to minimum point with T05(FM-DET-B Coil). : THD shuold be within 0.5%
(B) Channel Separation adjust
RDS/STEREO Multiplexer Setting
- MODE : STEREO ( ONLY L-CH Signal OUT ) - Audio Frequency : 1KHz
FM Signal Generator Setting
- Deviation : 75KHz - Radio Frequency : 98.1MHz - Output Level : 66dB
RX-1050 Setting
- FM Frequency : 98.1MHz - FM MODE : STEREO
1. Turn FM Signal Generator Modulation on after modulating only L-CH (or only R-CH) at STEREO Multiplexer.
2. Confirm if 'STEREO'indicator is turned 'ON' on the display
3. Measure output level via Audio Signal Analyzer and make the level as standard.
4. Turn FM Signal Generator Modulation on after modulating only R-CH (or only L-CH) at STEREO Multiplexer.
5. Measure output level via Audio Signal Analyzer (measure per a dB)
6. If meaured output level is not lower than -40dB, Adjust output level to minimum position with VR03 ( CH-SEPA. ADJ.).
: lower than -40dB
(C) TUNED Level adjust
RDS/STEREO Multiplexer Setting
- MODE : STEREO - Audio Frequency : 1KHz
FM Signal Generator Setting
- Deviation : 75KHz - Radio Frequency : 98.1MHz - Output Level : 26dB
RX-1050 Setting
- FM Frequency : 98.1MHz - FM MODE : STEREO
1. Turn FM Signal Generator Modulation 'ON' (confirm if output level is 26dB)
2. Change the output level of the Generator from 20dB to 30dB
and Confirm if 'STEREO' & 'TUNED' indicator of the DISPLAY turns on at 26db(±5 dB)
3. If these indicators do not turn on at higher than 26dB(±5dB) or do not turn off at lower than 26(±5dB) ,
Adjust VR02 ( FM-ADJ ) up to the moment where 'STEREO' & 'TUNED' indicator turns OFF & ON at 26dB.
4. Confirm if 'STEREO' & 'TUNED' turns OFF when decreasing the output level slowly from 26dB to 25dB, 24dB ~~~.
(Repeat the above 3. if not OFF in lower than 24dB.)
5. Push RX-1050's TUNE UP or DOWN button "long" at Signal Generator Output Level 26dB and start Auto search.
Confirm if search stops at FM Frequency 98.1MHz.
(Examine both of High Freq. -> 98.1MHz search , Low Freq. -> 98.1MHz search)
9

AM Section
* Necessary measurement equipment :
AM Signal Generator, Audio Signal Analyzer, Dummy Load, Oscilloscope, Digital Volt Meter (DVM)
(A) VT adjust
AM Signal Generator Setting
1. Adjust AM Frequency of RX-1050 to 522KHz. (or 520KHz)
2. Connect (-) terminal of DVM with GND ( or chassis ) and connect (+) terminal
with Jumper J3 ( VT CHECK ) and mesaure voltage. ( Low Freq. VT)
3. Adjust VT to 1.1V with T02 (AM-OSC Coil).
* In case of USA version, AM freq. range is 520KHz ~ 1710KHz. So, adjust as below.
at 520KHz, VT = 1.1V ( Low Freq. VT)
(B) Output Level adjust
AM Signal Generator Setting
- Modulation : 30% - Audio Frequency : 400Hz - Output Level : 100dB
- Radio Frequency : 603KHz (or 600KHz )
RX-1050 Setting
- AM Frequency : 603KHz/1404KHz/999KHz (or 600KHz/1400KHz/1000KHz)
1. Turn AM Signal Generator Modulation ON
2. Adjust RX-1050 AM Freq. to 603KHz (or 600KHz) and measure output level with Audio Signal analyzer.
3. Adjust output level to maximum point with T01 ( AM-ANT ).
4. Adjust AM Signal Generator & RX-1050 AM Frequency to 1404KHz (or 1400KHz) and measure output level.
5. Adjust output level to maximum point with TC01 (White Trimmer).
6. Repeat above 2.~ 5. steps 2 ~ 3 times until adusting to best output level.
7. Adjust AM Signal Generator & RX-1050 AM Frequency to 999KHz (or 1000KHz) and measure output level.
8. Adjust level to maximum position with T03 (AM-IFT).
(C) TUNED Level adjust
AM Signal Generator Setting
- Modulation : 30% - Audio Frequency : 400Hz - Radio Frequency : 999KHz (or 1000KHZ)
- Output Level : 84dB
RX-1050 Setting
- AM Frequency : 999KHz (or 1000KHz)
1. Turn AM Signal Generator Modulation ON ( Make sure if Output level is 84dB )
2. If 'TUNED' indicator does not turn on at higher than 80~86dB(Generator output),
Adjust VR01 ( AM-ADJ ) up to the moment where 'TUNED' indicator tunrs OFF & ON again
3. Confirm if 'TUNED' turns OFF when decreasing the output level of AM Signal Generator slowly from 84dB to 80dB.
4. Push RX-1050 TUNE UP or DOWN button "long" at AM Signal Generator Output Level 84dB and start AUTO search.
Confirm if search stops at AM Frequency 999KHz (or 1000KHz).
< Check with both of High Freq. -> 999KHz(or 1000KHz) search , Low Freq. -> 999KHz(or 1000KHz) search >
10

3
4
5
6
7
1
2
1) ENC VR B'D CN603->FRONT B'D CP603
2) FRONT B'D CN601->RE SEN B'D CP601
3) FRONT B'D CN606->POW B'D CP606
4) FRONT B'D CN605->TERMINAL B'D CP605
5) FRONT B'D CN107->MAIN B'D CP107
6) FRONT B'D CN610->TUNER B'D CN10
7) FRONT B'D CN602->AMP B'D CP602
8) POW LED->FRONT B'D CP604
9) AMP B'D CN202->MAIN B'D CP104
10) AMP B'D CN203->MAIN B'D CP106
11) AMP B'D CN201->MAIN B'D CP103
12) POSISTOR->AMP B'D CP204
13) MAIN B'D CN104->AMP B'D CP201
14) MAIN B'D CN102->TUN B'D CP20
15) MAIN B'D CN108->TERMINAL B'D CP108
16) MAIN B'D CN103->TERMINAL B'D CP103
17) MAIN B'D CN101->TERMINAL B'D CP101
18) P/T Primary ->POW B'D CP503
19) P/T Secondary RED/BLK->MAIN B'D CP102
20) P/T Secondary WHT/GRY->MAIN B'D CP101
25) H/P B'D CN105->MAIN B'D CP105
26) WIRE CLAMPER->6 POINTS
21) P/T Secondary ORG/VIO->POW B'D CP504
22) AC INLET->POWER B'D CP501
23) POWER SW B'D CN502->POW B'D CP502
24) OUTLET B'D CN505->POW B'D CP505
OUTLET B'D TERMINAL B'D B'D
POWER TRANS
MAIN B'D
POWER B'D
AMP B'D
CN603
CP603 CN610
CN107
CN605
CN602
CN606
CN601
CP604
CP601
LED
CN202 CN203 CN201
CP602
CP204
CP201
CP101 CP102 CP106 CP107
CN108
CN104
CN505 CP101 CP103 CP605 CP108
CN102
CN103
CN101
CP104 CP103
CP105
12000UF 12000UF
CP502
CP501
CP505
CP503
CP504
CP606
CN502
CP20
CN10
POSISTOR
AC IN
CN105
REMB'D
POW ER SW H/P
FRONT B'D
ENC VR B'D
TUNER
Wiring Diagram
11

PCB Assembly (1/4)
Front PCB X-1323B Top Side
12

PCB Assembly (2/4) Front PCB X-1323 Bottom Side
13

PCB Assembly (3/4) Main PCB E-1322A00
14

PCB Assembly (4/4) Amplifier PCB 016 X-1321A00
Tuner PCB 4002002301
TOP SIDE BOTTOM SIDE
1
Added wire
15

Block Diagram
16

GND
OUT
VCC
SBX3010-52B
CP601
CP3PZ
RMC SENSOR B'D
FROM FRONT B'D
016 X-1323A10
RMC601
1
2
3
1
2
3
TO RMC SENSOR B'D
CN601
CN3P
1
2
3
V_REF
EXT_RMC
2
1
V_REF
KEY_IN4
KEY_IN3
KEY_IN2
KEY_IN1
FROM ENCORDER VOLUME B'D
CP603
CP8PZ
232_RX
232_TX
9163_CS
V MUTE
EXT_RMC
ZONE2 _RMC 1
2
3
4
5
6
7
8
TO TERMINAL B'D
CN 8P
CN605
(CP605)
(CP606)
(CP602)
(CP107)
7312_CLK
7312_DATA
7312_CS
9163_CS
232_TX
VDD -30V
232_RX
V MUTE
ZONE2_MUTE
MAIN_MUTE
PWR_MUTE
RST
RST
VDD
+5.6V
7312_Z2_CS 7312_REC_CS
STAND_BY_LED
STAND_BY
0TP Version ONLY
FL2
-30V 2
+5.6V
-30V
4
5
6
7
3
STAND_BY
V_REF
PWR_DOWN
FL2
FL1
CN606
CN7P
TO POWER B' D
1
FL1
FIP
SVR12MM18
SVR12MM18
VOL_UP.
VL_REF.
VL_REF. VL_REF.
BASSL_UP.
TREBLE_UP.
TREBLE_DOWN.
BASS_DOWN.
016 X-1323A04
ENCORDER VOLUME B'D
VOL_ UP.
VL_REF.
BASSL_UP.
TREBLE_UP.
TREBLE_DOWN.
VOL_DOWN.
BASS_DOWN.
VOL_DOWN.
1
2
3
4
6
5
7
8
CN8P
CN603
STAND_BY_LED
STAND_BY_LED
CP2PZ
CP604
RLY_B
SPKR_
SPKR_RLY_B
SPKR_RLY_A
SPKR_RLY_A
VOL_UP.
VL_REF.
BASSL_UP.
TREBLE_UP.
TREBLE_DOWN.
VOL_DOWN.
BASS_DOWN.
TUNED
TO TUNER B'D
1
2
3
4
5
6
1
2
3
4
5
6
7
8
CN610
TUNER_MUTE
STEREO
7001_DATA
7001_CE
7001_CLK
SPKR_RLY_A
SPKR_RLY_B
9459_DATA
9459_CE
9184_CE
7312_CLK
7312_DATA
7312_CS
7312_Z2_CS
7312_REC_CS
9459_CLK
1
2
3
4
5
6
7
8
9
10
11
12
13
14
TO MAIN B'D
CN14P
CN 107
REC_MUTE
ZONE2_MUTE
MAIN2_MUTE
PROTECTION
V _REF 1
2
PWR_MUTE
CN602
CN2P
TO AMP B'D
VOL_UP.
V_REF.
BASSL_UP.
TREBLE_UP.
TREBLE_DOWN.
VOL_DOWN.
BASS_DOWN.
SPKR_RLY_A SPKR_RLY_B
9459_DATA
9459_CLK
EXT_RMC ZONE2 _RMC
TUNED
TUNER_MUTE
STEREO 7001_DATA 7001_CE 7001_CLK
REC_MUTE
PROTECTION PWR_DOWN
9459_CE
9184_CE
+5.6V
31
35
34
33
32
36
40
39
38
37
41
45
44
43
42
48
47
46
49
58 57 79
50
53 52 51
54
56 55 63 62
12 20 14
11
13 21 22 23 27 28 29 30 15 16 24 17 25 18 26 19
64 66 65 69 68 67 70 72 71 75 74 73 76 78 77
CXP82832
1C601
80 59 61 60
P3
81
82
83
90
91
92
93
94
95
96
97
98
99
1 2 3 4 8 6 5 7 9
10
100
84
85
86
87
88
89
P9
P8
P7
P6
P5
P4
G7
G6
G3
G2
G1
G12
G5
G4
P2
100P
100P
100P
100P
100P
100P
P9
P10
P11
P12
P13
P14
615
616
617
618
620
619
P1
VDD
G11
G10
G11
G12
KEY_IN4
KEY_IN3
KEY_IN2
KEY_IN1
G9
G8
P20 P21 P22 15
12 13 14
11
9
10
8 4 5 6 7 3
1 2
34 37
25 27
35
26 23 24
31 32 33
30 28 29 22
36
19 20 21 18 16 17
38 39 40 41 42 43 44
P35 P35
G12 G9 G10 G11
45 46 47 48 49
51
50
P9 P8 P7 P6 P5 P4 P3 P2
P1
F2 .
F2
F1
C613 473C F1.
G1
G2 G5 G6 G7 G8 G3 G4
G12 G9 G10 G11 G1 G2 G5 G6 G7 G8 G3 G4
P23 P24 P25 P31 P26 P27 P28 P29 P30 P32
P33
P34 P18 P16 P17 P19
C614
473C
P9 P8 P7 P6 P5 P4 P3 P2
P1
P10 P11 P12
P13 P14 P15
P20 P21 P22 P23 P24 P25 P31 P26 P27 P28 P29 P30 P32 P33 P34 P18 P10 P16 P17 P19
P11
P12 P13 P14 P15
P20 P21 P22 P23 P24 P25 P31 P26 P27 P28 P29 P30 P32 P33 P34 P18 P16 P17 P19 P35 P13 P14 P15
P20 P21 P22 P23 P24 P25 P31 P26 P27 P28 P29 P30 P32 P33 P34 P18 P16 P17 P19 P35 P13 P14 P15 P10 P11 P12
LTL1214A
LTL1214A
LTL1214A
FL601
1N4148
2R2
2R2
D601
R614
R615
R618
R620
330
330
330
R616
LED602
LED601
LED603
10K
4.7/50V
103C
R613
C605
C606
330
S614
S616
S618
120K 120K 120K 120K 120K 120K 120K 120K
C610
R630
120K 120K 120K 120K 120K 120K 120K 120K 120K 120K 120K 120K 120K 120K 120K
R612
22
GND GND
GND
D613
IN4148
SPEAKER A
SPEAKER B
ZONE2
IN4148
IN4148 IN4148
CD
MEMORY
R611
100P
100P
820P
10K
10K
10K
10K
10K
10K
R631
820P
R628
R629
C612
C607
S615
820P 820P
S617
R610
C608
C609
D612
SW602
ENCODER3P
ENCODER3P
SW603 SW601
D610
D611
POWER_OPT.2POWER_OPT.1
PHONO
TUNER
BAND
FM50K / ON
FM50K / 100K
AM9K / ON
AM9K / 10K
VIDEO4
TUNER /PRESET
TUNER DOUN
REC.SEL
S601
S603
S605
VIDEO3
MOMO
S602
S606
S608
S607 S604
S609
S611
S613
S610
S612
VIDEO2
TAPE
TUNE UP
C611
3
1
13
BBC
AB
CC
A
A
2
3
1
ENCODER3P
R632
4k7
4k7
R607
4K7
100K
R608
R601
R602
R603
R604
47K
47K
47K
47K
R633
R634 R635 R636 R637 R638
4k7 4k7 4k7 4k7 4k7
1K
D604
D605
R622
R625
R623
R624
1K
1K
1K
1K
D606
D607
D608
D609
1N4148
1N4148
1N4148
1N4148
1N4148
1N4148
R626
R627
1K
R0622 R0623 R0621 R0612 R0611 R0610 R0609 R0608 R0607 R0606 R0605 R0604 R0603 R0602 R0601 R0618 R0617 R0616 R0615 R0614 R0613 R0620 R0619
1N4148
C603
100
R605
103C
0.1F / 5.5V
C602
IN4148
D603 C601
D602
0.22 / 50V
Q601
3.3 / 50V
R606
KTC107M
C604
4K7
XT601
10MHZ
KTC3198
KTC3198
KTC3198
Q602
Q603
Q604
R621 R619
R617
4K7
4K7
4K7
R609 33K
Schematic Diagram (1/6) Front Circuit 016X-1323B01,04,10
17

RR305
INPUT
OUT PUT
PHONO
CD
VIDEO 1
VIDEO 1
VIDEO 2
VIDEO 3
VIDEO 2
VIDEO 4
TAPE
TAPE_OUT
Schematic Diagram Main PCB (1/2) 016 X-1322A00
18

SPEAKER B
LEFT
RIGHT
1
5
CN103
CN5P
-15V
+15V
7312_CLK
7312_DATA
3
4
2
AMPLIFIER B'D
016 X-1321A00
CN203
POWER-S
CN201
CN202
CP201
SPEAKER A
LEFT
016 X1323A02
016 X1323A02
RIGHT
TO
TERMINAL B' D
ZONE OUT
LEFT
RIGHT
Schematic Diagram (3/6) Main PCB (2/2) 016 X-1322A00
19

Z5V1
4K7
TO_MAIN-B'D
LEFT-OUT
(CP103)
(CP104)
(CN104)
(CP106)
RIGHT-OUT
+/- VCC
FROM
FROM
FRONT B'D
MAIN B'D
IN_PUT
Schematic Diagram (4/6) Amplifier Circuit 016 X-1321A00
CP5PZ
CP201
3
4
1
2
5L INPUT
R INPUT
1
2
20
