Rotenso RFV Series Instruction Manual

www.rotenso.com
EN
INSTALLATION & USER’S MANUAL
MODELS:
Wall Mounted
Ceiling Cassette
Floor-Ceiling
Duct
RVF
SERIES
INDOOR UNIT

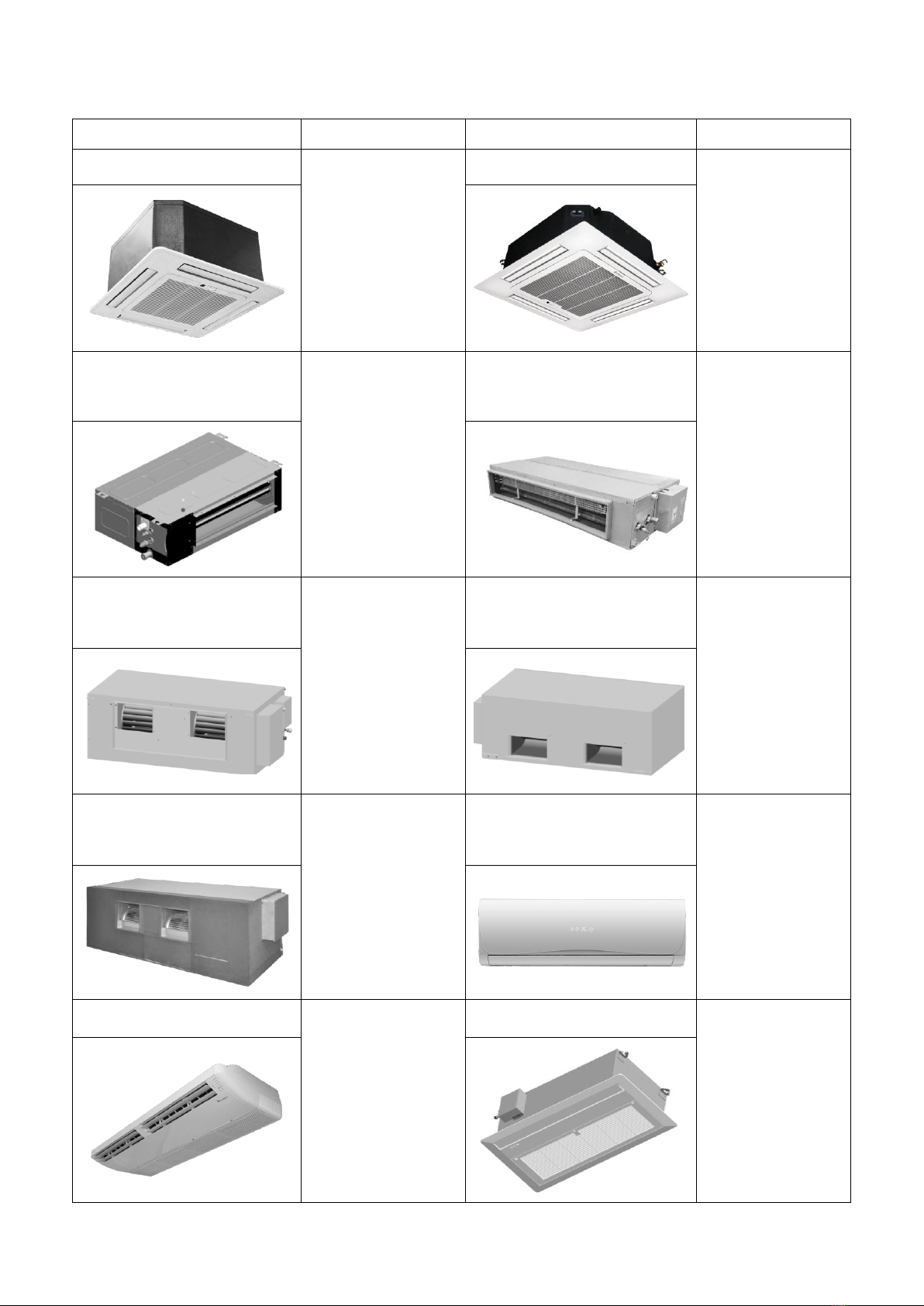

Applied models:
External appearance
Cooling capacity
External appearance
Cooling capacity
Compact four-way cassette unit
2200W
2800W
3600W
4500W
Four-way cassette unit
5600W
7100W
8000W
9000W
10000W
11200W
12500W
14000W
16000W
Short ducted unit
2200W
2800W
3600W
4500W
5600W
7100W
Standard ESP ducted unit and
High ESP ducted unit 7.1kW～
9.0kW
7100W
8000W
9000W
10000W
12000W
15000W
High ESP ducted unit 10.0kW～
15.0kW and Full fresh air unit
14.0kW
10000W
12000W
14000W
15000W
High ESP ducted unit 20.0kW～
28.0kW and Full fresh air unit
22.4kW、28.0kW
20000W
22400W
25000W
28000W
High ESP ducted unit 45.0kW～
56.0kW and Full fresh air unit
45.0kW、56.0kW
45000W
56000W
Wall-mounted unit
2200W
2800W
3600W
4500W
5600W
7100W
8000W
Floor-ceiling unit
4500W
5600W
7100W
8000W
9000W
11200W
14000W
16000W
One-way cassette unit
2200W
2800W
3600W
4500W
5600W
7100W

Two-way cassette unit
4500W
5600W
7100W
8000W
Round-way cassette unit
5600W
7100W
8000W
9000W
10000W
11200W
12500W
14000W
16000W
Thank you for choosing our company products!
Air conditioning facilities are valuable products. In order to protect your legitimate rights and interests,
please make sure that the installations are done by professional technicians. This manual is a
general-purpose version for the conditioning systems manufactured by our CO., the one that you have
chosen might be a little different in appearance from the ones described in the manual. But these
differences will not have any impacts upon your operation and use of the system.
Please read the manual carefully before you operate the system and check to see if the model is identical
to the one you have purchased, keep the manual properly in case you might refer to it in the future.
Addition to the user manual:
The appliance is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety. Children should be
supervised to ensure that they do not play with the appliance. The appliance shall be installed in
accordance with national wiring regulations .

Contents
1Safety instructions 1
2 Air conditioner part name and functions 3
3 Use instructions 9
4 Installation 24
5Service and maintenance 25

1. Safety instructions
1
1. Before use, please read this Manual carefully, and correctly operate according to this Manual.
2. Special attention shall be paid to the meanings of the following two logos:
Warning: It means that disoperation may cause casualties or serious damage.
Attention: It means that disoperation may cause personal injuries or property damages.
Please read the host labels carefully. If any anomaly is found, such as abnormal noise, odor, smoke,
temperature rise, electricity leakage and fire, please cut off the power supply immediately and timely
contact the local service center or dealer of our company, butnever attempt to any unauthorized repair. If
necessary, immediately contact your local fire protection and emergency services.
Correct Disposal of this product
This marking indicates that this product should not be disposed with other
household wastes throughout the EU. To prevent possible harm to the
environment or human health from uncontrolled waste disposal, recycle it
responsibly to promote the sustainable reuse of material resources. To return
your used device, please use the return and collection systems or contact the
retailer where the product was purchased. They can take this product for
environmental safe recycling.
！
！
Attention
Before installation, check whether all power sources conform to the requirements on the
nameplate and make sure of the power supply safety.
Before use, check and confirm whether the electric wires, drain pipes and tubes are firmly
connected to prevent water leakage, refrigerant leakage, electric shock, fire or other
accidents.
The power supply socket must be equipped with ground wire to ensure the air conditioner
could be effectively grounded through the power socket and avoid electric shocks. Never
connect the ground wire onto the gas pipes, water pipes, lightning rods or phone wires.
Once started, never shut down the air conditioner within 5 minutes’ running, or it will affect
the compressor oil return.
Never let kids operate the air conditioner.
Never operate the air conditioner if your hand is wet.
While cleaning the air conditioner or replacing the air filter, please cut off the power supply at
first.
If idle for long, please cut off the power supply.
Never step on or place any object on the air conditioner.
Power on for leakage test after installation.

1. Safety instructions
2
1-1 Electrical safety requirements
1) Wiring work must be done by formally qualified electricians.
2) All wiring work must meet the electrical safety specifications.
3) The air conditioner must be well grounded, namely, the air conditioner must have its main switch
reliably grounded.
4) The air conditioner must be provided with separate power supply according with the rated
parameter value.
Please contact our authorized service center for installation. Improper installation may result
in water leakage, electric shocks, fires and other accidents.
Never put sticks or other objects into the air inlet and outlet.
Do use within the required voltage and frequency with protection devices equipped
accordingly. Never use any copper wire to replace the fuse to avoid failures or fires.
The air conditioner shall have its ground wire firmly connected with that of the power source.
While cleaning, never splash water onto the air conditioner, in order to avoid failures or
electric shocks.
Never have the indoor or outdoor unit inlet or outlet blocked to avoid impact on the
performance of the air conditioner and prevent failures.
If idle for long, disconnect the power supply to ensure safety and save energy.
When restarted after a long-term shutdown, do carefully check whether the air conditioner
and its power lines are normal. If the power lines are damaged or need replacing due to other
reasons, please contact our after-sales service staff or authorized repair professionals to
avoid electric shocks, overheating, fires or other accidents.
Never place any water container on the air conditioner to avoid electric shocks due to water
immersion.
After a long-term use, please confirm whether the mounting platform is worn, and if worn, the
air conditioner may fall to cause casualties.
Never operate the switch if your hand is wet to avoid electric shocks.
In time of repair, stop the air conditioner with the power supply cut off, or the high-speed
rotation of the internal wind turbines may lead to injuries.
Never use any other fuse beyond the capacity regulated in this Manual. Never use any iron
or copper wire to avoid failures, fires and other consequences. Do use the special circuit
under the rated voltage for air conditioners.
The A-weighted sound pressure level is below 70 dB.
This appliance is intended to be used by expert or trained users in shops, in light industry
and on farms, or for commercial use by lay persons.
The appliance shall be disconnected from its power source during service and when
replacing parts and, if that the removal of the plug is foreseen, it shall be clearly indicated
that the removal of the plug has to be such that an operator can check from any of the
points to which he has access that the plug remains removed.
The appliance shall be maintained by the professional every three years.
！
！
Warning

2. Air conditioner part name and functions
3

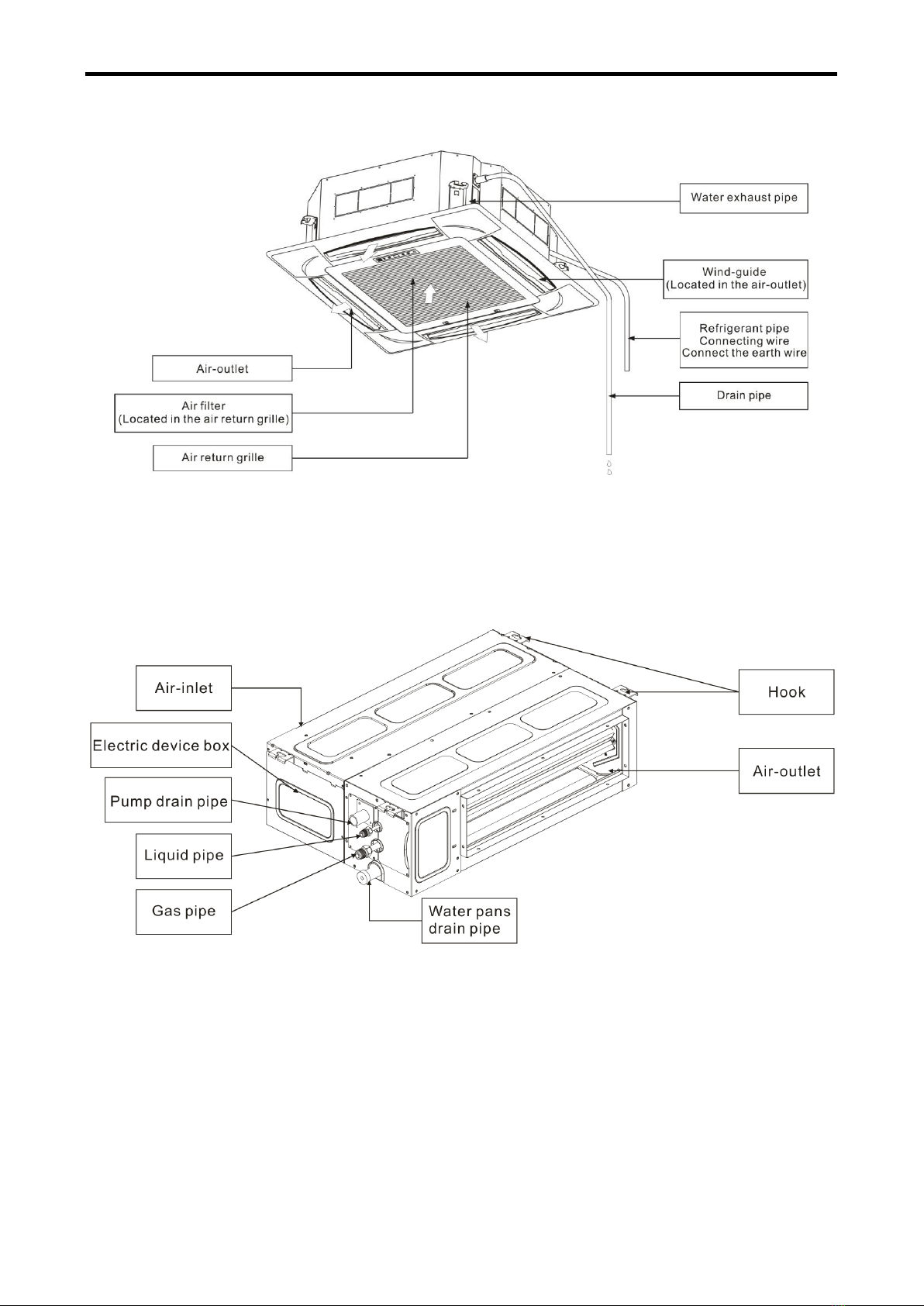

2-1 Four-way cassette type
Figure 2.1
2-2 Short ducted type
Figure 2.2

2. Air conditioner part name and functions
4

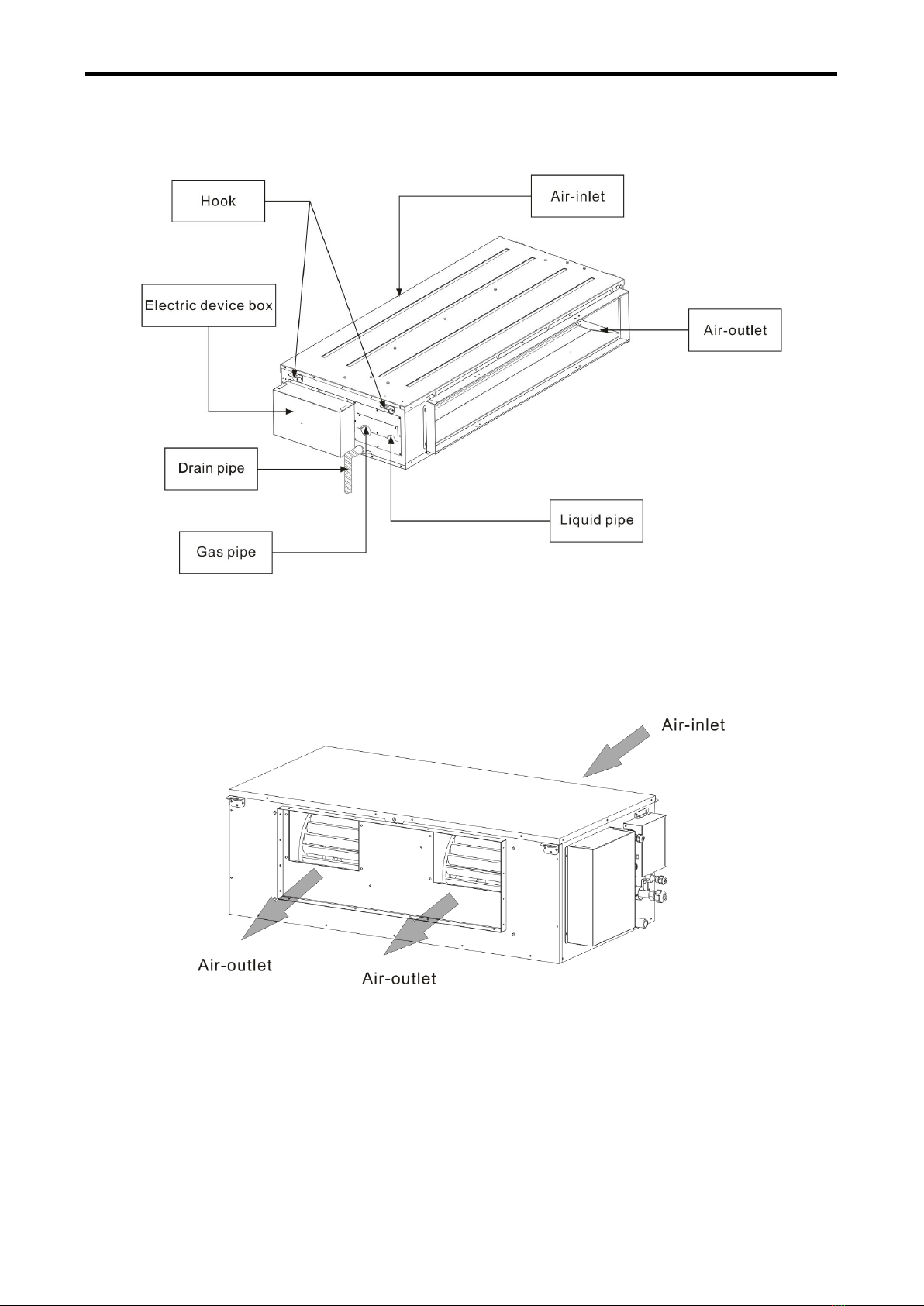

2-3 Standard static pressure ducted type and High static pressure ducted type
7.1kW～9.0kW
Figure 2.3
2-4 Full fresh air unit 14.0kW and High static pressure ducted type 10.0kW～15.0kW
Figure 2.4

2. Air conditioner part name and functions
5

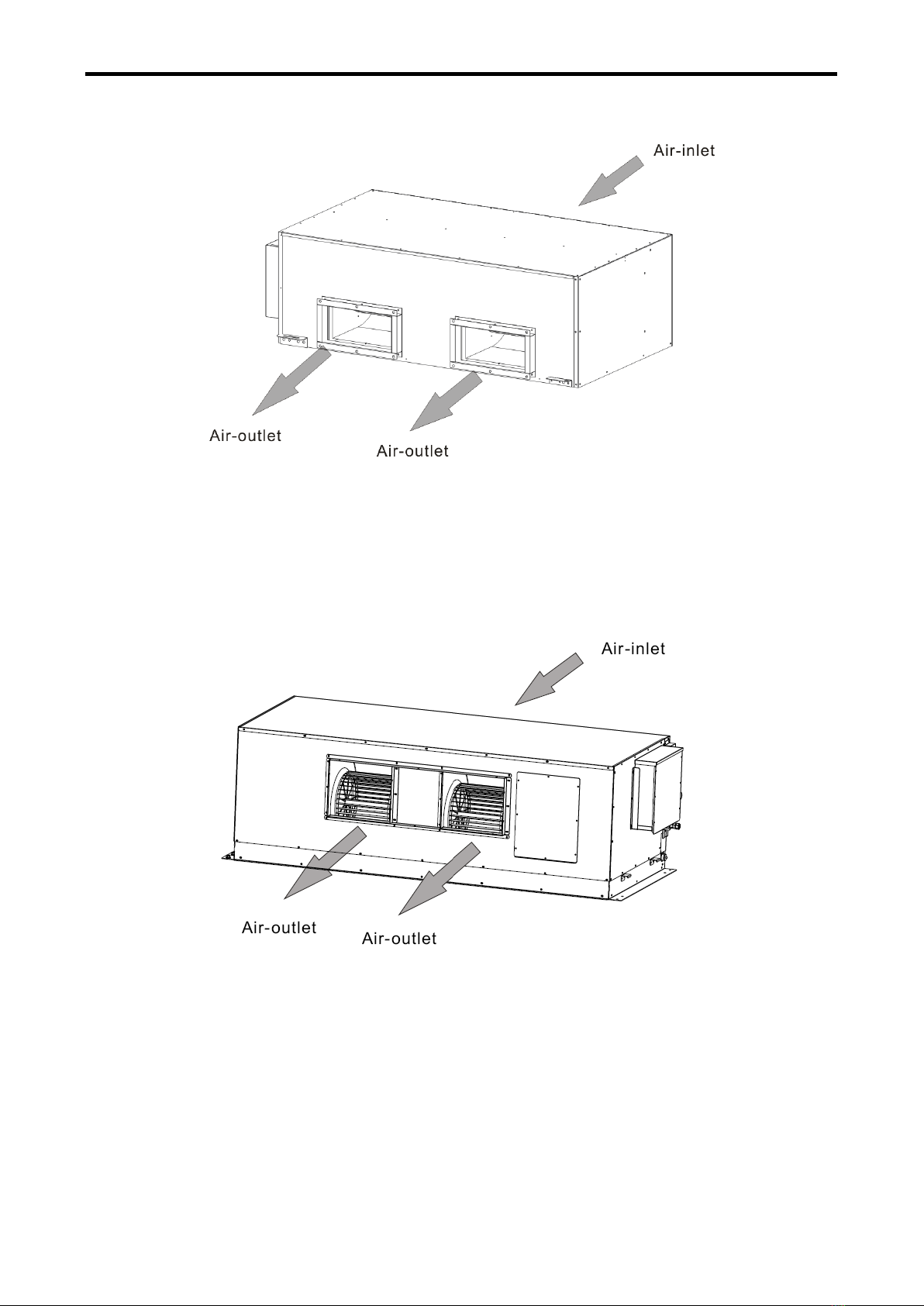

2-5 Full fresh air type 22.4kW、28.0kW and High static pressure ducted type 20.0kW～
28.0kW
Figure 2.5
2-6 Full fresh air type 45.0kW、56.0kW and High static pressure ducted type 45.0kW～
56.0kW
Figure 2.6

2. Air conditioner part name and functions
6

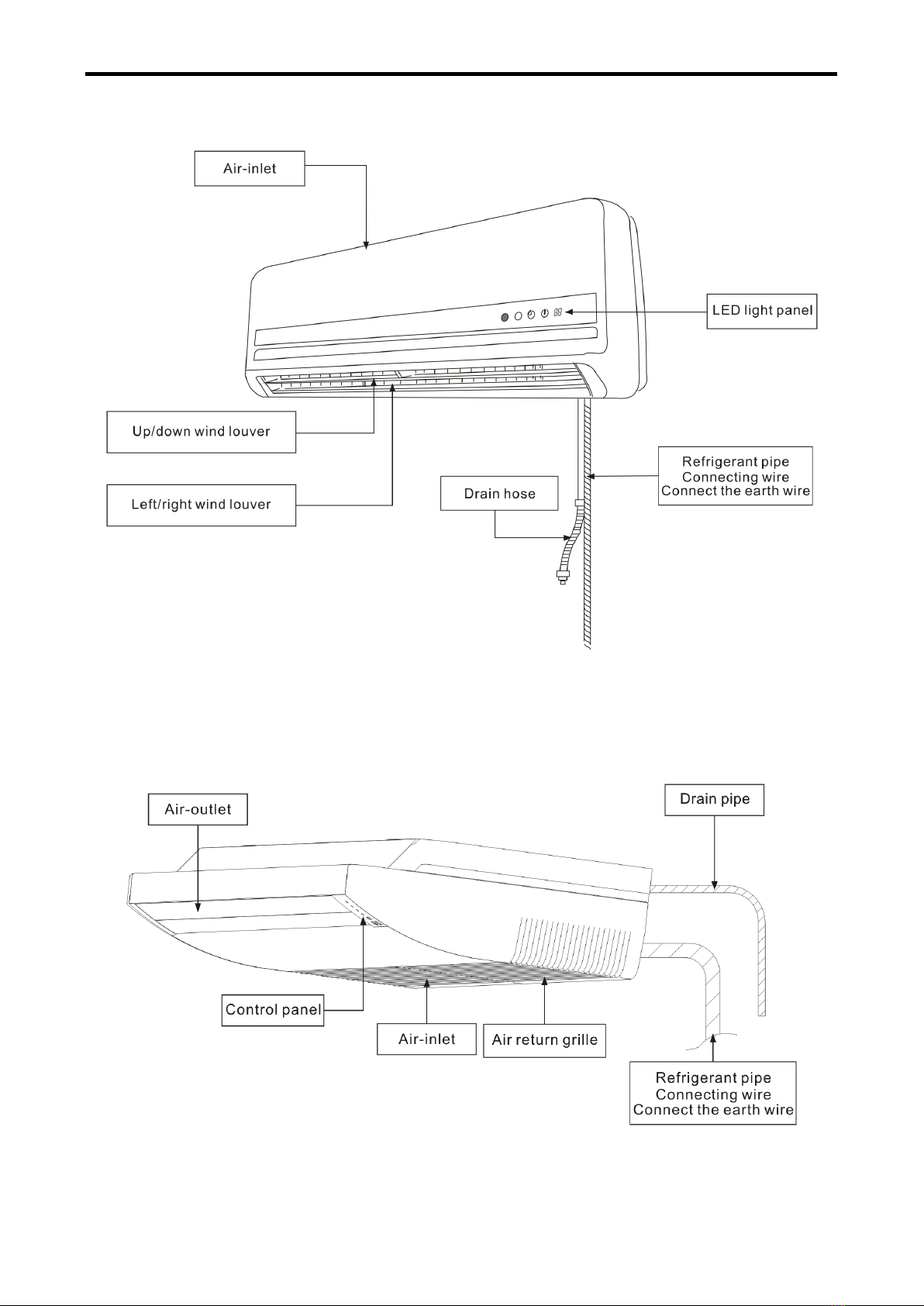

2-7 Wall-mounted type
Figure 2.7
2-8 Floor-ceiling type
Figure 2.8

2. Air conditioner part name and functions
7
2-9 One-way cassette type
Figure 2.9
2-10 Two-way cassette type
Figure 2.10

2. Air conditioner part name and functions
8

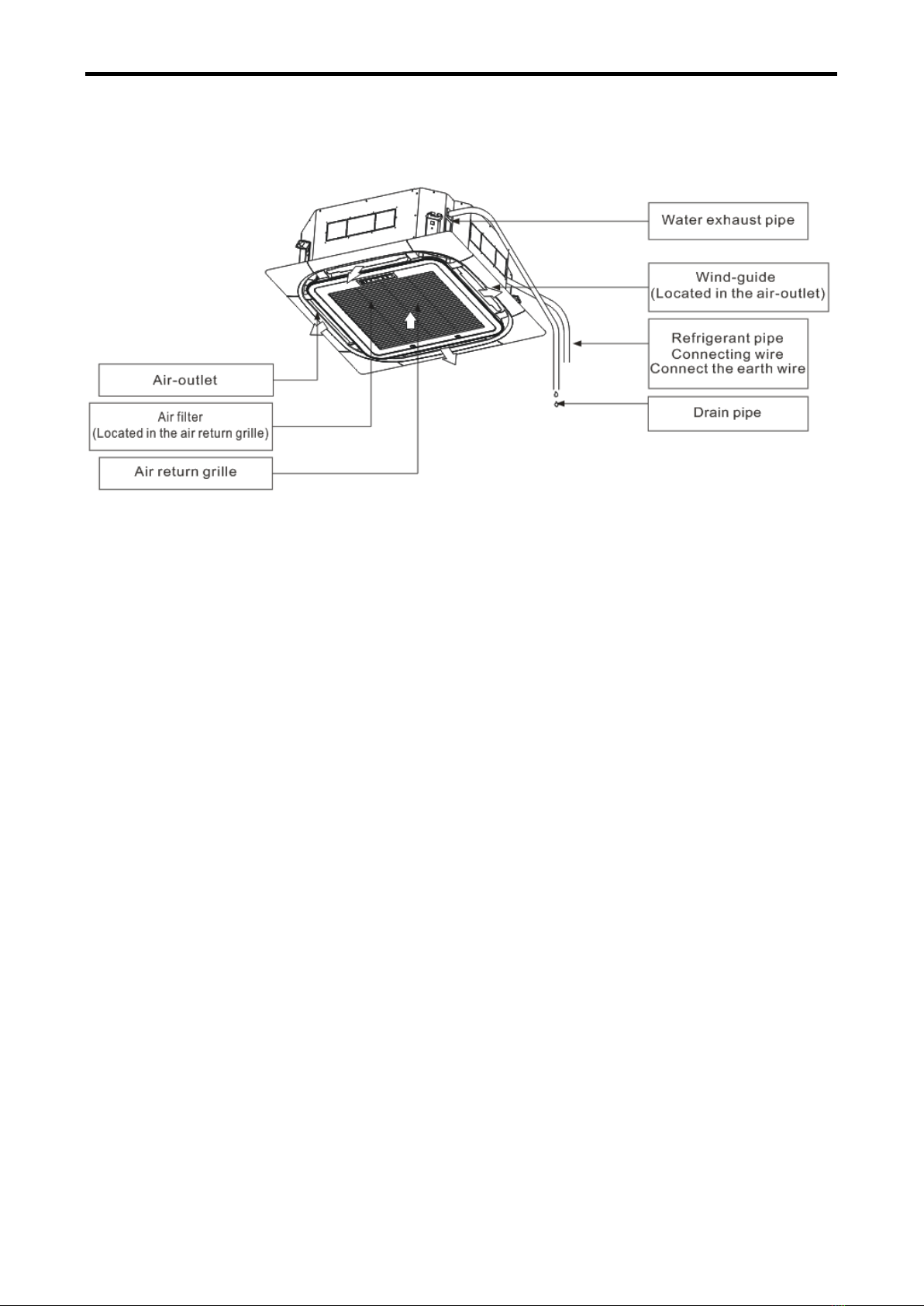

Figure 2.11
2-12 Round-way cassette type

3. Use instructions
9
3-1 Use of remote controller
The frequency conversion Wall-mounted type (standard), Floor-ceiling type (standard), Four-way
cassette type (standard), Round-way cassette type (standard), Full fresh air type (optional) and ducted
type (optional) have the remote controller use (Specifications: smart universal type) introduced as
follows:
“HVAC No.2”remote controller (compatibility with wire controller or lamp board): extension code,
applicable to most VRV models.
“HVAC No.3”remote controller (compatibility with wire controller or lamp board): general code,
applicable to all models (except of Window machine).
Attention: If the remote controller fails, please replace with new batteries and try again, but if it fails
again, please contact the seller or our authorized service center.
！
！
Warning
Never put the remote controller close to such heat sources as electric blankets or heating
furnaces.
Never put the remote controller at the place subject to direct sunlight.
Be careful not to have it fall, or it may be damaged.
Never have any obstacle between the signal receiver and the remote controller of the air
conditioner to avoid impact on signal transmission and receiving.
Never have water and other liquids splashed on the remote controller.

3. Use instructions
10

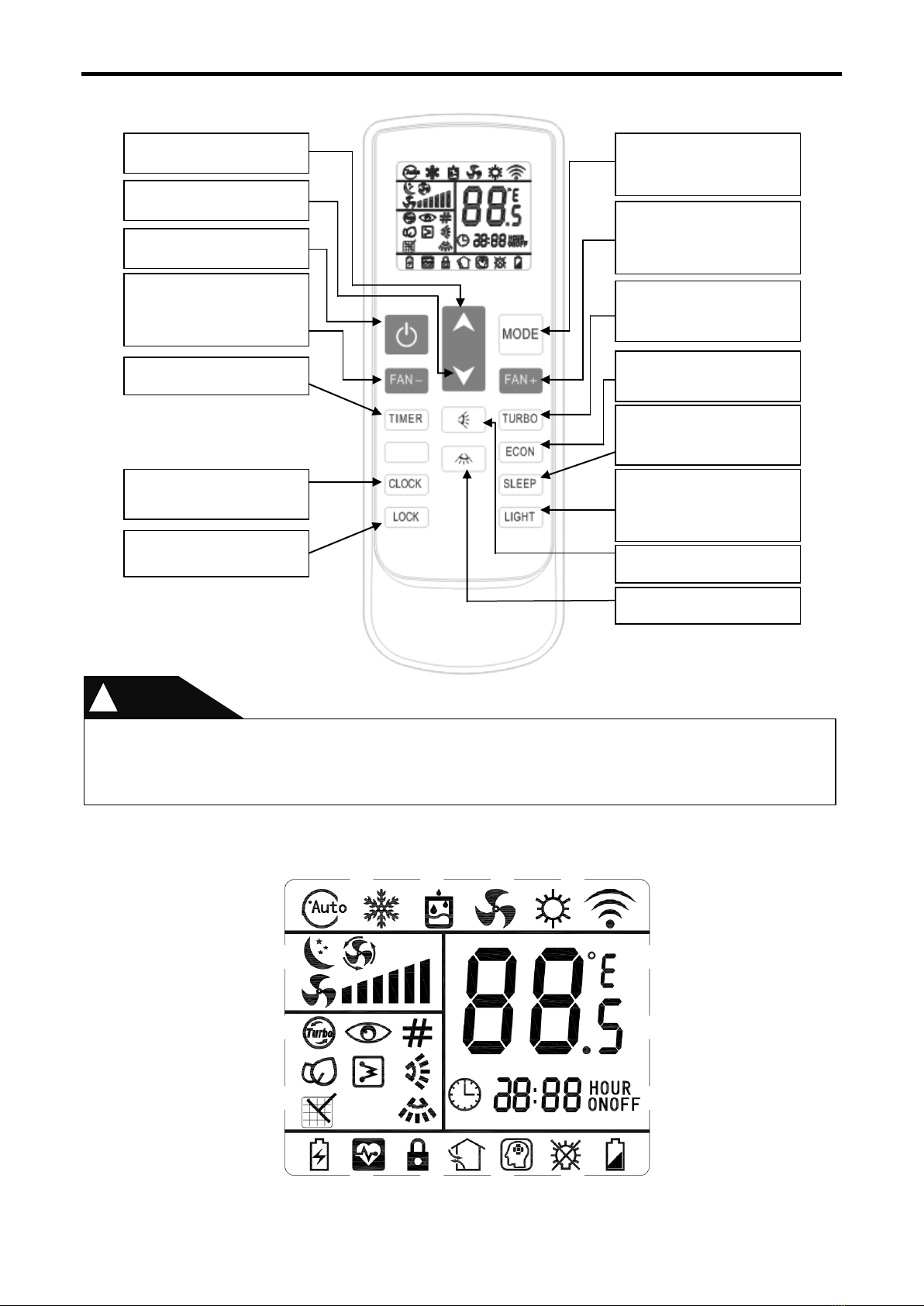

3-1-1 The icon meaning of remote controller
！
！
Attention
Let the remote controller directing at the air conditioner, press the buttons on the remote
controller and the command signal will be sent to the air conditioner.
If the signal is correctly received, the air conditioner will “beep”.
“ON/OFF”
Open or close the air-conditioner.
Fan speed -
Reduce fan speed in one gear.
Minimum wind speed will swich to
the automatic wind, and swich to the
highest wind when pressing again.
Timer
Setting timing ON/OFF.
Clock
Modify the current time of the remote
controller.
Lock
Lock the remote controller bottons.
Temperature reduction
Decrease the setting temperature.
Temperature addition
Increase the setting temperature.
Mode
Select modes, including automatic,
cooling, dehumidification, fan and
heating mode.
Fan speed +
Increase fan speed in one gear.
Highest wind speed will swich to the
automatic wind, and swich to the
minimum wind when pressing again.
Turbo
Enter the turbo function. Decide
whether to have this function
according to the actual model.
ECON
Automatically setting 26 ℃in
cooling or heating mode.
Sleep
Enter the sleep function. Decide
whether to have this function
according to the actual model.
Light
Forced closing or lighting of display
panel. Decide whether to have this
function according to the actual
model.
Up and down swinging
Open the external pendulum wind.
Left and right swinging
Open the internal pendulum wind.

3. Use instructions
11
1）The remote controller is equipped with 15 buttons, and the LCD is newly maded. All the icons are
kept in touch with the touch-screen remote controller.
2）At the first power on, the LCD of the remote controller displays all the icons first and then enters the
standby state, displaying only the clock 12:00 and the light icon.
3）Introduction of LCD screen icon:
•Mode display: automatic 、cooling 、dehumidification 、fan and heating .
•Temperature display: displays temperature, which range between 16 ~ 32˚C or 61 ~ 90
℉.
•Wind speed display:means wind speed. means automatic wind speed.
•Swinging display: means external pendulum wind. means internal pendulum wind.
•Timer display:means TIME ON. means TIME OFF.
•Other display: means clock. means sleep. means TURBO. means ECON.
means cleaning. means electric heating. means address. means lock.
means lack of electricity.
•Reservation function: means Auto Config. means power saving. means healthy.
means new wind. means intelligence. means lamplight.
3-1-2 Button function of remote controller
（1）ON/OFF
①When pressing this key, the remote controller switches by "on, off, on" circularly.
②When the first power on, the working state is set by default: setting temperature 25℃(77℉),
automatic mode, automatic fan speed, internal and external pendulum wind, no TURBO, no
sleep, no timer, no lock).
③When the poweron is not the first time, the state before shutdown is recovered.After shutdown,
the sleep, TURBO, ECON and timer functions will be canceled.
（2）Mode
①When pressing this key, the remote controller swiches by "automatic, cooling, dehumidification,
fan, heating, automatic" circularly.
②The dehumidification mode is locked at 25℃and the temperature can not be adjusted. The
internal pendulum wind stays unchanged according to the state before switching, but the
external pendulum wind is forced to close.
（3）Temperature reduction ▼
①Temperature setting: when pressing this key, the setting temperature will be reduced by 1. The
temperature of centigrade model will be reduced progressively by "32℃, 31℃, ……, 17℃,
16℃". The temperature of fahrenheit model will be reduced progressively by "90℉, 89℉, ……,
62℉, 61℉".When pressing this keyin dehumidification andfan mode, the temperature will not
change.
②In the clock setting state (the clock icon will flicker to show the prompt), this key is used to set
the clock time.
③Keep pressing will continuously change the temperature.

3. Use instructions
12
（4）Temperature addition ▲
①Temperature setting: when pressing this key, the setting temperature will be added by 1. The
temperature of centigrade model will be added progressively by "16℃, 17℃, ……, 31℃, 32℃
". The temperature of fahrenheit model will be added progressively by "61℉, 62℉, ……, 89℉,
90℉". When pressing this key in dehumidification and fan mode, the temperature will not
change.
②In the clock setting state (the clock icon will flicker to show the prompt), this key is used to set
the clock time.
③Keep pressing will continuously change the temperature.
（5）Up and down swinging (External pendulum wind)
①Pressing this key in the dehumidification mode, the external pendulum wind is forced to close.
②Pressing this key in the other modes, the external pendulum switches by "swing, fixed wind,
swing" circularly.
（6）Left and right swinging (Internal pendulum wind)
①Pressing this key in the dehumidification mode, the internal pendulum wind stays unchanged
according to the state before switching.
②Pressing this key in the other modes, the internal pendulum switches by "swing, stop, swing"
circularly.
（7） “FAN -”
①When the first power on, the remote controller is set to the automatic wind speed by default. In
dehumidification mode, the wind speed is fixed to low wind and is not adjustable. By pressing
the wind speed key, there is no response to the remote controller.
②Pressing this key in the other modes, the wind speed switches by "automatic wind speed, high
speed, middle speed, low speed, automatic wind speed " circularly.
（8） “FAN +”
①When the first power on, the remote controller is set to the automatic wind speed by default. In
dehumidification mode, the wind speed is fixed to low wind and is not adjustable. By pressing
the wind speed key, there is no response to the remote controller.
②Pressing this key in the other modes, the wind speed switches by "automatic wind speed, low
speed, middle speed, high speed, automatic wind speed " circularly.
（9）Timer
①Under the shutdown state, press this key to set the opening time, range from 1 hour to 24 hour.
②Under the boot state, press this key to set the shutdown time, range from 1 hour to 24 hour.
③The timing time is according to the cycle of "1h, 2h, ……, 23h, 24h, cancel, 1h".
④Exit timing adjustment after 3 seconds without key pressing.
（10）TURBO
①Extension code remote controller has the effect.The remote controller is no TURBO by default,
and the TURBO key will not work in automatic mode, dehumidification mode and fan mode.
②Pressing this key in the cooling or heating mode, the TURBO mode switches between opening
and closing.When in the TURBO mode, it does not display the wind speed. Switching mode or
entering sleep function will close TURBO mode.
③If the air conditioner has four gear wind speeds, the TURBO icon will light up and the fan will
run in the fourth gear wind speed by pressing this key.

3. Use instructions
13
（11）ECON
①The remote controller is no ECON by default, and the ECON key will not work in automatic
mode, dehumidification mode and fan mode.
②Pressing this key in the cooling or heating mode, the ECON mode switches between opening
and closing. When in the ECON mode, the setting temperature is set to 26℃(77℉) and other
settings are unchanged. If closing ECON mode, the remote controller will recover to the setting
before opening ECON mode. Switching mode will close ECON mode.
（12）Sleep
①Pressing this key in the modes except of the fan mode, the sleep function switches between
opening and closing. Switching mode will cancle sleep function.
②When pressing this key, the wind speed is automatically switched to low wind. However, the
wind speed can be adjusted according to the wind speed key (except of the dehumidification
mode).
（13）Light
①When the first power on, there is no lamplight by default. Pressing this key force to turn off or
turn on the lamplight. Decide whether to have this function according to the actual model.
（14）Clock
①This key is used to setthe clock. Pressing enters the hour adjustmentstate, and the hour digital
tube on the LCD is flickering at the same time. The hour can be set by temperature addition or
reduction keys, and it ranges from 0 to 23.
②When the hour is set, press this key again to enter the minute adjustment state, and the minute
digital tube on the LCD is flickering at the same time. The minute can be set by temperature
addition or reduction keys, and it ranges from 00 to 59.
③After adjusting, press the clock key again to confirm the setting and the adjustment state exits.
If do not press the clock key again to confirm, the time adjustment state will exitafter 3 seconds,
and recover the clock before the adjustment.
（15）Lock
①There is no lock by default. Pressing this key, the lock function switches between opening and
closing.
②When it is locked, the remote controller does not work except the lock key.
（16）Combinatorial key: “FAN -”＋“FAN +”
①Extension code remote controller has the effect. Switch 3 gear wind and 6 gear wind. There is
6 gear wind on the LCD. If the 3 gear wind is switched, the first and second gear wind will be
"low wind"; the third and fourth gear wind will be "middle wind"; the fifth and sixth gear wind will
be "high wind".
（17）Combinatorial key: “Mode”＋“Lock”
①Enter address setting
1) On the shutdown interface, press the combinatorial key on the remote controller for 5
seconds to enter the address setting interface.
2) The last address (when the first power on, 00 is displayed) and the "#" icon are displayed
and flickering.
②The step instructions of setting address
1) At the address setting interface, press the temperature addition or reduction to adjust the
setting address, and it ranges from 00 to 63.

3. Use instructions
14
2) When the first time entering the interface or pressing the temperature addition or reduction
key, the address display flickers for 3 seconds and then does not flicker.
3) Press the ON / OFF key to enter the sending state and send the address setting code.
③The step instructions of inquiring address
1) At the address setting interface, press the mode key to send the query code.
2) At this time, the "#" icon flickers. 3 seconds later, it normally displays the last setting
addresses and the "#" icon does not flicker.
④Exit setting
1) Pressing the mode key and lock key at the same time can exit the address setting
interface.
2) If there is no key pressing associated with address setting for more than 30 minutes, the
remote controller will exit the address setting interface.
3-1-3 Battery replacement
1）If the air conditioner is unable to receive the signal from the wire controller, or the LCD of wire
controller is blurred, it means that the battery is depleted and needs to be replaced.
2）Take off the back cover and remove the old batteries. When replacing batteries, please pay
attention to the "+" and "-" marking on the battery.
3）Install the back cover and set the current time.
！
！
Attention
Never use new and old batteries together.
The remote controller should have its batteries taken out when idle for long.
In general conditions, the dry batteries meeting the JIS or IES standard can have the service life
of 6-12 months, but if beyond the service time or not meeting the above specifications, the dry
batteries may be subject to leakage and may even disable the remote controller operations.
The “recommended service life”is marked on batteries, but the actual service time may be
shorter.

3. Use instructions
15
3-2 Use of remote controller
The frequency conversion Wall-mounted type (standard), Floor-ceiling type (standard), Four-way
cassette type (standard), Round-way cassette type (standard), Full fresh air type (optional) and ducted
type (optional) have the remote controller use (Specifications: smart universal type) introduced as
follows:
“HVAC No.5”remote controller (compatibility with wire controller or lamp board): general code,
applicable to all models (except of Window machine).
3-2-1 The icon meaning of remote controller
Mode
Select modes, including automatic,
cooling, dehumidification, fan and
heating mode.
“ON/OFF”
Open or close the air-conditioner.
Sleep
Enter the sleep function. Decide
whether to have this function
according to the actual model.
Turbo
Enter the turbo function. Decide
whether to have this function
according to the actual model.
ECO
Automatically setting 26 ℃in
cooling or heating mode.
Fan speed
Reduce fan speed in one gear.
Minimum wind speed will swich to
the automatic wind, and swich to the
highest wind when pressing again.
Temperature addition
Increase the setting temperature.
Temperature reduction
Decrease the setting temperature.
Up and down swinging
Open the external pendulum wind.
Timer
Setting timing ON/OFF.
Left and right swinging
Open the internal pendulum wind.

3. Use instructions
16
1 ） The remote controller is equipped with 11 buttons, and the LCD is newly made.
2 ） At the first power on, the LCD of the remote controller displays all the icons first and then
enters the standby state, displaying only the mode icon.
3 ） Introduction of LCD screen icon:
•Mode display: automatic 、cooling 、dehumidification 、fan and heating .
•Temperature display: displays temperature, which range between 16 ~ 32˚C or
61 ~ 90℉.
•Wind speed display: means wind speed.
•Swinging display: means external pendulum wind. means internal pendulum wind.
•Timer display: means TIME ON. means TIME OFF.
•Other display: means sleep. means TURBO. means ECO. means electric
heating. means lock. means lamplight.
3-2-2 Button function of remote controller
（1）ON/OFF
①When pressing this key, the remote controller switches by "on, off, on" circularly.
②When the first power on, the working state is set by default: setting temperature 25℃(77℉),
automatic mode, automatic fan speed, internal and external pendulum wind, no TURBO, no
sleep, no timer, no lock).
③When the poweron is not the first time, the state before shutdown is recovered.After shutdown,
the sleep, TURBO, ECON and timer functions will be canceled.
（2）Mode
①When pressing this key, the remote controller swiches by "automatic, cooling, dehumidification,
fan, heating, automatic" circularly.
②In dehumidification mode, the setting temperature of the internal machine is 25 degree C. The
remote controller does not display the setting temperature and is not adjustable. The internal
pendulum wind stays unchanged according to the state before switching, but the external
pendulum wind is forced to close.
（3）Temperature reduction -
①Temperature setting: when pressing this key, the setting temperature will be reduced by"32℃,
31℃, ……, 17℃, 16℃". (When pressing this key in dehumidification and fan mode, the
temperature will not change.)
②Keep pressing will continuously change the temperature.
（4）Temperature addition +
①Temperature setting: when pressing this key, the setting temperature will be added by "16℃,
17℃, ……, 31℃, 32℃". (When pressing this key in dehumidification and fan mode, the
temperature will not change.)
②Keep pressing will continuously change the temperature.
