24758x50A MULCHER KIT FOR 42” MODELS
1
F–020905L
HOW TO INSTALL THE MULCHER PLATE
The mulcher plate and the mulcher blades are optional attach-
ments that can be added to the mower housing. The mulcher plate
lets you mulch the grass for a clean, fine cut. Install the mulcher
plate and the mulcher blades as follows.
WARNING: To prevent the engine from starting, dis-
connect the wire from the spark plug. Make sure the
blade rotation control is in the DISENGAGE position.
1. Raise the deflector. Slide the front of the mulcher plate under
the deflector bracket (Figure 1). If necessary, remove grass
from flange.
2. Fasten the mulcher plate with two wingnuts and two carriage
bolts.
To discharge the grass out the side, remove the mulcher plate. At-
tach the fasteners to the mulcher plate for future use.

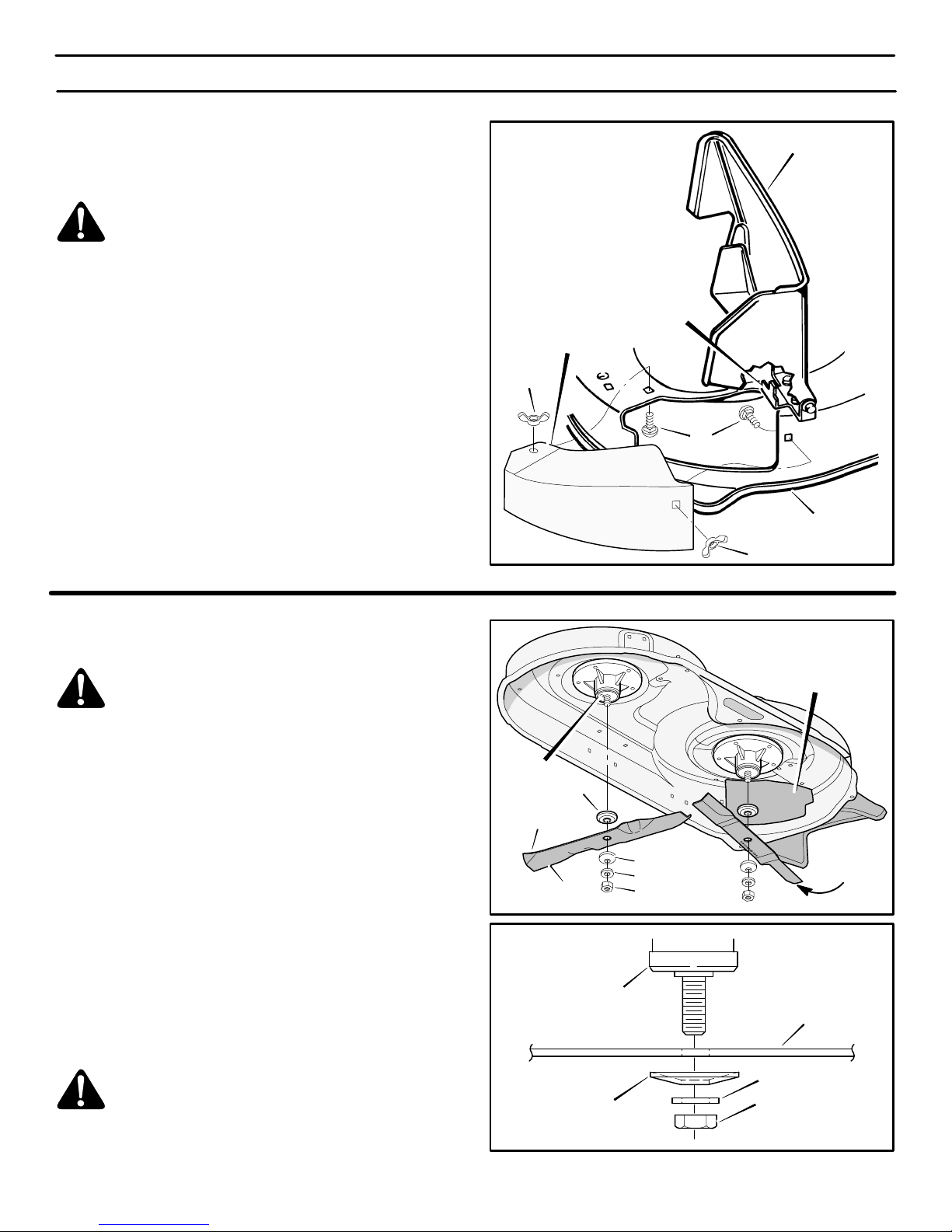

Figure 1
Deflector
Mulcher Plate
Deflector Bracket
Remove grass
from flange.
Carriage Bolt
Wingnut
Wingnut
HOW TO REMOVE AND INSTALL THE BLADES
WARNING: Before you remove the blade, disconnect
the wire to the spark plug. The blade has sharp
edges. When you hold the blade, use gloves or cloth
material to protect your hands.
1. Use a piece of wood to keep the blades from rotating.
2. Remove the nuts that hold the blades (Figure 2).
3. Remove the standard blades.
4. Twomulcher blades are in the mulcher kit. Mount the mulcher
blades and the blade adapters on the mandrels (Figure 2).
5. Mount each blade so that the hi–lift edges are up (toward the
mower housing). If the blade is upside down, the blade will not
cut correctly and can cause an accident.
6. Fasten the blades with the original washers and nuts. Make
sure the outside rim of the Belleville washers are against the
blades (Figure 3).
NOTE: Check the rotation of the blades. Make sure the
blades do not hit the mower housing. If a blade hits, the
mower housing is bent. Hit the mower housing with a
hammer until the blade does not touch.
WARNING: Always keep the nut tight that holds the
blade. A loose nut or blade can cause an accident.
7. Tighten the nuts that hold the blades to a torque of 30 foot
pounds (41,5N–m).
Figure 2
Nut
Washer
Belleville Washer
Blade Adapter
Left
Mulcher Blade
Mulcher Plate
Mandrel
Hi–Lift Edge
Right
Mulcher Blade
Blade Adapter Blade
Belleville Washer
(Outside rim must be
against the blade.)
Washer
Nut
Figure 3

24758x50A MULCHER KIT FOR 42” MODELS
2
F–020905L
MULCHING TIPS
When you use a mulcher attachment, the grass is cut into very small
pieces. These small pieces will quickly break down. Because the
nutrients are returned to the soil, the lawn will need less fertilizer. Too
correctly mulch the grass, follow the steps below.
1. Set the throttle in the FAST position. Operate the mower at a
slower ground speed. If ground speed is too fast, the grass will
not have an even cut.
2. Keep a sharp edge on the blade. A blade that is not sharp will
cause the ends of the grass to become brown.
3. Make sure the grass is dry. Wet grass is difficult to cut.
4. Set the height of the mower housing so that only the top third
of the grass is cut. If the grass is too high, set the height of the
mower housing to the maximum height. Then, lower the mower
housing for the second cut. Also, instead of using the full width
of the mower housing, mulch at half the width.
5. Clean the bottom of the mower housing. Grass and other debris
can keep the mower from working correctly.
6. If the grass grows fast, mulch more often.
7. If an area needs improvement, mulch a second time.
REPLACEMENT PART NUMBERS FOR MULCHER KIT
Key No
Description
42 Inch
Model 24758x50A
K
ey
N
o.
D
escr
i
p
ti
on
Model 24758x50A
Part Number
1Mulcher Plate 095080E700
2 Wingnut 014x86
3Carriage Bolt 002x64
4Blade, 3n1 1001429E701
–– Instruction Sheet, Mulcher F–020905L
