ROYAL GOURMET MG6001-R User manual

Customer Service
1-800-618-6798
Use outdoors only! Do not use it in a building,garage or any other enclosed area.
Read the instructions before assembling and using the appliance.
DO NOT use the grill unless it is completely assembled and all the parts are securely fastened.
This grill will become very hot, do not move it during operation.Keep children and pets away.
FOR YOUR SAFETY!
This grill has been made to high quality standards. If you have any questions nor
addressed in this manual, or if you need parts, please call our customer service department,
or send an email to service royalgourmetusa.com..
CONTACT US FIRST!
Learn more at:
@
OWNER’S MANUAL
Mirage Two Split Lid 6-Burner Gas Grill
with Infrared Burner MG6001-R

1
TABLE OF CONTENTS
For Your SafetyĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂ2
Assembly InstructionsĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂ6
General Information and InstructionsĂĂĂĂĂĂĂĂ16
Operating InstructionsĂĂĂĂĂĂĂĂĂĂĂĂĂĂ 21
Troubleshooting GuideĂĂĂĂĂĂĂĂĂĂĂĂĂĂ 24
Frequently asked QuestionsĂĂĂĂĂĂĂĂĂĂĂĂ25
Cleaning Instructions
ĂĂĂĂĂĂĂĂĂĂĂĂĂĂ 22
Parts & Hardware ListĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂ4
Customer Service
ĂĂĂĂĂĂĂĂĂ ĂĂĂĂĂĂ 25

2
WARNING
FOR YOUR SAFETY
1. DO NOTstore or use gasoline or any other flammable vapours or liquids within 8m(25’) of the grill.
2.When cooking with oil/grease, do not allow the oil/grease to exceed 177ć350Do not store extra
cooking oil in the vicinity of the grill.
3.A liquid propane (LP) tank (cylinder) not connected for use should be stored a minimum of 3m(10’) away
from this or any appliance. Never fill the gas cylinder beyond 80 percent full. If the above information is not
followed exactly, a fire causing death or series injury may occur.
Call us first! DO NOT return the grill to the retailer. This grill has been made to high quality standards. If you
have any questions nor addressed in this manual, or if you need parts, please call customer service
department.
NOTE: The assembly and use of this grill must conform to local codes. In absence of local codes, use the
National Gas and Propane Instruction Code.
IMPROTANT NOTICE: Read all instructions prior to assembly and use.
Read and understand all warnings and precautions prior to operate your grill.
CAUTION:
1. This grill is for use with propane gas only (propane gas cylinder not included).
2. Never attempt to attach this grill to the self-contained propane system of a camper trailer, motor home or
house.
3. Never use charcoal or lighter fluid with gas grill.
4.Do not use gasoline, kerosene or alcohol for lighting. The LP gas cylinder must be constructed and marked
in accordance with the specifications for propane gas cylinders of National Standard of
CAN/CSA-B339, Cylinder, Spheres and Tubes for Transportation of Dangerous Goods. This grill is not
intended to be used in or on recreation vehicles and/or boats.
5. Do not attempt to move the grill while it is lit.
6. Do not use the grill unless it is completely assembled and all parts are securely fastened and tightened.
7. Keep all combustible items and surfaces at least 91cm (36”) away from the grill at all times.
8. DO NOT use this grill or any gas product near unprotected combustible buildings and materials.
9. Don not use in the presence of gases or vapours. Keep grill area clear and free from combustiblematerials,
gasoline and other flammable vapours and liquids.
10. Do not touch metal parts of the grill until it is completely cooled (about 45 minutes) to avoid burns, unless
you are wearing protective gear (oven mitts, pot holders, etc.).
11. Do not alter this grill in any manner.
12. Clean and inspect the hose before each use. If there is evidence of abrasion, wear, cuts, or leaks, the
13. Move gas hoses as far away as possible from hot surfaces and dripping hot grease.
14. Never keep a filled gas cylinder in a hot car or car truck. Heat will cause the gas pressure to increase,
which may open the relief valve and allow the gas to escape.
15. Keep the grill’s valve compartment, burners and circulating air passages clean. Inspect the grill before
each use.
the
hose must be replaced before operating the grill. The replacement hose assembly must be as specified by
the manufacturer.
()
America

3
WARNING:
1.This grill is for outdoor use only, and should not be used in building, garage or any other enclose area.
2.The use of alcohol, prescription or non-prescription drugs may impair the operator’s ability to properly
assemble or safely operate the grill.
3.Always open the grill lid slowly and carefully as heat and steam trapped within the grill can burn you
severely.
4.Always place your grill on a hard, level surface far away from combustibles.An asphalt or blacktop surface
may not be acceptable for this purpose.
5. Do not leave a lit grill unattended. Keep children and pets away from the grill at all times.
6. Do not place this grill on any type of tabletop surface.
7. Do not use the grill in high winds.
DANGER:
Liquid propane gas is flammable and hazardous if handled improperly. Know its characteristics before using
any propane product.
zPropane characteristics: Flammable, explosive under pressure, heavier than air and settles in pools and
low areas.
zIn its natural state, propane has no odour. For your safety, an odorant has been added.
zContact with propane can cause freeze burns to skin.
zThis grill is shipped from the factory for propane gas only.
zNever use a propane cylinder with a damaged body, valve, collar or footing.
zDented or rusted propane cylinders may be hazardous and should be checked by your propane gas
supplier.

Parts and Hardwares List
4
24pcs

5
PREPARATION
Before beginning assembly, make sure all parts are present. Compare parts with package contents list and
diagram above. If any part is missing or damaged, do not attempt to assemble the product. Contact customer
serviceforreplacementparts.
噝Estimated assembly time: 50minutes
噝Tools required for assembly:
Phillips Screwdriver (not included) and Wrench (not included)
噝Note: Theright and left sides of the grill are designated as if you are facing the front of the grill.

ASSEMBLY INSTRUCTIONS
Step 1 Step 2
Step 3
6
Step 4
Assemble the casters (1) to bottom shelf (2) with
16 bolts (A).
Assemble side shelf right (3) and side shelf left (4)
to bottom shelf with 8 bolts (B).
Assemble the middle shelf (5) to bottom shelf
with 3 bolts (B).
Assemble rear shelf right (6) to right side shelf
and middle shelf with 4 bolts (A).

ASSEMBLY INSTRUCTIONS
Step 5 Step 6
Step 7
7
Step 8
Assemble the rear shelf left to left side shelf,
with 3 bolts (B).
middle shelf and bottom shelf with 4 bolts (A)
and 2 bolts (B).
Assemble the middle panel (8) to bottom shelf
Fasten the middle panel to rear shelf with 3 bolts (A). Fasten the connect panel (9) to middle shelf
with 2 bolts (A).

ASSEMBLY INSTRUCTIONS
Step 9 Step 10
Step 11
8
Step 12
Fasten the connect panel to middle panel
with 2 bolts (A).
Fasten the connect panel to rear shelf
with 2 bolts (A).
Assemble the middle brace (12) to middle shelf
with 5 bolts (A).
Assemble the firebox braces (11) to side shelves
with 8 bolts (A).
Assemble the cart front beam (10) to side shelves
with 4 bolts (D).
Please note, make the bolts D insert through the cart braces.
Fasten the middle brace to front beam
with 2 bolts (A).

9
ASSEMBLY INSTRUCTIONS
Step 13 Step 14
Step 15 Step 16
Assemble the door handles (15), handle bases (16)
to left & right doors with 4 bolts (B).
Screw 2 (H) underneath the doors.
Assemble the magnet (E) to shown position of
bottom shelf with 2 bolts (G).
Assemble the door handles (15), handle bases (16)
to middle doors (17) with 4 bolts (B).
Screw 2 (H) underneath the doors.
Assemble the doors: connect to bottom shelf and
connect to front beam by 3 (F).
middle shelf via H,
Pls note, connect the middle doors and middle shelf
together via H.

10
ASSEMBLY INSTRUCTIONS
Step 17 Step 18
Step 19 Step 20
Place the grease cups (19) onto the bases.
Place the grease trays (20) , (21) onto the firebox braces Assemble the thermal baffle (22) underneath the
firebox with 2 bolts (G).
Assemble the grease cup bases (18) to right side shelf,
and middle brace, fasten them underneath firebox brace
and middle brace with 6 bolts (A).
and middle brace accordingly.

11
ASSEMBLY INSTRUCTIONS
Step 21 Step 22
Step 23 Step 24
Screw 4 bolts (I) halfway to both upper sides of firebox,
Place the firebox (23) onto the braces,
fasten it with 4 bolts (A).
for assembling side table/burner.
Align and hang the side burner shelf (24) onto the
halfway bolts (I), and secure them.
Fasten it with another 2 bolts (I) as shown.
Align and hang the side table (25) onto the
halfway bolts (I), and secure them.
Fasten it with another 2 bolts (I) as shown.
Fasten side burner shelf / table to the firebox
with 4 bolts (K).

12
ASSEMBLY INSTRUCTIONS
Step 25 Step 26
Step 27 Step 28
Assemble the burner (26) underneath the
side table shelf, secure it by 1 clip (J) as shown.
Make the tube terminal insert to the side
burner brace, secure it with 1 nut (L).
Connect the tube termnal to the side burner,
fasten the side burner brace underneth the
side burner shelf with 2 bolts (G).
Place the side burner grate back to the
side burner shelf.
Insert the ignition line to the electrode hole as shown.

13
ASSEMBLY INSTRUCTIONS
Step 29 Step 30
Step 31 Step 32
Assemble the rear burner (28) to the firebox
with 2 bolts (G).
Assemble the rear burner ignitor (29) to firebox
with 1 bolt (G).
Make the tube insert through the rear board (30),
fasten the rear board to firebox and side shelves
with 9 bolts (A).
Connect the tube terminal to the rear burner,
secure it with 1 nut (L).

14
ASSEMBLY INSTRUCTIONS
Step 33 Step 34
Step 35 Step 36
Insert the ignition line to the electrode hole
of rear burner ignitor as shown.
Assemble the rear burner board (31) to firebox
with 5 bolts (G).
Please note, fasten the bolts inside the firebox.
Place the flame tamers (32) into the firebox. Place the cooking grates (33) into the firebox.

15
ASSEMBLY INSTRUCTIONS
Step 37 Step 38
Step 39 Step 40
Place the warming racks (34) , (35) to the firebox. Assemble the thermometer (36) to the lid.
Put the AA battrey (C) into the ignitor.
Insert the extension wire (37) to the left door.

16
General Information and Instructions
Your new Griddle and Grill has been designed and manufactured to high quality standards.
It will provide you with many years of enjoyment with a minimal amount of maintenance.
Please keep in mind the following FOR YOUR SAFETY.
OPERATION
1. Your gas grill requires reasonable care during operation. It will be hot during cooking and cleaning. You
should never leave the grill unattended or move the grill when in use.
2. Children should never use your gas grill. Keep younger children and pets away when in use.
3. Only use your gas grill outside in a well-ventilated area. Never use indoors in any building, garage, shed, or
under any type of flammable canopy or overhang.
4. Ensure your grill is on level ground and the locking casters are locked before use.
5. Turn all gas valves off should the burners go out when cooking.
6. Do not lean over the grill or touch the edges of the firebox, wind screen or griddle top when in use.
7. Turn the burners off, and shut off the LP tank should a grease fire occur.
8. Do not obstruct the flow of combustion and ventilation air to
9. Keep the grilling area clear and free from combustible materials, gasoline, and other flammable vapours
and liquids.
10. Keep the ventilation openings of the tank enclosure free and clear from debris.
11. Do not put a barbecue cover or other flammable material in the storage area of this grill.
12. Do not use charcoal briquettes, lava rock, or any type of ceramic product in the gas section of this grill.
13. Do not install or use on or in a recreational vehicle and/or boats.
LP Gas and Cylinder Information
Your new gas grill operates on LP (liquid propane) Gas. It is odourless and colourless when produced. You
can smell LP gas as because an unpleasant odour has been added for your safety.
Your grill uses the newest and safest LP gas cylinder (tank) which includes two features:
1.An OPD. (Overfill Protection Device) – prevents accidental gas leaks
caused by overfilling of the tank. Each tank contains a float that
closes the input valve when the tank is 80% full . This allows room

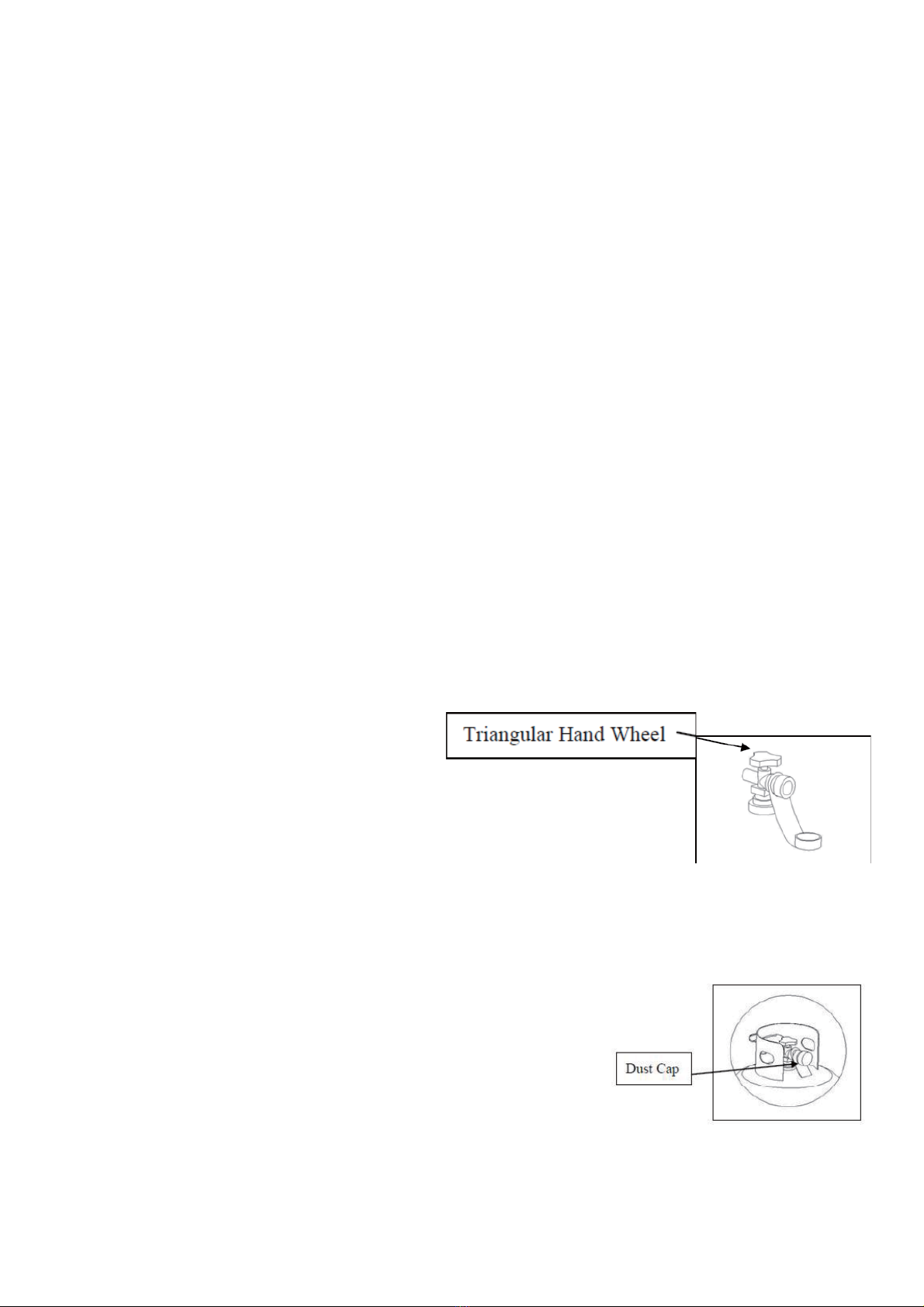

for the propane gas to expand in hot temperatures. Atriangular hand wheel
distinguishes this type of tank.
2. An OCC1 Type1 Quick Connect Valve that provides fast tank hook-ups and requires only to be tightened
by hand.
TRANSPORTATION AND STORAGE
1. The propane tank must include a collar to protect the gas supply valve.
2. Do not store a spare propane tank under or near the grill.
3. Never fill the propane tank beyond 80 percent full.
4. If the warnings in 2 and 3 above are not heeded exactly, a fire causing
death or serious injury may occur.
5. Always transport in an upright position.
6. Do not smoke when transporting your propane tank.
7. Place a dust cap on
the grill.
the tank gas valve outlet whenever the tank is not in use. Use only the type of dust cap
that is provided with the tank valve when purchased. Other types of cap or plugs may result in leakage of
propane.

17
CYLINDER SPECIFICATIONS:
When purchasing or exchanging a tank for your gas grill, it must be constructed and marked in accordance
Spheres and Tubes for Transportation of Dangerous Goods, be equipped with a listed over-filling prevention
device (OPD), and be equipped with a cylinder connection device compatible with the connection for outdoor
cooking appliances.
The cylinder must also be equipped with:
A shut-off valve terminating in a Type 1 gas cylinder valve outlet
AType 1 valve that prevents gas flow until a positive seal is made
A collar to protect the cylinder shut-off valve
A safety relief device having direct communication with the vapour space of the cylinder
LP GAS CYLINDER (NOT SUPPLIED WITH THIS GRILL)
The LP gas tank (cylinder) is available for purchase at the same location the grill was purchased.
The LP (Liquid Propane) gas tank specifically designed to be used with this grill must have a 20-lb (9.1 kg)
capacity incorporating a Type 1 cylinder valve and an over- filling protection device (OPD).
This grill is designed to fit Worthington, Manchester or SMPC brand 20 -lb (9.1 kg) cylinders. Other brands
may fit this grill if the top collar and bottom support ring have similar dimensions.
DO NOT connect this grill to an existing #510 POL cylinder valve with Left Hand threads. The Type
1 valve can be identified by large external threads on the valve outlet.
DO NOT connect to a propane cylinder exceeding this capacity.
DO NOT connect to a cylinder that uses any other type of valve connection device.
WARNING
A frosty cylinder valve indicates possible gas overfill. Close the LP valve and call your
dealer immediately.
with the specifications for LP gas cylinders of the National Standard of , CAN/CSA - B339 Cylinders,
US

18
LP CYLINDER LEAK TEST
A leak test should be done each time a propane tank is refilled or exchanged. Do
not smoke or use any type of flammable material in the area during this leak test.
Do not use an open flame to check for leaks.
1. Test outside in a well-ventilated area.
2. Use a paintbrush and a solution of 50% liquid dish detergent and 50% water.
Do not use cleaning agents because they can damage the fuel supply parts.
3. Brush the detergent solution onto the areas indicated by arrows in the diagram
to the right.
4. Developing bubbles indicate a gas leak.
Regulator and LP Cylinder Connections
Your regulator is equipped with a QQC Type 1 quick connect system. It will not allow gas to flow until a
positive seal has been made. It has a thermal element that will shut off the gas flow if the temperature
reaches 115°C (240°F). It also has a flow-limiting device that will restrict the flow of gas to 0.28 cubic metres
per hour (10 cubic feet per hour).Before each use, check the gas hose for excessive abrasion, wear or cuts.
TO CONNECT THE CYLINDER TO THE REGULATOR AND HOSE
1. Be sure the LP tank is OFF by turning the hand wheel clockwise until it stops.
2. Place the tank on the hook under the grill body with the valve facing outward.
See Assembly instructions to secure .
3. Be sure all burner controls are turned to the OFF position.
4. Remove the safety cap from the cylinder valve.
5. Centre the nipple of the regulator into the cylinder valve.
The gas pressure regulator provided with this outdoor cooking appliance must be used.
This regulator is set for an outlet pressure of 11 inches water column
CAUTION
Replace a damaged hose assembly with the one specified in the parts list before using the grill.
the tank to the grill body.
.
6. Turn the black nut clockwise until it stops. Hand tighten Only.
Do not use a wrench
.

19
LEAK TESTING THE REGULATOR, VALVES, HOSES, AND CONNECTIONS
1. Ensure the LP cylinder valve and all burners are OFF.
2. Ensure the LP cylinder is connected to the regulator.
3. If the warnings in 1 and 2 above are not heeded exactly, a fire causing death or serious injury may occur.
4. Mix up a solution of 50% water and 50% liquid dish detergent. Do not use any household cleaner solution.
5. Open the LP tank valve by turning the hand wheel counterclockwise one turn. If you hear a rushing sound,
turn the gas off immediately. In that case, there could be a leak at the connection.
Reconnect the cylinder to the regulator.
6. Spray or brush on the dish detergent solution covering the following areas: regulator and cylinder
connection, gas hose connections to the regulator, all gas hoses, and all gas connections to the burner,
including the side burner.
7. Bubbles that develop on any of the parts and connections listed above indicate a gas leak.
Immediately shut off the LP tank valve by turning the valve clockwise. Retighten the connections or order
replacement parts as needed. Continue to test as necessary until no leaks are detected.
8. Close the LP tank valve by turning the hand wheel clockwise.
WARNING
1. Do not connect this grill to any unregulated sources of propane.
2. Before each use, check the gas hose for excessive abrasion, wear or cuts. Replace a damaged
hose assembly with the one specified in the parts list before using the grill.
3. Always perform the Leak Test listed below before using your grill for the first time, if the cylinder
has been changed, if any gas supply components have been changed, if the regulator flow-limiting
device has been activated, or after a long period of non-use.
4. Do not attempt to connect this grill to the LP system of a motor home or trailer.
WARNING
1. DO NOT USE THE GRILL if you cannot stop the leaks. Be sure the LP cylinder valve is closed. If the
LP cylinder is still leaking, contact your LP dealer or call 911.
2. Do not use any match or open flame, or smoke, during leak testing.
3. Do not light a burner during leak testing.
4. Replacement parts, including a replacement hose assembly, must be as specified in the parts list.
The regular must enter the
cylinder valve in a straight
line.
Centre the regular nipple
into the cylinder valve.
Always keep this gas cylinder in
the upright position all times.
GCC 1 Type 1 Connector
Table of contents
Popular Burner manuals by other brands

RVR Solar
RVR Solar Varmebaronen Viking BIO Installation, operation and maintenance

Riello
Riello 393T3 Installation, use and maintenance instructions

AGA
AGA CITY24 installation guide

elco
elco VL3.360 D operating instructions

Ferroli
Ferroli SUN G20 Operating, installation and maintenance instructions

Carlin
Carlin EZGas Pro instruction manual

CVO Fire
CVO Fire Double Sided Fire Ribbon Technical manual

Baxi
Baxi TECNO 28-LM Installation, use and maintenance instructions

Yunca Gas
Yunca Gas XANDER INSERT installation instructions

Riello Burners
Riello Burners RG2 Installation, use and maintenance instructions

Perel
Perel VL101P user manual

Riello
Riello RS 64/M MZ Installation, use and maintenance instructions
