ROYAL JAL LRTPL1314 User manual

ROYAL JAL Hydrogen Water Bottle
Instruction Manual

List of components
Please ensure that you have everything in this diagram as well as the
adaptor lid for the breathing cannula and the cannula tube. If there is
anything missing please contact ROYAL JAL for support.
Bottle Cap
Bottle
Generator Base
USB Charge port (in rear)
Generator Timer/Power
User Manual X 1
Charging Cable
Charger
Nasal cannula
Inhalation Cap
Spare Washers X 1

Thank you for purchasing this product, please read this manual carefully before
using the system, and keep it for future reference. If you have any questions after
reading this manual, please call us on [phone] or
email : [e-mail]

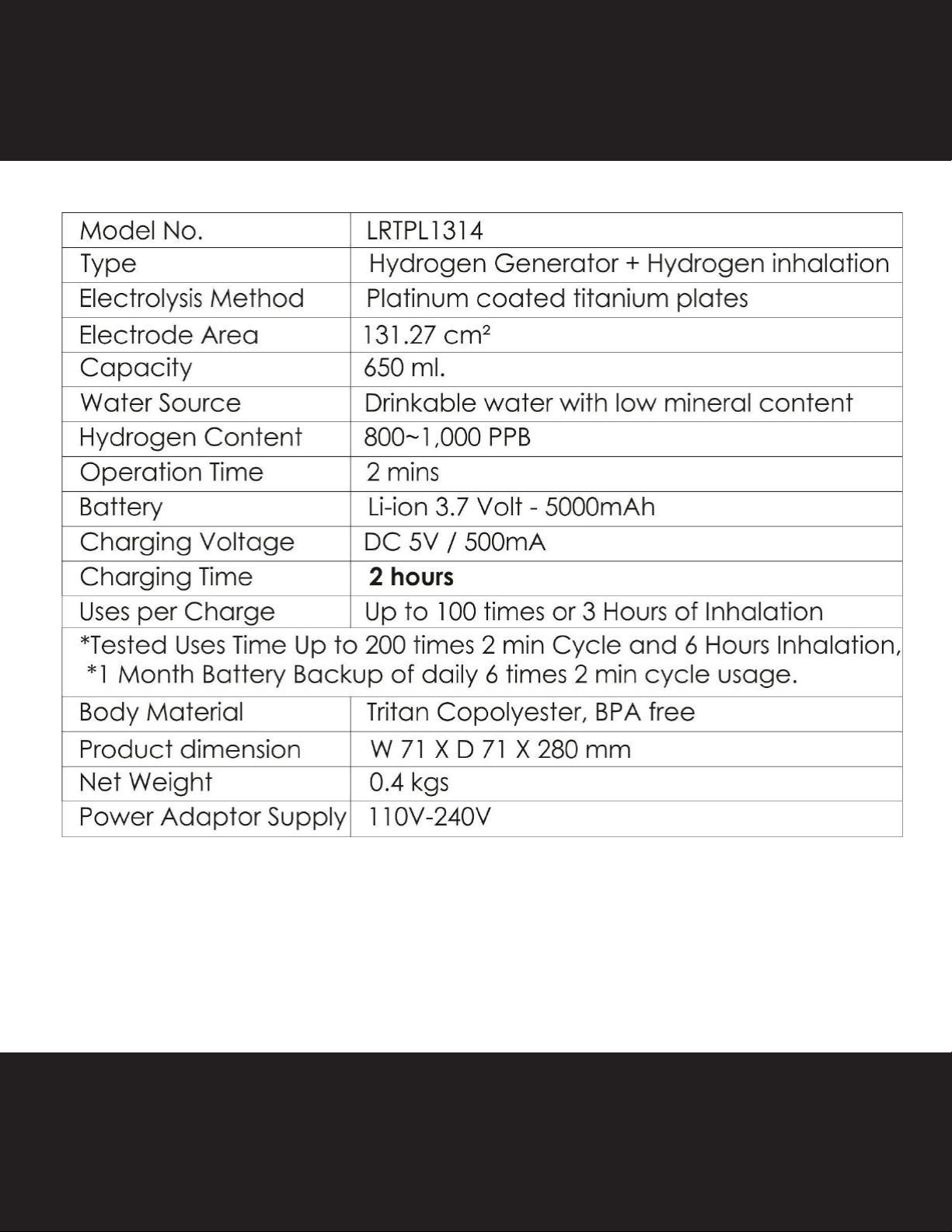

Product specifications

Important Warnings / Notes before You Start
1. ONLY PUT DRINKING WATER INTO THE BOTTLE. BE CAREFUL DO NOT MAKE THE
BOTTLE BASE WET.
2. WATER TEMPERATURE LIMITATION: BOTTLE 5~50°C.
3. THE BOTTLE BASE (POWER CHARGING BASE) CANNOT BE WASHED AND
SOAKED IN WATER.
4. PRECISION STRUCTURE INSIDE, PLEASE AVOID FALLING.
5. INSIDE CAR OR SIMILAR PACK STRUCTURE DON'T ON HYDROGEN INHALATION
BUTTON, IF SPARK/FLAME CHANCE TO CATCH FIRE.
6. THE- CHARGE VOLTAGE FOR THE CHARGER IS 5V. PLEASE USE THE EXCLUSIVE
ADAPTOR. USING A VOLTAGE OVER 5V CAN CAUSE MALFUNCTION.
7. DO NOT STORE THE PRODUCT IN FRIDGE OR EXPOSE IN CONDITIONS BELOW
0°C.
8. DO NOT OVERCHARGE THE BATTERY.
9. CLEAN GENTLY TO AVOID TOUCHING OR SCRATCHING THE ELECTRODE OR
DAMAGING THE PLATINUM COATING ON THE HYDROGEN GENERATOR. TO
CLEAN ONLY USE WATER AND NEVER TOUCH TO THE PLATES.
10. ALWAYS PLACE THE UNIT ON A FLAT SURFACE WHEN IN USE
11. CLEAN THE UNIT TWICE PER MONTH AS DIRECTED.
12. DO NOT DISASSEMBLE, REPAIR, OR MODIFY THE PRODUCT IN ANY WAY.
13. DO NOT TURN ON BOTTOM BUTTON WITHOUT INSTALLING An OXYGEN OUTLET
NOZZLE OR INHALATION CAP.

Quick start up guide
Setting up
1. After taking the bottle out of the box, make sure the bottom base is firmly
screwed on. Please note it will loosen over time, so you will need to check
it or if there is a leak just tighten it firmly.
2. Attach the clean dry bottle back on to the generator by twisting the
bottle onto the generator and hand tightening. Screw the lid back on
the bottle.
3. Insert the DC Jack into the charging port. Then insert the USB side of the
cable into the Charger and plug into an outlet.
4. Charge the bottle for 2-3 hours until fully charged and then remove charger.
5. Fill the bottle with clean drinking water.
6. The bottle will be partially charged so you can start using it right away. See
section 3G for charging instructions. You can fill the bottle with any filtered,
bottled or tap water, but we suggest RO filtered water as the best option. The
bottle needs to be filled and emptied 3 times before drinking.
7. Now Hydrogen Generation Process Started.
IMPORTANT: DO NOT OVER-CHARGE, OVER-CHARGING
WILL LEAD TO SHORTENED BATTERY LIFE

How to operate the bottle
1. To begin the Hydrogen Generation process press the power button.
The working indicator light will turn blue, making H2for 2 minutes.
2. You can drink the hydrogen water directly out of the bottle or pour it
into another container. It is best to drink water within one hour.
Hydrogen will dissipate over time.
3. Do not cycle the bottle more than once when drinking the water.
4. Make sure to operate the unit on a table or flat surface to allow
open top Cap of Bottle to release Pressure gas from top.
5. The recommended water temperature is 10 - 40℃.
6. Generally, lower the water temperature, the higher dissolved
hydrogen.
How to store the excess hydrogen water
After Generating Hydrogen Water in Bottle, Pore this water in
Another Container, The hydrogen water need to be sealed then put
in the refrigerator, this can prolong the life span of hydrogen water,
we suggest to drink the water as soon as possible.
IMPORTANT: DO NOT CYCLE THE BOTTLE
MORE THAN ONCE BEFORE DRINKING

How to use the Breathing Cannula
The breathing cannula is an alternative to drinking water when drinking becomes
restricted during air or car travel or in the evenings when drinking water before
bed can interrupt sleep with necessary trips to the bathroom.
There is only so much water you can physically drink in a day, but you can
breathe as long as you want to.
H2Gas Flow: 10- 20ml/min approximately.
Instructions:-
1. To use the breathing cannula please use the second bottle lid provided, this
has a snorkel valve protruding in the centre.
2. Attach the cannula breathing tube to the lid.
3. Fill the bottle ¾ of the way full, with water and screw on the adapter-Lid to
the top of the bottle with the Cannula breathing tube attached.
4. Place the loop end of the Cannula tube over your head and the two
breathing prongs into each nostril.
5. Adjust the slack-bead behind your neck to be snug against the back of
your head. Begin cycling the bottle to create enough pressure to push
Hydrogen gas up the cannula tube and into your nose.
6. Continue cycling until you no longer desire to inhale the gas.
7. If using for a longer than 6 Hours please replace the water.

Important things to remember
Do not leave the bottle on charge for longer than 3 hours. Always ensure to use
all the battery before recharging again. Over charging will lead to drastic
deterioration of the battery.
Never operate the generator without water in the bottle. Do not soak or
submerge the generator unit under water. Do not place the generator unit in a
refrigerator or cooler. Never use any chemical cleaners on Generator unit. Do
not pull cable from wire or plug with wet hands.
Depending on the mineral oxide content in your drinking water, clean the
electrolysis plates by descaling once or twice a month.
Keep USB Port sealed by plugging its cover back in.
Operate only with clean and safe drinking water, filtered water is preferable but
tap water can also be used. Not for use with hot, carbonated or other beverages.
Use room temperature water. Never freeze or use ice.
Avoid direct sun light or heat that can dry out the plates.
We do not recommend drinking water that has been cycled more than twice,
release the gas pressure at the lid if cycling more than twice (if you do not have
the cannula attached).
Keep away from children, Pets, Heat and Flames.
Do not soak or submerge the generator unit under water.

Descaling and Maintenance
Depending on the mineral oxide content in your drinking water, clean the
electrolysis plates by descaling once or twice a month.
Using reverse osmosis filtered water will prevent the need for descaling but this
is a good process to follow to clean and maintain the bottle.
To descale simply add 1 part either white vinegar, lemon juice or Citric acid
to 3 parts water into the bottle and leave generator soaking in mix overnight.
Discard and rinse thoroughly with warm water before using the next day.
The main thing to remember is to not over-charge and to keep the generator
moist so that the electrolysis plates do not dry out.
Trouble shooting
No visible bubbles
• Check Battery Charge
• Remove plug and obstacles
Battery not charging
• Check for defective Plug or cable.
Wetness in Generator
• Check the Leakage
Bottle has odour or
• Clean and de-scale as needed
Unit makes less gas
• Use different water source
Unit stopped working
• Contact For Support
Machine is
• Check all seals, tighten lid
Leaking water
• Check or empty waste chamber
• Fill water to ½ of top rim
If you have any other issues or queries please contact us on:
Telephone: [phone]
Email: [e-mail]

Benefits of Hydrogen Water
Hydrogen Basics
I run on Hydrogen“. To see Hydrogen cars, out of which no emissions
are emitted and only clear water drips out, is still seldom in our smog-laden
cities. Yet there is no doubt that Hydrogen gas presents the most interesting
form of alternative energies of the future. For 1 kg of Hydrogen brings 33,33
kWh/kg onto the road. Neither petrol (12 kWh/kg) nor natural gas (max.
13,1 kWh/kg) can keep up. Hydrogen, with the H symbol that stands for
Hydrogenium (“The Water Producer”).
Hydrogen is the most common element in the universe. It makes up
75% of the total mass of our solar system. Yet on our planet Earth it is more of
a scarce good. Only 0.12% of the total mass consists of Hydrogen. Most of it
is H2O which has bonded as “energy-less” water in our oceans. Water,
H2O, is Hydrogen gas H2 which has been combusted by oxygen. This
occurs, for example, with sugar which is converted from food into energy.
So Hydrogen doesn’t only provide energy for fuel cells for cars, but also for
the cells in the body. The H Hydrogen atom is made up of one positively
charged nucleus, the proton, which is orbited by a negatively charged
electron. The smallest of all atoms is also called “nascent” Hydrogen: That
means “hydrogen in its birth phase”, for an H-atom does not stay alone for
long; it bonds with a second H-atom to make what we usually call
Hydrogen, H2… A further description for this Hydrogen atom is “Hydrogen
radical”.
Often Hydrogen gas H2 is confused with the Hydrogen ion H+. This
corresponds to an H-atom without an electron; in short it is a single proton.
Positively charged Hydrogen ions are the measure of “acidity”. They occur
by the splitting off of a hydroxide ion (OH-) from water (H2O). If there are
more hydroxide ions in an aqueous solution, it is alkaline, if there are more
H+ ions (protons), then it is acidic.
Negatively charged Hydrogen ions (Hydride ions) theoretically also
exist. Yet they are so unstable that they only occur as compounds.
