Royal DG110 User manual
S
"Ii
*TeolTiT]A !1i Fe
Aft
Digital Accuracy
FEE
S
k
F
EW
O
Please do not return this product to the store
For assistance call 800-272-5229
ROYAL DG11O SHIPPING! POSTAL SCALE

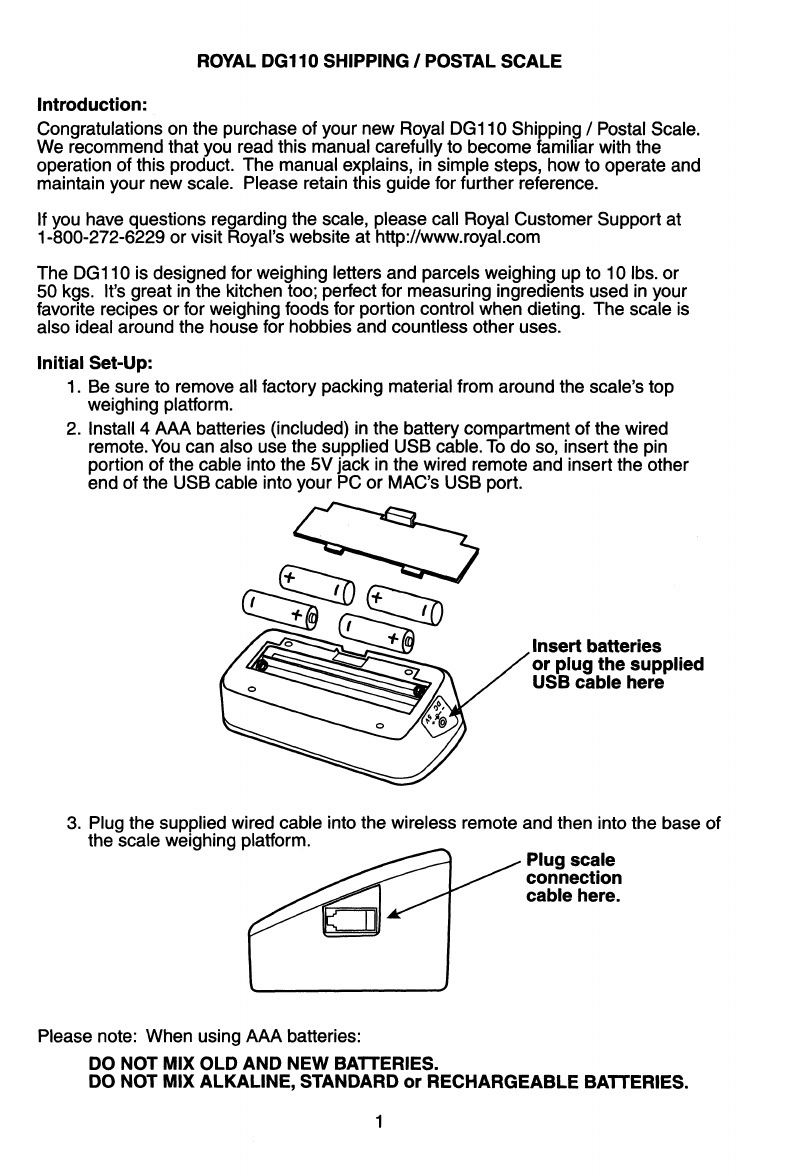

Introduction:
Congratulations on the purchase of your new Royal DG 110 Shipping / Postal Scale.
We recommend that you read this manual carefully to become familiar with the
operation of this product. The manual explains, in simple steps, how to operate and
maintain your new scale. Please retain this guide for further reference.
If you have questions regarding the scale, please call Royal Customer Support at
1-800-272-6229 or visit Royal's website at http:llwww.royal.com
The DG1 10 is designed for weighing letters and parcels weighing up to 10 lbs. or
50 kgs. It's great in the kitchen too; perfect for measuring ingredients used in your
favorite recipes or for weighing foods for portion control when dieting. The scale is
also ideal around the house for hobbies and countless other uses.
Initial Set-Up:
1.
Be sure to remove all factory packing material from around the scale's top
weighing platform.
2.
Install 4 AAA batteries (included) in the battery compartment of the wired
remote. You can also use the supplied USB cable. To do so, insert the pin
portion of the cable into the 5V jack in the wired remote and insert the other
end of the USB cable into your PC or MAC's USB port.
Insert batteries
or plug the supplied
USB cable here
3. Plug the supplied wired cable into the wireless remote and then into the base of
the scale weiahinQ Dlatform.
Plug scale
connection
cable here.
Please note: When using AAA batteries:
DO NOT MIX OLD AND NEW BATTERIES.
DO NOT MIX ALKALINE, STANDARD or RECHARGEABLE BATTERIES.
ROYAL DG1 10 SHIPPING / POSTAL SCALE

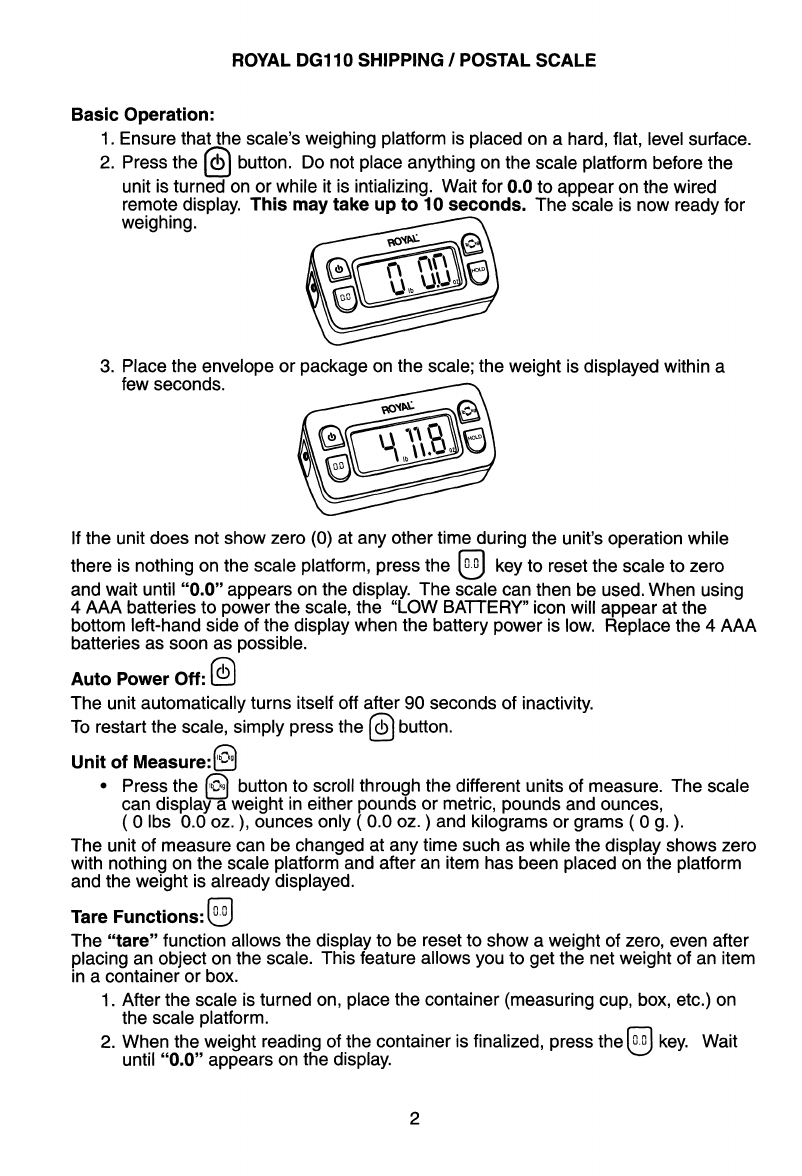

Basic Operation:
1 Ensure that the scale's weighing platform is placed on a hard, flat, level surface.
2.
Press the @button. Do not place anything on the scale platform before the
unit is turned on or while it is intializing. Wait for 0.0 to appear on the wired
remote display. This may take up to 10 seconds. The scale is now ready for
weighing.
pamw
lb
3.
Place the envelope or package on the scale; the weight is displayed within a
few seconds.
lb
4k
If the unit does not show zero (0) at any other time during the unit's operation while
there is nothing on the scale platform, press the
S
key to reset the scale to zero
and wait until "0.0" appears on the display. The scale can then be used. When using
4 AAA batteries to power the scale, the "LOW BATTERY" icon will appear at the
bottom left-hand side of the display when the battery power is low. Replace the 4 AAA
batteries as soon as possible.
Auto Power Off:
The unit automatically turns itself off after 90 seconds of inactivity.
To restart the scale, simply press the @button.
Unit of Measure:
• Press the
9
)button to scroll through the different units of measure. The scale
can display a weight in either pounds or metric, pounds and ounces,
(0 lbs 0.0 oz.), ounces only (0.0 oz.) and kilograms or grams (0 g.).
The unit of measure can be changed at any time such as while the display shows zero
with nothing on the scale platform and after an item has been placed on the platform
and the weight is already displayed.
Tare Functions:
The "tare" function allows the display to be reset to show a weight of zero, even after
placing an object on the scale. This feature allows you to get the net weight of an item
in a container or box.
1.
After the scale is turned on, place the container (measuring cup, box, etc.) on
the scale platform.
2.
When the weight reading of the container is finalized, press the
S
key. Wait
until "0.0" appears on the display.
ROYAL DG110 SHIPPING
I
POSTAL SCALE
3. Place the item in it's container onto the scale platform to be weighed.
4. Read the weight of the contents on the display. The weight shown will be
the weight of the item in the container, excluding the weight of the container
itself.
If the "hold" function was not enabled, the scale should return to a default weight
reading of zero once the item is removed from the container or box. Press the
0.0
key to reset the weight reading to zero.
Important: Please note the the total weight of the container and its contents should
not exceed the weight capacity of the scale.
Hold Function:
5
The "hold" function allows the weighing of large envelopes, boxes or other items that
hang past the edge of the platform and block the scale display from being read. Once
the
U
key is pressed, the weight will remain on the display for 1 minute or until
key is pressed again.
1. Place a large item on the scale. Wait until the weight display on the remote
indicates the weight is finalized.
2.
Press the
0
key. The "hold" icon will appear.
3. Remove the item from the scale platform. The item's weight reading will
remain on the display.
4.
Press the
U
key again to cancel the "hold" function.
Postal Rate Charts:
***IMPORTANT NOTICE***
POSTAL RATE CHARTS
Visit Royal's website at http:llwww.royal.com to download the latest
US Postal 1st class mail rate chart free of charge.
United States Rate Chart:
When determining the U.S. postage rate for either Domestic U.S. First-Class Mail
(within the USA) or International Airmail (from the USA to all other countries), roundup
to the next whole ounce if the weight reading is a fraction above a whole ounce
measurement (from 0.1 ounce through 0.9 ounce). For example: a reading of 2.1
ounces is charged the postage amount shown for 3 ounces on the rate chart: or a
reading of 1.7 ounces is charged the postage amount shown for 2 ounces.
Canadian Rate Charts:
For customers located in Canada, a postal rate chart is also available free of charge
at http:llwww. royal. com
.
WARRANTY & TECHNICAL SUPPORT
STANDARD WARRANTY
ROYAL CONSUMER INFORMATION PRODUCTS, INC. ("Royal"), at 1160 U.S. Highway 22 East,
Suite 301, Bridgewater, NJ 08807-2931 USA WARRANTS that your NEW product is free of
defects of workmanship and materials. If there is a defect or malfunction of this product, Royal
will repair it free of charge as follows:
PARTS: New or comparable rebuilt parts in exchange for defective parts for ONE (1) YEAR from
date of customer purchase.
LABOR: Royal provides labor warranty for NINETY (90) DAYS from date of end-user purchase.
Product must be sent postage prepaid and insured to Royal in accordance with the warranty
procedures outlined below. At completion of the repair, the consumer will be responsible for
return shipping charges from Royal, and for any parts or services no longer covered under
warranty.
This warranty does not apply to persons who purchased this product second-hand or used.
This warranty does not include adjustments, parts and/or repairs required by circumstances
beyond the control of Royal, including but not limited to fire or other casualty, accident, neglect,
abuse, misuse, abnormal use or battery leakage damages.
THERE ARE NO OTHER EXPRESSED WARRANTIES EXCEPT AS STATED HEREIN. AFTER
THE PERIOD OF EXPRESSED WARRANTY SET FORTH HEREIN, THERE ARE NO
EXPRESSED OR IMPLIED WARRANTIES AND THOSE EXCLUDED INCLUDE THOSE OF
MERCHANTABILITY AND FITNESS FOR PARTICULAR PURPOSE. Royal shall NOT be held
liable for CONSEQUENTIAL DAMAGES resulting from any failure, defect or malfunction of this
product. Some States do not allow limitations on how long an implied warranty lasts and some
States do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitations may not apply to you.
WARRANTY PROCEDURES
TO OBTAIN SERVICE UNDER THE TERMS OF THIS WARRANTY:
Please do the following:
1.
Send a copy of your original sales receipt showing the original purchase date, along with your
mailing and shipping addresses and a note describing the nature of the problem to:
Royal Consumer Information Products, Inc.
Warranty Processing
50 Hilton Street
Easton, PA 18042 USA
Do Not Return the Product to This Address!
2.
You will receive a return authorization number within 7-12 business days from the date your
return request is received if it is determined that there is a basis for a replacement product.
The return authorization form you receive will list the return procedures, applicable charges,
if any, and the correct shipping address for the returned product.
PRODUCT SUPPORT HOTLINE:
For questions on the use of this product or this warranty in the U.S. and Canada, call
1-800-272-6229 in Mexico call 01-800-849-4826), Monday through Friday during normal
.
OW
Copyright
Royal Consumer Information Products, Inc.
2018, All Rights Reserved.
Royal
Consumer Information Products, Inc.
1160 U.S. Highway 22 East, Suite 301
Bridgewater, NJ 08807
0201 8 Royal Consumer Information Products, Inc. All Rights Reserved.
