RP Sports Recovery Pump User manual

RPX®2020 Model 737R
Massage System
User Manual
9 Lacrue St. Ste 108
Glen Mills, PA 19342
855.732.7867
www.rpsports.com
!"#$$%&'()*

(+,-./$/$.01234.565(. (+.7819:;-. <;39.0=>?=4
Table of Contents
1. Important Safety Information 1..........................................................
2. RPX® 2020 Specifications and Dimensions 3..................................
3. Labels 5................................................................................................
4. Indications for Use 8...........................................................................
5. About RPX® 2020 8.............................................................................
6. Components of the RPX® 2020 System 15.......................................
7. How to Operate the RPX® 2020 System 18.......................................
8. Using the RecoveryPump® Mobile Application 51..........................
9. Maintenance and Storage 77..............................................................
10. Troubleshooting 81.............................................................................
11. Troubleshooting Wireless Connection Problems 85.......................
12. Warranty and Contact Information 85...............................................
13. Bluetooth Wireless Technology Information 86...............................
14. EMC Manufacturer Declarations 87...................................................
!"#$$%&'()*

(+,-./$/$.01234.565(. (+.7819:;-. <;39.0=>?=4
1. Important Safety Information
Read all instructions before using the RPX®2020 system for the first time.
Safety Warnings and Precautions
Warning: Contraindications for Use
•This system is intended for use by people in good health. This system
is not recommended for people who have heart problems, or vascular
problems, have a condition requiring the use of any medical device, or
have any condition that may affect their normal well-being.
•If you are, or may be, pregnant, consult with your physician before use.
•Do not use this system over insensitive or numb areas, or in the
presence of poor circulation. Do not use if you have been diagnosed
with blood clots, deep vein thrombosis or phlebitis. This system should
not be used over swollen or inflamed areas or skin eruptions. Do not
use in the presence of unexplained calf pain.
•Consult your physician prior to use.
!
Warning:
•Explosion Hazard: Do not use the RPX®2020 system in the presence
of flammable gases, including flammable anesthetics.
•Electric Shock Hazard: Do not allow liquid to enter any part of the
RPX®2020 console. Do not immerse. To clean, follow instructions in
Chapter 9 - Maintenance and Storage.
•Electric Shock Hazard: To prevent electric shock, do not open the
console. Do not attempt to service the console yourself. All
maintenance tasks should be performed only by RecoveryPump®
trained and authorized service personnel. Service by unauthorized
personnel shall void any warranty.
•Stop massage in case of any change of the RPX®2020 system
performance.
•Use the RPX®2020 console only with RPX®2020 system garments
and accessories.
•Do not modify any part of the RPX®2020 system.
•The equipment should not be used adjacent to or stacked with other
equipment. In case adjacent or stacked use is necessary, the
equipment should be observed to verify normal operation in the
configuration in which it is used.
•The RPX®2020 system includes small parts. To avoid choking, do not
swallow, and keep away from children and pets.
!
Note:
This device was tested for compliance with safety performance standards
that apply to electro-medical devices:
•Electrical Safety: IEC 60601-1 Ed. 3.1
•Electromagnetic Compatibility: IEC 60601-1-2 Ed. 4.0
•Home-use Devices: IEC 60601-1-11 Ed. 2.0
. !"#$$%&'()*@

Caution:
•Do not operate the RPX®2020 system during transit.
•Do not store or transport the RPX®2020 system beyond the specified
temperature, humidity, and atmospheric pressure ranges
(see Chapter 9 - Maintenance and Storage.
•Do not use the RPX®2020 system beyond the specified temperature
range: 10–30°C (50–86°F).
•Do not use the RPX®2020 system beyond the specified humidity
range: 30–85%rH, non-condensing.
•Use the RPX®2020 system up to 3000m above mean sea level.
•To prevent any damage to the RPX®2020 system, keep it away from
dust, lint, and dirt. Keep away from sources of heat or moisture.
•Do not inflate the garment without wearing it over the intended body
area. Do not inflate the garment "on empty". Doing so can damage the
garment.
•To prevent any damage to equipment, use only accessories,
detachable parts, and materials described in this User Manual.
•While in use, place the console on horizontal firm surface only. Do not
place the console on bed, blanket, mattress, pillow, or soft furniture.
Do not cover the console.
•Use only accessories approved by the manufacturer (Mego Afek AC
Ltd.). Other accessories may damage the system or interfere with
system function.
•The equipment is to be installed and put into service according to the
EMC information provided in Chapter 14 - EMC Manufacturer
Declarations.
•Portable and mobile RF communication equipment may affect the
equipment.
!"#$$%&'()*. /

(+,-./$/$.01234.565(. (+.7819:;-. <;39.0=>?=4
2. RPX®2020 Specifications and Dimensions
. !"#$$%&'()*6

Model: 737R, appliance coupler, transportable, rated: 100-240 VAC, 50-60 Hz,
internal backup battery: 11.1V, 5000 mAh
Type of protection against electric shock
Class II
Degree of protection against electric
shock
Type BF
Degree of protection against ingress of
water
IP21
Degree of safety of application in the
presence of a flammable anesthetic
mixture with air or with oxygen or nitrous
oxide
Equipment not suitable for use in the
presence of a flammable anesthetic
mixture with air or with oxygen or nitrous
oxide
Mode of operation
Continuous
Massage duration
10–90 minutes
Environmental Conditions
Normal: 10–30°C, 30–85% rH, 700–
1060 hPa
Pressure Range
20–100 mmHg
Dimensions
22 cm ×17 cm ×13 cm (8.6" ×6.7" ×
5.1")
Weight
1.5 kg (3.3 lbs.)
!"#$$%&'()*. '

(+,-./$/$.01234.565(. (+.7819:;-. <;39.0=>?=4

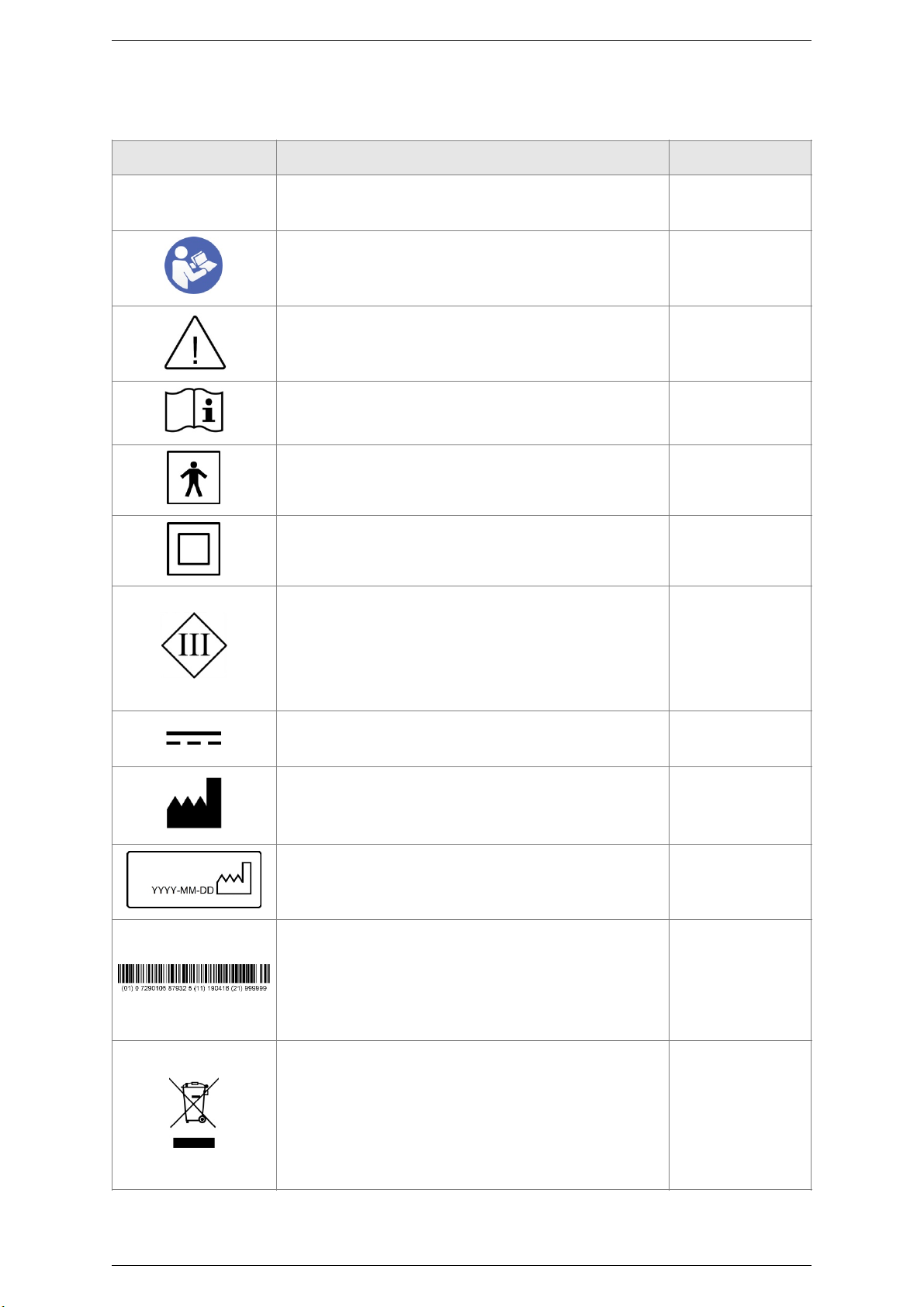

3. Labels
The following labels and symbols appear on the console, garments and/or
packaging.
Symbol
Description
Location
IP21
Degree of protection against ingress of water
On console
base
Read instructions before use
On console
base
Read instructions before use (for China only)
On console
base
Read instructions before use
On garment
label
Level of protection type BF applied part
On console
base
Double insulation
On DC power
adapter
Class III equipment
Equipment relying on limitation of voltage to
extralowvoltage (ELV) values as provision for
basic protection and with no provision for fault
protection.
On console
base
Direct current
On console
base
Manufacturer's name and address
On garment
label and
console base
Date of Manufacture
On console
base
Unique Device Identification (UDI)
On console
base and
package, and
garment bag
and package
Separate collection for waste electrical and
electronic equipment
Note:
For more information about disposal of
equipment, its parts and accessories, please
contact your local distributor.
On console
base
. !"#$$%&'()*%

In accordance with Directive 2014/35/EU
electrical equipment designed for use within
certain voltage limits, and Directive 2014/30/
EU electromagnetic compatibility
On console
Serial number of the console
On console
base
FCC CFR 47 Telecommunications, Part 15
statement
On console
base
Contraindications label
On package
Fragile, handle with care
On package
Keep dry
On package
This side Up
On package
Keep away from sunlight
On package
Transportation & storage humidity limitation
On package
Transportation & storage atmospheric
pressure limitation
On package
Transportation & storage temperature
limitation
On package
"ON" (power)
On power
switch
"OFF" (power)
On power
switch
Do not wash
On garment
tag
Symbol
Description
Location
!"#$$%&'()*. A

(+,-./$/$.01234.565(. (+.7819:;-. <;39.0=>?=4
Do not dry-clean
On garment
tag
Do not tumble dry
On garment
tag
Do not bleach
On garment
tag
Do not iron
On garment
tag
Symbol
Description
Location
. !"#$$%&'()*5

4. Indications for Use
The RPX®2020 powered inflatable tube massager is indicated for the
temporary relief of minor muscle aches and pains, and for temporary increase
in circulation to the treated areas in people who are in good health.
The RPX®2020 simulates kneading and stroking of tissues by using an
inflatable garment.
5. About RPX®2020
RPX®2020 is a Massage System intended for use by people in good health. As
noted above, RPX®2020 simulates the kneading and stroking action of manual
massage by use of an inflatable garment that fills and deflates, applying a
directional compress-and-release massage. This soothing massage action
temporarily increases circulation in the areas to which the garment is applied,
and temporarily relieves muscle aches and pain caused by fatigue or
overexertion.
The RPX®2020 Massage Cycle
The RPX®2020 console takes air from the room environment and sends it
through hoses into individual air chambers inside the RPX®2020 garment.
The air chambers in the RPX®2020 garment, are specially designed to overlap
each other for fluent, comfortable massage without gaps. You can adjust the
pressure level of the massage, treatment time, hold time, and the pause time
between inflation cycles.
The RPX®2020 console can operate one or two garments simultaneously.
RPX®2020 has five different treatment programs:
•Recover (Sequential cycle mode)
•Warm-up (Sequential cycle mode)
•Isolation (ISO cycle mode)
•Interval (Sequential cycle mode)
•Custom (Sequential, ISO, Wave, or Flow cycle mode)
Pretreatment (can be added to the beginning of the cycle mode selected in
the Custom program only)
These programs are described in the following sections.
!"#$$%&'()*. #

(+,-./$/$.01234.565(. (+.7819:;-. <;39.0=>?=4
Programs 1 and 2 - The Recover and Warm-up Programs
The Recover and Warm-up programs use the Sequential cycle mode that
applies a directional massage, starting at the base of the treated area, and
progresses upwards towards the torso and then releases (see Figure 1).
This applies a deep, slow massage.
•The Recover program is recommended for use after workout.
•The Warm-up program is recommended for use before workout.

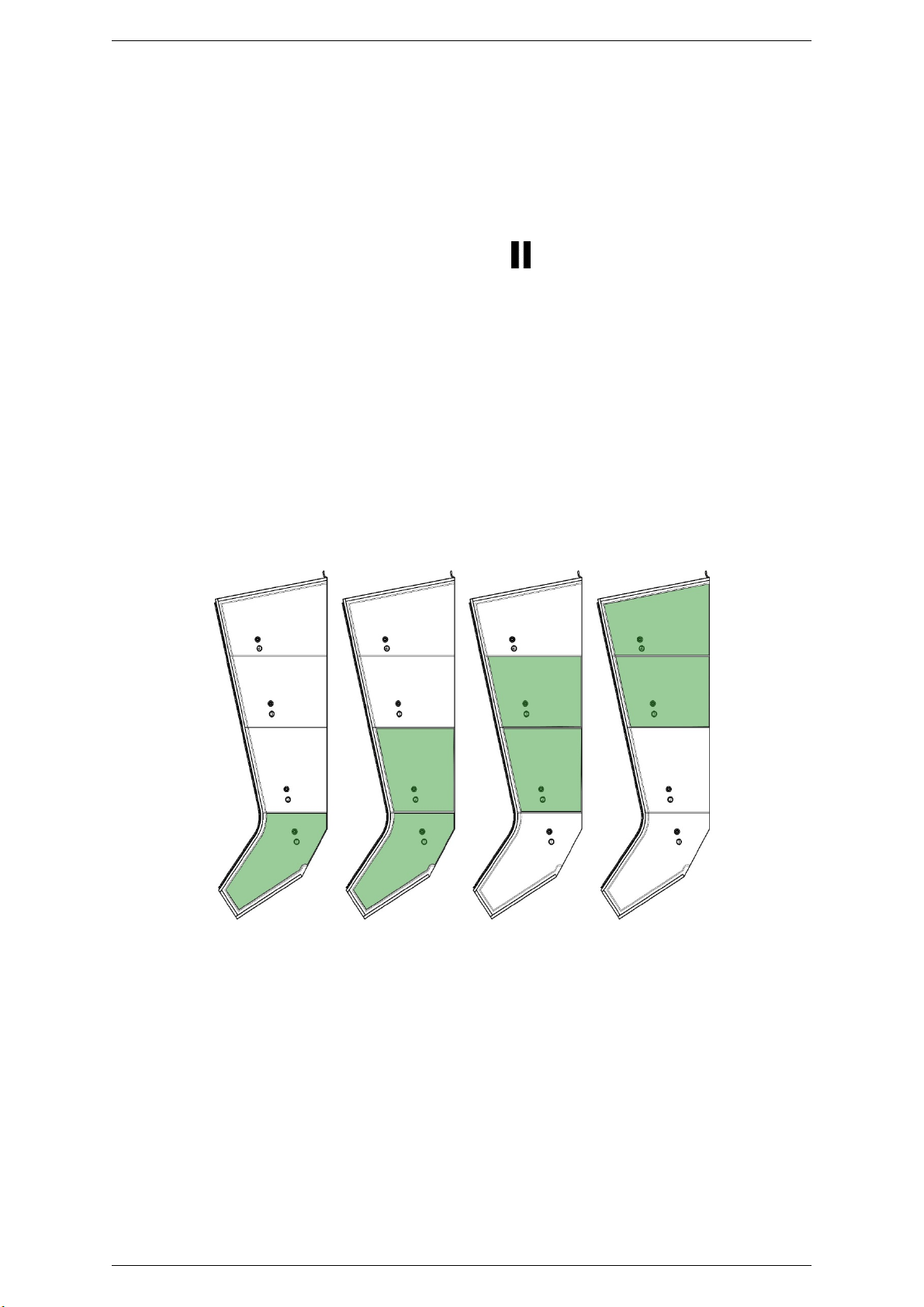

Figure 1 - Sequential Cycle Mode
. !"#$$%&'()*"

Program 3 - The Isolation Program
The Isolation program uses the ISO cycle mode that applies a directional
massage to a smaller, user-selected area. The first chamber inflates, and after
a few seconds, the second chamber starts to inflate until both chambers reach
the set pressure. Then both chambers deflate, and after a pause the process
starts again (see Figure 2).
The user can select the pair of chambers (zones) to be inflated:
•Chambers 1 and 2 – Distal zone
•Chambers 2 and 3 – Mid zone
•Chambers 3 and 4 – Proximal zone

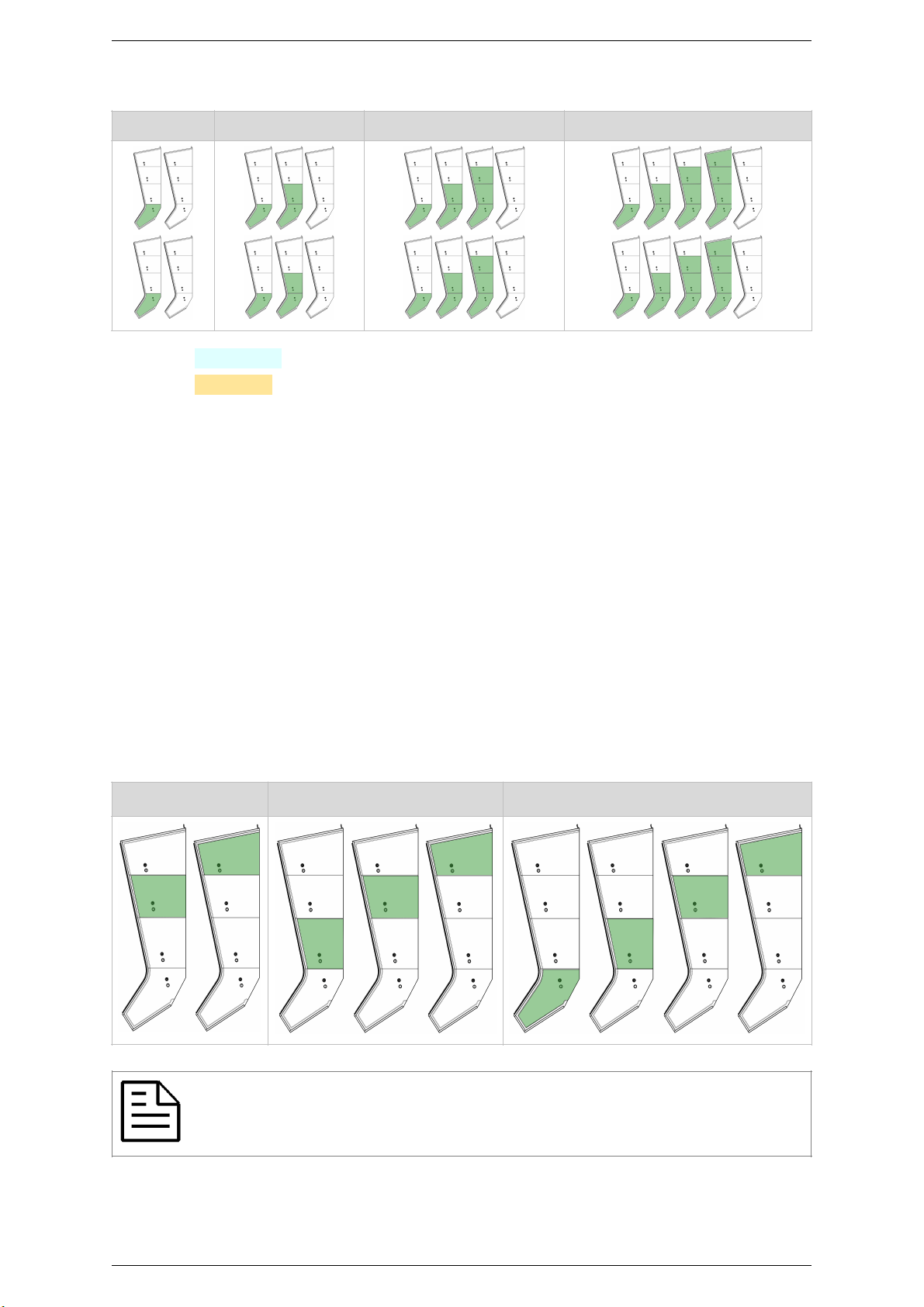

Figure 2 - ISO Cycle Mode
Program 4 - The Interval Program
The Interval program applies periods of treatment (Time On) using the
Sequential cycle mode (see Figure 1) alternated with intervals of no treatment
(Time Off).
Chambers 1 & 2 (Distal)
Chambers 2 & 3 (Mid)
Chambers 3 & 4 (Proximal)
!"#$$%&'()*. @$

(+,-./$/$.01234.565(. (+.7819:;-. <;39.0=>?=4
The periods of Time On alternate with intervals of Time Off for a Total
treatment time of up to 8 hours.
The user selects the Time On (in minutes), the Time Off (in minutes), and the
total Interval program run time (in hours).
Operating the console using Program 4 (Interval) runs treatment for the
selected Time On, and after treatment is completed, the console pauses for
the configured Time Off interval, and then automatically starts the same
treatment again, for the configured Total time.
During Time Off between treatments, the icon is displayed on the top left
corner of the screen.
Program 5 - The Custom Program
The custom program allows the user to select the Sequential cycle mode
(see Figure 1), ISO cycle mode (see Figure 2), Wave cycle mode (see Figure
3), or Flow cycle mode (see The Flow Cycle).
During treatment, the user can change the treatment parameters, but not the
selected cycle mode.
The Wave cycle mode starts at the base of the limb, over the foot or hand.
As the chamber at the front of the wave inflates, the chamber at the back of
the wave starts to deflate, so at any one time a small area is being
compressed.
Figure 3 - Wave Cycle Mode
. !"#$$%&'()*@@

The Flow Cycle
The Flow Cycle is described in the following table:
Sequence – instance of inflation and release
Progress – advancement of sequences
Four sequences exist. Each sequence is determined by the last chamber
inflated.
The Flow cycle has an associated Frequency parameter that determines
the number of sequences.
The user can set Frequency between 1 and 8. The default setting is 2.
Pretreatment
Pretreatment can be added to the beginning of the cycle mode set in the
Custom Program only.
Pretreatment treats the proximal areas first, decongesting them so that
they can receive the lymph fluid that is mobilized during the Sequential or
Peristaltic cycles. A specific pattern is applied, and the duration varies
according to garment size, lasting 5–12 minutes, with preselected
pressure of 30 mmHg that cannot be changed by the user.
The following diagram describes the progress of Pretreatment.
Chamber 1
Chamber 2
Chamber 3
Chamber 4
Sequence 1
Sequence 2
Sequence 3
Note:
Sequence 1 is carried out six (6) times. Sequence 2 and Sequence 3 are
carried out only once.
!"#$$%&'()*. @/

(+,-./$/$.01234.565(. (+.7819:;-. <;39.0=>?=4
Factory Default Program Settings
The RPX®2020 console is supplied with the following default program
settings.
To return all programs to the default settings, press and hold both and
until the buzzer beeps twice.
Progra
m
Cycle
Mode
Zon
e
Pre-
treatm
ent
Press
ure
[mmH
g]
Tim
e
[mi
n]
Hol
d
[se
c]
Relea
se
[sec]
Tim
e
On
[mi
n]
Tim
e
Off
[mi
n]
Tot
al
[hr
]
User
Modification
1
Recov
er
Sequen
tial
–
–
50
30
5
10
–
–
–
Pressure, Time,
Hold, Release,
and Gradient
(see note below)
2
Warm-
up
Sequen
tial
–
–
40
15
0
10
–
–
–
3
Isolatio
n
ISO
Dist
al
–
20
20
2
10
–
–
–
Zone Pressure,
Time, Hold,
Release, and
Gradient (see
note below)
4
Interval
Sequen
tial
–
–
35
–
2
15
20
30
3
Pressure, Time
On, Time Off,
Total, Hold,
Release, and
Gradient (see
note below)
5
Custo
m
Sequen
tial
Dist
al
(IS
O
only
)
–
45
30
4
10
–
–
–
Cycle, Pressure,
Time, Hold,
Release,
Pretreatment,
and Gradient
(see note below)
Note:
All programs - The user can change Pressure, Hold, and Release during
treatment.
•Program 3 - The user can select the zone to be inflated in the ISO cycle
mode (Distal, Mid, or Proximal).
•Program 4 - The user can select the Time on, Time off and Total
treatment time in addition to the Pressure, Hold, and Release.
•Program 5 - The user can select the Flow cycle and its Frequency.
. !"#$$%&'()*@6

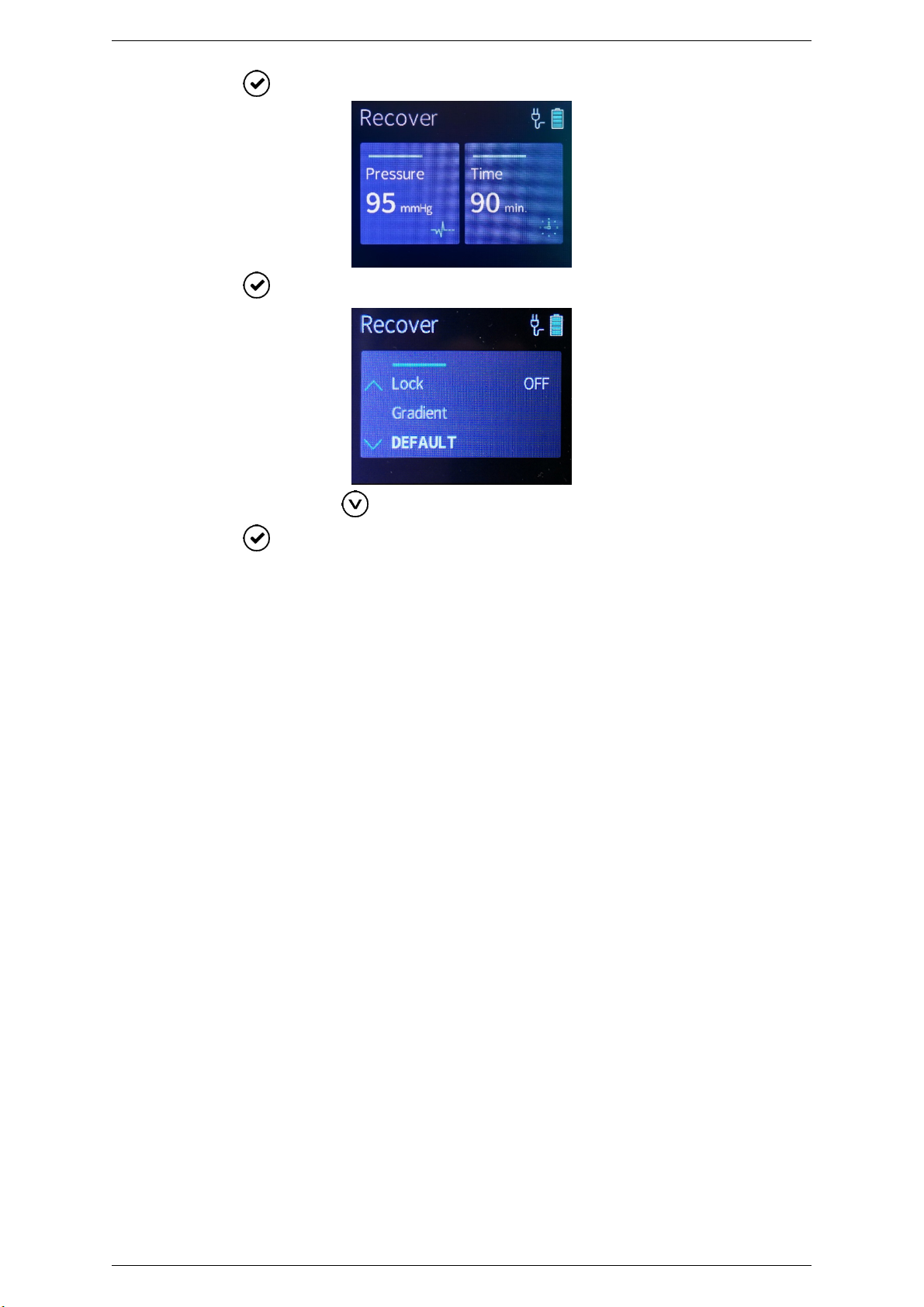

To return each program to the default settings:
a. Press repeatedly until the required program screen is displayed:
b. Press until the parameters screen is displayed.
c. Scroll down using until reaching DEFAULT.
d. Press .
The buzzer beeps three times, and the selected-program parameters
return to their default settings.
!"#$$%&'()*. @'

(+,-./$/$.01234.565(. (+.7819:;-. <;39.0=>?=4

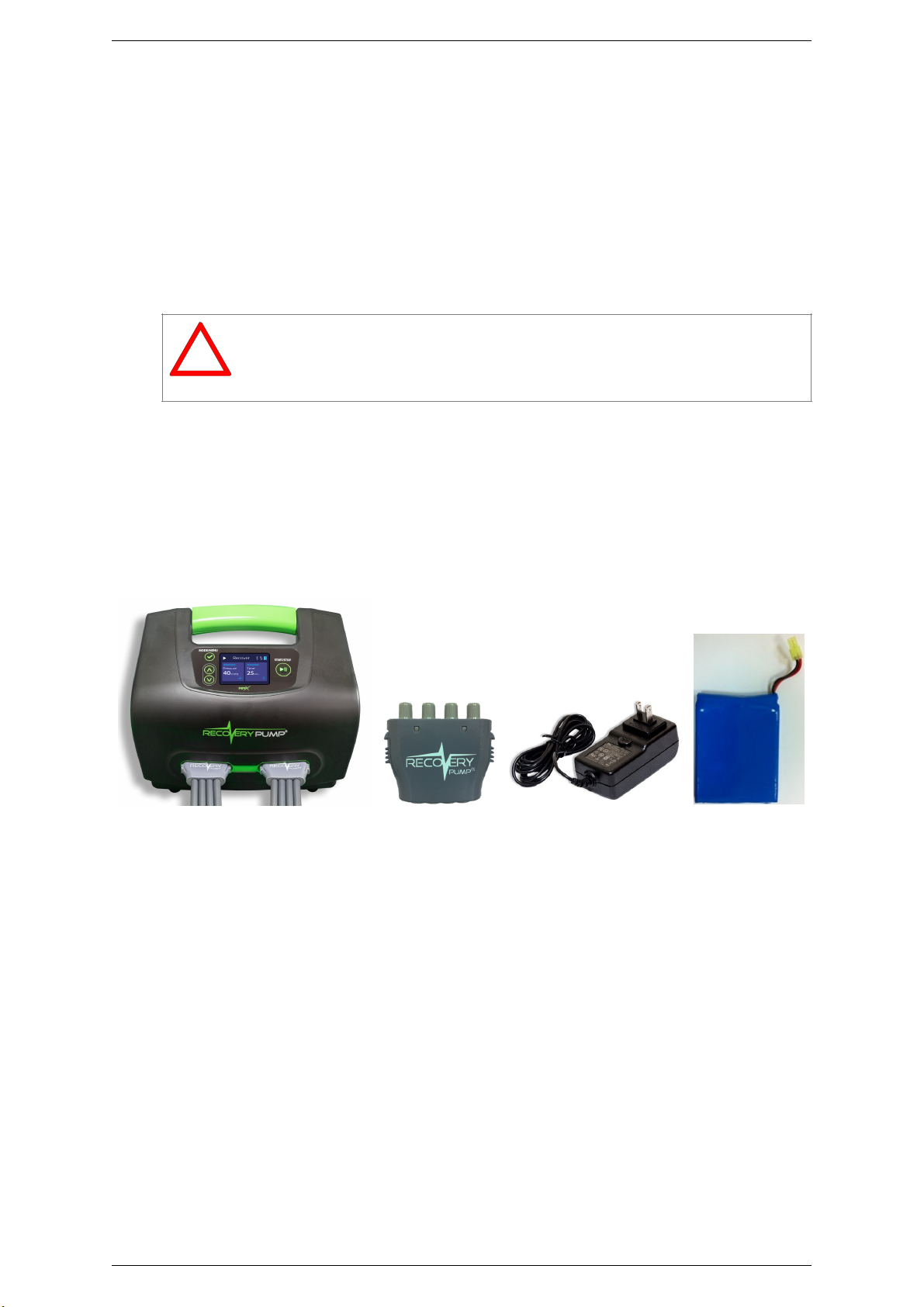

6. Components of the RPX®2020 System
The RPX®2020 737R Console
(see Figure 4)
The console takes air from the room environment and sends it to the individual
air chambers in the garment in a sequence that starts from the base of the
garment and continues to the top, according to the selected mode. The console
then vents the air from the garments, there is a brief pause, and the massage
cycle repeats.
The console is powered by either DC power adapter or by a rechargeable
battery inside the console. The battery can be charged while the console is
operated by electricity. The following table illustrates the battery power capacity
displayed by the status indicators.
Note:
•Turn On the Power Switch to enable charging the console.
•Turn Off the Power Switch to conserve battery power when not
charging or not using the console.

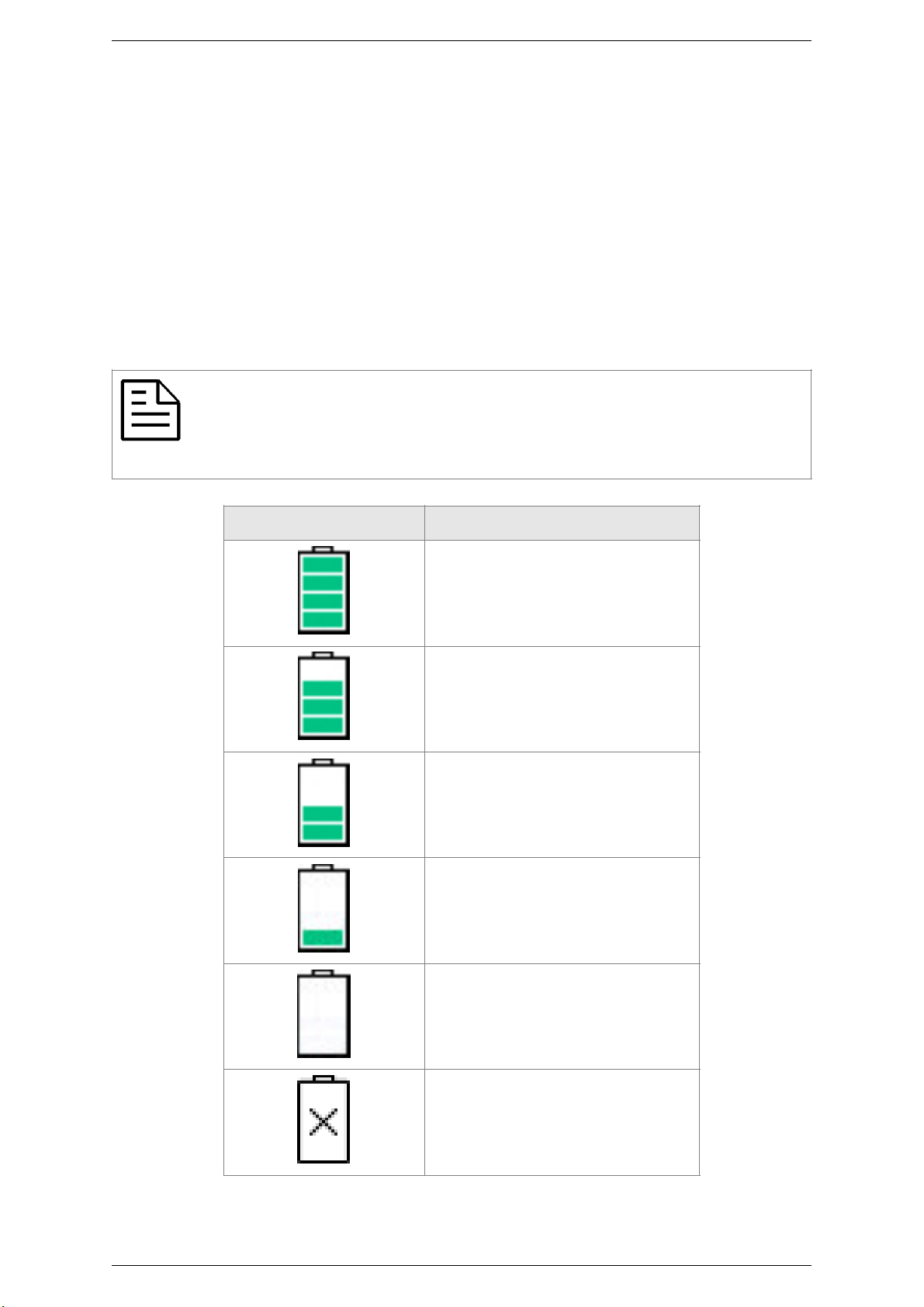

Battery Status Icon
Available Power
75–100% power
50–75% power remaining
25–50% power remaining
5%–25% power remaining
Battery empty
Battery disconnected
. !"#$$%&'()*@%

Prong Plug
(see Figure 5)
If you use only one garment, insert this plug into the unused air outlet on the
front of the RPX®2020 console, to seal it off and prevent air from escaping (see
Figure 22).
DC Power Adapter
(see Figure 6)
The DC Power Adapter receives 100–240 VAC, 50–60 Hz AC power and
supplies 12 VDC 3A to the console.
Battery Pack
(see Figure 7)
•The console can operate on battery power for more than two (2) hours when
fully charged.
•Battery may be charged during normal operation of the console.
•Battery charging time is up to 8 hours.
Caution:
•For indoor use only.
•Use only the provided DC power adapter.
Figure 4 - RPX®2020 737R
Console
Figure 5 -
Prong Plug
Figure 6 - DC Power
Adapter
Figure 7 -
Battery Pack
!"#$$%&'()*. @A

(+,-./$/$.01234.565(. (+.7819:;-. <;39.0=>?=4

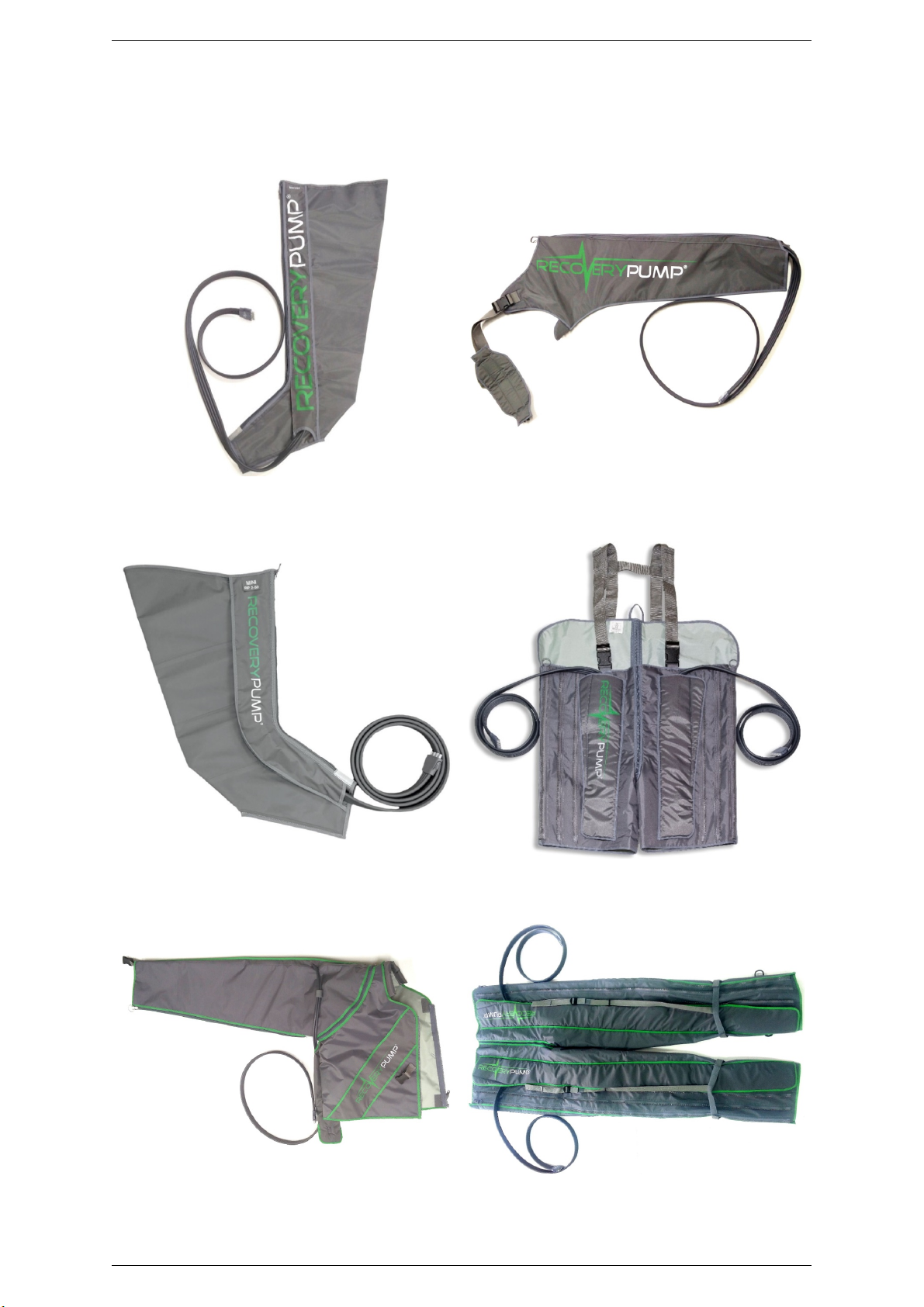

Compression Garments
(see Figure 8, Figure 9, Figure 10, Figure 11, Figure 12, and Figure 13).
A variety of garments are available. RecoveryBoots™ and Mini Boots are
available in several sizes. RecoveryCore™, RP Half Jacket, and
RecoveryPants are adjustable.
Figure 8 - RecoveryBoots™
Figure 9 - RecoveryArm™
Figure 10 - Mini Boots
Figure 11 - RecoveryCore™
Figure 12 - RP Half Jacket
Figure 13 - RecoveryPants
. !"#$$%&'()*@5
