RTimes RTSS-X502N User manual

Realtimes Beijing Technology Co.,LTD www.realtimes.cn/en/index.html
RTSS-X502N Reference Manual V1.0
1
RTSS-X502N
User Manual
Address: 9th Floor, Block B, 20th Heping
Xiyuan, Pingxi Street , Chaoyang District ,
Beijing 100013,P.R.China
Realtimes Beijing Technology Co., LTD.
Fax：
[phone] /
84280996 / 84278927
Email:
[email protected]
Web Page:
http://www.realtimes.cn

Realtimes Beijing Technology Co.,LTD www.realtimes.cn/en/index.html
RTSS-X502N Reference Manual V1.0
2
Revision History
Revision
Date
Reason for change
Applicable
hardware version
V1.0
2020.2
Initial release
V1.0

Realtimes Beijing Technology Co.,LTD www.realtimes.cn/en/index.html
RTSS-X502N Reference Manual V1.0
3
Electronic components and circuits are very sensitive to electrostatic discharge. Although
our company designs anti-static protection for the main interfaces on the card when
designing circuit board products, it is difficult to achieve anti-static safety protection for
all components and circuits. Therefore, it is recommended to observe anti-static safety
precautions when handling any circuit board component (including RTSS-X502N). Anti-
static safety protection measures include, but are not limited to the following:
a) The smart box should be placed in an anti-static bag during transportation and
storage, and then the board should not be taken out during installation and
deployment.
b) Before touching the smart box, discharge the static electricity stored in the body:
wear a discharge grounding wrist strap.
c) Operate the smart box only within the safe area of the electrostatic discharge point.
d) Avoid moving smart boxes in carpeted areas.

Realtimes Beijing Technology Co.,LTD www.realtimes.cn/en/index.html
RTSS-X502N Reference Manual V1.0
4
Table of Contents
1 COMPANY PROFILE AND PRODUCT INTRODUCTION..............................................5
1.1 FEATURES.............................................................................................................................6
1.2 ORDERING INFORMATION .....................................................................................................7
2 EXTERNAL INTERFACE FUNCTION AND LOCATION...............................................8
3 INSTALLATION AND USE....................................................................................................9
3.1 HOW TO USE SMART BOX......................................................................................................9
3.3 RECOVERY MODE................................................................................................................9
4 CONNECTORS DESCRIPTION..........................................................................................10
4.1 SERIAL CONNECTOR............................................................................................................10
4.2 GPIO AND FUNCTION BUTTON CONNECTOR ........................................................................10
4.3 CAN CONNECTOR ...............................................................................................................11
4.4 WIFI ANTENNA CONNECTOR ...............................................................................................11
4.5 4G ANTENNA CONNECTOR...................................................................................................11
4.6 POWER INPUT PORT .............................................................................................................12
4.7 POWER SWITCH BUTTON......................................................................................................12
4.8 HDMI CONNECTOR.............................................................................................................12
4.9 ETHERNET CONNECTOR.......................................................................................................12
4.10 USB3.0 CONNECTOR.........................................................................................................13
5 HARDWARE UPDATE HISTORY......................................................................................14
6 PRODUCT SIZE DIAGRAM................................................................................................14
7 SOFTWARE/BSP DETAILS.................................................................................................15
8 TECHNICAL SUPPORT.......................................................................................................15
TERMS OF WARRANTY........................................................................................................16

Realtimes Beijing Technology Co.,LTD www.realtimes.cn/en/index.html
RTSS-X502N Reference Manual V1.0
5
1 Company profile and Product introduction
Realtimes Technology has been specializing in R&D of excellent solutions for embedded
technology applications since 2004.Realtimes Technology has built a solid reputation in market
for its expertise in providing professional embedded solution,design services,delivering
unsurpassed technical support and developing innovative products that improve customer's
projects' design efficiency and cost effectiveness.
As a Global Ecosystem Partner of NVIDIA,Realtimes offers high reliability and low cost solutions
running on field with self-designed carrier boards and expertised enclosure Feiyun Box,having
such solutions the risk and cost of developing hardware will be reduced dramatically and
customers can focus on software design and quickly finalize their own solutions for AI edge
computing application.
Realtimes offers carrier boards for Jetson TX1/TX2/Xavier/NANO and rugged enclosure as well
as diversified camera input solutions including USB、Ethernet、CSI、HDMI、MIPI、FPDLink、
Cameralink,we also offer OEM and ODM service with our talent experts team of engineers who
are wealthy of both hardware and software.
Realtimes has rich experience and excellent skills of R&D as well as manufacturing,we have a
3000 sq.m modern manufacture center with advanced equipments which can support mass
production in long term.
RTSS-X502N is a Feiyun Smart Box based on NVIDIA Jetson ™ TX1 / TX2. It integrates
NVIDIA Jetson ™ TX1 module based on the new NVIDIA Maxwell ™ architecture or NVIDIA
Jetson ™ TX2 module of Pascal ™ architecture. NVIDIA CUDA core and 64-bit ARM CPU,
with powerful data processing capabilities of 1 trillion floating-point operations per second.
RTSS-X502N is equipped with 4GB / 8GB LPDR4 memory, 16GB / 32GB eMMC storage, WiFi,
Bluetooth, USB3.0, USB2.0, HDMI, serial port, Gigabit Ethernet port, GPIO, CAN, I2C, SPI,
microSD / SIM card socket The system is an excellent platform fordeep learning, computer vision,
image processing, and GPU computing. RTSS-X502N uses a rugged aluminum alloy case with a
conductive heat dissipation design. The operating temperature is: -25 ℃—+ 60 ℃/ -40 ℃—+
60 ℃.
The product has been certified by CE&CCC.

Realtimes Beijing Technology Co.,LTD www.realtimes.cn/en/index.html
RTSS-X502N Reference Manual V1.0
6
1.1 Features
Compatible with nvidia Jetson TX1/TX2/TX2i/TX2-4GB module
GPU: NVIDIA Jetson ™ TX1 256 core with NVIDIA Maxwell ™ architecture (1
trillion floating-point operations per second), NVIDIA Jetson ™ TX2 / TX2I 256
core with NVIDIA Pascal ™ architecture (1.5 trillion floating-point operations per
second)
CPU: 6-core 64-bit CPU (NVIDIA Jetson ™ TX2 / TX2I), 4-core 64-bit CPU
(NVIDIA Jetson ™ TX1)
Operating system: Linux pre-installed
Memory: 4GB or 8GB LPEER4
WiFi: IEEE 802.11ac
Bluetooth: Bluetooth 4.0 (24Mb / s)
Storage: Built-in 16GB or 32GB eMMC, expandable TF card slot (up to 1TB SSD)
Two USB3.0(5Gbps,1A max output current）
Two CAN
Four UART compliance with 3.3V voltage level
One Gigabit Ethernet
Four GPIO compliance with 3.3V voltage level
1 Mini-PCIe / mSata (expandable: PAL / HD-SDI video capture, GPS / Beidou module,
AD / DA module, 4G module, storage module, etc.) interface
One Micro HDMI 2.0 (6Gbps，24bpp，4096x2160@60Hz)
Size: 132mm×147mm ×61mm
Power input: +9V~+19V
Temperature: -25℃~+60℃/-40℃~+60℃
Weight:645.5g
*CAN bus interface function is not available when used with Jetson TX1 module

Realtimes Beijing Technology Co.,LTD www.realtimes.cn/en/index.html
RTSS-X502N Reference Manual V1.0
7
1.2 Ordering Information
Model Options
Functional Description
RTSS-X502N-1
Feiyun Smart Box with Jetson TX1 inside, with Ubuntu
16.04 pre-installed,1 x GbE, 2 x USB3.0, 2 x CAN, 1 x
mini HDMI, 4 x GPIO, 1 x miniPCIe/1 x mSATA, 4 x
RS-232,1 x microSD, 1 x microSIM, -20 to
60C,CE&CCC certificated
RTSS-X502N-2
Feiyun Smart Box with Jetson TX2 inside, with Ubuntu
16.04 pre-installed,1 x GbE, 2 x USB3.0, 2 x CAN, 1 x
mini HDMI, 4 x GPIO, 1 x miniPCIe/1 x mSATA, 4 x
RS-232,1 x microSD, 1 x microSIM, -20 to
60C,CE&CCC certificated
RTS-TXX-AC/DC-PS
Power Adaptor for X502N, 100-240VAC/12VDC，
36W
RTS-TXX-AT01
2.4GHz/5GHz Dual-band antenna of BT&WIFI
ME909S-821
miniPCIe LTE 4G module
RTSS-502N-cables
Cable kits for RTSS-X502N
Order online: https://shop340963258.taobao.com
https://mall.jd.com/index-824786.html

Realtimes Beijing Technology Co.,LTD www.realtimes.cn/en/index.html
RTSS-X502N Reference Manual V1.0
8
2 External interface function and location
RTSS-X502N FRONT
RTSS-X502N BACK

Realtimes Beijing Technology Co.,LTD www.realtimes.cn/en/index.html
RTSS-X502N Reference Manual V1.0
9
3 Installation and use
3.1 How to use Smart Box
a) Ensure that the voltage of all external systems is turned off
b) Install necessary external cables. (Such as: the display cable connected to the HDMI
display, the power input cable to power the system, the USB cable connecting the
keyboard and mouse ...)
c) Connect the power cord to a power source.
d) RTSS-X502N adopts manual power-on design. Turn on the power and the system
starts to work.
3.3 Recovery MODE
Jetson TX1 / TX2 core modules can work in normal mode and Recovery mode. In Recovery mode,
you can perform file system update, kernel update, boot loader update, BCT update and other
operations.
To enter Recovery mode:
a) Turn off the system power supply.
b) Use a USB cable to connect the OTG-USB port of the RTSS-X502N and the USB
port of the Jetson development host.
c) Short-circuit the 3 and 4 pins of the GPIO connector to power the system. Keep the
power supply for more than 3 seconds, and then disconnect the 3 and 4 pins of the
GPIO connector.
d) The system enters Recovery mode, and you can perform subsequent operations at
this time.

Realtimes Beijing Technology Co.,LTD www.realtimes.cn/en/index.html
RTSS-X502N Reference Manual V1.0
10
4 Connectors Description
4.1 Serial connector
Function
Serial port
marking
COM1～2
Type
DB9
Pin define
Pin 1 location: The green frame on the right.
The COM1 ~ 2 serial ports are RS232 signals. The mapping
files in the Linux system are ttyS0 and ttyTHS2 in the / dev
directory.
TXD1 / RXD1 defaults to the kernel debug serial port, which
is used to output C-BOOT, U-BOOT, and Linux kernel
information. After the Linux kernel is started, it is used as
the serial port of the display terminal. TX1 / TX2 default
serial port settings are: 115200bps, 8N1.
Pin
Signal
Pin
Signal
1
NC
2
RXD1
3
TXD1
4
NC
5
GND
6
RXD2
7
TXD2
8
NC
9
GND
Function
Serial port
marking
COM3～4
Type
DB9
Pin define
Pin 1 location: The green frame on the right.
The COM3 ~ 4 serial ports are RS232 signals. The mapping
files in the Linux system are ttyTHS1 and ttyTHS3 in the /
dev directory.
Pin
Signal
Pin
Signal
1
NC
2
RXD3
3
TXD3
4
NC
5
GND
6
RXD4
7
TXD4
8
NC
9
GND
4.2 GPIO and function button connector
Function
GPIO and function button connectors

Realtimes Beijing Technology Co.,LTD www.realtimes.cn/en/index.html
RTSS-X502N Reference Manual V1.0
11
marking
GPIO
Type
DB9
Pin define
Pin 1 location: The green frame on the right.
The sysfs mapping numbers of the GPIO8, GPIO9,
GPIO_EXP0_INT, and GPIO_EXP1_INT in the TX1
system are: 187, 186, 89, 202. The sysfs mapping numbers
in the TX2 system are: 388, 298, 480, 486.
Pin
Signal
Pin
Signal
1
RESET
2
POWER BUTTON
3
RECOVERY
4
GND
5
GND
6
GPIO8(GPO)
7
GPIO9(GPO)
8
GPIO_EXP0_INT(GPI)
9
GPIO_EXP1_INT(GPI)
4.3 CAN connector
Function
CAN connectors
marking
CAN
Type
DB9
Pin define
Pin 1 location: The green frame on the right.
CAN bus interface function is not available when used with
Jetson TX1 module.
Pin
Signal
Pin
Signal
1
CAN0H
2
CANOL
3
CAN1H
4
CAN1L
5
GND
6
NC
7
NC
8
NC
9
NC
4.4 WiFi antenna connector
Function
WiFi antenna interface
marking
AT1 AT2
Type
ipex to sma female
4.5 4G antenna connector
Function
4G antenna interface
marking
AT3 AT4

Realtimes Beijing Technology Co.,LTD www.realtimes.cn/en/index.html
RTSS-X502N Reference Manual V1.0
12
Type
ipex to sma female

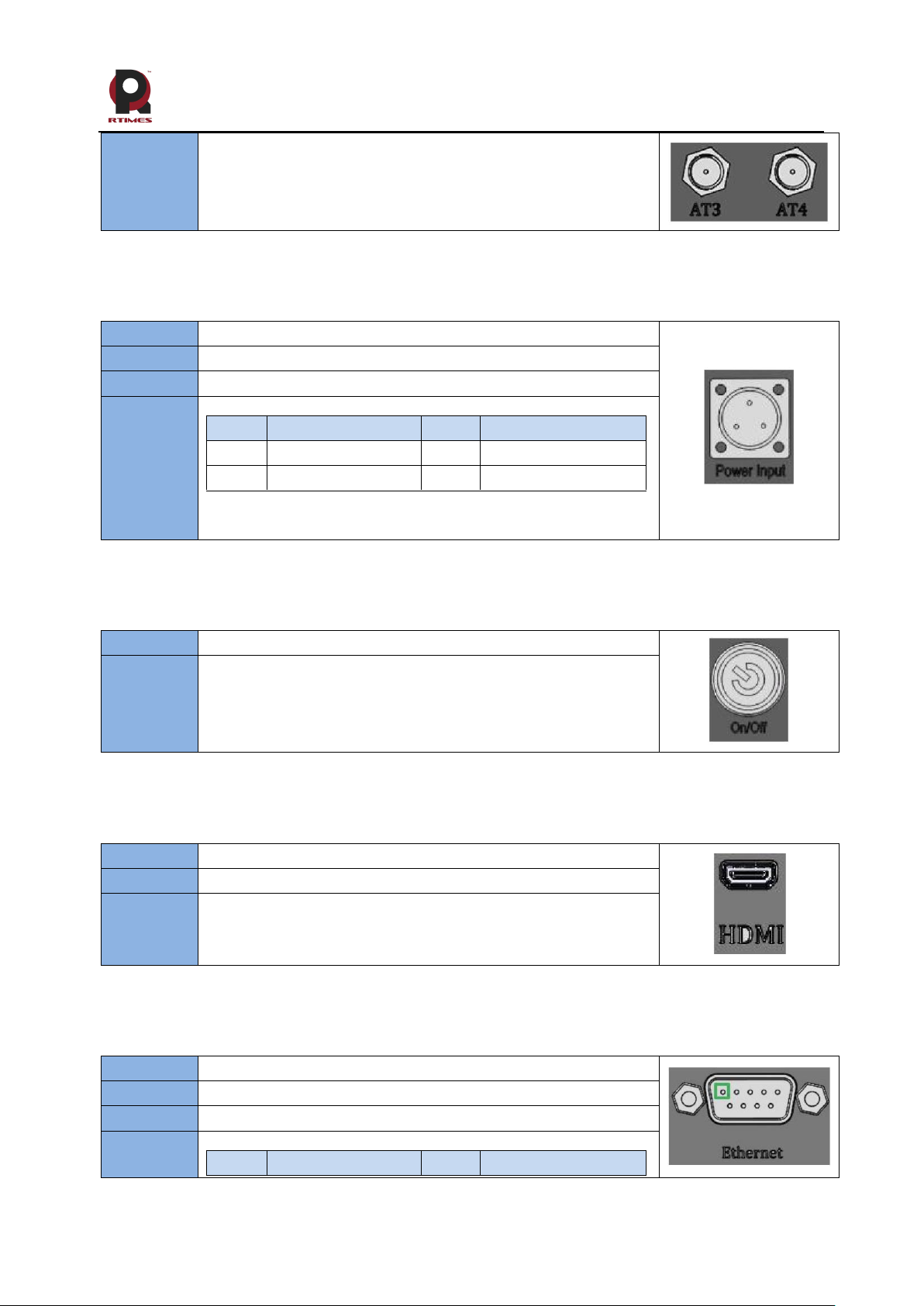

4.6 Power input port
Function
Power input port
marking
Power Input
Type
SF1213/S3
Pin define
Input voltage range: +7V to +19V.
Pin
Signal
Pin
Signal
1
VIN+
2
VIN-
3
NC
4.7 Power switch button
Function
Power switch
marking
On/Off
4.8 HDMI connector
Function
HDMI output interface
marking
HDMI
Type
Micro HDMI connector
4.9 Ethernet connector
Function
Gigabit Ethernet connector
marking
Ethernet
Type
DB9
Pin define
Pin
Signal
Pin
Signal

Realtimes Beijing Technology Co.,LTD www.realtimes.cn/en/index.html
RTSS-X502N Reference Manual V1.0
13
Pin 1 location: The green frame on the right.
1
MDI1+
2
MDI2+
3
MDI0+
4
MDI3+
5
GND
6
MDI1-
7
MDI2-
8
MDI0-
9
MDI3-

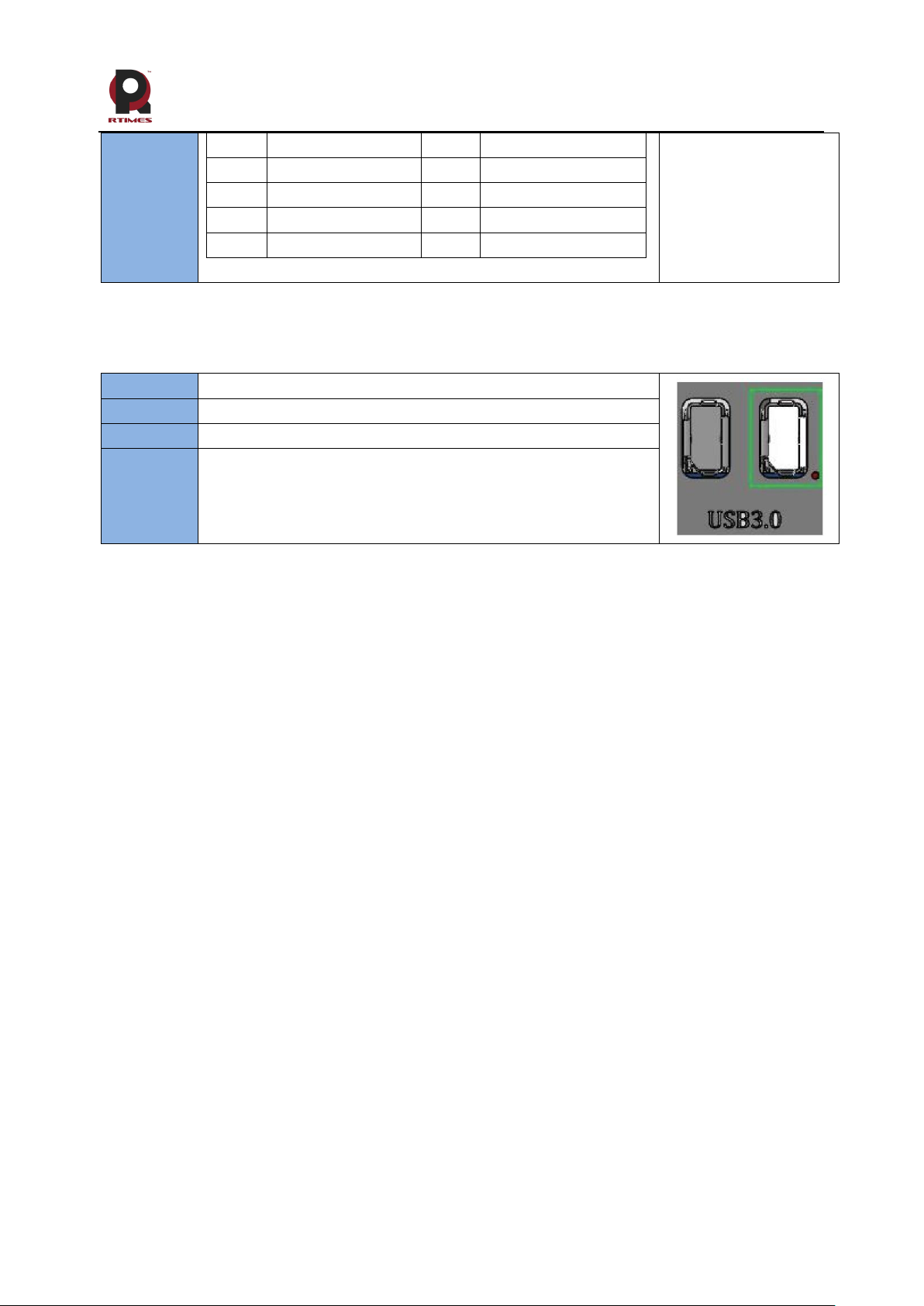

4.10 USB3.0 connector
Function
USB3.0 connectors
marking
USB3.0
Type
Hirose: IX61-A-10P
Function
description
OTG interface: the green frame on the right.
The USB2.0 port of this connector can work in OTG mode
for system programming.

Realtimes Beijing Technology Co.,LTD www.realtimes.cn/en/index.html
RTSS-X502N Reference Manual V1.0
14
5 Hardware update history
RTSS-X502N hardware update history
edition
Updata description
V1.0
Initial release

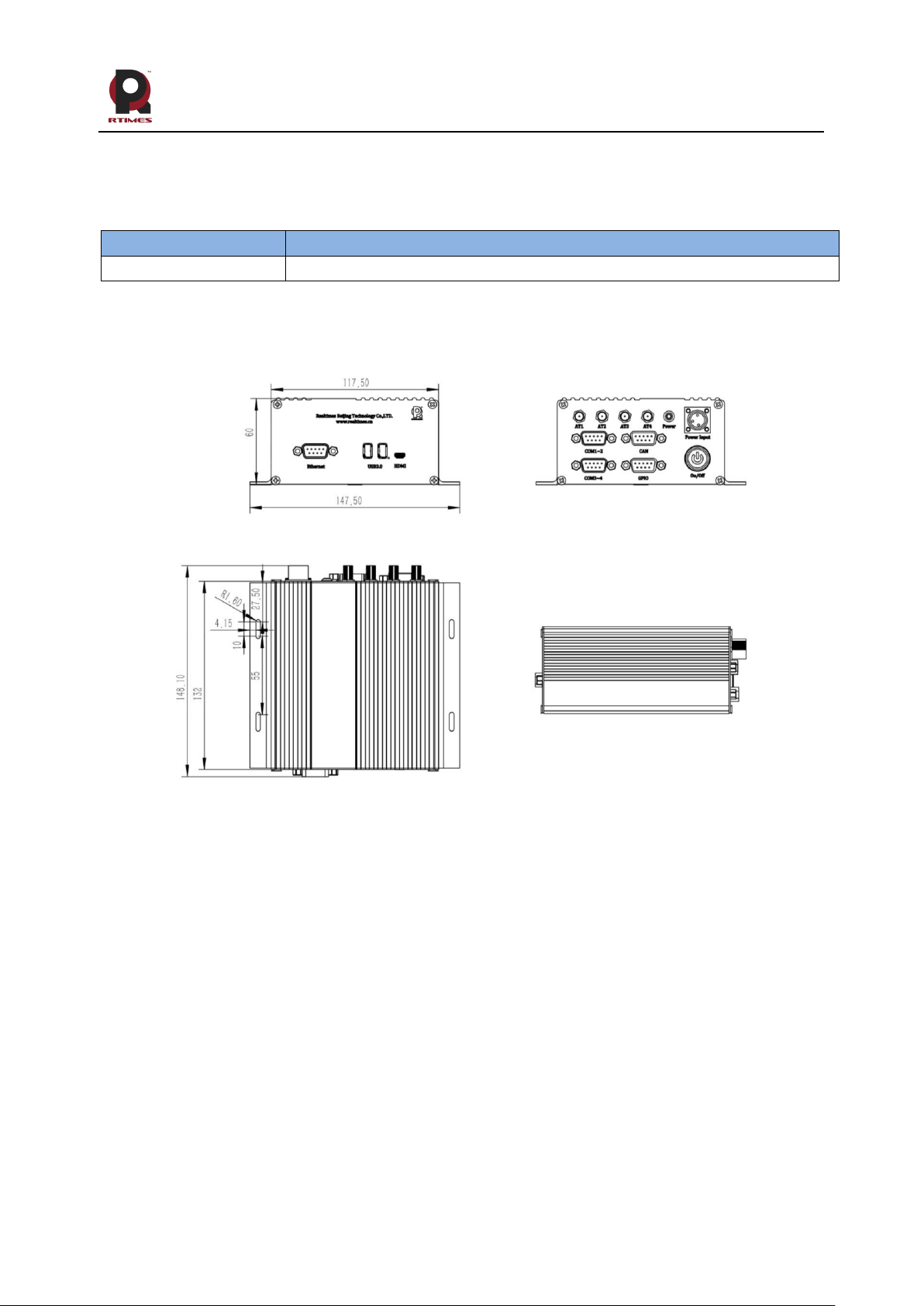

6 Product size diagram

Realtimes Beijing Technology Co.,LTD www.realtimes.cn/en/index.html
RTSS-X502N Reference Manual V1.0
15
7 Software/BSP Details
The RTSS-X502N board works on systems that burn using the official original NVIDIA Linux
For Tegra (L4T) ,HDMI, gigabit Ethernet, USB2.0, serial port, GPIO, SD card, I2C bus, fan
interface, can be supported. But Mini-PCIe, USB3.0, SPI，fan interface, can't work normally.
The full support of RTSS-X502N rugged machine interface needs to load supporting driver
patches.
NVIDIA LT4 package can be downloaded from the following link
https://developer.nvidia.com/embedded/linux-tegra
RTSS-X502N patch support package download
http://www.realtimes.cn/en/software.html
8 Technical support
RTSS-X502N Contact Technical support：
[email protected]
[phone]
Document download：
http://www.realtimes.cn/en/manual.html
Technical support：
http://www.realtimes.cn/en/exchange-field.html

Realtimes Beijing Technology Co.,LTD www.realtimes.cn/en/index.html
RTSS-X502N Reference Manual V1.0
16
Terms of Warranty
Important note
Each embedded product provided by Realtimes Technology is free from any defects in material
and process,fully in line with the specifications officially issued by the original factory.
Realtimes Technology warranty covers the original products,If the parts configured by the dealer
are out of order, please consult with the dealer to solve the problem. All products provided by
Realtimes Technology are guaranteed for one year.(lifetime maintenance service are available
beyond the warranty period), The warranty period starts from the date of delivery, for the products
repaired within the warranty period, the repair parts shall be extended for 12 months.Unless
notified by Realtimes Technology, the date of your original invoice shall be the date of shipment.
How do I get warranty services
If the product does not work properly, Please contact Realtimes Technology or dealer for warranty
service, please show invoice when product warranty(this is the proof for you getting warranty
service).
Warranty solution
When you ask for warranty service, please follow Realtimes Technology warranty process,You
will need to receive your first diagnosis from a technicial engineer by phone or by email,at that
time,we need you to cooperate with us to fill in all the questions on the RMA form provided by
us. Once we accurately determine the cause of the fault and the location of the damage ,we will
provide the charge list for the out of warranty products,which needs your confirmation.Realtimes
Technology keep the right to repair or replace the products. If the product is replaced or repaired,
the replaced faulty product or the repaired and replaced faulty parts will be returned to Realtimes
Technology.
For products under warranty,the customer shall bear the freight when the product is returned to
the manufacturer,Realtimes Technology will bear the ship cost of the products after maintenance.
The following conditions are not covered by the warranty terms
a) Improper installation, improper use, misuse and abuse of products(Overloading, for example).
b) Improper maintenance and storage（Such as fire, explosion, etc）or natural disasters（such
as lightning stroke,earthquake,typhoon,etc）
c) Personal unauthorized changing the product(such as changing circuit characteristics,
mechanical characteristics, software characteristics,Conformal coating).
d) Other failures which are clearly due to misuse(such as overvoltage,polarity reversal, the pin
bent or broken,the wrong connection,drop damage,transportation damage,damage due to
over operating temperature and so on).
e) The logo and part number on the product have been deleted or removed.
f) The product is out of warranty.
Special concerns

Realtimes Beijing Technology Co.,LTD www.realtimes.cn/en/index.html
RTSS-X502N Reference Manual V1.0
17
If the same fault multiple occurrence for the products,in order to find out the reason causing the
problem,we will request the users to provide the specific documents or information of peripheral
equipment,such as monitor,I/O boards,cables,power supply, diagram and structure of the
system,etc.If such documents or information are not available,we have the right to refuse to
perform the warranty, the repairments will be charged accordingly.
Rev.C 2/2020
