RTS DV-3140UV User manual

A2.140708
A1.140807

THANK YOU!
Thank you very much for choosing our transceiver will provide you with reliable, clear and
efficient communication service. The transceiver introduces innovative DSP digital signal processing
technology, high degree integration, it is including kinds of professional function, best stability and great
reliability as well as exterior smooth lines, novel, fashionable, sturdy and durable.
The transceiver includes plenty of TX, RXchannels, as well as UHF and VHF standby modes which are
able to realize dual PTT functions. 51 groups of CTCSS encode/decode and 1 group of user-defined
CTCSS encode/decode, 1024 groups of DCS encode/decode, 5TONE/DTMF encode/decode,
built-in radio functions, etc..It is a meticulous build functional and Multi frequency band radio for radio
amateur and commercial users.
User Manual Applied to: DV-3140UV
Programming Software: DV3140UV
PROGRAM CAUTIONS:
When programming the transceiver, read the factory initial data first, then rewrite the frequency and
signaling etc., otherwise errors may occur because of different frequency ranges involved.

SAFETY INFORMATION FOR USER
transceiver is excellently designed with advanced technology. Please observe the following
precautions to perform your obligation, prevent personal injury and ensure the safety of transceiver
usage.
1. Keep the transceiver and accessories away from children.
2. Please do not try to open or modify the transceiver without permission, non-professionals process
may also cause damage.
3. Please use assorted battery and charger to avoid damage.
4. Please use assorted antenna to ensure the communication distance.
5. Please do not expose the transceiver to long period of direct sunlight, nor place it close to heat
appliances.
6. Please do not put the transceiver in excessively dusty or humid areas.
7. Do not use harsh chemicals, cleaning solvents to clean the transceiver.
8. Do not transmit without antenna.
9. When using this transceiver, we recommend transmitting for 1 minute then receiving for 4 minutes.
Continuous transmitting for long time or working in high power will heat the back of the transceiver.
Do not place the transceiver’s hot back close to any surface of plastic.
10.If any abnormal odor or smoke detected coming from the transceiver, turn off the power and take
off the battery pack and its case. Then contact local dealers.
ATTENTION:
All tips above apply to accessories of your
transceiver. If any device cannot work normally,
please contact local dealers.
If you use any accessories made by other companies, Company does not guarantee the
operability and safety of the transceiver.

I
UNPACKING............................................................................................................................................ 1
SuppliedAccessories..............................................................................................................................1
STANDARDACCESSORIES/OPTIONALACCESSORIES ..............................................2
Standard Accessories.............................................................................................................................2
Optional Accessories ..............................................................................................................................2
BATTERY INFORMATION..............................................................................................3
Charging Operation ................................................................................................................................3
Charger Applied......................................................................................................................................3
NOTES....................................................................................................................................................3
How to Charge........................................................................................................................................4
Normal Charging Tips.............................................................................................................................6
How to Store the Battery ........................................................................................................................6
PREPARATION ....................................................................................................................................... 8
Installing / Removing the Battery ...........................................................................................................8
Installing / Removing the Antenna..........................................................................................................8
Installing / Removing the Belt Clip .........................................................................................................9
Installing the Additional Speaker/ Microphone.......................................................................................9
Installing/ Removing the Hand Strap .....................................................................................................10
Professional
FM Transceiver
CONTENTS

Professional
2 FM Transceiver
CONTENTS
GETTING ACQUAINTED ...............................................................................................11
LCD Display............................................................................................................................................11
Front Panel..............................................................................................................................................12
Side Panel...............................................................................................................................................13
BASIC OPERATIONS....................................................................................................14
Turn the Radio On & OFF.......................................................................................................................14
Adjusting Volume.....................................................................................................................................................14
Channels Selection.................................................................................................................................14
Receiving.................................................................................................................................................15
Transmitting.............................................................................................................................................. 15
SHORTCUT OPERATIONS............................................................................................16
Switch between Main Band and Sub Band............................................................................................16
Call ..........................................................................................................................................................16
Lone worker.............................................................................................................................................16
Monitor ....................................................................................................................................................16
Scan ........................................................................................................................................................17
Skip a Channel in Scan List ...................................................................................................................17
Delete Noisy Channel Temporarily.........................................................................................................17
Squelch Levels Setup.............................................................................................................................18

III
Squelch off..............................................................................................................................................18
Instantaneously squelch off....................................................................................................................18
Frequency Reverse ................................................................................................................................18
Keypad Lock ...........................................................................................................................................19
TX Power Switch ....................................................................................................................................19
Whisper...................................................................................................................................................20
VOX level setup ......................................................................................................................................20
Battery Capacity Enquiry........................................................................................................................20
Priority Channel ......................................................................................................................................20
Emergency Alarm....................................................................................................................................21
CTCSS/DCS Encode/Decode Setup .....................................................................................................21
FM radio..................................................................................................................................................21
Optional Signal Encode list.....................................................................................................................22
Single Band Switch.................................................................................................................................22
Resume Factory Default.........................................................................................................................23
Cloning Cable..........................................................................................................................................23
Auto TX....................................................................................................................................................24
FUNCTION MENU SETUP.............................................................................................25
Menu 23: Squelch level setup................................................................................................................25
Professional
FM Transceiver
CONTENTS

Professional
4 FM Transceiver
CONTENTS
Menu 24: Scan PauseTime Setup.........................................................................................................25
Menu 25: LCD Back Light Setup............................................................................................................26
Menu 26: LCD Back Light Color Setup..................................................................................................26
PROGRAMMING SOFTWARE LNSTALLING & STARTING
(TAKES WINDOWS XPAS AN EXAMPLE).....................................................................27
TECHNICALSPECIFICATIONS.....................................................................................28
TROUBLE SHOOTING GUIDE.......................................................................................29
ATTACHED CHART.......................................................................................................31
CTCSS Frequency Chart........................................................................................................................31
1024 groups DCS frequency chart........................................................................................................32

Professional
FM Transceiver 5

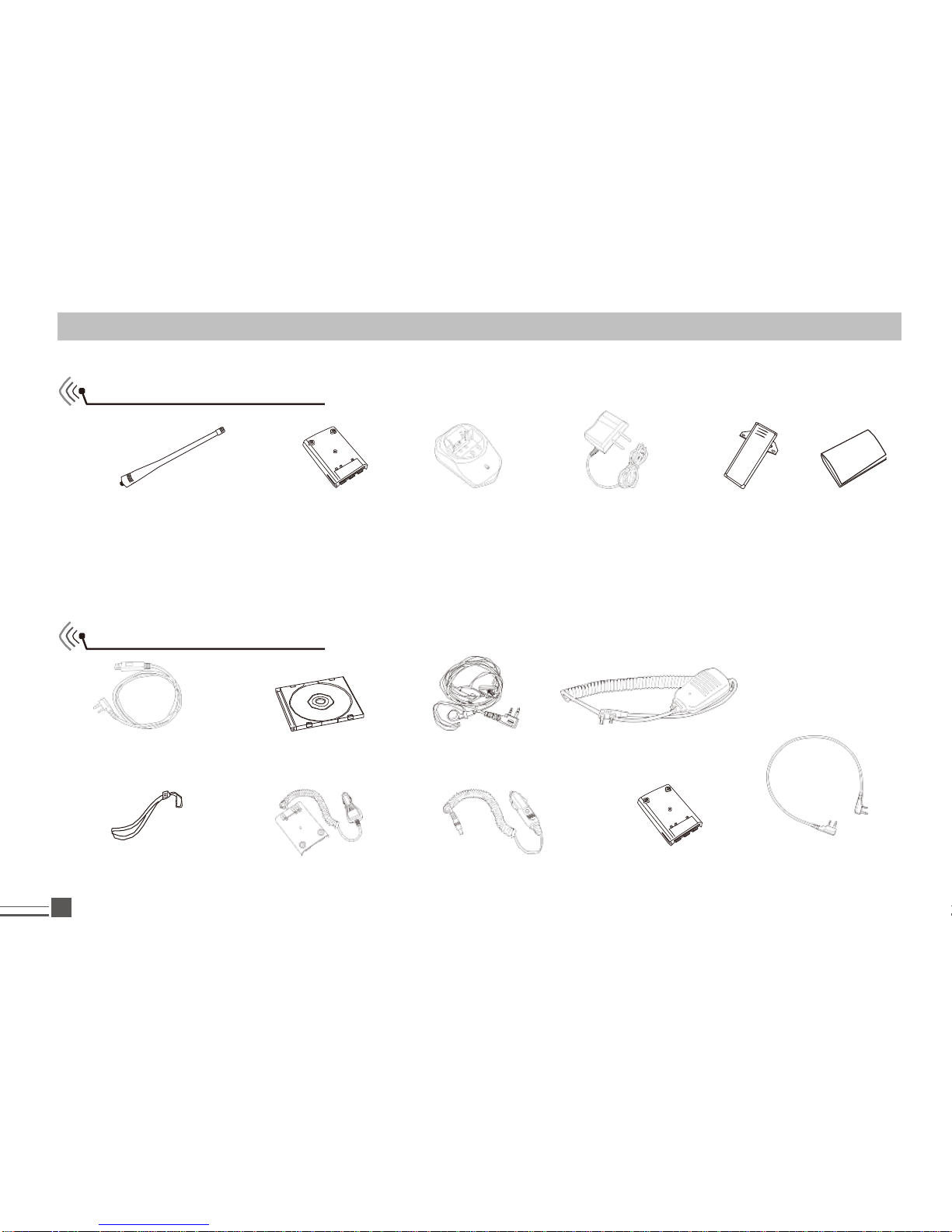

Carefully unpack the transceiver. We recommend you to identify the items listed in the following
table before discarding the packing material. If any items are missing or have been damaged during
shipment, please contact dealers immediately.
Item
Quantity
Antenna
1
Li-ion Battery Pack
1
Battery Charger
1
AC adaptor
1
12V Car Charger
1
Belt Clip
1
Instruction Manual
1
Supplied Accessories
UNPACKING

Professional
2 FM Transceiver
STANDARDACCESSORIES/OPTIONALACCESSORIES
Antenna*1
Li-ion Battery Pack
Charger
AC Adaptor
Belt Clip
Instruction
QA09UV1
1500mAh
(12V/500mA)
BC01
Manual
155/435MHz
* Note:
For frequency band of antenna, please refer to label indicated in the bottom of the antenna.
*
Note:
Car Charger and Charger should be used together.
USB Programming
Cable PC03
Hand Strap
GS01
Programming Software
DV3140UV
Battery Pack for Car
charger CPS01
Earphone
HS03
Car Charger CPL01*2
Handheld Microphone
QHM22
Li-ion Battery Pack
1800mAh
CloningCable
CP-04
Standard Accessories
Optional Accessories

Professional
FM Transceiver 3
The battery pack is not charged at the factory; please charge it before use.
Charging the battery pack for the first time after purchase or extended storage (more than 2
months) may not bring the battery pack to its normal operating capacity. After fully
charging/discharging cycle for two or three times, the operating capacity will reach its best
performance. The battery pack life is over when it’s operating time decreases even though it is fully
and correctly charged. Replace the battery pack.
Please use the specific charger appointed by our company. Other models may cause explosion and
personal injury. After installing the battery pack, if the radio displays low battery with red flashing
lamp or voice prompt, please charge the battery.
▼Do not short the battery terminals or throw the battery into fire. Never attempt to remove the casing
from the battery pack, we show no responsibility on any results caused by modifying freely without
permission of our factory.
▼The ambient temperature should be between 5℃and 40℃while charging is in progress. Charging
outside this range may not fully charge the battery.
▼Always switch OFF the transceiver equipped with a battery pack before charging. Otherwise, it will
interfere with correct charging.
▼To avoid interfering the charging, please do not cut off the power or take out the battery during
charging.
NOTES
Charger Applied
ChargingOperation
BATTERYINFORMATION

Professional
4 FM Transceiver
BATTERYINFORMATION
▼Do not recharge the battery pack if it is already fully charged. This may shorten the life of the
battery pack or damage the battery pack.
▼Do not charge the battery or transceiver if it is damp. Dry it before charging to avoid danger.

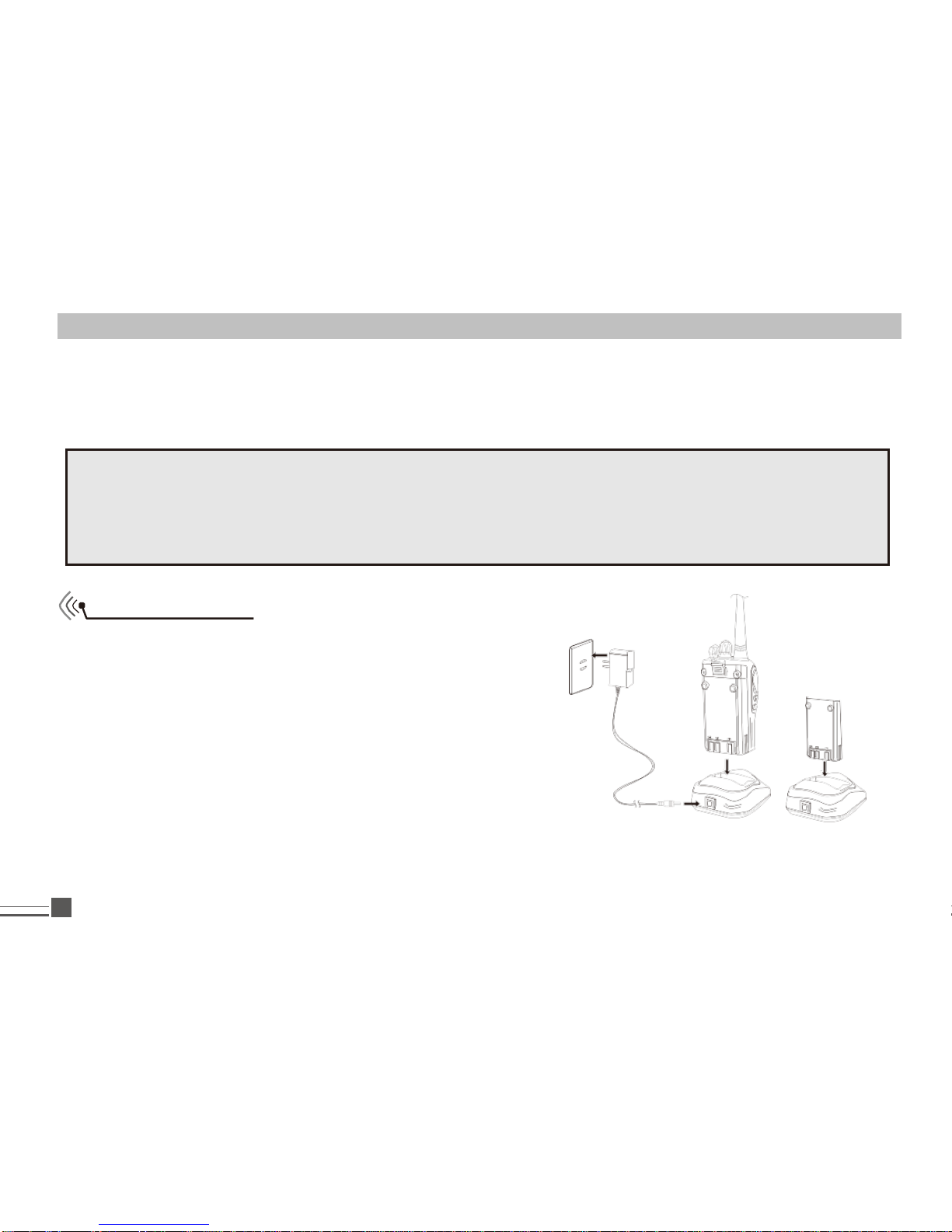

1. Plug the AC adaptor into the AC outlet, and then
plug the cable of the AC adaptor into the DC jack
located on the back of the Charger. The Indicator
lights orange (1s) and then goes out----waits to
charge.
2. Plug the battery or transceiver into the charger.
Make sure that the battery terminals are in contact
with charging terminals well. The Indicator turns
into twinkling red-----Pre-charging begins.
3. After pre-charging for about 5 minutes, the indicator
will stop twinkling----charging begins.
Ac Input
4. It takes approximately 4 hours to fully charge the battery. When the lamp lights green, the charging
is finished. Remove the battery or the transceiver equipped with battery from socket.
How to Charge
WARNING:
When keys, ornamental chain or other electric metals contact with the battery terminal, the battery
may cause damage or hurt bodies. If the battery terminal short circuit it will generate a lot of heat.
Take care when carrying and using the battery. Remember to put the battery or radio into insulated
container.Do not put it into metal container.

Professional
FM Transceiver 5
5. Charging Process
Charging Status
Indicator Status
Standby (Self-examine lights orange 1second when power on)
Pre-charging (Pre-charging stage)
Charging (Charge in a constant current)
Fully charged (Charge in a constant voltage)
None
Red light twinkles for about 5 minutes
Lights red for about 4 hours
Lights green
6. LED Indicator:
STATUS
Self-Examine
When Power on
No Battery
Pre-charging
Charge
Normally
Fully
Charged
Trouble
LED
Orange
(for 1 second)
None
Red Light
Twinkles
for 5 Minutes
Red
Green
Red twinkles
for a long time
NOTE: Trouble means battery heating, battery short-circuit or charger short-circuit.
NOTE: When charging a power-on transceiver equipped with battery, the indicating lamp will not
turn into green to show the fully charged status. Only when the transceiver is switched off, can the
lamp indicate normally. The transceiver consumes energy when it is power-on, and the charger can
not detect the voltage when the battery has been fully charged. So the charger will charge battery in
constant voltage and fail to indicate correctly whether the battery has been charged fully.
BATTERYINFORMATION

Professional
6 FM Transceiver
BATTERYINFORMATION
1. Self- Examination: When charging, orange light twinkles for 1 second and goes out, which means
the charger has passed its self-examination and it can charge the battery normally. If the light
remains orange or the red light twinkles, it means the charger cannot pass its self-examination or
charge the battery.
2. Trickle Pre-Charging: If red light twinkles when battery is inserted into the charger, it means the
remnant voltage is low and the charger is trickle-charging the battery (Pre-Charging Status). The
charger will automatically turn into normal charging when the battery reaches a certain electric
quantity, And if the red light stops twinkling, it means the remnant voltage meets a certain electric
quantity, the charger will charge the battery normally.
1. If the battery needs to be stored for a long period, the battery should be removed from the radio.
It's state of charge should be 50-100% of full charge.
2. It should be kept in low temperature and dry environment.
3. Keep it away from hot places and direct sunlight.
How to Store the Battery
NOTE:
Trickle charging (Pre-Charging Status) time cannot beyond 30 minutes. If the indicating lamp still
twinkles after 30-minute trickle-charging, it means that the charger cannot charge the battery. Please
check whether the battery or charger is damaged.
Normal Charging Tips

Professional
FM Transceiver 7
WARNING:
▼Do not short circuit battery terminals.
▼Never attempt to remove the casing from the battery pack.
▼Never assemble the battery in dangerous surroundings, spark may cause explosion.
▼Do not put the battery in hot environment or throw it into fire, it may cause explosion.
BATTERYINFORMATION

Professional
8 FM Transceiver
PREPARATION
1. Match the three grooves of the battery pack with
the corresponding guides on the back of the
transceiver and push.
2. Press the battery pack until the release latch on the
top of the transceiver locks. After hearing a “click”
sounds, the battery has been locked.
3. To remove the battery pack, slide up the release
latch and remove the pack away f rom the
transceiver.
■
Installing the Antenna:
Screw the antenna into the connector on the top of
the transceiver by holding the antenna at its base
and turning it clockwise until secure.
■ Removing the Antenna:
Turn the antenna anticlockwise to remove it.
Installing / Removing the Antenna
Installing / Removing the Battery

Professional
FM Transceiver 9

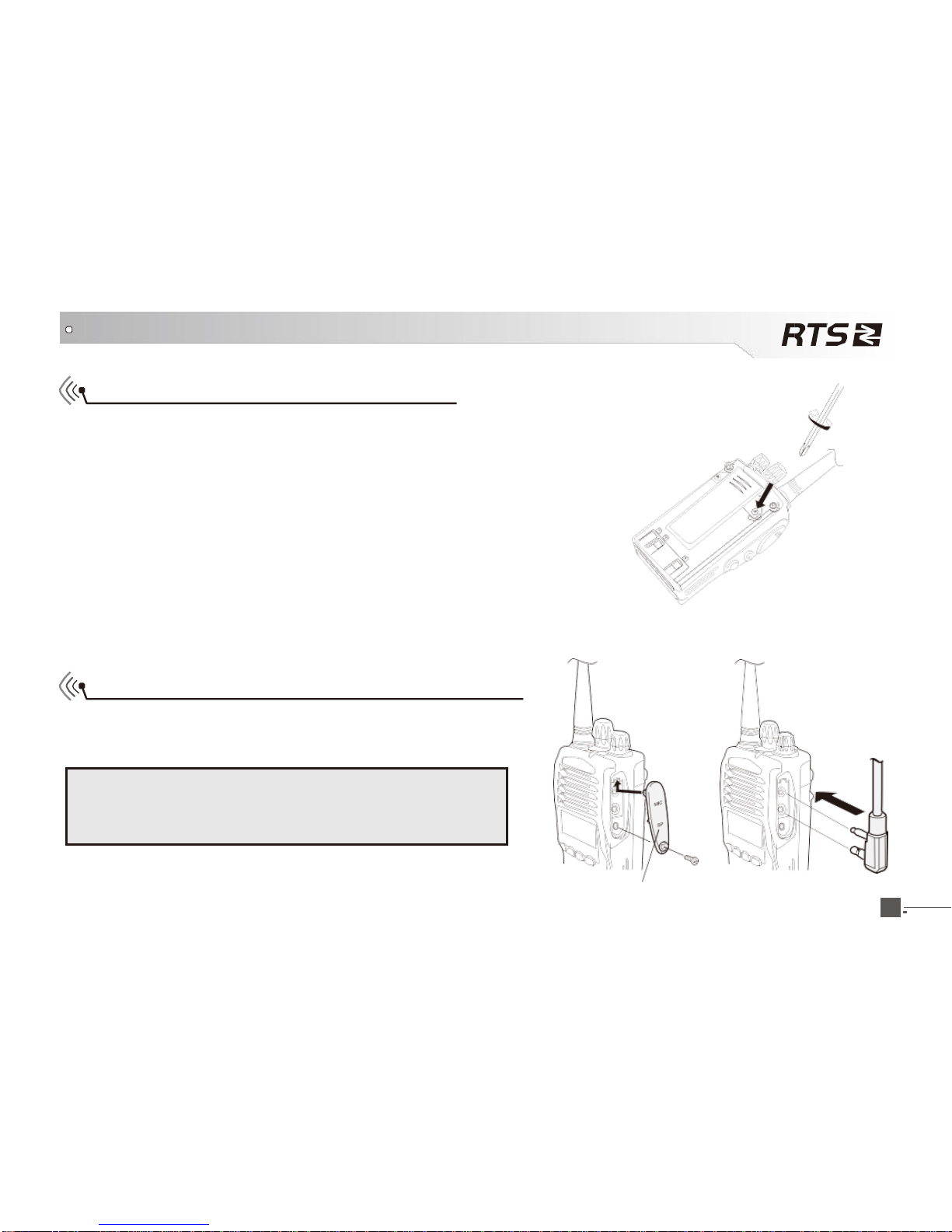

■ Installing the Belt Clip:
Place the belt clip to the corresponding grooves
on the back of the transceiver, and then clockwise
screw it.
■ Removing the Belt Clip:
Anticlockwise turn the screws to remove the belt
clip.
Unveil the MIC-SP jack cover and then insert the
Speaker/Microphone plug into MIC-SP jack.
NOTE:
Note:The transceiver is less water resistant while
using the Speaker/Microphone.
Installing Optional Speaker / Microphone
Installing / Removing the Belt Clip
PREPARATION

Professional
FM Transceiver
11
PREPARATION
Slide the loop of the hand strap through the eyelet on
the upper rear of the transceiver, pull the entire hand
strap through the loop to secure the hand strap in
place.
Installing/ Removing the Hand Strap
