RTX RTX745 Series User manual

RTX745x GUIDE 1.0
Proprietary and Confidential
High-End Base Guide for
RTX745x
Installation & Configuration
Network Deployment
Operation & Management
Technical Reference Document
Version 1.0
© May-2020 RTX A/S, Denmark

RTX745x GUIDE 1.0
Proprietary and Confidential
Trademarks
RTX and the combinations of its logo thereof are trademarks of RTX A/S, Denmark.
Other product names used in this publication are for identification purposes and maybe the trademarks of their
respective companies.
Disclaimer
The contents of this document are provided about RTX products. RTX makes no representations with respect to
completeness or accuracy of the contents of this publication and reserves the right to make changes to product
descriptions, usage, etc., at any time without notice. No license, whether express, implied, to any intellectual property
rights are granted by this publication
Confidentiality
This document should be regarded as confidential, unauthorized copying is not allowed
© Apr-2020 RTX A/S, Denmark, All rights reserved
http://www.rtx.dk

RTX745x GUIDE 1.0
Proprietary and Confidential
Table of Contents
High-End Base Guide for.....................................................................................................................................................1
RTX745x.............................................................................................................................................................................. 1
1About This Document................................................................................................................................................. 5
1.1 Audience ...........................................................................................................................................................5
1.2 When Should I Read This Guide ........................................................................................................................5
1.3 What’s Inside This Guide...................................................................................................................................5
1.4 What’s Not in This guide ...................................................................................................................................5
1.5 Abbreviations ....................................................................................................................................................5
1.6 References/Related Documentation.................................................................................................................5
1.7 Document History ............................................................................................................................................. 6
1.8 What is new.......................................................................................................................................................6
1.9 Documentation Feedback .................................................................................................................................6
2Package overview ....................................................................................................................................................... 7
2.1 Content..............................................................................................................................................................7
2.2 Damage inspection............................................................................................................................................7
3About the device......................................................................................................................................................... 8
3.1 Device overview ................................................................................................................................................ 8
3.2 Spare battery charging......................................................................................................................................9
3.3 Ringer configuration........................................................................................................................................10
3.4 Connect to VoIP multicell systems..................................................................................................................10
3.5 Configuration tool (PC tool) ............................................................................................................................10
4User interface ........................................................................................................................................................... 11
4.1 Icons ................................................................................................................................................................11
4.2 DECT registration status interface...................................................................................................................12
5Call activity on base ..................................................................................................................................................12
5.1 Incoming call ...................................................................................................................................................12
5.2 Active call ........................................................................................................................................................ 13
5.3 On-hold call .....................................................................................................................................................13
5.4 Multiple calls ................................................................................................................................................... 14
5.5 Multiple line .................................................................................................................................................... 14
5.6 Active & Inactive line.......................................................................................................................................14
5.7 Call termination...............................................................................................................................................14
5.8 Line swapping..................................................................................................................................................14
5.9 Microphone muting ........................................................................................................................................15
5.10 Volume control................................................................................................................................................ 15
6Features overview ....................................................................................................................................................16
6.1 Soft client support...........................................................................................................................................16
6.2 EHS interface...................................................................................................................................................16

RTX745x GUIDE 1.0
Proprietary and Confidential
6.3 Table summary of the features.......................................................................................................................16
General features .........................................................................................................................................16
Base features ..............................................................................................................................................16
7Regulatory compliances............................................................................................................................................ 18
7.1 Safety & Type approvals..................................................................................................................................18
7.2 Environmental compliances............................................................................................................................ 19

RTX745x GUIDE 1.0 5 |P a g e
Proprietary and Confidential
1About This Document
This document describes the configuration, management, operation and maintenance of the RTX745x headset base
which is part of the range of the DECT system. For customer specific modes, please refer to specific customer
agreements.
1.1 Audience
This guide is intended for everyday users. Furthermore, network administrators, IT support and anyone who wishes to
gain knowledge on the fundamental features of the RTX745x base, can also benefit from this material.
1.2 When Should I Read This Guide
Read this guide before you install the devices and before setting up the DECT connection.
This manual will enable you to set up components in your network to communicate with each other and deploy a fully
functionally system.
1.3 What’s Inside This Guide
We summarize the contents of this document in the table below:
WHERE IS IT?
CONTENT
PURPOSE
CHAPTER 2
Package overview
Presents the package content and handling
CHAPTER 3
About the device
Provides information on the device specifications and
hardware
CHAPTER 4
User interface
Gives an overview of the available icons on the user interface
CHAPTER 5
Call activity on base
Introduces the different type of call scenarios
CHAPTER 6
Features overview
Introduces the supported features on the base
CHAPTER 7
Regulatory compliances
Presents the adherence to the laws and regulations
1.4 What’s Not in This guide
The guide is not intended to be as a comprehensive reference to details and specific steps on how to configure other
vendor specific components/devices. For such a reference to vendor specific devices, please contact the respective
vendor for documentation.
1.5 Abbreviations
For this document, the following abbreviations hold:
DECT: Digital Enhanced Cordless Telecommunications
MWI: Message Waiting Indicator
PCBA: PCB Assembled
MFB: Multi-Function Button
BT: Bluetooth
1.6 References/Related Documentation
Pc tool
Headsets guide

RTX745x GUIDE 1.0 6 |P a g e
Proprietary and Confidential
1.7 Document History
REVISION
AUTHOR
ISSUE DATE
COMMENTS
1.0
DKO
15.05.2020
First release
1.8 What is new
What new features have been added.
VERSION
FEATURE
V1.0
First release
1.9 Documentation Feedback
We always strive to produce the best and we also value your comments and suggestions about our documentation. If
you have any comments about this guide, please enter them through the Feedback link on the RTX website. We will
use your feedback to improve the documentation.

RTX745x GUIDE 1.0 7 |P a g e
Proprietary and Confidential
2Package overview
Prior to opening, examine the shipping package for evidence of physical damage. If there is proof of mishandling prior
to opening, you must report it to the relevant support center of the regional representative or operator.
2.1 Content
Make sure all relevant components are available in the package before proceeding to the next step. In principle, every
shipped headset unit package/box contains the following items:
1x headset
1x base station (charger)
1x PSU fixed
1x USB C cable
1x 600mAH Li-polymer battery
1x 1-page A5 double side B/W print
Customer specific changes may occur.
2.2 Damage inspection
The following steps are recommended to be followed for damage inspection:
1. Examine all relevant components for damage
2. Make a “defective on arrival - DOA” report or RMA to the operator. Do not move the shipping carton until it
has been examined by the operator. The operator/regional representative will initiate the necessary
procedure to process this RMA. They will guide the network administrator on how to return the damaged
package if necessary.
3. If no damage is found, then unwrap all the components and dispose of empty package/carton(s) in
accordance with country specific environmental regulations.

RTX745x GUIDE 1.0 8 |P a g e
Proprietary and Confidential
3About the device
The RTX745x device is an EHS/USB wireless base station which provides USB connectivity to PC/laptop/desktop phone
and DECT connectivity to RTX725x headsets/DECT speakerphone. It is designed as a Plug & Play solution, meaning that
no additional driver installations are needed.
The figure below (Fig.1) illustrates the high-level description of the communication possibilities of the device. The
RTX745x base is connected to a host (PC or desktop phone) with USB interface. It acts as a DECT base station for
RTX725x headset and DECT speakerphone.
Fig.1 Device connections
The RTX745x serves as a base and charger for the RTX725x series headsets. The primary application is within call
centers and office environments allowing the user access to internet/VoIP calls, music playback via the PC/mobile
phone, and desk phone connectivity.
3.1 Device overview
The drawings below illustrate the dimensions of the device (Fig. 2).
Fig.2 Measurements

RTX745x GUIDE 1.0 9 |P a g e
Proprietary and Confidential
The base includes a 2.4-inch 240x320 TFT display for status and configuration. Furthermore, it has 3 keys for call
control handling (hook off, hook on and mute), a clickable scroll-wheel and a key for easy menu navigation (Fig.3).
Fig.3 RTX745x front view Fig. 4 Back view
Further details on the functionality of the keys can be seen on the table below:
Input
Functionality
Hook off
Answer call (short press)
Swap between calls (short press)
Swap between lines (double press)
Hold/Retrieve call (short press)
Hold active call and accept incoming call (long press)
Hook on
End call
Reject call
Mute
Toggle mute
Back key
Return to the parent menu of the current submenu
Leave the settings men
Scroll wheel
Open the settings menu
Select an item in the settings menu
Scroll to the next item in the settings menu
Scroll to the previous item in the settings menu
Adjust earphone volume
3.2 Spare battery charging
The base also includes a separate charger for a spare battery. The battery is placed on the back of the base, as shown
below (Fig.5).
Fig.5 Spare battery charging

RTX745x GUIDE 1.0 10 |P a g e
Proprietary and Confidential
3.3 Ringer configuration
The RTX745x has a built-in ringer for audible alerts for the user. The audio settings of the ringer can be configured via
the PC Setup tool or the base menu. The ringer may be muted by selecting “Silent mode” in the PC Setup Tool.

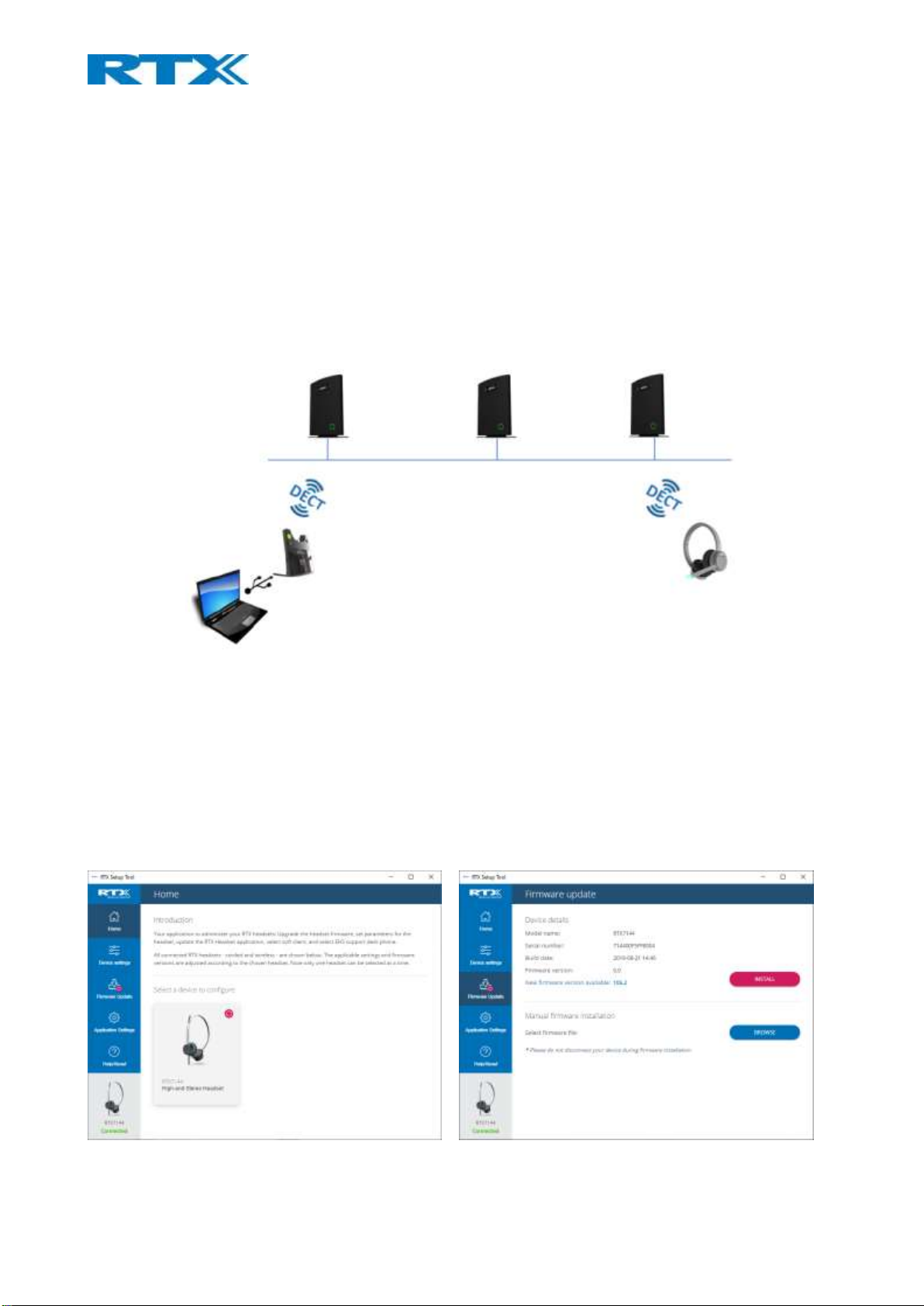

3.4 Connect to VoIP multicell systems
The RTX725x headset and RTX7451 base together can integrate into VoIP multicell and dual cell systems. The base will
register on behalf of itself and the headset. The two registrations are independent but will be linked logically as one
unit on the VoIP system. The purpose of this integration is to hand over the user’s calls to the VoIP system for the user
to be flexible in terms of location.
Fig.6 Call Handover
3.5 Configuration tool (PC tool)
The RTX745x and RTX725x parameters can be configured via an external PC configuration tool (PC tool). Moreover,
the tool is used to firmware upgrade both devices and do upgrades of the tool itself. The PC tool is available for
Windows and MacOS. The screenshots below display an example of the GUI interface of the tool. Logos and colors can
be adapted to customer needs. For more information about the tool, please refer to 1.6 References/Related
Documentation.
Fig.7 PC tool interface

RTX745x GUIDE 1.0 11 |P a g e
Proprietary and Confidential
4User interface
As mentioned above, the RTX745x base supports a 2.4-inch 240x320 TFT display which has a user-friendly interface
(UI). The UI is designed to be operated in an arms distance, meaning that the status bar is large and visible (Fig.8).
However, the icons shrink in size when navigating through the device’s menu, yet still allowing the user to see the
status (Fig.9).
Fig. 8 Large status bar Fig.9 Small status bar
4.1 Icons
The following table aims to introduce you to the available icons on the UI of the device.
Icon
Description
Function
Signal strength (Default)
Signal strength (Collapsed)
informs the user of how good
the signal is
Desktop phone connection (Default)
Desktop phone connection (Collapsed)
indicates that RTX745x is
connected to a Desktop phone
PC-USB connection (Default)
PC-USB connection (Collapsed)
indicates that RTX745x is
connected to the PC
Battery status (Default)
Battery status (Collapsed)
Battery full
Battery status (Default)
Battery status (Collapsed)
Battery running low
Battery status (Default)
Battery status (Collapsed)
Battery critical

RTX745x GUIDE 1.0 12 |P a g e
Proprietary and Confidential
Battery status (Default)
Battery status (Collapsed)
No battery, please charge device
Call icon
animation indicating an incoming
call
Microphone mute
indicates that the microphone
state has been changed to mute
Hold
indicates a call on hold
Eco mode
indicates enabling/disabling Eco
mode for the headsets
4.2 DECT registration status interface
The following screenshots represent the interface during a DECT registration (Fig.10).
Fig. 10 DECT status registration
5Call activity on base
To have call activity on the base, a master headset must be registered and locked to the base. If the master headset
loses connection during call activity, all the calls will be terminated.
5.1 Incoming call
The base will notify the user with visible and audible indication whether an incoming call is from EHS or USB line. If
both lines are in idle state and an incoming call is received to one of the lines, the base rings and displays the call
(Fig.11). However, if there are two simultaneous incoming calls from two different lines, the active control is made by
the first incoming call (the first that came is served first). The second incoming call cannot be accepted by the
base until the first incoming call has been answered or ended, or the line is swapped manually by the user (Fig. 12). In
case of having one of the lines occupied (in active call), the new incoming call will be displayed as waiting in a queue
(Fig.13).

RTX745x GUIDE 1.0 13 |P a g e
Proprietary and Confidential
Fig. 11 Incoming call Fig.12 Call swap Fig. 13 Call queue (#15)
5.2 Active call
When a call is active, the base displays the active call and the audio path is connected between the far-end party and
RTX725x headset. It is not possible to have more than one active call on a single line at the same time.
Fig.14 Active call
5.3 On-hold call
When a call is put on-hold, the base displays a hold call status and the audio path is disconnected between the far-end
party and the RTX725x headset (Fig.15 Two calls, one on hold). It is not possible to set EHS active call on-hold by the
base.
Fig.15 Two calls, one on hold

RTX745x GUIDE 1.0 14 |P a g e
Proprietary and Confidential
5.4 Multiple calls
There is more than one call existing in a single line. EHS line does not support multiple call.
Fig.16 Multi call
5.5 Multiple line
There is more than one call existing in different lines.
5.6 Active & Inactive line
When a line is active, the base displays active line and the audio path is connected via the line. It is not possible to
have more than one active line at the same time.
When a line is inactive, the base displays inactive line and the audio path is disconnected via the line. It is not possible
to have manual call control of the base when the line is inactive.
5.7 Call termination
All calls will be terminated when the master headset loses link or is placed on the cradle.
5.8 Line swapping
In the case two calls are established in two different lines, one of them is being the active call in the active line. To
make the line swapping simpler, active line is swapped automatically depending on call activities change. It can be one
of the following scenarios:
User makes an outgoing call by softphone or desktop phone.
User retrieves USB held call by softphone.
User swaps USB call by softphone.
User accepts an incoming call.
Call from first active line is ended and other call is existed in second inactive line.
The user can also swap the line from the base manually. When a line is swapped successfully, between two different
lines, a visible indication is shown on base.

RTX745x GUIDE 1.0 15 |P a g e
Proprietary and Confidential
5.9 Microphone muting
Microphone muting control is separated into two muting statuses. Each line has its own microphone muting control.
When the line is switched, the related microphone muting control will also be switched.
5.10 Volume control
Similar to the microphone, the volume control is also divided into two sets of volume. This means that, each line has
its own volume control. When the line is switched, the related volume control will be also switched.

RTX745x GUIDE 1.0 16 |P a g e
Proprietary and Confidential
6Features overview
This section aims to introduce you to the available features on the RTX745x base. Some of the features will be briefly
described through the sections below, whereas the main highlights will be presented via a table with function
descriptions.
6.1 Soft client support
The base, combined with one of the RTX725x headsets, supports the audio and USB API of the following applications:
Skype for Business
Microsoft Teams
Customer client support implemented in PC tool
The RTX745x base can be used with both PC Windows and MacOS.
6.2 EHS interface
The RTX7451 supports EHS phones. The base is prepared to be compatible with various EHS standards. This is done by
having a slider switch that enables 6 separate HW configurations for the audio routing. The PC Setup tool is used to
configure the optimal settings for the SW configuration.
The RTX725x supports 2 active calls, meaning that the 3rd incoming call will be rejected or ignored. If during a call the
user receives an incoming call, the call can be rejected by double pressing the Multi-Function key or accepted by long
pressing the same key. The long press will answer the incoming call and put on hold the current one.
6.3 Table summary of the features
General features
Requirements
Descriptions
DECT frequency bands:
1880 –1895 MHz (Taiwan)
1880 –1900 MHz (EMEA)
1910 –1920 MHz (Brazil & Uruguay)
1910 –1930 MHz (LATAM, Argentina, Chile)
1920 –1930 MHz (USA, Canada)
Narrowband Audio:
G.726, BV16
Wideband Audio (HD):
G.722, BV32
Music
CELT 128 kbit/s
DECT Registration
Possible to store 4 subscriptions, one primary
and three secondary
Base features
Requirements
Descriptions
Display
Size
2.4” 240x320 TFT
Buttons
Scroll wheel (with an embedded key)
Four keys
Hardware features
Speaker
Yes

RTX745x GUIDE 1.0 17 |P a g e
Proprietary and Confidential
Headset interface
USB C
Charging terminals
USB C
Operating conditions
0oC to 45 oC
Spare battery charger
Yes
Call features
Call waiting
Yes
Hold / Retrieve
Yes
No. of simultaneous calls
2, only one on hold
Call Conference
Yes
Call Swap
Yes
DECT
Output Power
250 mW
140 mW (Uruguay, Canada, US, Malaysia, Jordan)
22 dBm (Chile, Australia)
Sensitivity
-92 dBm
Antenna
2 for fast antenna diversity
Range
200m outdoor
Security
Class C
Software update
Downloadable
Yes
Air-interface
Yes
Update support
PC Setup tool

RTX745x GUIDE 1.0 18 |P a g e
Proprietary and Confidential
7Regulatory compliances
7.1 Safety & Type approvals
The regulatory compliance and measurements reports required are:
Approval
Standard
GENERAL SAFETY
Safety
CB Test Report IEC62368, EN62368, IEC60950,
EN60950 with the national difference
Safety
UL62368, and cUL 62368
Safety
CB Scheme Certificate
US
FCC
FCC Part 15B
FCC
FCC Part 15D
FCC
FCC SAR evaluation
FCC
FCC ID
CANADA
IC
ICES-003 Issue 6, 2016
IC
IC RSS-213 Issue 3,March 2015
IC
IC RSS-102 issue 5 SAR evaluation
IC
IC REL Cert and registration
IC
ISED ID
EUROPEAN
CE
EN55032:2015 EMC-EMI&EMS
EN55024:2010
EN55035
CE
EN62479:2010
CE
EN301489-1 V2.2.0 (2017-03)
EN301489-6 V2.2.0 (2017-03)
CE
IEC61000-4-2 Level 3 criteria B (Contact+/-8KV,Air
+/-15K
EN61000- 4-3 Level 3 criteria A
CE
EN301406V2.2.2(2016-09)
CE
SAR-EN62209-1:2006/EN62209-2:2010 ;
EN50360 :2001+A1:2012 EN 50566:2013/AC:2014
CE
AOC certificate
AUSTRALIA/NZ
RCM
AS/NZS CISPR 32:2015
RCM
EMC-AS/NZS CISPR 22:2009+A1:2010
RCM
RF-AS/NZS 4268:2017
RCM
SAR-AS/NZS 2772.1; AS/NZS 2772.2:2011
RCM
Acoustic AS/CA S004
RCM
HAC AS/ACIF S040

RTX745x GUIDE 1.0 19 |P a g e
Proprietary and Confidential
7.2 Environmental compliances
RoHS
Per Directive 2011/65/EU on the Restriction of the use of certain Hazardous Substances in Electrical and Electronic
Equipment
REACH
Per Directive 1907/2006 on Registration, Evaluation and Authorization of Chemicals
WEEE
Per Directive 2012/19/EU on Waste Electrical and Electronic Equipment
(RTX will add waste bin information on product labels).
Packaging: EU Directive 97/129/EC establishing the identification system for packaging materials pursuant to
European Parliament and Council Directive 94/62/EC on packaging and packaging waste

RTX745x GUIDE 1.0 20 |P a g e
Proprietary and Confidential
8Declaration of compliance
8.1 FCC warning
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications to this equipment not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device
may not cause harmful interference, and (2) this device must accept any interference received, including interference
that may cause undesired operation.
For Headset
SAR tests are conducted using standard operating positions accepted by the FCC with device transmitting at its highest
certified power level in all tested frequency bands, although the SAR is determined at the highest certified power
level, the actual SAR level of the device while operating can be well below the maximum value. Before a new model
device is an available for sale to the public, it must be tested and certified to the FCC that it does not exceed the
exposure limit established by the FCC, tests for each device are performed in positions and locations as required by
the FCC. For body worn operation, this model device has been tested and meets the FCC RF exposure guidelines when
used with an accessory designated for this product or when used with an accessory that contains no metal.
For Base
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with minimum distance 20cm between the radiator& your body. This
transmitter must not be co-located or operating in conjunction with any other antenna or transmitter located or
operating in conjunction with any other antenna or transmitter.
8.2 ISEDC Warning
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic
Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions:
1. This device may not cause interference.
2. This device must accept any interference, including interference that may cause undesired operation of the device.
