Rubarth Apparate RUMED 4001 Manual

Operatin
g
and
Maintenance Instructions
for
Climatic Test Cabinets
Type 4001 bis 4701
Version E/40-47/02-2001
Firmware X.17

- 3 -
E/40-47/02-2001
Inhaltsverzeichnis
1 General View
1.1 Control Panel ....................................................................5
1.2Nameplate ......................................................................5
1.3 General ........................................................................6
1.4ExteriorDimensions...............................................................6
2 Safety, Transportation and Installation
2.1Safety..........................................................................7
2.2 Transportation and Storage .........................................................7
2.3Installation ......................................................................8
2.4 Power Supply ....................................................................9
2.5 Types of Water Supply for Ultrasonic Humidification ......................................9
Types of Water Supply ..........................................................9
OperationwithDemineralizedTapWater ............................................9
Operation with Demineralized Water from a Supply Vessel ..............................9
OperationwithTapWater ........................................................9
3 Start-up
3.1 General .......................................................................10
3.2 The Operating Panel .............................................................10
3.3 The Keys and Their Functions ......................................................11
3.4 General Operation ..............................................................11
3.5Passwords .....................................................................12
General .....................................................................12
PasswordEntry ...............................................................12
The "Hidden Ten-key Keyboard" ..................................................12
AbortofthePasswordEntry .....................................................13
ValidityofThePassword........................................................13
How to change a Password ......................................................13
Howto“Delete” aPassword ....................................................13

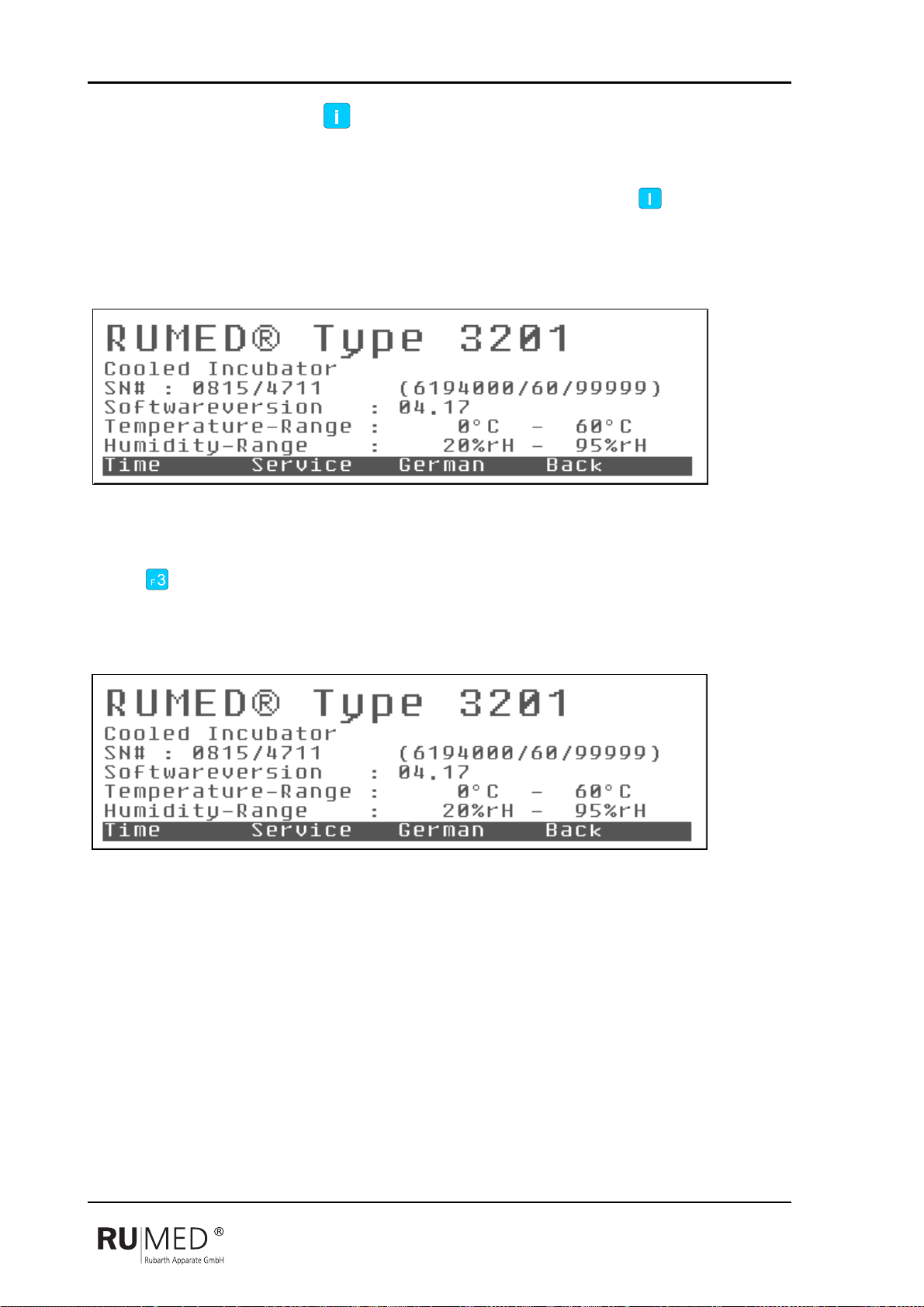

3.6TheHotkey“INFO” ..............................................................14
Thee-NameplateoftheUnit .....................................................14
Multilingual Operation of the Unit ... ...............................................14
IntheAreaService ............................................................14
TestintheAreaService ........................................................15
3.7 Time .........................................................................15
General .....................................................................15
IftheTimeistobeSet .........................................................15
Summertime/Wintertime ........................................................16
3.8 SingleSetpointControl...........................................................17
Setpoints ....................................................................17
Setpoint ranges ..............................................................17
Take-overof the Values .......................................................17

- 4 -
E/40-47/02-2001
3.9 Programme ................................................................... 18
General ..................................................................... 18
HowtoSelectaProgramme..................................................... 18
HowtoStartaProgramme...................................................... 22
HowtostopaProgramme ...................................................... 23
Example:Day/NightCycle ...................................................... 24
Example:Weekly-Cycle ........................................................ 25
FunctionsforAdvancedProgramming ............................................. 26
Delete ...................................................................... 27
Insert....................................................................... 28
Shift ....................................................................... 29
5 Temperature Protection
5.1 SpecimenProtection ............................................................ 31
IntegratedTemperatureSelectorFunction"PreliminaryAlarm" ......................... 31
IntegratedTemperatureSelectorFunction"Alarm" ................................... 31
Dependent Specimen Protection - Difference Alarm .................................. 31
Option: Separate Temperature Selectors for Excess and Insufficient Temperature being Indepen-
dent of the Controller ................................................... 31
How to Set the Temperature Range: .............................................. 32
5.2UnitProtection ................................................................. 33
Dependent Unit Protection - Maximum Alarm ....................................... 33
Independent Temperature Fuse for Unit Protection .................................. 33
HowtoReplacetheFuse: ...................................................... 33
6 Humdification
6.1UltrasonicHumdification .......................................................... 34
General ..................................................................... 34
Condcutivity of water .......................................................... 34
Rinsing of the Humidifier and the Hoses before Initial Start or After Erroneous Operation with Tap
Water ............................................................... 34
Replacement of the Tube Filter in the Ion Exchanger ................................. 35
6.2 Dehumidification ................................................................ 35
7 Service and Maintenance
7.1Defrosting ..................................................................... 36
7.2 Cleaning ...................................................................... 36
7.3CoolingMachine ................................................................ 36
7.4PuttingoutofOperation .......................................................... 36

- 5 -
E/40-47/02-2001
12
1 General View
1.1 Control Panel
1.2 Nameplate
The nameplate is located at the
right side above the water
supply connections. In case of
failures or for spare-part
orders, please indicate the unit
type (1) and the serial no. (2).

- 6 -
E/40-47/02-2001
1.3 General
RUMED Climatic Test Cabinets are producing ideal thermal conditions for quality control and research as well
as development in science and industry. Experiences of more than 50 years stand for a maintenance-free
construction and result in longevity.
Climatic Test Cabinets are produced in two different temperature ranges, and three unit sizes each can be
chosen from. Standard test atmospheres according to DIN 50014 and constant test atmospheres according to
DIN 50015 can be run in the standard units. The options temperature- and humidity programme control ensure
the test method in damp alternating atmospheres according to DIN 50016. Standard atmospheres ensure
attaining and maintaining of a defined state of temperature- and humidity-sensitive objects. Constant test
atmospheres allow selected stress tests in the range of tempered, damp or dry heat atmospheres for testing of
temperature- and humidity-sensitive objects. The method of test in damp alternating atmospheres serves mainly
for tests on units, structural components and humidity-proof packing material in view of its applicability at
increased humidity of the air and temperature alternations causing condensation water or dew.
All models are equiped with artificial air circulation, if requested with control. Thus, a high temperature accuracy
in space and time according to the DIN-regulation 58945 is obtained.
1.4 Exterior Dimensions
Model Volume
(l)
Exterior Dimensions (mm) Maximum load per
Insertion Grid(kg)
Height Width Depth
4001 210 1120 730 975 25
4101 350 1590 730 975 25
4201 530 2100 730 975 25
4301 1060 2100 1460 975 25
4401 210 1120 730 975 25
4501 350 1590 730 975 25
4601 530 2100 730 975 25
4701 1060 2100 1460 975 25
&changed height with option movable design

- 7 -
E/40-47/02-2001
The unit is not explosionproof!
Do not store explosive or easily inflammable substances in the test room!
2 Safety, Transportation and Installation
2.1 Safety
It is recommended to clean the interior of the unit before starting. Refer to the details described in "Defrosting"
and "Cleaning" (chapter 7).
Open the door widely for removal of the insertion grids. The grids must be charged in such a way that a
circulation of the air will not be hindered.
The refrigerating machine will only start when cooling capacity is requested. On demand of cooling, the
temperature controller switches to the cooling circuit by means of a solenoid valve, and when there is no request
for cooling, it switches to the bypass-circuit. Should the period where no cooling is requested exceed 3 minutes,
the refrigerating machine will be switched-off. The blue pilot lamp will only light-up on request of cooling capacity
(cooling circuit is switched-on), the pilot lamp "heating" will only light-up on request of heating capacity.
Option Test room socket:
The test room socket can be charged by max. 4 Amps.
2.2 Transportation and Storage
The standard domestic shipment of the unit will be effected unpacked in a van. The unit should
be transported carefully in standing position. In case a short-time tilting of the unit should be
unavoidable, for reasons of f. ex. passing doors, it might be possible that oil of the cooling
machine will enter into the evaporator. This oil must flow back to the cooling machine. For this
reason take care that after transportations the unit should not be started before expiration of 4
hours. The unit is recommended to be stored in dry rooms at temperatures between +10°C
and +30°C. The shipment within European countries is mostly effected in stable cartons on a
palette. Seaworthy and air-freight cases are generally conserved for 12 months and the units
are welded in an aluminium wrapping. Condensation due to passing of different climatic zones
is avoided by drying agent bags which are to be removed prior to initial starting of the machine.

- 8 -
E/40-47/02-2001
17
block
break release break
2.3 Installation
Installation places being exposed to direct sunlight, radiators and other thermal sources are to be
avoided. Insufficiently ventilated rooms and room temperatures exceeding +25°C are also unsuitable.
The distance between the wall and the backside of the unit should be at least 10 cm. Do not cover the
ventilation slots; even a partial covering of the slots may lead to a heat accumulation. Uncovered
ventilation slots are very important for a faultless operation of the cooling machine!
The floor of the installation place should be even and horizontal. Slight unevennesses can be balanced
by the adjustable foots of the unit.
Units being equiped with the option "Ultrasonic Humidification" must be installed in such a way, that the
test room bottom is in level position to ensure a correct drain of water.
Model Type of feet Tool
4001
4401
4 adjustable feet fork wrench SW17
(width: 17mm)
4101
4201
4301
4501
4601
4701
4 adjustable feet turn foot by hand
option movable
design for all
models
not adjustable

- 9 -
E/40-47/02-2001
Ion exchanger
Intake tap water
Intake demi
-
neralized wate
r
Conductivit
y
measuring hea
d
Mist suppl
y
to the test roo
m
Ultrasonic humidifier
Either recirculation
of the air out of the
test room or
additional blower for
external fresh air
2.4 Power Supply
Current (A.C.) and voltage at the installation place must coincide with the indications on the name-plate
of the unit. The name-plate can be found at the upper part in the door frame on the left side.
Connection is to be made to a duly earthed socket (a separately secured socket is recommended).
A multitude of units are equiped with combined universal plugs according to the German or French
standard.
2.5 Types of Water Supply for Ultrasonic Humidification
2.5.1 Types of Water Supply
Type of Water Supply Connection Pressure Conductivity
Connection to proper supply circuit with
demineralized water
3/4" 0,2 - 5,0 bar < 5 )S/cm
Connection to tap water supply with ion
exchanger connected in series
3/4" 0,2 - 5,0 bar
Connection to ventilated supply vessel with
demineralized water
3/4"min.1m
water column
< 5 )S/cm
2.5.2 Operation with Demineralized Tap Water
Connect water intake of the humidifier with the
furnished hose to a demineralized water supply
according to DVGW (German Supply Company for
Gas/Water) which can be shut-off.
2.5.3 Operation with Demineralized Water from a
Supply Vessel
Suspend a ventilated supply vessel (recommended
volume: 10 liters) minimum 1 m above the level of
the humidifier and connect it to the water intake of
the humidifier by means of the furnished hose.
2.5.4 Operation with Tap Water
It is not possible to operate the humidifier with
directly supplied tap water. If only tap water is
available, the water must be supplied through an ion
exchanger connected in series. Connect water
intake of the ion exchanger with the furnished hose
to a tap water supply according to DVGW (avoiding reflux) which can be shut-off.

- 10 -
E/40-47/02-2001
3 Start-up
3.1 General
... The unit can be switched on and off by means of the softkey ON/OFF .
Since the connection and disconnection is effected by a software switch, the mains plug is always to be
withdrawn in case of maintenance tasks to ensure that the unit is completely disconnected from the mains.
When the unit is reconnected to mains (insertion of the plug into the socket), the display of the controller will be
lighting for some seconds, and the controller will be returned to that operating mode which had been active prior
to disconnection from mains (withdrawal of the mains plug).
Connection and disconnection can only be effected on entry of the password of operating level 1.
After the first start-up (cold unit), the display might appear to be not uniform and poor in contrast. This effect will,
however, disappear, as soon as the working temperature of the display is reached.
If required, the contrast can be adjusted in the actual value screen using the keys .
3.2 The Operating Panel

- 11 -
E/40-47/02-2001
3.3 The Keys and Their Functions
The General Keys ...
Softkey On/Off
Special function: Abortion at password entry
Enter key in the centre of the cursor key set
Cursor to the left
Cursor up
Cursor down
Cursor to the right
In case of a screen with several pages, these keys are used to scroll (Page up,
Page down)
... The functions of the control keys are indicated by the lower screen footer (partly
changing meaning)
The Hotkeys ...
Upon a keystroke, the "actual" actual value screen will appear. When the actual
value screen is displayed, a change between "actual value screen with symbols"
and "actual value screen with details" will be effected.
Changes to the programme menu (create, edit, invoke programmes etc.)
Display of the e nameplate with serial No. etc.
Changes to the alarm memory. In case of a horn sound, the first keystroke will stop
the horn signal; the second keystroke changes to the alarm memory....
3.4 General Operation
Data input is facilitated by means of plain text menus with selection by luminous bars. The function of the control
keys ... may vary and is indicated in the foot row of the screen. Use the cursor keys to move the
luminous bar or the cursor to the desired menu item. Use the key to acknowledge the selection. The
selected menu item will be executed. If a numerical value is selected for modification, the cursor will be flashing
in the digit to be changed. The value can be changed by means of the keys . Holding the key longer will
change the value quickly (scrolling by increments with carry over). Repeated pressing will change the value
slowly (also with carry over).
Selection of the digit to be changed is effected using the keys .

- 12 -
E/40-47/02-2001
Editing is to be finished by pressing the key . Use the key to abort the present input. The old value will
appear again. Observe that the abort function is only concerning the present field. When having left a field using
the key , the values are stored!
Attention: If the programme control is active, the setpoints for single setpoint control cannot be changed during
programme flow, since they are part of the programme. The reason is, that all profiles being not occupied are
using the setpoint for single setpoint control during programme execution.
3.5 Passwords
3.5.1 General
Any essential entry at the controller is protected by entry of a password. The mere display of data and scrolling
through the screen pages can be effected without entry of a password.
3.5.2 Password Entry
All passwords have 4 digits. On delivery of the unit, default values have been assigned to the passwords.
The default values of the passwords can be drawn from the following table:
Configuration Level RUMED ****
Service Level Service ****
Operating Level 2 Customer / Technician or
Experienced User 2000
Operating Level 1 Customer 1000
3.5.3 The "Hidden Ten-key Keyboard"
Entry of the password is effected by a "hidden ten-key keyboard".
01234
56789

- 13 -
E/40-47/02-2001
The numerals are to be entered using that "hidden ten-key keyboard", and they are to be acknowledged using
the key . It is not required to enter zero values behind the decimal point, since they will be added
automatically.
This means, the entry of 2000 can be effected by means of the following keystrokes, as
well as in short-form by the following keystrokes .
3.5.4 Abort of the Password Entry
... in case of an erroneous entry is either effected by actuation of the key or after 30 seconds without any
entry and flashing cursor.
3.5.5 Validity of The Password
... Once having entered the password, the corresponding access levels are released (i. e. no further request to
enter a password) until there has been no keystroke for approx. 2 minutes, or until an entry requires the next
higher level.
A higher level releases automatically the lower levels.
3.5.6 How to change a Password
... The passwords can be changed using the menu items Parameters -> Passwords. Modification of a
password requires knowledge of the old password.
The new password is to be acknowledged using the key .
Since the password is still released after the modification, press the key for a second acknowledgement
and for a check of the new password and press the key once more to acknowledge again. Should a
password be forgotten, it can be released by the next higher password level. If the next higher password level is
unknown, consult the after-sales-service...
3.5.7 How to “Delete” a Password
... Should you desire to gain access to a level without entry of a password (accelerated operation), use the menu
items Parameters -> Passwords and change the password to "0000". From this moment, all further entries for
that level can be effected without any request to enter a password.

- 14 -
E/40-47/02-2001
3.6 The Hotkey “INFO”
3.6.1 The e-Nameplate of the Unit
During operation of the unit, the electronic nameplate can be called by pressing the key .
The nameplate gives information about the detailed type of the unit, its denomination, the serial number of the
unit and of the control, the software version of the control, the temperature range and, if applicable, the humidity
range of the unit..
3.6.2 Multilingual Operation of the Unit ...
The key is used to change between the two languages being loaded. The standard combination is
German/English.
(Other operating languages are being prepared. Please contact us....)
3.6.3 In the Area Service ...
... the working hour meters of the unit can be found
There are up to 4 working hour meters:
Climatic Test Cabinet, Refrigerating Machine, Lighting, Humidification
The feature "maintenance-free" below the respective working hour meter does not mean, that the corresponding
unit is really maintenance-free, but only no service interval had been defined. (Please contact your service
partner...)

- 15 -
E/40-47/02-2001
3.6.4 Test in the Area Service ...
... is a menu item being meant for the service personnel. It includes functions for specific tests of the individual
contactors, valves, relays and other units, if there should really be a problem, once.... Use the key to
return.
3.7 Time
3.7.1 General
... The real-time clock is equipped with a power reserve of approx. 5 - 7 days. Usually, the units should arrive at
the customer with a clock being adjusted correctly. Should the transport have taken more time than usually or
should the unit have been disconnected from mains for an extended period ...
3.7.2 If the Time is to be Set ...
If the clock is to be set actually, use the keys to move to the values to be corrected and set the correct
values using the keys . The clock will be stopped as soon as the adjustment procedure is started. The
digits of the seconds are stopped ... the minutes and seconds are to be set to the next full or half minute and ....
.... the key is to be pressed for “setting” right at the correct moment. The seconds will be “starting to
count” and the synchronization of clock is finished.

- 16 -
E/40-47/02-2001
Attent without having pressed the key first will result in “No Synchronisation”
.... Return using the key .
3.7.3 Summertime/Wintertime ...
.... The clock can be easily changed from summertime to wintertime and vice-versa. Use the keys and
to set the time by +1 h and -1h. While the time is being increased or reduced by 1 hour, the clock continues
running.
so in this case you do not have to use the key for “setting” because the clock was not stopped.

- 17 -
E/40-47/02-2001
3.8 Single Setpoint Control
3.8.1 Setpoints
When being in the actual value screen, the setpoints for the single setpoint control will be displayed on pressing
the key for "Setpoints".
A menu with illuminated bars offers the control variables, which can be selected for the corresponding unit.
Use the keys to move the illuminated bar to the setpoint to be modified and select it by pressing the
key .
The cursor will be flashing. Use the keys to move the cursor to the value to be modified, and use the
keys to increase or reduce the value.
The new value will be saved by acknowledgement with the key .
When editing the value, the function ESC is assigned to the key , i. e. when pressing the key , the old
value will appear again. That abort function is only possible during an active entry.
3.8.2 Setpoint ranges
The ranges being admissible for a modification of setpoints are preset by the parameters being specific for each
unit.
3.8.3 Take-over of the Values
The values will be taken over by pressing the key when leaving the setpoint menu. The new setpoints will
then be approached with the ramps being entered in the setpoint menu. If there are parameters to which no
ramp can be assigned, they will be taken over with a setpoint jump.
Attention: If the programme control is active, the setpoints for single setpoint control cannot be changed during
programme flow, since they are part of the programme. The reason is, that all profiles being not occupied are
using the setpoint for single setpoint control during programme execution.

- 18 -
E/40-47/02-2001
3.9 Programme
3.9.1 General
Press the hotkey to call the menu "Programme".
In case of a programme control, 1 to 4 programmes are at choice, depending on the execution. In case of units
with single setpoint control with lighting only 1 programme with 1 lighting profile is available. In the overview,
programmes being already occupied are marked with +, programmes being not occupied are marked with -.
Programmes being just active are displayed with the word "active" (see above).
Active programmes can neither be deleted nor modified. Modification of an active programme is not possible
before the programme is terminated.
3.9.2 How to Select a Programme
Use the cursor keys to move to the desired programme and press the key to confirm the
selection.
The next submenu is used to select the programme type. The programmes, day programme, week programme,
real-time programme and process time programme are available.
The type of an occupied programme cannot be modified. Any modification results in a deletion of the

- 19 -
E/40-47/02-2001
programme (Request for acknowledgement: Delete profiles?)
The key is used to call the menu Profiles.
Each programme consists of several profiles (temperature profile, humidity profile etc.)
Occupied profiles are marked with +, and empty profiles are marked with -.
Use the cursor keys to move to the desired profile and press the key to confirm the selection.
Note: If your cabinet has single setpoint control there is only a “light profile”
Attention: there will be alway a “Light Profile”
The key is to be pressed to insert a new programme step.
The cursor is flashing at the digits of the hours. Set the desired value using the keys . If required, the
keys can be used to move the cursor to the digits to be modified, and the key is used to
acknowledge the entry. The cursor moves to the next column. If the key is pressed again, the setpoint
input field will be activated and the cursor will be flashing. The desired setpoint can now be adjusted using the

- 20 -
E/40-47/02-2001
cursor keys. Acknowledge using the key .
Pressing a second time will activate the setpoint entry. Use the to modify the setpoint and use
the key for acknowledge.
.
.
The keys are used to scroll through the rows, and the keys are used to scroll through the
pages of the programme.
The key “Back” is used to leave the edited profile and to call the next higher level "Profiles".
