Rubicon Express JL7099 User manual

Revised
11.5.18
Application Notes:
1. The front engine crossmember must be removed and will not be reinstalled due to drive shaft clearance.
2. Front driveshaft must be removed from front differential to allow for proper droop during installation.
3. It may be necessary that a front CV drive shaft be used in con unction with this lift on either 2 or 4 door
models. 2 Door models may also require a CV rear drive shaft.
4. Used in con unction with the following kits: JL7102 3.5” Fixed Arm Kit, JL7142 3.5” Standard Kit, and
JL7147 3.5” Superflex Kit
Safety Warning:
Suspension systems or components that enhance the off-road performance of your vehicle may cause it to handle
differently, on and off-road, than it did from the factory. Care must be taken to prevent loss of control or vehicle
rollover during sudden maneuvers. Failure to drive the vehicle safely may result in serious in ury or death to driver
and passengers. We recommend you always wear your seat belt, drive safely and avoid quick turns and other sud-
den maneuvers. Constant maintenance is required to keep your vehicle safe. Thoroughly inspect your vehicle be-
fore and after every off-road use.
Installation Warning:
All procedures described in these instructions were performed while the vehicle was properly sup-
ported on a vehicle lift. Use caution when supporting the vehicle as removing and installing parts
will change the vehicle center weight. ubicon Express recommends that chassis support jacks are
always used at the front and rear of the vehicle during the installation of a suspension system.
We recommend that certified technicians perform the installations of our products. Attempts to install these prod-
ucts without knowledge or experience may eopardize the safety of the vehicle. These instructions only cover the
installation of our products and may not include factory procedures for disassembly and reassembly of factory
components. Read instructions from start to finish and be sure all parts are present before disassembling the vehi-
cle. Included instructions are guidelines only for recommended procedures and in no way are meant to be defini-
tive. Installer is responsible to insure a safe and controllable vehicle after performing modifications. Do not per-
form test drives on public roads with partially completed installations. Always double and triple check your work
before use.
ESP WA NING NOTE: The 2018 Jeep Wrangler JL is equipped an Electric Stability Program (ESP).
This system is designed to help control the vehicle in times of uncertain traction conditions and roll
stability. Due to the complex nature of this program ubicon Express strongly suggest that after lift-
ing the vehicle it is returned to the dealer for a computer “flash” to re address tire size and proper
ESP control settings. ubicon Express also recommends that you become familiar with the ESP con-
trols and how the different level of settings can help you to keep better control of your vehicle.
WHEEL NOTICE: If using factory wheels it will be necessary to purchase 1.5” wheel spacers to provide proper
clearance to suspension components. Otherwise aftermarket wheels with 4.5” back space measurement will be
required.
EQUI ED TOOLS:
Basic mechanics' hand tools Jack Stands
Vehicle Hoist (Optional) Floor Jacks
Wheel Chocks for Ground Installation
INSTALLATION INST UCTIONS FO :
JL7099 2018 & Up 4 DOO JL W ANGLE
3.5” SUPE -FLEX SHO T A M UNIVE SAL KIT
RUBICON EXPRESS 3290 MONIER CIR., RANCHO CORDOVA, CA. 95742 866-533-7706, www.Rubiconexpress.com

Revised
11.5.18
KIT CONTENTS:
1 JL7099 Universal Kit
1 RM43013 Front Coil Shim
1 RM43014 Rear Coil Shim
2 RM60164 3.5” Front Coil Spring
2 RM60166 3.5” Rear Coil Spring
1 RE1151 Rear Sway Bar End Link Kit
3 RE1301 2” Front Lower Bump Stop Kit
2 70-0374501800 3/8” x 4 1/2” Hex Bolt Gr. 8
1 RE1303 2” Rear Bump Stop Pad
1 RE1479 Block Off Plates
1 RE1612 Rear Track bar Bracket

Revised
11.5.18
P E INSTALLATION NOTE:
Control arm bushings are pre-lubed during initial assembly at Rubicon Express. As general maintenance the control
arm bushings should be lubed with a silicone base grease as needed. Silicone base grease can be purchased at
your local auto parts store.
The Super-flex oints are also pre-lubed during initial assembly at Rubicon Express. As general maintenance the
super-flex oints should be greased as needed and the outer spanner nut tightened on the oint. Any type of
grease will work on the Super-flex oints. Spanner nut tools are available through Rubicon Express (RE3771 &
RE3772) if needed for tightening of the oints.
INSTALLATION OVE VIEW
The installation process can be broken down into the following tasks:
1. Installation of front control arms, track bar, coil springs and bump stops, shocks, sway bar links.
2. Installation of rear control arms, track bar bracket, bump stops, coil springs, shocks, and sway bar links
3. Final detailing, ad ustments, and alignment.
Step 1 – Front arm and component installation
A. With the vehicle and axle properly supported, prepare the front end suspension component installation by
removing the following items; shocks, sway bar links, and track bar. These items will not be reinstalled on
the vehicle.
B. Lower the axle and remove both coil springs.
Front arm Installation
A. If installing with (JL7102) with fixed arms, refer to (RE3721) instructions.
B. If installing with (JL7147) with super-flex arms, refer to (RE3722 and RE3723) instructions.
Photo # 1 Photo # 2

Revised
11.5.18

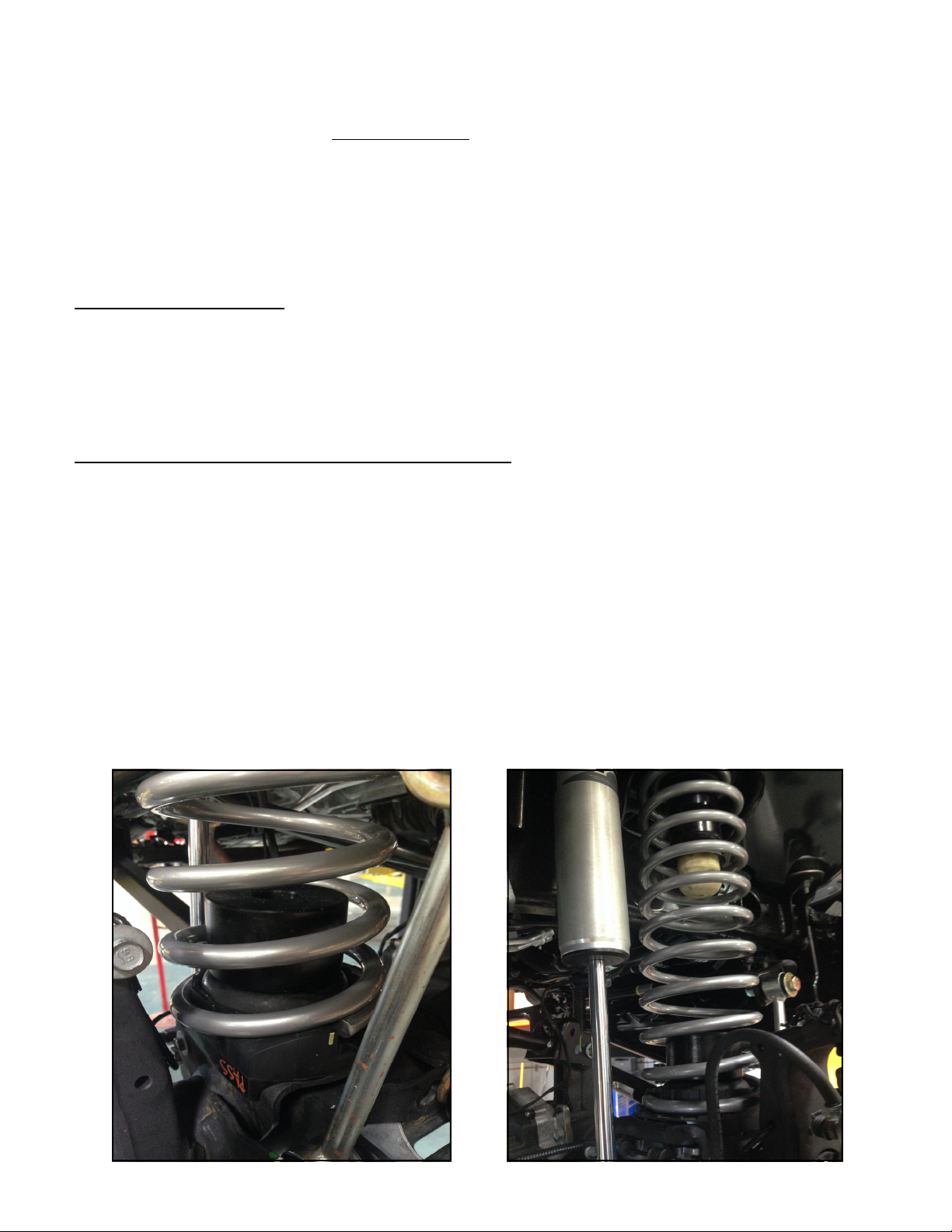

Front bump stops and coil springs (Photos 1 and 2)
A. Remove stock coil springs.
B. Place the front bump stop (RE1301) in the center of the coil spring and raise the small diameter end of the
Rubicon Express coil into the upper spring bucket and over the lower spring cup and bump stop. Install
front coil shim (RM43013) between the upper isolator and the coil bucket on the passenger side only. Then
raise the axle to seat the upper mount and rotate the coil to properly index in the lower mounts. Be sure to
realign upper isolator tabs with holes in the upper coil bucket.
NOTE: If the axle cannot be dropped far enough from the frame due to brake line or ABS wire
length to install the coil springs remove the bump stop and insert it into the coil. Then slide the coil
over the stock axle mount and re-install the bump stop bolts. (PHOTO # 1)
NOTE: If installing kit with 37” tires on JL Sport edition, use, RE1301, and long bolt.
Front Track bar
A. If installing ad ustable track bar, refer to (RE1674) instructions.
B. If installing HD track bar, refer to (RE1683) instructions.
Shocks and sway bar links/disconnects
A. See supplied instruction sheet for the front sway bar link / disconnect information (RE1152 or RE1136). This
kit contains all parts necessary to be used on a Jeep Rubicon model with factory electronic disconnect as
well as Sport and Sahara Jeep models.
Step 2 – ear arm and component installation
A. With the vehicle and axle properly supported prepare the rear end suspension component installation by
removing the following items; shocks, sway bar links, and track bar at the frame only (loosen the track bar
bolt at the axle). The shocks and sway bar links will not be reinstalled on the vehicle.
B. Remove the emergency brake cable bracket from under the body. Discard the factory bracket.
C. Lower the axle and remove both coil springs. The rubber isolators will come out with the coil and must be
reinstalled with the new coil springs.
NOTE: Factory isolators must be installed in the same orientation as they are removed.

Revised
11.5.18

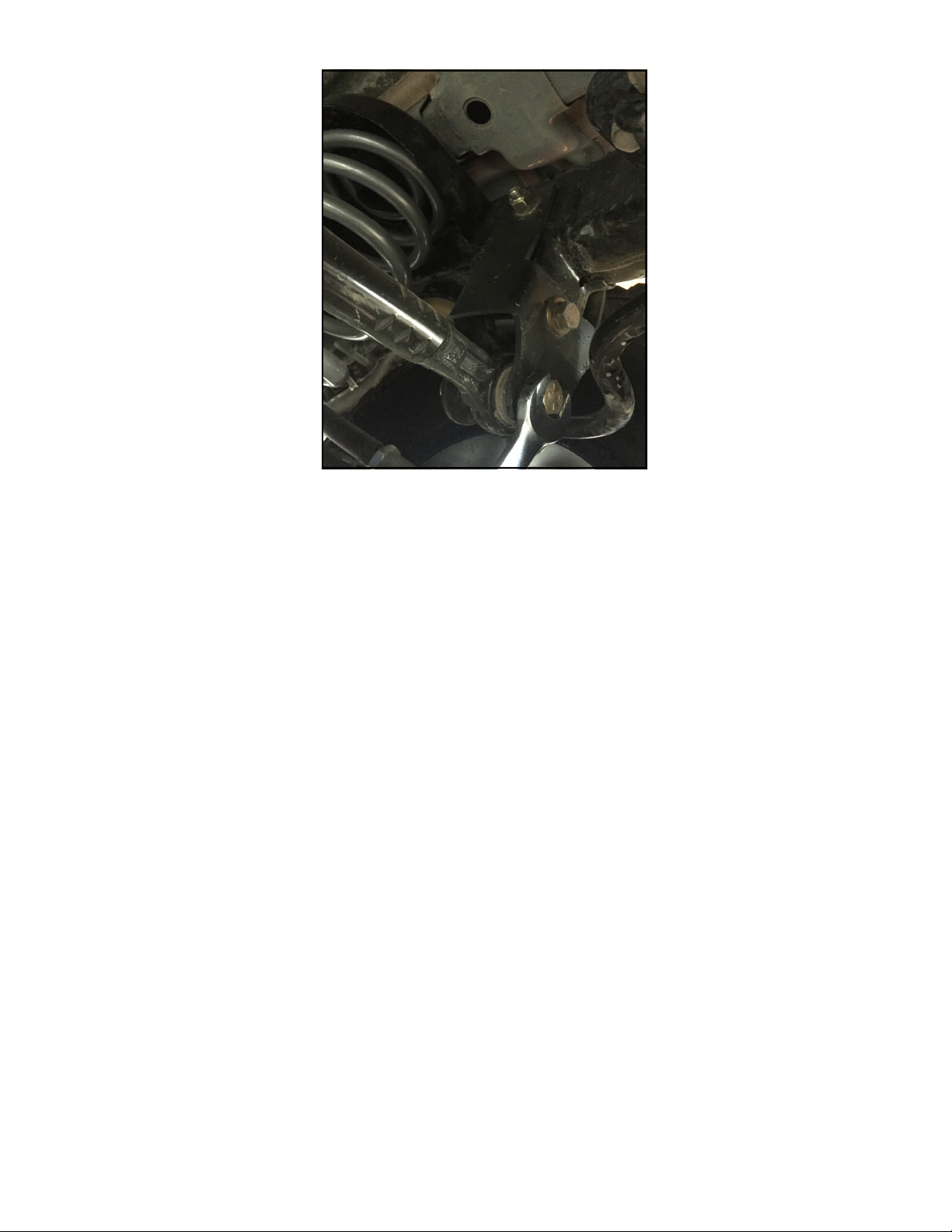

ear track bar bracket and factory track bar (photo 3)
A. With the track bar removed from the factory track bar bracket, install (RE1612) with supplied hardware.
Do not to tighten 1/2” bolt at this time.
B. Insert the 9/16” X 3 1/2” bolt and long spacer in the top hole. Insert the 9/16” X 3 1/2” bolt and short
spacer in the bottom hole. The track bar will be mounted toward the rear of the vehicle. (Photo 3)
ear Arms
If installing with upper and lower arms with (JL7147 3.5” Super-flex Kit), refer to (RE3724 and/or RE3725)
instructions.
Note: It will be necessary to re-ad ust the upper arms during the final check to properly set the
pinion angle.
ear bump pads, coil springs, and sway bar links
A. Remove stock coil springs.
B. Install the two bump pads (RE1303) on top of the axle housing using the supplied 3/8” hardware. Rein-
stall both factory isolators and rear coil shim (RM43014) between the upper isolator and the coil bucket
on the passenger side only. Be sure to realign upper isolator tabs with holes in the upper coil bucket.
NOTE: Factory isolators must be installed in the same orientation as they are removed.
Photo # 3

Revised
11.5.18
C. Place the rear coils up into the upper mount and over the lower mount. Raise the axle into place ust
enough to keep the coil spring from falling out. Be sure to realign upper isolator tabs with holes in the
upper coil bucket
D. Install the replacement rear anti-sway bar end links (RE1151) in place of the previously removed fac-
tory anti-sway bar end links as follows:
1. For vehicles using factory 17” wheels, secure to the sway bar and rear axle using the supplied
1/2” X 2 1/4” button head bolts and hardware. Be sure the bend in sway bar end links is at the
top and facing toward inside of vehicle and the bolt heads are facing in toward frame. (Photo 4)
2. For vehicles using aftermarket wheels with 4.75” of backspacing, secure to the sway bar and rear
axle using the supplied 1/2” X 2 1/4” button head bolts and hardware. Be sure the bend sway
bar end links is at the top and facing toward outside of vehicle and the bolt heads are facing to-
ward outside of vehicle. (Photo 5)
NOTE: If installing 37” tires on JL sport edition, and do not want to trim install (RE1301) on top of
(RE1303) with provided hardware.
Shocks
A. Depending on what shocks have been purchased with the suspension kit it may be necessary to reuse
the sleeves from the stock shocks. If this is necessary be sure to lubricate the sleeves during removal
and most importantly during re-installation.
Step 6 - Final details and adjustments
A. Install wheels, verify all coils are properly seated shocks installed and lower the vehicle.
B. Check the front track bar for axle center, ad ust as necessary.
C. Tighten all control arm and track bar rubber bushing hardware. Use factory specs where factory bolts are used.
(Photo # 4) (Photo # 5)
Configuration
with factory 17”
wheels
Configuration
with aftermarket
wheels

Revised
11.5.18
D. Manually disable the factory ESP system before the first test drive. (Refer to owners manual for the disable
procedure) Note the location of steering wheel while driving in a straight line and any driveline vibrations.
E. Ad ust drag link to center the steering wheel. NOTE: Centering the steering wheel is highly critical for proper
ESP function. Minimum factory caster and maximum factory toe-in is the recommended initial setting for align-
ment (see Troubleshooting as well).

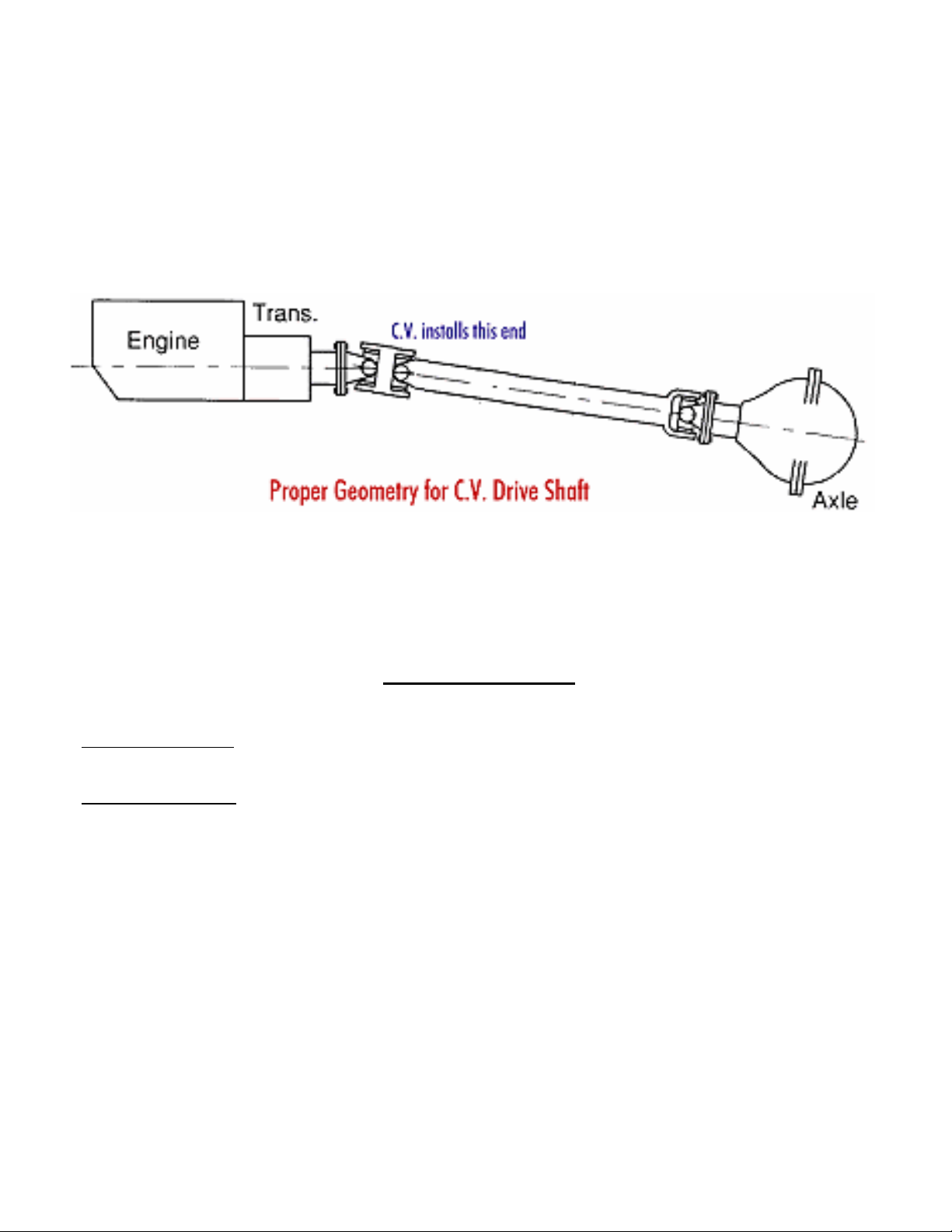

F. Ad ust upper control arms if necessary for proper front castor angle and rear pinion angle. NOTE: Shown below
is a diagram of proper pinion angle for a CV style drive shaft (see Troubleshooting as well).
G. Retighten all bolts after 50 miles and again after every off road excursion.
H. After all ad ustments have been made, Rubicon Express recommends that your local Jeep dealership “flash” the
computer to ad ust for proper tire size and ESP control settings.
T OUBLESHOOTING
ear driveline:
Acceleration vibration: Caused by the pinion being too high in relation to the transfer case output shaft. Ad ust up-
per control arm to lower pinion accordingly.
Deceleration vibration: Caused by the pinion being too low in relation to the transfer case output shaft. Ad ust up-
per control arm to raise pinion accordingly.
High speed wobble:
It is a condition where front tires will shimmy after hitting a bump. Avoid bias ply tires and wheels with excessive
offset. Check for worn or loose parts. In most cases a reduction of positive castor will eliminate this condition.

Revised
11.5.18
UBICON EXP ESS ADVANTAGE LIFETIME WA ANTY
Notice to Owner, Operator, Dealer and Installer:
Vehicles that have been enhanced for off-road performance often have unique handling characteristics
due to the higher center of gravity and larger tires. This vehicle may handle, react and stop differently
than many passenger cars or unmodified vehicles, both on and off–road. You must drive your vehicle
safely! Extreme care should always be taken to prevent vehicle rollover or loss of control, which can
result in serious in ury or even death. Always avoid sudden sharp turns or abrupt maneuvers and allow
more time and distance for braking! Rubicon Express reminds you to fasten your seat belts at all times
and reduce speed! We will gladly answer any questions concerning the design, function, maintenance
and correct use of our products.
Please make sure that the Dealer / Installer explains and delivers all warning notices, warranty forms
and instruction sheets included with Rubicon Express product.
Application listings in this catalog have been carefully fit checked for each model and year denoted.
However, Rubicon Express reserves the right to update as necessary, without notice, and will not be
held responsible for misprints, changes or variations made by vehicle manufacturers. Please call when in
question regarding new model year, vehicles not listed by specific body or chassis styles or vehicles not
originally distributed in the USA.
Please note that certain mechanical aspects of any suspension lift product may accelerate ordinary wear
of original equipment components. Further, installation of certain Rubicon Express products may void
the vehicle’s factory warranty as it pertains to certain covered parts; it is the consumer’s responsibility
to check with their local dealer for warranty coverage before installation of the lift.
Warranty and eturn Policy:
Rubicon Express warranties its full line of products to be free from defects in workmanship and materi-
als for the life of the product. Rubicon Express’s obligation under this warranty is limited to repair or
replacement, at Rubicon Express’s option, of the defective product. Any and all costs of removal, instal-
lation, freight or incidental or consequential damages are expressly excluded from this warranty. Rubi-
con Express is not responsible for damages and / or warranty of other vehicle parts related or non-
related to the installation of Rubicon Express product. A consumer who makes the decision to modify
his vehicle with aftermarket components of any kind will assume all risk and responsibility for potential
damages incurred as a result of their chosen modifications.
Warranty coverage does not include consumer opinions regarding ride comfort, fitment and design.
Warranty claims can be made directly with Rubicon Express or at any factory authorized Rubicon Ex-
press dealer.
Claims not covered under warranty:
• Parts sub ect to normal wear; this includes bushings*, shock absorbers, driveshafts, ball oints, tie
rod ends and heim oints.
• Discontinued products at Rubicon Express’s discretion.
• Finish after 90 days.
Rubicon Express accepts no responsibility for any altered product, improper installation, lack of or im-
proper maintenance
or improper use of our products.
* ubicon Express PT-MEG Super- ide bushings are covered by the ubicon Express Advan-
tage Lifetime Warranty,
and will be replaced in the event of failure for the life of the product.
