Rubine RCH-LESTE-BL User manual

RCH-LESTE-BL

READ & SAVE THIS INSTRUCTIONS MANUAL
CONTENTS
SPECIFICATIONS --------------------------------------------------------------------------------------4
PRODUCT DIMENSION ------------------------------------------------------------------------------4
OPERATNG INSTRUCTIONS -----------------------------------------------------------------------5
INSTALLATION REQUIREMENT -----------------------------------------------------------------6
INSTALLATION PROCEDURES -------------------------------------------------------------------7
MAINTENANCE (installation of charcoal filter) --------------------------------------------------8
IMPORTANT SAFETY INSTRUCTIONS --------------------------------------------------------10
TROUBLE SHOOTNGS -----------------------------------------------------------------------------12

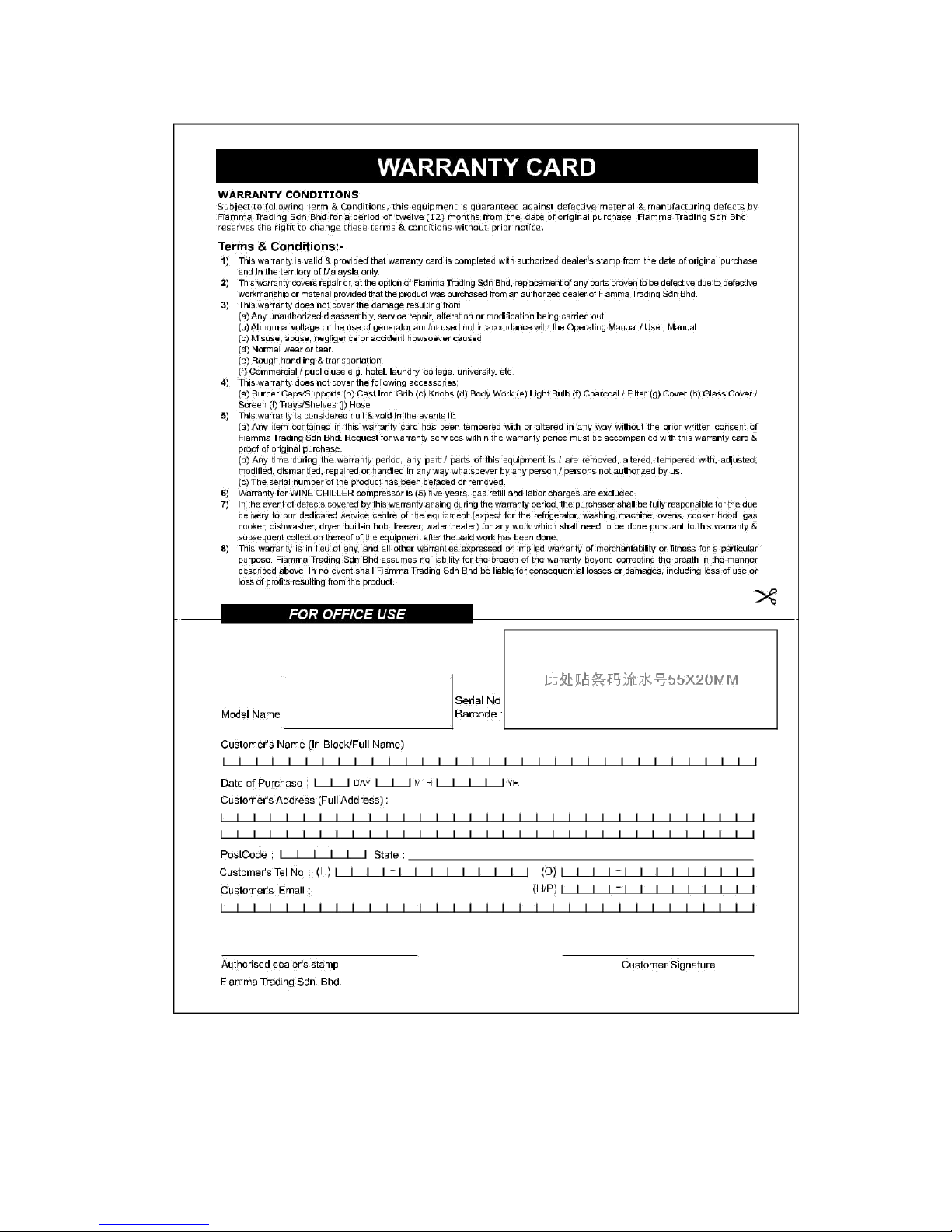

WARRANTY CARD ---------------------------------------------------------------------------------13

Dear Valued Customer,
Congratulations and thanks for trusting RUBINE to be part of your kitchen appliances. This
appliance is subject to strict Quality Control during the entire process of manufacturing and
assembly. It is meticulously tested to ensure lowest defect possible when it is working in your
kitchen. Do not remove the product from its protective packaging until it is installed.
Please read and understand the instruction carefully before proceeding to install and use the
appliances. The information contained in these manual is essential for proper operation of the
appliance and, more importantly, for your safety. Being socially and environmentally
responsible, the packaging of the appliance has been manufactured using only the materials
which are strictly necessary to guarantee efficient protection during transport.
To contribute to the environment, you can dispose the packaging into the appropriate
recycling bin. You can contact your local authority to find out the nearest recycling centre for
your old product. Do not pour used oil down the sink; instead, collect in sealed container and
take it to an appropriate oil disposal centre to avoid ground water contamination.
IMPORTANT: The quality of the final product is recorded according to the serial number. In
the unlikely event that the appliance should be damaged or not meet your expectations in
terms of quality, please inform us as soon as possible. For the warranty to be valid, the
appliance must not have been tampered with, or used inappropriately.

SPECIFICATIONS
Model Name : RCH-LESTE-BL
Total Power : 224W
Motor Power : 220W
LED Lamp : 2x2W
Voltage : 220V –240V
Frequency : 50Hz

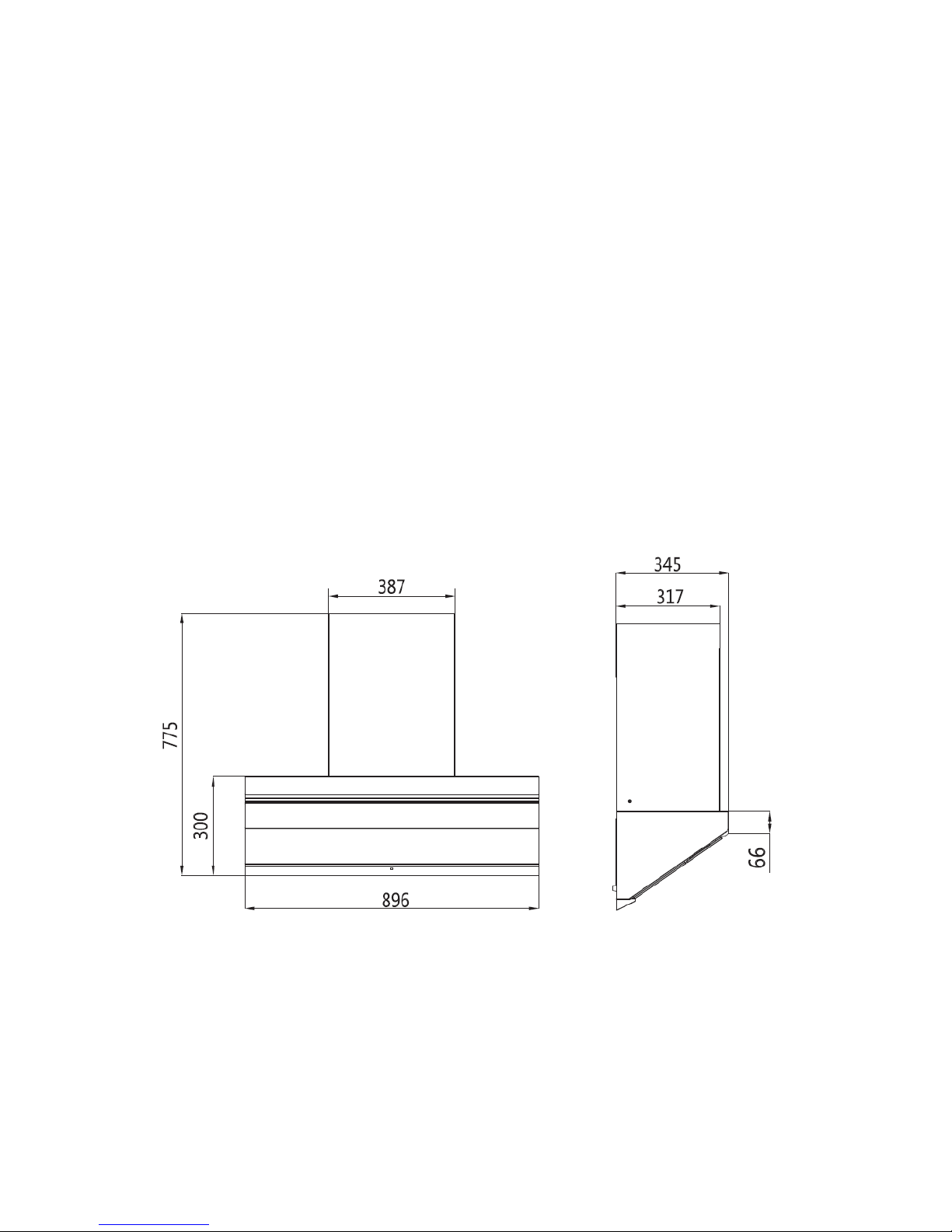

PRODUCT DIMENSION

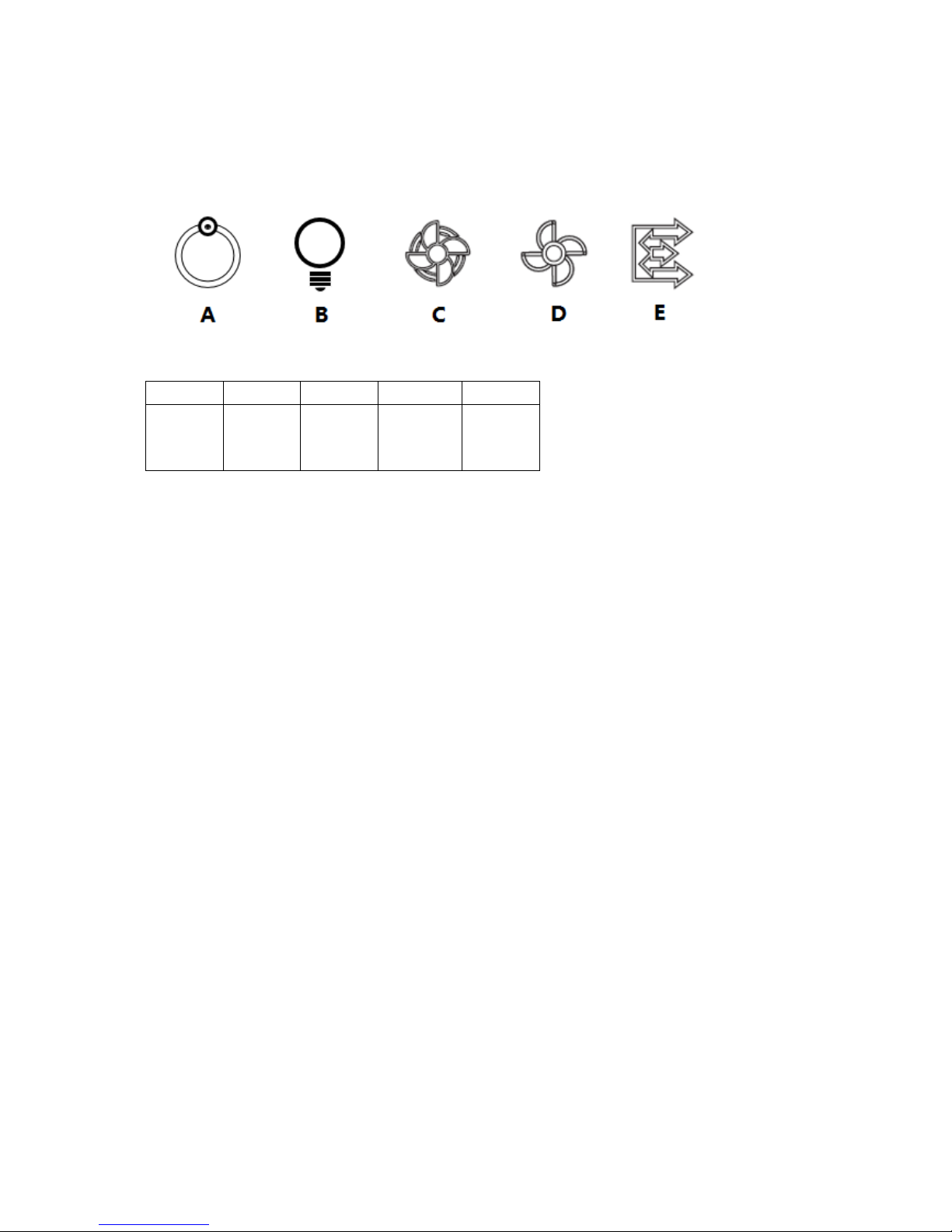

OPERATION INSTRUCTION
This is a highly sensitive touch control. Gently press the control to operate.
A
B
C
D
E
On/ Off
Light
Boost
Extraction
Speed
Air
Switch
•Touch ‘A’ for standby mode. Then, touch ‘D’ to operate the hood.
▪1st touch will run the hood in high speed
▪2nd touch will boost the suction speed. Boost mode only run for 3-minutes &
suction speed will switch to normal speed once 3-minutes elapsed
▪3rd touch will switch to normal speed
•During boost mode, touch ‘A’ to stop the hood and entering shut-down.
•During normal & high-speed mode, touch ‘A’ to activate delay shut-down (3-minutes
delay), After 3-minutes, cooker hood will stop operating & entering shut-down.
During activation of delay shun-down, touch ‘A’ will stop the cooker hood & entering
shut-down.
•During operating mode, touch ‘C’ to active ‘air switch’ system. Cooker hood will
switch to normal speed & run for 8-minutes, then will stop operating. For the next
every 8 hours, cooker hood will automatically run for 8-minutes in total of 72 hours.
Touch ‘C’ again will disable ‘air switch’ function, cooker hood will enter standby
mode.

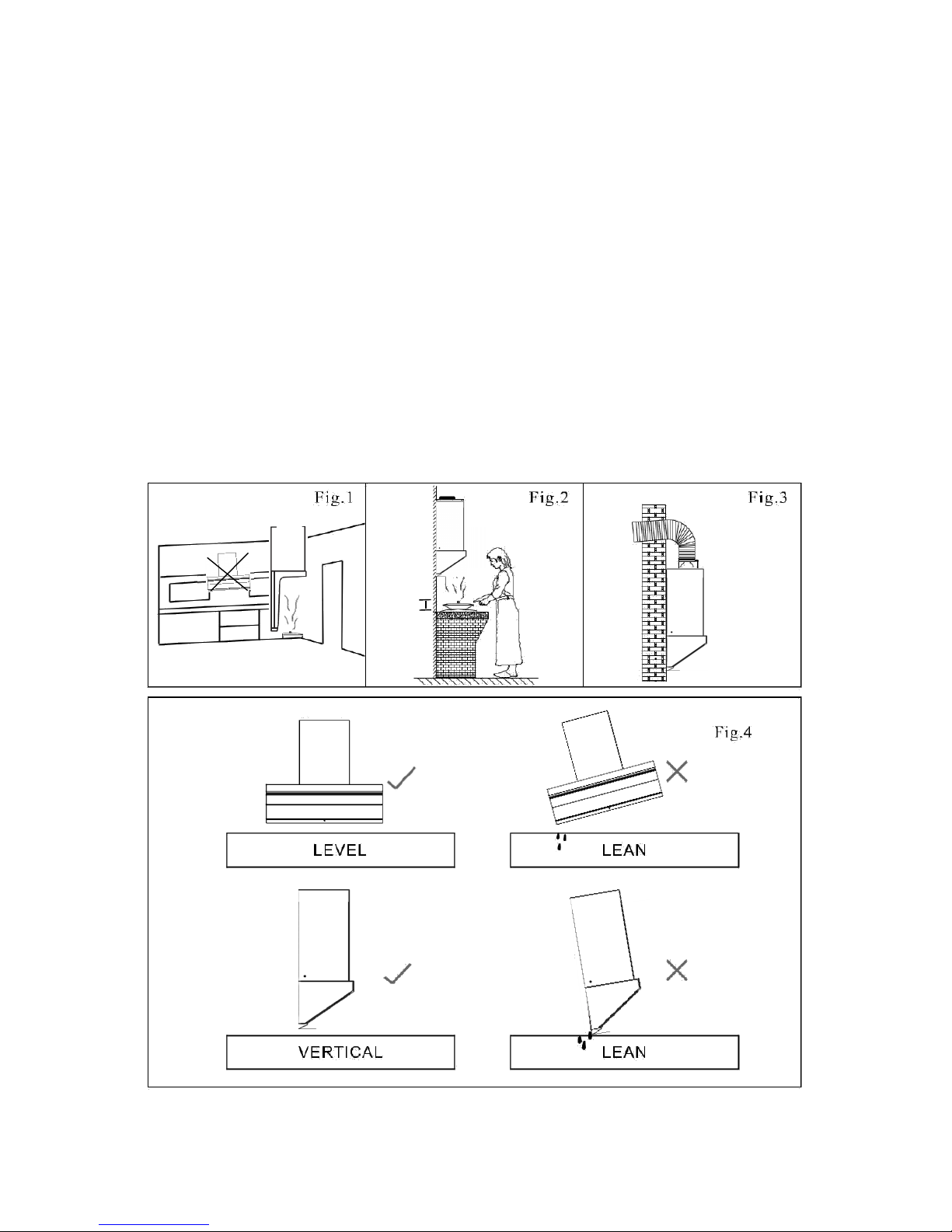

INSTALLATION REQUIREMENT
1. To have the best suction results, do not install cooker hood near to door and windows.
External wind will reduce the efficiency of the appliance. (Fig. 1)
2. Install cooker hood directly above the hob. The optimum distance between the cooker
good and hob is 500mm to 550mm. (Fig. 2)
3. For best performance, minimize the length of the exhaust pipe, minimize the number of
angles and do not over-bend the pipe more than 90 degree. (Fig. 3)
4. Ensure the cooker hood is vertically straight after installation. (Fig. 4)
5. The air outlet MUST NOT be connected to chimney flues or combustion gas ducts. DO
NOT connect the air outlet to ventilation duct which fuel-burning appliances are installed
500-550mm

INSTALLATION PROCEDURES
SAFETY WARNING
Some parts of the hood may have very sharp edges. Please wear protective gloves if you need
to remove any parts during installation, cleaning or servicing. Make sure the wall able to
hold/ withstand the weight of cooker hood. It should not have contact with any cable inside/
outside to avoid electric shock. Do refer your hob user manual for any special requirement.
Step 1:
Install the cooker hood according to the recommended distance between 500mm to 550mm
above the hob.
Step 2:
Drill holes on the proper positions of the wall, insert the provided expanding tubes into the
holes. Tighten the screw into the holes and ensure it is tightly screwed. Hang the cooker hood
on the bracket and ensure its stability and level.
Step 3:
Fix the exhaust pipe into the air outlet of the inner duct. It has to be tightly connected.
Step 4:
a.) Adjust the desired height of the inner duct and draw 2 markings against the bracket
holes.
b.) Put the inner duct aside and drill the holes, then insert the expanding tub into the holes.
c.) Place the inner duct on the wall and tightened it with screw when the holes of the wall
and bracket is aligned.
Step 6:
Extend the air outlet exhaust pipe outdoor.

MAINTENANCE
To ensure efficiency & product lifespan, clean the cooker hood surface & fan regularly.
Before any cleaning & maintenance, make sure the cooker hood is turned-off and unplugged.
Wear glove to avoid scratch during maintenance.
Use mild soap or detergent solution to clean the surface once a week depending on the usage
Motor fans and other internal part should be cleaned twice a week, depending on usage. This
should be conducted by Qualified personnel only. Do not clean the motor with water or
others liquid.

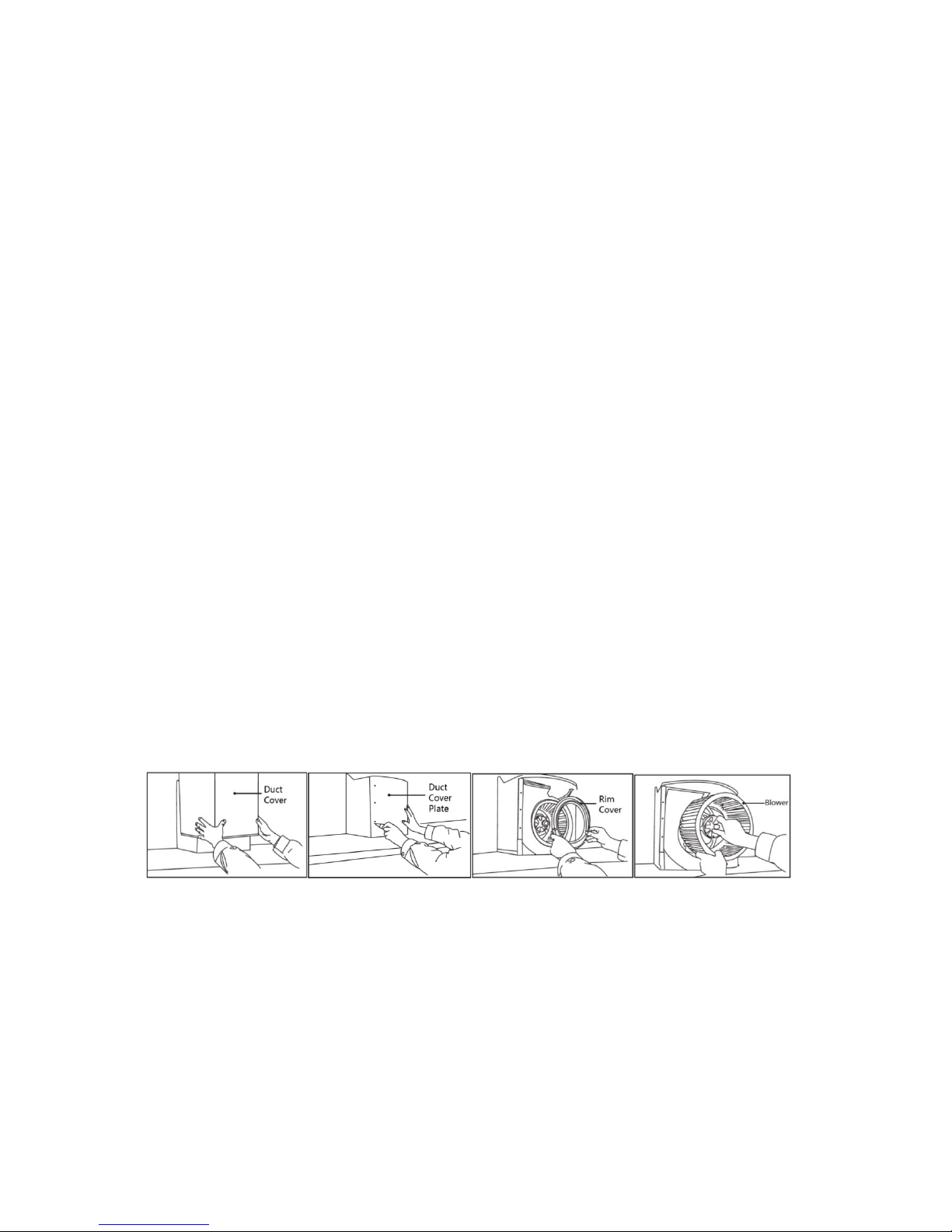

Dismantle the motor fan/ blower & charcoal filter installation
Please make sure the components are place gently after dismantle to avoid any dented to the
component.
-Unscrew (screw located at behind) & take out the duct cover
-Unscrew & take out the duct cover plate
•You can install the charcoal filter here. Cover the blower.
-Unscrew & take out the rim cover
-Turn the lock on the blower according to the indicate direction & take out the blower
-After clean the blower & wipe the motor, install the blower back to the hood.
Washing of the component
Use mild soap or detergent solution to clean the component. Do not use organic solvents.
Soak it for 30 minutes before wash. Make sure to avoid any damages to the component. After
clean it with mild soap or detergent solution, wash it again with water & wipe it with dry
cloth. Only use dry cloth to clean electrical components, do not use water or any soap on it.

Replace & dismantle of Led Lamp
Caution: Hot surface! To replace or dismantle the lamp, make sure it is turned-off and
unplugged.
-Use a flat head screwdriver to pull out the lamp subassembly
-Pull out the connection with internal wires.
-Replace with new lamp
-Connect the lamp subassembly with internal wires and push the lamp into the hood.

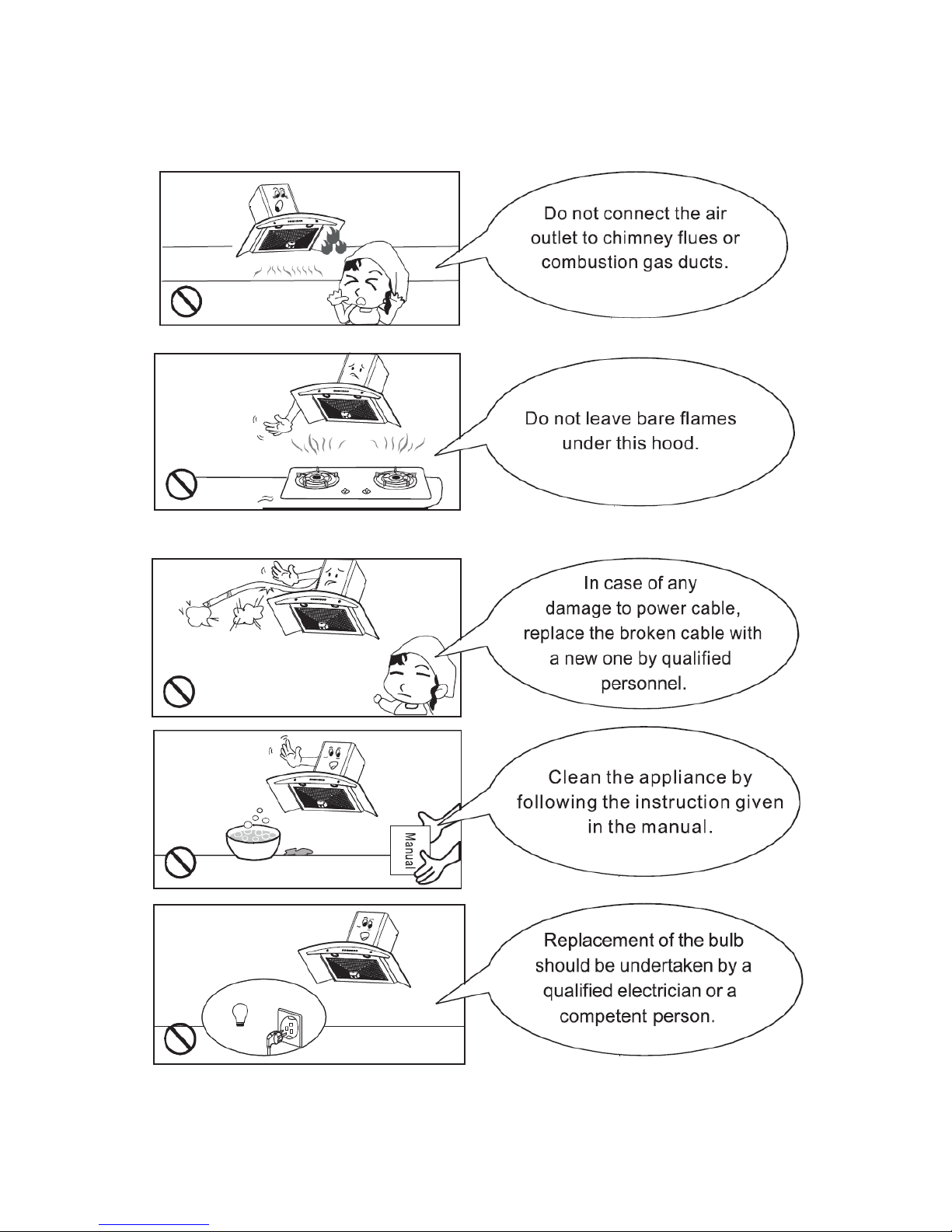

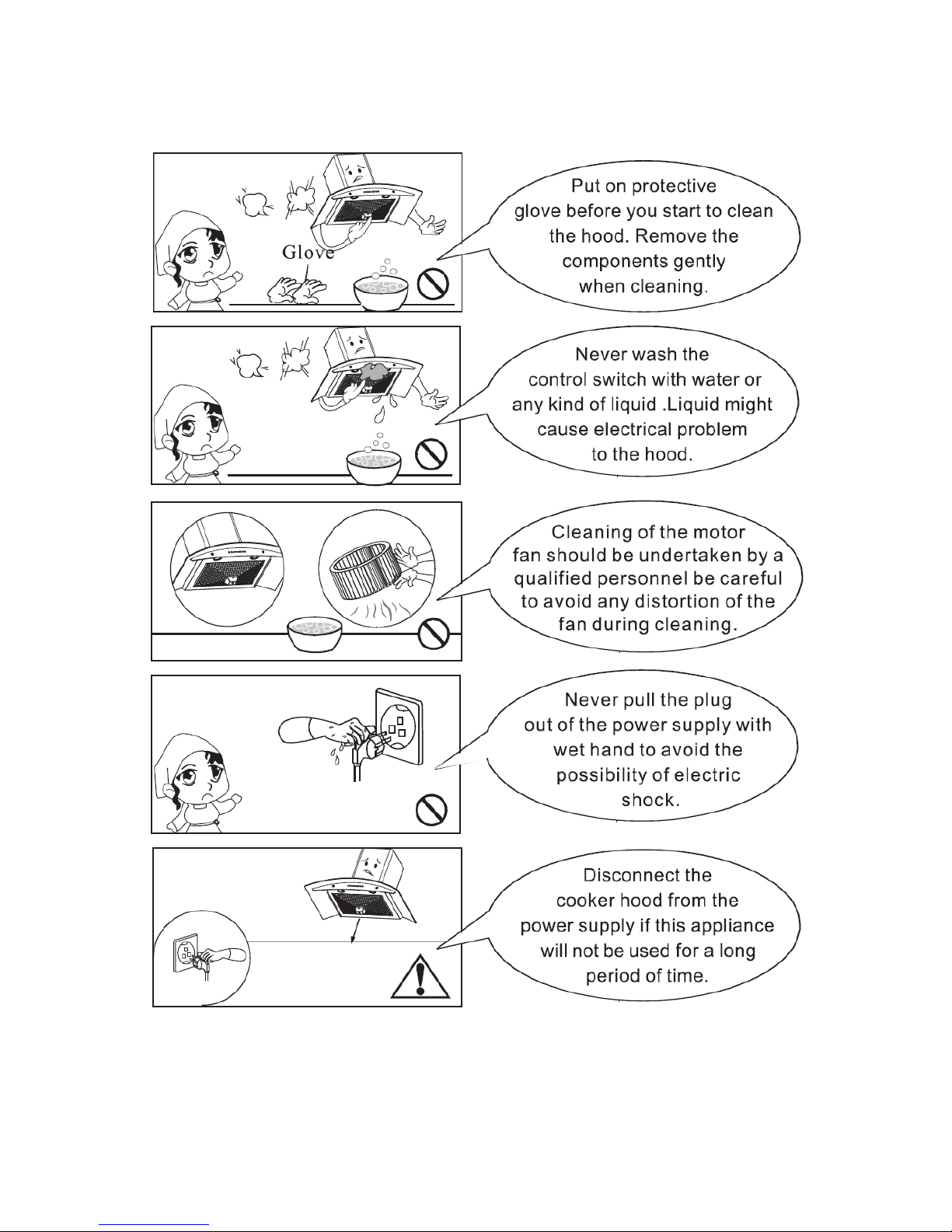

IMPORTANT SAFETY INSTRUCTIONS:

TROBLESHOOTINGS
Malfunctions
Causes
Action
Light bulb
malfunction
while motor is
operating
Light bulb is not install
Contact service centre &
request technician to:
- install the light bulb
- replace new light bulb
Light bulb is not install
correctly
Light bulb broken
Both motor &
light bulb are
malfunction
Plug & socket are damage or
might not connect correctly
Repair/ change new plug or
socket
Display board might damage
or might not connect
correctly
Light bulb is
on but motor
is not
operating
Thermal protector damaged
Change motor
Capacitor damaged
Change capacitor
Motor damaged
Change motor
Hood is
shaking
blower not installed
correctly
Adjust blower
Higher noise
Ducting cover not installed
correctly
Check & tighten ducting
cover
Weak Suction
Hood installed too far from
hob
Adjust the distance
Air/ wind convection
slightly open door/ window
Hose installed too long,
connection point did not seal
correctly, too many bending
or deform
Check & install the hose
correctly
Butterfly vane is close
Remove the tape, adjust
hose, no blockage
Hob install too far from
cooker hood
Adjust hob position
Low power supply to hood
Check the flow of power
supply 200-240 V

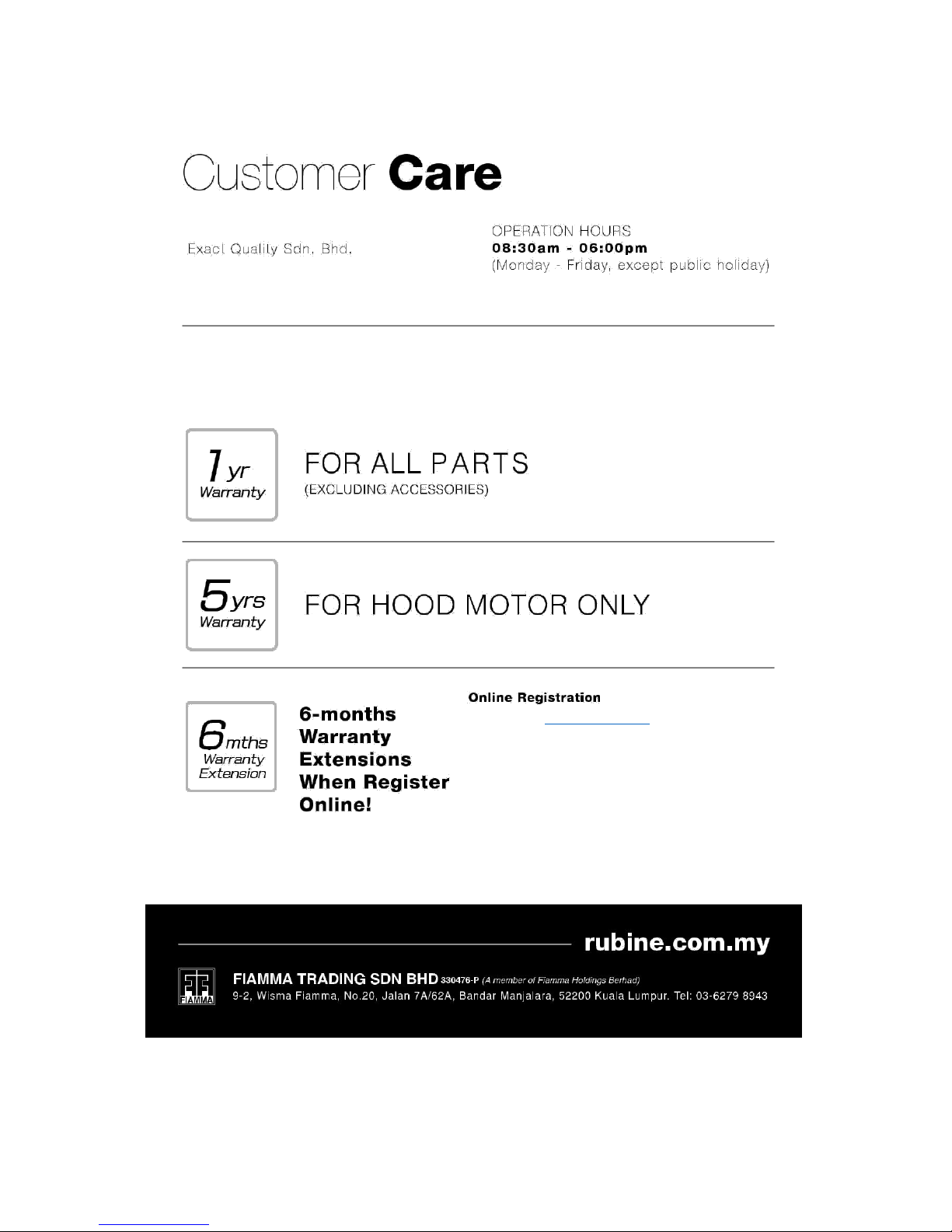

Contact : 03 –6286 9000
Website : http://www.e-quality.com.my/
1. Log on to www.rubine.com.my
2. Click on ‘Support’, followed by ‘Warranty
Registration’.
3. Choose ‘Kitchen Appliances’ & Click Next. Website
will direct you to ‘Exact Quality’ website.
4. Click ‘Register Warranty’. You’re required to sign up
as member.
5. Please fill-up necessary information. Your warranty
will be automatically extended for another 6-month
upon registration online.
