RuiDa RDV8840G-MOD5 User manual

Web：www.rd-acs.com | TEL/FAX：[phone]
202-203, B-Block,Technology Building, 1057 Nanhai Avenue,Nanshan District,, SHENZHEN, CHINA
1
RDV8840G-MOD5
User manual
Read this manual before operation
➢The content includes of electric connections and operating steps
➢System user manual
Shenzhen Ruida Technology Co., Ltd
Address: 202-203,B-Block,Technology Building, 1057 Nanhai
Avenue,Nanshan District,, SHENZHEN, CHINA
Tel: [phone]
Fax: [phone]
E-mail: [email protected]
Web: www.rd-acs.com

Web：www.rd-acs.com | TEL/FAX：[phone]
202-203, B-Block,Technology Building, 1057 Nanhai Avenue,Nanshan District,, SHENZHEN, CHINA
2
Copyright notice
Shenzhen Ruida Technology Co., Ltd. (hereinafter referred to as Ruida Technology)
retains all rights.
Ruida Technology has the patent copyright and intellectual property rights of this
product, without the license and license of Ruida Technology, may not directly or indirectly
copy, manufacture, process, use of this product and its related parts, otherwise Ruida
Technology will be investigated for the relevant legal responsibilities in accordance with the
law.
Regal Technologies reserves the right to modify documents such as products and
product specifications in this manual without prior notice, and the right to modify any
documentation that comes with this product.
Users should read this manual carefully when using the products described herein,
and Regal Technologies shall not be liable for any direct, indirect, special, incidental or
consequential loss or liability arising from the improper use of this manual or this product.
Ruida Technologies does not assume any direct or indirect liability or loss as follows:
➢The user is using this manual or this product incorrectly
➢Losses caused by the user not following the relevant safety procedures
The loss caused by natural forces makes the machine in motion dangerous, the user
is responsible for designing an effective error handling and safety protection mechanism
in the machine, and Ruida Technology has no obligation or responsibility to be
responsible for the consequential or corresponding losses caused by it.

Web：www.rd-acs.com | TEL/FAX：[phone]
202-203, B-Block,Technology Building, 1057 Nanhai Avenue,Nanshan District,, SHENZHEN, CHINA
3
CERTIFICATION STATEMENT
CE Certification statement
This product has passed the European Union CE (CONFORMITE EUROPEENNE) safety
certification, has passed the corresponding conformity assessment procedures and the
manufacturer's declaration of conformity, and complies with the relevant EU directives.
ROHS Certification statement
This product has passed the "Restriction of Hazardous Substances" safety certification
established by EU legislation and complies with relevant EU environmental protection regulations.
FCC Certification statement
This product has passed the Federal Communications Commission safety certification and
complies with relevant US electronic product safety regulations.

Web：www.rd-acs.com | TEL/FAX：[phone]
202-203, B-Block,Technology Building, 1057 Nanhai Avenue,Nanshan District,, SHENZHEN, CHINA
4
SAFETY INFORMATION
Please make sure that the operation is correct and the method is safe when using
the system. Some signs or words will be used to remind you of dangerous matters
and some important information.
Danger:
It indicates a serious danger. In the process of using, if improper operation or
wrong usage method may cause serious injury or even death to the personnel,
please do not use it easily until the operation method is correct and the usage
method is correct.
Warning：
It indicates a serious danger. In the process of using, if improper operation or
wrong usage method may cause injury to the personnel, please do not operate it
until the operation method is correct and the usage method is correct.
Cautious：
It indicates potential product risk. In the process of using, if the use method is
incorrect or the operation is improper, it may cause damage to the product or
some parts. Please do not use it until it is ensured that the operation method is
correct and the use method is correct.
Important:
It indicates important information that needs attention during the use of the
product. Please do not ignore this information, it will provide effective
operation assistance.
This mark indicates laser radiation, which is generally attached to products that
output laser. When using such equipment, please be careful with laser and pay
attention to safety.

Web：www.rd-acs.com | TEL/FAX：[phone]
202-203, B-Block,Technology Building, 1057 Nanhai Avenue,Nanshan District,, SHENZHEN, CHINA
5
Receiving, Unpacking, Inspection
The product has a plastic or metal casing to protect the exterior electrical component from damage.
The product is wrapped in a foam bag and packed in an antistatic bag. If the package has any external
damage, please check the goods and notify the carrier of the damage situation in writing.
Important:
After receiving the products, please check whether the outer packaging is in good
condition, whether the product is complete after unpacking, and whether the parts
are in good condition. If any damage, please contact RUIDA.
Keep the packaging materials and wiring accessories when unpacking. Please be careful when
disassembling the package. After unpacking the goods, please check if the parts are complete. If you
find that the parts are missing or the parts are damaged, please contact Ruida immediately.
The RDV8840G-MOD5 control system packing list is shown in the following table: (As the
product is constantly updated, the accessories that may be received are difference).
Component
Quantity
Description
RDV8840G-MOD5(EC)-Mainboard Standard-Milk White cover
1 pc
RDPAD8840G-MOD5- Standard-5-inches resistive touch screen
1 pc
2.4GWiFi Antenna - Stick White
1
2.4GWiFi antenna - extended spring wire
1
Finished-8840-touch screen panel cable-1.5M
1
RDCamera-Mini camera module
1
USB camera line black flat wire -USB-A rotation MINI-2M
1
Steel rail -275 x 35 x -7.5MMRDV8840G-MOD5 system
1
RDPA terminal pack8840G
1 pack

Web：www.rd-acs.com | TEL/FAX：[phone]
202-203, B-Block,Technology Building, 1057 Nanhai Avenue,Nanshan District,, SHENZHEN, CHINA
6
Contents
Chapter 1 Overview ...................................................................................................................................81
1.1 INTRODUCTION .................................................................................................................................92
1.2 CONTROLLER MODEL DESCRIPTION ...............................................................................................103
Chapter 2 Install size ...............................................................................................................................114
2.1 MOTHERBOARD MOUNT SIZE ............................................................................................................12
2.2 TOUCH SCREEN MOUNTED SIZE ......................................................................................................147
Chapter 3 Physical diagrams and interfaces ...........................................................................................169
3.1 HARDWARE INTERFACE DIAGRAM ................................................................................................1710
3.2 MAIN POWER INTERFACE CN4 ......................................................................................................1710
3.3 LIMIT SWITCH INTERFACE CN1.....................................................................................................1811
3.4 INPUT INTERFACE CN3 ..................................................................................................................1811
3.5 OUTPUT INTERFACE CN2...............................................................................................................1913
3.6 FOUR-AXIS DRIVE INTERFACE CN5-CN8 ......................................................................................2115
3.7 LASER CONTROL SIGNAL INTERFACE CN9.....................................................................................2115
3.8 SERIAL COMMUNICATION INTERFACE CN11-CN12.......................................................................2115
3.9 ETHERNET INTERFACE ................................................................................................................2215
3.10 USB INTERFACE .........................................................................................................................2216
Chapter 4 HMI Features Introduction ....................................................................................................2317
4.1 INTRODUCTION..............................................................................................................................2418
4.2 INTRODUCTION TO THE MAIN INTERFACE FEATURES .....................................................................2519
4.3 MAIN INTERFACE FUNCTION .........................................................................................................2620
4.4 FILE ..............................................................................................................................................2721
4.5 MENU………………………………………………………………………………………………...22
4.6 KEYBOARD LOCK .........................................................................................................................3823
Chapter 5 System Debugging ................................................................................................................3932
5.1X, Y-AXIS MOTION DEBUGGING .....................................................................................................4033
5.2 LIGHT TEST ...................................................................................................................................4033
5.3 CUTTING TEST ..............................................................................................................................4133
Chapter 6 Alarm Information Note ........................................................................................................4436
6.1 ALARM INFORMATION DESCRIPTION .............................................................................................4537
THE 6.2 LIMIT TRIGGERS .....................................................................................................................4537
6.3 TEMPERATURE ALARM, SMOKE ALARM, OPEN COVER PROTECTION ..............................................4537
6.4 BORDER CROSSING .......................................................................................................................4537
6.5 MOTHERBOARD COMMUNICATION FAILED ...................................................................................4637
Chapter 7 Device Connection ................................................................................................................4739
7.1PC DIRECTLY CONNECTED DEVICE ..............................................................................................4840
7.2 CONNECT DEVICE .........................................................................................................................5244

Web：www.rd-acs.com | TEL/FAX：[phone]
202-203, B-Block,Technology Building, 1057 Nanhai Avenue,Nanshan District,, SHENZHEN, CHINA
7
Chapter 8 RDCloud Application Description ........................................................................................5849
8.1 RDCLOUD INTRODUCTION .....................................................................................................5950
8.2 PAGE FEATURE INTRODUCTION ....................................................................................................5951
8.2.1 Sign in to ...............................................................................................................................5951
8.2.2 Register .................................................................................................................................6152
8.2.3 Reset password .....................................................................................................................6253
8.2.4 User Center ...........................................................................................................................6354
8.2.5 Device Management .............................................................................................................6455
8.2.6 Use status ..............................................................................................................................6757
8.2.7 Alarm Statistics .....................................................................................................................6959 69
8.2.8 Shutdown Information ..........................................................................................................7160 71
8.2.9 Production information .........................................................................................................7261 72
8.2.10 Device Comparison ............................................................................................................7462 74
8.2.11 My profile ...........................................................................................................................7562 75
8.2.12 Maintenance Management ..................................................................................................7663 76
8.2.13 Maintenance Repair ............................................................................................................7865 78
Chapter 9 Manufacturer/User Parameters .............................................................................................82 68 82
9.1 MANUFACTURER PARAMETER ......................................................................................................8369
9.2 USER PARAMETER ........................................................................................................................8671

Web：www.rd-acs.com | TEL/FAX：[phone]
202-203, B-Block,Technology Building, 1057 Nanhai Avenue,Nanshan District,, SHENZHEN, CHINA
8
Chapter 1 Overview
The main contents of this section:
Introduction
Controller model description

Web：www.rd-acs.com | TEL/FAX：[phone]
202-203, B-Block,Technology Building, 1057 Nanhai Avenue,Nanshan District,, SHENZHEN, CHINA
9
1.1 Introduction
RDV8840G system is a new generation laser control system developed by Ruida Technology, which has better
hardware stability, abundant motion control design, and better resistance to high voltage and static interference. For
the local area network control machine one-to-many, many-to-one equipment environment development of a new
generation of laser system, the control system in the conventional laser cutting system to add a lantory control host
and equipment machine communication between one-to-many, many-to-one, many-to-many diversity of
communication methods, exempt from the conventional board connection barriers, through WiFi access to the LAN
control, powerful, scalable.

Web：www.rd-acs.com | TEL/FAX：[phone]
202-203, B-Block,Technology Building, 1057 Nanhai Avenue,Nanshan District,, SHENZHEN, CHINA
10
1.2 Controller model description
RDV8840G-MOD5：
RDV: Ruida Technology Vision Series
-- 8840: Product model
-- G: Standard products
-- MOD5: 5 inches resistance Touch screen.MOD7: 7 inches resistance Touch screen. TC5: 5 inches Capacitive
Touch screen. TC7: 7 inches capacitive touch screen

Web：www.rd-acs.com | TEL/FAX：[phone]
202-203, B-Block,Technology Building, 1057 Nanhai Avenue,Nanshan District,, SHENZHEN, CHINA
11
Chapter 2 Installation
Dimensions
The main contents of this section:
Mainboard mounting size
Panel mounting size

Web：www.rd-acs.com | TEL/FAX：[phone]
202-203, B-Block,Technology Building, 1057 Nanhai Avenue,Nanshan District,, SHENZHEN, CHINA
12
2.1 Mainboard mounting size
All dimensions are in mm units, accurate to 0.1mm (Four positioning holes symmetrical).
Figure 2.1.1 The top
Figure 2.1.2 Left side

Web：www.rd-acs.com | TEL/FAX：[phone]
202-203, B-Block,Technology Building, 1057 Nanhai Avenue,Nanshan District,, SHENZHEN, CHINA
13
Figure 2.1.3 Right side
2.1.4 The Back side

Web：www.rd-acs.com | TEL/FAX：[phone]
202-203, B-Block,Technology Building, 1057 Nanhai Avenue,Nanshan District,, SHENZHEN, CHINA
14
2.2 Touch screen Mounting size
All dimensions are in mm, precise to 0.1mm
Figure 2.2.1 Front view

Web：www.rd-acs.com | TEL/FAX：[phone]
202-203, B-Block,Technology Building, 1057 Nanhai Avenue,Nanshan District,, SHENZHEN, CHINA
15
Figure 2.2.2 Back view

Web：www.rd-acs.com | TEL/FAX：[phone]
202-203, B-Block,Technology Building, 1057 Nanhai Avenue,Nanshan District,, SHENZHEN, CHINA
16
Chapter 3 Diagram and
interface
The main contents of this section:
System wiring diagram
Hardware interface description
Motor wiring instructions
Laser wiring instructions

Web：www.rd-acs.com | TEL/FAX：[phone]
202-203, B-Block,Technology Building, 1057 Nanhai Avenue,Nanshan District,, SHENZHEN, CHINA
17

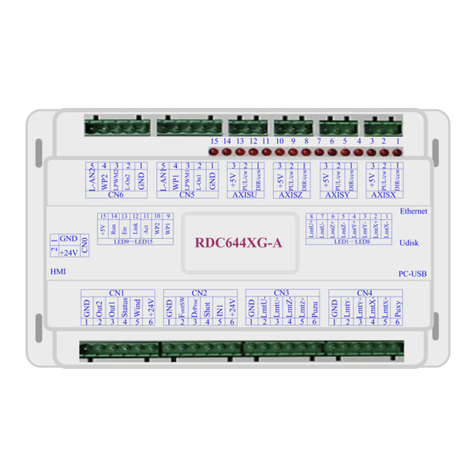

3.1 Hardware interface diagram
Figure 3.1 System wiring diagram
3.2 Main power interface CN4
PIN
Signal
Definition
1
+24V
24V switch power supply positive (input)
2
GND
24V GND
3
PGND
PGND
This control system uses a single 24V power supply, in order to leave a certain amount of margin,
it is recommended to choose more than 24V / 2A power supply.

Web：www.rd-acs.com | TEL/FAX：[phone]
202-203, B-Block,Technology Building, 1057 Nanhai Avenue,Nanshan District,, SHENZHEN, CHINA
18
3.3 Limit switch interface CN1
PIN
Signal
Definition
Description
1
24V
24V power signal
Power signal
2
XLmt-
X-axis negative limit
Low voltage trigger
3
Ylmt-
Y-axis Negative limit
Low voltage trigger
4
ZLmt-
Z-axis negative limit
Low voltage trigger
5
Ulmt-
U-axis negative limit
Low voltage trigger
6
GND
GND
GND
1.The switch must select the NPN and the limit polarity can be optional. That is, if the motion axis
reaches the limit position, triggers a low voltage signal, so that the corresponding LED of each
limit is on, then the limit polarity is negative. Vice versa, if the movement axis is close to the limit
when the corresponding indicator is off, and the corresponding light is on when the limit is left,
the limit polarity is positive.
2.The system can select the back origin signal by parameters, the negative limit back to zero, or
the origin back to zero.
3.If limit switches is insufficient, the limit switch recommends selecting a negative limit and using a negative limit
back to zero.
3.4 Import interface CN3
PIN
Signal
Definition
Description
1
24V
24V Power supply
Power signal
2
IN-01
Foot switch
Specific input, foot switch input. The connection
method is: when the pedal down, there is a low
voltage signal, when the foot pedal is released, it is
possible to disconnect the port or enter a high
voltage signal. If the machine is in idle at this
moment, will start to work, if the machine is in
operation, the work will be suspended, and if the
machine is suspended, the suspended work will be
restarted, i.e. the foot switch and the "start/pause"
key function on the keyboard are almost same. If

Web：www.rd-acs.com | TEL/FAX：[phone]
202-203, B-Block,Technology Building, 1057 Nanhai Avenue,Nanshan District,, SHENZHEN, CHINA
19
the second foot switch is less than 100 milliseconds
from the first, the second movement is considered
invalid by the mainboard.
3
IN-02
Cover protection
Specific input to protect the signal input, and if the
machine needs protection in a specific state (e.g.
cover protection), protect signal from this pin input.
The pin can be enabled and suppressed, when the
pin is disabled, the signal is not queried by the
mainboard, if the pin is enabled, the machine is
protected when the input is high or the input is
suspended, work in progress is suspended, and the
laser is turned off.
4
IN-03
External pulse
Specific input, laser hardware pulse switch input,
when connected to low voltage, laser pulse, if in
high voltage, it cannot process this operation.
5
IN-04
External stop
Specific input, external stop switch input, when in
the low voltage, it can be used to terminate the
current movement.
6
IN-05
Smoke alarm
7
IN-06
Temperature alarm
8
GND
GND
GND (output)
1.All input interfaces are triggered at a low voltage.
2.When the system enables water protection, cover protection, the processing process will detect
whether the external protection signal is effective in real time. There will be alarm when the
external does not send a low voltage input signal.
3.5 Output interface CN2
PIN
Signal
Definition
Description
1
24V
24V power signal
Power signal

Web：www.rd-acs.com | TEL/FAX：[phone]
202-203, B-Block,Technology Building, 1057 Nanhai Avenue,Nanshan District,, SHENZHEN, CHINA
20
2
OUT1
Fan interface
Specific output, when enable fan
control, it is the fan output control
signal, otherwise it is the first pen
control signal. When connecting the
fan and fan control enable, the fan
switch can be set in each layer, if
connect the external relay, the relay
coil will be turned on when the fan is
turned on, and the relay coil will be
turned off when the wind is turned off.
3
OUT2
The working state
interface
Specific output, working status signal
port (or second pen signal). When in
the working status signal, if connect
the port external relay, if an external
relay is connected to this port, the relay
coil is turned on when working, and
there is no effect when the work is
suspended. When the work ends or is
canceled manually, the relay coil is
turned off.
4
OUT3
General output
Reserved
5
OUT4
General output
Reserved
6
OUT5
General output
Reserved
7
GND
GND
GND (output)
