Runtastic RUNDC1 User manual

Receiver with chest strap
for heart rate monitoring via
smartphone
OPERATING INSTRUCTIONS

Page 2of 12
SCOPE OF DELIVERY
1 Receiver
(Art.no. RUNDC1,
Model: 92-1103800-01)
incl. lithium battery (3V, CR1220)
Remove the isolator within the case of the receiver,
for this purpose open the case.
1 Chest strap
(consisting of a sensor and elastic strap)
(Art.no. RUNDC1, model: T000260)
incl. lithium battery (3V, CR2032)
The elastic strap can be found in the cardboard
insert in which the chest strap sensor is packaged;
open the cardboard insert to remove the elastic
strap.
ELECTROMAGNETIC COMPATIBILITY
It is imperative that very strong magnetic fields (e.g.
from transformers) are avoided, as they can impair
transmission. Non-observance of this information
can result in malfunctions or damage to your
receiver and chest strap.
BATTERY OPERATION
Your receiver and chest strap are each powered by
a lithium battery (receiver: 3V, CR1220; chest strap:
3V, CR2032).

Page 3of 12
The following section provides you with information
about using batteries:
Always replace a battery with a battery of the
same type.
Batteries should not be charged or re-
activated by any other means and they should
not be disassembled, discarded in a fire or
short-circuited.
Always keep batteries out of the reach of
children. Batteries can be fatal if swallowed.
Therefore keep batteries and the chest strap
out of the reach of small children. If a battery
is swallowed, seek medical advice
immediately.
Never expose the batteries to excessive heat
from direct sunlight, fire or other such
sources! This increases the risk of leakage.
Ignoring this information may result in
damage and possibly even to the batteries
exploding.
Remove a depleted battery from the receiver
and/or chest strap immediately, as they may
otherwise leak. When doing this avoid contact
with your skin, eyes and mucous membranes.
If you should come into contact with battery
acid, rinse the affected area immediately with
plenty of clean water and seek medical advice.
If necessary, clean the battery contacts and
the counter-contacts in the unit. Keep the
operating instructions safe so that you can
refer to the relevant battery information.
Ignoring this information may result in damage and
possibly even to the batteries exploding.
You can find information on replacing the battery
for the receiver and the chest strap under the
sections entitled "Changing the battery for the
receiver" and "Changing the battery for the chest
strap".

Page 4of 12
RISKS FOR CHILDREN AND INDIVIDUALS
REQUIRING ASSISTANCE
This device is not intended for use by individuals
(including children) with limited physical, sensorial
or emotional capacities or limited experience and /
or knowledge unless they are supervised by an
individual responsible for their safety or receive
instructions from the latter as to how the device
should be used.
DISPOSAL
Batteries are hazardous waste.
Batteries can be disposed of correctly
by shops selling batteries and at
municipal collection points where
there are appropriate containers.
If you wish to discard your receiver
and/or chest strap, please dispose of
these in accordance with the
applicable regulations. Your municipal
collection point can provide you with
the relevant information.
KRIPPL-WATCHES Warenhandels GmbH
Maria-Theresia-Straße 41, 4600 Wels, Austria
Dispose of the packaging according to the
applicable regulations. Your municipal collection
point can provide you with the relevant
information.
INSTALLATION - COMMISSIONING
1. Installing the runtastic app/activation code
Insert the below mentioned link in the address bar
of your browser to get to the runtastic homepage.
The descriptions on this site will help you to finish
the activation of the code step by step.

Page 5of 12
http://www.runtastic.com/en/activate
Alternatively you can also scan the QR-code on the
top of the next page with your smartphone, to get
to this site. For using this feature, you have to go to
the individual “App Store” of your smartphone to
download the free version of the QR-scanner. Now
scan the QR-code and follow the instructions on the
runtastic homepage.
Otherwise you will have the opportunity to
purchase the heart rate function as well as many
other functions from the App Store or Market.
2. Connect your runtastic hardware
Plug the receiver into the headphone jack on your
smartphone. Observe the correct positioning of the
receiver:
You can also connect your smartphone's
headphones to the receiver (the receiver features a
connection socket at the top).

Page 6of 12
NOTE:
1. Should there be no heart rate reading, it might
be that the contacts for the receiver in your
smartphone are poled different. In this case
open the case of the receiver (as described in
point „Changing the battery for the receiver“)
and change the position of the switch in the
case. Reattach the cover of the receiver and
repeat the activation process of the heart rate
measurement as described in point 3.
„Activating heart rate measurement“. If there
is unstable heart rate reading, please contact
following e-mail address:
[e-mail]
2. The function of the microphone and the
loudspeaker will be disabled when the
receiver is plugged in the phone, it is however
possible to use a headset.
3. The remote control of the iPhone earphone is
not working when the receiver is plugged in
the phone
4. The receiver will be turned on and consume
battery when it is plugged in the phone even
the runtastic app is not activated. Please take
off the receiver when it is not in use.
5. The battery life of the receiver is around 2.5
years if it is used 1 hour per day. Please
change the battery life when it is out of
battery and cannot receive signal from the
chest strap.
3. Activating heart rate measurement
To activate the heart rate measurement function
open the runtastic app on your smartphone.
iPhone:
Go to "Settings" and select “Heart Rate Settings”.
Select the option “runtastic Receiver with Chest

Page 7of 12
Strap” and slide “Enable runtastic Receiver” to
“ON“ and then press the button “Re-Pair”.
Android operating systems:
Go to "Settings" ( symbol) and select "Heart Rate
Settings”.
Select the option "Receiver + Chest strap (5.3
kHz)".
BlackBerry:
Go to "Settings" and select "Heart Rate Settings".
Select the option "Heart Rate Monitoring" and
then the setting "enabled", followed by the option
"Heart Rate Sensor" and the setting "runtastic".
Windows Phone 7:
Go to "Settings" and select "Heart Rate Settings".
Set the option "runtastic Receiver (5.3 kHz)" to ON.
4. Attaching the chest strap
Front of sensor:
Rear of sensor:
Connect the elasticated strap to the sensor. Adjust
the strap so that the sensor rests firmly against your
chest below your pectoral muscles.
Sensor contact surfaces

Page 8of 12
To ensure good contact with your skin you will need
to moisten the contacts of the sensor or apply an
ECG gel (available from health stores).
Switching between coded and uncoded
transmission
16 coded and one uncoded channel can be selected.
Pressing the button on the front of the chest strap
switches between the coded channels. If you press
and hold the button for 5 seconds, it will
automatically switch to the uncoded channel.
Pressing the button again will switch back to the
encoded channels.
iPhone:
Go to "Settings" and select “Heart Rate Settings”,
and on the bottom of the screen you can see on
which channel the chest strap is sending. Should
you wish to change the channel, press the button
on the chest strap as described above to switch to
the next coded channel, and then press the button
“Re-Pair”and your smartphone will establish a
connection to the chest strap again.
Android operating systems:
Go to "Settings" and select "Heart Rate Settings",
under point "Sensor channel" you can see on which
channel the chest strap is sending. If it is using a
coded channel, it shows a digit. If it uses the
uncoded channel, it reads “uncoded”. Should you
wish to change the channel, you have to disconnect
the chest strap from the receiver by switching to
“No pulse connection”. Now switch the channel as
described above by pressing the button on the

Page 9of 12
chest strap. Switch to point "Receiver + Chest strap
(5.3 kHz)" again, your smartphone will establish a
connection to the chest strap again on the new
channel.
BlackBerry:
Go to "Settings" and select "Heart Rate Settings",
under point "Sensor channel" you can see on which
channel the chest strap is sending. If it is using a
coded channel, it shows a digit. If it uses the
uncoded channel, it reads “uncoded”. Should you
wish to change the channel, press the button on the
chest strap as described above to switch to the next
encoded channel, select "Connect Sensor" again
and your smartphone will establish a connection to
the chest strap again.
Windows Phone 7:
Go to "Settings" and select "Heart Rate Settings",
under point "Sensor channel" you can see on which
channel the chest strap is sending. If it is using a
coded channel, it shows a digit. If it uses the
uncoded channel, it reads “uncoded”. Should you
wish to change the channel, press the button on the
chest strap as described above to switch to the next
coded channel, select "Connect Sensor" again and
your smartphone will establish a connection to the
chest strap again.
NOTE:
Advantage of encoded transmission:
Transmission between the chest strap and
receiver is encoded, thereby making it less
susceptible to interference, e.g. from a chest
strap worn by another person.
Advantage of uncoded transmission:
Transmission between the chest strap and
receiver uses a frequency that is supported by

Page 10 of 12
most fitness equipment, thereby enabling you
to use the chest strap with many other devices,
such as treadmills and cross trainers.
CHANGING THE BATTERY FOR THE RECEIVER

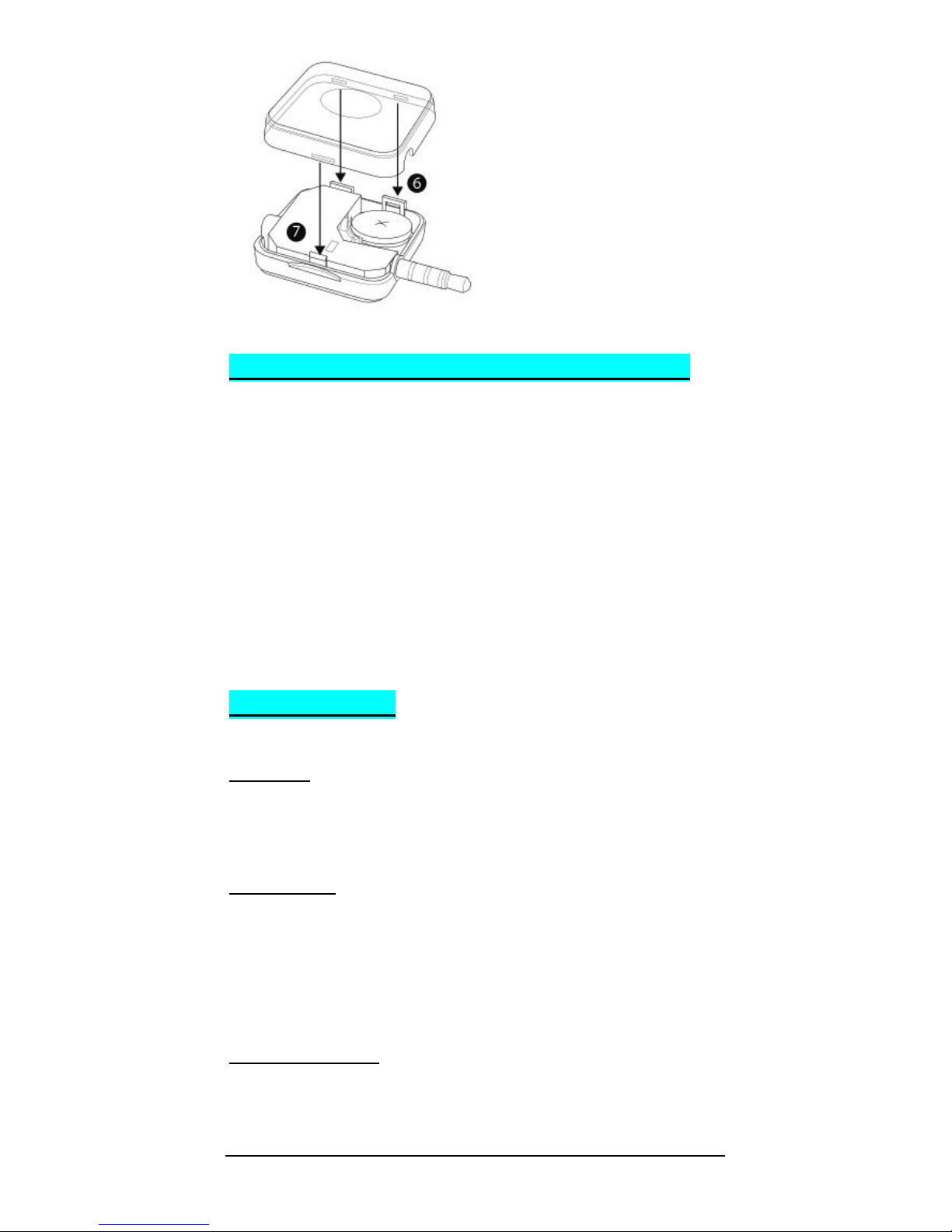

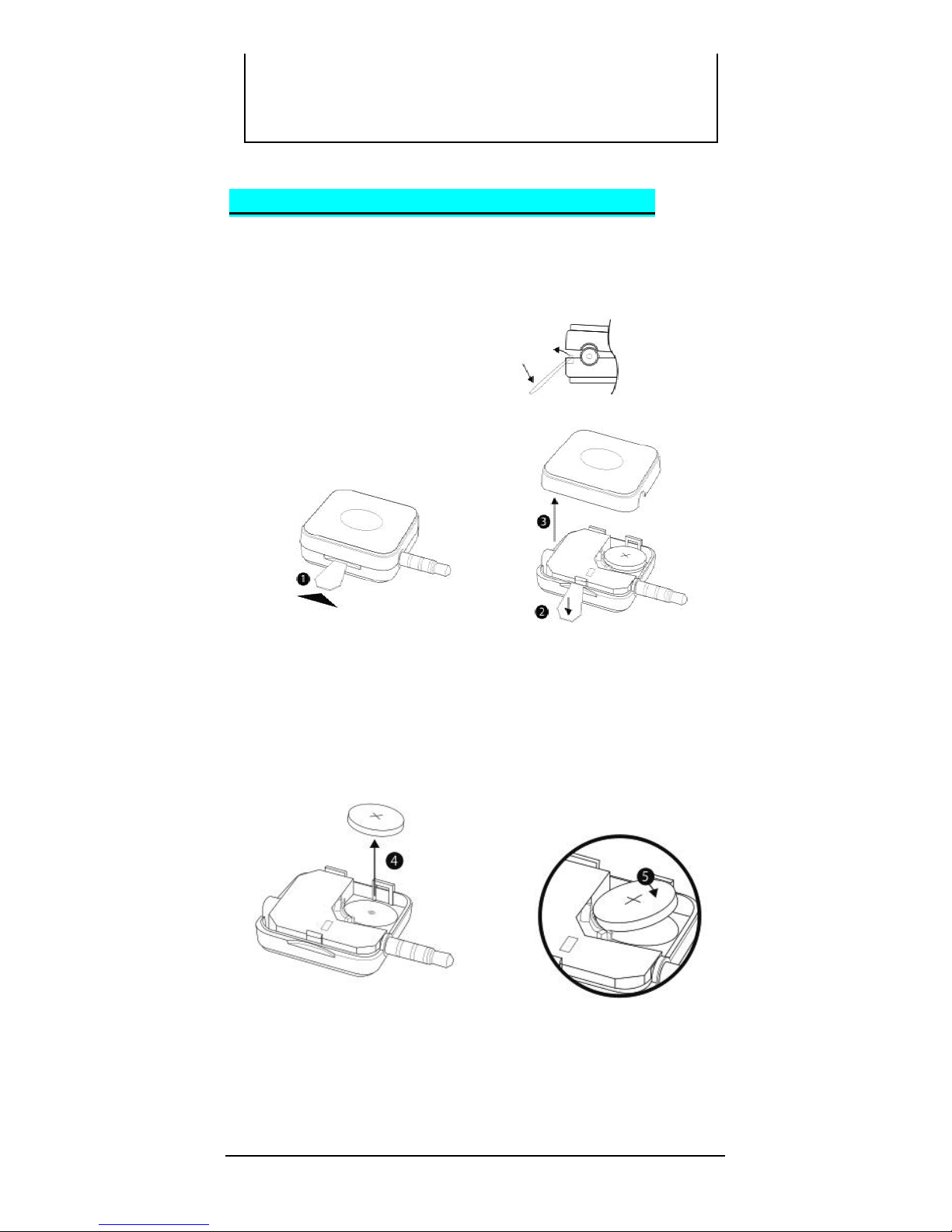

Open the housing of the receiver as shown in the
illustration.
Remove the old battery and insert a new CR1220 3V
battery. When doing this please ensure that the
positive terminal (+) is facing upwards and that the
battery touches the contact in the housing.

Page 11 of 12
Reattach the cover of
the receiver.
CHANGING THE BATTERY FOR THE CHEST STRAP
Open the battery compartment cover by inserting a
coin and turning it counterclockwise. Remove the
old battery and insert a new CR2032 3V battery.
When doing this please ensure that the positive
terminal (+) is facing upwards. Replace the battery
compartment cover and secure it in place by
turning it clockwise. When doing this make sure
that the cover is firmly closed in order to prevent
moisture from entering the chest strap.
TECHNICAL DATA
Receiver
Power supply:
1 lithium battery (3V, CR1220)
Chest strap
Power supply:
1 lithium battery (3V, CR2032)
Transmission frequency between chest strap and
receiver: 5.3 kHz
Water tightness
The receiver and chest strap are splash water
resistant. The table below indicates the activities
and conditions for which they are suitable:

Page 12 of 12
Perspi-
ration
Shower
Bathing,
swimming
Water-
sports
Yes
No
No
No
DECLARATION OF CONFORMITY
EMC Directive 2004/108/EC:
Summary of the declaration of conformity: Krippl-
Watches hereby declares that the receiver (art. no.
RUNDC1, model: 92-1103800-01) and chest strap
(art. no. RUNDC1, model: T000260) conform to the
basic requirements and other relevant provisions of
Directive 2004/108/EC.
You can access the declaration of conformity in its
entirety by visiting the following website:
www.runtastic.com
WARRANTY
We provide a 24 months warranty for this product.
The warranty period begins on the date of purchase
(till receipt, purchase voucher). During this period
you will receive free of charge a new or repaired
product. The warranty does not include batteries,
improper handling, dropping, shock or the like.
If you have a claim please contact:
For Germany and Austria:
[e-mail]
For all other countries:
Please contact the distribution partner in charge
resp. to the point of sale where you have purchased
the product.
www.runtastic.com
