Runxin RL-R50 User manual

I
Residential Softener
RL-R50
RL-R60
RL-R80
RL-R100
RL-R110
RL-R120
RL-R150
Pictures for reference subject to real products.
User Manual
Please read this manual in details before using the product and keep it
properly in order to consult in the future
0WRX.466.584

I
Catalogue
Preface
1. Product Profile...................................................................................................................
2. Working Principle...............................................................................................................
3. Assembly & Parts...............................................................................................................
4. Function and Characteristics .............................................................................................
5. Application.........................................................................................................................
6. Technical Parameters ........................................................................................................
7. Setting and Usage...............................................................................................................................
7.1 Control Valve Setting and Usage………………………………………………………………
※The Function of Control Panel and Parameter Setting.......................................................
※Parameter Setting...............................................................................................................
※User Mode...........................................................................................................................
7.2. The Installation and Usage of Brine Valve ......................................................................
7.3. The Installation and Usage of Bypass Valve (Optional) ..................................................
7.4.The Operations of the Valve with The Function of Mixing Water (Optional).....................
8. Usage Illustration...............................................................................................................
9. Notice ................................................................................................................................
10. Warranty Guidance..........................................................................................................
Note: The design and specifications are subject to the changes without prior notice. We reserve the right
of interpretation to the user manual.

1
Preface
Thanks for choosing our softener series products. These products are featured by
good softening effects, stable performance, excellent appearance, compact structure and
simple handling, etc. They can meet the soften water demand of family washing, bathing,
cleaning and boiling, etc. Besides, they also can be applied to supplying high quality soften
water for institutions, schools, group companies, and so on.
1. Product Profile
The product is working automatically and intelligently. It adopts food-grade cation resin
to soften water with characteristics of big flow rate and good softening effect, efficiently
reducing calcium and magnesium ion content of tap water. After the resin is saturated, the
regeneration function will automatically control the product to brine and conduct
regeneration, recovering the softening function of the resin. It can automatically realize the
function of backwash, regeneration, brine refill and fast rinse without manual operations.
2. Working Principle
Ion exchange technique is applied to the softener. It can realize the purpose of wiping
off the lime scale (Calcium carbonate and magnesium carbonate) through replacing the
calcium ion and magnesium ion by the sodium ion of the resin. According to the pre-set
program, it can automatically control the open and close of each valve, so as to conducting
softening, backwash, regeneration, slow rinse, brine refill and fast rinse.
3. Assembly & Parts
●Integrated type structure (For example B type)

2
●Split type structure (For example D type)
4. Function and Characteristics
1. Regeneration starts automatically: According to the regeneration time and water treatment
capacity of one cycle, the system will start the regeneration program.
2. Hardness of raw water can be set: After inputting the hardness value, the control valve will

3
automatically calculate the system water treatment capacity and display on the LCD screen.
3. Water hardness can be adjusted: It can adjust the hardness of outlet water by adjusting the
bypass.
4. Automatic memory function: The parameters set by users, such as regeneration time, backwash
time, brine & slow rinse time, brine refill time, fast rinse time and so on, can be saved permanently no
matter how long the power is off. If power off is more than 3 days, it will always display this interface to
remind to reset the time of day (See below picture)
Time of Day
12:12
5. Language: Chinese or English can be chosen.After power connected within 6 seconds, press and
hold both and for 5 seconds under the service status, the system will turn into language
selection interface.
6. Buttons lock function: No operations to buttons within 1 minute, buttons are locked. Press and hold
the “ ”and“ ” buttons for 5 seconds to unlock. This function can avoid incorrect operation.
7. Regeneration mode is meter delayed type: Regenerate on the day although the available volume
of treated water drops to zero (0). Regeneration starts at the regeneration time. It can avoid the shortage
of water for regeneration.
8. Working automatically:
Softening: Under a certain pressure and flow rate, the raw water flow through the product, at the
same time, the calcium ion and magnesium ion of raw water are replaced by the sodium ion of resin,
reducing the content of calcium ion and magnesium ion and realizing the purpose of softening water.
Backwash: After the resin is saturated and lose softening efficacy, the program start backwashing
before regeneration. On one hand, it can wipe off the broken resin and the impurity on surface layer of
resin. On the other hand, the reversed flow direction can loosen the tight resin and make it benefit for the
touch between resin particle and regeneration liquid.
Brine & slow rinse: A certain concentration brine flow through the resin. Meanwhile, the calcium ion
and magnesium on the resin surface layer are replaced by the sodium ion, making the invalid resin
regeneration and recovering its softening capacity.
Brine refill: The brine tank is refilled with water to dissolve the salt so as to provide the saturated brine
for next regeneration.
Fast rinse: Discharge the residual brine and compact the resin particle so as to reach the best

4
softening effect. By this step, the product automatically finished one service cycle.
5. Application
The product can be used for treating the tap water or other qualified raw water.
6. Technical Parameters
Product Parameters:
Model
Rated Flow
Rate（L/h）
Suggested
Flow Rate
(L/h)
Water
Capacity
Per Cycle
（L）
Rated
Treated
Water
Quantity (m3)
FRP Tank
Dimension
(Φ×h) mm
Cation Resin
Volume (L)
Resin
Tank
Size(in)
Drain
RL-R50
500
300~500
1200
320
180×331
4.5
0713
1/2”
500~800
180×432
6
0717
500~800
205×381
7
0815
RL-R60
600
500~1000
1800
500
205×432
8
0817
RL-R80
800
800~1000
2500
750
232×432
11
0917
RL-R100
1000
800~1200
3000
1050
258×432
12.5
1017
RL-R110
800
800~1500
4000
1500
205×891
18
0835
RL-R120
900
900~1500
5500
1800
232×891
23
0935
258×606
19
1024
RL-R150
1000
1000~2500
7000
2250
258×891
28
1035
1000~3200
258×1121
36
1044
※Water treatment capacity per cycle is various according to the difference water quality of
different region. The standard testing conditions is: Water temperature: 25℃,Raw water
hardness: 150mg/L（CaCO3）.
※The outlet water conforms to the regulations (2001) of Safety and Function Assessment
for Drinking Water Treatment Device—General Treatment Device.
※Transformer—Input : AC100～240V / 50Hz～60Hz; Output: DC12V / 1.5A
Service Conditions:
Water Pressure: 0.15-0.4MPa；
Electrical Facility: AC100～240V / 50Hz～60Hz;
Water Temperature: 5～38℃;
Environment Temperature: 4～40℃；
Relative Humidity: ≦90％（25℃）

5
7. Setting and Usage

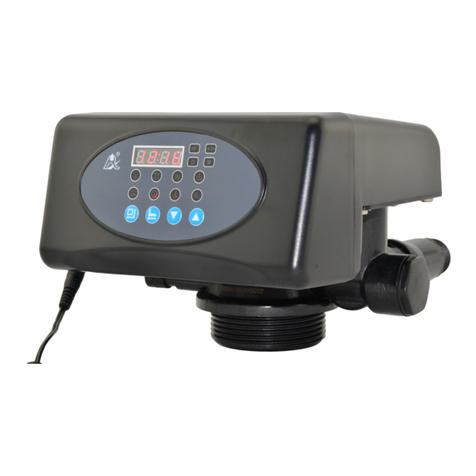

7.1. Control Valve Setting and Usage
※The Function of Control Panel and Parameter Setting
A. Button lock indicator
Light on, indicating the buttons are locked. At this moment, press any single button will not work
(No operation in one minute, will light on and lock the buttons.)
Solution：Press and hold both and for 5 seconds until the light off.
B. “” Menu/Confirm button
Press under the service status, the system turns into setting interface. Select the item and inquire
the value.
Under inquiry status, press and the digits flash. It turn into setting interface, and you can adjust the
parameters by press and .
After the setting, press and turn into setting interface by saving the settings with a “Di” sound.
C. “” Manual/Return button
Press under the service status, the system will turn into next status immediately. (For example: If
the quality of outlet water fails, after unlocking the buttons, press in service status, it will start
regeneration cycles instantly; During the cycle of regeneration, if you want to finish current steps in
advance, press and it will turn into next step at once.)
Press under the inquiry status, the system will turn back to service status interface; Press
under the setting status, the system will turn back to inquiry status.
Under the setting status, press and the system will turn back to inquiry status without saving the
setting value.
D. Down and Up
Under the inquiry status, press or to view all values.
Under the setting status, press or to adjust values.
Press and hold both and for 5 seconds to lift the button lock status.

6
※Parameter Setting
Meter Type Softener Valve Parameter Setting
Time of Day
Regeneration Time
Water Hardness
Time of Day
12:12
Regeneration Time
02:00
Water Hardness
150mg/L
Item
Parameter Set
Arrange
Factory
Default
Actual Value
Time of Day
00:00～23:59
Current
time
Regeneration Time
00:00～23:59
02:00
Water Hardness
50～999mg/L
150 mg /L
Items
Process steps
Symbol
Time of Day
When light on, press and hold and for 5 seconds
until the light off.
1．Press and enter into the interface of “Set Softener Para. ”,
as the figure LR1 shows. The item of “Set Time of Day” will be
selected by system automatically.
2．Then press the “ ”, and the setting interface will display as
the figure LR2; the hour value”12” flash, through or to
adjust the hour value.
3．Then press again, the minute value “30” flash, through
or to adjust the minute value.
4．Lastly, press and hear a sound “Di”, then finish
adjustment
LR1
LR2
Regeneration
Time
1．Press and enter into the interface of “Set Softener Para.”,
as the figure LR1 shows.
2．Press and select the item of “ Set Regeneration Time ”;
then press , the setting interface will display as the figure
LR3; hour value “02” flash, through or to adjust the
hour value.
3．Then press , the minute value “00” flash, through or
to adjust the minute value.
4．Lastly, press and hear a sound “Di”, then finish
adjustment.
LR1
Set Softener Para.
Set Time of Day
》Set Regen. Time
Set Water Hardness
Set Regen. Time
02 ：00
Set Softener Para.
》Set Time of Day
Set Regen. Time
Set Water Hardness
Set Time of Day
12 ：30

7
LR3
Water
Hardness
1．Press and enter into the interface of “Set Softener
Para.”, as the figure LR1 shows.
2．Press twice and select the item of “ Set Water
Hardness ”; then press , the setting interface will display as
the figure LR4; hardness value 150” flash, through or
to adjust the hardness value.
3．Lastly, press and hear a sound “Di”, then finish
adjustment.
LR4
Illustration: After setting the water hardness, the display screen will show the total water treatment
capacity or remaining water. If you think the water treatment capacity is too low to meet your demand,
you can adjust the capacity by setting the water hardness. Under the condition of not affecting the outlet
water quality, lowering the water hardness value can increase the water treatment capacity.
User Mode
After power on, L1 interface will show 3 seconds and then enter into user mode.
L1
Process display example: The meter type softener valve
Service Status 1 Service Status 2
Backwash Status Brine & Slow Rinse Status Brine Refill Status
Set Softener Para.
Set Time of Day
Set Regen. Time
》Set Water Hardness
Set Water Hardness
150mg/L
12:30:35
Water System
In-Service
Water
Regen. Time：02：00
12:30:25
Water System
In-Service
Water
Remaining: 2.56m3
Cur. F.R.: 0.85m3/h
***********************
F xx
***********************
*
02:08:00
Water System
Back Washing…
Remaining: 3 min.
02:40:25
Water System
Brine & Slow Rinse…
Up-flow
Remaining: 30 min.
03:15:50
Water System
Brine Refilling…
Remaining: 05:30 min.:s.

8
Fast Rinse Status Motor Running
●The working process is Service→ Backwash→ Brine& Slow Rinse→ Brine Refill →Fast Rinse→
Service (Cycle repeats).
7.2. The Installation and Usage of Brine Valve
The brine valve plays two roles in the whole system: First, under the brine and slow rinse status, with
the floating ball, the brine valve can prevent the air from being inhaled which may affected the
regeneration and usability. That is, the brine valve has the function of air check. Second, under the brine
refill status, the brine valve can control the volume of refilling water by controlling the position of floater.
7.3. The Installation and Usage of Bypass Valve (Optional)(Take
F70C/F70D as example, if you use the other model of bypass valve,
please refer to the appendix manual.)
The valve has the function of bypassing. When the piston is pushed to the position of inlet and outlet,
the valve is in service status; When it is at bypass position, the valve is in bypass status. It adopts quick
joint structure to connect the valve with bypass valve, with the characteristics of reliable sealing, quick
and convenient installation.(Refer to the below pictures)
7.4. The Operations of the Valve with the Function of Mixing Water (Only
for F79 & F82 valve)
If the users think the hardness of outlet water is too low, they can adjust the hardness by using the
function of mixing water according to the actual demand.
Operation: Anticlockwise rotates the adjusting bolt (As the picture shows). The wider angle is, the
higher outlet water hardness will be.
03:25:50
Water System
Fast Rinsing…
Remaining: 5 min.
Motor Running…

9
8. Usage Illustration
After installing the device and setting the relevant parameters, please conduct the trial running as
follows:
※Fill the brine tank with the planned regeneration salt and the water（Refer to the below table）,
making the brine is saturated (26%). Then start the device (This step is necessary only for the situation
that the device is put into use for the first time.)
Resin Tank
0713
0717
0815
0817
0917
1017
0835
0935
1035
1044
Water (L)
3
4
4.5
5
6
7
9
10
13.5
15
※Switch on power. Press and go in the Backwash status. Slowly open the inlet valve to 1/4
position (Avoiding opening the valve too quickly to damage the device and make the resin run off).At this
moment, you can hear the sound of air-out from the drain pipeline. After all air is out of pipeline, then
open inlet valve completely and conducting 2～3 minutes backwash, cleaning the foreign materials in
the resin tank until the outlet water is clean.
Backwash Status
※Press , turn the status from Backwash to Brine& Slow Rinse. Under this status, the brine will be
absorbed from the brine tank into the resin and the resin is regenerated. After absorbing, the brine valve
will close. The system will still conduct about 15 minute’s slow rinse, wiping off the residual brine. The
whole process will take about 40 minutes to finish.
Brine & Slow Rinse Status
※Press and turn into Brine Refill status. The brine tank will be refilled with water to dissolve the
02:40:25
Water System
Brine & Slow Rinse…
Up-flow
Remaining: 40 min.
02:08:00
Water System
Back Washing…
Remaining: 3 min.

10
salt. When the level controller reaches the required height, the refilling will be stopped. The new
saturated brine will be used for next regeneration.
Brine Refill Status
※Press and turn into Fast Rinse status, starting to Fast Rinse. About 3 minutes fast rinse will
discharge the residual brine and compact the resin particle so as to reach the best softening effect.
Fast Rinse Status
※When the sample outlet water is qualified, press and finish the Fast Rinse. Then the device
turns into Service status and start running.
Service Status
Illustration: Under regeneration cycle, the softener valve will stop flowing out from the outlet and each
status will be completed automatically according to the setting time. If you want to finish one step in
advance, you can press .
※During the trial running status, check each port. There should no mineral media flow out. Check each
connection, ensure there is no leakage.
※The time of backwash, brine & slow rinse, brine refill, fast rinse, etc. could be suggested by dealer or
professional personnel.
Notice: Under normal situation, user does not need to do any operation except adding a certain amount
of salt into the brine tank.
12:30:25
Water System
In-Service
Water
Remaining: 2.56m3
Cur. F.R.: 0.85m3/h
03:25:50
Water System
Fast Rinsing…
Remaining: 5 min.
03:15:50
Water System
Brine Refilling…
Remaining: 05:30 min.:s.

11
9. Notice
Before reading and understanding the user manual, please do not operate the device.
※Before installation and trial test the product, please take out the spare parts kit and filling material
from the cabinet(See the below picture).
※To ensure normal operation of the product after installed, please consult with professional
installation or repairing personnel before use it.
※Forbid installing the device near heat source or take anti-heat protective measures when install
near the heat source. It is also forbidden to connect the device with the hot-water pipeline or the pipeline
with the possibility of hot-water returning. Forbid the product under the temperature lower than 1℃.
Protect resin from freezing which may result in resin broken and disabled.
※If the raw water fails to meet the standards of local tap water, such as the sediment concentration
or residual chlorine content exceed the stand, etc., the pretreatment device should be installed before
the device.( Such as Y type filter, ultra filter, and so on.)
※During the operation, please check the brine tank regularly to ensure there is brine in the tank.
And when adding brine, please make sure that salt level is higher than water level (see pictureⅠ). When
the salt level is lower 1/3 of water level(see picture Ⅱ) , please add in time. (Attention: Make sure the
dissolving salt time is more than 6 hours so as to make the brine saturate)

12
※Please strictly use the salt of more than 99% purity only. Any salt with additive or large particles is
forbidden to add.
※Please use this product under the water temperature between 5～45℃,water pressure 0.15～
0.6MPa. Failure to use this product under such conditions voids the warranty.
※Sodium used in the water softening process should be considered as part of your overall dietary salt
intake. Contact doctor if you are on a low sodium diet.
※Without being used for a long time or the pressure of the inlet water is instable, please close the
inlet port and turn off the power. Before using again, please firstly conduct a regeneration cycle through
manual operation so as to ensure the quality of soften water.
※During the service of product, prevent water hammer happened. Do not make these operations,
such as quickly and fully opening valve, or quickly and fully closing valve or shut off water pump, etc.
※If the water demand is increasing (Compared to usual demand) or the hardness of raw water is
rising, please reduce the regeneration cycle and increase the regeneration times, ensuring the soften
water yield.
※When use the softener for the first time or the device is idle for long period, it is normal that the
outlet water is yellow. Please put into use after 2~3 minutes’ rinsing.
※Sometimes the brine in the brine tank will forms salt bridge. That is, there is a space under the
brine which prevents the salt from being dissolved and hinders the resin regeneration. It is suggested to
check regularly. If there is salt bridge, please mash it.
※During regeneration period, there is no softened water for using. But if it still need water for using,
it is not suggested to bypass big quantity of hard water, it may affect the regeneration efficiency.
※If the display board display 12:12 and flashing, it means power off (more than 3 days) to remind to
reset the time of day. If power off within a short time, the system has memory function, do not need to

13
reset the time.
※For safety usage, the overflow connector should be installed in the product.
※Check the softener regularly, checking item:
a)If there is any pipeline leakage. If it does, contact with your seller.
b)If the overflow connector blocked, if it does, clean it.
c)If the brine well in vertical. If it doesn’t, put it in vertical(See picture at below)
※ As the product is constantly updating, the possibility that the manual instruction can’t accord with
the product may happen. So, it is subjected to the actual product.
Special notice: The water pressure of tap water is changeable (Normally the pressure in night time is
higher than day time.) , so pay attention to each connection to check if there is any leakage at the first
two days after products installed.
10. Warranty Guidance
Dear Customers:
Thanks for use our softener. For the protection of your rights, please read the manual
and warranty guidance in details before using our products, so that we can service you
better.
※ “Three Guarantees” period is one year since the purchase date (Refer to the date of
guarantee card or other provable documents)
※During the guarantee period, maintenance is free if the damage is caused by the
product quality problems. However, if the damage is caused by user, we will charge you
a certain fee.
※When guarantee period is expired, we will still provide after-sales service, such as
maintenance, changing resin, supplying parts, etc. The fee of materials and service will
be charged according to our latest charging standards.

14
※It couldn’t be repaired free of charge under the below conditions:
Resin, seal, decoration shell, the coating of appearance, etc.
The damage is caused by force majeure, such as fire, flood, electric shock,
earthquake, etc.
The damage is result from the disassembly or refits by user or repair by
non-scheduled maintenance unit.
The damage is caused by the improperly transportation, installation, usage and
maintenance.
Content in guarantee proof is unconfirmed with the label on the real good or be altered.
User can’t provide the guarantee card or other proofs.
※The product dealers are responsible for the maintenance and other after-sales service.
(The guarantee card or other proof is effective with the dealers’ stamp or our company’s
stamp)
※Please keep the guarantee card properly and provide it when maintenance.
