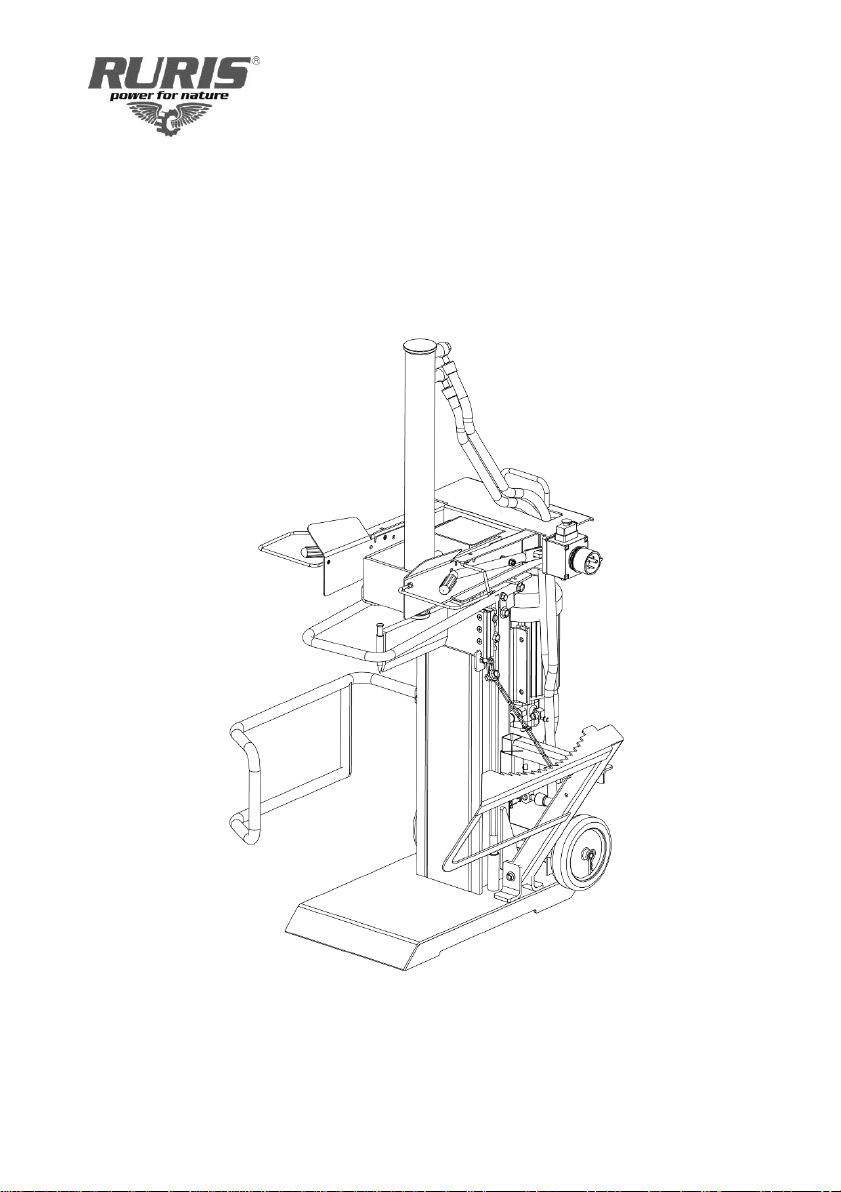

Wood splitter RURIS
DLV1600

EN
Content
1. Introduction.................................................................................... 3
2. Safety instructions ......................................................................... 4
2 .1 Labels on the machine....................................................................................4
3. General presentation of the machine .......................................... 10
4. Technical data ............................................................................. 12
5. assembly and commissioning...................................................... 13
6. Use............................................................................................... 16
7. Pre-operation checks................................................................... 17
8. Transport, storage ....................................................................... 19
9. Maintenance ................................................................................ 21
10. Declarations of conformity......................................................... 24

EN
3
1. INTRODUCTION
Dear Customer!
Thank you for your decision to purchase a RURIS product and for your trust in our
company! RURIS has been on the market since 1993 and during all this time it has
become a strong brand, which has built its reputation by keeping promises, but also by
continuous investments aimed at helping customers with reliable, efficient and quality
solutions.
We are confident that you will appreciate our product and enjoy its performance for a long
time. RURIS does not offer its customers only machines, but complete solutions. An
important element in the relationship with the customer is counselling before and after
the sale, as RURIS customers have at their disposal a whole network of partner stores
and service points.
To enjoy the purchased product, please read the user manual carefully. By following the
instructions, you will be guaranteed a long use.
The RURIS company is continuously working on the development of its products and
therefore reserves the right to modify, among other things, their form, appearance and
performance, without having the obligation to communicate this in advance.
Thank you once again for choosing RURIS products!
Customer information and support:
Telephone: [phone]
e-mail: [email protected]

EN
4
2. SAFETY INSTRUCTIONS
2 .1 LABELS ON THE MACHINE
Danger!
Caution, hot surfaces.
Be careful, keep your distance.
Attention, electricity.
Immediately disconnect the plug from the mains if the cable
is damaged.
Attention, keep your hands out of the openings while the
machine is operating.
Wear protective equipment for the head, eyes and ears.

EN
5
Read the user manual.
Wear hand protection equipment.
Wear protective footwear.
Grounding.
Check the splitter before starting it. Make a habit of checking all joints and
parts before use, they must be within the proper parameters. Replace
damaged parts and adjust joints before use!
NEVER remove the guards and NEVER touch the moving parts!
NEVER use the product without a guard!
Danger of crushing!
Do not dispose of electrical equipment, industrial electronics and
components in household waste! Information on WEEE. Considering the
provisions of GEO 195/2005 - regarding environmental protection and
GEO 5/2015. Consumers will consider the following indications for
handing over electrical waste, specified below:

EN
6
- Consumers have the obligation not to dispose of waste electrical and electronic
equipment (WEEE) as unsorted municipal waste and to collect this WEEE separately.
- The collection of these named wastes (WEEE) will be carried out through the Public
Collection Service within each county and through collection centers organized by
economic operators authorized for the collection of WEEE. Information provided by the
Environmental Fund Administration www.afm.ro or the journal of the European Union.
- Consumers can hand over WEEE free of charge at the previously specified collection
points .
Original instructions.
Read this user manual before using the machine. Failure to follow the instructions may
result in serious injury and/or damage to the device!
Keep the instructions for use for future reference.
User's Guide
▪The operator is responsible for accidents or dangers that occur to other people,
their property and to himself.
▪Always wear safety glasses and earprotection while usingthe splitter to protect
your eyes from any debris that may be thrown.
▪Avoid wearing loose clothing or jewelry, which can catch on moving parts.
▪Wear gloves while using the splitter. Make sure the gloves are the correct size.
▪Wear safety shoes when using the wood splitter. Do not use the splitter while
barefoot.
▪Make sure that the people around keep a safe distance from the work area.
Turn off the engine when another person or pet is approaching.
▪People using the splitter must not be under the influence of substances such
as alcohol, narcotics, drugs, etc.
▪People under the age of 16 must not use this splitter.
▪This machine is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning
use of the machine by a person responsible for their safety.
▪Children must besupervised to makesure that theydo not play withthe splitter.

EN
7
▪Before starting work, make sure you are familiar with all accessories and
operating controls and their functions.
▪Take into account the actual working conditions and the task at hand. Using
power tools for purposes other than those intended can lead to dangerous
situations.
▪Before use, check the connecting wire for any signs of damage.
▪Do not use electrical wires with defective switches.
▪If you use an extension wire, keep the connection between the powerwire and
the extension wire away from water, excessive heat, oil and sharp objects.
•Improper use of extension wires can cause the wood splitter to operate
inefficiently, which can lead to overheating. Make sure the extension wire is no
longer than 10m and its cross section is no smaller than 2.5mm to allow
sufficient current flow to the engine.
•Never pull on the power wire to move the splitter.
•Avoid using loose and improperly insulated connections. Connections must be
made with materials suitable for outdoor use.
•Never open the control panel or engine cover.
•Never attempt electrical repairs yourself.
•Never use the splitter on a slippery, wet, muddy or icy surface.
•Keep your work area clean and well lit. Congested areas increase the risk of
injury .
•Do not use the splitter in wet areas or expose it to rain.
•Check that the electrical circuit is properly protected and that it corresponds to
the power, voltage and frequency of the engine.
•The splitter must be connected to a grounded outlet.
•Never open the button box on the engine. If this is necessary, contact a
qualified electrician.
•Never, under any circumstances, remove, bend, cut, fit, weld or otherwise
modify the standard parts of the splitter. Modifications to your machine could
cause personal injury and property damage and will void your warranty.
•If the machine starts to make an unusual noise or vibration, stop the engine,
disconnect the power wire. Wait 5 minutes for the splitter to cool, then check

EN
8
for damage. Vibration is generally a warning of trouble. Check for damaged
parts and replace if necessary.
•Make sure your fingers do not touch the metal tips of the plug when connecting
or disconnecting the splitter.
•The plug must be disconnected from the electrical outlet in case of
maintenance, malfunction or when left unattended.
•The splitter must always be operated by one person. Other people should keep
a safe distance from the work area, especially when the splitter is in operation.
Never ask other people to help you release stuck wood.
•Make sure there are no nails or foreign objects in the logs to be cut. The ends
of the logs must be cut parallel. Branches should be cut at the same level as
the trunk.
•The floor/seating surface must not be slippery.
•Use the splitter only during the day.
•Always pay full attention to the movement of the log pusher.
•Do not attempt to load until the splitter has stopped.
•Keep hands away from all moving parts.
•Keep your hands away from the cracks and fissures that open in
the logs; They can snap shut and crush or amputate your
hands.
•NEVER remove jammed logs by hand.
•Never attempt to split logs larger than the dimensions indicated in the
specification table. This could be dangerous and damage the splitter.
•Do not leave the splitter until it comes to a complete stop.
•Unplug the splitter from the mains when in use, before making
adjustments, changing parts, cleaning or transporting the
splitter; Consult the technical user manual before servicing the
splitter.
•Use only original RURIS parts.
•Keep the splitter clean for optimal and safer performance.
•Before storage, disconnect the splitter from the power source.

EN
9
•The splitter is equipped with two wheels for easy transport. Make sure that the
surface on which you transport the machine is not inclined, to avoid tilting over
and damaging it.
•Do not remove/override the safety devices of the splitter. Check regularly that
they are working properly.

EN
10
3. GENERAL PRESENTATION OF THE MACHINE
Wood splitters are used to split block-cut wood in a short time, without physical effort.
They benefit from a robust design and a hydraulic system that makes handling the
wooden body easy. By construction, splitters are designed to provide both safety and
maximum performance

EN
11
1. Main body assembly;
2. Side retaining frame;
3. Split wedge;
4. Oil dipstick;
5. Transport wheel;
6. Engine;
7. ON/OFF switch
8. Transport handle;
9. The right operating handle assembly;
10. Cylinder;
11. Left operating handle assembly;
12. Log lifter.

EN
12
4. TECHNICAL DATA
Engine power
3000 W
Engine power supply
230
Frequency
50 Hz
Degree of protection
IP54
Maximum splitting force
10 tons
Engine speed
2800 rpm
Split diameter
ø70-ø400 mm
Maximum splitting length
600 mm
Hydraulic tank capacity
5.6 L
Net weight
120 kg
Accessories
Wheels for transport

EN
13
5. ASSEMBLY AND COMMISSIONING

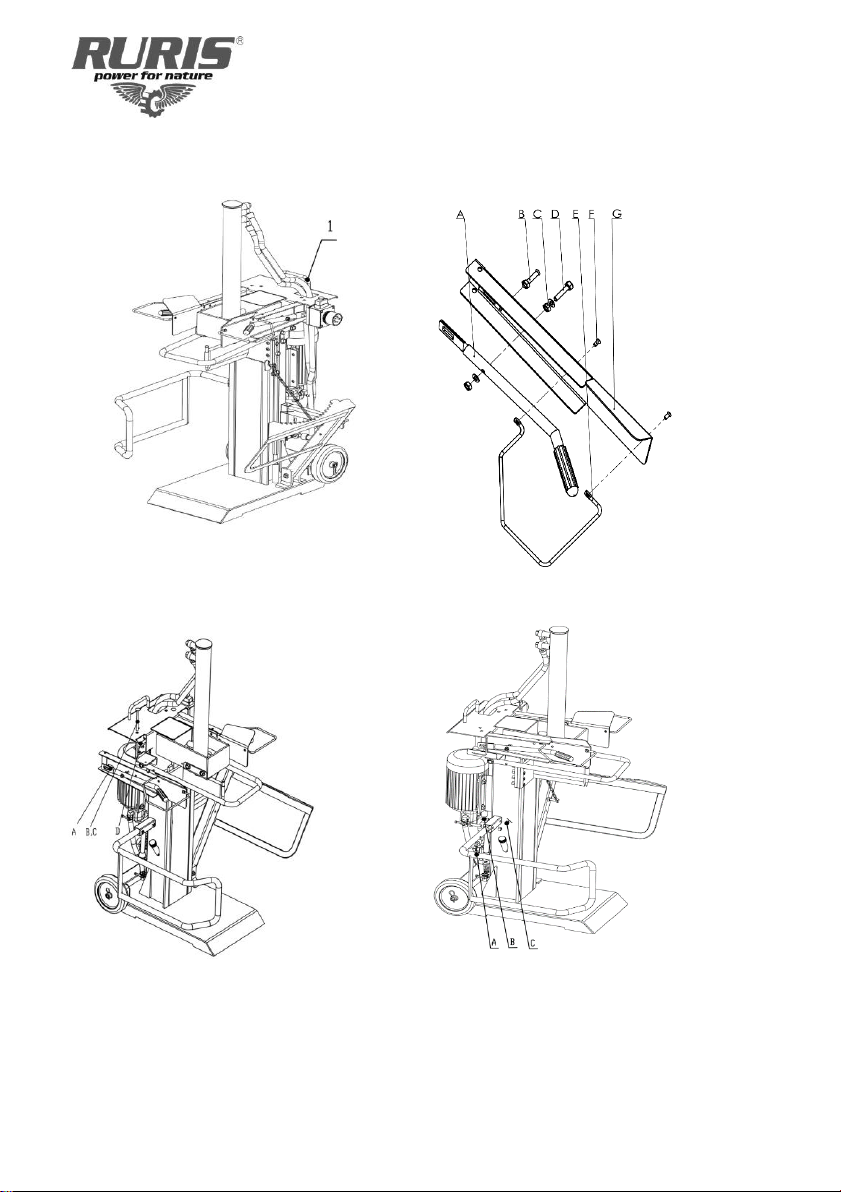

Fig. 1 Fig. 2
Fig. 3 Fig. 4

EN
14

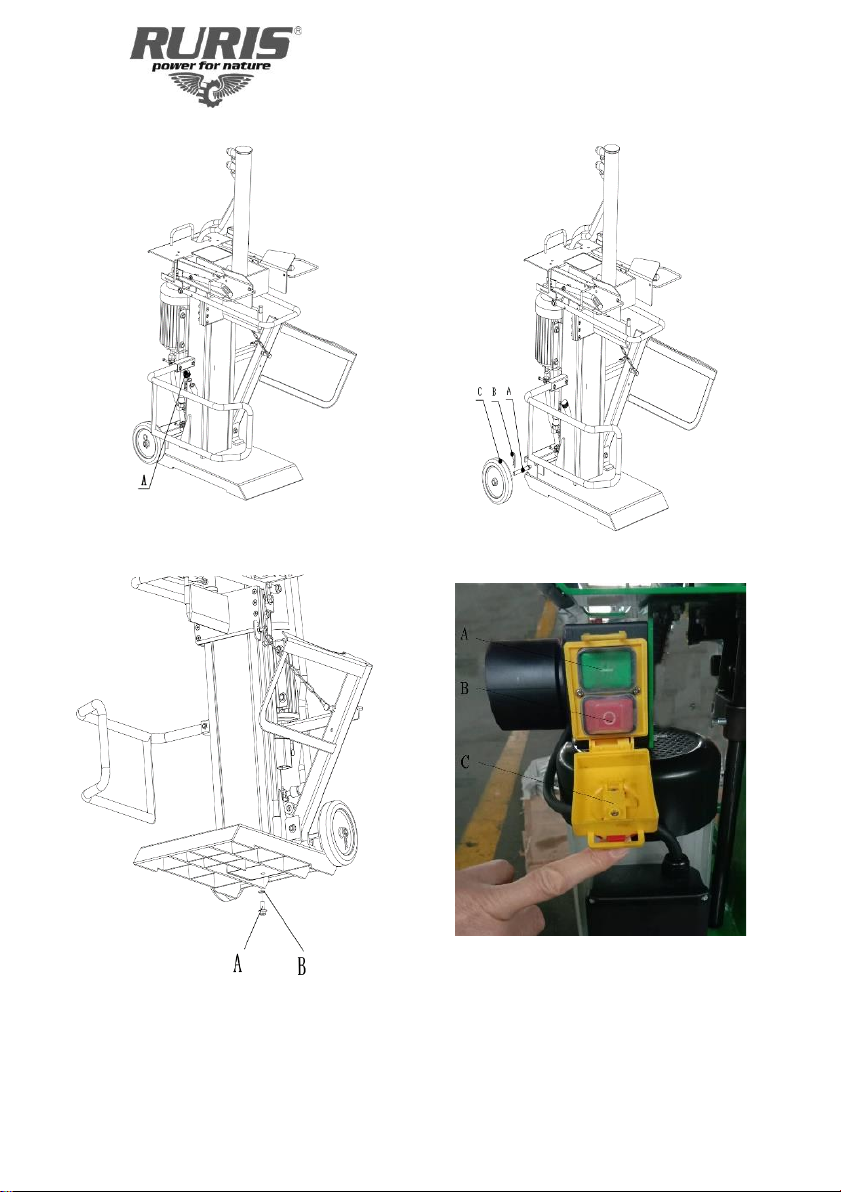

Fig. 5 Fig. 6
Fig. 7 Fig. 8

EN
15
Fig. 9 Fig. 10
Mounting the wheels, Fig.6
Insert the shaft A through the base hole, then assemble the wheels C and fix them to the
shaft with the pin B.
Mounting the left operating handle assembly, Fig.3
Insert the operating handle (A) into the lever (D) and screw it with the hex bolt (B) and
lock nut (C). Tighten the lock nut so that the operating handle can slide further.
Install the operating handle on the right following the method described above.
Mounting the protection assembly of the left operating handle, Fig.2
Secure the operating handle (A) to the plate (G) with the screw (D) and nut (C).
Install the operating handle cover (D) using 2 M6*10 screws. Install the right operating
handle cover assembly following the method described above.

EN
16
Mounting the side retaining frame, Fig.4
Fix the side retaining frame (A) with the M10 bolts and nuts(B,C).
Mounting the switch, Fig. 9
Fix the ON/OFF switch on its support, using the screws and nuts provided.
Installing the log lifter, Fig. 10
Install the log lifter (E) and the log lifter support (A), Fig10
Insert the supporting part (A) into the square tube (B) of the main column body and fix it
with the M8*15 screw, then connect the log lifter (E) with the M10 hex screw and nut (C),
finally connect the chain.
6. USE
The hydraulicsplitteris only suitable forstationary operation. Logs must be splitvertically
in the direction of the strings.
The splitter may only be used, maintained and repaired by persons who are familiar with
it and who have been informed of the dangers associated with it.
The splitter must only be used with original accessories from the manufacturer.
Any other use is considered improper. The manufacturer assumes no responsibility for
any resulting damages, the user being solely responsible.
Place the log on the splitting table of the machine, hold it firmly with the two handles,
press both operating handles simultaneously. Once the splitter blade penetrates the log,
push the handles outward. This prevents pressure being exerted on the operating handle
plates.
Split the logs vertically, do not try to split horizontally or crosswise.

EN
17
7. PRE-OPERATION CHECKS
The splitter must be installed on a flat, stable and firm surface.
Make sure the splitter is fully and correctly assembled before each use and check that:
. The electrical cables and hydraulic hoses are in good condition (no cracks, cuts, etc.).
. The machine has damaged components.
. All screws are tight.
. There are leaks in the hydraulic system.
. The machine has enough hydraulic oil.
. The protective elements are in proper condition.
Venting the hydraulic system, Fig.5
Vent the hydraulic system before operating the log splitter as follows:
- Loosen the screw (A) a few turns so that the air can be released from the oil tank.
- Leave the screw open during operation.
- Close the cover again before moving the splitter.
- If the hydraulic system is not vented, the air will damage the seals and thus the splitter.
Start/stop, Fig.8/9
Open the protective cover (C).
Press the green button (A) to start the splitter.
Press the red button (B) to turn off the splitter.
Press the emergency stop (D) in case of emergency.

EN
18
Note: Before each use, check the operation of the on/off switch by turning the splitter on
and off.
Restart protection in case of power failure
The equipment will automatically shut down in the event of a power failure, accidental
unplugging, or triggering of a fuse. Press the green button on the switch to restart the
splitter.
At the end of the work:
. Bring the splitter blade to the down position.
. Release one of the operating handles.
. Stop the machine and disconnect the power.
. Tighten the vent screw.
. Follow general maintenance instructions.
Electrical connection
Regularly check the electrical connection cables for possible damage. When checking
the cables, make sure they are not connected to the mains.
If the power supply to which you connect the splitter is not equipped with a residual
current circuit breaker, use a portable safety circuit switch.
Mains supply voltage must be 230V/50HZ.
If you use an extension cord, it must have a minimum cross-section of 3x1.5mm2,
depending on its length.

EN
19
8. TRANSPORT, STORAGE
Before transporting the splitter, the cylinder (No. 1) must be lowered from the upper
position to the lower position and fixed in the cylinder fixing part (No. 2).
Press the two operating handles down, the splitting wedge starts to descend until it
touches the cylinder fixing part, release one operating handle, loosen the No.4 screws
and the two inner No.3 screws, move the fixing piece No. 5, then release the two
operating handles, press the return support, the cylinder starts to descend, to the
corresponding position, then stop the splitter.
Returning the cylinder back to the working position.
Press the two operating handles down, the splitting wedge starts to rise, up to the upper
position, release one operating handle, insert the fixing piece No.5 and tighten the two
screws No.4, then tighten the inner screws No. 3, release the operating handles, then
press the return support, and the splitting blade starts to rise.
When the blade reaches the upper part, remove the cylinder fixing part (No.2).

EN
20
Manual transport Fig.1
To transport the splitter, retract the splitting blade. Tilt the splitter slightly using the
handle1 until the machine tilts and can be moved on the wheels.
Storage conditions:
Observe the following conditions during storage:
- Store the machine indoors, in a place free of moisture.
- Temperature range -20 ℃ to +60 ℃
Use the machine only in the following ambient conditions:
