Russell Hobbs RHPAC11001 User manual

11000BTU Portable Air
Conditioner
For Customer Services & Spare Parts please call0345 2097461
Or visit us at mda.russellhobbs.com
PLEASE RETAIN
FOR FUTURE REFERENCE
Model Number: RHPAC11001
220-240V AC 50Hz

Page(s)
Safety Instructions and Electrical Safety
3 - 5
Feature
Diagram 6
Control Panel
Diagram 7
Installing your Air Conditioner
8 -10
Installing your Window Kit
11
Display Screen Diagram
12
Using your Air Conditioner
13 –21
Draining your Air Conditioner
22 -23
Cleaning your Air Conditioner
24
Start/End of Season Operations
25
Cord Storage Hooks
26
Troubleshooting
27
Spare Parts
29
Specification
30
Notes
31
CONTENTS
2v2.5RHPAC11001

Safety Instructions
Important note: Please read this booklet before installing
and switching on this appliance. The manufacturer assumes
no responsibility for incorrect installation and usage as
described in this booklet.
•This model uses natural refrigerant gas as part of its
cooling system. This gas is known as R290 (Propane) and
is environmentally friendly but can be combustible. Care
should therefore be taken when handling or transporting
the product to ensure that none of the refrigeration
circuit components are damaged.
•Do not obstruct ventilation openings on the appliance
and never insert your finger or any other object into the
air outlet.
•Do not cover the appliance or place any object on the
control panel.
•The appliance must not be placed or rested on its power
cord.
•Do not use adaptors or extension leads when connecting
the appliance to the electrical power supply.
•Do not use the appliance if the plug is damaged.
•Do not pull, twist or damage the power cable.
•Do not plug-in or un-plug the appliance with wet hands to
prevent electrical shock.
•Always store the unit in an upright position in order to
maintain the compressor working in a proper condition.
3v2.5RHPAC11001

Safety Instructions
•This appliance can be used by childrenaged from 8 years
and above and persons with reduced physical, sensoryor
mental capabilitiesor lack of experience and knowledge if
they have been given supervision or instruction
concerning use of the appliance in a safe way and
understand the hazards involved. Children should not play
with the appliance.
•This appliance is designed to be used by adults, do not
allow childrento play with the appliance.
•The appliance is intended for residential use only.
•When defrosting and cleaning the appliance, do not use
any tools other than those recommended by the
manufacturing company.
•The appliance must be installed, used and stored in an
area that is greater than 13 m2.
•The appliance must be placed in an area without any
continuous sources of ignition (for example: open
flames, gas or electrical appliances in operation).
•R290/R32 is a refrigerant gas that complies with the
European directives on the environment. Do not
puncture or damage any part of the refrigerant circuit.
•If the appliance is installed, operated or stored in a non-
ventilated area, the room must be designed to prevent
the accumulation of refrigerant leaks.
•Individuals who operate or work on the refrigerant
circuit must have the appropriate certification issued by
an accredited organisation that ensures competence in
handling refrigerants according to a specific evaluation
recognized by associations in the industry.
4v2.5RHPAC11001

Safety Instructions
•Maintenance and repairs that require the assistance of
other qualified personnel must be performed under the
supervision of an individual specified in the use of
flammable refrigerants.
•Be aware that the refrigerants may not contain an
odour.
•Compliance with national gas regulations shall be
observed.
•The appliance shall be stored so as to prevent
mechanical damage from occurring.
•WARNING: System contains refrigerant under very high
pressure. The system must be serviced and repaired as
recommended by the equipment manufacturer and by
qualified persons only.
•Do not use in the following locations: -
•Next to a source of fire.
•An area where oil is likely to splash.
•An area exposed to direct sunlight.
•An area where water is likely to splash.
•Near a bath, shower or a swimming pool.
•In a greenhouse.
•An area where flammable gasses or liquids are
present.
5v2.5RHPAC11001

Electrical Safety
THIS APPLIANCE MUST BE PLUGGED INTO AN EARTHED SOCKET
•Before switching on, make sure that the voltage of your electricity supply is
the same as that indicated on the rating plate. This product is designed to
operate on 220 –240V AC; 50Hz. Connection to any other power source
may damage the unit.
•This product may be fitted with a non rewireable plug. If it is necessary to
change the fuse in the plug, the fuse cover must be refitted. If the fuse cover
becomes lost or damaged, the plug must not be used until a suitable
replacement is obtained.
•If the plug has to be changed because it is not suitable for your socket, or
becomes damaged in any way, it should be cut off and an appropriate plug
fitted. This should be carried out by a qualified electrician. The plug
removed must be disposed of safely, as insertion into a 13 Amp socket is
likely to cause an electrical hazard.
6v2.5RHPAC11001

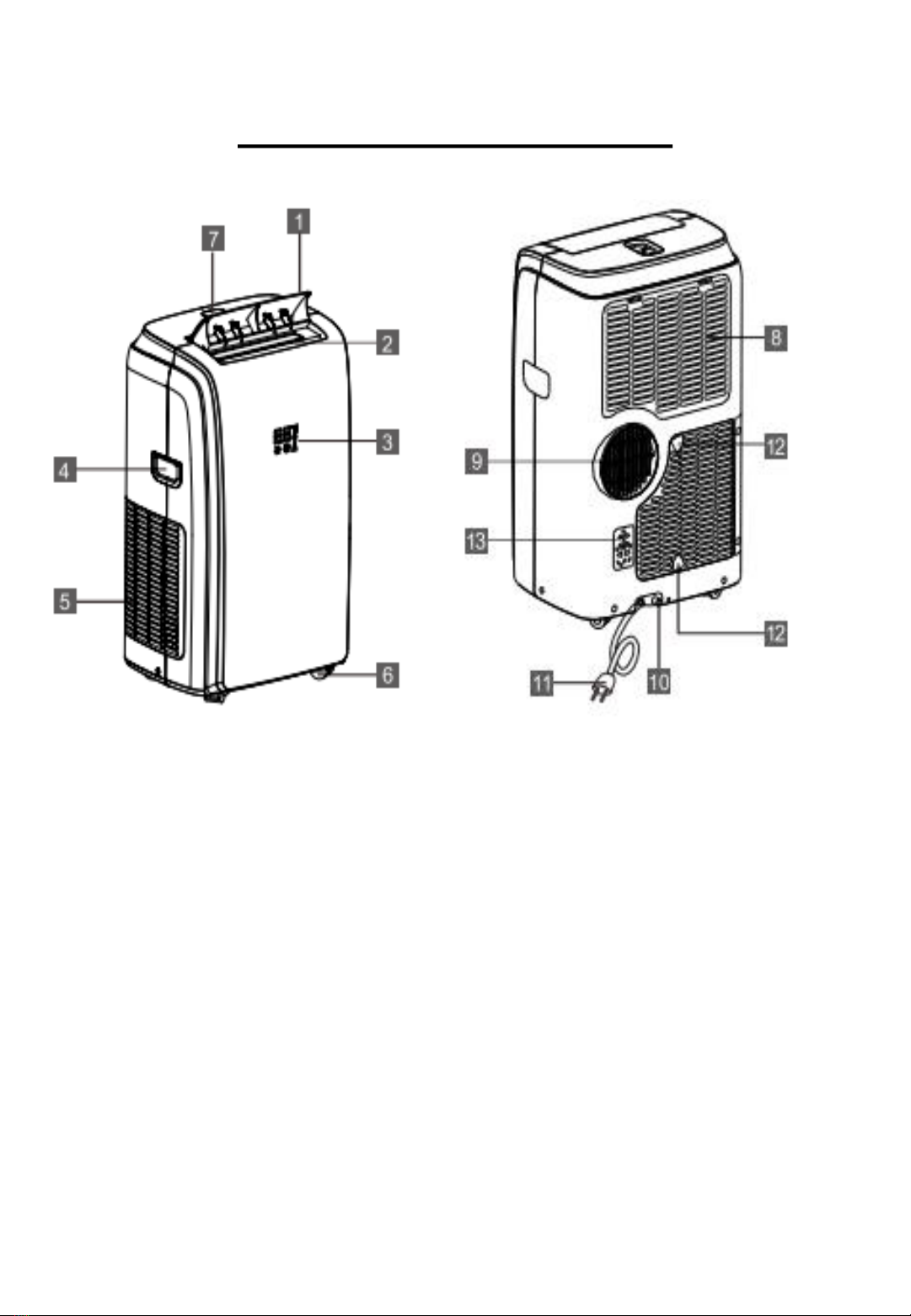

FEATURE DIAGRAM
For Customer Services & Spare Parts please call 0345 209 7461
Or visit us at mda.russellhobbs.com
Front
1. Deflector
2. Air Outlet Grille
3. Display Screen
4. Handle (both sides)
5. Intake Grille
6. Castors
7. Control Panel
Rear
9. Intake Grille
10.Condenser Drain
11. Power Cable
12.Holes for Cord Storage
Hooks
13.Plug Storage Holder
7v2.5RHPAC11001

CONTROL PANEL DIAGRAM
1.ON/OFF button
2.Mode button
3.Fan button
4.Increase button
5.Decrease button
8v2.5RHPAC11001

Exhausting Hot Air
In the COOL mode the appliance must be placed close to
a window or opening so that the warm exhaust air can be
ducted from outside.
First position the unit on a flat floor and make sure there
is a minimum of a 45cm (18inch) clearance around the
unit and ensure this is within the vicinity of a plug socket.
1. Extend either side of the hose (Fig. 1) and screw on the
hose inlet (Fig. 2).
2. Extend the other side of the hose and screw it into the
hose outlet (Fig. 3)
3. Install the hose inlet into the unit (Fig. 4)
4. Affix the hose outlet into the window seal kit and zip.
INSTALLING YOUR AIR
CONDITIONER
9v2.5RHPAC11001

Location
•The unit should be placed on firm ground to help
minimise noise and vibration. For safe and secure
positioning, place the unit on a smooth, level floor which
is strong enough to support the unit.
•This unit has castors to aid placement but it should only
be rolled on smooth, flat surfaces. Use caution when
rolling on carpeted and wooden surfaces. Do not
attempt to roll the unit over other objects.
•The unit must be placed within reach of a properly rated
grounded socket.
•Never place any obstacles around the air inlet or outlet
of the unit.
•Allow at least 45cm of space around, above and away
from the wall to ensure the appliance works efficiently.
•The hose can be extended but it is best to keep it to the
minimum length required. Also ensure that the hose
does not have any sharp bends or sags.
INSTALLING YOUR AIR
CONDITIONER
10v2.5RHPAC11001

Your Russell Hobbs Air Conditioner has been supplied with a
Window Sealing Kit. The kit is suitable for use on UPVC windows
that open internally or externally either 3 sides, or 4 sides. It is not
suitable for middle opening windows such as skylights, or wooden
frames.
The maximum aperture dimensions of the kit is 400cm. To measure
the dimensions of a 4 point window, measure the frame on all 4
sides. For a 3 point window, measure the frame on the open sides
only.
INSTALLING YOUR WINDOW KIT
To install this window seal, whilst the
window is closed, apply the Velcro tape on
both the inside frame of the window, and
the frame of the window as shown by the
dotted lines. Ensure that the tape is not
clamped or in a position it will become
clamped.
Apply the long side of the seal kit to the
outside frame, and the short side to the
inside window.
Open the window, and ensure there is a
sufficient seal.
Open the zip, and thread your air
conditioner hose through the opening,
then tighten the zip.
11v2.5RHPAC11001

DISPLAY SCREEN DIAGRAM
1. Cool symbol
2. Heat symbol*
3. Fan speed indicator
4. Timer symbol
5. Temperature symbol
6. Temperature indicator
*only on models with Heat Pump
funcitonality
12v2.5RHPAC11001

USING YOUR AIR CONDITIONER
Operating from the control panel
The control panel is on top of the appliance and it enables you to manage
functions without using the remote control. However, to use the appliance
to its full potential you are advised to use the remote control.
To turn the appliance on plug it into a mains socket and the appliance
will enter standby mode.
Press the ON/OFF button to turn the appliance on, the last function
that was active when the appliance was turned off will appear.
“Never turn the appliance off by unplugging it from the mains. Always
press the ON/OFF button, then wait for a few minutes before unplugging.
This allows the appliance to perform a cycle of checks to verify the
operation”
COOL Mode
Ideal for hot humid weather when you need to cool and dehumidify
the room.
To set this mode correctly:
-Press the ‘M’ button several times until the COOL symbol appears.
- Select the desired temperature by pressing the INCREASE and
DECREASE buttons until the value you want is displayed. The
temperature ranges from 18-32°C (64-90°F) in this mode.
- Select the required fan speed by pressing the FAN button.

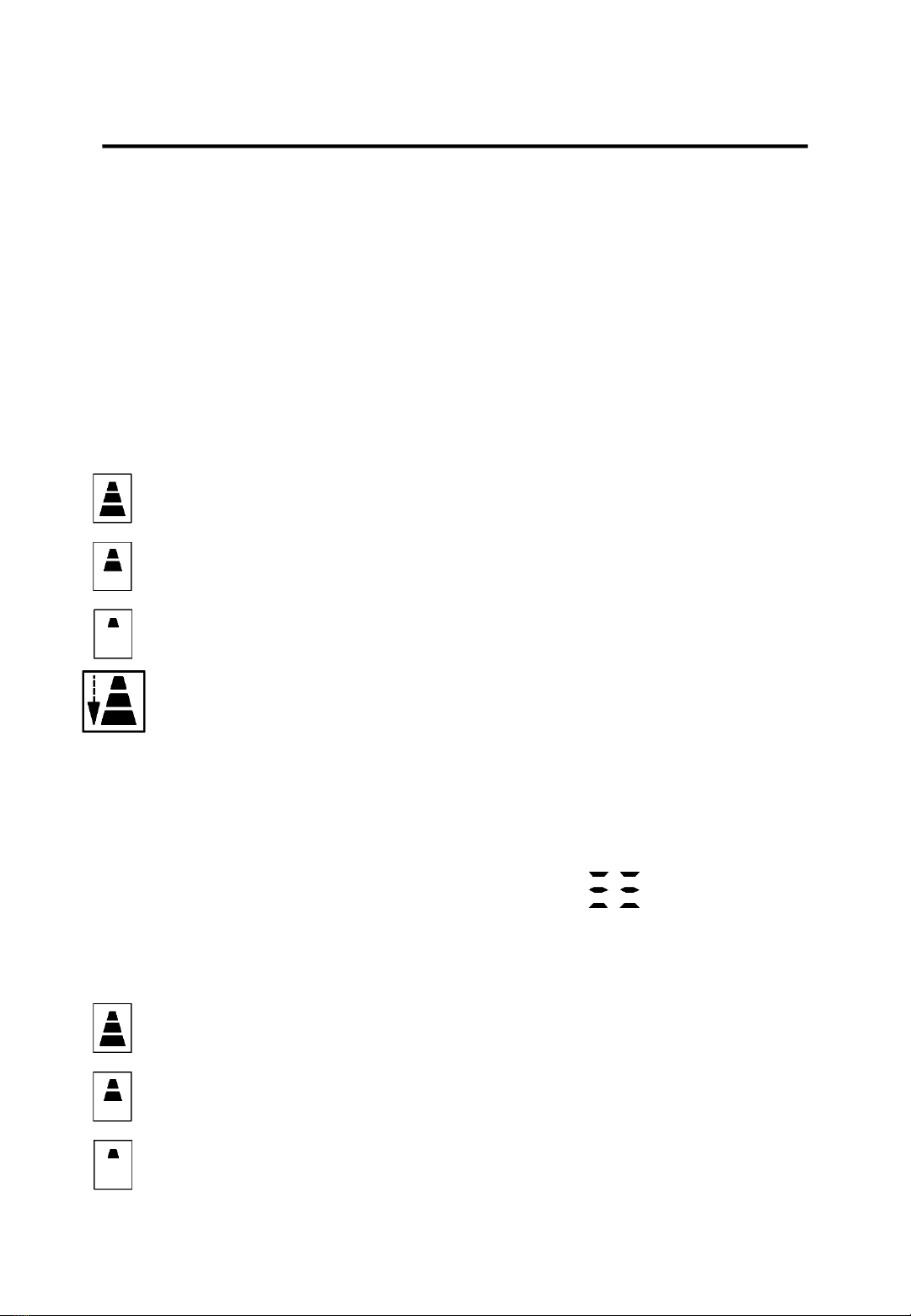

- There are 4 fan speeds to choose from: High/Medium/Low/Auto
High Speed: For maximum fan power
Medium Speed: Reduces noise levels but still
maintains a good level of comfort
Low Speed: For silent operation
Auto Speed: The appliance will automatically select the
most suitable fan speed in relation to the temperature
which it is set at 13v2.5RHPAC11001

USING YOUR AIR CONDITIONER
HEAT Mode*
‘*’ means only the heat pump model have this function.
To set this mode correctly:
-Press the ‘M’ button several times until the HEAT symbol appears.
- Select the desired temperature by pressing the INCREASE and
DECREASE buttons until the value you want is displayed. The
temperature ranges from 13-27°C (55-81°F) in this mode.
- Select the required fan speed by pressing the FAN button.
- There are 4 fan speeds to choose from: High/Medium/Low/Auto
High Speed: For maximum fan power
Medium Speed: Reduces noise levels but still
maintains a good level of comfort
Low Speed: For silent operation
Auto Speed: The appliance will automatically select the
most suitable fan speed in relation to the temperature
which it is set at
FAN Mode
When using the appliance in this mode, the air hose does not need to
be attached.
To set this mode correctly:
-Press the ‘M’ button several times until the symbol appears.
- Select the required fan speed by pressing the FAN button.
- There are 3 fan speeds to choose from: High/Medium/Low
Medium Speed: Reduces noise levels but still
maintains a good level of comfort
Low Speed: For silent operation
High Speed: For maximum fan power
14v2.5RHPAC11001

USING YOUR AIR CONDITIONER
DRY Mode
Ideal to reduce room humidity (good for use in spring, autumn, damp
rooms and rainy periods)
When in DRY mode the appliance should be prepared in the same
way as for COOL mode, with the air exhaust hose attached to enable
the moisture to be discharged outside.
To set this mode correctly:
-Press the ‘M’ button several times until the symbol appears.
- In this mode, the fan speed is automatically selected by the
appliance and can not be set manually.
Switching the unit of temperature
When the appliance is in standby, hold the ‘M’ button until the
appliance beeps (approx. 20 seconds). Once the appliance has beeped
you will be able to change the unit of temperature.
For example:
Before change and when in cool mode the
screen will display like this.
After the change the screen will then display
like this.
15v2.5RHPAC11001

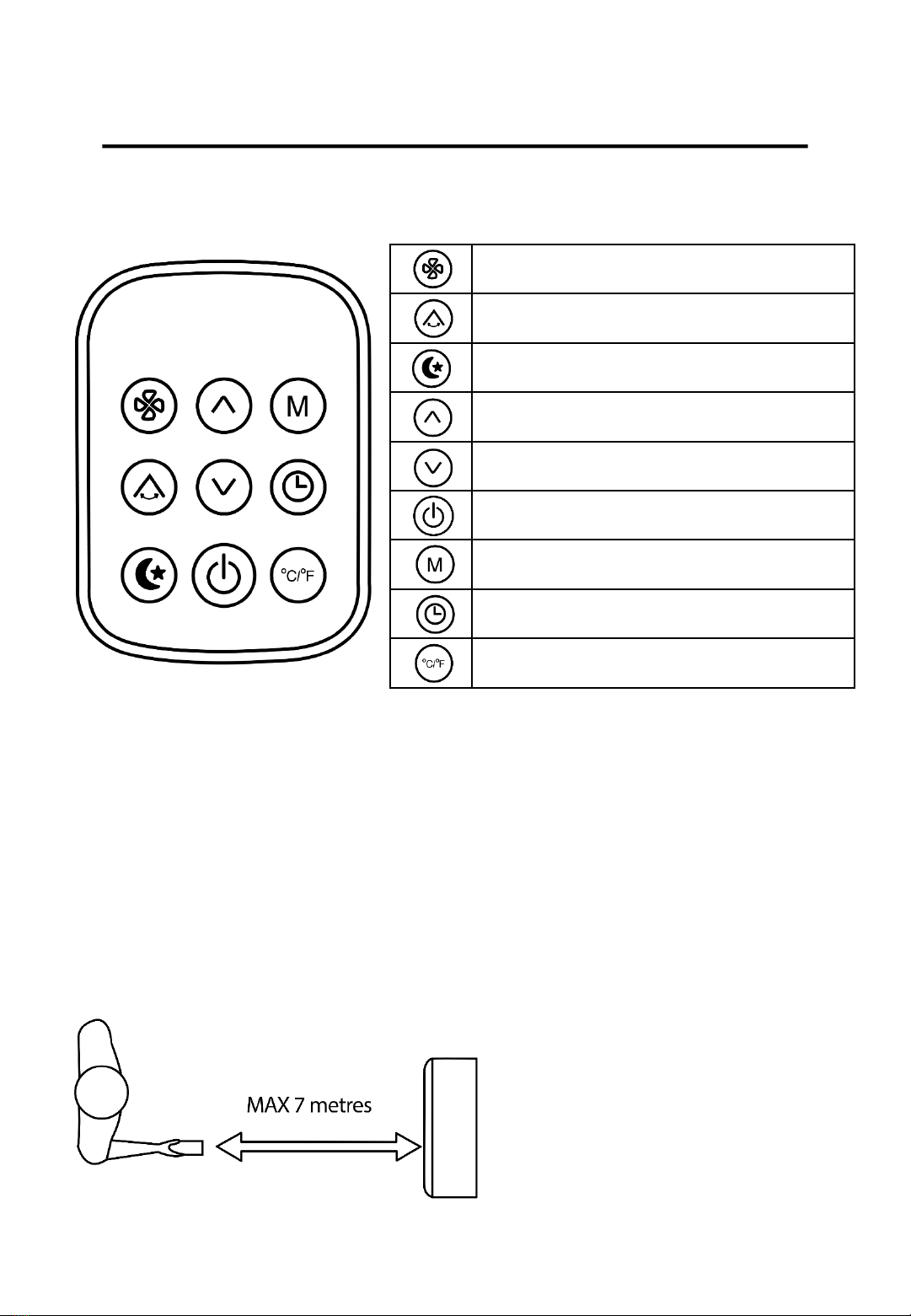

Operating from the remote control
USING YOUR AIR CONDITIONER
Fan button
Oscillating button
Night Mode button
Increase button
Decrease button
On/Off button
Mode button
Timer button
Unit Switch button
•Point the remote control at the receiver on the appliance.
•The remote control must be no more that 7 meters away from the
appliance (without obstacles between the remote control and the
receiver).
•The remote control must be handled with extreme care to ensure
continuous usage. Do not drop or expose the remote to direct
sunlight or sources of heat.
16v2.5RHPAC11001

The remote comes with a battery already installed. To use the
remote for the first time, remove the transparent insulating strip by
pulling it out gently.

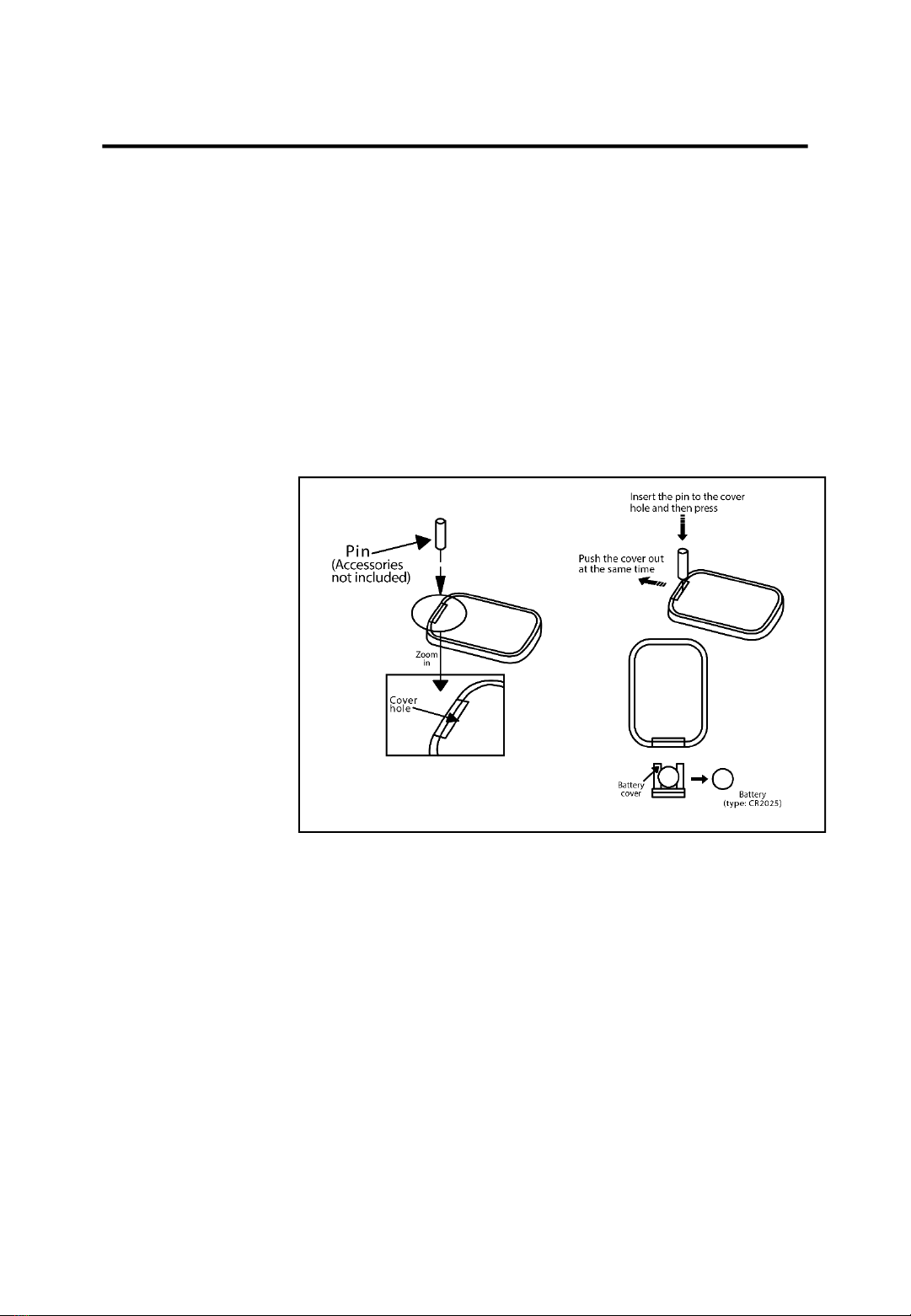

Replacing the Battery
To replace the battery follow the steps below:
1. Press down the pin and remove the battery cover
2. Replace the battery and then reinstall the battery cover into
the remote.
WARNING: Chemical Burn Hazard –Keep batteries away from
children.
This product contains a lithium button/coin cell battery. If a new or
used lithium button/cell battery is swallowed or enters the body, it
can cause severe internal burns and can lead to death in as little as
2 hours. Always make sure you completely secure the battery
compartment. If the battery compartment does not close securely,
stop using the product, remove the battery and keep it away from
children. If you think the battery might have been swallowed or
placed inside any part of the body, seek immediate medical
attention.
The cells should be disposed of correctly, including keeping them
away from children, even used cells may cause injury.
USING YOUR AIR CONDITIONER
17v2.5RHPAC11001

COOL Mode, HEAT Mode, FAN Mode, DRY Mode
To correctly set these four modes using the remote control,
follow the same steps that are stated in the ‘Operating from the
control panel’ section of this manual but instead of pressing the
buttons mentioned on the control panel press the corresponding
buttons on the remote control.
Oscillating function
This function is useful for selecting the up and down flow of air
delivery.
To set this function correctly:
- Select the desired operating mode as detailed above.
- Press the OSCILLATING button and the deflector will begin to
swing.
Night Mode function
This function is useful for the night as it gradually reduces the
operation of the appliance.
To set this function correctly:
- Select the COOL or HEAT mode.
- Press the NIGHT MODE button.
The appliance will then operate in the previously selected mode.
When in this function the display screen will reduce in brightness
and the room will be maintained at the optimum temperature
without excessive fluctuations in temperature or humidity with
silent operation. The fan speed will always be low so you are not
disturbed by excessive noise while you sleep.
When in COOL mode, the selected temperature will increase by
1°C (1°F) per hour over a 2-hour period. This new temperature
will then be maintained for the next 6 hours. After 6 hours the
appliance will turn itself off.
USING YOUR AIR CONDITIONER
18v2.5RHPAC11001

USING YOUR AIR CONDITIONER
When in HEAT mode, the selected temperature will increase by
1°C (1°F) per hour over a 3-hour period. This new temperature
will then be maintained for the next 5 hours. After 5 hours the
appliance will turn itself off.
This function can be cancelled at any time during operation by
pressing either the NIGHT MODE, MODE or FAN SPEED button.
Setting the timer
The timer can be used to schedule the start up or shutting down
of the appliance.
Programming start up:
- Turn on the appliance and select the mode, temperature and
fan speed you desire, then turn off the appliance.

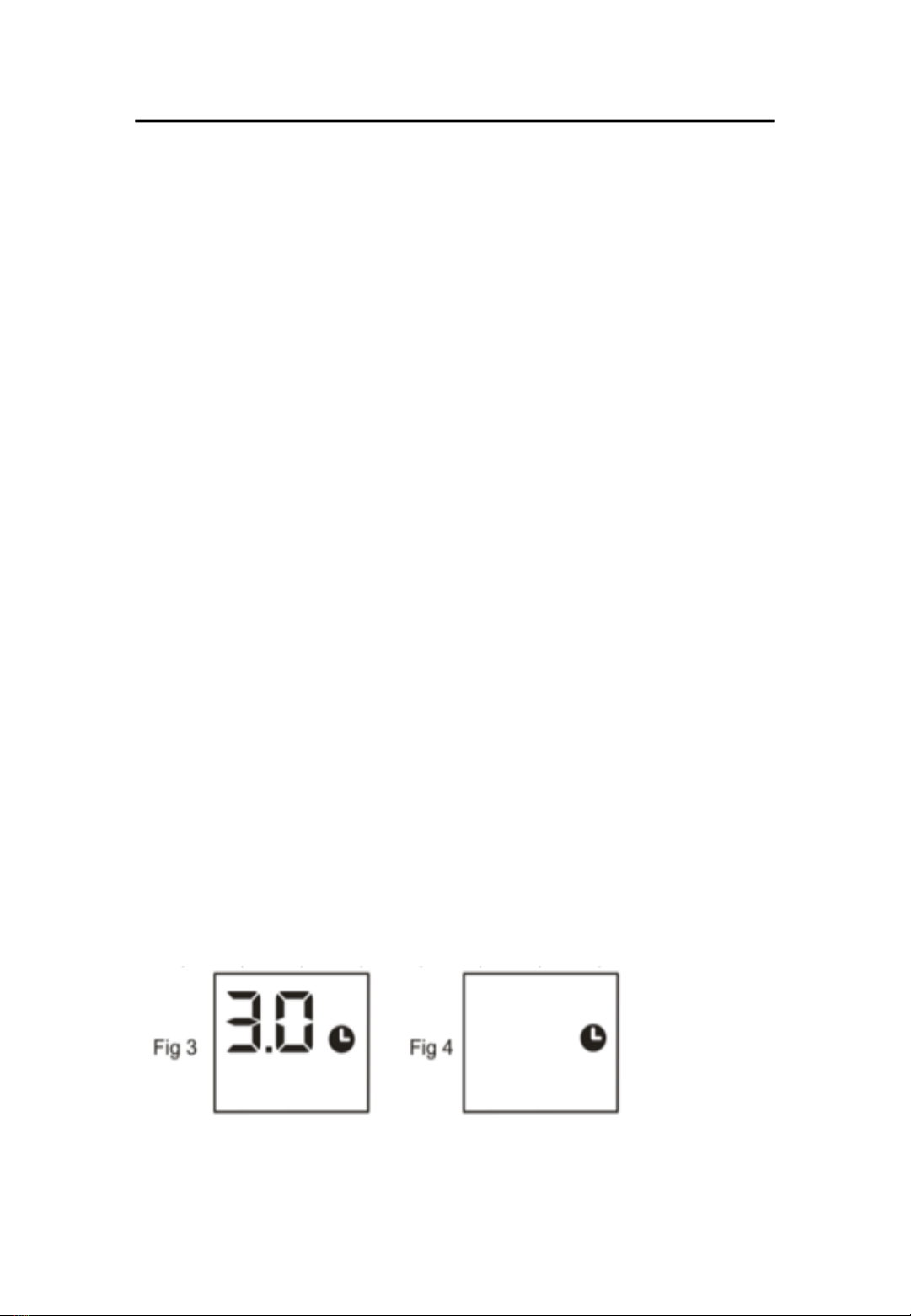

- Press the TIMER button and the screen will display 1-24 hours
while the TIMER symbol will flash (Fig. 3).
- Adjust the timer until the desired time is displayed. Wait for
approximately 5 seconds and then the timer will then be active.
Only the TIMER symbol should be displayed on the screen (Fig.
4).
- Press either the TIMER or the ON/OFF button and the timer
will be cancelled. The TIMER symbol will then disappear from
the screen.
19v2.5RHPAC11001

USING YOUR AIR CONDITIONER

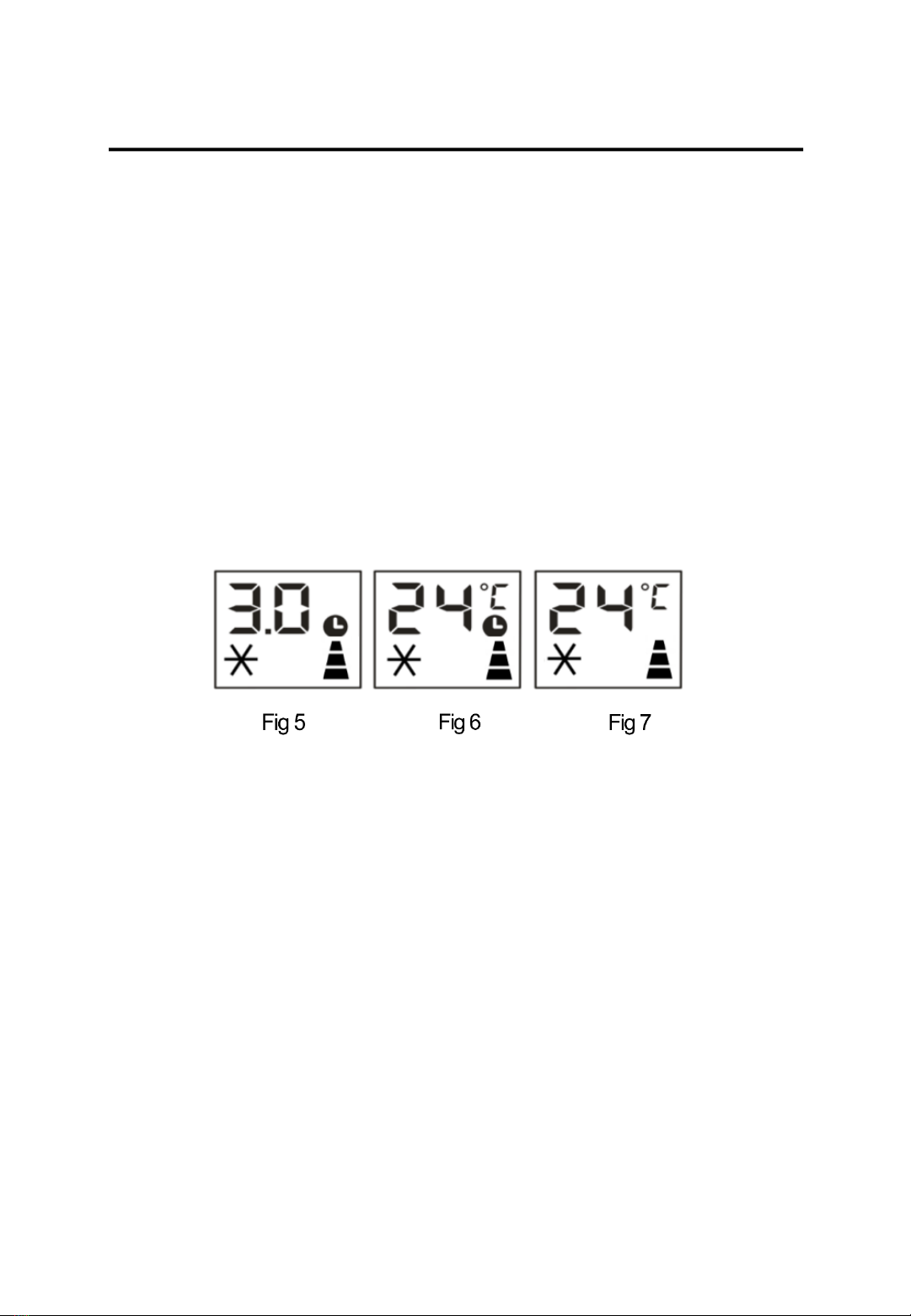

Programming shut down:
- When the appliance is running press the TIMER button, the
screen will then display the hours and several symbols will
flash together (Fig. 5).
- Adjust the timer until the desired time is displayed. Wait for
approximately 5 seconds and then the timer will be active.
Only the TIMER symbol should be displayed on the screen (Fig.
6).
- Press either the TIMER or the ON/OFF button and the timer
will be cancelled. The TIMER symbol will then disappear from
the screen (Fig. 7).
Tips for correct use
To get the best out of your appliance, follow these
recommendations:
•If possible, close the windows and doors in the room you want
to be air conditioned (Fig 21). When installing the appliance
semi-permanently you should leave a door slightly open (as
little as 1cm) to guarantee correct ventilation.
•Protect the room from direct exposure to the sun by partially
closing curtains and/or blinds to make the appliance much
more economical to run (Fig 22).
•Never rest objects of any kind on the appliance.
•Do not obstruct the air intake and outlet (Fig 23). Ensure the
grills are left free.
•Make sure there are no heat sources within the room. 20v2.5RHPAC11001
