Double Oven
Instruction Manual
IMPORTANT:
RETAIN FOR FUTURE REFERENCE
For Customer Services & Spare Parts please call 0345 208 8750
or visit us at https://mda.russellhobbs.com

Contents
Safety Instructions ………………………………………. 3-5
Product Overview ………………………………………. 6
Positioning ………………………………………. 7
Installation ………………………………………. 7-9
Electrical connection ………………………………………. 10
Usage ………………………………………. 11-24
Cleaning & Maintenance ………………………………………. 25-30
Trouble shooting ………………………………………. 31
Guarantee ………………………………………. 32
Technical specification ………………………………………. 33
Notes ………………………………………. 34-35

3
Safety Instructions
Important note:
Please read this booklet before installing and switching on this appliance.
The manufacturer assumes no responsibility for incorrect installation and
usage as described in this booklet.
This appliance can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way and understand
the hazards involved. Children shall not play with the appliance.
Electric ovens and hobs must be hard-wired to a suitably rated electrical
cooker power point –it is recommended that you consult a qualified
electrician. Failure to do so will invalidate your guarantee, liability claims
and could lead to criminal prosecution
•Children should be supervised to ensure that they do not play with the
appliance.
•If the supply lead is damaged it must be replaced by a qualified person
using the correct lead, available from 0345 208 8750.
•Packaging material is dangerous to children. Never allow children to play
with packaging material.
•Check the appliance for damage after unpacking it. Do not connect the
appliance if it has been damaged in transport.
•The appliance can only be used safely if it is correctly installed according
to the safety instructions. The installer is responsible for ensuring that
the appliance works correctly after installation.
•All operations relating to installation and regulation must be carried out
by an authorised installation engineer, respecting applicable regulations,
standards and the specifications of the local electricity providers.

4
Safety Instructions
•This appliance can only be installed in a well-ventilated place in accordance with
existing regulations and ventilation specifications.
•This appliance is intended for domestic use and the household environment
only. The appliance is not intended for use outside.
•Do not tamper with the appliance's interior. If necessary, call our customer
helpline
•Do not switch on the appliance if it is damaged in any way. Contact our
customer helpline
•This appliance is only intended for cooking purposes, not as a heating system.
•Do not leave the appliance unattended during operation. The manufacturer is
not liable for damage which is caused by improper use or incorrect operation.
•Combustible items stored in the cooking compartment may catch fire. Never
store combustible items in the cooking compartment. Never open the appliance
door if there is smoke inside. Switch off the appliance and unplug it from the
mains or switch off the circuit breaker in the fuse box.
•A draught is created when the appliance door is opened. Greaseproof paper
may come into contact with the heating element and catch fire. Do not place
greaseproof paper loosely over accessories during preheating. Always weight
down the greaseproof paper with a dish or a baking tin. Only cover the surface
required with greaseproof paper. Greaseproof paper must not protrude over
the accessories.
•Always slide accessories into the cooking compartment
•The appliance becomes very hot. Never touch the interior surfaces of the
cooking compartment or the heating elements. Always allow the appliance to
cool down. Keep children at a safe distance.
•Accessories and ovenware become very hot. Always use oven gloves to remove
accessories or ovenware from the cooking compartment.
•Shelves and the universal tray only must be placed and used between the 5 side
supports.
•The universal tray or any other kind of baking tray should not be placed on the
bottom of the oven cavity.

5
Safety Instructions
•Alcoholic vapours may catch fire in the hot cooking compartment. Never
prepare food containing large quantities of drinks with a high alcohol content.
Only use small quantities of drinks with a high alcohol content. Open the
appliance door with care.
•The accessible parts become very hot when in operation. Never touch hot parts.
Keep children at a safe distance.
•When you open the appliance door, hot steam may escape. Open the appliance
door with care. Keep children at a safe distance.
•Water in a hot cooking compartment may create hot steam. Never pour water
into the hot cooking compartment.
•Scratched glass in the appliance door may develop into a crack. Do not use a
glass scraper, sharp or abrasive cleaning aids or detergents.
•The appliance gets hot. Do not keep combustible objects or aerosol cans in
drawers directly underneath the appliance.
•A defective appliance may cause electric shock. Never switch on a defective
appliance. Unplug the appliance from the mains or switch off the circuit breaker
in the fuse box. Contact the customer services.
•The cable insulation on electrical appliances may melt when touching hot parts
of the appliance. Never bring electrical appliance cables into contact with hot
parts of the appliance.
•Penetrating moisture may cause an electric shock. Do not use any high pressure
cleaners or steam cleaners.
•When replacing the cooking compartment bulb, the bulb socket contacts are
live. Before replacing the bulb, unplug the appliance from the mains or switch
off the circuit breaker in the fuse box.
•Incorrect repairs are dangerous. Repairs may only be carried out by a qualified
electrician.
•Never use strong and abrasive cleaning agents as they will cause surface
damage.
•In the event of a malfunction, turn off the appliance’s electricity supply. For
repairs, call customer services.
•Carrying the appliance: do not carry or hold the appliance by the door handle.

6
Product overview
1
910
1. Top oven function dial
2. Top oven temperature dial
3. Top cavity glass window
4. Bottom cavity glass window
5. Display & mode buttons
6. Bottom oven function dial
7. Bottom oven temperature dial
8. Oven door handles
9. 2 x Wire shelf
10. 1 x Universal tray & handle
11. 1 x Wire rack
12. 2 x Distance holding screws
Unit & Spare Parts
If any of the above parts are missing please contact the customer service team on
0345 208 8750 or visit https://mda.russellhobbs.com
2
3
5
6
11 12
4
7
8

Positioning
•This appliance is to be installed under a counter top.
•Avoid damaging the product during installation.
•The appliance can only be used safely if it is correctly installed according to the
safety instructions. The installer is responsible for ensuring that the appliance
works correct when installed.
•Electric ovens and hobs must be hard-wired to a suitably rated electrical
cooker power point –it is recommended that you consult a qualified
electrician. Failure to do so will invalidate your guarantee, liability claims and
could lead to criminal prosecution.

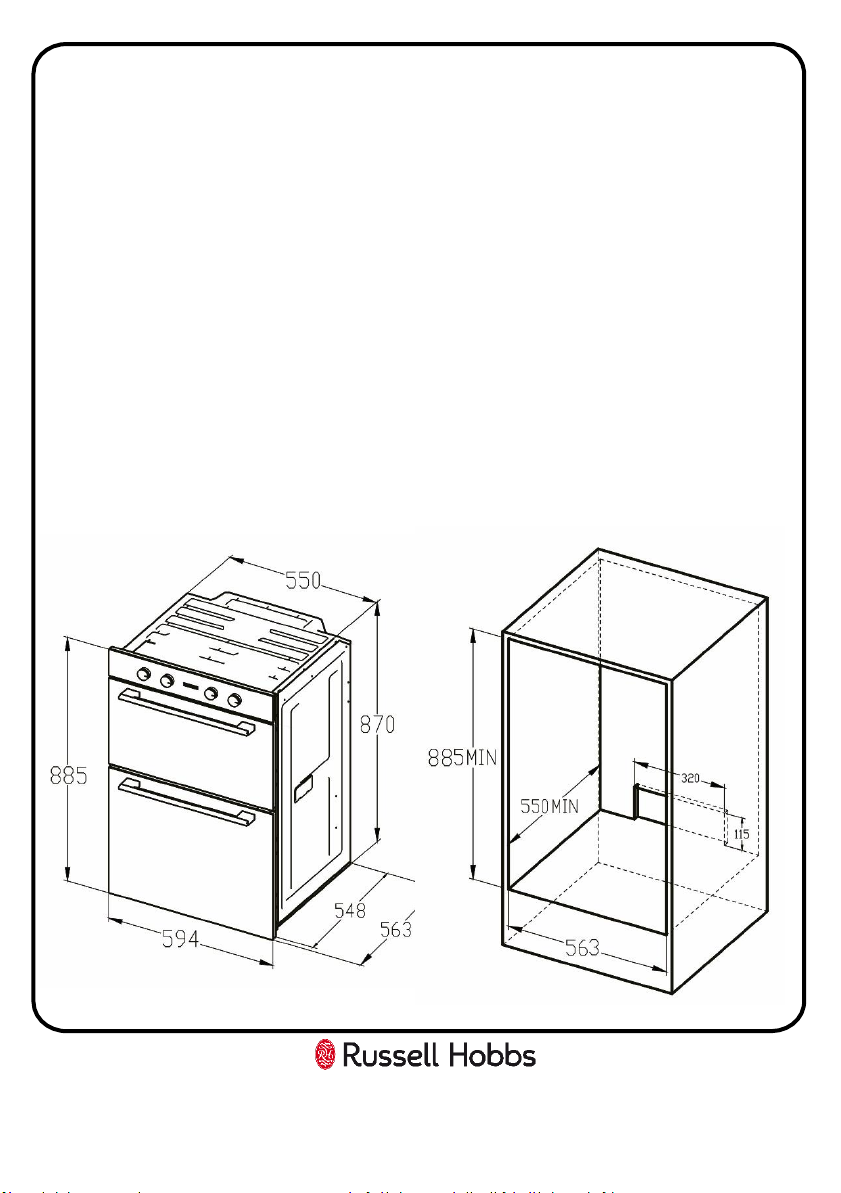

•The aperture size has to be (H)885 x (W)563 x (D)550mm (please note that the
depth size is a minimum measure, the oven can be installed in an aperture that
has a bigger depth).
Installation without brackets (standard)
7

Installation with brackets
Note:
•Select heat-resistant work surface material to avoid larger deformation
caused by the heat radiation from the appliance.
•This oven has forced air ventilation.
•If this appliance is to be installed near to a corner where the adjacent cabinets
run at right angles forward of the appliance, there must be a gap of at least 90
mm between the appliance and the cabinets, to prevent overheating of the
cabinets.
8

Installation
Ensure that there are no electric wires, gas or water pipes in the area where holes
are to be made.
Components of the appliance may have sharp edges. Wear protective gloves.
1. Ensure that there is an electrical power point within adequate distance of the
oven after it has been installed.
2. Ensure the aperture measures (H)885 x (W)563 x (D)550mm (please note that
the depth size is a minimum measure, the oven can be installed in an aperture
that has a bigger depth), in accordance with the positioning instructions
detailed on the previous page.
3. Carefully and gently put the oven into the aperture recess, making sure that
power cable can still be accessed.
4. Connect the oven to the electrical power point before pushing the oven into
the aperture fully.

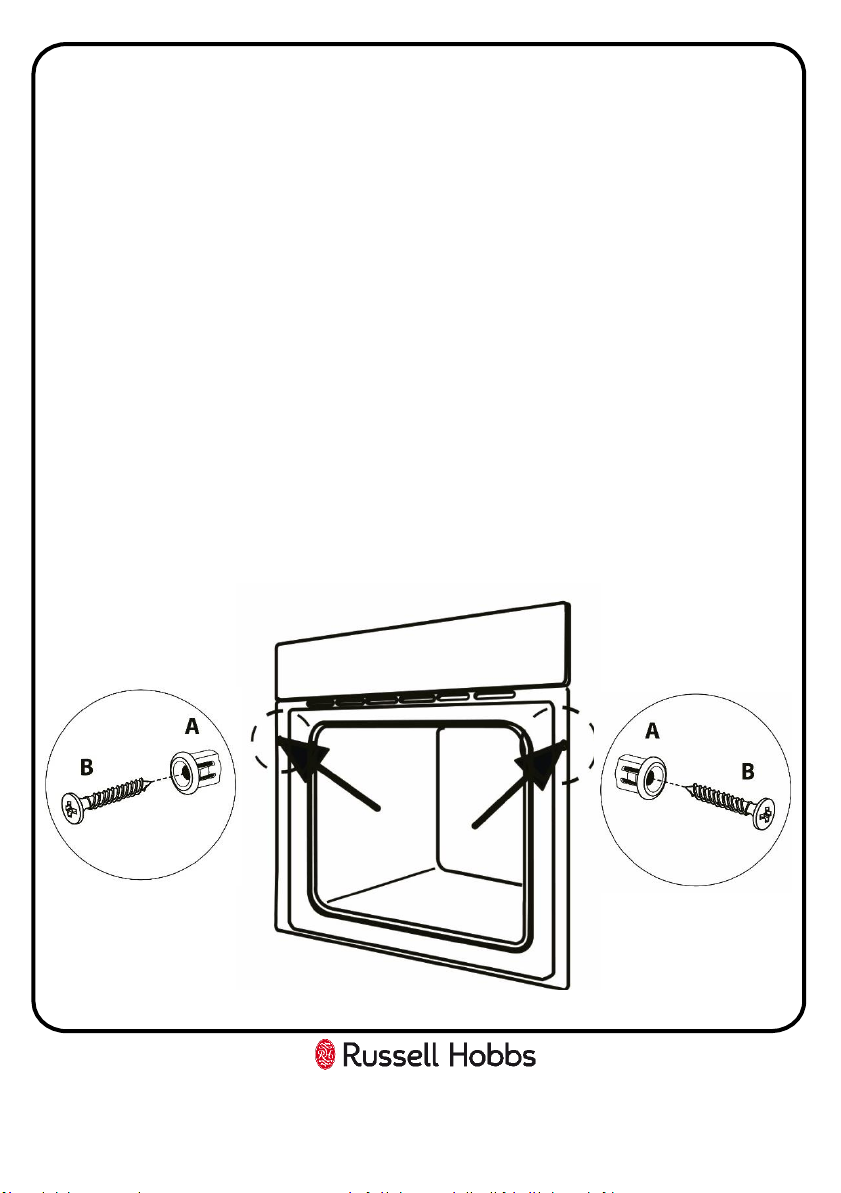

5. Once this is done open the oven door and secure the oven to the kitchen
cabinet with two distance holding screws which fit the holes in the oven frame.
9

Electrical connection
•WARNING- THIS APPLIANCE MUST BE EARTHED
•This appliance is designed to be connected to a 220-240V~50Hz AC electricity
supply.
•Before proceeding with the electrical connection, verify that the current
carrying capacity of the system and the isolator / main switch is adequate for
the maximum power rating of the oven.
•Electrical installation of the residence and of the appliance’s isolator must be
earthed and conform with the required safety regulations.
•If there is no suitable circuit and a fused switch, they must be installed by a
qualified electrician before the hob is connected.
•An isolator switch must be easily accessible once the oven has been installed.
•Do not use adaptors, multiple sockets and/or extension leads.
•A circuit breaker with a contact opening of at least 3 mm, rated 32A and
delayed functioning type must be installed inside the supply circuit.
•During installation, please ensure that insulated cables are used. An incorrect
connection might damage your appliance and will void the manufacturer’s
guarantee.
•All repairs must be carried out by an authorised service personal or a qualified
electrician.
•Switch off/isolate your appliance before each maintenance.
•The GREEN/YELLOW wire is the EARTH and must be connected to the terminal
which is marked with the letter E or by the earth symbol or coloured GREEN or
GREEN/YELLOW.
•The BLUE wire is the NEUTRAL and must be connected to the terminal marked
with the letter N or coloured BLACK.
•The BROWN wire is the LIVE wire and must be connected to the terminal
marked with the letter L or coloured RED.
10

Usage

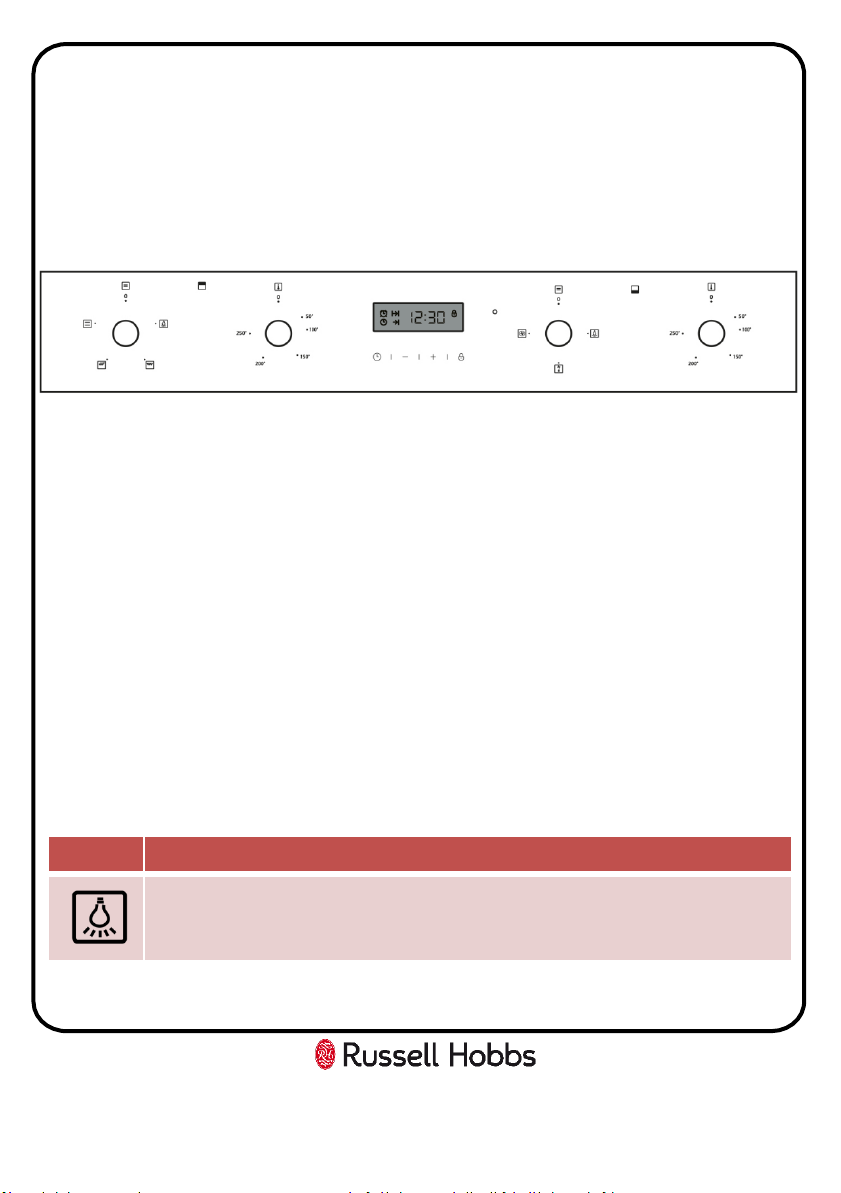

Control panel
The appliance has an oven function dial, temperature dial, a display and mode
buttons, these are explained below:
Oven function dials
The oven function dials allow you to set the oven function mode for the top
and/or bottom oven. The dial can be rotated clockwise or anti-clockwise to set the
required oven function.
When the required type of function is set, the oven light(s) that are inside the
ovens light up. The temperature dials will also need to be adjusted when using any
of the oven functions except for the oven lamp functions.
Note: The dials must be put in the off position after each use.
Note: Always pre-heat the oven to the required temperature before cooking.
Top oven function dial
11
Symbol Function
Oven Lamp: Turns on the oven lamp.

12
Symbol Function
Single grill: Part of the area below the grill heating element becomes hot.
The inner grill element is on.
Can be used to grill a small number of burgers, sausages fish or bread.
Double grill: The whole area below the grill heating element becomes hot.
The inner and outer grill elements are on.
Can be used to grill a large number of burgers, sausages fish or bread.
Top & bottom heating: Heat is emitted evenly from the top and bottom,
which provides convectional cooking. The top and bottom elements work
together to provide convectional cooking.
Best suited for single items that are centred in the oven: cakes and pizzas on
baking trays, and for lean joints of beef, etc.
Symbol Function
Oven Lamp: Turns on the oven lamp.
Defrost: Circulates air in the oven at room temperature (without the use of
any heat) enabling quicker thawing of frozen food.
Use to defrost food only.
Convection heating: A fan with a ring heating element on the back of the
oven ensures that the heated air is distributed evenly.
You can bake cakes, pizza, biscuits, small cakes and puff pastry on two
levels at the same time.
Bottom oven (main oven) function dial

Usage
Temperature dial
Use the temperature dials to set the required temperature for the ovens. The dials
can then be rotated clockwise to set the required temperature.
The temperature can set between 50ºC and 250ºC.
The small light next to the temperature dial for the top oven will be lit when the
top oven is heating and the small light next to the function dial for the bottom
oven will be lit when the bottom oven is heating. It goes out during pauses in the
heating.
The oven function dials will also need to be adjusted; turning the temperature dial
alone will not make the oven heat up.
Note: The dial must be put in the off position after each use.
Display
This will show the time, icons and other values.
13

Usage
Function buttons
The buttons can be used to set additional functions.
Use this button to set the different modes
Use this button to adjust the setting values upwards. Press and
hold the button to rapidly adjusted the time (hold for a minimum
of 5 seconds).
Use this button to adjust the setting values downwards. Press
and hold the button to rapidly adjusted the time (hold for a
minimum of 5 seconds).
Use this button to set the lock function.
The oven cavity
•The oven lights are located in each cooking compartment. During oven
operation, the oven lights are on. By turning the function selectors to any
position, the oven lights can also be switched on without the oven heating up.
•A cooling fan protects the oven from overheating.
•The cooling fan switches on and off as required. The hot air escapes above the
doors.
•So that the cooking compartment cools down more quickly after operation, the
cooling fan continues to run for a certain period afterwards.
•There are shelf racks either side of the cavities that accessories such as the wire
shelves, baking tray, etc. can be inserted in to.
•The coating of the oven cavities are enamel.
•Before you use the accessories for the first time, clean them with hot soapy
water and a soft dish cloth.
•Clean all accessories by hand, do not clean in the dishwasher.
14

Usage
Warnings:
•When it is first used, it is normal for the oven to give off odours; this does not
pose any risk and does not indicate a malfunction; they will disappear in
time.
Note
•The bottom oven cannot be operated unless the clock is set
Setting the clock
When the oven is first connected to the electrical supply and powered on, the
clock will need to be set. The display will show the time as “0:00“ and will
continually flash.
Note: ensure the correct time is set before using the oven.
Note: the clock is a 24 hour clock, for example 2PM will be shown as 14:00.
To set the correct time of day
1. Press the mode button
2. Press "+" or "-" buttons to adjust the time. Press and hold the buttons to
rapidly adjusted the time (hold for a minimum of 5 seconds).
3. Press the mode button to confirm the time setting and the timer will be
go in to standby mode.
15

Usage
Modes
It is recommended that you run the oven for 15 minutes at 200
degrees to burn off any residue from their surfaces on first use.
Note:
•The cooking duration and full automatic programming
modes can only be used for the bottom cavity.
Time function setting
Press the mode button to access the time function settings. These are:
1. Manual mode - the cooking time is controlled by the user. This mode can be
used for the top and bottom cavities.
This mode is the default mode when the oven is taken out of standby. The cooking
duration has to be controlled by the user (the oven will run continuously until
turned off).
2. Minute minder - you can set an audible warning for a completed time period.
This mode can be used for the top and bottom cavities.
Press the mode button once and a symbol will be shown on the display
(the oven will not turn off when the time period has finished).
3. Cooking duration - you can set the oven so it will cook for a desired time
range. This mode can only be used for the bottom oven cavity.
Press the mode button 2 times and will be shown on the display. The oven
will automatically be turned off.
4. Fully automatic programming - cook during a desired time range to a desired
time. This mode can only be used for the bottom oven cavity.
Please see page 20. The oven will automatically be turned off.
16

Usage
Manual mode
This mode can be used for the top and bottom cavities.
In manual mode, only the time will be shown on the display. The cooking duration
has to be controlled by the user (the oven will run continuously until turned off).
To start cooking you need to turn the oven function and temperature dials that
controls the top or bottom oven cavity to the required function and temperature.
The oven light or lights will turn on and the oven will start to heat up. Once the
oven is preheated, carefully put the food that you wish to cook into the oven.
Note: In manual mode, if after 5 hours no button has been pressed the display on
the oven will flash to warn you that it will turn off and automatically enter standby
mode. After 10 hours the oven will automatically turn off and enter the standby
mode. When the display is flashing in manual mode, press any button to continue
using the oven. If you don’t want to continue using the oven then turn the oven
function and temperature dials to the off position.
Note: If you set cooking duration mode or fully automatic programming
mode , then after cooking the oven will automatically turn off and enter
the standby mode.
17

Usage
Minute minder (audible warning)
This mode can be used for the top and bottom cavities.
This function can be used to set an audible warning at the completion of the
adjusted time period. Like the manual mode the cooking duration has to be
controlled by the user (the oven will run continuously until turned off). To start
cooking you need to turn the oven function and temperature dials that controls
the top or bottom oven cavity to the required function and temperature. The oven
light will turn on and the oven will start to heat up. Once the oven is preheated,
carefully put the food that you wish to cook into the oven:
1. To set the minute minder press the mode button once, the symbol will
then light up on the display and start to flash.
2. Press the " +" or "- " button to adjust the time. Press and hold the buttons to
rapidly adjusted the time (hold for a minimum of 5 seconds). The symbol
will continue to flash.
3. Once the required time has been reached, do not press any button and the
time will be confirmed. The symbol will stop flashing and stay lit. The
display will revert to clock time while the minute minder time counts down.
4. When the time is up, the timer will beep and the symbol will flash on the
display. Press any button to stop the beeping and the symbol flashing. The
display will revert back to the clock/time.
5. The oven will continue to operate unless the oven function or temperature
dials are turned to the off position.
To cancel the minute minder press the mode button once, the symbol will
then light up and set time will be shown. Press the "- " button to adjust the time to
0. The minute minder mode will be cancelled.
18

Usage
Cooking duration (cook for a desired time period)
This mode can only be used for the bottom cavity.
This function is used to cook for a desired time range (the maximum cooking
period is 23 hours and 59 minutes). To start cooking you need to turn the oven
function and temperature dials to the required function and temperature. The
food that is to be cooked needs to be put into the oven.
1. To set this mode, press the mode button twice and the symbol will be
lit on the display and start to flash.
2. Press the " +" or "- " button to adjust the cooking duration time. Press and
hold the buttons to rapidly adjusted the time (hold for a minimum of 5
seconds). The symbol will continue to flash.
3. Once the required time has been reached, do not press any button and the
time will be confirmed. The symbol will stop flashing and stay lit. The
display will revert to clock time while the cooking duration time counts down.
4. During the cooking duration, press the mode button to check and change
the cooking time.
5. To cancel the cooking duration press the mode button twice, the
symbol will then light up and set time will be shown. Press the "- " button to
adjust the time to 0. The cooking duration mode will be cancelled.
6. When the cooking time has been reached, the oven will beep, the symbol
will flash on the display, ’0:00’ will be shown on the display and the oven will
automatically be turned off. Press the mode button to stop the beeping
and press it again to stop the symbol flashing.
7. The timer will enter manual mode, if you don’t wish to continue cooking then
turn the oven function and temperature dials to the off position.
19

Usage
Fully automatic programming (cook during a desired time range to a desired
time)
This mode can only be used for the bottom cavity.
This function is used to cook after a certain period of time, with a certain duration.
To start cooking you need to turn the oven function and temperature dials to the
required function and temperature.
The oven will start operating at the time calculated by deducting the cooking
period from the set finishing time, and will stop at the set finishing time. For
example if the current time is 13:00, the required cooking time is 1 hour and the
required cooking end time is 18:00. The oven will start to operate 17:00 and end
at 18:00.
1. To set this mode, press the mode button twice and the symbol will be
lit on the display and start to flash.
2. Press the " +" or "- " button to adjust the cooking duration time. Press and
hold the buttons to rapidly adjusted the time (hold for a minimum of 5
seconds). The symbol will continue to flash.
3. Once the required cooking duration time has been reached, press the mode
button and the symbol will be lit on the display and will start to flash.
4. Press the " +" or "- " button to set the cooking end time. Press and hold the
buttons to rapidly adjusted the time (hold for a minimum of 5 seconds). The
symbol will continue to flash.
5. Once the required cooking end time has been reached, do not press any
button and the time will be confirmed. The symbol will stop flashing and
both the and symbols will stay lit. The display will revert to clock time.
6. To cancel the fully automatic programming press the mode button twice,
the symbol will then light up and set time will be shown. Press the "- "
button to adjust the time to 0. The fully automatic programming mode will be
cancelled.
7. When the calculated cooking start time is reached, the oven will start to
operate and only the symbol will be lit on the display.
20
