Russell Hobbs RHBMFEO1 User manual

BUILT IN MULTIFUNCTION
ELECTRIC OVEN
INSTRUCTION MANUAL
Model number: RHBMFEO1/RHBMFEO1BB
Please read these instructions carefully and keep
them for future reference
For Customer Services, Spare Parts & Warranty Information please call
0845 683 8717
Opening times: Monday - Friday 8am until 8pm
Saturday & Sunday 10am until 4pm

Please keep this booklet in a safe place. It may be useful in future,
either to yourself or to others in the event that doubts should arise
relating to its operation.
This appliance must be used only for its intended purpose, that is for
the domestic cooking of foodstuffs. Any other form of usage is to be
considered as inappropriate and therefore dangerous.
The manufacturer declines all responsibility in the event of damage
caused by improper or incorrect use of the appliance.
CE Declaration of conformity
This cooking appliance has been designed to be used only for cooking.
Any other use (such as heating a room) is improper and dangerous.
This cooking hob has been designed, constructed and marketed
incompliance with:
- Safety requirements of the ''LVD'' Directive 2006/95/EC;
- Safety requirements of the ''EMC'' Directive 2004/108/EC;
- Requirements of the Directive 93/68/EC.
For Customer Services, Spare parts & Warranty Information please call 0845 683 8717
-1-

Contents
1- Technical Specifications
Introduction of product
3- Warnings
4- Preparation for installation and use
5- Using the oven
6- Cleaning and maintenance of your product
7- Service and Transport
2-
For Customer Services, Spare parts & Warranty Information please call 0845 683 8717
-2-

60cm BUILT-IN OVEN SPECIFICATION SHEET
Product Height mm 595
Product Width mm 595
Product Depth (with / without Control Panel) mm 570 / 550
Cabinet Dimensions (Width / Heigth / Depth) -If control panel located inside the cabinet mm 600 / 600 / 580
Cabinet Dimensions (Width / Heigth / Depth) -If control panel not located inside the cabinet mm 560 / 575 / 555
Oven Type Electric
Oven Volume (with fan) lt 56
Cavity Dimensions (with fan) mm 430 x 330 x 395
Oven Light (25W) Yes
Easy to Clean Enamel Yes
Top Heating Element W 1200
Bottom Heating Element W 1100
Thermostat Yes
Grill (Thermostatic) W 2000
Double Grill (Thermostatic) W 3200
Fan W 23 -35

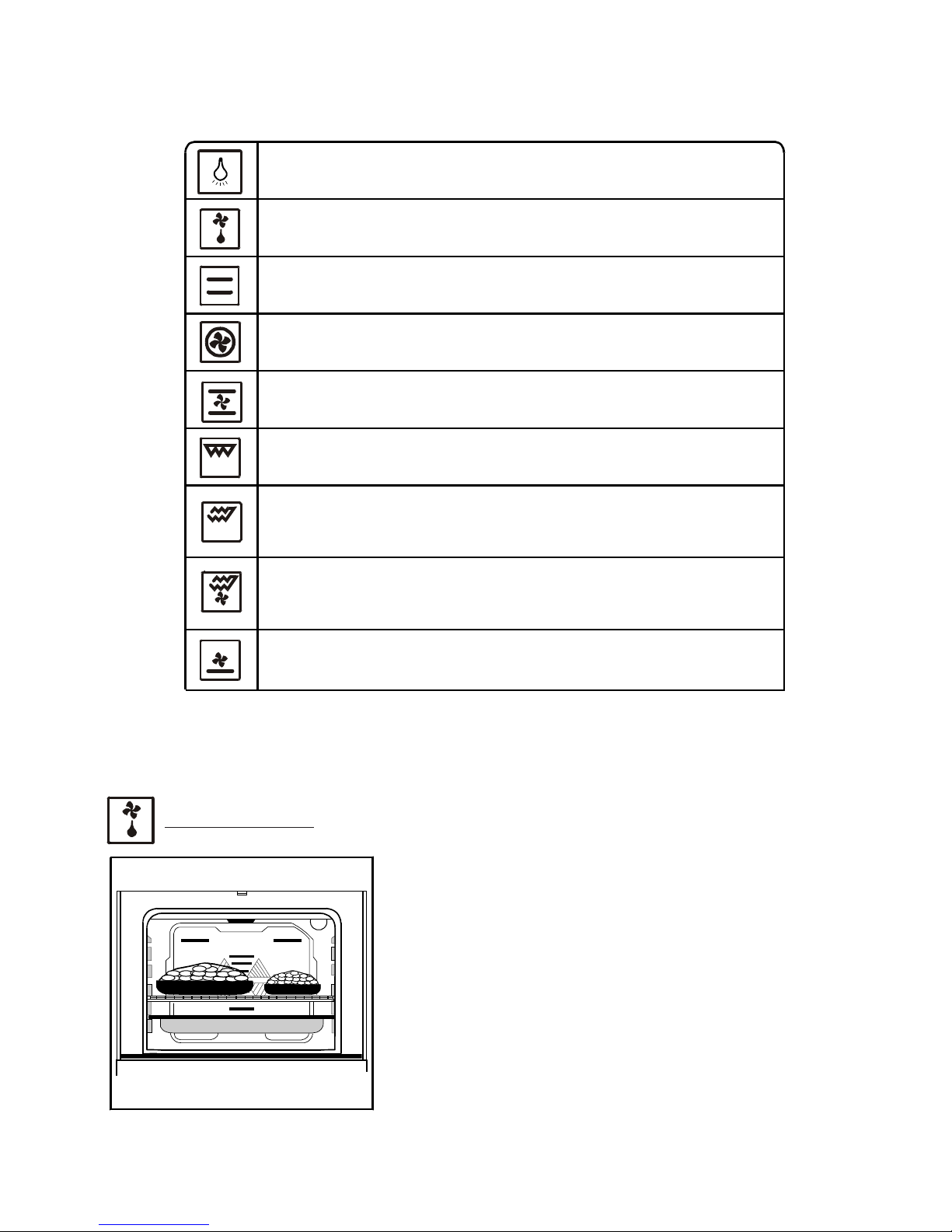

Oven Functions Up to 9
Thermostat Operation Indicator Light Yes
Oven Operation Indicator Light Yes

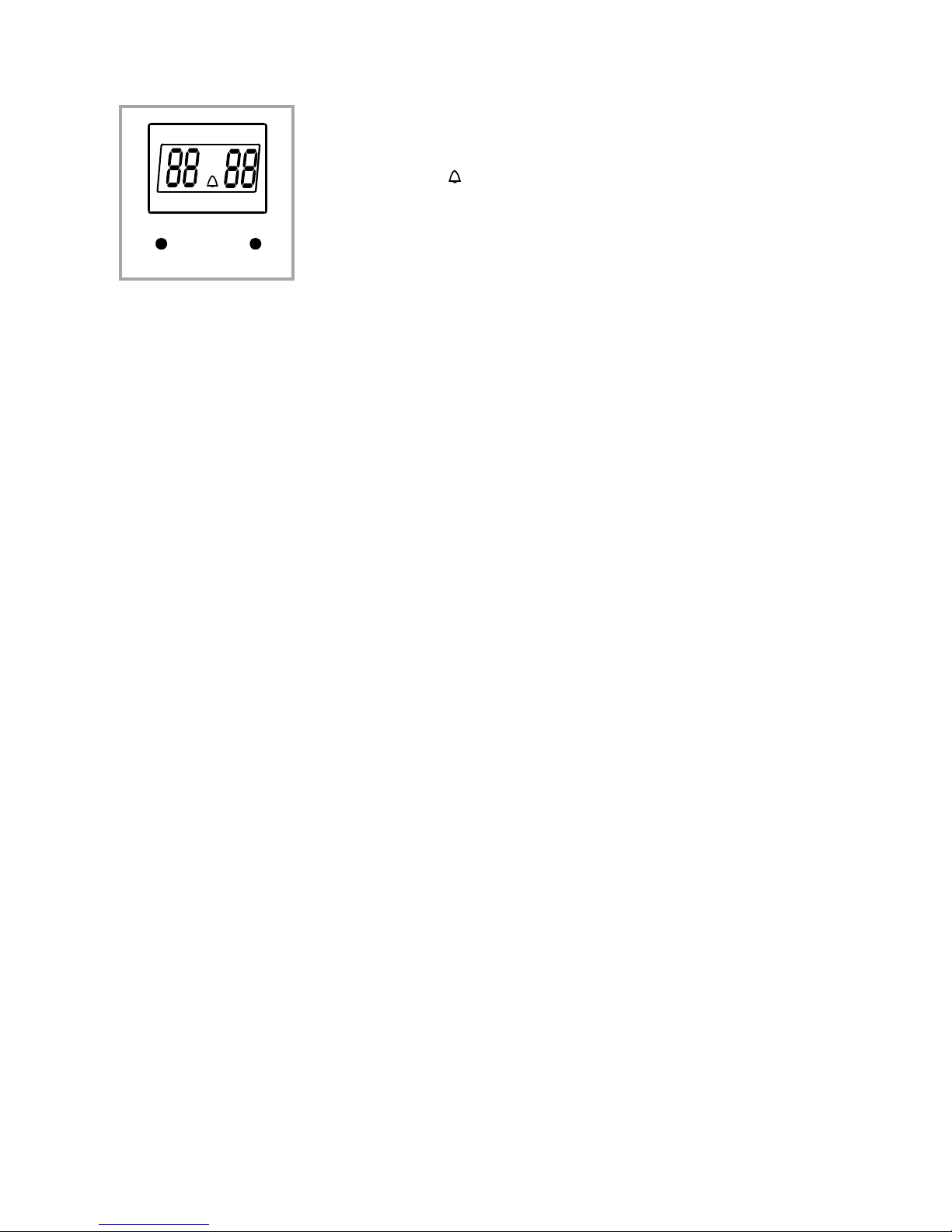

Digital Minute Minder Yes

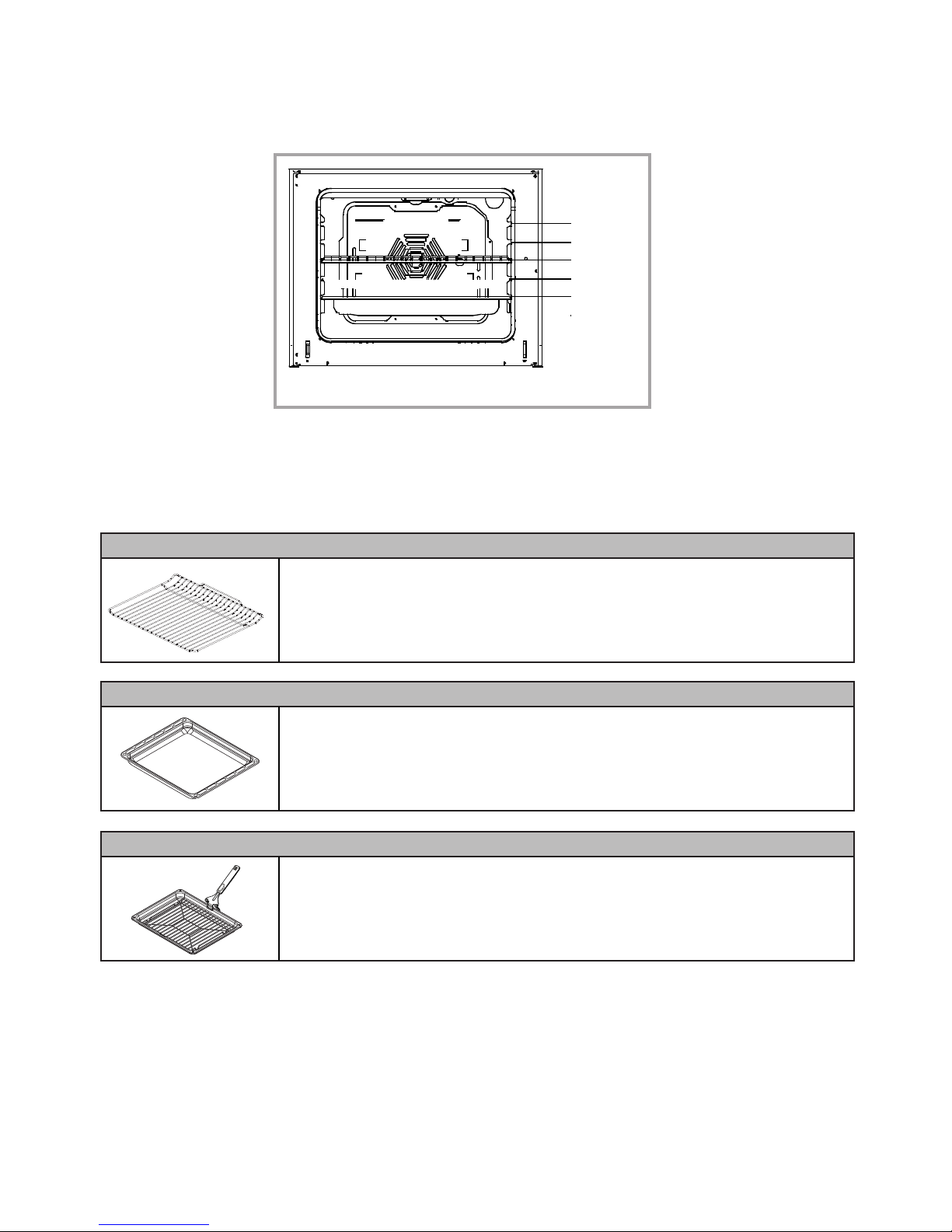

Roasting Tray (Deep Tray) 1
Chromed Grid with Stoper 2
Broil Pan with Handle Set 1
Total Power (Depends on Model) Maximum kW 3,2
Tangential Cooling Fan W 11,5
Voltage V 230
Energy consumption according to the EN50304 Standards kWh 0.79 / 0.89
Electric Cooker Energy Rating A
Shrink Packed Product Dimensions (Width / Depth / Height) mm 680 x 630 x 640
RoHS Compliance Standard
CE Compliance Standard
Others
Dimensions
Oven Features
RHBMFEO1/RHBMFEO1BB
1: TECHNICAL SPECIFICATIONS
For Customer Services, Spare parts & Warranty Information please call 0845 683 8717
-3-

2: INTRODUCTION OF PRODUCT

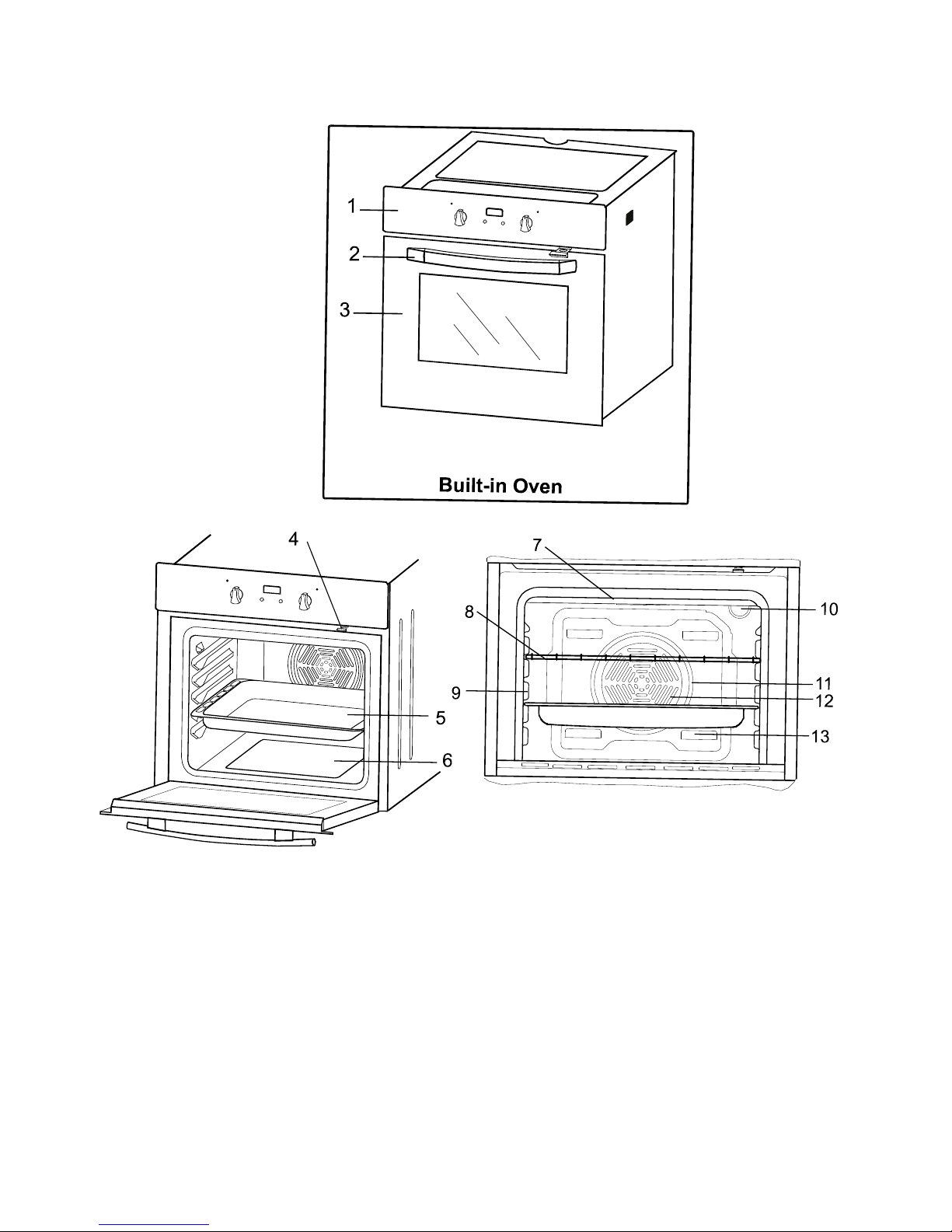

LIST OF COMPONENTS :
1- Control panel
2- Handle
3- Oven Door
4- Child Lock
5- Tray
6- Lower Heating Element (behind the plate)
7- Upper Heating Element (behind the plate)
8- Wire Grill
9- Racks
10- Oven Light
11- Turbo Heating Element(behind the plate)
12- Fan (behind the plate)
13- Air Outlet Shutters
For Customer Services, Spare parts & Warranty Information please call 0845 683 8717
-4-

2: WARNINGS
BEFORE STARTING TO USE THE APPLIANCE, PLEASE TAKE ALL ESSENTIAL
SAFETY MEASURES AND THROUGHLY READ THE USER MANUAL
This appliance has been designed for domestic use as built-in furniture only.
After removing the packaging, check if there is any damage to the appliance. If there is any
damage, never attempt to use the appliance and immediately contact your engineer. All
packaging materials need to be collected immediately and put out of reach.
The appliance must be installed and put in operation by an authorised technician under the
conditions provided by the manufacturer in this manual. The manufacturer cannot be held
responsible for any damage that might occur due to faulty installation.
Before connecting your appliance to the mains at home, make sure you check the
conformity of voltage and gas settings, which are specified on the information sticker
attached to the appliance and/or packaking, with the usage conditions available.
Do not operate the oven before it is fully installed.
Be sure that all of its buttons are turned off when the appliance is not in use.
Be sure that the supply cable is not wedged during the installation of the appliance.
If the gas supply cord is damaged, it must be replaced by the manufacturer, its service
agent or similarly qualified persons in order to avoid a hazard.
Before replacing the oven illuminating light, turn off the power to the appliance.
Switch off the appliance before cleaning, maintenance work etc.
Some parts of the appliance may preserve their heat for a long time; please wait untill the
parts primarily exposed to heat cool off before touching them.
Do not keep flammable items/substances near the appliance while it is in use.
When operating other electrical devices near the appliance, pay attention that their cables
do not come into contact with heated parts.
When the appliance is not in use, make sure that the buttons are in “ 0 “ (off) position.
Your appliance needs sufficient air circulation while it is operating. Carefully read the part
of this manual, where installation procedures are explained, and make sure the relevant
conditions are satisfied.
This operating manual has been prepared jointly for multiple models. Some of the
specifications explained in the manual, may not be included, in your appliance. Pay
attention to the explanations with illustrations while reading the manual.
For Customer Services, Spare parts & Warranty Information please call 0845 683 8717
-5-

FOR THE EFFICIENCY AND SAFETY OF THE APPLIANCE, WE RECOMMEND THAT
YOU ALWAYS USE ORIGINAL SPARE PARTS AND CALL ONLY AUTHORIZED
SERVICE PERSONNEL SHOULD YOU NEED HELP.
During use the appliance becomes hot. Care should be taken to avoid touching heating
elements inside the oven.
WARNING: Accessible parts may become hot during use. Young children should be
kept away
This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless they
have been given supervision or instruction concerning use of the appliance by a person
responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
Pay attention to the following when using your appliance.
Be careful to connect your appliance to an earthed power outlet or line.
Do not place the power cord of your appliance near any heated spot. Do not pass it near the
hob. Contact the nearest Authorized Service in the event any damage occurs to the power
cord.
For the models with timers, make sure to adjust the time at first run or in case of a power
failure. Heat and moisture will form in your cooking environment. Throughly ventilate your
kitchen.
When you first run your oven a certain smell will be emanated arising from the insulation
materials and the heater elements. For this reason, before using your oven, run it empty at
maximum temperature for 45 minutes.At the same time you need to properly ventilate the
environment in which the oven is installed.
Do not touch the interior and the heater when using the oven part of the applianca as it wil
be hot. After switching off the heater, do not touch it with your hand before it is completely
cooled off.
Do not put flammable and combustible materials into the oven. Do not place combustibles
including any pressured container, paper, plastic and fabric near the hob surface.
Be careful when using the oven part of the appliance as the oven surface can be hot. Keep
children away from the oven.
While the front door is open, do not let children climb on the door or sit on it.
For Customer Services, Spare parts & Warranty Information please call 0845 683 8717
-6-

The values indicated on the printed documents found on the product are values obtained in
a laboratory environment according to relevant standarts. These values may vary
according to the usage and environment conditions of product.
Your appliance is produced in conformity with the relevant safety instructions relating to
electrical appliances. Maintanance and repair works must be performed only by
Authorized Service technicians trained by the manufacturer firm. Installation and repair
works, performed without observing the rules may be dangerous.
The outer surface is heated while your appliance is operating. The elements heating the
inner surface of the oven and the steam out are extremely hot. These sections will continue
to preserve their heat for a period of time even if the appliance is switched off. Never touch
the hot surfaces. Keep children away.
In order to cook in your oven, the oven function and temperature setting butttons need to be
adjusted and the oven timer, if avaible, needs to be programmed. Otherwise, the oven will
not operate.
While the oven door is open, do not place anything on it. You may disturb the balance of the
appliance or break the door.
Unplug your appliance when it is not in use.
Protect your appliance from atmospheric effects. Do not leave it under the effects of the
sun,rain, snow, dust etc.
Warning: Accessible parts may become hot during use. Young children should be kept
away.
Warning: Ensure that the appliance is switched off before replacing the lamp to avoid the
possibility of electric shock.
Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass
since they can scratch the surface,which may result in shaterring of the glass.
Do not use steam cleaners for cleaning the oven.
Once the cooking has been completed, the cooling fan continues to operate until the oven
has cooled down sufficiently.
For Customer Services, Spare parts & Warranty Information please call 0845 683 8717
-7-

3: PREPARATION FOR INSTALLATION AND USE
When choosing a place for the oven, attention should be paid that there are no flammable
or combustible materials in the close vicinity, such as curtains, oil, cloth etc. which quickly
catch fire.
Furniture surrounding the oven must be made of materials resistant to heat more than 50
C°of the room temperature.
Required changes to wall cabinets and exhaust fans above the built-in combined product
as well as minimum heights from the oven board are shown in Figure 1. Accordingly, the
exhaust fan should be at a minimum height of 65 cm from the hob board. If there is no
exhaust fan the height should not be less than 70 cm.
The following instructions should be read by a qualified technician to ensure that the
appliance is installed, regulated and technically serviced correctly in compliance
with current regulations.
Important: disconnect the cooker from the electricity when making any
adjustement, maintenance operation, etc.
• Electric oven and hobs must be connected to an electrical cooker powerpoint -
consult a qualified electrician.
• Products must be installed in accordance with the manufacturer's safety
recommendations.
CONTACT THEAUTHORIZED SERVICE FOR INSTALLATION OF YOUR OVEN!
3.1. CHOOSINGAPLACE FOR THE OVEN
There are several points to pay attention to when choosing a place for your oven.
Make sure to take into account our recommendations below in order to prevent any
problems and dangerous situations, which might occur later!
For Customer Services, Spare parts & Warranty Information please call 0845 683 8717
-8-

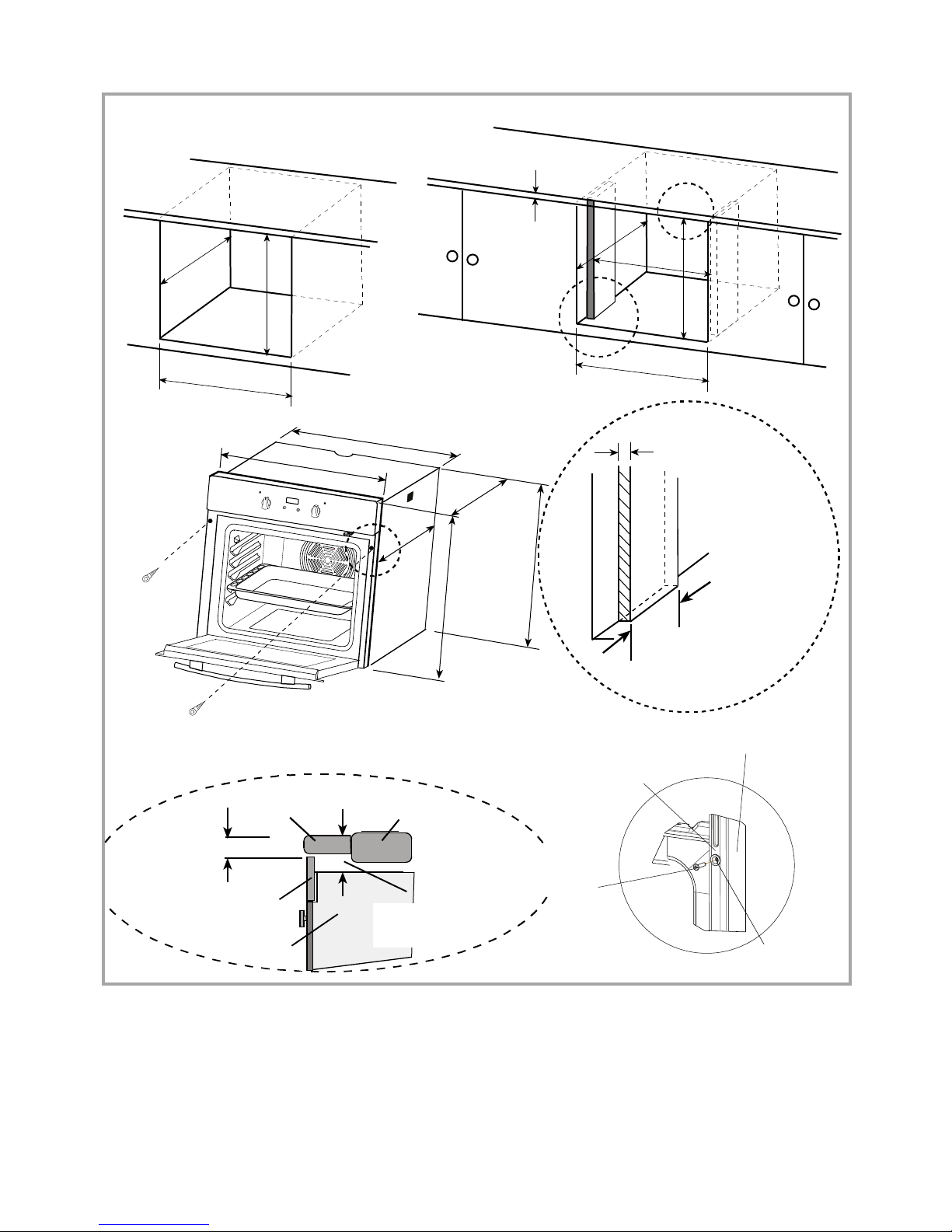

C DETAIL
Insert the oven into cabinet by pushing it forward. Open the oven door and insert 2 screws in
the holes located on the oven frame. While the product frame touches the wooden surface of
cabinet, tighten the screws.
Cabinet cut-out sizes
You can use either cabinet 1
or cabinet 2 cut-out sizes
2
A
B
595mm
Min 25mm
580mm
560mm
600mm
1
555mm
575mm
560mm
A DETAIL
20mm
Minimum 40mm(The wooden
part can be extended up
to cut-out depth)
Product sizes
C
555mm
555mm 570mm
Mounting screws
570mm
590mm
595mm
B DETAIL
Countertop
Built-in oven
Min.25mm
Control
panel
Distance between
countertop and
control panel
Min. 50mm
Built-in hob
Distance between
countertop snd
top panel of built-in
oven
3.2. INSTALLATION OF BUILT_IN OVEN
Front
frame
Spacer
Mounting
screw
Wooden
part
For Customer Services, Spare parts & Warranty Information please call 0845 683 8717
-9-

The dimensions and material of the cabinet in which the oven will be installed must be
correct and resistant to increases in temperature. In a correct installation, contact with
electrical or insulated parts must be prevented. Insulating parts need to be fitted in a way to
ensure that they cannot be removed by using any kind of tool. Installing the appliance in the
close vicinity of a refrigerator or a deep-freezer is not recommended. Otherwise, the
performance of the above-mentioned appliances will be negatively affected due to
emanating heat. After removing your oven from its packaging, be sure that the oven is not
damaged. In case, you suspect of any damage to the appliance, do not use it; immeditely
contact Authorized Service.
3.3. WIRING AND SAFETY OF BUILT IN OVEN
The instructions given below must be followed carefully during wiring :
The earthing cable must be connected via the screw with the earthing mark. Supply cable
connection must be as shown in Figure 6. If there is no earthed outlet conforming to
regulations in the installation environment, call theAuthorized Service immediately.
The earthed outlet must be in close vicinity of the appliance. Never use an extension cord.
The supply cable should not contact the product’s hot surface.
In case of any damage to the supply cable, make sure to call the Authorized Service. The
cable must be replaced by theAuthorized Service.
Wiring of the appliance must be performed by the Authorized Service. H05VV-F type
supply cable must be used.
Faulty wiring may damage the appliance. Such a damage will not be covered under the
warranty.
The appliance is designed to connect to 220-240V~ electricty is different than the value
given above, call theAuthorized Service immediately.
The Manucaturer Firm declares that its bears no responsibility for any
kind of damage and loss arising from not complying with safety norms!
Figure 2
BLUE
BROWN
YELLOW+GREEN
For Customer Services, Spare parts & Warranty Information please call 0845 683 8717
-10-

4: USING THE OVEN

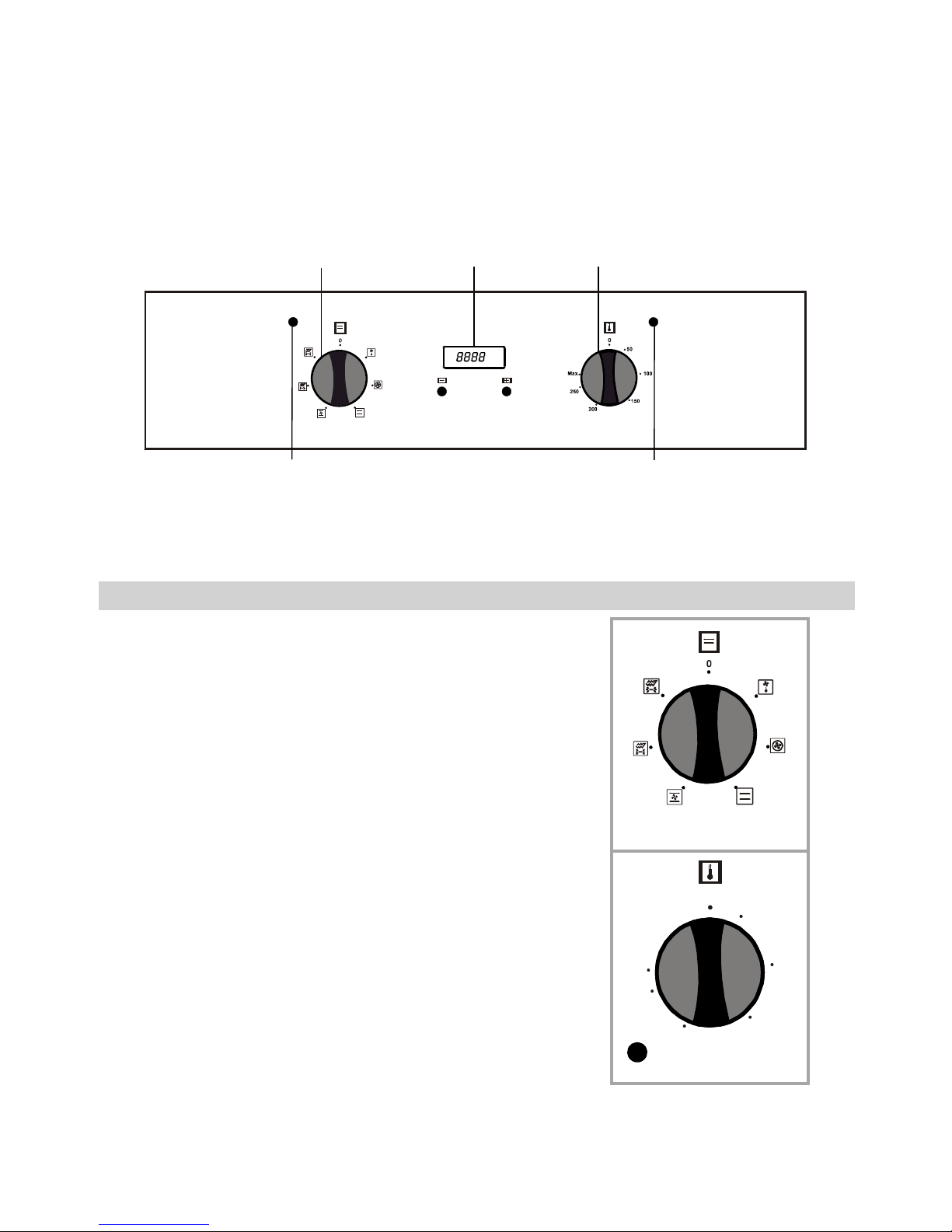

4.1 CONTROL PANEL
Oven Function
Control Knob
Digital Timer Oven Thermostat Knob
Oven Thermostat Light
Oven Operation Light
Built in Oven
Figure 3
Figure 4
4.2. USING THE OVEN PART OF THE APPLIANCE
Oven Function Control Knob:
To select the desired cooking function, turn the knob
to the related symbol (Figure 3). the details of the
oven functions have been explained in Table 1 and
next part.
Oven Thermostat Knob:
After the cooking function is set, the desired
temperature can be adjusted by oven thermostat
knob (Figure 4) and the oven will start to operate
(timer must be adjusted, if available).
Thermostat signal light will be on or off according to
thermostat operation.
0
50
100
200
250
Max
150
For Customer Services, Spare parts & Warranty Information please call 0845 683 8717
-11-

Table 1
The oven light, the red warning light and the fan will be turned
on. Performs the function of defrosting the frozen foods.
The oven’s thermostat, warning lights, the fan and the
turbo heater will be switched on.
The oven’s thermostat, warning lights, the fan, the
lower and upper heating elements will be switched on.
The oven’s thermostat, warning lights and the grill heater
function will be switched on.
The oven’s thermostat, warning lights, the upper heating
element and the grill heater function will be switched on.
The oven’s thermostat, warning lights, the upper heating
element, the grill heater and the fan function will be switched
on.
The oven’s thermostat, warning lights, the lower
heating element, will be switched on.
the fan,
The oven’s thermostat, warning lights ,the lower and
upper heating elements will be switched on.
The oven light will be turned on.
Availability of the functions explained below vary depending on the product model.
Defrost Function :
Figure 5
You can start the defrost operation by putting the frozen
food into the oven and bringing the knob to the indicated
mark. This function does not cook/bake the food; it only
helps defrost it within a short time. Put the food to be
defrosted on the wire rack that you will place on the third
rack support from the bottom (Figure 5). To collect the
water to accumulated due to the melting ice, insert an
oven tray into the lower rack.
4.3. USING THE OVEN FUNCTION CONTROL BUTTON
For Customer Services, Spare parts & Warranty Information please call 0845 683 8717
-12-

Lower-Upper Heating Element Function (Static Coking) :
In the type of cooking which is described as the traditional method, the heat emanating
evenly from the lower and upper resistors into the oven ensures even cooking of the lower
and upper side of the food. Adjust the thermostat knob of your oven to a temperature
recommended on the cooking table for the cooking operation you will perform. Preheating of
the oven for about 10 minutes is recommended. Leave food to cook, which is placed in a
suitable container, for the recommended duration. This position is a preferred function in
making cakes, sponge cakes, pastry, baked pasta, lasagne, pizza.
After cooking/baking, turn off the oven function control knob, the thermostat knob and cancel
the timer program if available. Take the cooked food out of the oven, place it in a safe place
and ensure that the oven copmletely cools off by keeping the oven door open. As the oven
will be hot, stay away from the oven and keep your children away as well.
Turbo Fan Function :
The turbo fan function evenly disperses the heat in the oven. All foods on all racks will be
cooked evenly.
Adjust the thermostat knob to the desired degree. Turn the function knob so it will point to the
Turbo function symbol. After completing the preheating of 10 minutes, place the foods
into the oven, which need to be put into suitable containers. This function is suitable for
cooking multiple dishes.
If you are going to cook using two trays at the same time; while adjusting the cooking
temperature, select the temperature that is the lowest among the levels suitable for your
foods, as shown on the table. Cooking with two trays requires additional cooking time
compared to cooking with one tray. Usually, the foods on both trays do not finish at the same
time. Therefore, take the tray out of the oven, which you observed is finished and continue
the cooking operation for the other tray.
After the cooking/baking, turn off the oven function control knob and the thermostat knob
and cancel the timer program if available. Take the cooked/baked food out of the oven, place
it on a safe place and ensure that the oven completely cools off by keeping the oven door
open. As the oven will be hot, stay away from the oven and keep your children away as
well.
Fan and the Lower - Upper Heating Element Function:
This is the position where the air is coming from the lower and upper heating elements is
circulated into the oven by the fan motor and blade.
Adjust the thermostat knob of your oven to the temperature recommended on the cooking
table for the cooking operation you will perform. Turn the oven knob so it points to the
For Customer Services, Spare parts & Warranty Information please call 0845 683 8717
-13-

symbol of this funtion, adjust the oven timer to the recommended time for cooking and
preheat the oven for about 10 minutes. Place the food in a suitable container and put into
the oven cooking has now started. This position is where usually very good
results are obtained in baking pastry. All parts of the food will be cooked evenly in this
position . Suitable for cooking with one tray.
After the cooking/baking, turn off the oven function control knob and the temperature
setting knob and cancel the timer program if available. Take the cooked/baked food
out of the oven, place it in a safe place and ensure that the oven completely cools off
by keeping the oven door open. As the oven will be hot, stay away from the oven and
keep your children away as well.
Grill Function :
Turn your oven’s thermostat knob so it will point to this temperature value. After a preheating
period of 5 minutes, put your food into the oven.
After the cooking, turn off the oven function control knob and the thermostat knob and cancel
the timer program. Take the cooked/baked food out of the oven, place it on a safe place and
ensure that the oven completely cools off by keeping the oven door open. As the oven will
be hot, stay away from the oven and keep your children away as well.
Upper Heating Element and Grill Function :
This function is used for faster grilling. For grilling; put the foods on the grill, put the grill on the
highest rack. After placing the oven tray on the Rack underneath you can start the grill
operation. The tray placed on the underneath will ensure that the oil dropping from the foods
will be collected. When grilling, the oven door must be closed and the oven
temperatureshould be adjusted to 190°.
Turn your oven’s thermostat knob so it point to this temperature value. After a preheating
period of 5 minutes, put your foods into the oven.
After the cooking, turn off the oven function control knob and the thermostat knob and cancel
the timer program if available. Take the cooked/baked food out of the oven, place it on a safe
place and ensure that the oven completely cools off by keeping the oven door open.
This function is used for grilling. For grilling; put the food on the grill, put the grill on the highest
rack. Place the oven tray underneath to catch dripping fat, you can start the grill operation.
The tray placed underneath will ensure that the oil dropping from he foods will be collected.
When grilling, the oven door must be closed and the oven temperature should be
adjusted to 190°.
For Customer Services, Spare parts & Warranty Information please call 0845 683 8717
-14-

As the oven will be hot, stay away from the oven and keep your children away as well.
Grill and Fan Function :
Faste grilling; put the foods on the grill, put the grill on the highest rack. After placing the oven
tray on the top rack, you can start the grill operation. The tray placed underneath will ensure
that the oil dropping from the foods will be collected.When grilling, the oven door must be
closed and the oven temperaure should be adjusted to 190°.
Turn your oven’s thermostat knob so it will point to this temperature value. After a preheating
period of 5 minutes, put your foods into the oven.
After the cooking, turn off the oven function control knob and the thermostat knob and cancel
the timer program. Take the cooked/baked food out of the oven, place it in ensure that the
oven completely cools off by keeping the oven door open. As the oven will be hot, stay
away from the oven and keep your children away as well.
Turbo Fan and Lower Heating Element Function :
Turbo Fan and the Lower Heating Element Function is ideal for baking pizza. While the turbo
fan evenly disperses the heat of the oven, the lower heating element ensures the baking of
the pizza dough.Adjust your oven’s function knob so it will point to the symbol of this function.
After a preheating period of 10 minutes, put your food into the oven.After cooking, turn off the
oven function control knob and the thermostat knob and cancel the timer program. Take the
cooked/baked food out of the oven, place it in a safe place and ensure that the oven
completely cools off by keeping the oven door open. As the oven will be hot, stay away
from the oven and keep your children away as well.
ENERGY SAVING
Oven door should not be opened often during cooking period.
For Customer Services, Spare parts & Warranty Information please call 0845 683 8717
-15-

-+
4.4. USING THE DIGITAL MINUTE TIMER
Figure 6
Simultaneously press (+) and (-) buttons of digital timer. The
display will start flashing, and then you can set the time setting by
using (+) and (-) buttons. When you press (+) or (-) buttons after
setting the time ( ) symbol is displayed, and the desiring timer set.
At the end of this time period, timer will make a beep sound but the
oven continues working. In order to turn the oven off, you must take
the switch and thermostat of the oven to closed position.
4.5. DIGITAL TIMER SOUND ADJUSTMENT
While the timer shows the time of day; if the button on the left (“-“minus button) is kept
pressed for 1-2 sec., timer will give an audible signal beep. After that each time the “-“ button
is pressed, timer will give three different types of signal beep. Do not press any further
buttons and timer will save the last selected signal type.
For Customer Services, Spare parts & Warranty Information please call 0845 683 8717
-16-

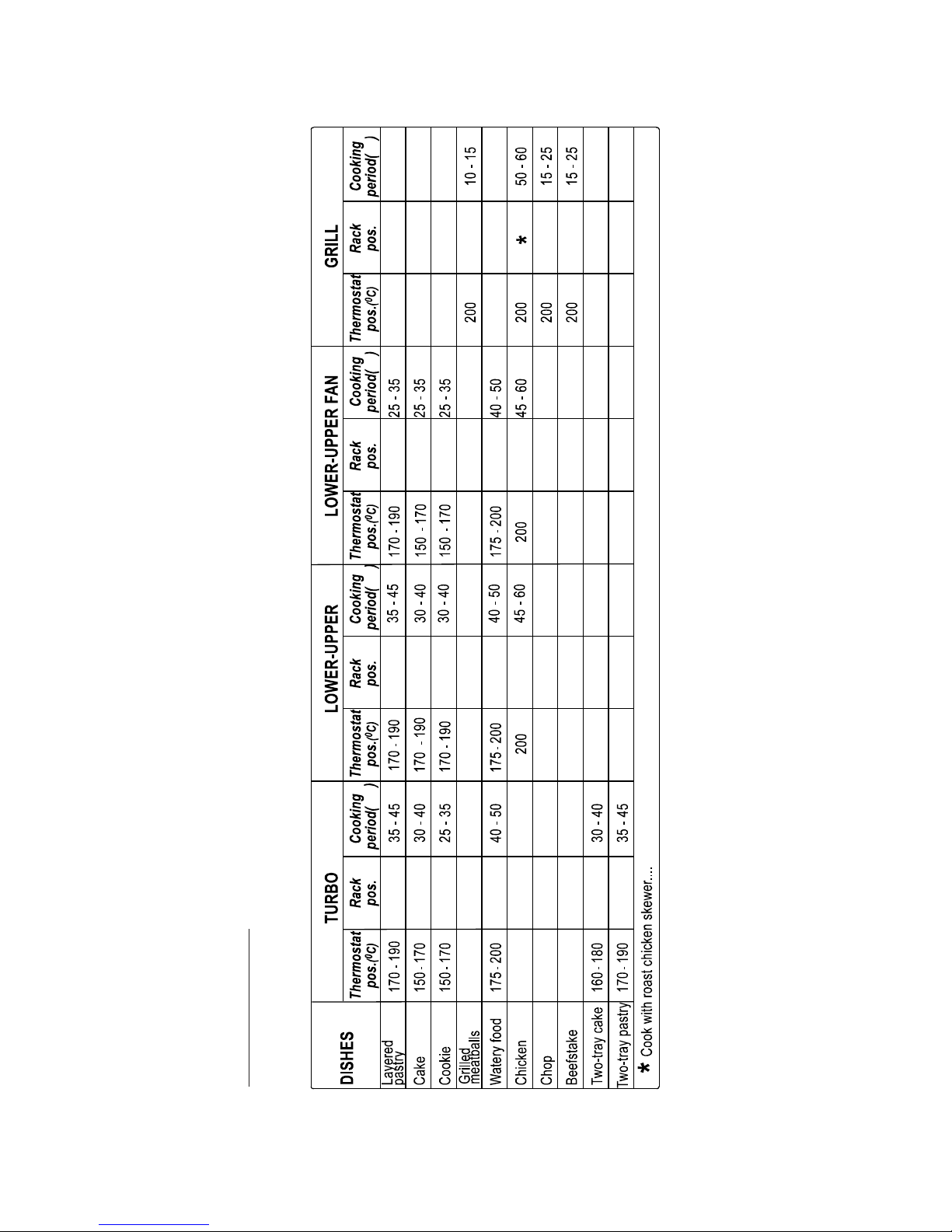

min min min min
4
3-4
4
1-2
1-2
1-2-3
1-2-3
1-2-3
2
1-4
1-4
1-2
1-2
2
1-2
1-2-3
1-2-3
2
1-2
For Customer Services, Spare parts & Warranty Information please call 0845 683 8717
-17-
Cooking guide

4.6.ACCESSORIES USED IN THE OVEN
It is recommended that you use the containers indicated on the table depending on the food
you will cook in your oven, you can also use glass containers, cake cutters, special oven
trays suitable for use in your oven, available in the market. Pay attention to the information
given by the mufacturer concerning this issue. If small sized containers are used, place
this container on the inner grill wire so it will be precisely on the middle of the wire. The
information given below should be implemented for enamelled containers.
If the food to be cooked does not completely cover the oven tray, if the food is taken out of the
deep-freezer or if the tray is used to collect the dripping juices of the foods during the grill
operation; deformation might be observed on the tray due to high temperatures forming
during the cooking/frying operation. This is normal, physical state may change during the
heat transfer. Do not leave a glass tray or container in a cold environment immediately after
cooking in them. Do not place them on cold and wet surfaces. Ensure that they slowly cool off
placing them on a dry piece of cloth. Otherwise, the glass tray or container might break. If you
are going to perform a grill operation in your oven, we recommend that use use the grill tray,
supplied together with your product (if your product includes this equipment). This way,
splattering and dripping oils will not make the oven interior dirty. If you are going to use the
large wire grill, insert a tray into one of the lower racks to avoid accumulation of the oils. To
make cleaning easier, add some water into it as well. In a grilling operation, use the 3. or the
4.rack and ail the grill to prevent the food to be grilled from sticking to the grill.
For Customer Services, Spare parts & Warranty Information please call 0845 683 8717
-18-

Installation of the Shelves
5. Rack
4. Rack
3. Rack
2. Rack
1. Rack
Oven tray is used to cook stews, chips, etc.
To locate the tray correctly in the cavity, put it to any rack and
push it up to the end.
Oven Tray
Oven Accessories
Wire grid is used to grill or to place different cookwares on.
To locate the wire grid correctly in the cavity, put it to any rack and
push it up to the end.
Wire grid x 2
* The accessories of your oven may be different due to the model of your product.
Grill pan set is used to grill bread, bacon, sausages, steaks, etc.
WARNING: The grill pan has a detachable handle. Ensure when
using the grill pan handle that it is centralised and securedas seen
in the picture. Do not leave the handle in position when grilling.
Grill Pan and Handle Set
For Customer Services, Spare parts & Warranty Information please call 0845 683 8717
-19-
