Russound DMS-3.1 User manual

DMS-3.1
Digital Media Streamer
Installation Manual
PRELIMINARY

2 Russound DMS-3.1 Installation Manual
The lightning ash with arrowhead symbol,
within an equilateral triangle, is intended to alert
the user to the presence of uninsulated dangerous
voltage within the product’s enclosure that may
be of sucient magnitude to constitute a risk of electric
shock to persons.
The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and maintenance
(servicing) instructions in the literature
accompanying the appliance.
Safety Instructions
1. Read Instructions - All the safety and operating instructions
should be read before the appliance is operated.
2. Retain Instructions - The safety and operating instructions
should be retained for future reference.
3. Heed Warnings - All warnings on the appliance in the
operating instructions should be adhered to.
4. Follow Instructions - All operating and user instructions
should be followed.
5. Water and Moisture - The appliance should not be used near
water; for example, near a bathtub, washbowl, kitchen sink,
laundry tub, in a wet basement, or near a swimming pool.
The apparatus shall not be exposed to dripping or splashing
liquids and no objects lled with liquids, such as vases, shall
be placed on the apparatus. Do not touch the appliance
with wet hands. Do not handle the appliance or power cord
with wet or damp hands. If water or any other liquid enters
the appliance cabinet, take it to qualied service personnel
for inspection.
SAFETY INSTRUCTIONS
6. Cleaning - The appliance should be cleaned only as
recommended by the manufacturer. From time to time you
should wipe o the front and side panels and the cabinet
with a soft cloth. Do not use rough material, thinners, alcohol
or other chemical solvents or cloths since this may damage
the nish or remove the panel lettering.
7. Ventilation - The appliance should be situated so that
its location or position does not interfere with its proper
ventilation. For example, the appliance should not be
situated on a bed, sofa, rug, or similar surface that may
block the ventilation openings, or placed in a built-in
installation, such as a bookcase or cabinet that may impede
the ow of air through the ventilation openings. Place the
unit in a well-ventilated location, leaving at least 2 inches
(5 cm) of clearance on all sides, top and rear of unit for air
ow. If ventilation is blocked, the unit may overheat and
malfunction.
8. Heat - The appliance should be situated away from heat
sources such as radiators, heat registers, stoves, or other
appliances (including ampliers) that produce heat.
9. Grounding or Polarization - Precaution should be taken so
that the grounding or polarization means of an appliance is
not defeated.
10. Power Cord Protection - Power supply cords should be
routed so that they are not likely to be walked on or pinched
by items placed upon or against them, paying particular
attention to cords at plugs, receptacles, and the point where
they exit from the appliance.
11. Power Sources - The appliance should be connected to a
power supply only of the type described in the operating
instructions or as marked on the appliance.
12. Main Power Disconnect - The power switch is a single-pole
switch. When the switch is in the“O” position, the appliance
is not completely disconnected from the main power. The
main power plug is used as the disconnect device and shall
remain readily operable. When installing the product, ensure
that the plug is easily accessible.
13. Non-Use Periods - The power cord of the appliance should
be unplugged from the outlet when left unused for a long
period of time.
14. Attachments - Only use attachments/accessories specied
by the manufacturer.
15. Carts and Stands - The appliance should
be used only with a cart or stand that is
recommended by the manufacturer. An
appliance and cart combination should be
moved with care. Quick stops, excessive
force and uneven surfaces may cause the appliance and cart
combination to overturn.
16. Wall or Ceiling Mounting - The appliance should be
mounted to a wall or ceiling only as recommended by the
manufacturer.
17. Location of the Amplier - Do not mount this unit under a
kitchen cabinet. Do not expose the amplier to direct sun
light or heating units as the amplier internal components’
temperature may rise and shorten the life of the components.
Avoid damp and dusty places.
18. Object and Liquid Entry - Care should be taken so that
objects do not fall and liquids are not spilled into the
enclosure through the openings.
19. Servicing - The user should not attempt to service the
appliance beyond that described in the operating
instructions. All other servicing should be referred to
qualied service personnel.
20. Damage Requiring Service - The appliance should be
serviced by qualied service personnel when: A. The power
supply cord or the plug has been damaged; B. Objects have
fallen, liquid has been spilled into the appliance; C. The
appliance has been exposed to rain; or D. The appliance does
not appear to operate normally; or E. The appliance has been
dropped or the enclosure is damaged.
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE THE COVER. NO USER-
SERVICEABLE PARTS INSIDE. REFER SERVICING
TO QUALIFIED SERVICE PERSONNEL.
WARNING: TO REDUCE THE RISK OF FIRE
OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE.
Note: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to part 15 of
the FCC rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which
can be determined by turning the equipment o and on, the
user is encouraged to try to correct the interference by one of or
more of the following measures: reorient or relocate the receiving
antenna; increase the separation between the equipment and
receiver; connect the equipment into an outlet on a circuit
dierent from that to which the receiver is connected, or consult
the dealer or an experienced radio/TV technician for help.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme
NMB-003 du Canada.

3Russound DMS-3.1 Installation Manual
SAFETY  OUTDOOR ANTENNA CONNECTION

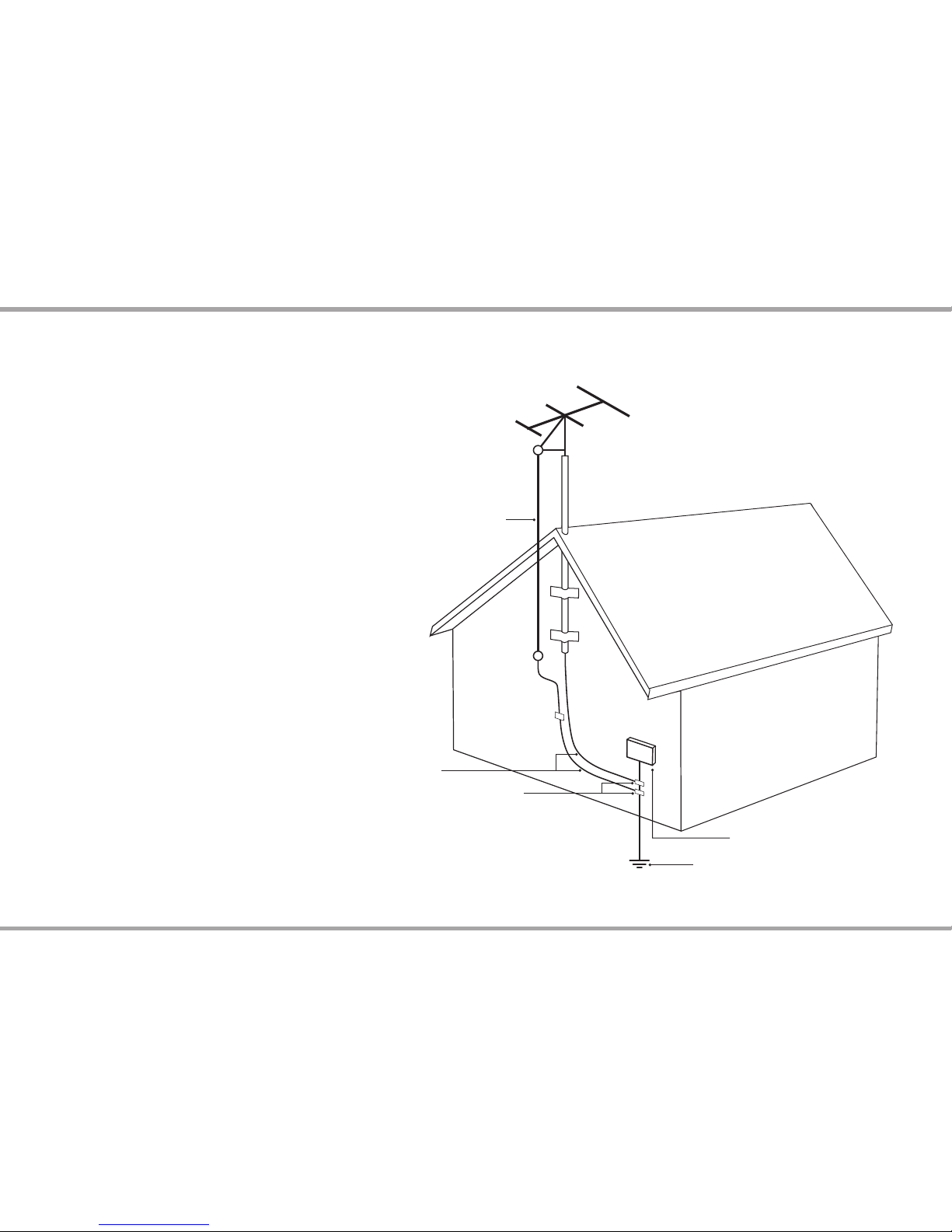

Grounding an Outdoor Antenna
If the AM/FM tuner is used with an outdoor antenna, the antenna must be
grounded against static charges and voltage surges. Consult the instructions
that came with the antenna or contact the antenna manufacturer for proper
installation instructions. The diagram gives a general depiction of how an
outdoor antenna should be grounded. For complete guidelines on antenna
grounding procedures, please consult the National Electrical Code, Section
810, ANSI/NFPA No. 70-1984.
Antenna Lead-In Wire
Grounding Conductors
Ground Clamps
Electric Service Equipment
Power Service
Grounding Electrode System

4 Russound DMS-3.1 Installation Manual
Safety Instructions .................................................................................................................. 2
Product Overview ................................................................................................................... 5
Streamer Front and Back Panel Illustrations..................................................................6
Streamer Front and Back Panel Features ........................................................................ 7
Standalone Application ........................................................................................................ 8
Audio Connections with C-Series Controllers............................................................... 9
Ethernet Connections..........................................................................................................10
AM/FM Connections, 12V Trigger In/Out......................................................................11
USB Device Playback............................................................................................................12
Menu Navigation with Russound User Interfaces .....................................................13
SIRIUSXM Internet Radio ....................................................................................................14
vTuner Internet Radio ..........................................................................................................15
Digital Music File Playback.......................................................................................... 16-17
Technical specications ......................................................................................................18
Warranty ...................................................................................................................................19
TABLE OF CONTENTS

5Russound DMS-3.1 Installation Manual
Introduction
Russound’s DMS-3.1 is a digital media streaming device that is capable of
playing digital audio content from various sources. Streaming refers to the
delivery method of the content rather than to the content itself. Based on
the installation method, the DMS-3.1 can play a wide variety of content for
your listening pleasure. Software upgradable, your DMS-3.1 will support new
features as they become available.
The DMS-3.1 has three separate streaming media players with corresponding
analog audio outputs that can feed multiple ampliers. This allows
independent content selection by dierent rooms simultaneously.
The DMS-3.1 is an AirPlay accessory that can stream audio content from
AirPlay enabled sources such as an Apple iPod touch, iPhone, or iPad that
is running iOS 4.2 or greater. In addition, computers running iTunes 10 or
newer can stream content via AirPlay to the DMS-3.1. AirPlay will override
any selected source of audio content currently playing on any of the three
streaming outputs.
The DMS-3.1 is connected to the Local Area Network in a home via a
hardwired Ethernet connection for access to digital audio content. If used with
a C-Series controller and a supported user interface, the DMS-3.1 can access
and playback digital audio les from LAN connected DLNA / UPnP media
servers. Additionally, if connected to the internet and used with a C-Series
controller and supported user interface, the DMS-3.1 can stream content
from SIRIUS Internet Radio service and have access to thousands of streaming
internet radio stations from around the world.
A built-in AM/FM tuner with RDS feedback adds local radio as a listening
choice, and USB ports accept connections from USB storage devices using
FAT16 and FAT32 le formats for audio content playback if used with a C-Series
controller and supported user interface.
Rack Mounting
The DMS-3.1 can be rack mounted using the included rack-mount ears and
hardware. The unit will take up one rack space.
PRODUCT OVERVIEW
Features
• Three independent streams
• Apple AirPlay enabled for streaming of audio content
• Streams content from internet radio stations and music service providers
• Proves access and playback of digital audio les on LAN-connected DLNA /
UPnP media servers
• Playback of audio content from USB storage devices using a FAT16 or FAT32
le system
• Built-in AM/FM tuner with RDS feedback

6 Russound DMS-3.1 Installation Manual
Source ID Switch
12VDC Trigger in/out
FRONT AND BACK PANEL
Ethernet Port Line Output (RCA)
AUX USB Port
FM Antenna Connection
DMS-3.1 Rear Panel
DMS-3.1 Front Panel
Power Switch
AC Input
Power LED
USB Playback Port AM Antenna Connection
USB Playback Port
(Stream 1)

7Russound DMS-3.1 Installation Manual
FRONT AND BACK PANEL FEATURES
Power LED
The Power LED is lit solid red when the DMS-3.1 is powered on. This LED
can also indicate other DMS-3.1 status information as described under Status
Indication section at the end of this manual.
Power switch
Turns the streamer on/o. This switch does not disconnect the main power
feed; this requires that the power cord be unplugged from the outlet.
Front panel USB port input
The front panel USB port corresponds to Stream 1 for playback of digital
audio les from connected storage devices such as hard drives and ash
memory devices.
Ethernet port
The Ethernet connection provides the link for the DMS-3.1 to the network
for control and access to content. For AirPlay use, the DMS-3.1 must be on
the same network as the AirPlay source. If used with a C-Series controller, the
DMS-3.1 requires a connection to the same network for control and displaying
metadata on keypads and touch screens. RJ45 Ethernet port supports
10/100BASE-T connectivity for TCP/IP communication over the Local Area
Network (LAN) with other devices and to the internet.
There are two LEDs on the Ethernet port of the DMS-3.1 that indicate the
status of the network connection. These are described under Status Indication
section at the end of this manual.
AUX USB port for rmware updates
The AUX USB port supports rmware updates from a USB drive. This port does
not support music playback.
12VDC trigger in/out
The 12VDC Trigger input is not used at this time for the DMS-3.1 but any
connection made to this will be passed through to the output.
Audio output
There are 4 sets of stereo RCA audio outputs to connect the DMS-3.1 to an
audio system. One for each of the three streams and one for the AM/FM tuner.
Source ID switch
There are 4 Source ID switches on the DMS-3.1 that correspond with the
three streaming modules and the built-in AM/FM tuner. Each switch must be
set to a unique value so that no two are the same. This will ensure that each
is identied separately for AirPlay use. If the DMS-3.1 is used with a C-Series
controller, each switch value must correspond to the conguration settings of
the controller for proper source identication and communication.
Back panel USB port input
The back panel USB ports correspond to Stream 2 and Stream 3 for playback
of digital audio les from connected storage devices such as hard drives and
ash memory devices.
FM antenna connection
The FM antenna connects to the F-type coax connection.
AM antenna connection
The AM loop antenna connects to the GND (ground) and AM spring
terminals.
AC input
Voltage is autoswitching for 100V to 240V operation 50-60 Hz. This receptacle
accepts a 3-prong IEC 320 type connector. A detachable 3-terminal power cord
is included.

8 Russound DMS-3.1 Installation Manual
STANDALONE APPLICATION
The DMS-3.1 can be used in standalone mode solely as an Apple AirPlay
device. The DMS-3.1 must be on the same Local Area Network (LAN) as the
AirPlay enabled source of the content that is to be streamed.
In a standalone conguration, the DMS-3.1 audio outputs are connected
directly to the audio inputs of an audio receiver or multichannel amplier
(shown) which will power the speakers located in dierent rooms of the
home. In this conguration, only content received from an AirPlay enabled
device will be available for playback.
The DMS-3.1 source ID switches will assign a unique name to each stream for
identication within the list of AirPlay speakers from you can stream content
to. On the AirPlay enabled source, press the AirPlay button [AirPlay icon
here] to select the stream on the DMS-3.1 which you wish to send content
to. Note that iTunes permits streaming of content to one or multiple AirPlay
speaker locations while iPod touch, iPhone, and iPad can stream to a single
AirPlay speaker location only. If using a Russound user interface, ‘AirPlay’ will
be displayed during use and the AirPlay stream will override any other mode
currently in use on the DMS-3.1.

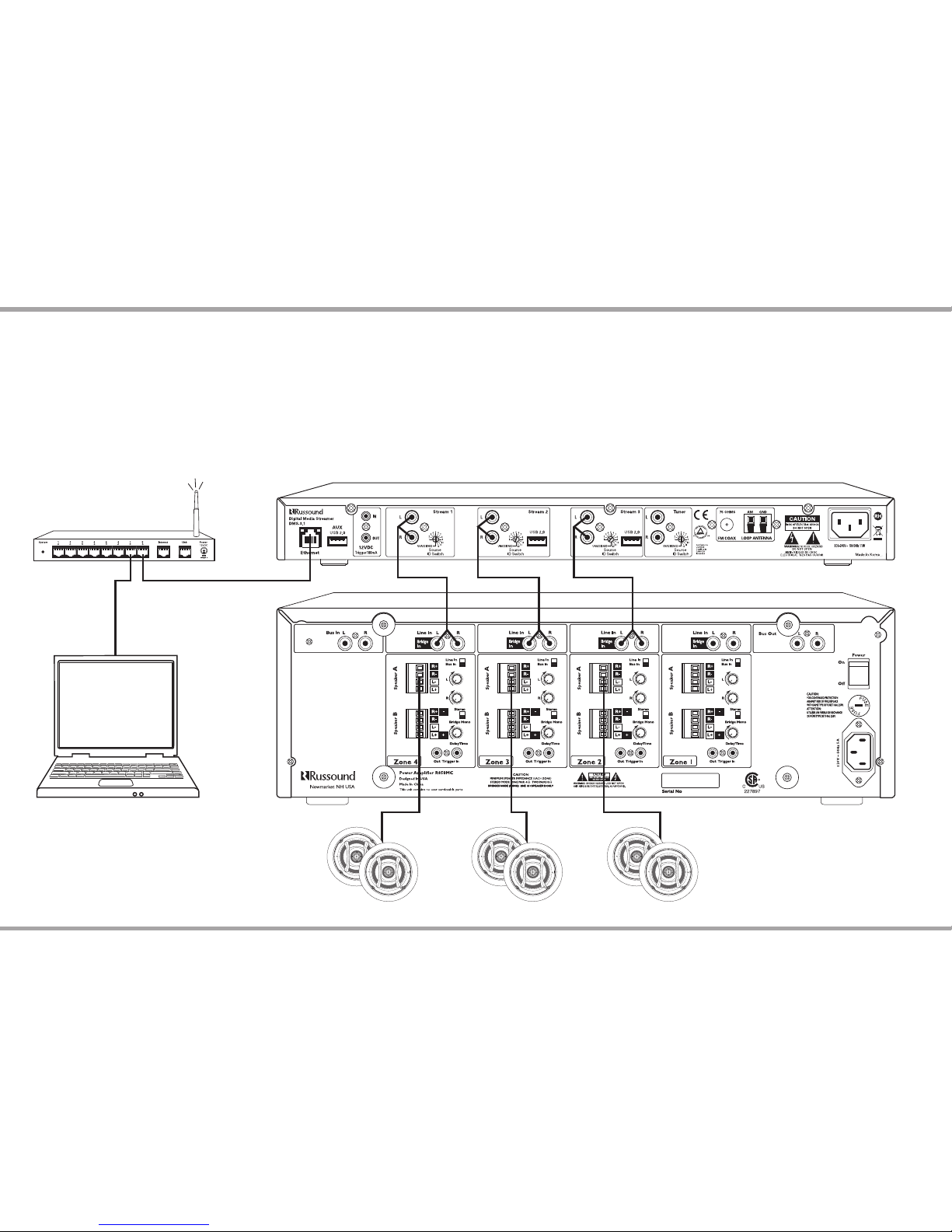

R850MC Amplier
RCA cables
Speaker wires
DSM-3.1 Streamer
CAT5 Ethernet
iTunes with AirPlay
content support
Network router

9Russound DMS-3.1 Installation Manual
AUDIO CONNECTIONS WITH CSERIES CONTROLLERS

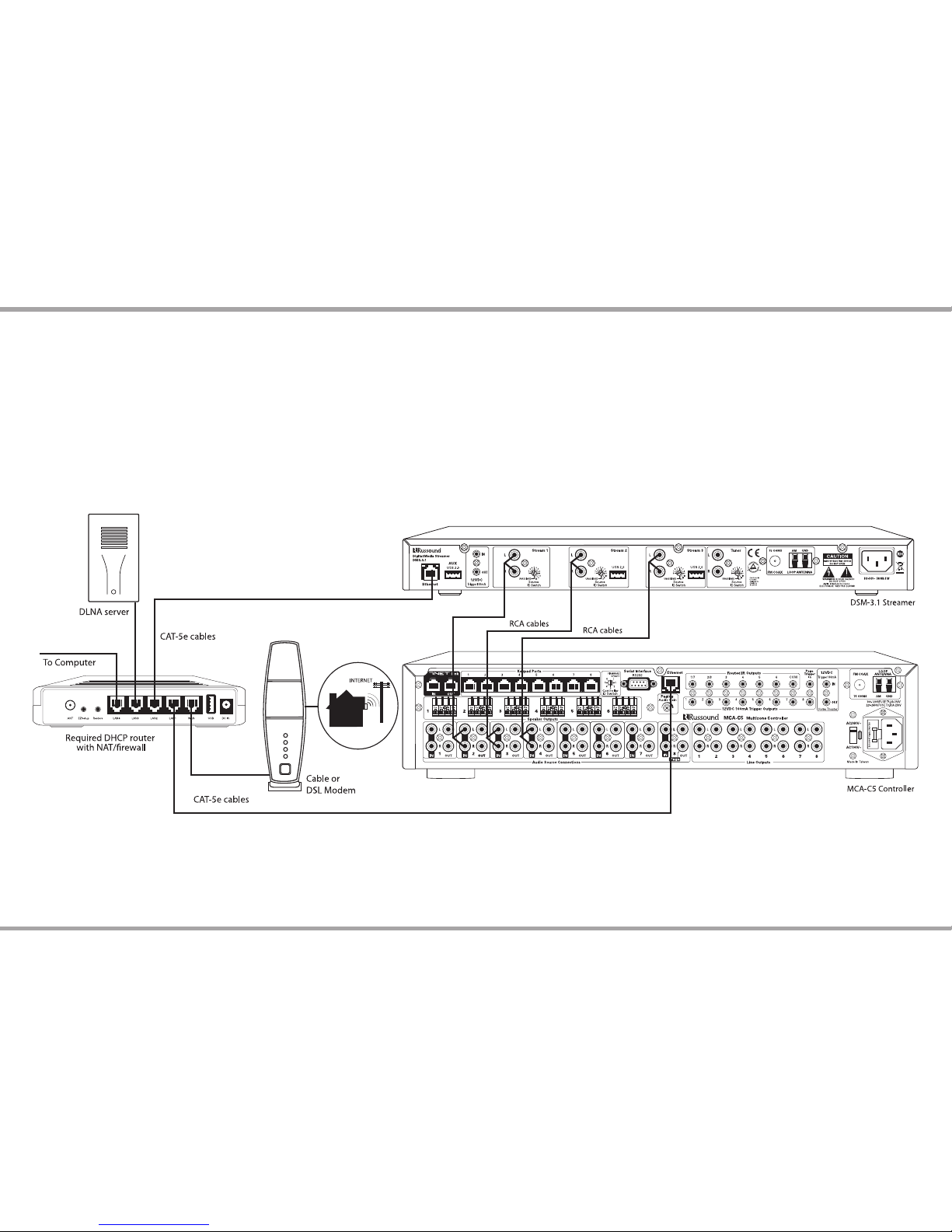

Connections for audio
MCA-C5 Controller
DSM-3.1 Streamer
RCA cables
AM loop antenna
FM antenna
RCA cables
Network router
The DMS-3.1 can be used with a Russound C-Series controller and supported
user interfaces to access all features and provide amplication for speakers in
multiple locations. Use standard RCA audio patch cables to connect the audio
outputs of the DMS-3.1 to the source inputs on the C-Series controller.
For proper operation with C-Series controllers, the DMS-3.1 source ID
switches need to be set to correspond to the source inputs used on the
C-Series controller. These settings must match the C-Series controller system
conguration programmed through SCS-C5 software.

10 Russound DMS-3.1 Installation Manual
ETHERNET CONNECTION
The DMS-3.1 requires an Ethernet connection to the same Local Area Network
(LAN) on which reside any AirPlay sources and if used, any DLNA / UPnP Media
servers and C-Series controllers. This permits the devices to communicate
to deliver content, metadata, and control data. Internet access on the LAN is
required for streaming content from any online services.
The DMS-3.1 requires a DHCP enabled router to obtain its IP address on the
LAN as it does not directly support conguration of a static IP address. The LAN
must support a minimum of 10/100 BASE-T Ethernet and is recommended to
have a rewall enabled for security purposes. A standard CAT5 Ethernet patch
cable that is terminated with RJ45 ends in a straight through arrangement is
used to connect the DMS-3.1 to the network.
Ethernet connection to network

11Russound DMS-3.1 Installation Manual
Connections for AM/FM tuner
AM Antenna
Connect the included loop antenna for AM reception to the back panel,
attaching the GND (ground) and AM ends to the appropriate connections. It is
recommended to use an external outdoor or attic-mounted long wire antenna
for best performance for AM reception. Use a 75-ohm to 300-ohm balun at the
AM connection on the unit, and attach the 75-ohm coax cable to the balun.
FM Antenna
Attach the included FM antenna to the FM COAX connection on the back
panel by pushing the F-type quick-connect termination of the antenna onto
the FM connection. It is recommended to use an external outdoor or attic-
mounted long wire antenna for best performance for FM reception. Attach the
desired length of 75-ohm coax cable directly to the FM connection on the unit.
AM loop antenna
FM antenna
DSM-3.1 Streamer
AM/FM ANTENNA CONNECTIONS, 12V TRIGGER IN / OUT
12VDC Triggers
The DMS-3.1 provides a loop through for a 12VDC trigger signal. The DMS-3.1
does not require a 12VDC trigger signal for operation and does not provide
12VDC trigger output voltage.

12 Russound DMS-3.1 Installation Manual
USB DEVICE PLAYBACK
External USB drive
MCA-C5 Controller
DSM-3.1 Streamer
RCA cables
Front-panel USB port
(outputs on Stream 1)
USB cable
If used with a C-Series controller, the DMS-3.1 can be used to playback audio
les directly from a connected USB 2.0-compliant storage device. The three
USB ports are each associated with one of the three streaming modules in the
DMS-3.1. The front panel USB port corresponds to stream 1 while stream 2 and
stream 3 have USB ports on the back panel. Content connected to a particular
USB port is only available to its associated stream output. The USB storage
device used must be formatted for a FAT16 or FAT32 le system. These are the
most common le storage systems used today.
Note: The menu structure for DMS-3.1 navigation of a USB storage device
is determined by that device. The DMS-3.1 lters the les based on being
supported audio le types so any photo or movie les will not be shown.
However, folders may be visible which are not related to audio le playback.
Connections for USB drive output

13Russound DMS-3.1 Installation Manual
MENU NAVIGATION WITH RUSSOUND USER INTERFACES
When used with a C-Series controller and supported user interface, the four
audio outputs of the DMS-3.1 are accessed from either a source list or through
a dedicated button on keypads or touchscreen devices. Each of the DMS-
3.1 outputs will be displayed using the name congured through SCS-C5
conguration software.
The MDK-C5‘Home’button returns the user to the Main menu for the C-Series
controller. The ‘Menu’ button enters the current mode’s menu with one press
while a second press enters the DMS-3.1 mode selection menu.
After selecting a particular stream output of the DMS-3.1 from the source
list, any currently playing content will be displayed. Pressing the Menu button
once will enter a currently playing mode’s respective menu or if no mode is
currently selected it will enter the main menu for mode selection. When a
particular mode’s menu is displayed, pressing the Previous button ( I<) will step
back through the menu levels, Pressing Next (>I) or OK will enter the menu
selection. Use Plus (+) and Minus (-) buttons to move up and down within
a menu list. While navigation within each mode is highly similar if not the
same, dierences can exist as the particular service provider of content can
determine the menu structure.
Stream 2 12:00 PM
Now Playing
Menu
Media Server
USB
Internet Radio
SiriusXM
OK
VOL
VOL
HOME
MENU
1. Screen Name / Current Mode / Menu Name
2. Move up in menu list
3. Move back to previous menu level
4. Move down in menu list
5. Return to the Home Menu
6. From a Now Playing screen, rst press enters mode
specic menu, second press enters mode selection menu
7. Enters a sub-menu (as indicated by > next to a menu
list item)
8. Selects item chosen in menu list or enters a sub-menu
1
25
6
7
8
3
4

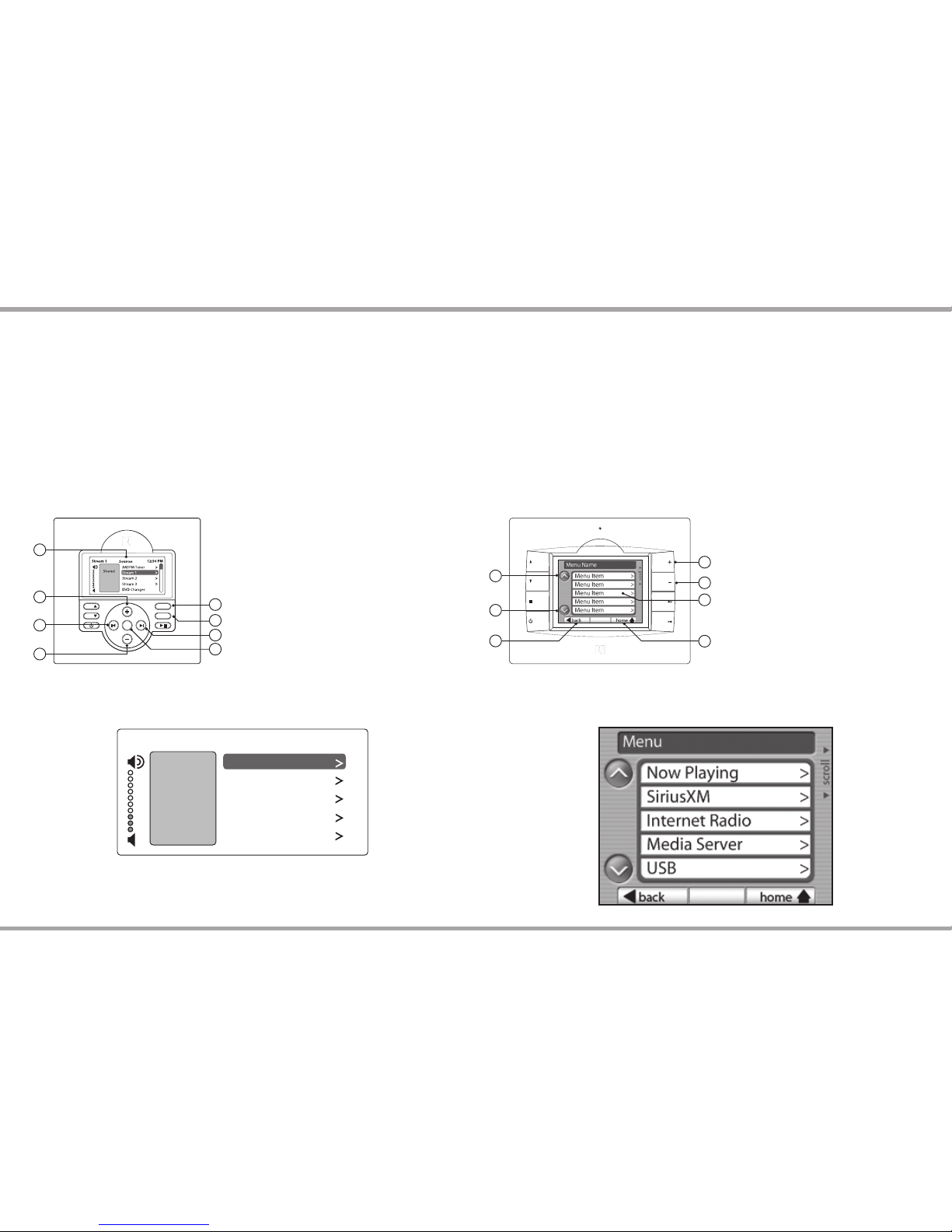

MDK-C5 Menu Navigation for DMS-3.1
MDK-C5 Menu Navigation for DMS-3.1 MDK-C5 Menu Navigation for DMS-3.1
1. Scroll up in the menu list
2. Scroll down in the menu list
3. Goes back one menu level
4. Return to the Home Menu
5. Selects menu item or enters a sub-menu
(as indicated by > next to a menu list item)
1
1
2
2
34
5
TS3 Menu Navigation for DMS-3.1

14 Russound DMS-3.1 Installation Manual
SIRIUSXM INTERNET RADIO

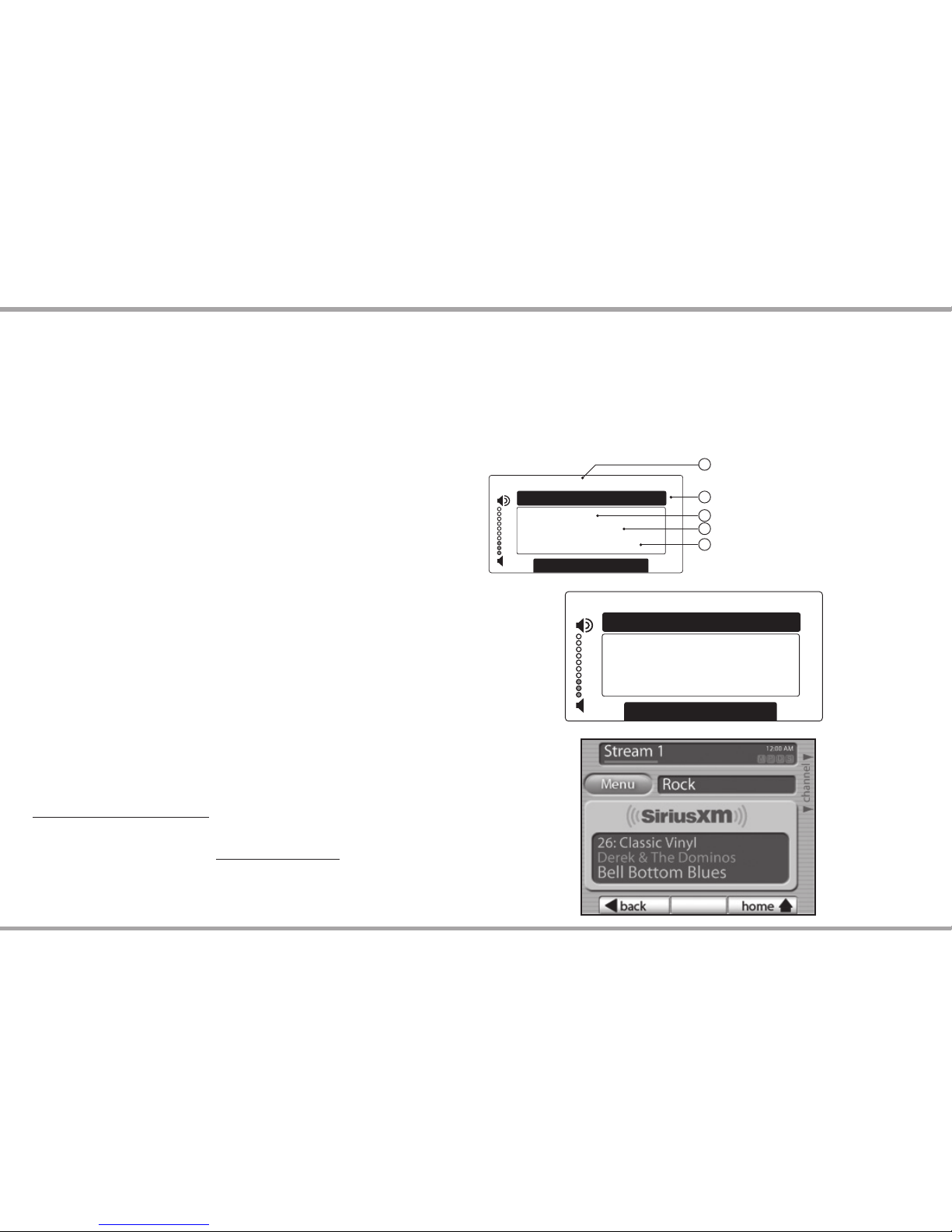

Listening to SiriusXM Internet Radio
SiriusXM Internet radio permits one instance of streaming content per
subscription though users can listen to a shared audio output when used
with a C-Series controller. So while, the same user account credentials can
be entered into all streaming modules of the DMS-3.1, only one can stream
content at any given time. Selection from another streaming module and will
disconnect prior instances of SiriusXM internet radio streaming. The DMS-3.1
can have up to three user accounts (one per stream) for independent listening
on all outputs of the DMS-3.1.
SiriusXM channels are ltered by categories so the user will rst be prompted
for the selection of the category then the list of all channels within that
category will be presented for selection.
To listen to SiriusXM Internet Radio, you’ll need to subscribe to SiriusXM
Internet Radio service and obtain a username and password. SiriusXM Internet
Radio is available to residents of the United States and Canada.
SiriusXM Internet Radio delivers a variety of commercial-free music including
Pop, Rock, Country, R&B, Hip-Hop, Jazz, Classical and much more, plus expert
sports talk and analysis. You also get exclusive entertainment, talk, comedy,
family programming, local trac and weather and news from your most
trusted sources
There are a variety of programming packages available, including the option
of adding “The Best of XM” programming to the SiriusXM Internet Radio
service. “The Best of XM” service is not available to Sirius Canada subscribers at
this time. Please check with Sirius Canada for any updates using the numbers
and web address below.
Family friendly packages are also available to restrict channels that feature
mature programming.
To subscribe to SiriusXM Internet Radio, U.S. customers should visit
www.sirius.com/internetradio
or call 1-888-539-SIRI (1-888-539-7474).
Canadian customers should visit www.siriuscanada.ca
Current XM Radio Online subscribers will need to log into the XM online
account manager and update their password in order for their credentials to
work on a SiriusXM Internet Radio compatible device. If the username is over
20 characters or their device doesn’t support the“@” character in the username,
subscribers need to update the username on the same screen.
Stream 1 12:30 PM
26: Classic Vinyl
use + & – for channel
Rock
Derek & The Dominos
Bell Bottom Blues
SiriusXM
Stream 1 12:30 PM
26: Classic Vinyl
use + & – for channel
Rock
Derek & The Dominos
Bell Bottom Blues
SiriusXM
1. Screen Name / Current Mode / Menu Name
2. SiriusXM Channel Category
3. Channel Number and Name
4. Artist Name
5. Song Name
1
2
4
3
5
SiriusXM Internet Radio - Now Playing

15Russound DMS-3.1 Installation Manual
vTUNER INTERNET RADIO
Listening to vTuner Internet Radio
vTuner Internet Radio can be accessed on the DMS-3.1 when used with a
Russound C-Series controller and supported user interface. vTuner Internet
Radio provides access to thousands of internet radio stations and Podcasts
from around the world. Users can lter content by Local Stations, Location,
Genre, New Stations, Most Popular, and Favorites.
Users can access the online web portal at http://russound.vtuner.com
to search stations& podcasts, create favorites, and even add stations not listed
in the vTuner database.
To create an account for the vTuner online web portal, users will need to
provide the Access Code of their DMS-3.1 as well as a valid email address and a
password. Select the “Get access code” option within the Internet Radio menu
to display the access code.
Stream 1 12:30 PM
Podcast Location
Internet Radio
New Stations
Most Popular Stati
Podcast Genre
Shared
Get Access Code
Stream 1 12:30 PM
WUNH 91.3 FM
use + & + for station
College
The Breeders
Cannonball
Internet Radio
Internet Radio Menu Internet Radio Menu
Stream 1 12:30 PM
WUNH 91.3 FM
use + & + for station
College
The Breeders
Cannonball
Internet Radio
1
2
4
3
5
MDK-C5 Internet Radio - Now Playing
1. Screen Name / Current Mode / Menu Name
2. Last breadcrumb of current selection
3. Station Name
4. Album Name
5. Song Name

16 Russound DMS-3.1 Installation Manual
DIGITAL MUSIC FILE PLAYBACK
Listening to Network Audio Files (media Server)
The DMS-3.1 can access audio les that reside on a network connected
computer or storage device that is UPnP/DLNA compliant. UPnP (Universal Plug
and Play) and DLNA (Digital Living Network Alliance) protocols permit network
connected devices to discover each other and share content and control. Many
media player software programs feature UPnP/DLNA capabilities and more
networked storage devices are providing UPnP/DLNA server functionality.
The DMS-3.1 can play various le formats which are listed in the technical
specications in this manual. However, any content that is protected with DRM
(Digital Rights Management) can’t be played back. AAC and AAC+ le formats
which are used by Apple for music purchased through iTunes can also be
played. AirPlay can be used for streaming content from iTunes media player
on a computer, but users can also install UPnP/DLNA media server software
on their computers. This will allow access and control of iTunes library content
from a Russound user interface instead of only having AirPlay select and
control what is listened to from within iTunes. Stream 1 12:30 PM
Blues Brothers
Music
Made in America
Green Onions
Media Server
Stream 1 12:30 PM
Blues Brothers
Music
Made in America
Green Onions
Media Server
1. Screen Name / Current Mode / Menu Name
2. Last breadcrumb of current selection
3. Artist Name
4. Album Name
5. Song Name
1
2
4
3
5
Media Server - Now Playing

17Russound DMS-3.1 Installation Manual
DIGITAL MUSIC FILE PLAYBACK
Listening to Network Audio Files (USB)
Content on a USB storage device such as portable hard disk drive can be
accessed by simply connecting it to one of the three USB ports on the DMS-3.1.
The USB storage device used must be formatted for a FAT16 or FAT32 le
system. These are the most common le storage systems used today.
Note that each USB port corresponds to one of the three streams and content
will be accessible through that stream only.
Both Media Server and USB modes of playback will use the menu/le
structure presented by the source of the content. Essentially, the list of folders
and les being determined by the storage device can vary based on the
particular device and organization method used when storing les on them.
Because of this, some folders may be visible that aren’t related to music such as
Photos or Movies but only compatible music les within them will be displayed
by the DMS-3.1 for selection.
Stream 1 12:30 PM
Jack Johnson
Music
Brushre Fairytales
F-Stop Blues
USB
Stream 1 12:30 PM
Jack Johnson
Music
Brushre Fairytales
F-Stop Blues
USB
1. Screen Name / Current Mode / Menu Name
2. Last breadcrumb of current selection
3. Artist Name
4. Album Name
5. Song Name
1
2
4
3
5
USB - Now Playing

18 Russound DMS-3.1 Installation Manual
TECHNICAL SPECIFICATIONS
DMS-3.1 Digital Media Streamer
Frequency Response: 20Hz to 20KHz
Audio Source Outputs: (4) Stereo RCA jacks
Line Audio Output: 2 Vrms
Digital Audio Inputs: (3) USB 2.0/1.1 ports
Communication ports: 1 Ethernet RJ45, 10/100 Base T
Music File Formats: MP3 (CBR, VBR), WAV (8, 16-bit), OGG Vorbis,
FLAC (8, 16-bit). AAC, AAC+
AM/FM Tuner Frequency Range: AM 530 - 1710 kHz
FM 87.7 - 107.9 MHz
Antenna impedance AM: 300 Ohm balanced
Impedance FM: 75 Ohm unbalanced
Sensitivity: AM: @20 dB S/N 55 dBu
FM: @30 dB S/N 6 dB max 12 dBu
Image rejection: AM: 33 dB FM: 80dB
S/N ratio: AM: 45dB FM: 60 dB
Input Trigger: 12VDC
Output Trigger: 12VDC 100 mA
Power Requirements: 100-240VAC 50/60Hz 11W
(Autoswitching Power Supply) IEC 320 type connector with 3 terminal
detachable power cord.
Standby Power: < 1.0 W
Dimensions: 17" W x 8.5"D x 1.7"H (43 x 21.7 x 4.3cm)
Weight: 9.0 lbs. (4 kg)
SiriusXM Internet Radio Legal Disclaimer
SiriusXM Internet Radio subscriptions are sold separately and are governed by the Sirius
Terms and Conditions (see www.sirius.com). Be sure to read this agreement before you
purchase your subscription. Your service and subscription will automatically renew ac-
cording to the Plan you choose, at the then current renewal rate until you call SiriusXM to
cancel. SiriusXM Internet Radio compatible tuners are required to receive the SiriusXM In-
ternet Radio service and are sold separately; or the service can be accessed through Inter-
net enabled devices including computers, audio/video products and some smartphones.
It is prohibited to copy, decompile, disassemble, reverse engineer, hack, manipulate or
otherwise make available any technology or software incorporated in receivers compat-
ible with the SiriusXM Internet Radio Systems. SiriusXM Internet Radio Service is available
to those at least 18 years of age and live in the USA, PR or Canada. SELF-INSTALLATION
instructions and tips are provided for your convenience. You must determine if you have
the knowledge, skills and ability required to properly perform an installation. SiriusXM
shall have no liability for damage or injury resulting from the installation or use of any
SiriusXM product or third party product. SiriusXM product warranties do not cover the
installation, removal or reinstallation of any product. Sirius, XM and all related marks and
logos are trademarks of Sirius XM Radio Inc. and its subsidiaries. All other marks and logos
are the property of their respective owners. All rights reserved.
Indicates a network link connection
Indicates a problem with the network
connection. Replace the CAT5 network
patch cable.
Indicates active network communication
when blinking.
Critical Firmware Problem. Update to the
rmware or contact Russound technical
support for assistance.
Online or USB update in progress.
Do not disconnect power
AM/FM Tuner module or streaming
module update in progress. Do not
disconnect power
Ready for factory initialization
Factory initialization complete
Ethernet Green LED Solid –
Ethernet Green LED O –
Ethernet Orange LED –
Power LED Two Fast Blinks, Pause –
Power LED Fast Blink –
Power LED Slow Blink –
Power LED one Blink per Second –
Power LED Three Fast Blinks, Pause –
Status Indicators

19Russound DMS-3.1 Installation Manual
WARRANTY
Warranty
The Russound DMS-3.1 is fully guaranteed against all defects in materials
and workmanship for two (2) years from the date of purchase. During this
period, Russound will replace any defective parts and correct any defect in
workmanship without charge for either parts or labor.
For this warranty to apply, the unit must be installed and used according
to its written instructions. If service is necessary, it must be performed by
Russound. The unit must be returned to Russound at the owner’s expense and
with prior written permission. Accidental damage and shipping damage are
not considered defects, nor is damage resulting from abuse or from servicing
by an agency or person not specically authorized in writing by Russound.
This Warranty does not cover:
• Damage caused by abuse, accident, misuse, negligence, or improper
installation or operation
• Power surges and lightning strikes
• Normal wear and maintenance
• Products that have been altered or modied
• Any product whose identifying number, decal, serial number, etc. has been
altered, defaced or removed.
Russound sells products only through authorized Dealers and Distributors
to ensure that customers obtain proper support and service. Any Russound
product purchased from an unauthorized dealer or other source, including
retailers, mail order sellers and online sellers will not be honored or serviced
under existing Russound warranty policy. Any sale of products by an
unauthorized source or other manner not authorized by Russound shall void
the warranty on the applicable product.
Damage to or destruction of components due to application of excessive
power voids the warranty on those parts. In these cases, repairs will be made
on the basis of the retail value of the parts and labor. To return for repairs,
the unit must be shipped to Russound at the owner’s expense, along with a
note explaining the nature of service required. Be sure to pack the unit in a
corrugated container with at least three (3) inches of resilient material to
protect the unit from damage in transit.
Before returning a unit for repair, call Russound at [phone] for a Return
Authorization number. Write this number on the shipping label and ship to:
Russound
ATTN: Service
5 Forbes Road
Newmarket, NH 03857
Due to continual eorts to improve product quality as new technology and
techniques become available, Russound/FMP, Inc. reserves the right to revise
system specications without notice.

Russound, Inc.
5 Forbes Road, Newmarket, NH 03857
tel [phone] • fax [phone]
email: [email protected] www.russound.com
28-1359 06/01/11
©2011 Russound. All rights reserved.
All trademarks are the property of their respective owners.
Specications are subject to change without notice.
Russound is not responsible for typographical errors or omissions.
AirPlay, the AirPlay logo, iPhone, and iPod touch are trademarks of Apple Inc., registered
in the U.S. and other countries. iPad is a trademark of Apple Inc.
DMS-3.1
Digital Media Streamer
Installation Manual
