Russound XSource User manual

XSource
Streaming Media Player
Installation Guide

2Russound XSource Installation Guide
NOTICE:
IF YOU ARE NOT A RUSSOUND CERTIFIED INSTALLER,
YOU WILL NOT BE ABLE TO INSTALL AND CONFIGURE THIS PRODUCT
INTERNET CONNECTION REQUIRED FOR PRODUCT INSTALLATION
There are two things that must be done at the time of installation of this product that require a working internet connection:
1. Enter valid Russound Certied Installer credentials. The XSource is shipped in a locked state. It cannot be operated
without rst being congured by a Russound Certied Installer.
If you are a custom installation professional and wish to become authorized as a Russound Certied Installer, please contact
your Russound Sales Representative for more information.
Note: If you are a Russound Certied Installer and you plan on installing this product on a job site that may not have working
internet access, please congure the unit at your shop or other location where internet access is available BEFORE you take it to
the job site.
2. Firmware may be updated easily through Web Cong conguration. An internet connection is required for obtaining
the most recent rmware.
Note: If an internet connection will not be available at the place of installation, please download the latest rmware from the
Russound website to a laptop before going to the job site.
Russound Certied Installer credentials must be entered
through the Web Cong conguration web pages.
When the XSource is shipped from Russound, it will only operate
in a "locked" state. In this state, no audio or control is available.
In order to unlock the system, valid Russound Certied Installer
credentials must be entered using the Web Cong.
When the XSource is rst powered on, a message will appear
on any compatible user interfaces and the MyRussound App
indicating that the device must be unlocked. The message
will contain the IP address of the controller. Using your mobile
device or computer, browse to the controller’s IP address (type
http:// and then the IP address).
If you are using the MyRussound App, the IP address appears
as a link that will direct you to Web Cong via your local web
browser.
If you do not have a valid Russound Certied Installer
credential, please contact your Russound Sales Representative.
LOCKDOWN FEATURE
Lockdown Feature

3Russound XSource Installation Guide
Table of Contents
Product Overview ...............................................................................3
Web Conguration..........................................................................4-5
Ethernet Connection and Factory Reset.....................................5
Installation Overview.........................................................................6
Installation .............................................................................................7
Conguration..................................................................................8-12
Troubleshooting ................................................................................13
Audio Connection with MCA-Series Controllers....................14
Additional Audio Connections.....................................................15
Network Best Practices....................................................................16
Technical Specications..................................................................17
Safety Instructions ............................................................................18
TABLE OF CONTENTS / PRODUCT OVERVIEW
Product Overview
The XSource Streaming Audio Player is designed to oer a
simple-to-install and simple-to-congure streaming media
solution to add high quality streaming audio content to any
audio system. The XSource can be used as a single stereo
audio streaming source for a single room, or supply a single
audio stream to a larger whole-house system through its
easy-to-use analog line-level/digital (coax/optical) outputs.
The XSource allows for expansion to up to 16 streaming
rooms of audio in a single installation with any combination
of other XStream™ Series streaming products from
Russound. When paired with a Russound multi-room
controller, system expansion is possible up to 8 independent
audio sources and up to 48 total rooms of audio.
In addition to oering streaming audio from popular
internet sources, the XSource also oers streaming of
local DLNA™-compliant audio. In addition a built-in USB
port allows users to connect an external ash drive or an
externally-powered USB hard drive for use as additional
music sources.
Features
• Independent streaming audio player
• Built-in AirPlay streaming with full metadata to iOS/
Android apps or XTS touchscreens
• Hi-Res audio streaming support up to 24-bit/192 kHz
• USB for Flash or external USB Hard drive-based music
collections
• Digital coax/optical or analog output
• Can be integrated (as a source) with a Russound multi-
room system or standalone (as a zone) when used with any
brand of amplier or receiver
• Controlled with the MyRussound App and fully compatible
with the Russound XTS in-wall touchscreen
• Bass, Treble, and Loudness settings available through the
MyRussound App
• Supports local favorites
• Onboard web-based conguration, accessible from a
smartphone or tablet
• Mix and match with other XStream Series components for
versatile system designs
• Built-in slide connectors for physical coupling of multiple
units

4Russound XSource Installation Guide
Key Programming Features
The XSource has a programming feature called Web Config.
Web Config is an onboard hosted web page used for
unlocking and configuring the XSource. Web Config can
be accessed by entering the IP address or Hostname in an
internet browser on a smartphone, tablet, or laptop that is
connected to the same network as the XSource. Using Web
Config, the XSource can be completely configured, quickly
and easily, from the palm of your hand.
Note: When used with a Russound controller, additional
configuration may be required for complex installations via
the Russound SCS-C5 software on a PC.
For more information, refer to the installation manual of your
specific Russound controller.
Web Cong Features
• General network configuration (DHCP/static IP)
• Firmware Updates
• Zone or source mode
• Assign device name
• Zone/Source Volume Trim
• Set AirPlay password
• Enable/disable or re-order streaming services
WEB CONFIGURATION

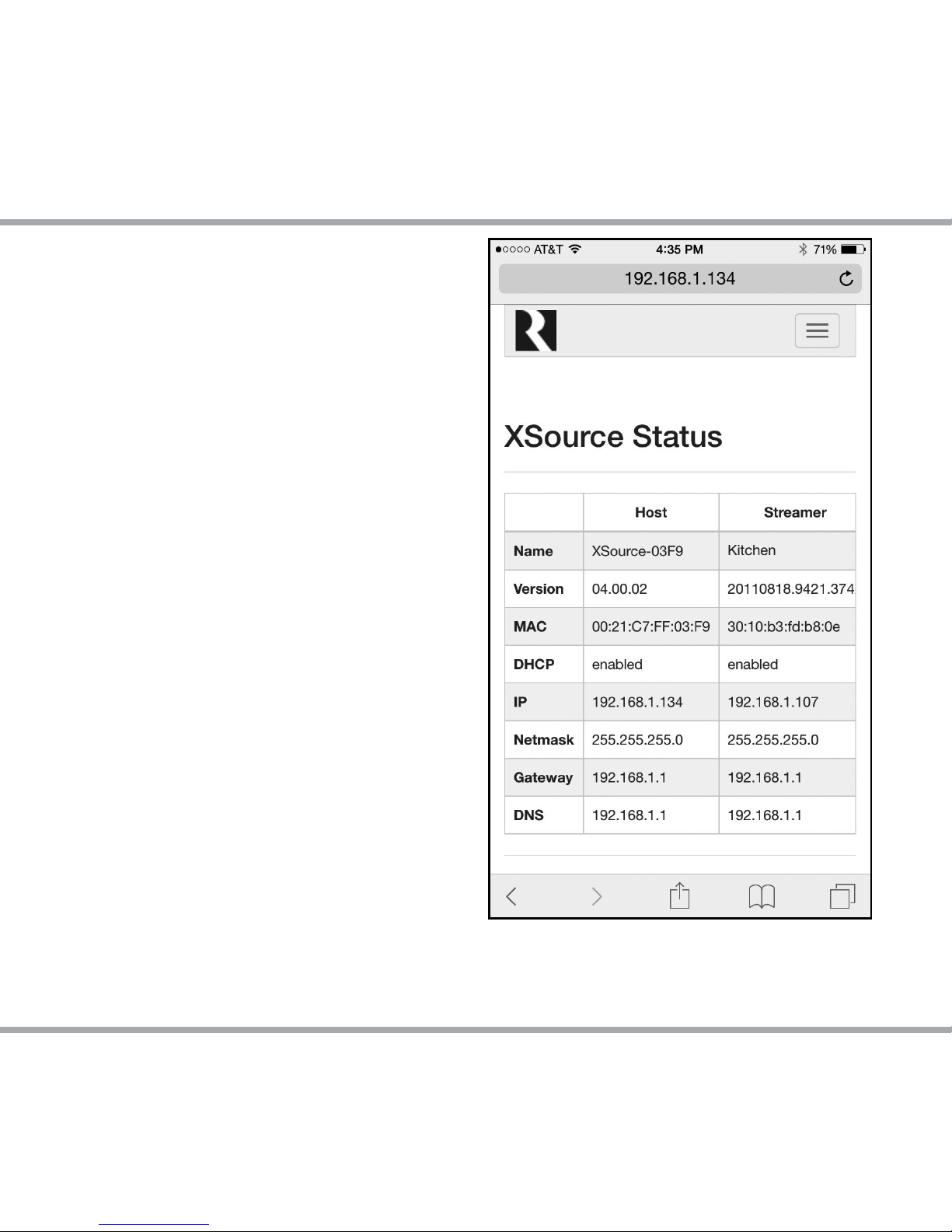

Web Config status page.

5Russound XSource Installation Guide
Ethernet Connection
The Ethernet connection is used for configuration and
programming as well as for enabling control via the
MyRussound App or the XTS Touchscreen. The default
network setting is DHCP-enabled, but the XSource can be
configured with a static IP address using the Web Config
software. The Ethernet connection is also used for the built-
in streaming services and for playing any music stored on
connected network drives using DLNA.
Factory Reset
The factory reset button has two functions. A 3-second press
and hold will restore network settings to DHCP. A 10-second
press and hold will reset the XSource to its factory default
settings.
Note: Performing a factory reset will restore the unit to its
factory default settings and put XSource in Zone mode.
The unit will require valid Russound Certied Installer
credentials in order to be unlocked and congured again.
The factory reset will also delete all personal information
including service account settings and passwords.
ETHERNET CONNECTION AND FACTORY RESET
Ethernet port Factory Reset

6Russound XSource Installation Guide
INSTALLATION OVERVIEW
The XSource can be rack-mounted, table-mounted or wall-
mounted. You can connect multiple XSource media players
by using the integrated slide connectors as shown. For wall-
mount, use the mounting holes on the bottom of the unit.
See diagrams below.
Important Considerations
1. Disconnect the power cord before making any wiring
connections to the XSource.
2. Verify that all connections and polarity are correct.
3. Keep all power cords away from all signal cables to
prevent humming caused by induced noise.
4. Label wires appropriately, on both ends of the wire run.
5. Avoid running speaker wires or signal cables close to
house electrical wiring for any distance. If you have to run
them parallel, make sure to space the wires at least two feet
from the AC line. If you need to cross an AC line it should be
at a 90° angle.
Holes for wall-mount.
Slide connectors
Rack-mount - Slide Lock System
You can connect multiple XSource media players by
using the integrated slide connectors as shown.
Wall-mount
For wall-mount use the mounting
holes on the bottom of the unit.
Table-mount
For table-mount use the
rubber feet (included)
4 Non-marking
adhesive rubber feet

7Russound XSource Installation Guide
INSTALLATION
Step 1.
Connect the appropriate audio output of the XSource to
your system using either the analog connection (stereo line-
level RCA), or one of the digital outputs (coax or optical).
Note: Connection cables are NOT included with the XSource.
Step 2.
Connect an Ethernet cable from an open network port on the
home network to the Ethernet port on the rear of the XSource.
Step 3.
Connect the 12vDC power cable barrel plug into the Power
connection on the rear of the XSource.
1. The external power supply included with the XSource
is shipped with a US power adapter attached. Additional
adapters are included for Euro, UK, and Australian plugs.

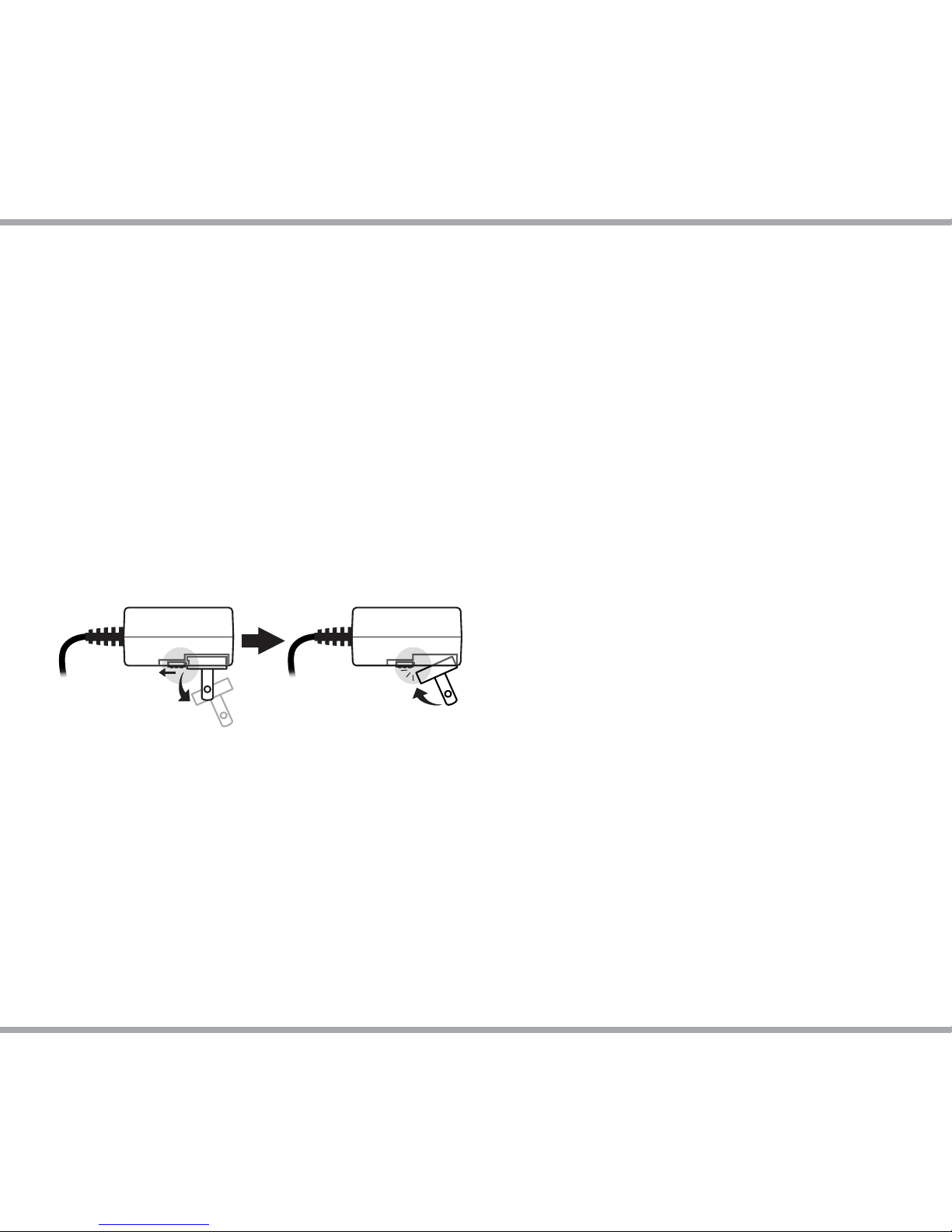

To change the adapter, depress and slide the tab as
shown below and remove the existing adapter. The new
adapter will snap in place as shown below.
The XSource will take 1-2 minutes to fully power up. When
the green LED on the front panel is illuminated, you are
ready to proceed.
Step 4.
Unlock the XSource – Using a smartphone, tablet, or laptop,
navigate to the XSource Web Config main page by typing in
one of the following:
1. XSource IP address – The XSource occupies TWO
IP addresses on a network. One IP address is used for
communication and control information (Host) and
one is used for the streaming services (Streamer). In
order to access Web Config, enter the Host IP address
of the XSource into the web browser on your phone,
tablet, or PC connected to the same network as the
XSource. Example: if the IP address is 192.168.0.105,
type http://192.168.0.105 into the web browser.
Note: If you don’t know the IP address, you can use a
network scanning app such as FING (free for iOS and
Android) to discover the IP address of the XSource.
2. XSource Hostname – Enter the hostname of the XSource
into the web browser on your phone, tablet, or PC connected
to the same network as the XSource. For your convenience,
the hostname is printed on a label on the bottom of the
XSource. The hostname is formatted as XSource-XXXX
where XXXX is the last four digits of the XSource’s MAC ID.
Example: if the hostname is XSOURCE-1234, type http://
XSOURCE-1234 into the web browser.
At the top of the web browser, a notification will appear
stating that the product must be unlocked by a Russound
Certified Installer. Click on the unlock button and you will be
taken to a page where you will enter your credentials.
Enter your Russound Certified Installer Email Address and
password into the fields shown and click “Apply”. Once your
information has been validated, the XSource will unlock and
be ready for configuration and use. This unlock process will
need to be repeated any time that the XSource is reset to
factory settings using the rear panel reset button.
Refer to the picture of the unlock screen on page 2.
Step 5.
Firmware Update – Because new features and capabilities
may be added at any time, always verify that the XSource
has the latest firmware available. From Web Config, navigate
to Admin > Firmware Update.
There are two options for updating firmware: Web Update
and File Update. For Web Update, an internet connection
is required. The XSource will automatically verify that it is
running the latest firmware. If a firmware update is available,
select Web Update and it will update the firmware. For File
update, the firmware can be uploaded from a computer that
is connected to the same network as the XSource. Only a
local area network connection is required.
1
21
2

8Russound XSource Installation Guide
CONFIGURATION
The XSource has two different modes of operation:
Source mode and Zone mode.
Source mode is used for connecting an XSource as an audio
source to a Russound C-Series or MCA-Series controller.
Zone mode is used for connecting an XSource as a
streaming audio player with any other amplifier or receiver.
Option 1
Conguring the XSource as an audio source with a
Russound C-Series or MCA-Series controller
Step 1.
Operating Mode Selection - In the XSource Web Config,
navigate to Setup in the menu options. Under Device
Settings, choose “Source Mode” as shown above. Once
"Source Mode" has been selected, identify the source
number that corresponds to the input source number of
the Russound controller. For example, if the XSource is
connected to Source 4 on the controller, choose “4”.
Step 2.
Naming the XSource – Enter the desired name for this
XSource. This name will be visible to end users in the list of
available Apple AirPlay devices and Spotify Connect devices
for users to select when streaming from a phone, tablet, or
computer. For example, an appropriate name when using
the XSource with an MCA-66 controller as Source 4 might
be “Streamer”.
Step 3.
AirPlay Password (Optional) - If you want to use an AirPlay
password to limit access for AirPlay users to stream audio to
this XSource, enter an AirPlay password and click “Apply”.
This same password must be entered on any iOS device
when using Apple AirPlay to stream audio to the XSource.
If you do not want to use a password to control access to
AirPlay, leave the AirPlay Password field blank.
Step 4.
Enabling/disabling streaming services - By default, all
available audio services are enabled and are selectable as
options when streaming audio from the XSource. If any of
these services are not being used, or if you wish to block
access to any services for this particular XSource, you can
do so by dragging and dropping the services between the
“Enabled” and “Disabled” sections on this Web Config page.
Note: You can also re-order the services so that the services
the end user wants to use first are at the top of the list.
Simply drag and drop each service in the “Enabled” list to
the appropriate order that you would like them to appear
to the end user.

9Russound XSource Installation Guide
CONFIGURATION
2. From the controller’s Web Config page, navigate to the
Configuration > Source Settings page.
•Enter a name for the XSource in the appropriate Source
Name field that corresponds to the source number
that you configured earlier. The name you enter here
will be the name that the user will see when using
the MyRussound App or on any other configured user
interface to select their desired audio source. Suggested
names when the XSource is configured as a source with a
Russound controller include.
Jane's Streamer Jane's Music Streamer
Bill's Streamer Bill's Music Streamer 2
Her Streamer XSource Stream 1
His Streamer XSource 1 Stream 2
3. After naming the XSource, click on Details to access the
next configuration page.
• Under Source Type, select Russound Media Streamer
from the drop-down list.
•Depending on the controller model and the source you
have selected, you may have additional options such as
the Audio Input type (Analog, Digital Coax, or Optical).
• Adjust the Volume Trim if desired. The Volume Trim is
used to allow compensation from one audio source to
another so that volume levels do not jump within a room
when different audio sources are selected on a controller.
For example, certain audio devices such as a CD/DVD
player may have a higher audio level than another device.
You can use the volume trim levels to adjust the levels of
every source on your Russound controller.
•Click Done when finished.
Congratulations! Your XSource is now fully configured to
work with your Russound Controller.
Step 5.
Configuring the Russound controller –
Note: This step shows the basic configuration when using
an MCA-Series controller including the MCA-66, MCA-88 or
MCA-88X. If using a Russound C-Series controller such as
the MCA-C3 or MCA-C5, you must use Russound’s SCS-C5
configuration software to configure the controller to use the
XSource appropriately.
1. Navigate to the Web Config page of the Russound
Controller. It may be available by clicking on the drop-
down menu in the top right hand section of the XSource’s
Web Config page as shown below:
If the controller is not visible in the drop-down list, navigate
to the controller’s Web Config page by entering the
controller's IP address or hostname in your web browser
(a controller’s hostname is normally located on a label
concealed under the controller's removable front panel).

10 Russound XSource Installation Guide
Option 2.
Using the XSource as a streaming audio player with
an amplier or receiver (Zone Mode)
Step 1.
Operating Mode Selection - In the XSource Web Config,
navigate to Setup in the menu options. Under Device
Settings, choose Zone Mode. Once Zone Mode has been
selected, additional configuration options will be displayed.
Step 2.
Naming the XSource – The name you choose will be visible
to all users in the MyRussound App or other user interface
when selecting the zone or room that they wish to control.
Suggested names when the XSource is configured as a zone
include such names as:
This name will be visible to end users in the list of available
Apple AirPlay devices and Spotify Connect devices for users
to select when streaming from a phone, tablet, or computer.
Step 3.
AirPlay Password (Optional) - If you want to use an AirPlay
password to limit access for AirPlay users to stream audio to
this XSource, enter an AirPlay password and click “Apply”.
This same password must be entered on any iOS device
when using Apple AirPlay to stream audio to this XSource.
If you do not want to use a password to control access to
AirPlay, leave the AirPlay Password field blank.
Step 4.
Enabling/disabling streaming sources - By default, all
available audio sources are enabled and are selectable as
options when streaming audio from the XSource. If any
of these sources are not being used, or if you wish to block
access to any services for this particular XSource, you can
do so by dragging and dropping the services between the
“Enabled” and “Disabled” sections on this Web Config page.
Note: You can also re-order the services so that the services
the end user wants to use first are at the top of the list.
Simply drag and drop each service in the “Enabled” list to the
appropriate order that you would like them to appear to the
end user.
Step 5.
Adjusting the Volume Trim (Optional) - The Volume Trim is
used to allow compensation from one audio source to another
so that volume levels do not jump within a room when
different audio sources are selected on a receiver or amplifier
that allows switching of more than one audio source. If you
are using the XSource with a single-input stereo amplifier, the
Volume Trim does not need to be adjusted.
Master Bedroom Dining Room Guest Room
Billy's Room Patio Oce
Great Room Pool Bath
Kitchen Veranda Media Room
CONFIGURATION

11Russound XSource Installation Guide
CONFIGURATION
Step 6.
All On Participation – When Enabled (Default), this XSource
will turn on when an “All On” signal is received. If you do
not want this XSource to participate in an All On command,
choose Disabled on this page. Examples of rooms where
you might want this setting disabled are certain bedrooms
or children’s nurseries where such participation would not
be desired.
Step 7.
Line Output Settings – If using the analog line-level outputs
of the XSource, you may select from either Variable (Default)
or Fixed. The appropriate setting will depend on how the
XSource is being used within your particular audio system.
Note that this setting will only affect the analog output.
Both digital outputs (coax and optical) are unaffected by
changes to this setting and always operate in Fixed mode.
Congratulations! Your XSource is now fully configured to
work with your amplifier or receiver.
Networking Settings (Optional)
The XSource can be configured to use either a dynamic
DHCP network address (Default) or to use a pre-assigned
static IP address. Note that the XSource occupies TWO
IP addresses on a network. One IP address is used for
communication and control information (HOST) and one is
used for the streaming services (STREAMER).
Both IP addresses are set using the Admin > Networking
selection from the Web Config menu. Both can be set as
dynamic (Default) or both can be set as static IP addresses.
Use caution when setting static IP addresses as incorrect
settings can cause network instability and cause networking
products such as the XSource or any other device on the
network to stop working properly.
If static settings have been entered and you are experiencing
difficulty communicating with the XSource, you can restore
dynamic DHCP settings by pressing the Reset button on the
rear of the XSource and holding the button pressed for 3
seconds.
When entering static IP information, two IP addresses must
be assigned, one for the Host and one for the Streamer. If
DHCP is enabled on the network, use caution to make sure
that any static IP addresses assigned are not within the
range of possible DHCP addresses and that the addresses
are not used for any other networking device.
If necessary, change the Subnet Mask, Default Gateway,
and DNS information to the appropriate settings for your
particular network.
Note: When changing the network address of the XSource,
your browser will lose its connection to the XSource and you
will need to navigate to the XSource’s new network address.

12 Russound XSource Installation Guide
CONFIGURATION
Conguring Streaming Service Accounts
(Optional)
Spotify® – Spotify account credentials are entered in the
Spotify app on your phone, tablet, or PC. No additional
information needs to be entered on the XSource. Note that
the XSource Device Name that you set in Web Config will be
the same name that appears in the Spotify Connect menu
as an available selection, for example “Kitchen”, “Bedroom”,
“Patio”, etc. This same name is also the name used when
connecting to the XSource via Apple AirPlay.
Pandora® – Pandora account credentials are entered by
using the MyRussound App or a connected Russound XTS
in-wall touchscreen. Select the XSource as the active audio
source and then choose “Pandora” from its menu. If no
account information has been entered, a login screen will
be displayed.
SiriusXM® – SiriusXM account credentials are entered by
using the MyRussound App or a connected Russound XTS
in-wall touchscreen. Select the XSource as the active audio
source and then choose “SiriusXM” from its menu. If no
account information has been entered, a login screen will
be displayed.
vTuner® – No account information is needed to access
vTuner internet radio. If you wish to associate an XSource
with a vTuner account so that you can share vTuner
favorites across multiple devices, you can select “Get Access
Code” from the XSource vTuner menu and enter that code
at http://russound.vtuner.com to associate an XSource with
your vTuner account.
TuneIn® – No account information is needed to access
TuneIn internet radio. If you wish to associate an XSource
with a TuneIn account so that you can share TuneIn
favorites across multiple devices, you can select “Account
Association” from the XSource TuneIn menu and enter that
code in your account settings page at http://www.tunein.
com to associate an XSource with your TuneIn account.
Multiple Streaming Products
Note that account settings are individual settings for each
XSource or other Russound XStream Series streaming
product. If you have multiple XStream Series devices, each
must be configured with the appropriate account login
information. This is done so that each device can have its
own independent user in a home so that users will not have
to share accounts or favorites with anyone else in the home.
The ideal installation is for each user in a home to have their
own personal XStream Series streaming device so that each
user always has access to their favorite music selections.
DHCP Reset
A DHCP Reset can be performed using the factory reset
button on the rear panel of the XSource.
If your XSource cannot communicate on the network, you
can reset its DHCP connection by pressing and holding the
Reset button on the rear of the XSource for 3 seconds and
then releasing it. This will restore the XSource to a DHCP
connection from a static IP connection.
Factory Reset
For a full factory reset, erasing all conguration settings, and
re-locking the XSource:
Press and hold the Reset button on the rear of the
XSource for 10 seconds. The Red Status LED will light and
the XSource will reboot on its own.
Note: Performing a factory reset will restore the unit to its
factory default settings and put XSource in Zone mode.
The unit will require valid Russound Certied Installer
credentials in order to be unlocked and congured again.
The factory reset will also delete all personal information
including service account settings and passwords.

13Russound XSource Installation Guide
There are four LED’s on the front panel of the
XSource to assist with any troubleshooting.
This chart explains the operation of the LED’s:
TROUBLESHOOTING
System Status Yellow
LED
Green
LED
Red
LED
Blue
LED
Booting ON - - -
Ready - ON - -
Factory Reset ON
Zone On - - - ON
Firmware Update - Blinking - -
Network Error Blinking - - -
General Troubleshooting
Check for rmware updates available to make sure that
your Russound product is always up to date and to take
advantage of any additional features or supporting services
that may be available.
Many issues can be resolved by power cycling the XSource
by disconnecting the power supply, waiting 15 seconds and
re-connecting the power supply.
For networking issues, resetting network gear in the home
such as the router or any switches between the XSource and
the router may also resolve any issues.
If you have the XSource congured with a static IP
address and do not remember the settings, you can reset
the XSource to DHCP by pressing and holding the rear
panel Reset button for 3 seconds. If there are any issues
reconnecting to the XSource after resetting to DHCP,
unplug the XSource from the network and re-connect it, or
try power cycling the network router to force a new DHCP
connection.
For audio connection issues, verify all audio connections
from the XSource to the controller/amplier/receiver. If
connected to a Russound controller, verify that the source
number congured on the XSource matches the source
number that has been congured for it on the controller and
that the input source type matches the correct type being
used (analog, coax, or digital).
For more system installation and network troubleshooting
tips, visit the Russound Dealer Support Portal at www.
russound.com/portal

14 Russound XSource Installation Guide
AUDIO CONNECTIONS WITH MCASERIES CONTROLLER
The XSource can be used with a Russound MCA-Series
controller and supported user interfaces to access all
features and provide amplication for speakers in multiple
locations.
Use the diagram below as an example of possible wiring
connections when using a Russound controller with your
XSource.
/ / /
/
RJ-45 CAT-5 Wiring Scheme
RJ-45
RJ-45
XSource
CAT-5
CAT-5
Optical
MCA-88 Controller
Phone or Tablet
Wireless network
router
WAN

15Russound XSource Installation Guide
ADDITIONAL CONNECTION DIAGRAMS
XSource
CAT-5
RCA cable
D250LS Amplier
Phone or Tablet
Wireless network
router
WAN
Optical Home Theater Receiver
XSource
CAT-5
Phone or Tablet Wireless network
router
WAN
Connection with D250LS amplifier
Connection with home theater receiver

16 Russound XSource Installation Guide
NETWORKING BEST PRACTICES
Networking Best Practices
Some of the most common problems can be caused by
network conguration and out-of-date rmware. Improper
network conguration can prevent XStream Series devices
from connecting and communicating on the network.
The rst step for troubleshooting is to check networking
connections and power cycle the equipment to check for
proper communication.
A dedicated wireless 802.11n or better router is
recommended. The reason for this is that ISP supplied
modem/router combination devices may have incompatible
settings that can cause issues with XStream Series devices
connecting or communicating across the network. It is
recommended to not use these modem/router combination
devices, because the end user may not have access to all
services of the device. The ISP may have sole control over
the device settings and send updates to reset, reinitialize, or
replace the device at their discretion.
Check for rmware updates available for your Russound
equipment to make sure they are up-to-date in order to
take advantage of any additional features and supported
services.
Use a network discovery and IP scanning application that
can assist to better understand the network, such as FING.
http://overlooksoft.com/FING is free and available for iOS
and Android and can assist in identifying devices on the
network and if there are any IP addressing conicts.
Router Conguration:
A few routers may need additional conguration to prevent
incompatibility or intermittent connection issues. Access
the router and check user accessible settings that enable
support for Multicast or IGMP and enable them or check for
options that may be actively ltering these protocols and
disable those lters. Check for other options that could have
an eect on communication: Options such as UPnP should
be enabled Options such as IGMP Proxy, IGMP Snooping,
Multicast Filtering or WMM Proxy should be disabled.
Glossary
Multicast: The delivery of a message or information to a
group of destination computers simultaneously in a single
transmission from the source.
Unicast: The delivery of a message or information which is
sent from one point to another point An example would be
connecting to an IP address of a URL such as www.google.
com.
IGMP: Internet Group Management Protocol is an integral
part of IP Multicast and is used for one-to-many networking
applications such as online streaming audio and video,
gaming, and allows more ecient use of resources when
supporting these types of applications.
WMM: Wireless Media Management is designed to support
consumer and corporate applications and works with
802.11a, 802.11b and 802.11g. The specication provides
basic prioritization of data packets based on four categories
- voice, video, best eort and background.
UPnP: Universal Plug and Play uses Multicast and allows
media servers and streaming devices to communicate.

17Russound XSource Installation Guide
TECHNICAL SPECIFICATIONS
Frequency Response: 20Hz to 20KHz
Audio Source Outputs: Analog - Stereo RCA jacks
Digital - Optical or Coax
Line Audio Output: 2Vrms
Audio Source Inputs: 1 USB 2.0 Media Playback
Communication ports: 1 Ethernet RJ45, 10/100 Base T
Music File Formats: MP3 (CBR, VBR), WAV (8, 16-bit),
OGG Vorbis, FLAC (8, 16-bit). AAC, AAC+
(supports up to 24-bit/192 kHz)
Power Requirements: Input: 100-240V~50/60Hz 0.4A
Output: 12VDC, 1A
Dimensions: 4"W x 6.375"D x 1.75"H (10.2 x 16.2 x 4.4cm)
Weight: 1.2 lbs. (0.54 kg)

18 Russound XSource Installation Guide
SAFETY INSTRUCTIONS
Warning: Any changes or modications to this unit not
expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
Note: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to part
15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause
harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment o and on, the user
is encouraged to try to correct the interference by one of
or more of the following measures: reorient or relocate the
receiving antenna; increase the separation between the
equipment and receiver; connect the equipment into an
outlet on a circuit dierent from that to which the receiver
is connected, or consult the dealer or an experienced radio/
TV technician for help.
This Class B digital apparatus complies with Canadian
ICES-003.
Cet appareil numérique de la classe B est conforme à la
norme NMB-003 du Canada.
1. Read Instructions - All the safety and operating
instructions should be read before the equipment is
operated.
2. Retain Instructions - The safety and operating
instructions should be retained for future reference.
3. Heed Warnings - All warnings on the equipment in the
operating instructions should be adhered to.
4. Follow Instructions - Follow all operating and user
instructions.
5. Water and Moisture - The equipment should not be
used near water; for example, near a bathtub, washbowl,
kitchen sink, laundry tub, in a wet basement, or near a
swimming pool.
6. Mounting - The equipment should be mounted or
secured as recommended by the manufacturer.
7. Heat - The equipment should be situated away from
heat sources such as radiators, heat registers, stoves, or other
equipment (including ampliers) that produce heat.
8. Power Sources - The product should be connected to
a power supply only of the type described in the operating
instructions or as marked on the equipment.
9. Grounding or Polarization - Precaution should be taken
so that the grounding or polarization means of the product
is not defeated.
10. Avoid spills and foreign objects - Ensure liquids and
objects don’t get into the product enclosure through any
openings.
11. Damage Requiring Service - The equipment should
be serviced by qualied service personnel when: the power
supply cord or the plug has been damaged; objects have
fallen, liquid has been spilled into the equipment; the
equipment has been exposed to rain; the equipment does
not appear to operate normally; or the equipment has been
dropped or the enclosure is damaged.
12. Servicing - The user should not attempt to service
the equipment beyond that described in the operating
instructions. All other servicing should be referred to
qualied service personnel.
13. Care – From time to time you should wipe any dust
accumulation from the equipment with a soft dry cloth.

19Russound XSource Installation Guide

Russound, Inc.
1 Forbes Road, Newmarket, NH 03857
tel [phone] • fax [phone]
email: [email protected] www.russound.com
28-1400 12.02.15
AirPlay, iPad, iPhone and iPod, are trademarks of Apple Inc., registered in the U.S. and other countries. iPad Air and iPad
mini are trademarks of Apple Inc.
“Made for iPhone” means that an electronic accessory has been designed to connect specically to iPhone and has been
certied by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device
or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPhone may aect
wireless performance.
SiriusXM Internet Radio Service is available in the USA, PR or Canada. SiriusXM Internet Radio subscriptions are sold
separately and are governed by the Sirius Terms and Conditions (see www.siriusxm.com). Be sure to read this agreement
before you purchase your subscription. Sirius, XM and all related marks and logos are trademarks of Sirius XM Radio Inc.
and its subsidiaries. All rights reserved.
This product includes some software components that are licensed under the General Public License (GPL). Source code
for GPL components is available upon request. ©2015 Russound. All rights reserved. All trademarks are the property of
their respective owners. Specications are subject to change without notice.
