Thank you for purchasing the Mede8er Multimedia Player.
Mede8er has achieved the ultimate balance in design and functionality with the new MED1000X3D High
Definition 3D Multimedia Player. It may look like an alien spaceship but we can assure you that it was
designed and developed by very passionate people right here on Earth.
The Mede8er has some very unique features so we suggest you read this guide and visit the Mede8er forum
for additional help and information. The firmware is always “work in progress” so we suggest you regularly
check the Mede8er forum for updated firmware releases and updated User Manuals.
Please check the Mede8er forum for the latest user guide. www.mede8erforum.com
Warranty International
Mede8er products carry a 12 month from date of purchase warranty. In the event of warranty service please
provide proof of purchase. Return your product to the store that it was purchased from or return it directly to
Sanji Electronics (Pty) Ltd 12, Saddle Drive Woodmead Office Park, Woodmead, Gauteng, South Africa.
Warranty & Support Europe
Mede8er products carry a 60* month from date of purchase limited warranty. In the event of warranty service
or support, please contact one of the Mede8er Service Centers; www.mede8er.eu/support,
[e-mail] or call [phone] during business hours (CET). In order to obtain the
extended warranty service of in total 60* months after purchase, you need to register your product on
www.mede8er.eu/register within 1 month after purchase. * On accessories 24 months applies.
Warranty does not cover damage by
a) Lightning or over voltage b) Water damage or liquid spill c) Misuse or abuse d) User tampering
e) Using non Mede8er approved Firmware
Sanji Electronics (Pty) Ltd is not responsible for any loss of data irrespective of the cause.
Important Safety Instructions
Read these instructions for all components before using this product.
During electrostatic discharge and the strong electromagnetic field, the product may malfunction. In such a
case, unplug the power cable to power off your player and the player will return to normal performance next
time it is powered on.
· Do not use this apparatus near water or moisture. Do not use this product near a bathtub, washbowl,
kitchen sink, laundry tub, in a wet basement, near a swimming pool, or anywhere else that water or
moisture are present.
· Clean only with a soft dry cloth and as directed by the manufacturer. Unplug this product from the wall
outlet before cleaning.
· Do not block any ventilation openings. Install in accordance with the manufacturer instructions. To
ensure reliable operation of the product and to protect it from overheating, put the product in a position
and location that will not interfere with its proper ventilation. For example, do not place the product on
a bed, sofa, or similar surface that may block the ventilation openings. Do not put it in a built-in system,
such as a bookcase or a cabinet that may keep air from flowing through its ventilation openings.
· Do not install near any heat sources, such as radiators, heat registers, stoves or other apparatus that
produce heat.
· Protect the power cord from being walked on or pinched, particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.
· Only use attachments or accessories specified by the manufacturer.
· Unplug this apparatus during lightning storms or when unused for long periods of time to prevent
damage to this product.
Refer all servicing to qualified service personnel

Remove 5.5mm
Foam Pad
UNPACKING / CONTENTS

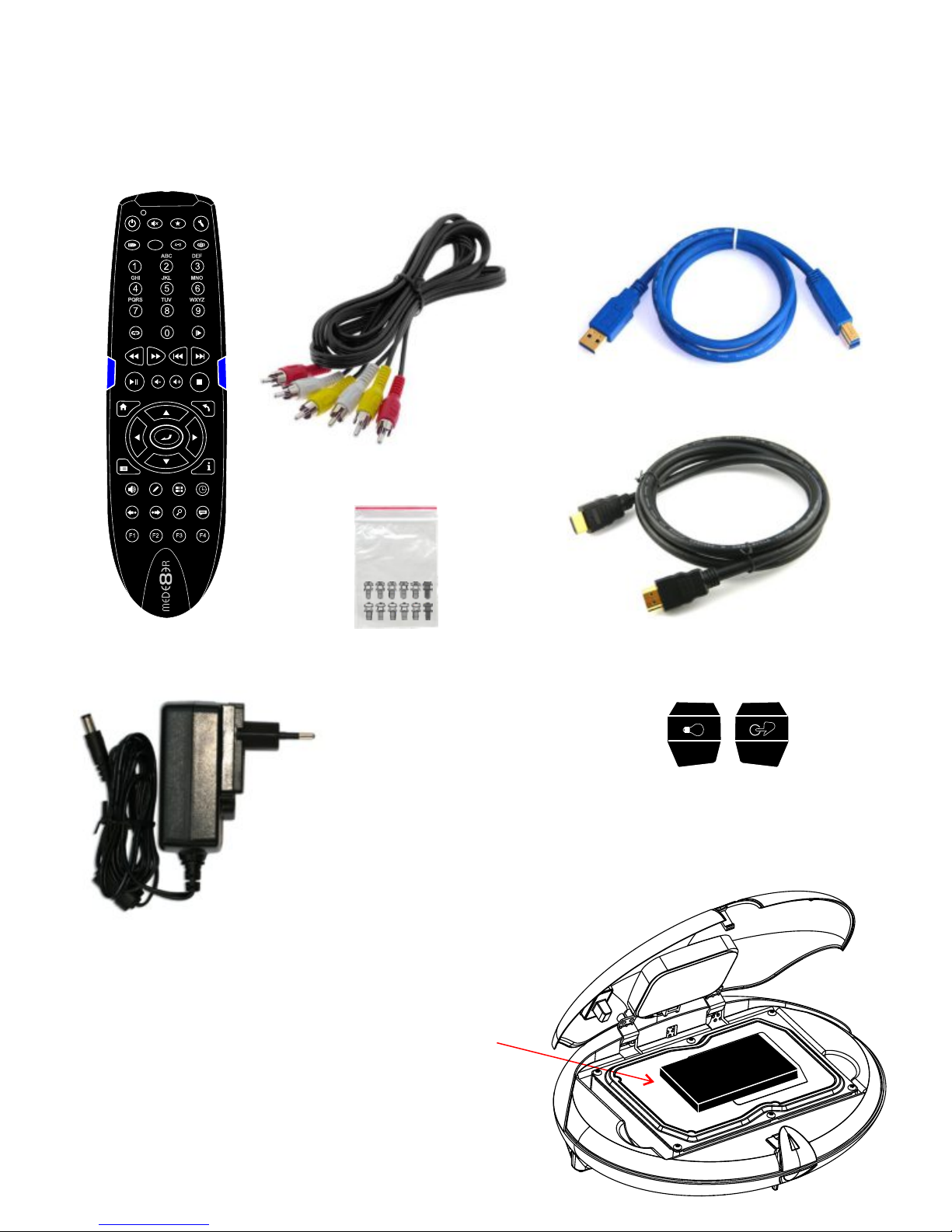

Contents: - X3 Remote, European Region only - AC/ DC Adapter 2 Pin Euro with slot in UK Plug,
International Region - 2 Pin Euro AC/DC Adapter, USB3.0 Cable, HDMI 1.4 Cable, AV Cable, Zip Bag with
Hard Drive Securing Screws, Spare X3 remote side buttons.
Should your X3 be pre bundled with a thinner
casing Hard Drive then you must remove the
protective foam pad that is placed on top of
the hard drive.
USB 3.0 Cable
HDMI 1.4 Cable
AV Cable
Hard Drive Securing Screws
X3 Remote
AC/DC Adapter
Page3
Spare X3 Remote Side Buttons
θ

GENERAL OVERVIEW
YUV - Component Video
Out
On/Off Switch
IR Receiver
RJ45 - Lan connector HDMI connector
Page4
Cover
Setup
TV System
Menu
Return
Cover Release Button
Coax Digital Audio Out Optical Audio Out PCIe WiFi Antenna
*
USB 3.0 Slave Port External IR Jack Card Slot 2 x USB Host Ports
Navigation Buttons
Top Navigation Buttons
Front View
Rear View
Y
Pb
Pr
Analogue Audio Out - Right Analogue Audio Out - Left
Composite Video - Out

Page5
Most 3.5" or 2.5" SATA Hard Drive can be installed into the X3. If the unit is going to be moved around or
transported we strongly suggest you use the supplied Hard Drive securing screws. Use the Silver screw for
3.5" Hard Drives and the Black screw for 2.5" Hard Drives. Screw them in as shown in ‘A’ then turn the
Hard Drive around as shown in ‘B’. Press the lid opening release button as shown in ‘C’ and carefully lift the
lid up to its maximum position.
A B
C
Carefully slide the Hard Drive into position as shown in ‘D’. To secure the Hard Drive and engage the
connector you need to push the Hard Drive casing with the left hard to to right side as shown in ‘E’.
D E
2.5" HDD Securing Screw (BLACK)
FG
H
If you are using a 2.5" Hard Drive then you must use the Black 2.5" Hard Drive securing screws and
additionally add a black screw as indicated in ‘F’. Once you have completed the Hard Drive fitment then
close the lid as shown in ‘G’
To remove the Hard Drive you must firstly release it on the
Devices screen with F2 Button functionality or switch the
X3 ‘off’ and then push the Hard Drive casing with your right
hand finger to the left side as indicated in ‘H’. The Hard
Drive will be released from the Sata connector and then it
can be lifted out.
3.5" HDD
2.5" HDD
2.5" HDD

CONNECTIONS
Page6

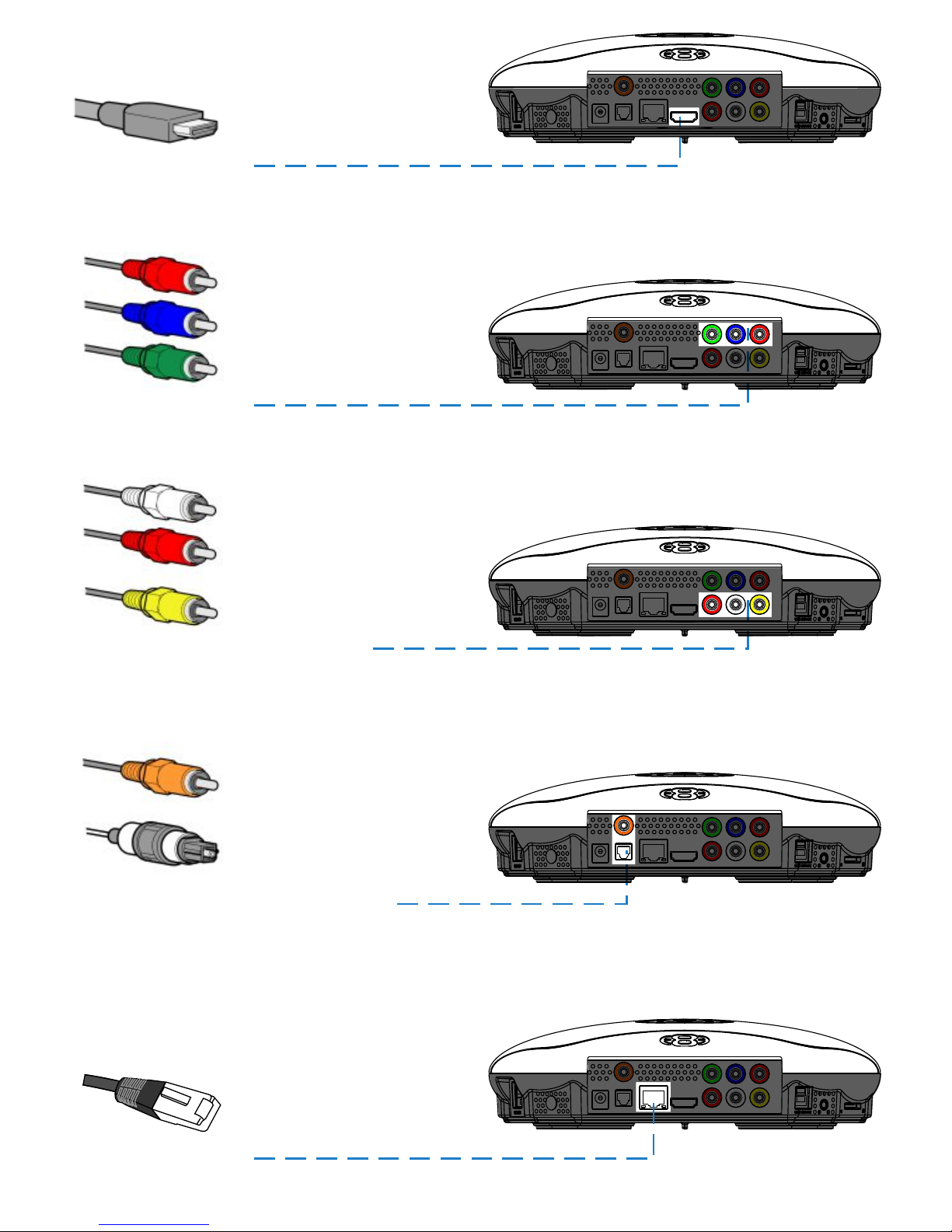

HDMI 1.4 Cable
Component YUV
Composite Video / Analogue Audio
Co- Axial Digital / SPDIF Optical Audio
Component Video offers the next best picture quality to HDMI so if your system does not have a HDMI input
we suggest you use the Component Video Connection.
HDMI offers the best picture quality and should be used in preference of any other connection. Use the
supplied HDMI 1.4 Cable for use with the X3. The HDMI can be connected to a AV Amplifier or directly to a TV.
Composite Video offers the most basic picture quality connection and should only be used if your TV does not
have a HDMI or Component Video input. Use RCA analogue audio outputs in the absence of HDMI or Digital
Audio inputs on your TV or Home Theatre system. RCA analogue outputs will downmix all content from mutli-
channel to stereo.
For digital audio connection to your Home Theatre System you can either use the TOSLINK Optical or the Co-
Ax Digital output. The X3 supports both Passthrough and Downmix for both Dolby Digital and DTS signals. If
you want your Home Theatre Amplifier to decode the surround sound Bit Stream you can use either either
output and set the Audio Output to SPDIF Passthrough in the Setup menu.
Rj45 Ethernet Network
The X3 is equipped with Rj45 connector for connection to a wired network.

CONNECTIONS CONTINUED
Page7
SD Card Slot
DC Power Jack
2 X USB Host Ports
USB 3.0
DC input is specified at 12 Volt 2 Amp DC. Important-- Only use the supplied AC DC Adapter.
SD / SDHC / Sony Pro Due Memory Cards supported.
Host up to two external ‘Type A’ connector USB Devices. Note - Many USB External drives require an
independent power source and must be supplied power from there own power supplies.
You can transfer files to and from the X3’s internal hard drive via USB2.0 or USB3.0 transfer.

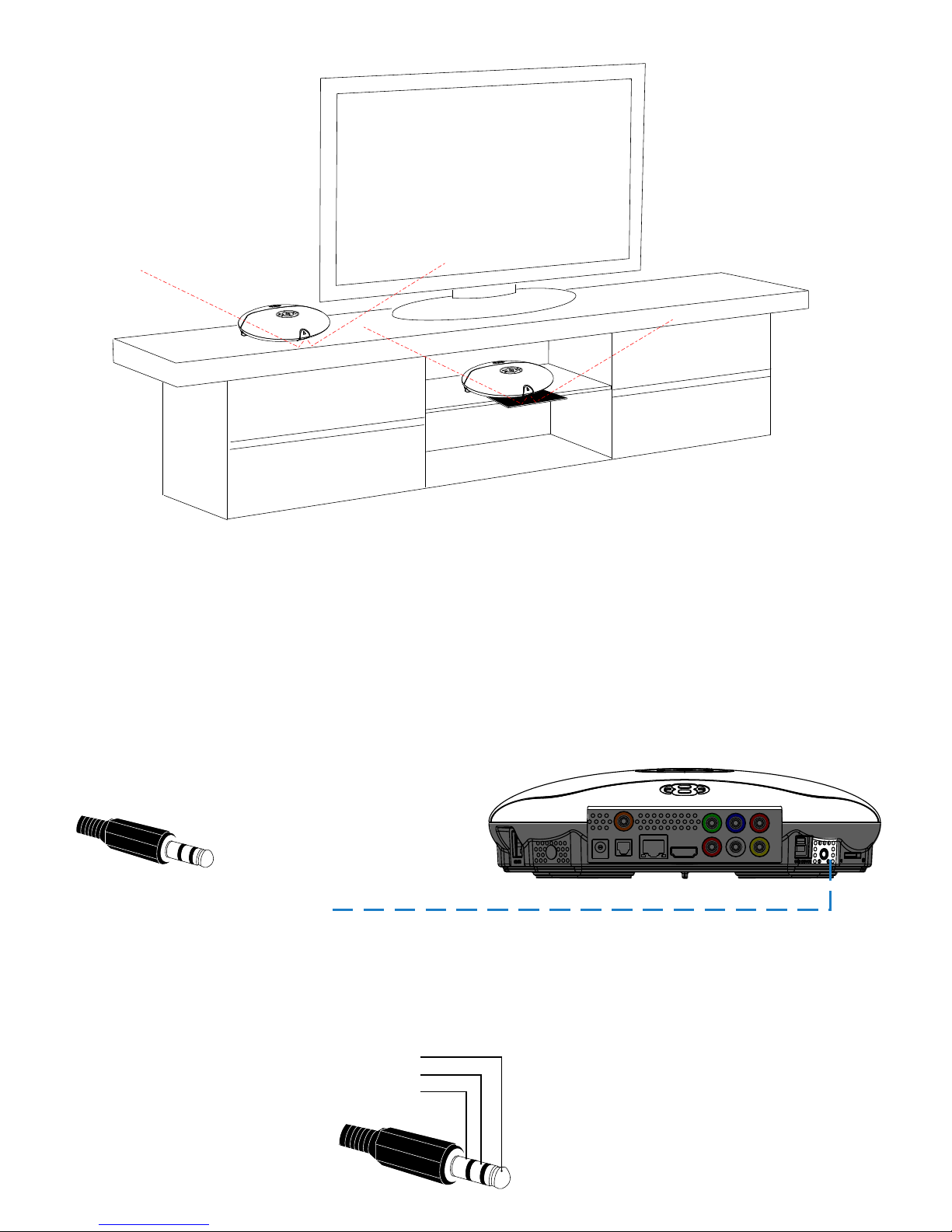

External IR Jack (Not Supplied)
The X3 is equipped with an external IR Jack for those who want to add a third party external IR Receiver to
the unit.

Plug the AC/DC adapter into the mains outlet and plug the DC Jack into the DC IN at the rear of the X3.
DO NOT USE ANY AC/DC ADAPTER AND ONLY USE THE ONE SUPPLIED otherwise you may cause
damage to the unit. The Navigation Pad LED will light up ‘RED’. Press the On/Off button on the X3 front panel
and Navigation Pad will LED will turn to Blue. You can switch the X3 ‘Off’ by pressing the ‘On/Off’ button on the
remote or by pressing the ‘On/Off’ button on the unit. When in standby the Top Navigation LED will turn Red.
Using the left, right, up and down navigation buttons you can adjust the red rectangle to fit the outer frame
of your TV screen. Note - Do not oversize the screen size as this could result in image artifacts when
viewing still images on certain brands of TV’s.
Page8
SCREEN CALIBRATION
For better accuracy in Video Play and Image Zoom we suggest you calibrate your TV screen. Go to System
Setup then Video and select Screen Size.
Multi Voltage AC/DC Power Adapter
On/Off Button

Page9
TV OUTPUT SETTINGS
If you do not get to see the X3 GUI on your TV you will need to toggle the X3 TV output until you get a picture.
TV SYS Toggle Procedure
The X3 has three video output options ie Composite Video (yellow RCA connector, Component Video (Red -
Green- Blue connectors) and HDMI. Each output option offers different screen resolution settings and these
will need to be adjusted to match the type of TV used.
It is suggested to use the Setup Menu to change the TV Out resolution. If you do not get a picture in the first
place then you can try to change the TV Out Resolution via the TV Sys button. To change the Video Output
on the X3 press the TV SYS button on the remote and it will change the Video Output to the next available
output option. If after pressing the TV SYS button you still do not get a picture then press the TV SYS again
until you see the X3 GUI on your TV. Keep repeating this procedure until you see a picture on your TV.
AUDIO SETTINGS
Surround Sound
Select “Don’t Care” if you are using 2 CH stereo. If you are using SPDIF or Co-Axial Digital then
select “AC3". If you are using HDMI Audio to amplifier then select “True HD”
HDMI Auto
HDMI Auto is the suggested setting for HDMI Audio. All audio will automatically passed through to the
amplifier - Dolby / DTS Bitstream - Dolby True HD / DTSMA - PCM / Multi-Channel LPCM.
It is suggested to always use HDMI Auto in preference to HDMI Passthrough or LPCM Multi CH
SPDIF Passthrough
Use this setting to connect to an amplifier via Toslink optical cable or Co-Axial Digital RCA cable. The sound
will be passed through as Bitstream or PCM and the amplifier. Dolby True HD and DTSMA HD Audio and
Multi-Channel LPCM will not work on either SPDIF option.
SPDIF Downmix (2 channel)
Use this setting to connect to a Amplifier via Toslink optical cable or Co-Axial Digital RCA cable. The sound
will be downmixed to 2 channel stereo.
FORCE DECODE AAC/MP3
Use this setting if you do not get AAC/MP3 Audio in HDMI ‘Auto’ or Passthrough.
Once you see the X3 GUI on your TV then you must enter the Video Setup
mode and adjust the Video settings to match the screen size resolution of
your TV.
OR
θ

Formatting ...
Page10

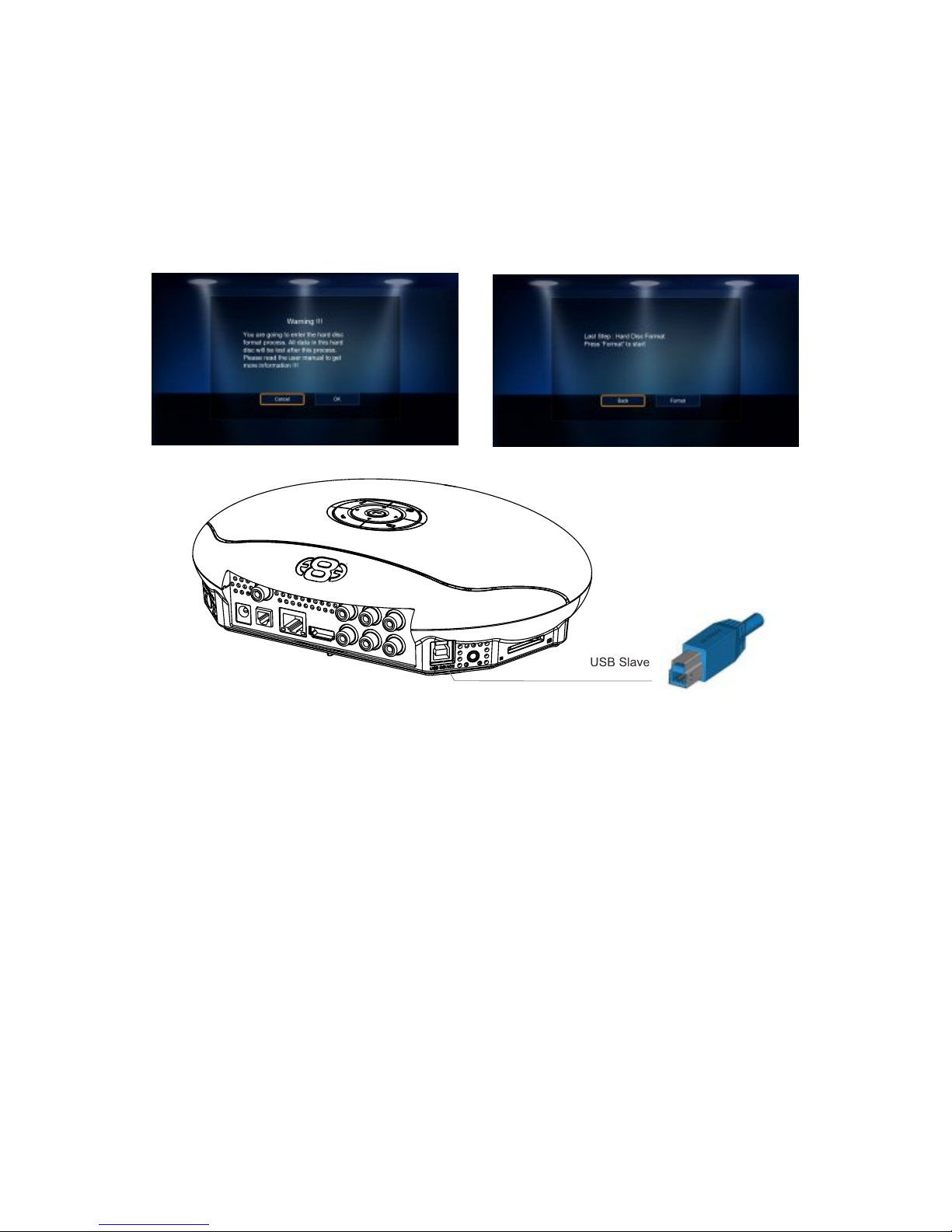

USB CONNECTION TO PC
You can transfer files to and from the X3 via USB2.0 or fast USB3.0 transfer. Use the included Blue USB3.0
cable to connect the X3 to your PC. After you have connected the USB cable press the on/off button on the
X3 and the LED’s on the navigation buttons will turn “off’. The Computer will automatically install the correct
drivers and then you will be able to navigate the X3 like any normal external USB drive. Note: Some
Computers may take up to a few minutes to install the correct USB drivers. If you cannot connect to the X3
than try another USB Port on your computer. The PC will detect the X3 and it will display a connection
Dialogue Screen.
Windows Checkdisk
When you connect any USB Drive to a Windows PC it will prompt you to do a file system check ‘checkdisk’
and you should accept this as this as it will attempt to fix any file systems errors on the Hard Drive.
EXTERNAL USB DEVICE DRIVER NOT REQUIRED
IMPORTANT:
FOR USB3.0 - USE THE SUPPLIED BLUE USB3.0 CABLE.
FOR USB2.0 - USE THE SUPPLIED BLUE CABLE OR ANY USB2.0 BLACK CABLE.
WINDOWS 8
Windows 8 by default will not display the Mede8er in the Safely Remove panel so if you remove the USB
cable without ejecting the Mede8er you can get missing files when viewing the drive on the Mede8er.
Solution is to use USB DISK EJECTOR Utility to release the Mede8er before disconnection.
USB DISK CONNECTOR - Download - http://quickandeasysoftware.net/software/usb-disk-ejector
FORMATTING THE HARD DRIVE
The X3 has a built in Hard Drive format feature that formats the internal hard drive with one main NTFS
partition. A pre formatted NTFS or HFS+ Hard Drive can be used.
To Format the internal Hard Drive select Setup menu and then HDD Format. The Hard Drive format function
can be protected by the built in “Pin Code Lock” function. To enable Hard Drive Format protection you must
enable “Pin Protection” option in the Setup menu.
WARNING: FORMATTING THE HARD DRIVE WILL ERASE ALL DATA
VIRGIN HARD DRIVES SHOULD BE FORMATTED TWICE BEFORE USE

Page11
REMOTE SIDE BUTTON REPLACEMENT
Should the remote TPE side buttons get worn or damaged you
can install the spare set of button that are supplied standard with
the X3. Remove the side TPE side buttons. Place the correct
side solid button into position and push it firmly and the button
will self lock into position.
REMOTE FUNCTIONALITY
θ
Audio Selection /
Audio Currently Playing
Subtitle
Numbers
Info Screen / Movie Sheet (about.jpg) Zoom
Audio Mute
TV System
Fast Forward / Rewind
Home Page
DVD Angle
Play / Pause
Skip Forward/Back
Navigation Left
Search Bar - Video File
Next / Previous
Volume Up/Down
Navigation Right - Search Bar - Video File
Navigation Up
Navigation Down
Navigation Enter
View - Change the layout view in Media Library
Setup Functions / Browser Functions / Edit Functions
Menu
Favourites Shortcut button
Safely Remove USB
Active Backlight
Learn Function Button
Favourites Shortcut button
Setup
Return
Video Goto
Zoom
Video Slow
Stop - Exit Internet Browser
Edit
A-B
LED
Media Library ‘Devices Page’ Shortcut
Repeat Shuffle
Edit Text - Internet Browser - Toggle BD Menu ‘on’ ‘off’
Internet Browser - Zoom Video Play full screen
Remote Back Light
The X3 remote uses active Back Light technology. The activation button
is conveniently located on the right side of the remote for easy access in
the dark. Press the Back Light button and the remote buttons will light
up. The backlighting will auto switch ‘off’ after 15 seconds of no activity.
Press the Back Light button to manually switch ‘off’ the Back Lighting.
Remote Function Button
You can assign any button on the remote to the ‘Function’ button. This is designed to be used as a shortcut
button for a function that is used a lot.
To assign a button -- press the ‘Function Button’ for 3 seconds and the Remote will enter
‘Learn Mode’ and the LED will turn on solid. Now press the button you want to assign and it
will be learned and the LED will flash and then turn off. You can change the function button
assignment at any time by repeating this procedure.

PLACEMENT
The X3 is designed to be placed on the top of a TV cabinet so that the IR Receiver can receive reflected IR
signals from the ceiling and walls - ‘A’ diagram above. The X3 should not be placed to close to the front
edge as it uses the front surface to receive the reflected signals. If the top shelf of the cabinet is glass or
perspex then we suggest you place a solid material matt underneath the X3 protruding approximately
40mm to the front.
Should you require to place your X3 on a shelf inside the cabinet - ‘B’ diagram above - then we suggest you
place it very close to the front edge. Now place a reflector made of any solid material under the X3 and
protruding by approx 40mm to the front. You can use any solid material as a Infra Red reflector and even a
plain piece of folded photo copy paper will work.
A
B
External IR Sensor (Not Supplied)
The X3 is equipped with an external IR Jack for those users who require to place the unit in a particular
location that is not in line-of-site of the remote. A third party external IR Receiver can be used as long as the
wiring termination is the same as the diagram below. For those who want to make the external IR cable
themselves we can recommend the Vishay part TSOP31138 (or equivalent) as it has been tested and works
well with the X3 .
External IR Receiver Wiring
GND
V OUT
VCC
Page12
EXTERNAL IR SENSOR

Page13
WIRED NETWORK CONNECTION AND SETUP
The X3 can be connected to your local network by means of a RJ45 CAT5 cable. The X3 is supplied
standard with a UPnP facility, Samba Client and NFS that allows connection to your local area network via a
router or switch. You can share media files from your PC or NAS and stream media content to the X3 and
you can use the X3 as a Media Server to stream media content to other devises on your network.
Press the “Setup” button on the X3 Remote or “Setup” on the Home Page then select “Network” option in
the Setup window then select ‘Wired Lan Setup’.
Network configuration allows for either automatic or manual IP setup.
DHCP IP (AUTO)
Choose this option if you want your router to assign a dynamic IP address to the X3. This option is easy to
use and recommended for normal users.
FIX IP (MANUAL)
This option allows you to assign a static IP address to the X3. This option requires modifying network
settings of the X3 and is recommended for advanced users. To set a Static IP for your X3, enter the
IP Address, Subnet Mast, Gateway and DNS Server Address as relevant to your router.
ESC: RETURN SPACE: PLAY
ENTER: SELECT(ENTER)
'0': 0 '1': 1 '2': 2 '3': 3 '4': 4 '5': 5 '6': 6 '7': 7 '8': 8 '9': 9
'-': VOL_DOWN '+': VOL_UP
'P' + 'SHIFT' : POWER OFF
'R(r)': REPEAT 'T(t)': SUBTITLE
'I(i)': INFO 'A(a)': AUDIO
'G(g)': GOTO 'H(h)': HOME
'Z(z)': ZOOM '/(?)': Info / About
‘’Ctrl’ (z) : ZOOM YouTube, Internet Browser
‘’Ctrl’ (i) : ZOOM VIDEO FULL SCREEN Internet Browser
‘’Ctrl’ (quotation marks) : EXIT BROWSER - Stop Icon
',(<)': FRWD '.(>)': FFWD
'F(f)': Favourite 'E(e)': EDIT
'M(m)': MENU 'S(s)': Setup
'V(v)': View 'L(l)': AB
'\(|)': SLOW '’ (”)': STOP
'/(?)': Info / About '[({)': Back Skip
'](})': Forward Skip 'W(w)': Launch Web Browser
'B(b)': Browser - Devices
'Alt': Mute 'FI': Red button
'F2': Green button 'F3': Yellow button
'F4': Blue button 'F5': TV Sys
'F6': Previous Chapter 'F7': Next Chapter
'F8': Menu - Internet Browser
USB Keyboard Function Keys (based on MEDX2KEY) Optional Extra

Page14
SAMBA (Network Setup)
If your PC or NAS has Share’s setup to specific users then you will need to setup a
shortcut on the X3 to each User Share and specify the IP, Username and Password
Setting up Samba shortcuts on the X3
Select ‘Network’ and then select the ‘My_Shortcuts’ icon. Now press the ‘Menu’ button
and select ‘Add New Shortcut’. Fill in the fields User Name, Password, IP Address
(Host Machine), and select ‘OK’
NOTE: In order to browse your secure shares you will have to enter ‘My_Shortcuts’
and then select the Shortcut’s that you have setup.
Tip - Navigate to the Share Via ‘My Shortcuts’ and press the ‘Menu’ button and select ‘ Add to Favourites’ -
Now you will be able to launch the share from the Favourite Desktop.
PUBLIC SHARES
Public Shares (shares that do not have a Username and Password) can be browsed via the
Media Library ---> Network and no user name or password is required.

WIRELESS NETWORK CONNECTION
Plug the WiFi Dongle into the USB extension base that was supplied with the MED10WFB. Plug the USB
cable into one of the USB host ports on the side of the X3. Extend the cable and place the base in a
position that is away from any metal object that could effect the Radio Frequency signal strength. The best
placement for the WiFi Dongle will depend on your particular environment. In order to get the best
placement you may need to extend the length with an additional USB extension cable.
USB Host Port
Screw the antenna into the SMA antenna
connector on the X3. Twist the antenna
gently into the vertical position as shown.
The operating distance or range of your wireless connection can vary significantly based on the physical
placement of the Router and the WiFi Dongle or PCIE antenna.
For best results, place your Router:
* Near the center of the area in which your X3 will operate.
* In an elevated location such as a high shelf.
* Away from potential sources of interference, such as PCs, microwaves, and cordless phones.
* The Antenna should be screwed in tight and in the upright position.
* Away from large metal surfaces.
MED10WFB
Page15
WIRELESS PCIE ANTENNA INSTALLATION (Factory Fit)
Certain models of the MED1000X3D (depending on the region) may be available with a factory fitted
PCIE WiFi kit. Check the packaging information to confirm if your model has the pre installed WiFi Kit.

Open Setup Menu then ‘Wireless Setup’ and
you should see a list of available SSID’s
with signal strength info. Press the ‘Zoom
button to refresh the list. Select the SSID
you want to connect to and press ‘Enter’
WIRELESS SETUP
1
If the WiFi Router has password protection
enabled then you will be required to enter
the security key of your WiFi router. Enter
the key int the virtual keyboard.
2
Select DHCP IP (AUTO) if you
want your router to assign a
dynamic IP address to the X3.
Select FIX IP (MANUAL) if you
want to assign a static IP address
to the X3.
34
If you selected Fix IP then you must enter the
IP Address
Subnet Mask
Default Gateway
DNS Server IP
After inputting these settings press ‘Enter’
5
The X3 will now test the connection. 6
If the connection was successful then the
X3 will display the Net Info screen. This
screen shows details of the connection.
Press ‘Enter’ and then you can you can
press ‘Return’ to exit the WiFi Setup Page.
7
8
Page16

Emergency Method (Resets Configuration to Default)
Disconnect the power jack at the rear of the X3 then plug it back in - Now press the on/off button and hold it
pressed for 20 seconds and then release.
After approximately 15 seconds the LED on the X3 will flash blue and you will get a progress bar on your TV
display (some TV's will not display this) wait until the X3 re boots itself +- 60 sec. Your X3 firmware is now
updated.
Download the latest X3 Firmware from www.mede8erforum.com. UnZIP or UnRAR or join with HJ Split and
will find a file named install.img. Copy this file to the root directory of a Flash Drive. Plug the USB Flash drive
into one of the USB Host Ports on the X3.
DO NOT REMOVE POWER DURING THE EMERGENCY RECOVERY PROCEDURE.
Setup Menu Update with Auto Configuration Restore
Open the Setup Menu and select the “Misc” tab. Now select USB upgrade option. After +- 5 sec the screen
will display the current Firmware Version and the New Firmware Version. You will have the option to select
“OK” or “Cancel”. Select “OK” and the X3 will reboot and after +- 10 seconds the update process will begin.
During the update process the top Navigation Buttons LED will flash and you should see an install progress
bar on your TV screen. After the update is complete the X3 will reboot with the new firmware installed.
If the X3 does not reboot within 5 seconds (after pressing the "Enter" button) then
press the "Home" button to initiate
USB Host Port Press on/off button for 20 Sec
The X3 comes with a DLNA DMR function. That stands for Digital Living Network Alliance Digital Media
Renderer. That means another DLNA device can use the X3 to process media without you having to do
anything else with the X3 other than turning it on. Music can be played without having to turn on the TV, or
you can display photo's on your TV directly from your phone.
A Device which controls this process is called a DLNA DMC - Digital Media Controller. You can get DMC apps
for many devices - Android phones / tabs - Iphone / Ipad. Android Honeycomb dosn't come with a DMC
installed. Android Market has a lot of them, but not all are able to detect both the X3's DMR, and the X3's
Upnp server successfully. Bubbleupnp has been tested with X3 and we suggest that this is a good app to start
playing and testing DLNA DMR functionality. Remember to turn the DMR ‘on’ in the X3 Setup Menu.
DLNA DMR
Page17
REMOTE CONTROL OVER NETWORK
Enable the Web Remote in the Setup Menu. Remote Control the X3 from a mobile device such as a iPhone,
iPad or any device that has WiFi and a built in Web Browser. Enter the X3 IP into your Web Browser with the
correct Port number eg http://xxx.xxx.xxx.xxx:1024 “x” is your actual IP

HOME NETWORK SAMBA SERVER
The X3 has NAS (Network Attached Storage) functionality built in. And although it is limited in transfer
speed compared to standalone NAS servers it performs well if speed is not your major requirement. You
can also use the X3 as a Media Server and stream content to other Mede8er’s on your home network. The
Samba function is enabled or disabled in the ‘Network’ menu under ‘Samba Process’.
You can browse your X3 in Windows - Computer ---> My Network Places ---> View Workgroup Computers.
If the Hostname is not picked up by your PC then you can enter either the Host Name or the
IP Address into the Explorer address bar
\\192.168.0.3 - You type in the actual ip address of the X3
\\MED1000X3D - If you have changed the Host Name then type in the new Host Name
If you are using more than one Mede8er on your Network then you should change the Hostname in the
Setup Menu. Each X3 should have its own unique Hostname. You must reboot the X3 after changing the
Hostname.
MED1000X3D with internal Hard Drive
acting as Media Server
Router
Mede8er without Hard Drive
Room1 Mede8er without Hard Drive
Room 2
Cat5
Cat5 Cat5
Page18
SAMBA NAS SECURITY
By default the Samba NAS is a open Public
share and it does not require any Login.
You can enable Samba NAS Security and set
your own Password to limit access to the
content on the X3 Hard Drive.
Username: root
Password: ‘your login password’
WOL (Wake On LAN)
Setup Menu ---Misc --- WOL
Browse the device/'s first and then they should appear in the WOL list
Select the devices you want X3D to wake up on boot - WOL on X3D boot-up is not always reliable due to the
network not always being ready so X3D will also send the Magic Packets when you enter the Favourite
Screen. You can also do a manual WOL in Setup Menu - focus on Device and press 'F1' button.

HOME PAGE
The X3 Home Page is the central point where you can launch all the user applications. Press the
Right/Left/Up/Down Navigation buttons on the remote to navigate the Home Page and press “Enter” to
launch the selected page.
INTERNET MEDIA
The Internet Media page contains the Internet
Media functionality such as Web Browser, Social
Media, Internet Radio, Flicker etc
SETUP
The Setup page is the area where you personalize
the setup options to suit your individual needs.
Page19
YouTube
Search and Stream online YouTube videos to
your TV.
