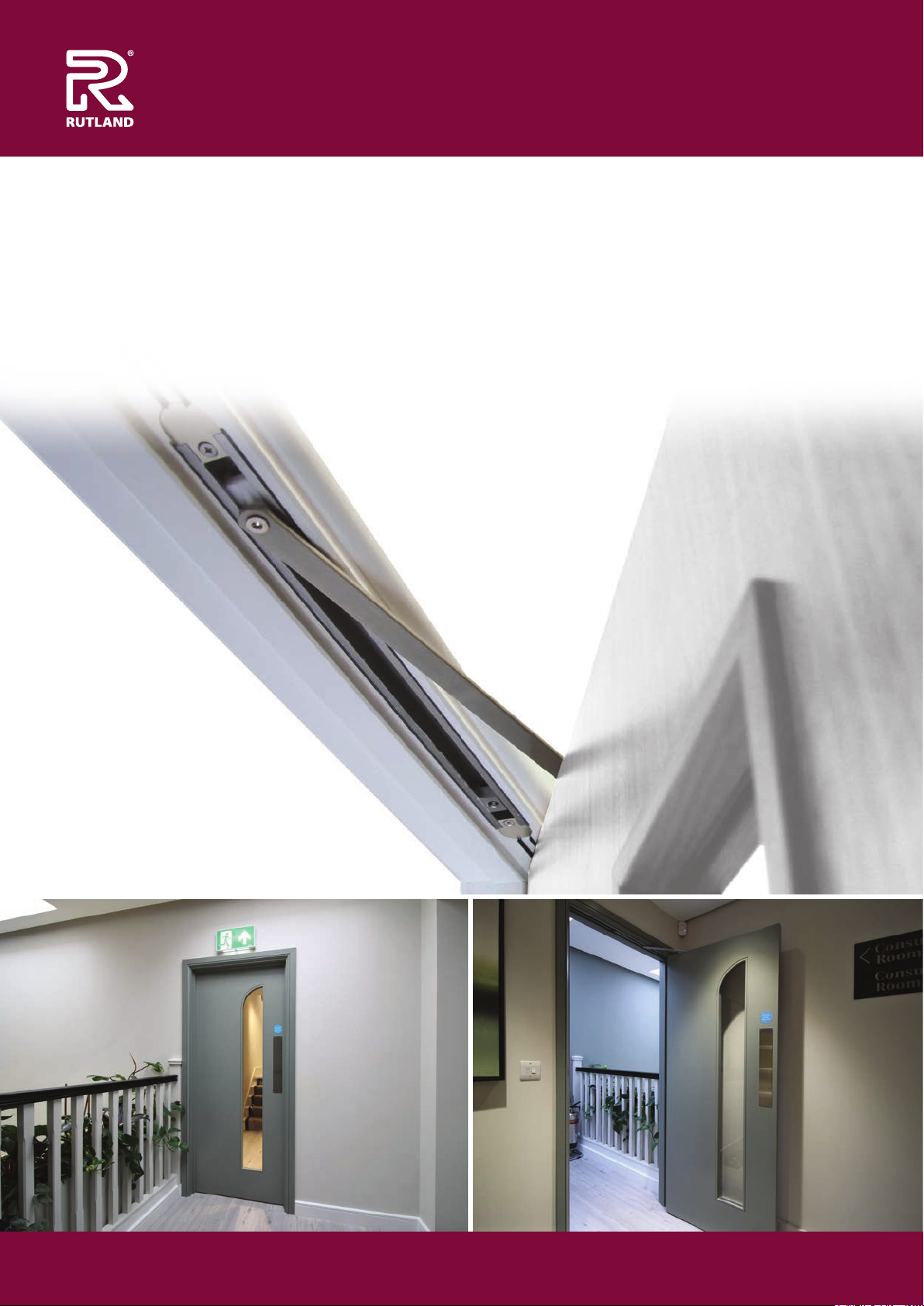

ITS.11204
CONCEALED SLIDE ARM DOOR CLOSERS
ENHANCING LIFE SAFETY AT EVERY FIRE DOOR
t. [phone] | e. [email protected]

Renowned for its slimline mechanism (32mm body) and
suitability for assisting BS8300 requirements, the Rutland
ITS.11204 Cam Action door closer has been successfully fire
tested numerous times in 44mm fire doors, making it a perfect
door closer for situations where minimal aesthetics are required.
ITS.11204
Certification Compliance
Certifire
UKCA
CE
BS EN 1154
BS EN 1634
UL10C -
UL228
ANSI BHMA -

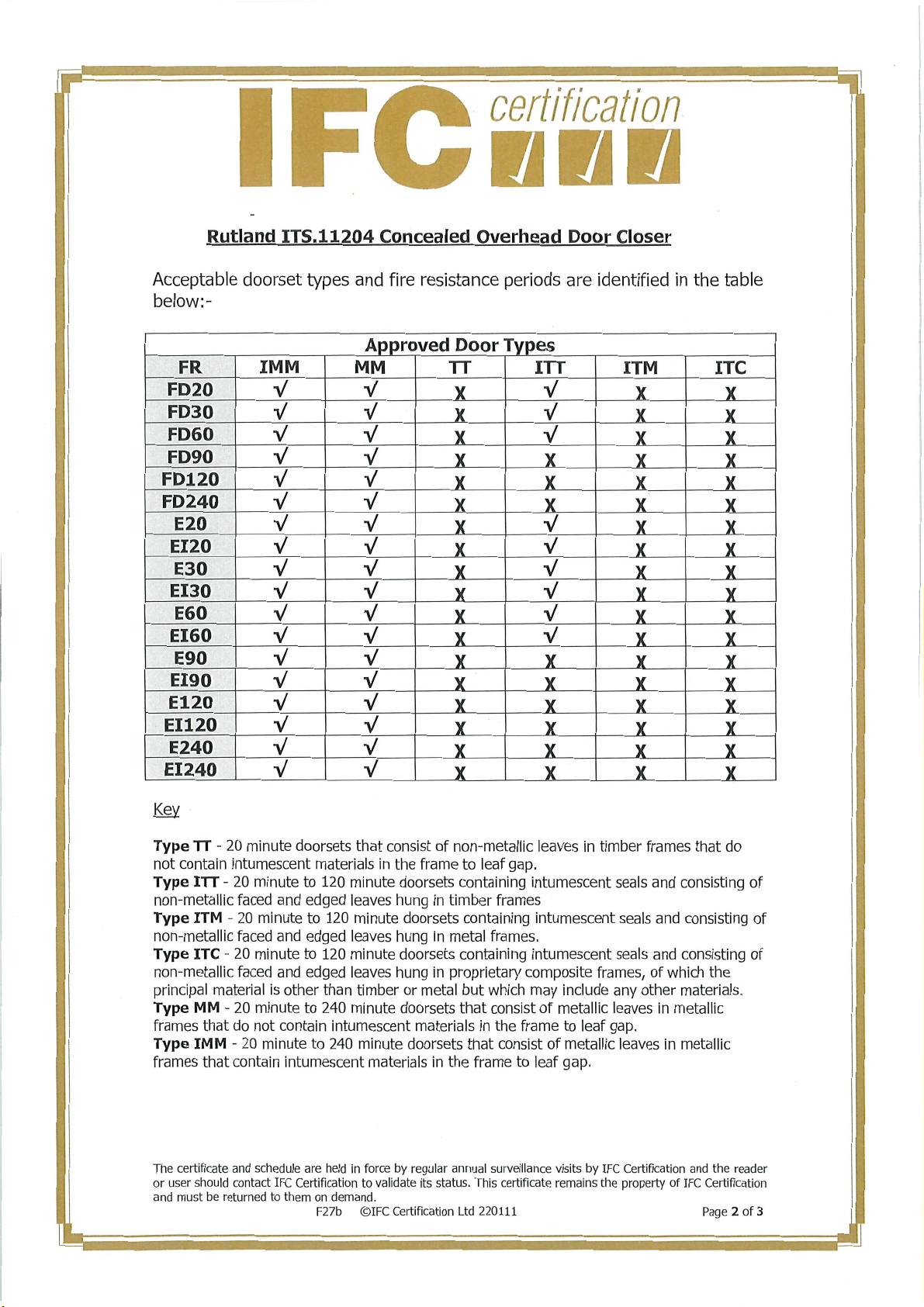

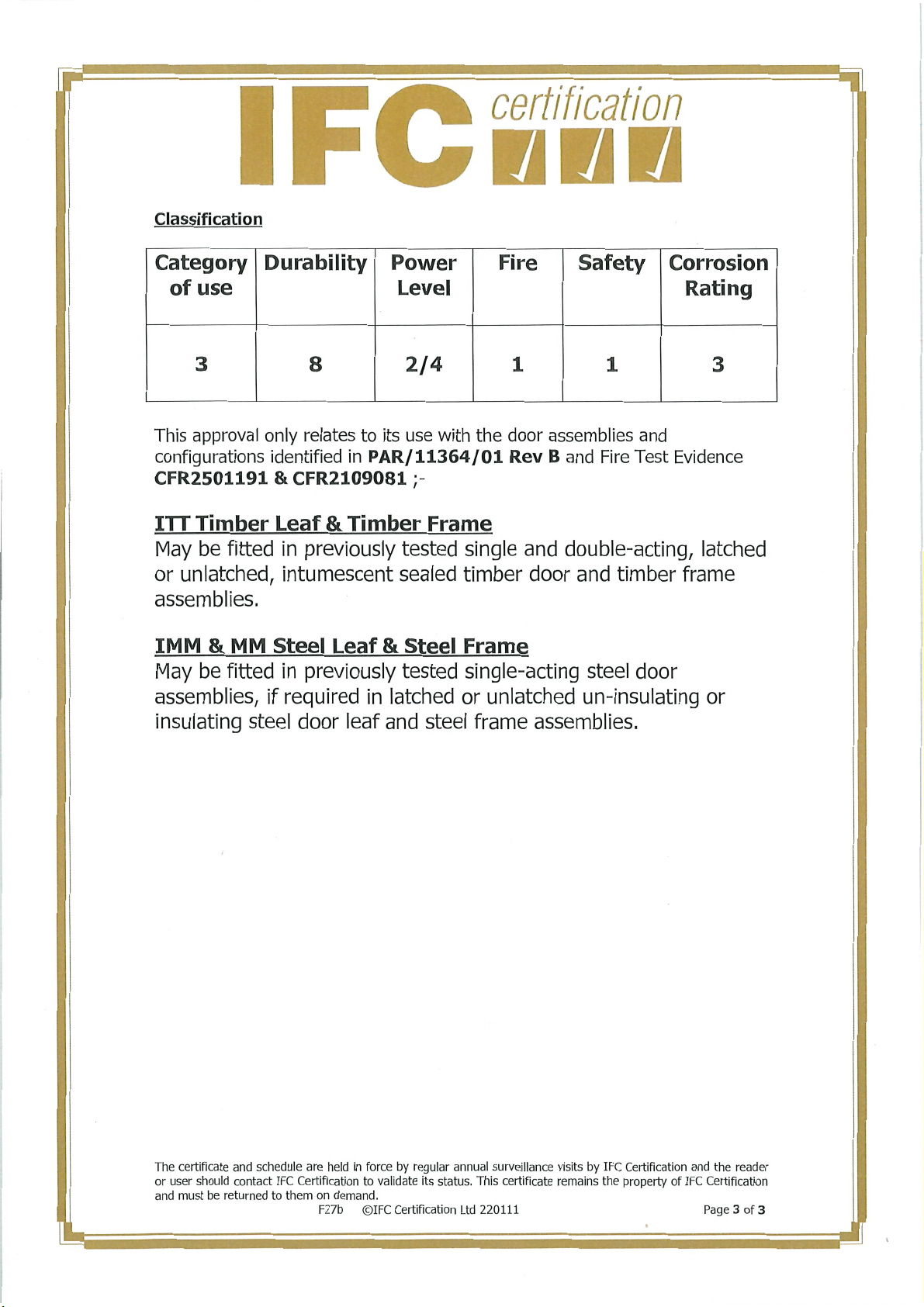

IFCC
Key: Yes - No •Option

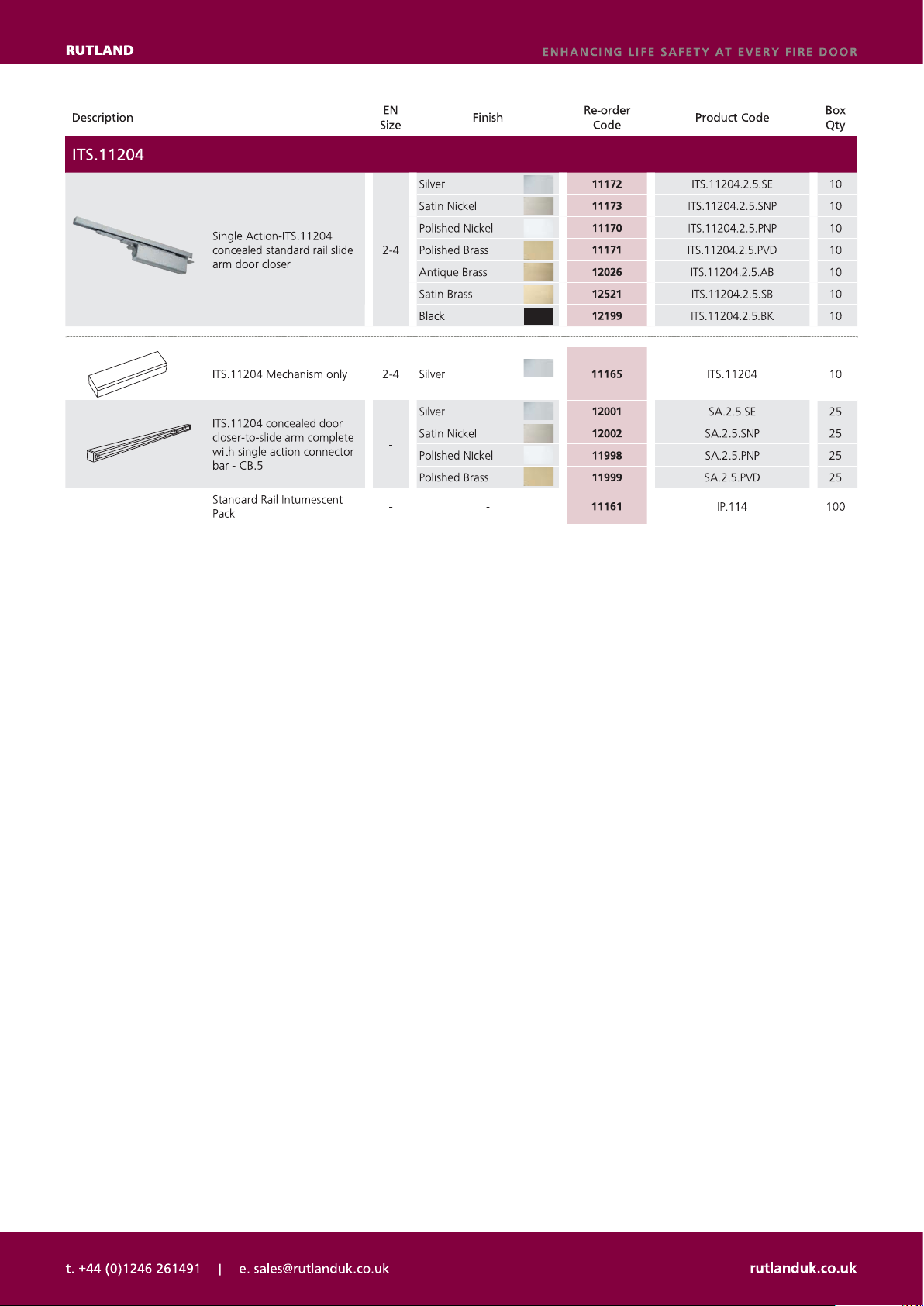

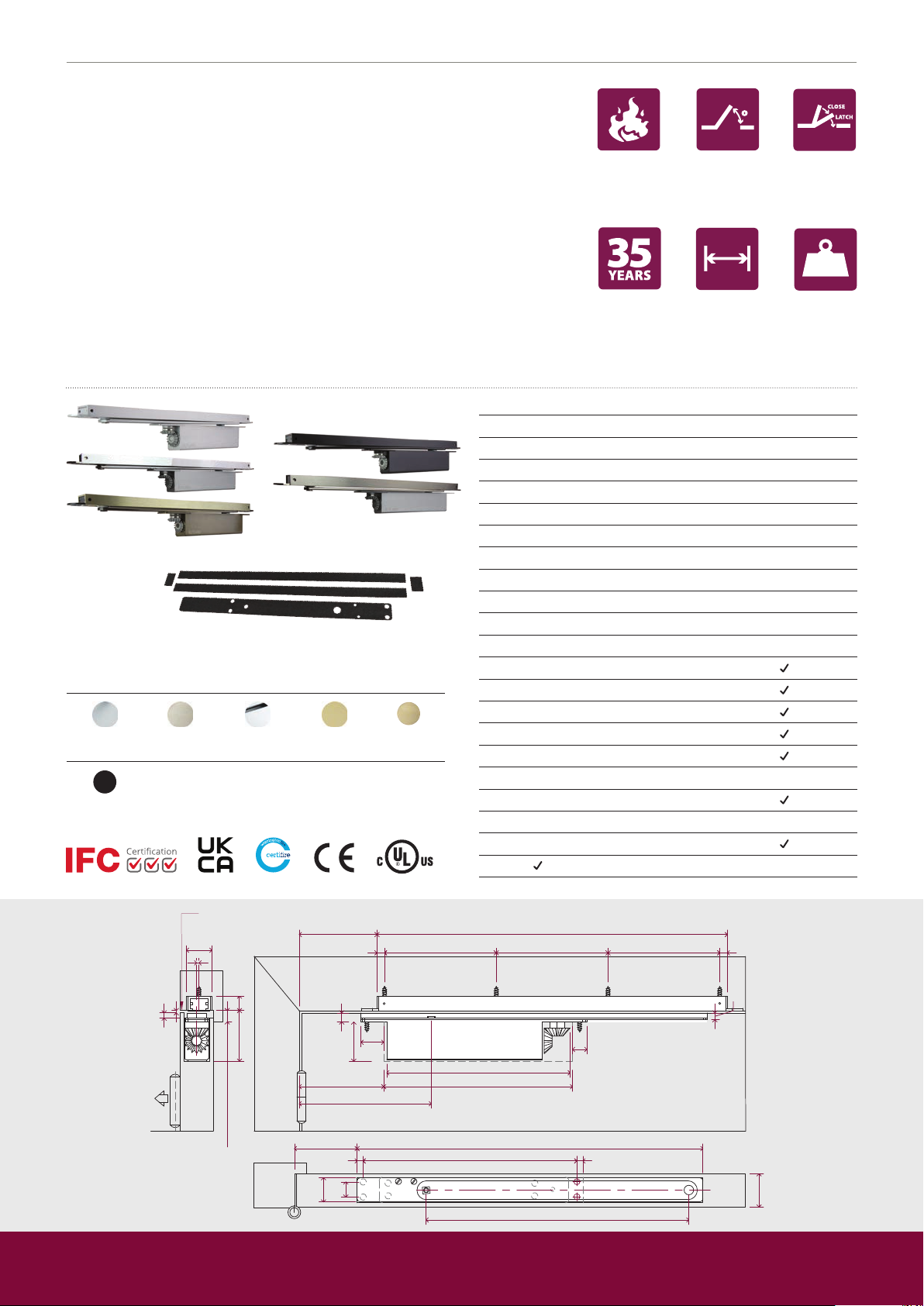

Product Features ITS.11204
Delayed Action -
Back Check -
Opening Angle 110º
Fig.1 Pull Side Door Width 595-1100mm
Fig.66 Push Side Door Width 595-1100mm
Fig.1 BS8300 Min Door Width 835mm
Max Door Weight <130kg
Power Adjustment By Spring
Hold Open (not for fire doors) o
Dimensions W243 x H52 x D32mm
3rd Party
Certification
FIRE TESTED MAXIMUM
DOOR WEIGHT
OPEN ANGLE
ADJUSTABLE
LATCH ACTION
GUARANTEE
GUARANTEE
MAXIMUM
DOOR WIDTH
ADJUSTABLE
CLOSING SPEED
BACK CHECK
UNIVERSAL
APPLICATION
EN2-4 GUARANTEE
Opening Angle
110º
FIRE TESTED MAXIMUM
DOOR WEIGHT
OPEN ANGLE
ADJUSTABLE
LATCH ACTION
GUARANTEE
GUARANTEE
MAXIMUM
DOOR WIDTH
ADJUSTABLE
CLOSING SPEED
BACK CHECK
UNIVERSAL
APPLICATION
EN2-4 GUARANTEE
Two-Stage
Speed Regulation
FIRE TESTED MAXIMUM
DOOR WEIGHT
OPEN ANGLE
ADJUSTABLE
LATCH ACTION
GUARANTEE
GUARANTEE
MAXIMUM
DOOR WIDTH
ADJUSTABLE
CLOSING SPEED
BACK CHECK
UNIVERSAL
APPLICATION
EN2-4 GUARANTEE
Max Door
Weight
FIRE TESTED MAXIMUM
DOOR WEIGHT
OPEN ANGLE
ADJUSTABLE
LATCH ACTION
GUARANTEE
GUARANTEE
MAXIMUM
DOOR WIDTH
ADJUSTABLE
CLOSING SPEED
BACK CHECK
UNIVERSAL
APPLICATION
EN2-4 GUARANTEE
Max Door
Width
FIRE TESTED MAXIMUM
DOOR WEIGHT
OPEN ANGLE
ADJUSTABLE
LATCH ACTION
GUARANTEE
GUARANTEE
MAXIMUM
DOOR WIDTH
ADJUSTABLE
CLOSING SPEED
BACK CHECK
UNIVERSAL
APPLICATION
EN2-4 GUARANTEE
Guarantee
FIRE TESTED MAXIMUM
DOOR WEIGHT
OPEN ANGLE
ADJUSTABLE
LATCH ACTION
GUARANTEE
GUARANTEE
MAXIMUM
DOOR WIDTH
ADJUSTABLE
CLOSING SPEED
BACK CHECK
UNIVERSAL
APPLICATION
EN2-4 GUARANTEE
t. [phone] | e. [email protected]
31
rutlanduk.co.uk
CONCEALED SLIDE ARM DOOR CLOSERS
• Certifire Approved
• Power Adjustable by spring, size 2-4
• Suitable for both 44 and 54mm thick doors
• Available in Silver, Satin Nickel, Polished Nickel, Polished Brass & Antique Brass for next day delivery
7
3
33.5
3
19
67
15 Min Timber Stop
103 464
10 148 148 148 10
12
9
19
52
30
112
175
250
243
283 8
83
8
458
348
20
32
44
Rutland, Whittington Way, Chesterfield, S41 9AG.
Tel: [phone] Email: [email protected]
ITS11204
RUTLAND
NO PART OF THIS INSTRUCTION CAN BE COPIED OR STORED IN ANY WAY OR FORM MANUALLY OR ELECTRONICALLY WITHOUT THE FULL PERMISSION OF RUTLAND ©
Door Leaf Concealed Fixing
Concealed Closer Single Action
Gap Between
Door and Frame
NOTE: Make
Closer Central
In Width Of
The Door
All dimensions
shown are in mm.
For fitting instructions see website
130Kg
1100mm
Finishes See page 98 for more detail
SE SNP PNP PVD AB
Silver Satin Nickel Polished Nickel Polished Brass Antique Brass
BK
Black
7
3
33.5
3
19
67
15 Min Timber Stop
103 464
10 148 148 148 10
12
9
19
52
30
112
175
250
243
283 8
83
8
458
348
20
32
44
Rutland, Whittington Way, Chesterfield, S41 9AG.
Tel: [phone] Email: [email protected]
ITS11204
RUTLAND
NO PART OF THIS INSTRUCTION CAN BE COPIED OR STORED IN ANY WAY OR FORM MANUALLY OR ELECTRONICALLY WITHOUT THE FULL PERMISSION OF RUTLAND ©
Door Leaf Concealed Fixing
Concealed Closer Single Action
Gap Between
Door and Frame
NOTE: Make
Closer Central
In Width Of
The Door

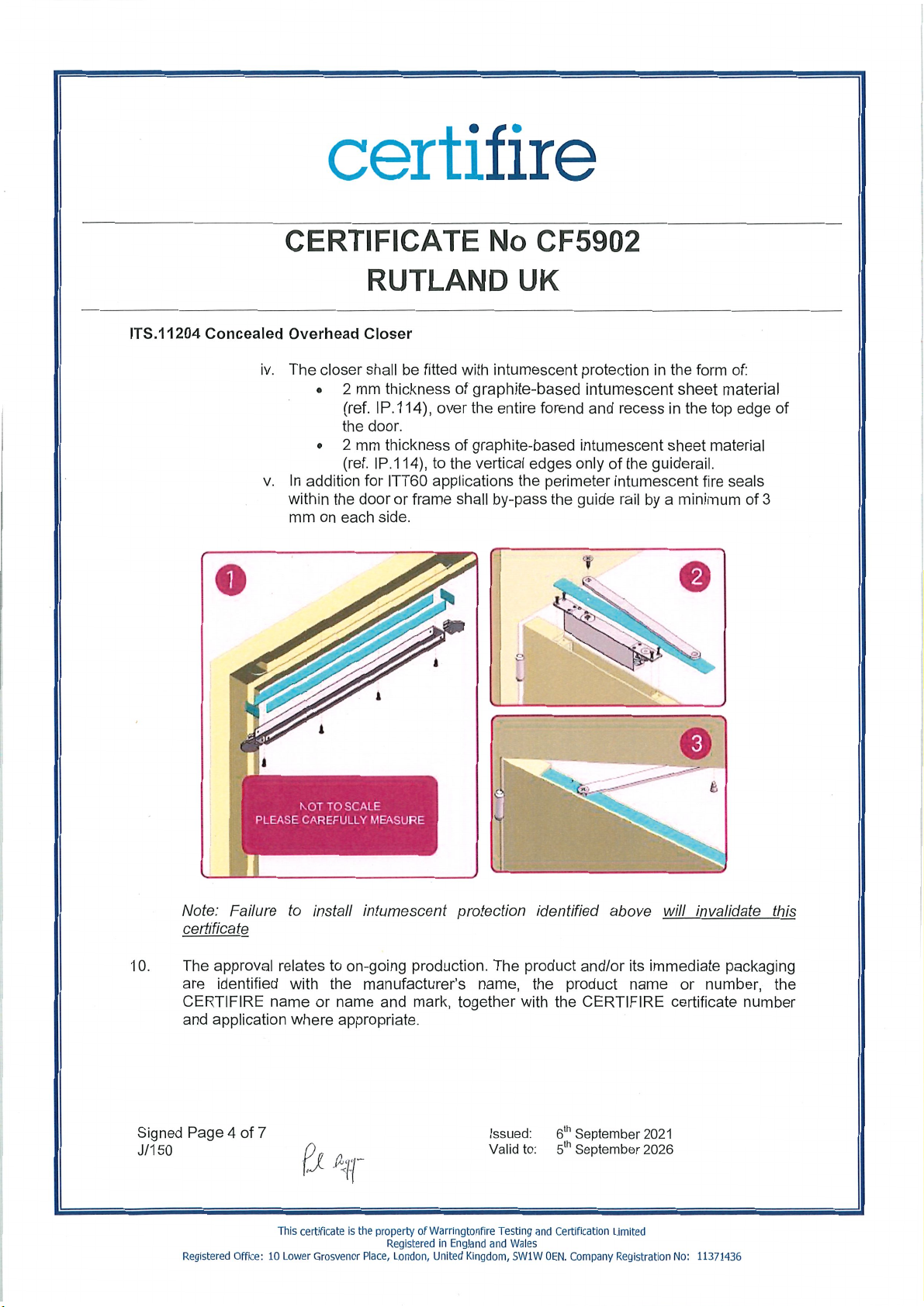

Intumescent kit
(IP.114)
C
E
R
T
I
F
I
C
A
T
I
O
N

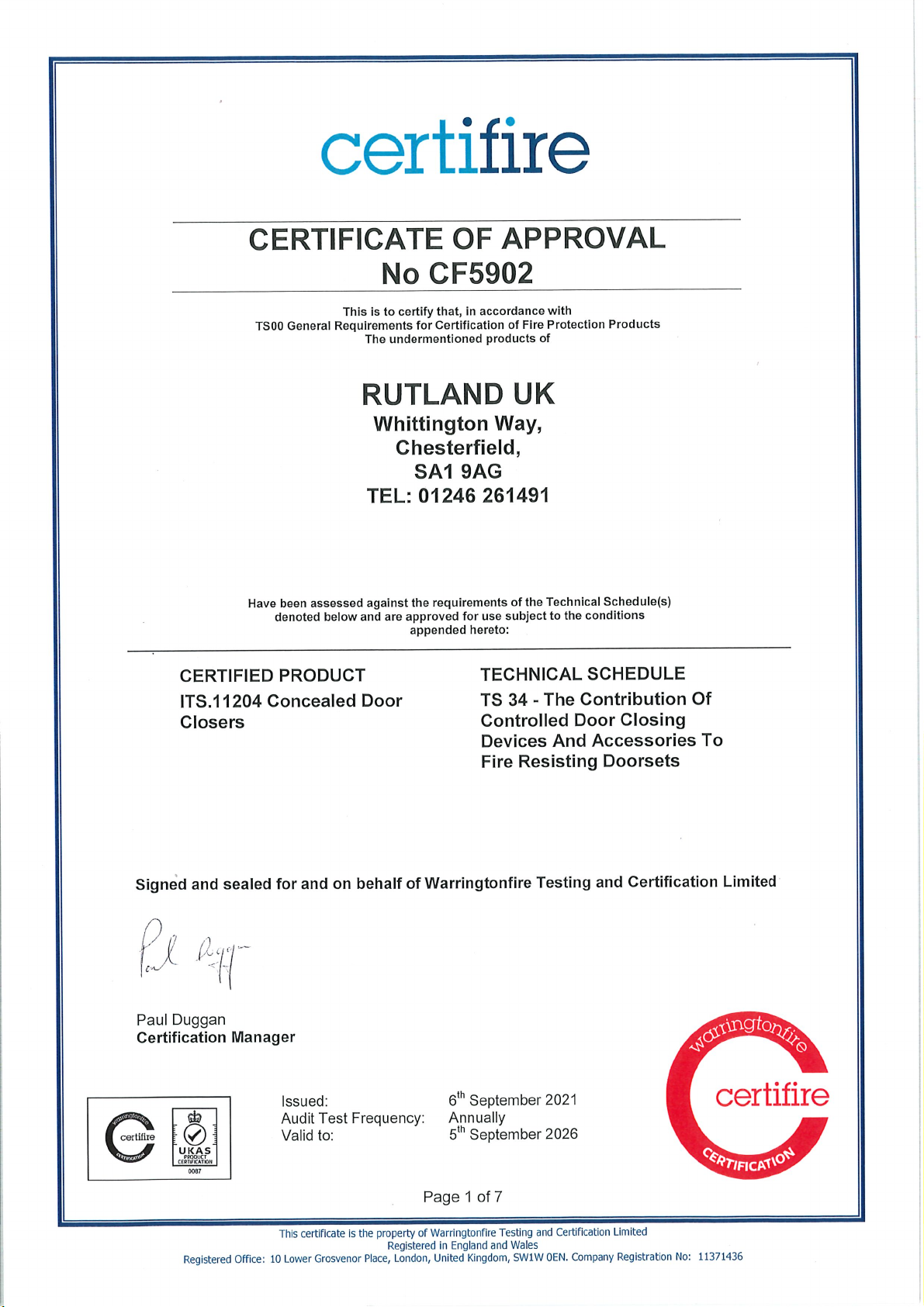

18121720 Approved Product
CF 5902

Take slide block
out of rail
Put black spring clip
into the slot
underneath the block.
Slide block with hold
open clip back into
the slide rail, then
tighten Allen key
screw at desired angle
of hold-open
1
2
3
ENHANCING LIFE SAFETY AT EVERY FIRE DOOR
Hold Open Device
FOR NON-FIRE DOOR APPLICATION
[phone] | [email protected]
Rutland UK Whittington Way Chesterfield S41 9AG rutlanduk.co.uk

t. [phone] | e. [email protected]
Rutland UK Whittington Way Chesterfield S41 9AG rutlanduk.co.uk
SLIDE ARM

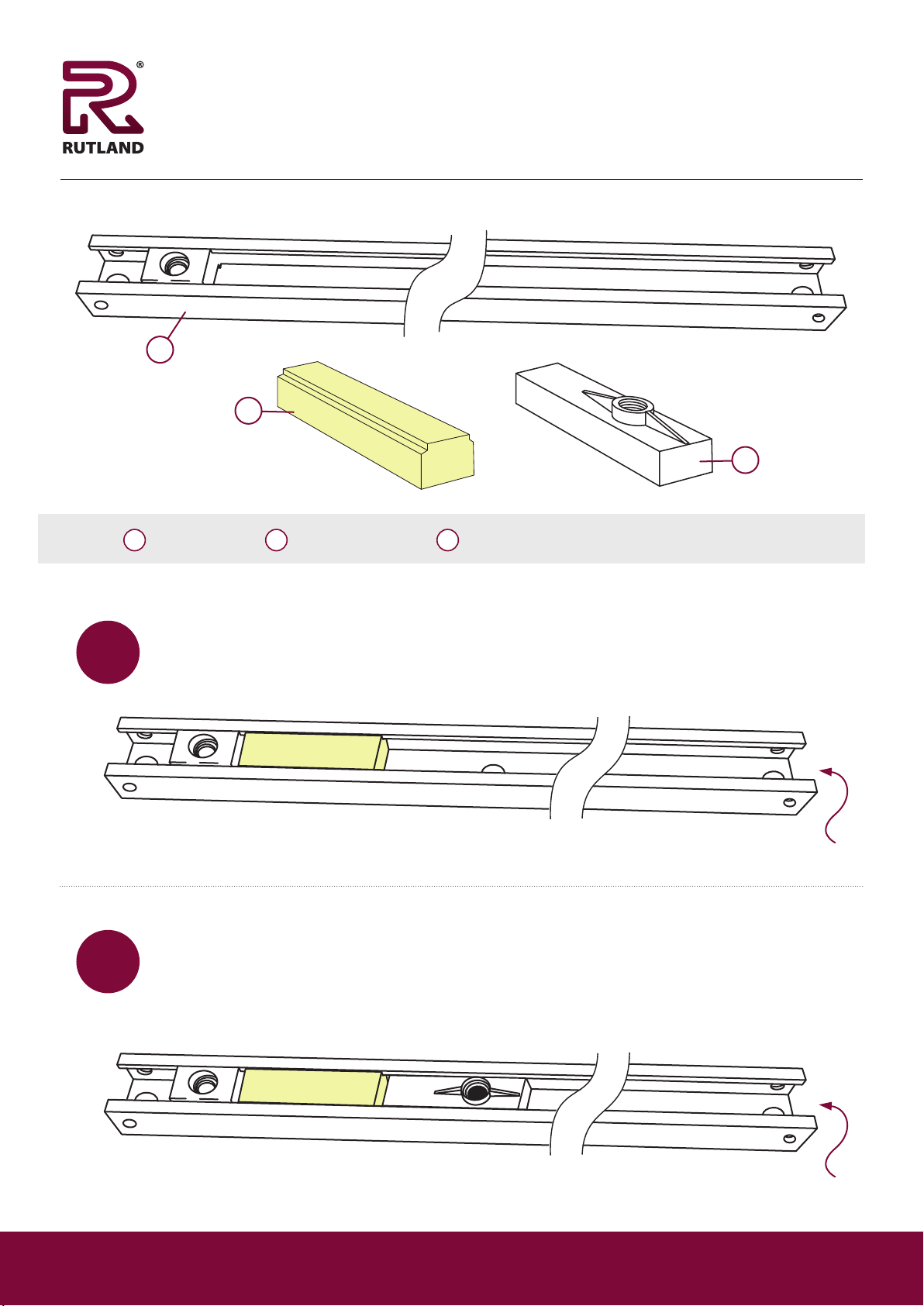

Cushion Stop Installation
Step 1 Slide the cushion (2) into the rail (1) up against the stop.
KEY: 1Slide Rail 2Cushion Stop 3Shuttle
Step 2 Insert the white shuttle (3) and continue fixing the closer and connecting the rail (1).
2
1
3

t. [phone] | e. [email protected]
Rutland UK Whittington Way Chesterfield S41 9AG rutlanduk.co.uk
SLIDE ARM DOOR CLOSERS
Maintenance
Step 1 Check that screws are tight (No.1 & No.2), and tighten if needed, at least every 6 months.
Step 2 Tighten pinion screw (No. 3) to 12nm, at least every 6 months
Step 3 Lubricate all moving parts, except the sliding shuttle (No.4) , at least every 6 months.
*For high usage closers, this steps will need to be carried out more often than every 6 months.
Any unusual sounds or visual defects should be addressed immediately
1
1
3
3
4
1
1
2
2

t. [phone] | e. [email protected]
Rutland UK Whittington Way Chesterfield S41 9AG rutlanduk.co.uk
SLIDE ARM DOOR CLOSERS

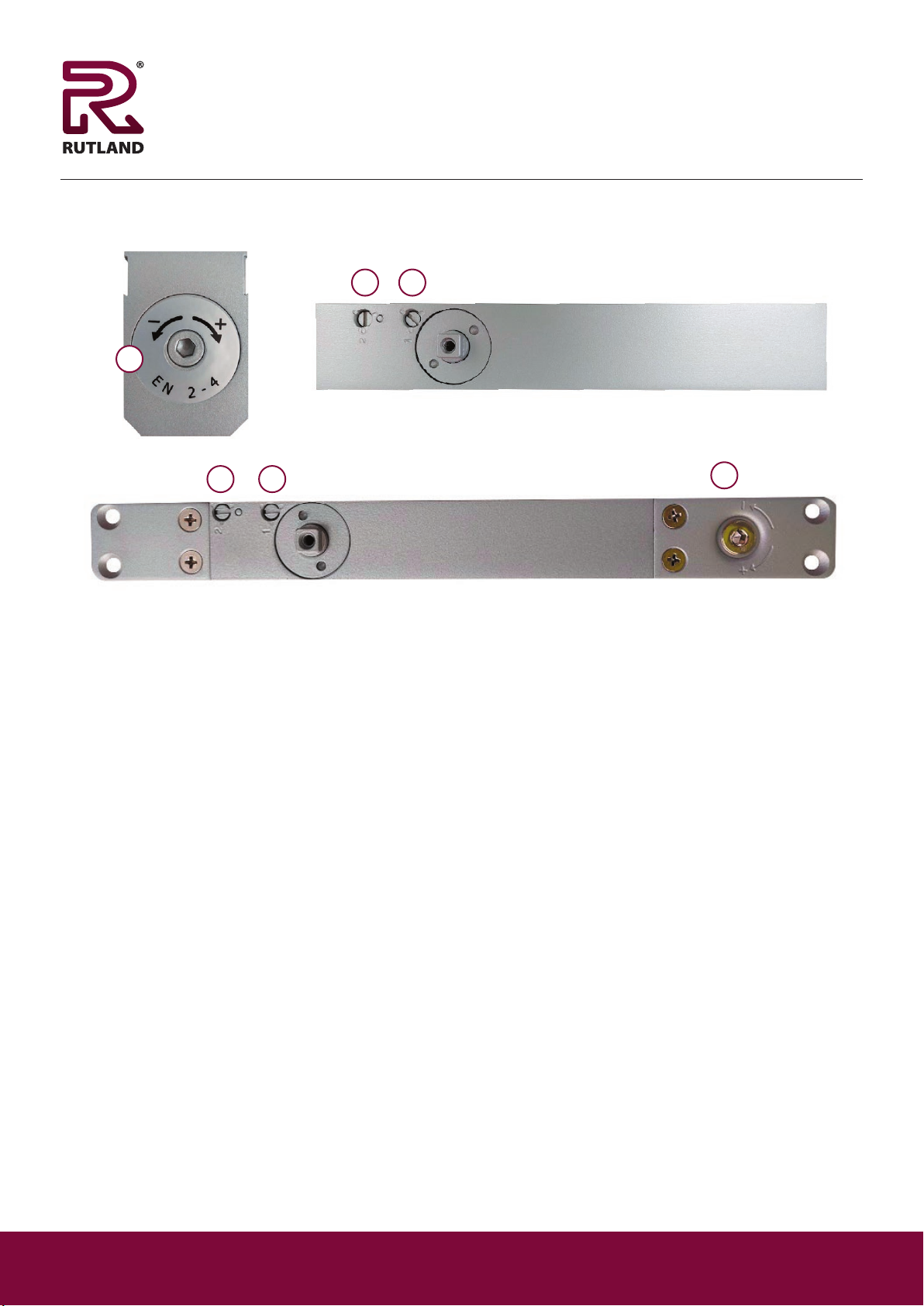

Valve Adjustments
Before adjusting any valves ensure the door and frame are fixed firmly and the door will
close easily into the frame and latch.
• To increase the speed of a door turn the valve 1 (No.5) Anti-clockwise. If door closing too fast turn the valve 1 Clockwise to
reduce the speed to a satisfactory movement.
• When the door is latching too fast adjust the valve 2 (No. 6) to the desired satisfactory action. Turn Clockwise to reduce the
speed.
• If the latch is getting stuck, turn Valve 2 anti-clockwise to increase the speed but not too fast so that it slams.
• If more power is needed to overcome the latch or Intumescent seal you can increase the power by turning the power
adjustment function (No. 7) with an allen key.
• If the door is too easy to open or affected by wind or air pressure, turn Clockwise to increase the power.
• If the door is stiff to open you can turn Anti-clockwise to decrease the power.
Back Check + Delayed Action on Slide Arm closers
• If the door hits a wall when fully opened you can adjust the Back Check valve. Turn valve Clockwise with a screw driver to
increase the Back Check facility. This will slow the door down on opening at speed. Back Check valve if applicable to this
model.
• If a delay or extra time is required on the closing of the door, the Delayed Action valve can be used. Turn the valve clockwise if
more time is required or turn the valve anti-clockwise if less time is required. Delayed Action valve if applicable to this model.
5
5
6
6
7
7
