Ruud Achiever ra1418aj1na User manual

RA14 Series

Efficiencies up to 16 SEER/13 EER

Nominal Sizes 11

/2 to 5 Ton [5.28 to 17.6 kW]

Cooling Capacities 17.3 to 60.5 kBTU

[5.7 to 17.7 kW]

“Proper sizing and installation of equipment is critical to achieve

optimal performance. Split system air conditioners and heat

pumps must be matched with appropriate coil components to

meet Energy Star. Ask your Contractor for details or visit

www.energystar.gov.”

FORM NO. A22-220 REV. 5

Air Conditioners

RA14 Series

Rely on Ruud.™

Ruud

Achiever®

Series

Air Conditioners

Ruud

Achiever®

Series

Air Conditioners

• New composite base pan – dampens sound, captures louver

panels, eliminates corrosion and reduces number of fasteners

needed

• Powder coat paint system – for a long lasting professional finish

• Scroll compressor – uses 70% fewer moving parts for higher

efficiency and increased reliability

• Modern cabinet aesthetics – increased curb appeal with visu-

ally appealing design

• Curved louver panels – provide ultimate coil protection,

enhance cabinet strength, and increased cabinet rigidity

• Optimized fan orifice – optimizes airflow and reduces unit

sound

• Rust resistant screws – confirmed through 1500-hour salt spray

testing

• PlusOne™ Expanded Valve Space – 3"-4"-5" service valve

space – provides a minimum working area of 27-square inches

for easier access

• PlusOne™ Triple Service Access – 15" wide, industry lead-

ing corner service access – makes repairs easier and faster.

The two fastener removable corner allows optimal access to

internal unit components. Individual louver panels come out

once fastener is removed, for faster coil cleaning and easier

cabinet reassembly

• Diagnostic service window with two-fastener opening –

provides access to the high and low pressure.

• External gauge port access – allows easy connection of

“low-loss” gauge ports

• Single-row condenser coil – makes unit lighter and allows thor-

ough coil cleaning to maintain “out of the box” performance

• 35% fewer cabinet fasteners and fastener-free base – allow for

faster access to internal components and hassle-free panel

removal

• Service trays – hold fasteners or caps during service calls

• QR code – provides technical information on demand for faster

service calls

• Fan motor harness with extra long wires allows unit top to be

removed without disconnecting fan wire.

16.0

Rely on Ruud.™

Table of Contents

RA14 Series

Standard Feature ......................................................................................................3

Available SKUs ........................................................................................................3

Features & Benefits ..............................................................................................4-5

Model Number Identification ................................................................................6-7

General Data/Electrical Data ....................................................................................8

Accessories ............................................................................................................9

Weighted Sound Power ............................................................................................9

Thermostats..............................................................................................................9

Unit Dimensions......................................................................................................10

Clearances..............................................................................................................11

Wiring Diagrams ....................................................................................................12

Application Guidelines ............................................................................................12

Refrigerant Line Size Information ......................................................................13-14

Performance Data ............................................................................................15-59

Guide Specifications ..............................................................................................60

Limited Warranty ....................................................................................................61

TABLE OF CONTENTS

Standard Feature/Available SKUs

RA14 Series

Rely on Ruud.™ 3

STANDARD FEATURES

Feature 18 24 30 36 42 48 60

R-410a Refrigerant √ √ √ √ √ √ √

Maximum SEER 16 16 16 16 16 15.5 15

Maximum EER 13 13 13 13 13 13 12.5

Scroll Compressor √ √ √ √ √ √ √

Field Installed Filter Drier √ √ √ √ √ √ √

Front Seating Service Valves √ √ √ √ √ √ √

Internal Pressure Relief Valve √ √ √ √ √ √ √

Internal Thermal Overload √ √ √ √ √ √ √

Long Line capability √ √ √ √ √ √ √

Low Ambient capability with Kit √ √ √ √ √ √ √

3-4-5 Expanded Valve Space √ √ √ √ √ √ √

Composite Basepan √ √ √ √ √ √ √

2 Screw Control Box Access √ √ √ √ √ √ √

15" Access to Internal Components √ √ √ √ √ √ √

Quick release louver panel design √ √ √ √ √ √ √

No fasteners to remove along bottom √ √ √ √ √ √ √

Optimized Venturi Airflow √ √ √ √ √ √ √

Single row condenser coil √ √ √ √ √ √ √

Powder coated paint √ √ √ √ √ √ √

Rust resistant screws √ √ √ √ √ √ √

QR code √ √ √ √ √ √ √

External gauge ports √ √ √ √ √ √ √

Service trays √ √ √ √ √ √ √

√= Standard

Standard Feature Table

Available SKUs

Available Models Description

RA1418AJ1NA

Achiever

®Series 1 1/2 ton 14 SEER Single-Stage Air Conditioner-208/230/1/60

RA1424AJ1NA

Achiever

®Series 2 ton 14 SEER Single-Stage Air Conditioner-208/230/1/60

RA1430AJ1NA

Achiever

®Series 2 1/2 ton 14 SEER Single-Stage Air Conditioner-208/230/1/60

RA1436AJ1NA

Achiever

®Series 3 ton 14 SEER Single-Stage Air Conditioner-208/230/1/60

RA1442BJ1NA

Achiever

®Series 3 1/2 ton 14 SEER Single-Stage Air Conditioner-208/230/1/60

RA1448AJ1NA

Achiever

®Series 4 ton 14 SEER Single-Stage Air Conditioner-208/230/1/60

RA1460AJ1NA

Achiever

®Series 5 ton 14 SEER Single-Stage Air Conditioner-208/230/1/60

RA1418AJ1NB

Achiever

®Series 1 1/2 ton 14 SEER Single-Stage Air Conditioner w/ High/Low Pressure-208/230/1/60

RA1424AJ1NB

Achiever

®Series 2 ton 14 SEER Single-Stage Air Conditioner w/ High/Low Pressure-208/230/1/60

RA1430AJ1NB

Achiever

®Series 2 1/2 ton 14 SEER Single-Stage Air Conditioner w/ High/Low Pressure-208/230/1/60

RA1436AJ1NB

Achiever

®Series 3 ton 14 SEER Single-Stage Air Conditioner w/ High/Low Pressure-208/230/1/60

RA1442BJ1NB

Achiever

®Series 3 1/2 ton 14 SEER Single-Stage Air Conditioner w/ High/Low Pressure-208/230/1/60

RA1448AJ1NB

Achiever

®Series 4 ton 14 SEER Single-Stage Air Conditioner w/ High/Low Pressure-208/230/1/60

RA1460AJ1NB

Achiever

®Series 5 ton 14 SEER Single-Stage Air Conditioner w/ High/Low Pressure-208/230/1/60

RA1436AC1NB

Achiever

®Series 3 ton 14 SEER Single-Stage Air Conditioner w/ High/Low Pressure-208/230/3/60

RA1442BC1NB

Achiever

®Series 3 1/2 ton 14 SEER Single-Stage Air Conditioner w/ High/Low Pressure-208/230/3/60

RA1448AC1NB

Achiever

®Series 4 ton 14 SEER Single-Stage Air Conditioner w/ High/Low Pressure-208/230/3/60

RA1460AC1NB

Achiever

®Series 5 ton 14 SEER Single-Stage Air Conditioner w/ High/Low Pressure-208/230/3/60

RA1436AD1NB

Achiever

®Series 3 ton 14 SEER Single-Stage Air Conditioner w/ High/Low Pressure-460/3/60

RA1442BD1NB

Achiever

®Series 3 1/2 ton 14 SEER Single-Stage Air Conditioner w/ High/Low Pressure-460/3/60

RA1448AD1NB

Achiever

®Series 4 ton 14 SEER Single-Stage Air Conditioner w/ High/Low Pressure-460/3/60

RA1460AD1NB

Achiever

®Series 5 ton 14 SEER Single-Stage Air Conditioner w/ High/Low Pressure-460/3/60

The RA14 is our 14 SEER air conditioner and is part of the Ruud

air conditioner product line that extends from 13 to 20 SEER.

This highly featured and reliable air conditioner is designed for

years of reliable, efficient operation when matched with Ruud

indoor aluminum evaporator coils and furnaces or air handler

units with aluminum evaporators.

Our unique composite base ( ) reduces sound emission, elimi-

nates rattles, significantly reduces fasteners, eliminates corro-

sion and has integrated brass compressor attachment inserts

()

. Furthermore it has incorporated into the design, water

management features, means for hand placement ()

for unit

maneuvering, screw trays ()

and inserts for lifting off unit

pad. ( )

Service Valves ( ) are rigidly mounted in the composite base

with 3" between suction and discharge valves, 4" clearance

below service valves and a minimum of 5" above the service

valves, creating industry leading installation ease. The minimum

27 square-inches around the service valves allows ample room

to remove service valve schrader prior to brazing, plenty of

clearance for easy brazing of the suction and discharge lines to

service valve outlets, easy access and hookup of low loss refrig-

erant gauges ( ), and access to the service valve caps for

opening. For applications with long-line lengths up to 250 feet

total equivalent length, up to 200 feet condenser above evapora-

tor, or up to 80 feet evaporator above condenser, the long-line

instructions in the installation manual should be followed.

Controls are accessed from the corner of the unit by removing

only two fasteners from the control access cover, revealing the

industry’s largest 15" wide and 14" tall control area ()

. With all

this room in the control area the high voltage electrical whip ( )

can easily be inserted through the right size opening in the bot-

tom of the control area. Routing it leads directly to contractor

lugs for connection. The low voltage control wires ()

are easily

connected to units low voltage wiring. If contactor or capacitor

( ) needs to be replaced there is more than adequate space to

make the repair. Furthermore, if high pressure and low pressure

model was not purchased but is desired to be installed in the

field, the service window ( ) can be removed by removing two

screws, to access the high and low side schrader fittings for easy

field installation. The entire corner can be removed providing

ultimate access to install the high and low pressure switch. ()

If in the rare event, greater access is needed to internal compo-

nents, such as the compressor, the entire corner of the unit can

be removed along with the top cover assembly to have unprece-

dented access to interior of the unit ()

. Extra wire length is

incorporated into each outdoor fan and compressor so top

cover and control panel can be positioned next to the unit. With

minimal effort the plug can be removed from the compressor

and the outdoor fan wires can be removed from the capacitor to

allow even more uncluttered access to the interior of the unit ()

Outdoor coil heights range from as short as 22" to 32", aiding

access to the compressor. Disassembly to this degree and com-

plete reassembly only takes a first time service technician less

than 10 minutes. ( )

All units utilize strong formed louver panels which provide indus-

try leading coil protection. Louver removal for coil cleaning is

accomplished by removing one screw and lifting the panel out of

the composite base pan. ()

All RA14 units utilize single row

coils ( ) making cleaning easy and complete, restoring the

performance of the air conditioner back to out of the box perfor-

mance levels year after year.

The outdoor fan motor has sleeve bearings and is inherently

protected. The motor is totally enclosed for maximum protection

from weather, dust and corrosion. Access to the outdoor fan is

made by removing four fasteners from the fan grille. The outdoor

fan can be removed from the fan grille by removing 4 fasteners

in the rare case outdoor fan motor fails.

Each cabinet has optimized composite ( ) fan orifice assuring

efficient and quiet airflow.

Features & Beneﬁts

RA14 Series

Rely on Ruud.™

Introduction to RA14 Air Conditioner

43 5

811

717

Features & Beneﬁts

RA14 Series

Rely on Ruud.™ 5

The entire cabinet has powder post paint ( ) achieving 1000

hour salt spray rating, allowing the cabinet to retain its aesthetics

throughout its life.

Scroll compressors with standard internal pressure relief and

internal thermal overload are used on all capacities assuring

longevity of high efficient and quiet operation for the life of the

product.

Each unit is shipped with filter drier for field installation and will

trap any moisture or dirt that could contaminate the refrigerant

system.

All cabinets have industry leading structural strength due to the

composite base pan ()

, interlocking corner post ( ), formed

curved louver panels ( ) and drawn top cover ( ) making it

the most durable cabinet on the market today.

Each RA14 capacity has undergone rigorous psychometric test-

ing to assure performance ratings of capacity, SEER

and EER per AHRI Standard 210/240 rating condi-

tions. Also each unit bears the UL mark and each unit

is certified to UL 1995 safety standards.

Each unit has undergone specific strain and modal testing to

assure tubing ()

is outside the units natural frequency and that

the suction and discharge lines connected to the compressor

withstand any starting, steady state operation or shut down

forces imposed by the compressor.

All units have been sound tested in sound chamber to AHRI 270

rating conditions, and A-weighted Sound Power Level tables

produced, assuring units have acceptable noise qualities (see

page 8). Each unit has been ran in cooling operation at 95°F and

82°F and sound ratings for the RA14 range from as low as 74

dBA to 77 dBA.

All units have been ship tested to assure units meet stringent

“over the road” shipping conditions.

As manufactured all units in the RA14 family have cooling capa-

bility to 55 °F. Addition of low ambient control will allow the unit

to operate down to 0°F. Factory testing is performed on each

unit. All component parts meet well defined specification and

continually go through receiving inspections. Each component

installed on a unit is scanned, assuring correct component uti-

lization for a given unit capacity and voltage. All condenser coils

are leak tested with pressurization test to 550#’s and once

installed and assembled, each units’ complete refrigerant

system is helium leak tested. All units are fully charged from the

factory for up to 15 feet of piping. All units are factory run tested.

The RA14 has a 10-year conditional compressor and parts war-

ranty (registration required).

Optional Accessories

(Refer to accessory chart for model #)

Compressor Crankcase Heater

Protects against refrigerant migration that can occur during low

ambient operation

Compressor Sound Cover

• Reinforced vinyl compressor cover containing a 1½ inch thick

batt of fiberglass insulation

• Open edges are sealed with a one-inch wide hook and loop

fastening tape

Compressor Hard Start Kit

• Single-phase units are equipped with a PSC compressor

motor, this type of motor normally does not need a potential

relay and start capacitor

• Kit may be required to increase the compressor starting

torque, in conditions such as low voltage

Low Ambient Kit

• Air conditioners operate satisfactorily in the cooling mode

down to 55°F outdoor air temperature without any additional

controls

• This Kit can be added in the field enabling unit to operate

properly down to 0° in the cooling mode

• Crankcase heater and freezestat should be installed on com-

pressors equipped with a low ambient kit

3"/6"/12"

• Gray high density polyethylene feet are available to raise unit

off of mounting surface away from moisture

Low Pressure

• Can be added in field enabling the unit to shut off compressor

on loss of charge

NOTE: Unit can be purchased with high and low pressure

installed at factory. (Refer to SKU list)

High Pressure

• Can be added in field enabling unit to shut off compressor if

unit loses outdoor fan operation.

NOTE: Unit can be purchased with high and low pressure

installed at factory. (Refer to SKU list)

Decorative Top

• Can be installed on fan grille

2221

2423

RA 14 24 AJ1 N A *

Brand Product

Category

SEER Capacity

BTU/HR

Major Series* Voltage Type Controls Minor Series** Option

Code

Ruud A - Air Conditioners 13 - 13 SEER

14 - 14 SEER

16 - 16 SEER

17 - 17 SEER

20 - 20 SEER

18 - 18,000 [5.28 kW]

24 - 24,000 [7.03 kW]

30 - 30,000 [8.79 kW]

36 - 36,000 [10.55 kW]

42 - 42,000 [12.31 kW]

48 - 48,000 [14.07 kW]

60 - 60,000 [17.58 kW]

A - 1st Design

B - 2nd Design

J - 1ph, 208-230/60

C - 3ph, 208-230/60

D - 3ph, 460/60

1 - Single-stage

2 - Two-stage

V - Inverter

C - Communicating

N - Non-Communicating

A - 1st Design N/A

RP 14 24 A J1 N A *

Brand Product

Category

SEER Capacity

BTU/HR

Major Series* Voltage Type Controls Minor Series** Option

Code

Ruud P - Heat Pump 13 - 13 SEER

14 - 14 SEER

16 - 16 SEER

17 - 17 SEER

20 - 20 SEER

18 - 18,000 [5.28 kW]

24 - 24,000 [7.03 kW]

30 - 30,000 [8.79 kW]

36 - 36,000 [10.55 kW]

42 - 42,000 [12.31 kW]

48 - 48,000 [14.07 kW]

60 - 60,000 [17.58 kW]

A - 1st Design J - 1ph, 208-230/60

C - 3ph, 208-230/60

D - 3ph, 460/60

1 - Single-stage

2 - Two-stage

V - Inverter

P - Piston

C - Communicating

N - Non-Communicating

A - 1st Design N/A

RC F 24 17 ST A M C A *

Brand Product

Category

Type Capacity

BTU/HR

Width Efficiency Metering

Device

Major

Series*

Orientation Casing Minor Series** Option

Code

Ruud C - Evap Coil F - Furn Coil

H - Air-Handler

Coil

24 - 24,000 [7.03 kW]

36 - 36,000 [10.55 kW]

48 - 48,000 [14.07 kW]

60 - 60,000 [17.58 kW]

14 - 14"

17 - 17.5"

21 - 21"

24 - 24.5"

S- Standard Eff.

M- Mid Eff.

H- High Eff.

T-TXV

E-EEV

P-Piston

A - 1st Design M - Multipoise

V - Vertical only/

convertible

H - Ded.

Horizontal only

C - Cased

U - Uncased

A - 1st Design N/A

Model Number Identiﬁcation

RA14 Series

Rely on Ruud.™

Heat Pumps (For Reference)**

Furnace Coils (For Reference)**

Air Conditioners*

*See page 3 for available SKU’s.

**Model number ID’s are for reference only. Available SKU’s are listed on the standard features/available SKU page of model spec sheets.

[ ] Designates Metric Conversions

Rely on Ruud.™ 7

R96 V A 70 2 3 17 M S A

Brand Series Motor Major Rev Input

BTU/HR

Stages Air Flow Cabinet

Width

Configuration Nox Minor Rev

Ruud 90 - 90 AFUE

92 - 92 AFUE

95 - 95 AFUE

96 - 96 AFUE

97 - 97 AFUE

V - Variable speed

T - Constant

Torque

(X-13)

P - PSC

A - 1st Design 040 - 42,000 [12.31 kW]

060 - 56,000 [16.41 kW]

070 - 70,000 [20.51 kW]

085 - 84,000 [24.62 kW]

100 - 98,000 [28.72 kW]

115 - 112,000 [32.82 kW]

1 - Single-stage

2 - Two-stage

M - Modulating

3 - up to 3 ton

5 - 3 1/2 up to 5 ton

14 - 14"

17 - 17.5"

21 - 21"

24 - 24.5"

M - Multi X - Low Nox

S - Standard

A - 1st Design

Model Number Identiﬁcation

RA14 Series

R80 2 V A 075 3 17 M S A

Brand Series Stages Motor Major Rev Input

BTU/HR

Air Flow Cabinet

Width

Configuration Nox Minor Rev

Ruud 80 - 80+ AFUE 1 - Single-stage

2 - Two-stage

V - Variable speed

T - Constant Torque (X-13)

P - PSC premium

S - PSC standard

A - 1st Design 050 - 50,000 [15 kW]

075 - 75,000 [22 kW]

100 - 100,000 [29 kW]

125 - 125,000 [37 kW]

150 - 150,000 [44 kW]

3 - up to 3 ton

4 - 2 1/2 to 4 ton

5 - 3 1/2 up to 5 ton

14 - 14"

17 - 17.5"

21 - 21"

24 - 24.5"

M - Multi

D - Down

Z - Down &

zero clearance

down flow

X - Low Nox

S - Standard

A - 1st Design

RH 1 T 36 17 S T A N A A 000 *

Brand Product

Category

Stages of

Airflow

Motor Type Capacity

BTU/HR

Width Coil Size Metering

Device

Major

Series*

Controls Voltage Minor

Series**

Factory Heat

Cap

Option

Code

Ruud H - Air

Handler

1 - Single-Stage

2 - Two-Stage

M - Modulating

V - Variable

Speed

T - Constant

Torque

P - PSC

24 - 24,000 [7.03 kW]

36 - 36,000 [10.55 kW]

48 - 48,000 [14.07 kW]

60 - 60,000 [17.58 kW]

14 - 14"

17 - 17.5"

21 - 21"

24 - 24.5"

S - Standard

Eff.

M -Mid Eff.

H - High Eff.

T - TEV

E - EEV

P - Piston

A - 1st Design C -Communicating

N -Non-comm

A - 1ph, 115/60

J - 1ph, 208-240/60

D - 3ph, 480/60

A - 1st Design 00 - no

factory heat

with option

code

*TBD

90%+ AFUE Gas Furnaces (For Reference)**

80% AFUE Gas Furnaces (For Reference)**

Air Handlers (For Reference)**

**Model number ID’s are for reference only. Available SKU’s are listed on the standard features/available SKU page of model spec sheets.

[ ] Designates Metric Conversions

General Data/Electrical Data

RA14 Series

Rely on Ruud.™

Physical Data

PHYSICAL DATA

Model No. RA1418A RA1424A RA1430A RA1436A RA1442B RA1448A RA1460A

Nominal Tonnage 1.5 2.0 2.5 3.0 3.5 4.0 5.0

Valve Connections

Liquid Line O.D. – in. 3/8 3/8 3/8 3/8 3/8 3/8 3/8

Suction Line O.D. – in. 3/4 3/4 3/4 3/4 7/8 7/8 7/8

Refrigerant (R410A) furnished oz.¹ 68 72 12.1 106 121 129 162

Compressor Type Scroll

Outdoor Coil

Net face area – Outer Coil 9.1 11.1 12.1 14.8 17.3 18.9 21.5

Net face area – Inner Coil — — — — — — —

Tube diameter – in. 3/8 3/8 3/8 3/8 3/8 3/8 3/8

Number of rows 1111111

Fins per inch 22 22 22 22 22 22 22

Outdoor Fan

Diameter – in. 20 20 20 24 24 26 26

Number of blades 2223223

Motor hp 1/10 1/8 1/8 1/6 1/7 1/5 1/5

CFM 2225 2505 2605 3105 3670 4264 4139

RPM 1075 1075 1075 850 1075 820 850

watts 130 163 142 173 190 236 254

Shipping weight – lbs. 143 148 158 178 207 228 247

Operating weight – lbs. 122 141 151 171 200 221 240

Electrical Data

Line Voltage Data (Volts-Phase-Hz) 208/230-1-60 208/230-1-60 208/230-1-60 208/230-1-60 208/230-1-60 208/230-1-60 208/230-1-60

Maximum overcurrent protection (amps)² 20 25 25 30 40 45 50

Minimum circuit ampacity³ 13 15 17 19 24 27 32

Compressor

Rated load amps 9.7 11.2 12.8 14.1 17.9 19.9 23.7

Locked rotor amps 48 60.8 64 77 112 109 152.5

Condenser Fan Motor

Full load amps 0.6 0.8 0.8 0.8 0.8 1.2 1.4

Locked rotor amps 1.1 1.5 1.4 1.5 1.5 2.3 2.8

Line Voltage Data (Volts-Phase-Hz) — — — 208/230-3-60 208/230-3-61 208/230-3-62 208/230-3-63

Maximum overcurrent protection (amps)² — — — 20 30 30 35

Minimum circuit ampacity³ — — — 13 18 18 22

Compressor

Rated load amps — — — 9 13.2 13.1 15.9

Locked rotor amps — — — 71 88 83.1 110

Condenser Fan Motor

Full load amps — — — 0.8 1.5 1.2 1.4

Locked rotor amps — — — 1.5 0.8 2.3 2.8

Line Voltage Data (Volts-Phase-Hz) — — — 480-3-60 480-3-60 480-3-60 480-3-60

Maximum overcurrent protection (amps)² — — — 15 — 15 15

³Minimum circuit ampacity — — — 8 — 9 10

Compressor

Rated load amps — — — 56 — 6.1 7.1

Locked rotor amps — — — 38 — 41 52

Condenser Fan Motor

Full load amps — — — .5 — .6 .5

Locked rotor amps — — — 1.1 — 1.6 1.4

¹Refrigerant charge sufficient for 15 ft. length of refrigerant lines. For longer line set requirements see the installation instructions for information about set length and additional

refrigerant charge required.

²HACR type circuit breaker of fuse.

³Refer to National Electrical Code manual to determine wire, fuse and disconnect size requirements.

Accessories/Weighted Sound Power/Thermostats

RA14 Series

Rely on Ruud.™ 9

Accessories

Model No. RA1418 RA1424 RA1430 RA1436 RA1442 RA1448 RA1460

Compressor crankcase heater* 44-17402-44 44-17402-44 44-17402-44 44-17402-44 44-17402-45 44-17402-45 44-17402-45

Low ambient control RXAD-A08 RXAD-A08 RXAD-A08 RXAD-A08 RXAD-A08 RXAD-A08 RXAD-A08

Compressor sound cover 68-23427-26 68-23427-26 68-23427-26 68-23427-26 68-23427-25 68-23427-25 68-23427-25

Compressor hard start kit SK-A1 SK-A1 SK-A1 SK-A1 SK-A1 SK-A1 SK-A1

Compressor time delay RXMD-B01 RXMD-B01 RXMD-B01 RXMD-B01 RXMD-B01 RXMD-B01 RXMD-B01

Low pressure control RXAC-A07 RXAC-A07 RXAC-A07 RXAC-A07 RXAC-A07 RXAC-A07 RXAC-A07

High pressure control RXAB-A07 RXAB-A07 RXAB-A07 RXAB-A07 RXAB-A07 RXAB-A07 RXAB-A07

Liquid Line Solenoid

(24 VAC, 50/60 Hz)

Solenoid Valve 200RD2T3TVLC 200RD2T3TVLC 200RD2T3TVLC 200RD2T3TVLC 200RD2T3TVLC 200RD3T3TVLC 200RD3T3TVLC

Solenoid Coil 61-AMG24V 61-AMG24V 61-AMG24V 61-AMG24V 61-AMG24V 61-AMG24V 61-AMG24V

Liquid Line Solenoid

(120/240 VAC, 50/60 Hz)

Solenoid Valve 200RD2T3TVLC 200RD2T3TVLC 200RD2T3TVLC 200RD2T3TVLC 200RD2T3TVLC 200RD3T3TVLC 200RD3T3TVLC

Solenoid Coil 61-AMG120/240V 61-AMG120/240V 61-AMG120/240V 61-AMG120/240V 61-AMG120/240V 61-AMG120/240V 61-AMG120/240V

Achiever Top Cap w/Label 91-101123-21 91-101123-21 91-101123-21 91-101123-21 91-101123-21 91-101123-21 91-101123-21

*Crankcase Heater recommended with Low Ambient Kit.

Weighted Sound Power Level (dBA)

A-WEIGHTED SOUND POWER LEVEL (dBA)

Unit Size - Voltage, Series Standard

Rating (dBA)

TYPICAL OCTAVE BAND SPECTRUM (dBA without tone adjustment)

125 250 500 1000 2000 4000 8000

RA1418A 76 51.4 59.6 65.2 65.9 64.3 58.5 53.7

RA1424A 75.2 49.4 60.4 64.3 64.2 63.4 58.9 53.8

RA1430A 74 48.8 57.5 63.5 64 61.9 56.1 51

RA1436A 76 52.2 61.3 65.4 65.3 62.4 57.3 53.1

RA1442B 73 51.5 54.7 63.5 63.3 59.4 54.9 48.4

RA1448A 75.8 52.3 59.1 66.7 65.7 62.4 59.3 55.9

RA1460A 75 53.4 59.1 65.9 66.9 62.8 58.7 54.3

* Photos are representative. Actual models may vary.

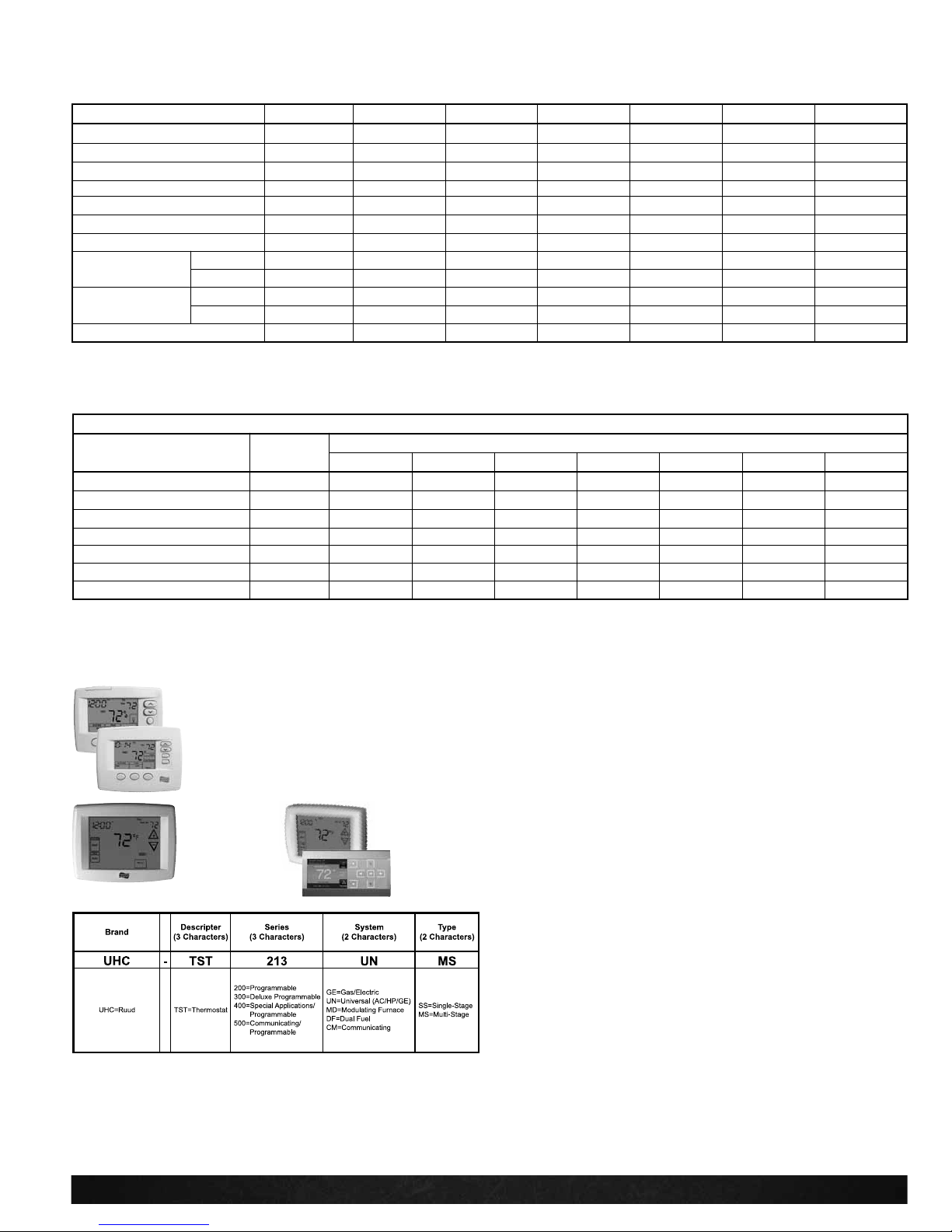

For detailed thermostat match-up information,

see specification sheet form number T22-001.

300-Series *

Deluxe

Programmable

400-Series *

Special Applications/

Programmable

500-Series *

Communicating/

Programmable

200-Series *

Programmable

Thermostats

Unit Dimensions

MODEL

NO.

OPERATING SHIPPING

H (Height) L (Length) W (Width) H (Height) L (Length) W (Width)

INCHES mm INCHES mm INCHES mm INCHES mm INCHES mm INCHES mm

RA1418A 25 635 29.75 755 29.75 755 26.75 679 32.38 822 32.38 822

RA1424A 25 635 29.75 755 29.75 755 26.75 679 32.38 822 32.38 822

RA1430A 27 685 29.75 755 29.75 755 28.75 730 32.38 822 32.38 822

RA1436A 27 685 33.75 857 33.75 857 28.75 730 36.38 924 36.38 924

RA1442B 31 787 33.75 859 33.75 859 32.75 832 36.38 924 36.38 924

RA1448A 31 787 35.75 908 35.75 908 32.75 832 38.38 975 38.38 975

RA1460A 35 889 35.75 908 35.75 908 36.75 933 38.38 975 38.38 975

[ ] Designates Metric Conversions ST-A1226-02-00

Unit Dimensions

RA14 Series

Rely on Ruud.™

6⬙

(152.4)

24⬙

(609.6)

Service

12⬙

(304.8)

6⬙

(152.4)

24⬙

(609.6)

Service

24⬙

(609.6)

24⬙recommended

12⬙minimum

12⬙

(304.8)

12⬙

(304.8)

6⬙

(152.4)

24⬙

(609.6)

Service

24⬙

(609.6)

Service

24⬙

(609.6)

Service

18⬙

(457.2)

WALL

NOTE: NUMBERS IN () = mm

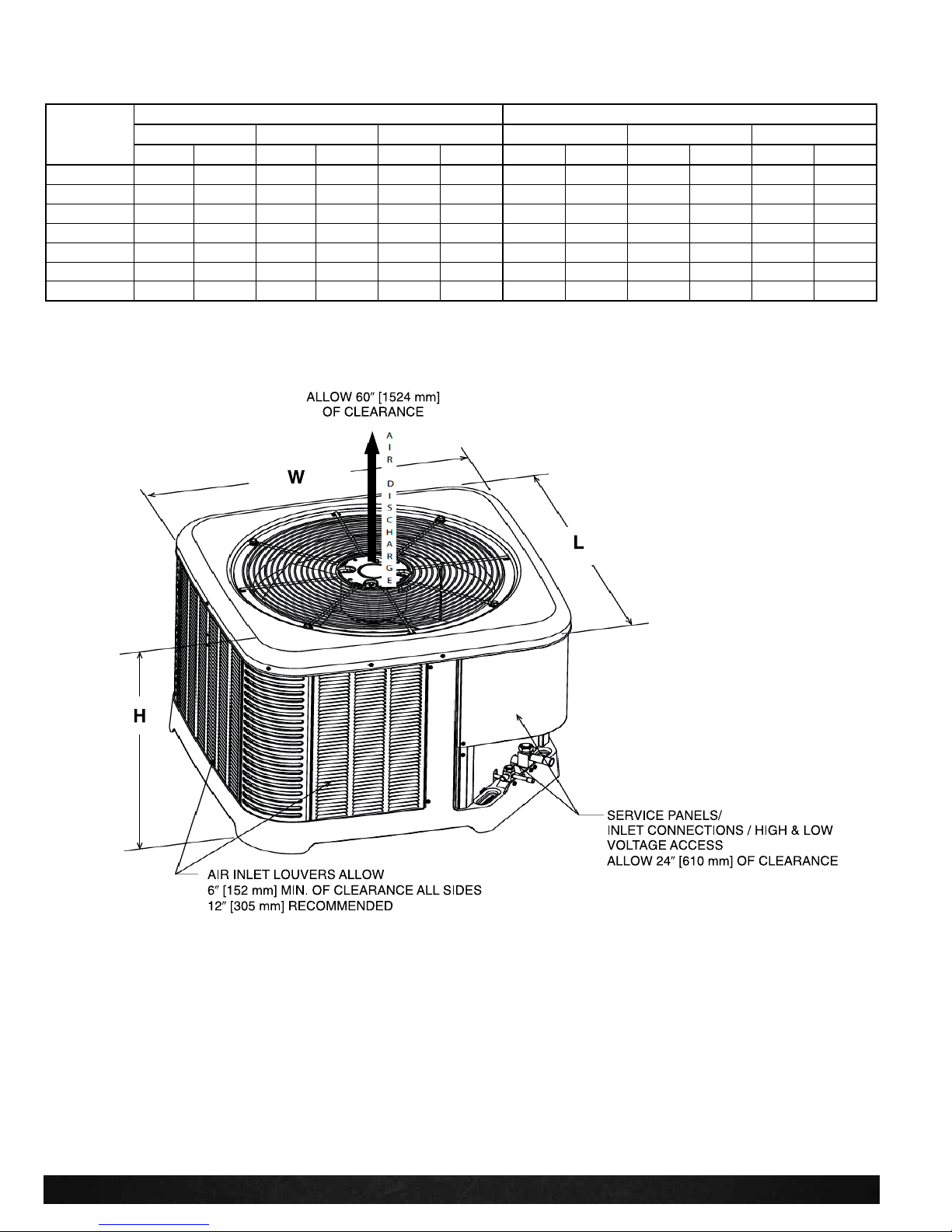

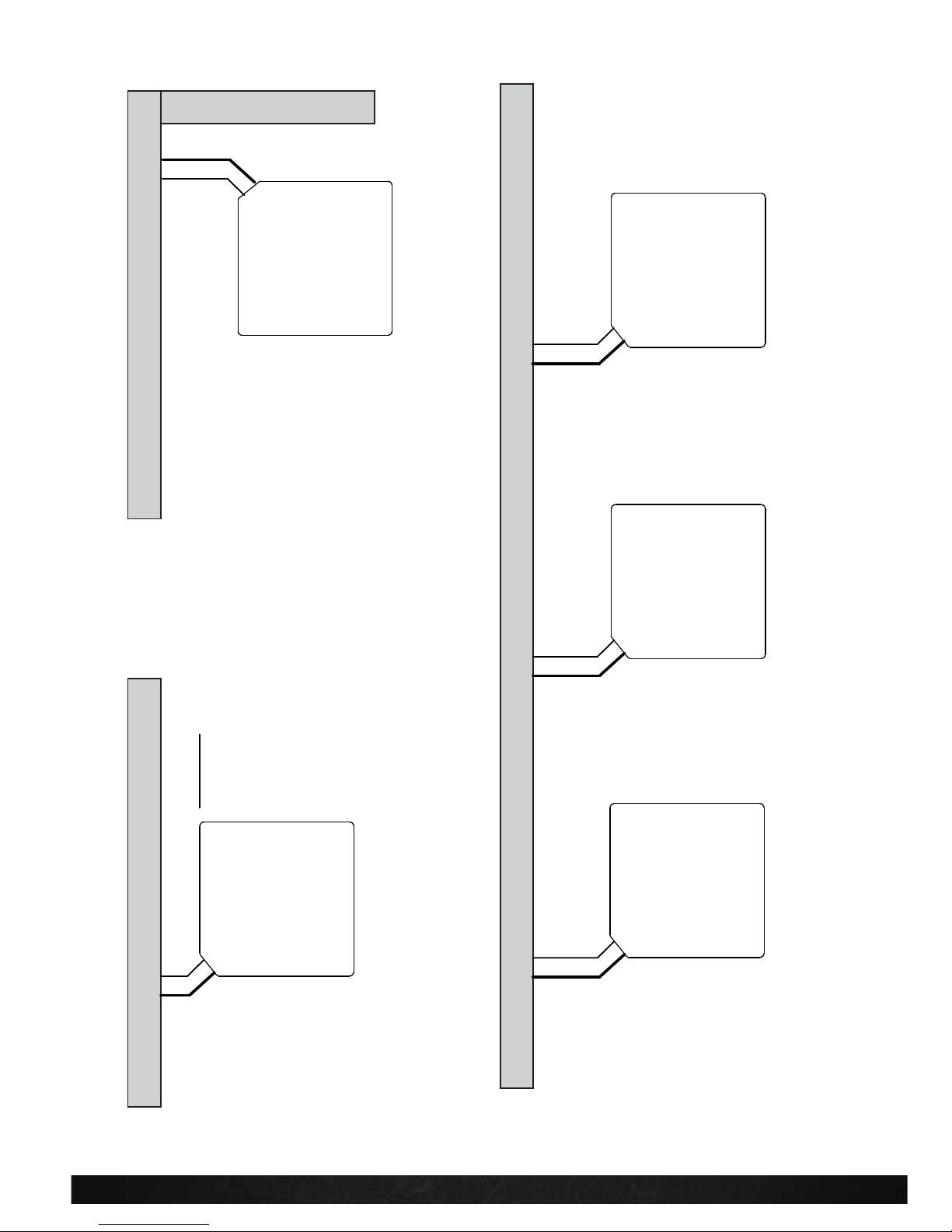

CLEARANCES

IMPORTANT: When installing multiple units in an alcove, roof well or partially enclosed area, ensure there is adequate ventillation to prevent re-circulation of discharge air.

ST-A1225-01-00

24⬙

(609.6)

24⬙recommended

12⬙minimum

Clearances

RA14 Series

Rely on Ruud.™ 11

FIGURE 2

CONTROL WIRING FOR GAS OR OIL FURNACE

FOR TYPICAL ELECTRIC HEAT

FOR TYPICAL GAS OR OIL HEAT

W/BL

W/BK

G/BK

YGWR

TYPICAL THERMOSTAT

SUBBASE

TYPICAL GAS OR

OIL FURNACE

TYPICAL CONDENSING

UNIT

BR – BROWN WIRE

YL – YELLOW WIRE

X – WIRE CONNECTION

BR – BROWN WIRE

R – RED WIRE

YL – YELLOW WIRE

W/BK – WHITE WIRE WITH BLACK STRIPE

G/BK – GREEN WIRE WITH BLACK STRIPE

PU – PURPLE WIRE (NOT USED)

X – WIRE CONNECTION

*IF MAXIMUM OUTLET TEMPERATURE RISE IS DESIRED, IT IS RECOMMENDED THAT

W1 (W/BK) AND W2 (W/BL) BE JUMPERED TOGETHER.

TYPICAL CONDENSING

UNIT

YGWR

TYPICAL THERMOSTAT

SUBBASE

TYPICAL ELECTRIC HEAT

LOW VOLTAGE JUNCTION BOX

•

Application Guidelines

1. Intended for outdoor installation with free air inlet and outlet. Outdoor fan external static pressure available is less than 0.01 -in. wc.

2. Minimum outdoor operation air temperature for cooling mode without low-ambient operation accessory is 55°F (12.8°C).

3. Maximum outdoor operating air temperature is 125°F (51.7°C).

4. For reliable operation, unit should be level in all horizontal planes.

5. Use only copper wire for electric connections at unit. Aluminum and clad aluminum are not acceptable for the type of connector

provided.

6. Do not apply capillary tube indoor coils to these units.

7. Factory – supplied filter drier must be installed.

Wiring Diagram/Application Guidelines

RA14 Series

Rely on Ruud.™

Control Wiring

Refrigerant Line Size Information

RA14 Series

Rely on Ruud.™ 13

R-410A System

Capacity Model

Liquid Line Size

Connection Size

(Inch I.D.) [mm]

Liquid Line Size

(Inch O.D.) [mm]

Liquid Line Selection Chart

Elevation (Above or Below) Indoor Coil

Total Equivalent Length - Feet [m]

25 [7.62] 50 [15.24] 75 [22.86] 100 [30.48] 125 [45.72] 150 [45.72] 175 [53.34] 200 [60.96] 225 [68.58] 250 [76.20] 275 [83.82] 300 [91.44]

Maximum Vertical Separation – Feet [m]

18A 3/8" [9.53]

1/4 [6.35] 25 [7.62] 50 [15.24] 65 [19.81] 50 [15.24] 35 [10.67] 20 [6.1] N/R N/R N/R N/R N/R N/R

5/16 [7.94] 25 [7.62] 50 [15.24] 75 [22.86] 95 [28.96] 90 [27.43] 85 [25.91] 80 [24.38] 75 [22.86] 75 [22.86] 70 [21.34] 65 [19.81] 60 [18.29]

3/8 [9.53] 25 [7.62] 50 [15.24] 75 [22.86] 100 [30.48] 100 [30.48] 100 [30.48] 100 [30.48] 100 [30.48] 95 [28.96] 95 [28.96] 95 [28.96] 90 [27.43]

7/16 [11.12] 25 [7.62] 50 [15.24] 75 [22.86] 100 [30.48] 105 [32] 105 [32] 105 [32] 105 [32] 105 [32] 105 [32] 100 [30.48] 100 [30.48]

1/2 [12.71] 25 [7.62] 50 [15.24] 75 [22.86] 100 [30.48] 105 [32] 105 [32] 105 [32] 105 [32] 105 [32] 105 [32] 105 [32] 105 [32]

24A 3/8" [9.53]

1/4 [6.35] 25 [7.62] 50 [15.24] 30 [9.14] N/R N/R N/R N/R N/R N/R N/R N/R N/R

5/16 [7.94] 25 [7.62] 50 [15.24] 75 [22.86] 80 [24.38] 75 [22.86] 70 [21.34] 60 [18.29] 55 [16.76] 50 [15.24] 40 [12.19] 35 [10.67] 30 [9.14]

3/8 [9.53] 25 [7.62] 50 [15.24] 75 [22.86] 100 [30.48] 95 [28.96] 95 [28.96] 90 [27.43] 90 [27.43] 85 [25.91] 85 [25.91] 80 [24.38] 80 [24.38]

7/16 [11.12] 25 [7.62] 50 [15.24] 75 [22.86] 100 [30.48] 100 [30.48] 100 [30.48] 100 [30.48] 100 [30.48] 100 [30.48] 95 [28.96] 95 [28.96] 95 [28.96]

1/2 [12.71] 25 [7.62] 50 [15.24] 75 [22.86] 100 [30.48] 105 [32] 105 [32] 105 [32] 105 [32] 105 [32] 100 [30.48] 100 [30.48] 100 [30.48]

30A 3/8" [9.53]

1/4 [6.35] 25 [7.62] 25 [7.62] N/R N/R N/R N/R N/R N/R N/R N/R N/R N/R

5/16 [7.94] 25 [7.62] 50 [15.24] 75 [22.86] 65 [19.81] 55 [16.76] 45 [13.72] 35 [10.67] 25 [7.62] 15 [4.57] 5 [1.52] N/R N/R

3/8 [9.53] 25 [7.62] 50 [15.24] 75 [22.86] 90 [27.43] 90 [27.43] 85 [25.91] 80 [24.38] 80 [24.38] 75 [22.86] 70 [21.34] 70 [21.34] 65 [19.81]

7/16 [11.12] 25 [7.62] 50 [15.24] 75 [22.86] 100 [30.48] 100 [30.48] 95 [28.96] 95 [28.96] 95 [28.96] 95 [28.96] 90 [27.43] 90 [27.43] 90 [27.43]

1/2 [12.71] 25 [7.62] 50 [15.24] 75 [22.86] 100 [30.48] 100 [30.48] 100 [30.48] 100 [30.48] 100 [30.48] 100 [30.48] 100 [30.48] 100 [30.48] 95 [28.96]

36A 3/8" [9.53]

1/4 [6.35] 25 [7.62] 10 [3.05] N/R N/R N/R N/R N/R N/R N/R N/R N/R N/R

5/16 [7.94] 25 [7.62] 50 [15.24] 65 [19.81] 55 [16.76] 45 [13.72] 30 [9.14] 20 [6.1] 10 [3.05] N/R N/R N/R N/R

3/8 [9.53] 25 [7.62] 50 [15.24] 75 [22.86] 85 [25.91] 80 [24.38] 80 [24.38] 75 [22.86] 70 [21.34] 65 [19.81] 60 [18.29] 55 [16.76] 55 [16.76]

7/16 [11.12] 25 [7.62] 50 [15.24] 75 [22.86] 95 [28.96] 95 [28.96] 90 [27.43] 90 [27.43] 90 [27.43] 85 [25.91] 85 [25.91] 85 [25.91] 80 [24.38]

1/2 [12.71] 25 [7.62] 50 [15.24] 75 [22.86] 100 [30.48] 100 [30.48] 95 [28.96] 95 [28.96] 95 [28.96] 95 [28.96] 95 [28.96] 95 [28.96] 90 [27.43]

42B 3/8" [9.53]

1/4 [6.35] 15 [4.57] N/R N/R N/R N/R N/R N/R N/R N/R N/R N/R N/R

5/16 [7.94] 25 [7.62] 50 [15.24] 35 [10.67] 15 [4.57] N/R N/R N/R N/R N/R N/R N/R N/R

3/8 [9.53] 25 [7.62] 50 [15.24] 70 [21.34] 65 [19.81] 60 [18.29] 50 [15.24] 45 [13.72] 40 [12.19] 35 [10.67] 25 [7.62] 20 [6.1] 15 [4.57]

7/16 [11.12] 25 [7.62] 50 [15.24] 75 [22.86] 80 [24.38] 75 [22.86] 75 [22.86] 70 [21.34] 70 [21.34] 65 [19.81] 65 [19.81] 60 [18.29] 55 [16.76]

1/2 [12.71] 25 [7.62] 50 [15.24] 75 [22.86] 85 [25.91] 85 [25.91] 80 [24.38] 80 [24.38] 80 [24.38] 80 [24.38] 75 [22.86] 75 [22.86] 75 [22.86]

48A 3/8" [9.53]

1/4 [6.35] N/R N/R N/R N/R N/R N/R N/R N/R N/R N/R N/R N/R

5/16 [7.94] 25 [7.62] 40 [12.19] 20 [6.1] N/R N/R N/R N/R N/R N/R N/R N/R N/R

3/8 [9.53] 25 [7.62] 50 [15.24] 65 [19.81] 55 [16.76] 50 [15.24] 40 [12.19] 35 [10.67] 25 [7.62] 20 [6.1] 10 [3.05] N/R N/R

7/16 [11.12] 25 [7.62] 50 [15.24] 75 [22.86] 75 [22.86] 70 [21.34] 65 [19.81] 65 [19.81] 60 [18.29] 55 [16.76] 55 [16.76] 50 [15.24] 50 [15.24]

1/2 [12.71] 25 [7.62] 50 [15.24] 75 [22.86] 80 [24.38] 80 [24.38] 75 [22.86] 75 [22.86] 75 [22.86] 70 [21.34] 70 [21.34] 70 [21.34] 65 [19.81]

60A 3/8" [9.53]

1/4 [6.35] N/R N/R N/R N/R N/R N/R N/R N/R N/R N/R N/R N/R

5/16 [7.94] 25 [7.62] 5 [1.52] N/R N/R N/R N/R N/R N/R N/R N/R N/R N/R

3/8 [9.53] 25 [7.62] 45 [13.72] 35 [10.67] 25 [7.62] 15 [4.57] N/R N/R N/R N/R N/R N/R N/R

7/16 [11.12] 25 [7.62] 50 [15.24] 55 [16.76] 50 [15.24] 45 [13.72] 40 [12.19] 35 [10.67] 30 [9.14] 30 [9.14] 25 [7.62] 20 [6.1] 15 [4.57]

1/2 [12.71] 25 [7.62] 50 [15.24] 60 [18.29] 60 [18.29] 55 [16.76] 55 [16.76] 55 [16.76] 50 [15.24] 50 [15.24] 45 [13.72] 45 [13.72] 40 [12.19]

Refrigerant Line Size Information

NOTES: [ ] Designates Metric Conversions

N/R = Application not recommended.

Grey =This application is acceptable, but the long line guidelines must be followed. Reference Long Line Set section in the I&O

Refrigerant Line Size Information

RA14 Series

Rely on Ruud.™

R-410A System

Capacity Model

Vapor Line

Connection Size

(Inch I.D.) [mm]

Vapor Line Size

(Inch O.D.) [mm]

Vapor Line Selection Chart

Capacity Multiplier Table

Total Equivalent Length - Feet [m]

25 [7.62] 50 [15.24] 75 [22.86] 100 [30.48] 125 [45.72] 150 [45.72] 175 [53.34] 200 [60.96] 225 [68.58] 250 [76.20] 275 [83.82] 300 [91.44]

18A 3/4" [19.06]

5/8 [15.88] 1.00 0.99 0.99 0.98 0.98 0.98 0.97 0.97 0.96 0.96 0.96 0.95

3/4 [19.05] 1.00 1.00 1.00 1.00 1.00 0.99 0.99 0.99 0.99 0.99 0.99 0.99

7/8 [22.23] N/R N/R N/R N/R N/R N/R N/R N/R N/R N/R N/R N/R

1 [25.4] N/R N/R N/R N/R N/R N/R N/R N/R N/R N/R N/R N/R

1-1/8 [28.58] N/R N/R N/R N/R N/R N/R N/R N/R N/R N/R N/R N/R

24A 3/4" [19.06]

5/8 [15.88] 0.99 1.00 0.99 0.98 0.97 0.97 0.96 0.95 0.94 0.94 0.93 0.94

3/4 [19.05] 1.00 1.01 1.01 1.01 1.01 1.00 1.00 0.99 0.99 0.99 0.99 0.99

7/8 [22.23] 1.00 1.00 1.01 1.00 1.02 1.01 1.01 1.01 1.01 1.01 1.01 1.00

1 [25.4] N/R N/R N/R N/R N/R N/R N/R N/R N/R N/R N/R N/R

1-1/8 [28.58] N/R N/R N/R N/R N/R N/R N/R N/R N/R N/R N/R N/R

30A 3/4" [19.06]

5/8 [15.88] 1.00 0.98 0.97 0.97 0.95 0.95 0.94 0.93 0.93 0.92 0.92 0.91

3/4 [19.05] 1.00 1.00 0.99 0.99 0.99 0.98 0.98 0.98 0.97 0.97 0.97 0.96

7/8 [22.23] 1.01 1.00 1.00 1.00 1.00 0.99 0.99 0.99 1.00 1.00 1.00 1.00

1 [25.4] N/R N/R N/R N/R N/R N/R N/R N/R N/R N/R N/R N/R

1-1/8 [28.58] N/R N/R N/R N/R N/R N/R N/R N/R N/R N/R N/R N/R

36A 3/4" [19.06]

5/8 [15.88] 0.99 0.98 0.97 0.96 0.95 0.93 0.93 0.91 0.9 0.9 0.89 0.88

3/4 [19.05] 1.00 1.00 0.99 0.99 0.98 0.99 0.99 0.97 0.98 0.97 0.96 0.96

7/8 [22.23] 1.01 1.01 1.00 1.00 1.00 0.99 0.99 0.99 0.99 0.99 0.99 0.98

1 [25.4] 1.01 1.01 1.01 1.00 1.00 1.00 1.01 1.00 1.00 1.00 1.00 1.00

1-1/8 [28.58] N/R N/R N/R N/R N/R N/R N/R N/R N/R N/R N/R N/R

42B 3/8" [9.53]

5/8 [15.88] 1.00 0.97 0.95 0.93 0.92 0.91 0.9 0.89 0.87 0.85 0.85 0.84

3/4 [19.05] 1.00 1.00 0.99 0.99 0.97 0.97 0.97 0.95 0.95 0.95 0.94 0.93

7/8 [22.23] 1.00 1.00 1.01 1.00 1.00 0.99 0.99 0.99 0.99 0.98 0.98 0.98

1 [25.4] 1.01 1.00 0.99 1.00 1.00 1.01 1.01 1.00 1.01 1.00 0.99 0.99

1-1/8 [28.58] 1.01 1.01 1.00 0.99 0.99 0.99 1.01 1.00 0.99 1.00 1.00 1.01

48A 7/8" [22.23]

5/8 [15.88] 0.98 0.95 0.93 0.92 0.9 0.88 0.86 0.85 0.84 0.82 N/R N/R

3/4 [19.05] 0.99 0.98 0.97 0.96 0.96 0.95 0.94 0.93 0.92 0.92 N/R N/R

7/8 [22.23] 1.00 1.00 0.98 0.98 0.97 0.97 0.97 0.97 0.96 0.96 N/R N/R

1 [25.4] 1.00 1.00 0.99 0.99 0.99 0.98 0.98 0.98 0.98 0.98 N/R N/R

1-1/8 [28.58] 1.00 1.00 0.99 0.99 0.99 0.99 0.99 0.99 0.99 0.99 N/R N/R

60A 7/8" [22.23]

5/8 [15.88] 0.97 0.94 0.91 0.89 0.87 N/R N/R N/R N/R N/R N/R N/R

3/4 [19.05] 0.99 0.98 0.96 0.95 0.94 N/R N/R N/R N/R N/R N/R N/R

7/8 [22.23] 1.00 0.99 0.99 0.98 0.98 N/R N/R N/R N/R N/R N/R N/R

1 [25.4] 1.00 1.00 1.00 1.00 0.99 N/R N/R N/R N/R N/R N/R N/R

1-1/8 [28.58] 1.00 1.00 1.00 1.00 1.00 N/R N/R N/R N/R N/R N/R N/R

Refrigerant Line Size Information (con’t.)

NOTES: [ ] Designates Metric Conversions

N/R = Application not recommended.

All calculations assume a 3/8" liquid line

Rely on Ruud.™ 15

Performance Data

RA14 Series

Performance Data @ AHRI Standard Conditions – Cooling

High Sales Volume Tested Combination (HSVTC)

Outdoor

Unit Indoor Coil or Air Handler Total Capacity

BTU/H [kW]

Net Sensible

BTU/H [kW]

Net Latent

BTU/H [kW] SEER EER Indoor CFM

[L/s] AHRI#

RA1418AJ1 RCF2417STAM 17800 [5.2] 13400 [3.9] 4400 [1.3] 14.00 11.50 600 [283.2] 7489162

RA1424AJ1 RCF2417STAM 24000 [7.0] 18100 [5.3] 5900 [1.7] 14.00 11.50 800 [377.6] 7489163

RA1430AJ1 RCF3617STAM 28800 [8.4] 21800 [6.4] 7000 [2.1] 14.00 11.50 1000 [471.9] 7489164

RA1436AJ1 RCF3617STAM 34200 [10.0] 24600 [7.2] 9600 [2.8] 14.00 11.50 1050 [495.5] 7489166

RA1442AJ1 RCF4821STAM 41500 [12.2] 31200 [9.1] 10300 [3.0] 14.00 11.50 1425 [672.5] 7489168

RA1442BJ1 RCF4821STA+RXMD-C04 40000 [11.7] 29800 [8.7] 10200 [3.0] 14.00 11.50 1350 [637.1] 8954527

RA1448AJ1 RCF4821STAM 46000 [13.5] 33800 [9.9] 12200 [3.6] 14.00 11.70 1450 [684.3] 7489170

RA1460AJ1 RCF6024STAM 57000 [16.7] 39900 [11.7] 17100 [5.0] 14.00 11.70 1575 [743.3] 7489172

Coil Only Ratings

Outdoor

Unit Indoor Coil Total Capacity

BTU/H [kW]

Net Sensible

BTU/H [kW]

Net Latent

BTU/H [kW] SEER EER Indoor CFM

[L/s] AHRI#

RA1418AJ1

RCF2414STAM+RXMD-C04 17800 [5.2] 13200 [3.9] 4600 [1.3] 14.00 11.50 600 [283.2] 7490519

RCF2417HTAM+RXMD-C04 17900 [5.2] 13100 [3.8] 4800 [1.4] 14.00 11.50 600 [283.2] 7493620

RCF2417MTAM+RXMD-C04 17900 [5.2] 13900 [4.1] 4000 [1.2] 14.00 11.50 600 [283.2] 7493621

RCF2421MTAM+RXMD-C04 17900 [5.2] 13100 [3.8] 4800 [1.4] 14.00 11.50 600 [283.2] 7493623

RCF2421HTAM+RXMD-C04 17900 [5.2] 13100 [3.8] 4800 [1.4] 14.00 11.50 600 [283.2] 7493622

RA1424AJ1

RCF2414STAM+RXMD-C04 24000 [7.0] 18100 [5.3] 5900 [1.7] 14.00 11.50 775 [365.8] 7490731

RCF2417HTAM+RXMD-C04 24000 [7.0] 17200 [5.0] 6800 [2.0] 14.00 11.50 800 [377.6] 7493627

RCF2417MTAM+RXMD-C04 24000 [7.0] 17200 [5.0] 6800 [2.0] 14.00 11.50 800 [377.6] 7493628

RCF2421MTAM+RXMD-C04 24000 [7.0] 17200 [5.0] 6800 [2.0] 14.00 11.50 800 [377.6] 7493630

RCF2421HTAM+RXMD-C04 24000 [7.0] 17200 [5.0] 6800 [2.0] 14.00 11.50 800 [377.6] 7493629

RA1430AJ1

RCF3621HTAM+RXMD-C04 30000 [8.8] 22700 [6.7] 7300 [2.1] 14.50 12.00 1000 [471.9] 8083412

RCF3621MTAM+RXMD-C04 30000 [8.8] 22700 [6.7] 7300 [2.1] 14.50 12.00 1000 [471.9] 7493634

RCF3621STAM+RXMD-C04 28800 [8.4] 21800 [6.4] 7000 [2.1] 14.00 11.50 1000 [471.9] 7491039

RCF3624HTAM+RXMD-C04 30000 [8.8] 22700 [6.7] 7300 [2.1] 14.50 12.00 1000 [471.9] 7493635

RCF3624MTAM+RXMD-C04 30000 [8.8] 22700 [6.7] 7300 [2.1] 14.50 12.00 1000 [471.9] 7493636

RA1436AJ1

RCF3621HTAM+RXMD-C04 36000 [10.6] 25900 [7.6] 10100 [3.0] 14.50 12.00 1200 [566.3] 8083490

RCF3621MTAM+RXMD-C04 36000 [10.6] 25900 [7.6] 10100 [3.0] 14.50 12.00 1200 [566.3] 7493647

RCF3621STAM+RXMD-C04 34200 [10.0] 24600 [7.2] 9600 [2.8] 14.00 11.50 1050 [495.5] 7491601

RCF3624HTAM+RXMD-C04 36000 [10.6] 25900 [7.6] 10100 [3.0] 14.50 12.00 1200 [566.3] 7493648

RCF3624MTAM+RXMD-C04 36000 [10.6] 25900 [7.6] 10100 [3.0] 14.50 12.00 1200 [566.3] 7493649

RA1442AJ1

RCF4821MTAM+RXMD-C04 42000 [12.3] 31600 [9.3] 10400 [3.0] 14.00 11.50 1425 [672.5] 8083576

RCF4824HTAM+RXMD-C04 42000 [12.3] 31600 [9.3] 10400 [3.0] 14.50 12.00 1425 [672.5] 7493658

RCF4824STAM+RXMD-C04 41500 [12.2] 31200 [9.1] 10300 [3.0] 14.00 11.50 1425 [672.5] 7492068

RA1442BJ1

RCF4821MTA+RXMD-C04 41000 [12.0] 29200 [8.6] 11800 [3.5] 14.00 11.50 1400 [660.7] 8954489

RCF4824HTA+RXMD-C04 41500 [12.2] 29600 [8.7] 11900 [3.5] 14.00 11.50 1400 [660.7] 8954557

RCF4824STA+RXMD-C04 40000 [11.7] 28300 [8.3] 11700 [3.4] 14.00 11.50 1375 [648.9] 8954588

RA1448AJ1

RCF4821MTAM+RXMD-C04 47000 [13.8] 32600 [9.6] 14400 [4.2] 14.00 11.70 1550 [731.5] 8083649

RCF4824HTAM+RXMD-C04 48000 [14.1] 33500 [9.8] 14500 [4.2] 14.50 12.00 1600 [755.1] 7492414

RCF4824STAM+RXMD-C04 46000 [13.5] 33800 [9.9] 12200 [3.6] 14.00 11.70 1450 [684.3] 7492437

RA1460AJ1 RCF6024HTAM+RXMD-C04 57000 [16.7] 39900 [11.7] 17100 [5.0] 14.00 11.70 1575 [743.3] 7492636

[ ] Designates Metric Conversions

Performance Data

RA14 Series

Rely on Ruud.™

Performance Data @ AHRI Standard Conditions – Cooling (con’t.)

R95T: 95% AFUE Single-Stage Constant Torque Multipoise Gas Furnace Ratings

Outdoor

Unit Furnace Indoor Coil Total Capacity

BTU/H [kW]

Net Sensible

BTU/H [kW]

Net Latent

BTU/H [kW] SEER EER Indoor CFM

[L/s] AHRI#

RA1442BJ1 R95TB0851521M

RCF4821MTA 40500 [11.9] 28000 [8.2] 12500 [3.7] 15.00 12.50 1225 [578.1] 8954470

RCF4821STA 40000 [11.7] 28900 [8.5] 11100 [3.3] 14.50 12.00 1200 [566.3] 8954508

RCF4824HTA 41500 [12.2] 28800 [8.4] 12700 [3.7] 15.10 12.50 1225 [578.1] 8954543

RCF4824STA 40000 [11.7] 28900 [8.5] 11100 [3.3] 14.50 12.00 1200 [566.3] 8954573

R96V: 96% AFUE 2-Stage Variable Speed Multipoise Gas Furnace Ratings

Outdoor

Unit Furnace Indoor Coil Total Capacity

BTU/H [kW]

Net Sensible

BTU/H [kW]

Net Latent

BTU/H [kW] SEER EER Indoor CFM

[L/s] AHRI#

RA1442BJ1 R96VA0602317M RCF4821MTA 40500 [11.9] 27900 [8.2] 12600 [3.7] 14.50 12.00 1200 [566.3] 8954472

RCF4821STA 39500 [11.6] 28400 [8.3] 11100 [3.3] 14.00 11.50 1200 [566.3] 8954510

R801T: Achiever Plus Single-Stage X-13 80% Furnace Ratings

Outdoor

Unit Furnace Indoor Coil Total Capacity

BTU/H [kW]

Net Sensible

BTU/H [kW]

Net Latent

BTU/H [kW] SEER EER Indoor CFM

[L/s] AHRI#

RA1418AJ1 R801TA050314MSA RCF2414STAM 18000 [5.3] 13700 [4.0] 4300 [1.3] 16.00 13.00 625 [295.0] 7522118

RCF2417HTAM 18000 [5.3] 13700 [4.0] 4300 [1.3] 16.00 13.00 625 [295.0] 7500935

RA1418AJ1 R801TA050314MSA RCF2417HTAM 18000 [5.3] 13700 [4.0] 4300 [1.3] 16.00 13.00 625 [295.0] 7500935

RCF2417MTAM 18000 [5.3] 13700 [4.0] 4300 [1.3] 16.00 13.00 625 [295.0] 7500937

RA1418AJ1 R801TA050314MSA RCF2417MTAM 18000 [5.3] 13700 [4.0] 4300 [1.3] 16.00 13.00 625 [295.0] 7500937

RCF2417STAM 18000 [5.3] 13700 [4.0] 4300 [1.3] 16.00 13.00 625 [295.0] 7500939

RA1418AJ1 R801TA050314MSA RCF2417STAM 18000 [5.3] 13700 [4.0] 4300 [1.3] 16.00 13.00 625 [295.0] 7500939

RA1418AJ1 R801TA050314MXA RCF2414STAM 18000 [5.3] 13700 [4.0] 4300 [1.3] 16.00 13.00 625 [295.0] 8052679

RCF2417HTAM 18000 [5.3] 13700 [4.0] 4300 [1.3] 16.00 13.00 625 [295.0] 8052680

RA1418AJ1 R801TA050314MXA RCF2417HTAM 18000 [5.3] 13700 [4.0] 4300 [1.3] 16.00 13.00 625 [295.0] 8052680

RCF2417MTAM 18000 [5.3] 13700 [4.0] 4300 [1.3] 16.00 13.00 625 [295.0] 8052685

RA1418AJ1 R801TA050314MXA RCF2417MTAM 18000 [5.3] 13700 [4.0] 4300 [1.3] 16.00 13.00 625 [295.0] 8052685

RCF2417STAM 18000 [5.3] 13700 [4.0] 4300 [1.3] 16.00 13.00 625 [295.0] 8052690

RA1418AJ1 R801TA050314MXA RCF2417STAM 18000 [5.3] 13700 [4.0] 4300 [1.3] 16.00 13.00 625 [295.0] 8052690

RA1418AJ1 R801TA075317ZSA RCF2417HTAM 18000 [5.3] 13700 [4.0] 4300 [1.3] 16.00 13.00 650 [306.8] 7500936

RCF2417MTAM 18000 [5.3] 13700 [4.0] 4300 [1.3] 16.00 13.00 650 [306.8] 7500938

RA1418AJ1 R801TA075317ZSA RCF2417MTAM 18000 [5.3] 13700 [4.0] 4300 [1.3] 16.00 13.00 650 [306.8] 7500938

RCF2417STAM 18000 [5.3] 13700 [4.0] 4300 [1.3] 16.00 13.00 650 [306.8] 7500940

RA1418AJ1 R801TA075317ZSA RCF2417STAM 18000 [5.3] 13700 [4.0] 4300 [1.3] 16.00 13.00 650 [306.8] 7500940

RCF2421MTAM 18000 [5.3] 13700 [4.0] 4300 [1.3] 16.00 13.00 650 [306.8] 7500942

RA1418AJ1 R801TA075317ZSA RCF2421MTAM 18000 [5.3] 13700 [4.0] 4300 [1.3] 16.00 13.00 650 [306.8] 7500942

RA1418AJ1 R801TA075317ZSB RCF2417HTAM 18000 [5.3] 13700 [4.0] 4300 [1.3] 16.00 13.00 650 [306.8] 8386947

RCF2417MTAM 18000 [5.3] 13700 [4.0] 4300 [1.3] 16.00 13.00 650 [306.8] 8386955

RA1418AJ1 R801TA075317ZSB RCF2417MTAM 18000 [5.3] 13700 [4.0] 4300 [1.3] 16.00 13.00 650 [306.8] 8386955

RCF2417STAM 18000 [5.3] 13700 [4.0] 4300 [1.3] 16.00 13.00 650 [306.8] 8386963

RA1418AJ1 R801TA075317ZSB RCF2417STAM 18000 [5.3] 13700 [4.0] 4300 [1.3] 16.00 13.00 650 [306.8] 8386963

RCF2421MTAM 18000 [5.3] 13700 [4.0] 4300 [1.3] 16.00 13.00 650 [306.8] 8386983

RA1418AJ1 R801TA075317ZSB RCF2421MTAM 18000 [5.3] 13700 [4.0] 4300 [1.3] 16.00 13.00 650 [306.8] 8386983

[ ] Designates Metric Conversions

Performance Data

RA14 Series

Rely on Ruud.™ 17

Performance Data @ AHRI Standard Conditions – Cooling (con’t.)

R801T: Achiever Plus Single-Stage X-13 80% Furnace Ratings

Outdoor

Unit Furnace Indoor Coil Total Capacity

BTU/H [kW]

Net Sensible

BTU/H [kW]

Net Latent

BTU/H [kW] SEER EER Indoor CFM

[L/s] AHRI#

RA1418AJ1 R801TA075317ZXA RCF2417HTAM 18000 [5.3] 13700 [4.0] 4300 [1.3] 16.00 13.00 650 [306.8] 8052681

RCF2417MTAM 18000 [5.3] 13700 [4.0] 4300 [1.3] 16.00 13.00 650 [306.8] 8052686

RA1418AJ1 R801TA075317ZXA RCF2417MTAM 18000 [5.3] 13700 [4.0] 4300 [1.3] 16.00 13.00 650 [306.8] 8052686

RCF2417STAM 18000 [5.3] 13700 [4.0] 4300 [1.3] 16.00 13.00 650 [306.8] 8052691

RA1418AJ1 R801TA075317ZXA RCF2417STAM 18000 [5.3] 13700 [4.0] 4300 [1.3] 16.00 13.00 650 [306.8] 8052691

RCF2421MTAM 18000 [5.3] 13700 [4.0] 4300 [1.3] 16.00 13.00 650 [306.8] 8052701

RA1418AJ1 R801TA075317ZXA RCF2421MTAM 18000 [5.3] 13700 [4.0] 4300 [1.3] 16.00 13.00 650 [306.8] 8052701

RA1418AJ1 R801TA075317ZXB RCF2417HTAM 18000 [5.3] 13700 [4.0] 4300 [1.3] 16.00 13.00 650 [306.8] 8386948

RCF2417MTAM 18000 [5.3] 13700 [4.0] 4300 [1.3] 16.00 13.00 650 [306.8] 8386956

RA1418AJ1 R801TA075317ZXB RCF2417MTAM 18000 [5.3] 13700 [4.0] 4300 [1.3] 16.00 13.00 650 [306.8] 8386956

RCF2417STAM 18000 [5.3] 13700 [4.0] 4300 [1.3] 16.00 13.00 650 [306.8] 8386964

RA1418AJ1 R801TA075317ZXB RCF2417STAM 18000 [5.3] 13700 [4.0] 4300 [1.3] 16.00 13.00 650 [306.8] 8386964

RCF2421MTAM 18000 [5.3] 13700 [4.0] 4300 [1.3] 16.00 13.00 650 [306.8] 8386984

RA1418AJ1 R801TA075317ZXB RCF2421MTAM 18000 [5.3] 13700 [4.0] 4300 [1.3] 16.00 13.00 650 [306.8] 8386984

RA1418AJ1 R801TA075317ZSA RCF2421HTAM 18000 [5.3] 13700 [4.0] 4300 [1.3] 16.00 13.00 650 [306.8] 7500941

RA1418AJ1 R801TA075317ZSB RCF2421HTAM 18000 [5.3] 13700 [4.0] 4300 [1.3] 16.00 13.00 650 [306.8] 8386971

RA1418AJ1 R801TA075317ZXA RCF2421HTAM 18000 [5.3] 13700 [4.0] 4300 [1.3] 16.00 13.00 650 [306.8] 8052695

RA1418AJ1 R801TA075317ZXB RCF2421HTAM 18000 [5.3] 13700 [4.0] 4300 [1.3] 16.00 13.00 650 [306.8] 8386972

RA1424AJ1 R801TA050314MSA RCF2414STAM 24000 [7.0] 18100 [5.3] 5900 [1.7] 15.50 13.00 800 [377.6] 7522121

RCF2417HTAM 24000 [7.0] 18100 [5.3] 5900 [1.7] 15.50 13.00 875 [413.0] 7500952

RA1424AJ1 R801TA050314MSA RCF2417HTAM 24000 [7.0] 18100 [5.3] 5900 [1.7] 15.50 13.00 875 [413.0] 7500952

RCF2417MTAM 24000 [7.0] 18100 [5.3] 5900 [1.7] 15.50 13.00 850 [401.2] 7500954

RA1424AJ1 R801TA050314MSA RCF2417MTAM 24000 [7.0] 18100 [5.3] 5900 [1.7] 15.50 13.00 850 [401.2] 7500954

RCF2417STAM 24000 [7.0] 18100 [5.3] 5900 [1.7] 15.10 12.50 825 [389.4] 7500956

RA1424AJ1 R801TA050314MSA RCF2417STAM 24000 [7.0] 18100 [5.3] 5900 [1.7] 15.10 12.50 825 [389.4] 7500956

RA1424AJ1 R801TA050314MXA RCF2414STAM 24000 [7.0] 18100 [5.3] 5900 [1.7] 15.50 13.00 800 [377.6] 8052737

RCF2417HTAM 24000 [7.0] 18100 [5.3] 5900 [1.7] 15.50 13.00 875 [413.0] 8052738

RA1424AJ1 R801TA050314MXA RCF2417HTAM 24000 [7.0] 18100 [5.3] 5900 [1.7] 15.50 13.00 875 [413.0] 8052738

RCF2417MTAM 24000 [7.0] 18100 [5.3] 5900 [1.7] 15.50 13.00 850 [401.2] 8052743

RA1424AJ1 R801TA050314MXA RCF2417MTAM 24000 [7.0] 18100 [5.3] 5900 [1.7] 15.50 13.00 850 [401.2] 8052743

RCF2417STAM 24000 [7.0] 18100 [5.3] 5900 [1.7] 15.10 12.50 825 [389.4] 8052748

RA1424AJ1 R801TA050314MXA RCF2417STAM 24000 [7.0] 18100 [5.3] 5900 [1.7] 15.10 12.50 825 [389.4] 8052748

RA1424AJ1 R801TA075317ZSA RCF2417HTAM 24000 [7.0] 18100 [5.3] 5900 [1.7] 15.10 12.50 875 [413.0] 7500953

RCF2417MTAM 24000 [7.0] 18100 [5.3] 5900 [1.7] 15.10 12.50 875 [413.0] 7500955

RA1424AJ1 R801TA075317ZSA RCF2417MTAM 24000 [7.0] 18100 [5.3] 5900 [1.7] 15.10 12.50 875 [413.0] 7500955

RCF2417STAM 23800 [7.0] 17500 [5.1] 6300 [1.8] 15.50 13.00 650 [306.8] 7500957

RA1424AJ1 R801TA075317ZSA RCF2417STAM 23800 [7.0] 17500 [5.1] 6300 [1.8] 15.50 13.00 650 [306.8] 7500957

RCF2421MTAM 24000 [7.0] 18100 [5.3] 5900 [1.7] 15.10 12.50 875 [413.0] 7500959

RA1424AJ1 R801TA075317ZSA RCF2421MTAM 24000 [7.0] 18100 [5.3] 5900 [1.7] 15.10 12.50 875 [413.0] 7500959

[ ] Designates Metric Conversions

Rely on Ruud.™

Performance Data

RA14 Series

Performance Data @ AHRI Standard Conditions – Cooling (con’t.)

R801T: Achiever Plus Single-Stage X-13 80% Furnace Ratings

Outdoor

Unit Furnace Indoor Coil Total Capacity

BTU/H [kW]

Net Sensible

BTU/H [kW]

Net Latent

BTU/H [kW] SEER EER Indoor CFM

[L/s] AHRI#

RA1424AJ1 R801TA075317ZSB RCF2417HTAM 24000 [7.0] 18100 [5.3] 5900 [1.7] 15.10 12.50 875 [413.0] 8387045

RCF2417MTAM 24000 [7.0] 18100 [5.3] 5900 [1.7] 15.10 12.50 875 [413.0] 8387054

RA1424AJ1 R801TA075317ZSB RCF2417MTAM 24000 [7.0] 18100 [5.3] 5900 [1.7] 15.10 12.50 875 [413.0] 8387054

RCF2417STAM 23800 [7.0] 17500 [5.1] 6300 [1.8] 15.50 13.00 650 [306.8] 8387063

RA1424AJ1 R801TA075317ZSB RCF2417STAM 23800 [7.0] 17500 [5.1] 6300 [1.8] 15.50 13.00 650 [306.8] 8387063

RCF2421MTAM 24000 [7.0] 18100 [5.3] 5900 [1.7] 15.10 12.50 875 [413.0] 8387087

RA1424AJ1 R801TA075317ZSB RCF2421MTAM 24000 [7.0] 18100 [5.3] 5900 [1.7] 15.10 12.50 875 [413.0] 8387087

RA1424AJ1 R801TA075317ZXA RCF2417HTAM 24000 [7.0] 18100 [5.3] 5900 [1.7] 15.10 12.50 875 [413.0] 8052739

RCF2417MTAM 24000 [7.0] 18100 [5.3] 5900 [1.7] 15.10 12.50 875 [413.0] 8052744

RA1424AJ1 R801TA075317ZXA RCF2417MTAM 24000 [7.0] 18100 [5.3] 5900 [1.7] 15.10 12.50 875 [413.0] 8052744

RCF2417STAM 23800 [7.0] 17500 [5.1] 6300 [1.8] 15.50 13.00 650 [306.8] 8052749

RA1424AJ1 R801TA075317ZXA RCF2417STAM 23800 [7.0] 17500 [5.1] 6300 [1.8] 15.50 13.00 650 [306.8] 8052749

RCF2421MTAM 24000 [7.0] 18100 [5.3] 5900 [1.7] 15.10 12.50 875 [413.0] 8052761

RA1424AJ1 R801TA075317ZXA RCF2421MTAM 24000 [7.0] 18100 [5.3] 5900 [1.7] 15.10 12.50 875 [413.0] 8052761

RA1424AJ1 R801TA075317ZXB RCF2417HTAM 24000 [7.0] 18100 [5.3] 5900 [1.7] 15.10 12.50 875 [413.0] 8387046

RCF2417MTAM 24000 [7.0] 18100 [5.3] 5900 [1.7] 15.10 12.50 875 [413.0] 8387055

RA1424AJ1 R801TA075317ZXB RCF2417MTAM 24000 [7.0] 18100 [5.3] 5900 [1.7] 15.10 12.50 875 [413.0] 8387055

RCF2417STAM 23800 [7.0] 17500 [5.1] 6300 [1.8] 15.50 13.00 650 [306.8] 8387064

RA1424AJ1 R801TA075317ZXB RCF2417STAM 23800 [7.0] 17500 [5.1] 6300 [1.8] 15.50 13.00 650 [306.8] 8387064

RCF2421MTAM 24000 [7.0] 18100 [5.3] 5900 [1.7] 15.10 12.50 875 [413.0] 8387088

RA1424AJ1 R801TA075317ZXB RCF2421MTAM 24000 [7.0] 18100 [5.3] 5900 [1.7] 15.10 12.50 875 [413.0] 8387088

RA1424AJ1 R801TA075317ZSA RCF2421HTAM 24000 [7.0] 18100 [5.3] 5900 [1.7] 15.10 12.50 875 [413.0] 7500958

RA1424AJ1 R801TA075317ZSB RCF2421HTAM 24000 [7.0] 18100 [5.3] 5900 [1.7] 15.10 12.50 875 [413.0] 8387072

RA1424AJ1 R801TA075317ZXA RCF2421HTAM 24000 [7.0] 18100 [5.3] 5900 [1.7] 15.10 12.50 875 [413.0] 8052753

RA1424AJ1 R801TA075317ZXB RCF2421HTAM 24000 [7.0] 18100 [5.3] 5900 [1.7] 15.10 12.50 875 [413.0] 8387073

RA1430AJ1 R801TA050314MSA RCF3617STAM 29200 [8.6] 22200 [6.5] 7000 [2.1] 15.10 12.50 1000 [471.9] 7500969

RA1430AJ1 R801TA050314MXA RCF3617STAM 29200 [8.6] 22200 [6.5] 7000 [2.1] 15.10 12.50 1000 [471.9] 8052803

RA1430AJ1 R801TA075317ZSA RCF3617STAM 28600 [8.4] 21200 [6.2] 7400 [2.2] 15.10 12.50 875 [413.0] 7500970

RCF3621MTAM 30000 [8.8] 22700 [6.7] 7300 [2.1] 16.00 13.00 875 [413.0] 7500972

RA1430AJ1 R801TA075317ZSA RCF3621MTAM 30000 [8.8] 22700 [6.7] 7300 [2.1] 16.00 13.00 875 [413.0] 7500972

RCF3621STAM 28600 [8.4] 21200 [6.2] 7400 [2.2] 15.10 12.50 875 [413.0] 7500977

RA1430AJ1 R801TA075317ZSA RCF3621STAM 28600 [8.4] 21200 [6.2] 7400 [2.2] 15.10 12.50 875 [413.0] 7500977

RA1430AJ1 R801TA075317ZSB RCF3617STAM 28600 [8.4] 21200 [6.2] 7400 [2.2] 15.10 12.50 875 [413.0] 8387165

RCF3621MTAM 30000 [8.8] 22700 [6.7] 7300 [2.1] 16.00 13.00 875 [413.0] 8387182

RA1430AJ1 R801TA075317ZSB RCF3621MTAM 30000 [8.8] 22700 [6.7] 7300 [2.1] 16.00 13.00 875 [413.0] 8387182

RCF3621STAM 28600 [8.4] 21200 [6.2] 7400 [2.2] 15.10 12.50 875 [413.0] 8387211

RA1430AJ1 R801TA075317ZSB RCF3621STAM 28600 [8.4] 21200 [6.2] 7400 [2.2] 15.10 12.50 875 [413.0] 8387211

[ ] Designates Metric Conversions

Rely on Ruud.™ 19

Performance Data

RA14 Series

Performance Data @ AHRI Standard Conditions – Cooling (con’t.)

R801T: Achiever Plus Single-Stage X-13 80% Furnace Ratings

Outdoor

Unit Furnace Indoor Coil Total Capacity

BTU/H [kW]

Net Sensible

BTU/H [kW]

Net Latent

BTU/H [kW] SEER EER Indoor CFM

[L/s] AHRI#

RA1430AJ1 R801TA075317ZXA RCF3617STAM 28600 [8.4] 21200 [6.2] 7400 [2.2] 15.10 12.50 875 [413.0] 8052804

RCF3621MTAM 30000 [8.8] 22700 [6.7] 7300 [2.1] 16.00 13.00 875 [413.0] 8052809

RA1430AJ1 R801TA075317ZXA RCF3621MTAM 30000 [8.8] 22700 [6.7] 7300 [2.1] 16.00 13.00 875 [413.0] 8052809

RCF3621STAM 28600 [8.4] 21200 [6.2] 7400 [2.2] 15.10 12.50 875 [413.0] 8052822

RA1430AJ1 R801TA075317ZXA RCF3621STAM 28600 [8.4] 21200 [6.2] 7400 [2.2] 15.10 12.50 875 [413.0] 8052822

RA1430AJ1 R801TA075317ZXB RCF3617STAM 28600 [8.4] 21200 [6.2] 7400 [2.2] 15.10 12.50 875 [413.0] 8387166

RCF3621MTAM 30000 [8.8] 22700 [6.7] 7300 [2.1] 16.00 13.00 875 [413.0] 8387183

RA1430AJ1 R801TA075317ZXB RCF3621MTAM 30000 [8.8] 22700 [6.7] 7300 [2.1] 16.00 13.00 875 [413.0] 8387183

RCF3621STAM 28600 [8.4] 21200 [6.2] 7400 [2.2] 15.10 12.50 875 [413.0] 8387212

RA1430AJ1 R801TA075317ZXB RCF3621STAM 28600 [8.4] 21200 [6.2] 7400 [2.2] 15.10 12.50 875 [413.0] 8387212

RA1430AJ1 R801TA075417MSA RCF3617STAM 29200 [8.6] 22200 [6.5] 7000 [2.1] 15.10 12.50 1000 [471.9] 7500971

RCF3621HTAM 30000 [8.8] 22700 [6.7] 7300 [2.1] 16.00 13.00 1050 [495.5] 8083389

RA1430AJ1 R801TA075417MSA RCF3621HTAM 30000 [8.8] 22700 [6.7] 7300 [2.1] 16.00 13.00 1050 [495.5] 8083389

RCF3621MTAM 30000 [8.8] 22700 [6.7] 7300 [2.1] 16.00 13.00 1050 [495.5] 7500973

RA1430AJ1 R801TA075417MSA RCF3621MTAM 30000 [8.8] 22700 [6.7] 7300 [2.1] 16.00 13.00 1050 [495.5] 7500973

RCF3621STAM 29200 [8.6] 22200 [6.5] 7000 [2.1] 15.10 12.50 1025 [483.7] 7500978

RA1430AJ1 R801TA075417MSA RCF3621STAM 29200 [8.6] 22200 [6.5] 7000 [2.1] 15.10 12.50 1025 [483.7] 7500978

RA1430AJ1 R801TA075417MXA RCF3617STAM 29200 [8.6] 22200 [6.5] 7000 [2.1] 15.10 12.50 1000 [471.9] 8052805

RCF3621HTAM 30000 [8.8] 22700 [6.7] 7300 [2.1] 16.00 13.00 1050 [495.5] 8387176

RA1430AJ1 R801TA075417MXA RCF3621HTAM 30000 [8.8] 22700 [6.7] 7300 [2.1] 16.00 13.00 1050 [495.5] 8387176

RCF3621MTAM 30000 [8.8] 22700 [6.7] 7300 [2.1] 16.00 13.00 1050 [495.5] 8052810

RA1430AJ1 R801TA075417MXA RCF3621MTAM 30000 [8.8] 22700 [6.7] 7300 [2.1] 16.00 13.00 1050 [495.5] 8052810

RCF3621STAM 29200 [8.6] 22200 [6.5] 7000 [2.1] 15.10 12.50 1025 [483.7] 8052823

RA1430AJ1 R801TA075417MXA RCF3621STAM 29200 [8.6] 22200 [6.5] 7000 [2.1] 15.10 12.50 1025 [483.7] 8052823

RA1430AJ1 R801TA075421MSA RCF3621HTAM 30000 [8.8] 22700 [6.7] 7300 [2.1] 16.00 13.00 1050 [495.5] 8083390

RCF3621MTAM 30000 [8.8] 22700 [6.7] 7300 [2.1] 16.00 13.00 1025 [483.7] 8052811

RA1430AJ1 R801TA075421MSA RCF3621MTAM 30000 [8.8] 22700 [6.7] 7300 [2.1] 16.00 13.00 1025 [483.7] 8052811

RCF3621STAM 29200 [8.6] 22200 [6.5] 7000 [2.1] 15.10 12.50 1025 [483.7] 8052824

RA1430AJ1 R801TA075421MSA RCF3621STAM 29200 [8.6] 22200 [6.5] 7000 [2.1] 15.10 12.50 1025 [483.7] 8052824

RCF3624HTAM 30000 [8.8] 22700 [6.7] 7300 [2.1] 16.00 13.00 1050 [495.5] 8052835

RA1430AJ1 R801TA075421MSA RCF3624HTAM 30000 [8.8] 22700 [6.7] 7300 [2.1] 16.00 13.00 1050 [495.5] 8052835

RCF3624MTAM 30000 [8.8] 22700 [6.7] 7300 [2.1] 16.00 13.00 1025 [483.7] 8052846

RA1430AJ1 R801TA075421MSA RCF3624MTAM 30000 [8.8] 22700 [6.7] 7300 [2.1] 16.00 13.00 1025 [483.7] 8052846

RA1430AJ1 R801TA075421MXA RCF3621HTAM 30000 [8.8] 22700 [6.7] 7300 [2.1] 16.00 13.00 1050 [495.5] 8387177

RCF3621MTAM 30000 [8.8] 22700 [6.7] 7300 [2.1] 16.00 13.00 1025 [483.7] 8387184

RA1430AJ1 R801TA075421MXA RCF3621MTAM 30000 [8.8] 22700 [6.7] 7300 [2.1] 16.00 13.00 1025 [483.7] 8387184

RCF3621STAM 29200 [8.6] 22200 [6.5] 7000 [2.1] 15.10 12.50 1025 [483.7] 8387213

RA1430AJ1 R801TA075421MXA RCF3621STAM 29200 [8.6] 22200 [6.5] 7000 [2.1] 15.10 12.50 1025 [483.7] 8387213

RCF3624HTAM 30000 [8.8] 22700 [6.7] 7300 [2.1] 16.00 13.00 1050 [495.5] 8387240

RA1430AJ1 R801TA075421MXA RCF3624HTAM 30000 [8.8] 22700 [6.7] 7300 [2.1] 16.00 13.00 1050 [495.5] 8387240

RCF3624MTAM 30000 [8.8] 22700 [6.7] 7300 [2.1] 16.00 13.00 1025 [483.7] 8387265

RA1430AJ1 R801TA075421MXA RCF3624MTAM 30000 [8.8] 22700 [6.7] 7300 [2.1] 16.00 13.00 1025 [483.7] 8387265

[ ] Designates Metric Conversions

Performance Data

RA14 Series

Rely on Ruud.™

Performance Data @ AHRI Standard Conditions – Cooling (con’t.)

R801T: Achiever Plus Single-Stage X-13 80% Furnace Ratings

Outdoor

Unit Furnace Indoor Coil Total Capacity

BTU/H [kW]

Net Sensible

BTU/H [kW]

Net Latent

BTU/H [kW] SEER EER Indoor CFM

[L/s] AHRI#

RA1430AJ1 R801TA075521ZSA RCF3621MTAM 30000 [8.8] 22700 [6.7] 7300 [2.1] 16.00 13.00 1000 [471.9] 7500974

RCF3621STAM 29200 [8.6] 22100 [6.5] 7100 [2.1] 15.10 12.50 975 [460.1] 7500979

RA1430AJ1 R801TA075521ZSA RCF3621STAM 29200 [8.6] 22100 [6.5] 7100 [2.1] 15.10 12.50 975 [460.1] 7500979

RCF3624HTAM 30000 [8.8] 22700 [6.7] 7300 [2.1] 16.00 13.00 1025 [483.7] 7500982

RA1430AJ1 R801TA075521ZSA RCF3624HTAM 30000 [8.8] 22700 [6.7] 7300 [2.1] 16.00 13.00 1025 [483.7] 7500982

RCF3624MTAM 30000 [8.8] 22700 [6.7] 7300 [2.1] 16.00 13.00 1000 [471.9] 7500986

RA1430AJ1 R801TA075521ZSA RCF3624MTAM 30000 [8.8] 22700 [6.7] 7300 [2.1] 16.00 13.00 1000 [471.9] 7500986

RA1430AJ1 R801TA075521ZSB RCF3621MTAM 30000 [8.8] 22700 [6.7] 7300 [2.1] 16.00 13.00 1000 [471.9] 8387185

RCF3621STAM 29200 [8.6] 22100 [6.5] 7100 [2.1] 15.10 12.50 975 [460.1] 8387214

RA1430AJ1 R801TA075521ZSB RCF3621STAM 29200 [8.6] 22100 [6.5] 7100 [2.1] 15.10 12.50 975 [460.1] 8387214

RCF3624HTAM 30000 [8.8] 22700 [6.7] 7300 [2.1] 16.00 13.00 1025 [483.7] 8387241

RA1430AJ1 R801TA075521ZSB RCF3624HTAM 30000 [8.8] 22700 [6.7] 7300 [2.1] 16.00 13.00 1025 [483.7] 8387241

RCF3624MTAM 30000 [8.8] 22700 [6.7] 7300 [2.1] 16.00 13.00 1000 [471.9] 8387266

RA1430AJ1 R801TA075521ZSB RCF3624MTAM 30000 [8.8] 22700 [6.7] 7300 [2.1] 16.00 13.00 1000 [471.9] 8387266

RA1430AJ1 R801TA075521ZXA RCF3621MTAM 30000 [8.8] 22700 [6.7] 7300 [2.1] 16.00 13.00 1000 [471.9] 8052812

RCF3621STAM 29200 [8.6] 22100 [6.5] 7100 [2.1] 15.10 12.50 975 [460.1] 8052825

RA1430AJ1 R801TA075521ZXA RCF3621STAM 29200 [8.6] 22100 [6.5] 7100 [2.1] 15.10 12.50 975 [460.1] 8052825

RCF3624HTAM 30000 [8.8] 22700 [6.7] 7300 [2.1] 16.00 13.00 1025 [483.7] 8052836

RA1430AJ1 R801TA075521ZXA RCF3624HTAM 30000 [8.8] 22700 [6.7] 7300 [2.1] 16.00 13.00 1025 [483.7] 8052836

RCF3624MTAM 30000 [8.8] 22700 [6.7] 7300 [2.1] 16.00 13.00 1000 [471.9] 8052847

RA1430AJ1 R801TA075521ZXA RCF3624MTAM 30000 [8.8] 22700 [6.7] 7300 [2.1] 16.00 13.00 1000 [471.9] 8052847

RA1430AJ1 R801TA075521ZXB RCF3621MTAM 30000 [8.8] 22700 [6.7] 7300 [2.1] 16.00 13.00 1000 [471.9] 8387186

RCF3621STAM 29200 [8.6] 22100 [6.5] 7100 [2.1] 15.10 12.50 975 [460.1] 8387215

RA1430AJ1 R801TA075521ZXB RCF3621STAM 29200 [8.6] 22100 [6.5] 7100 [2.1] 15.10 12.50 975 [460.1] 8387215

RCF3624HTAM 30000 [8.8] 22700 [6.7] 7300 [2.1] 16.00 13.00 1025 [483.7] 8387242

RA1430AJ1 R801TA075521ZXB RCF3624HTAM 30000 [8.8] 22700 [6.7] 7300 [2.1] 16.00 13.00 1025 [483.7] 8387242

RCF3624MTAM 30000 [8.8] 22700 [6.7] 7300 [2.1] 16.00 13.00 1000 [471.9] 8387267

RA1430AJ1 R801TA075521ZXB RCF3624MTAM 30000 [8.8] 22700 [6.7] 7300 [2.1] 16.00 13.00 1000 [471.9] 8387267

RA1430AJ1 R801TA100521MSA RCF3621HTAM 30000 [8.8] 22700 [6.7] 7300 [2.1] 16.00 13.00 1075 [507.3] 8083391

RCF3621MTAM 30000 [8.8] 22700 [6.7] 7300 [2.1] 16.00 13.00 1050 [495.5] 7500975

RA1430AJ1 R801TA100521MSA RCF3621MTAM 30000 [8.8] 22700 [6.7] 7300 [2.1] 16.00 13.00 1050 [495.5] 7500975

RCF3621STAM 29200 [8.6] 22200 [6.5] 7000 [2.1] 15.50 13.00 1000 [471.9] 7500980

RA1430AJ1 R801TA100521MSA RCF3621STAM 29200 [8.6] 22200 [6.5] 7000 [2.1] 15.50 13.00 1000 [471.9] 7500980

RCF3624HTAM 30000 [8.8] 21800 [6.4] 8200 [2.4] 16.00 13.00 1100 [519.1] 7500983

RA1430AJ1 R801TA100521MSA RCF3624HTAM 30000 [8.8] 21800 [6.4] 8200 [2.4] 16.00 13.00 1100 [519.1] 7500983

RCF3624MTAM 30000 [8.8] 22700 [6.7] 7300 [2.1] 16.00 13.00 1050 [495.5] 7500987

RA1430AJ1 R801TA100521MSA RCF3624MTAM 30000 [8.8] 22700 [6.7] 7300 [2.1] 16.00 13.00 1050 [495.5] 7500987

RA1430AJ1 R801TA100521MXA RCF3621HTAM 30000 [8.8] 22700 [6.7] 7300 [2.1] 16.00 13.00 1075 [507.3] 8387178

RCF3621MTAM 30000 [8.8] 22700 [6.7] 7300 [2.1] 16.00 13.00 1050 [495.5] 8052813

RA1430AJ1 R801TA100521MXA RCF3621MTAM 30000 [8.8] 22700 [6.7] 7300 [2.1] 16.00 13.00 1050 [495.5] 8052813

RCF3621STAM 29200 [8.6] 22200 [6.5] 7000 [2.1] 15.50 13.00 1000 [471.9] 8052826

RA1430AJ1 R801TA100521MXA RCF3621STAM 29200 [8.6] 22200 [6.5] 7000 [2.1] 15.50 13.00 1000 [471.9] 8052826

RCF3624HTAM 30000 [8.8] 21800 [6.4] 8200 [2.4] 16.00 13.00 1100 [519.1] 8052837

[ ] Designates Metric Conversions

This manual suits for next models

Table of contents

Other Ruud Air Conditioner manuals

Ruud

Ruud SA14AZ18AJ1NA User manual

Ruud

Ruud UA1724A User manual

Ruud

Ruud RA16 Series User manual

Ruud

Ruud ANL-AZ MODEL SERIES - 13 SEER User manual

Popular Air Conditioner manuals by other brands

American Standard

American Standard 4A6V8024A1000B Service facts

Carrier

Carrier Fan Coil 42B Installation, operation and maintenance manual

Friedrich

Friedrich ZoneAire Compact P08SA owner's manual

Frigidaire

Frigidaire FRS09PYW1 installation guide

Vivax

Vivax ACP-12CH35REWI R32 user manual

Mitsubishi Electric

Mitsubishi Electric Mr. Slim PUZ-M200YKA2.UK Service manual

Airwell

Airwell Electra JMF Hi wall Series Service manual

Haier

Haier HC1891VAR Installation & operation manual

Whynter

Whynter ARC-12SDH instruction manual

ACS

ACS Marvair 8AA1024A-8AA1060A product manual

hawa

hawa 3122 Series operating instructions

Dometic

Dometic BRISK AIR 579 SERIES installation instructions

nedis

nedis ACMB1WT9 quick start guide

Daikin

Daikin FFQ12LVJU Operation manual

Trane

Trane DC-UC-WEB01 owner's guide

Mitsubishi Electric

Mitsubishi Electric Mr.Slim PEA-M200 installation manual

Carrier

Carrier 50VL-D installation instructions

Lennox

Lennox LIFHC012021T431E-1 owner's manual

Ruud Achiever RA1418AJ1NA User manual

Popular Air Conditioner manuals by other brands
