Ruud RA16 Series User manual

16.0
RA16 Series
Efficiencies up to 16 SEER/13 EER
Nominal Sizes 11/2 to 5 Ton [5.28 to 17.6 kW]
Cooling Capacities 17.3 to 60.5 kBTU
[5.7 to 17.7 kW]
“Proper sizing and installation of equipment is critical to
achieve optimal performance. Ask your Contractor for details
or visit www.energystar.gov.”
FORM NO. A22-222 REV. 2
Air Conditioners
RA16 Series
Rely on Ruud.™
Ruud Achiever® Series
Air Conditioners
Ruud
Achiever® Series
Air Conditioners
• New composite base pan – dampens sound, captures louver
panels, eliminates corrosion and reduces number of fasteners
needed
• Powder coat paint system – for a long lasting professional finish
• Scroll compressor – uses 70% fewer moving parts for higher
efficiency and increased reliability
• Modern cabinet aesthetics – increased curb appeal with visu-
ally appealing design
• Curved louver panels – provide ultimate coil protection,
enhance cabinet strength, and increased cabinet rigidity
• Optimized fan orifice – optimizes airflow and reduces unit
sound
• Rust resistant screws – confirmed through 1500-hour salt
spray testing
• PlusOne™ Expanded Valve Space – 3"-4"-5" service valve
space – provides a minimum working area of 27-square inches
for easier access
• PlusOne™ Triple Service Access – 15" wide, industry lead-
ing corner service access – makes repairs easier and faster.
The two fastener removable corner allows optimal access to
internal unit components. Individual louver panels come out
once fastener is removed, for faster coil cleaning and easier
cabinet reassembly
• Diagnostic service window with two-fastener opening –
provides access to the high and low pressure.
• External gauge port access – allows easy connection of
“low-loss” gauge ports
• Single-row condenser coil – makes unit lighter and allows thor-
ough coil cleaning to maintain “out of the box” performance
• 35% fewer cabinet fasteners and fastener-free base – allow
for faster access to internal components and hassle-free
panel removal
• Service trays – hold fasteners or caps during service calls
• QR code – provides technical information on demand for faster
service calls
• Fan motor harness with extra long wires allows unit top to be
removed without disconnecting fan wire.

Rely on Ruud.™
2
Standard Feature ......................................................................................................3
Available SKUs ........................................................................................................3
Features & Benefits ..............................................................................................4-5
Model Number Identification ................................................................................6-7
General Data/Electrical Data ....................................................................................8
Accessories ............................................................................................................9
Weighted Sound Power ............................................................................................9

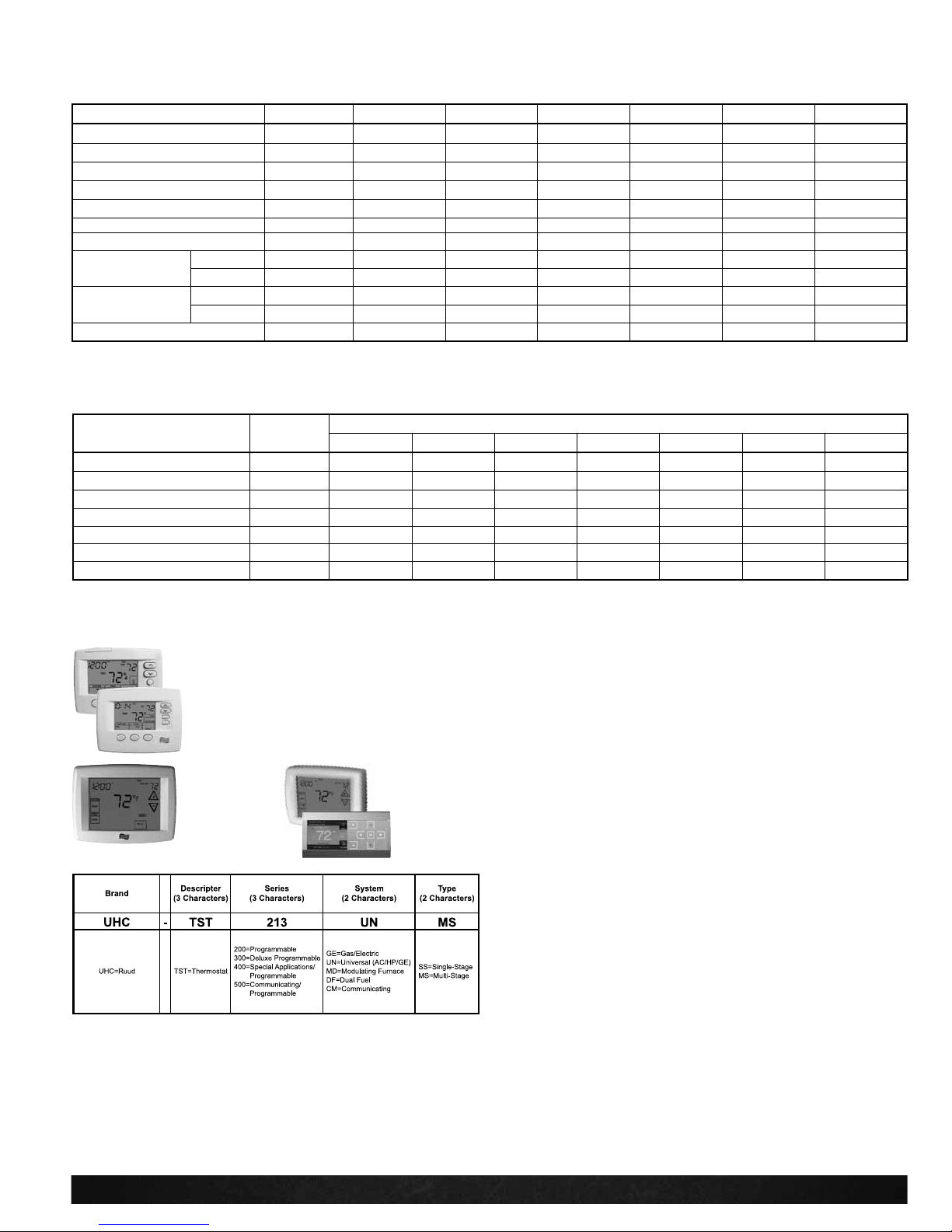

Thermostats..............................................................................................................9

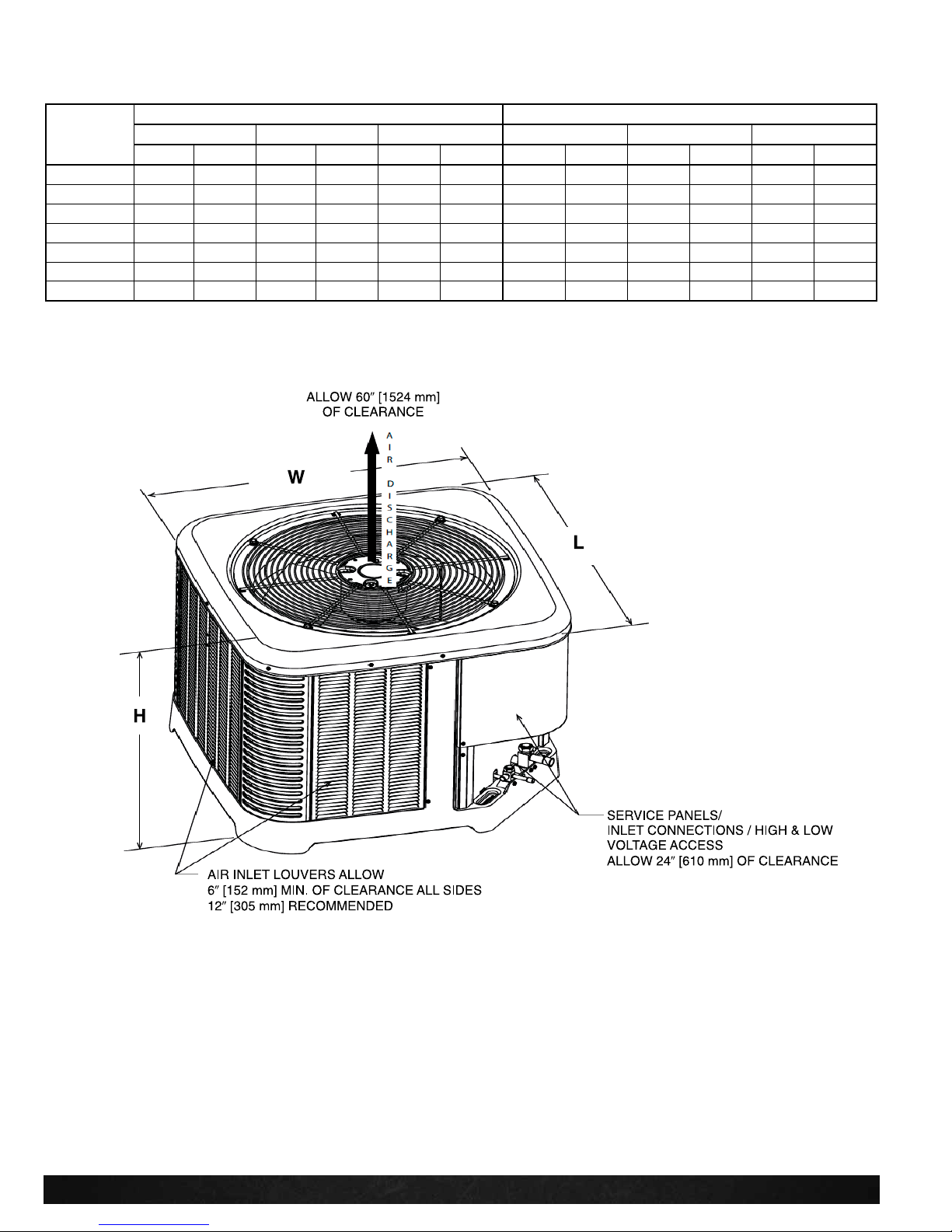

Unit Dimensions......................................................................................................10

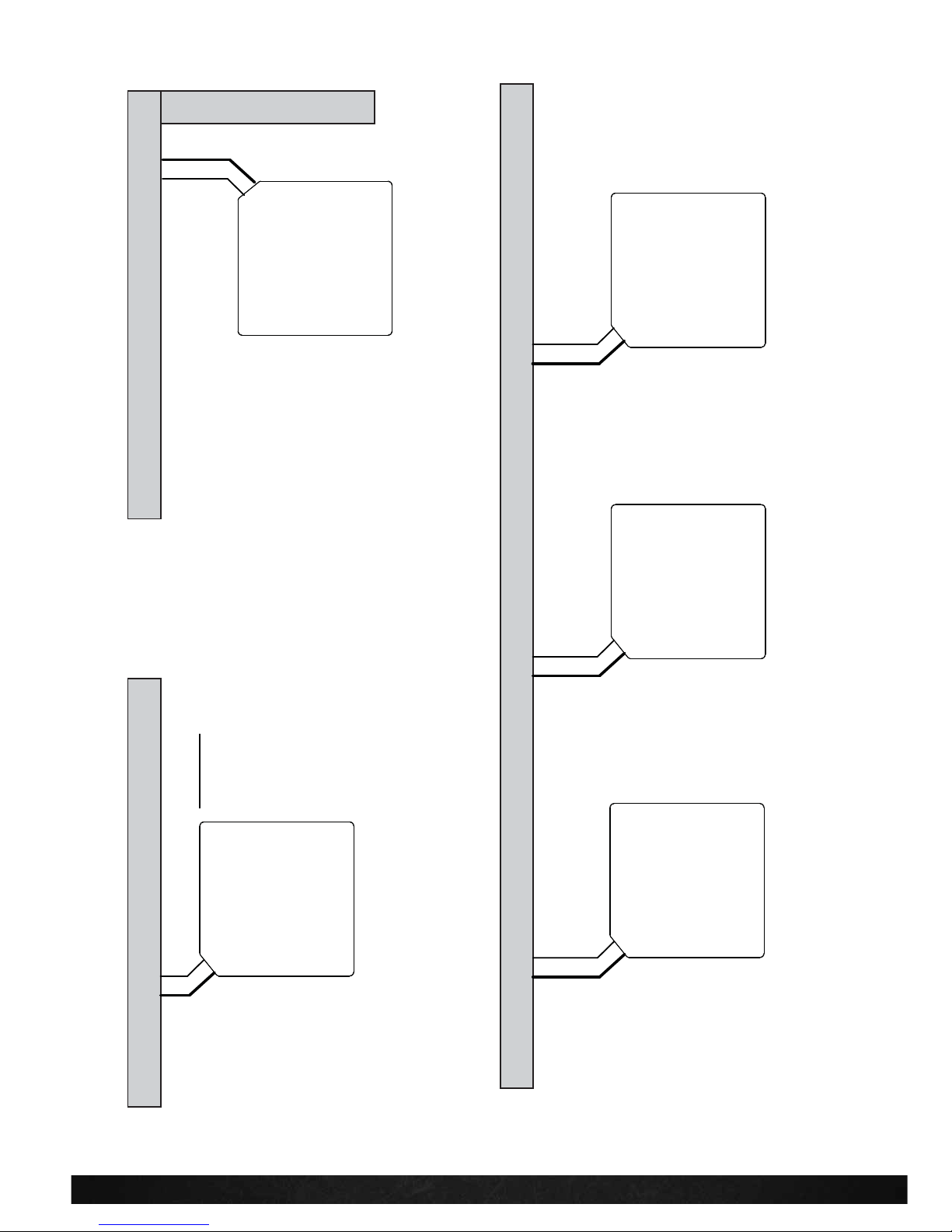

Clearances..............................................................................................................11

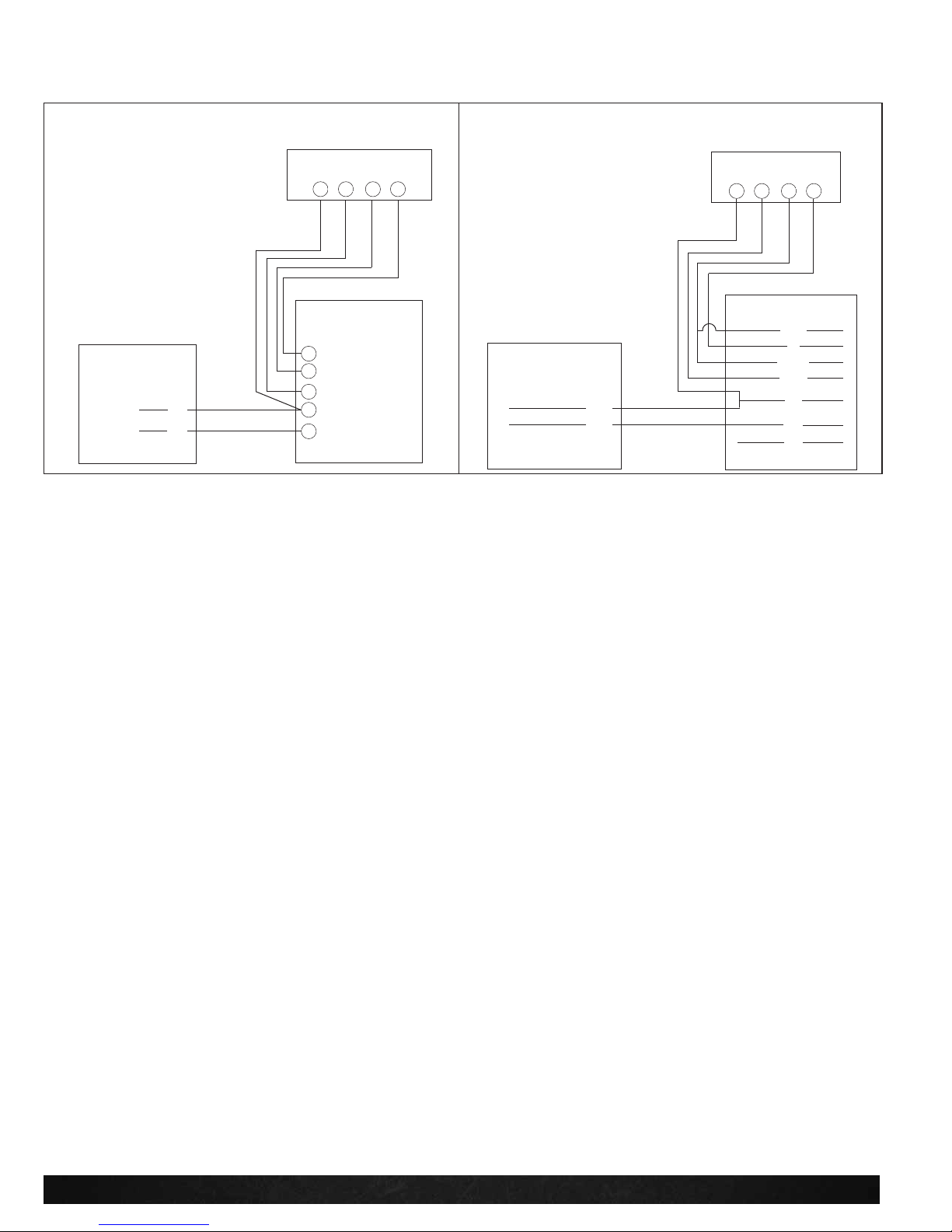

Wiring Diagrams ....................................................................................................12
Application Guidelines ............................................................................................12
Refrigerant Line Size Information ......................................................................13-14
Performance Data ............................................................................................15-33
Guide Specifications ..............................................................................................34
Limited Warranty ....................................................................................................35
TABLE OF CONTENTS
TABLE OF CONTENTS
Table of Contents
RA16 Series

Rely on Ruud.™ 3
STANDARD FEATURES
Feature 18 24 30 36 42 48 60
R-410a Refrigerant √ √ √ √ √ √ √
Maximum SEER 16 16 16 16 16 16 16
Maximum EER 13 13 13 13 13 13 13
Scroll Compressor √ √ √ √ √ √ √
Field Installed Filter Drier √ √ √ √ √ √ √
Front Seating Service Valves √ √ √ √ √ √ √
Internal Pressure Relief Valve √ √ √ √ √ √ √
Internal Thermal Overload √ √ √ √ √ √ √
Long Line capability √ √ √ √ √ √ √
Low Ambient capability with Kit √ √ √ √ √ √ √
3-4-5 Expanded Valve Space √ √ √ √ √ √ √
Composite Basepan √ √ √ √ √ √ √
2 Screw Control Box Access √ √ √ √ √ √ √
15" Access to Internal Components √ √ √ √ √ √ √
Quick release louver panel design √ √ √ √ √ √ √
No fasteners to remove along bottom √ √ √ √ √ √ √
Optimized Venturi Airflow √ √ √ √ √ √ √
Single row condenser coil √ √ √ √ √ √ √
Powder coated paint √ √ √ √ √ √ √
Rust resistant screws √ √ √ √ √ √ √
QR code √ √ √ √ √ √ √
External gauge ports √ √ √ √ √ √ √
Service trays √ √ √ √ √ √ √
√= Standard
Standard Feature Table
Available SKUs
Available Models Description
RA1618AJ1NA Achiever
®Series 1 1/2 ton 16 SEER Single-Stage Air Conditioner-208/230/1/60
RA1624AJ1NA Achiever
®Series 2 ton 16 SEER Single-Stage Air Conditioner-208/230/1/60
RA1630AJ1NA Achiever
®Series 2 1/2 ton 16 SEER Single-Stage Air Conditioner-208/230/1/60
RA1636AJ1NA Achiever
®Series 3 ton 16 SEER Single-Stage Air Conditioner-208/230/1/60
RA1642AJ1NA Achiever
®Series 3 1/2 ton 16 SEER Single-Stage Air Conditioner-208/230/1/60
RA1648AJ1NA Achiever
®Series 4 ton 16 SEER Single-Stage Air Conditioner-208/230/1/60
RA1660AJ1NA Achiever
®Series 5 ton 16 SEER Single-Stage Air Conditioner-208/230/1/60
RA1618AJ1NB Achiever
®Series 1 1/2 ton 16 SEER Single-Stage Air Conditioner w/ High/Low Pressure-208/230/1/60
RA1624AJ1NB Achiever
®Series 2 ton 16 SEER Single-Stage Air Conditioner w/ High/Low Pressure-208/230/1/60
RA1630AJ1NB Achiever
®Series 2 1/2 ton 16 SEER Single-Stage Air Conditioner w/ High/Low Pressure-208/230/1/60
RA1636AJ1NB Achiever
®Series 3 ton 16 SEER Single-Stage Air Conditioner w/ High/Low Pressure-208/230/1/60
RA1642AJ1NB Achiever
®Series 3 1/2 ton 16 SEER Single-Stage Air Conditioner w/ High/Low Pressure-208/230/1/60
RA1648AJ1NB Achiever
®Series 4 ton 16 SEER Single-Stage Air Conditioner w/ High/Low Pressure-208/230/1/60
RA1660AJ1NB Achiever
®Series 5 ton 16 SEER Single-Stage Air Conditioner w/ High/Low Pressure-208/230/1/60
RA1636AC1NB Achiever
®Series 3 ton 16 SEER Single-Stage Air Conditioner w/ High/Low Pressure-208/230/3/60
RA1642AC1NB Achiever
®Series 3 1/2 ton 16 SEER Single-Stage Air Conditioner w/ High/Low Pressure-208/230/3/60
RA1648AC1NB Achiever
®Series 4 ton 16 SEER Single-Stage Air Conditioner w/ High/Low Pressure-208/230/3/60
RA1660AC1NB Achiever
®Series 5 ton 16 SEER Single-Stage Air Conditioner w/ High/Low Pressure-208/230/3/60
Standard Feature/Available SKU
RA16 Series

Rely on Ruud.™
4
The RA16 is our 16 SEER air conditioner and is part of the Ruud
air conditioner product line that extends from 13 to 20 SEER.
This highly featured and reliable air conditioner is designed for
years of reliable, efficient operation when matched with Ruud
indoor aluminum evaporator coils and furnaces or air handler
units with aluminum evaporators.
Our unique composite base ( ) reduces sound emission, elimi-
nates rattles, significantly reduces fasteners, eliminates corro-
sion and has integrated brass compressor attachment inserts
()
. Furthermore it has incorporated into the design, water
management features, means for hand placement () for unit
maneuvering, screw trays () and inserts for lifting off unit
pad. ( )
Service Valves ( ) are rigidly mounted in the composite base
with 3" between suction and discharge valves, 4" clearance
below service valves and a minimum of 5" above the service
valves, creating industry leading installation ease. The minimum
27 square-inches around the service valves allows ample room
to remove service valve schrader prior to brazing, plenty of
clearance for easy brazing of the suction and discharge lines to
service valve outlets, easy access and hookup of low loss refrig-
erant gauges ( ), and access to the service valve caps for
opening. For applications with long-line lengths up to 250 feet
total equivalent length, up to 200 feet condenser above evapora-
tor, or up to 80 feet evaporator above condenser, the long-line
instructions in the installation manual should be followed.
Controls are accessed from the corner of the unit by removing
only two fasteners from the control access cover, revealing the
industry’s largest 15" wide and 14" tall control area () . With all
this room in the control area the high voltage electrical whip ( )
can easily be inserted through the right size opening in the bot-
tom of the control area. Routing it leads directly to contractor
lugs for connection. The low voltage control wires () are easily
connected to units low voltage wiring. If contactor or capacitor
( ) needs to be replaced there is more than adequate space to
make the repair. Furthermore, if high pressure and low pressure
model was not purchased but is desired to be installed in the
field, the service window ( ) can be removed by removing two
screws, to access the high and low side schrader fittings for easy
field installation. The entire corner can be removed providing
ultimate access to install the high and low pressure switch. ()
If in the rare event, greater access is needed to internal compo-
nents, such as the compressor, the entire corner of the unit can
be removed along with the top cover assembly to have unprece-
dented access to interior of the unit () . Extra wire length is
incorporated into each outdoor fan and compressor so top
cover and control panel can be positioned next to the unit. With
minimal effort the plug can be removed from the compressor
and the outdoor fan wires can be removed from the capacitor to
allow even more uncluttered access to the interior of the unit () .
Outdoor coil heights range from as short as 27" to 48", aiding
access to the compressor. Disassembly to this degree and com-
plete reassembly only takes a first time service technician less
than 10 minutes. ( )
All units utilize strong formed louver panels which provide indus-
try leading coil protection. Louver removal for coil cleaning is
accomplished by removing one screw and lifting the panel out of
the composite base pan. () All RA16 units utilize single row
coils ( ) making cleaning easy and complete, restoring the
performance of the air conditioner back to out of the box perfor-
mance levels year after year.
The outdoor fan motor has sleeve bearings and is inherently
protected. The motor is totally enclosed for maximum protection
from weather, dust and corrosion. Access to the outdoor fan is
made by removing four fasteners from the fan grille. The outdoor
fan can be removed from the fan grille by removing 4 fasteners
in the rare case outdoor fan motor fails.
Each cabinet has optimized composite ( ) fan orifice assuring
efficient and quiet airflow.
1
2
3
4
7
8
9
10
12
13
6
11
5
14
15
15
17
16
19
Introduction to RA16 Air Conditioner
1
4
6
43 5
2
811
9
10
13
12
16
14
18
15
19
717
Features & Benefits
RA16 Series

Rely on Ruud.™ 5

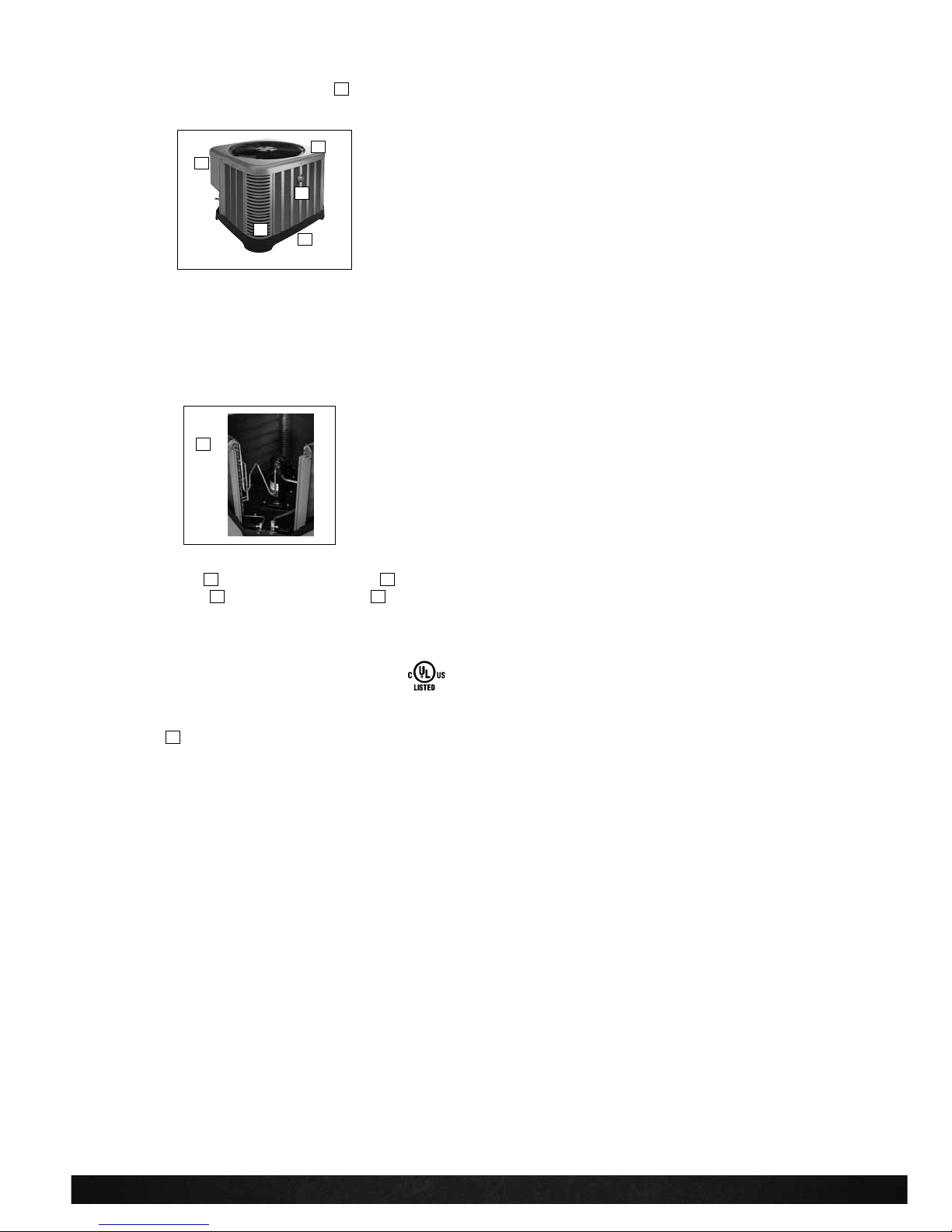

The entire cabinet has powder post paint ( ) achieving 1000
hour salt spray rating, allowing the cabinet to retain its aesthetics
throughout its life.
Scroll compressors with standard internal pressure relief and
internal thermal overload are used on all capacities assuring
longevity of high efficient and quiet operation for the life of the
product.
Each unit is shipped with filter drier for field installation and will
trap any moisture or dirt that could contaminate the refrigerant
system.
All cabinets have industry leading structural strength due to the
composite base pan () , interlocking corner post ( ), formed
curved louver panels ( ) and drawn top cover ( ) making it
the most durable cabinet on the market today.
Each RA16 capacity has undergone rigorous psychometric test-
ing to assure performance ratings of capacity, SEER
and EER per AHRI Standard 210/240 rating condi-
tions. Also each unit bears the UL mark and each unit
is certified to UL 1995 safety standards.
Each unit has undergone specific strain and modal testing to
assure tubing () is outside the units natural frequency and that
the suction and discharge lines connected to the compressor
withstand any starting, steady state operation or shut down
forces imposed by the compressor.
All units have been sound tested in sound chamber to AHRI 270
rating conditions, and A-weighted Sound Power Level tables
produced, assuring units have acceptable noise qualities (see
page 8). Each unit has been ran in cooling operation at 95°F and
82°F and sound ratings for the RA16 range from as low as 70.7
dBA to 76.6 dBA.
All units have been ship tested to assure units meet stringent
“over the road” shipping conditions.
As manufactured all units in the RA16 family have cooling capa-
bility to 55 °F. Addition of low ambient control will allow the unit
to operate down to 0°F. Factory testing is performed on each
unit. All component parts meet well defined specification and
continually go through receiving inspections. Each component
installed on a unit is scanned, assuring correct component uti-
lization for a given unit capacity and voltage. All condenser coils
are leak tested with pressurization test to 550#’s and once
installed and assembled, each units’ complete refrigerant
system is helium leak tested. All units are fully charged from the
factory for up to 15 feet of piping. All units are factory run tested.
The RA16 has a 10-year conditional compressor and parts war-
ranty (registration required).
Optional Accessories
(Refer to accessory chart for model #)
Compressor Crankcase Heater
Protects against refrigerant migration that can occur during low
ambient operation
Compressor Sound Cover
• Reinforced vinyl compressor cover containing a 1½ inch thick
batt of fiberglass insulation
• Open edges are sealed with a one-inch wide hook and loop
fastening tape
Compressor Hard Start Kit
• Single-phase units are equipped with a PSC compressor
motor, this type of motor normally does not need a potential
relay and start capacitor
• Kit may be required to increase the compressor starting
torque, in conditions such as low voltage
Low Ambient Kit
• Air conditioners operate satisfactorily in the cooling mode
down to 55°F outdoor air temperature without any additional
controls
• This Kit can be added in the field enabling unit to operate
properly down to 0° in the cooling mode
• Crankcase heater and freezestat should be installed on com-
pressors equipped with a low ambient kit
3"/6"/12"
• Gray high density polyethylene feet are available to raise unit
off of mounting surface away from moisture
Low Pressure
• Can be added in field enabling the unit to shut off compressor
on loss of charge
NOTE: Unit can be purchased with high and low pressure
installed at factory. (Refer to SKU list)
High Pressure
• Can be added in field enabling unit to shut off compressor if
unit loses outdoor fan operation.
NOTE: Unit can be purchased with high and low pressure
installed at factory. (Refer to SKU list)
Decorative Top
• Can be installed on fan grille
25
20
2221
2423
20
24
23
22
21
25
Features & Benefits
RA16 Series

Rely on Ruud.™
6
RA 16 24 AJ1 N A *
Brand Product
Category
SEER Capacity
BTU/HR
Major Series* Voltage Type Controls Minor Series** Option
Code
Ruud A - Air Conditioners 13 - 13 SEER
14 - 14 SEER 16 - 16 SEER 17 - 17 SEER 20 - 20 SEER
18 - 18,000 [5.28 kW] 24 - 24,000 [7.03 kW] 30 - 30,000 [8.79 kW] 36 - 36,000 [10.55 kW] 42 - 42,000 [12.31 kW] 48 - 48,000 [14.07 kW] 60 - 60,000 [17.58 kW]
A - 1st Design J - 1ph, 208-230/60
C - 3ph, 208-230/60
1 - Single-stage 2 - Two-stage V - Inverter
C - Communicating N - Non-Communicating
A - 1st Design N/A
RP 14 24 A J1 N A *
Brand Product
Category
SEER Capacity
BTU/HR
Major Series* Voltage Type Controls Minor Series** Option
Code
Ruud P - Heat Pump 13 - 13 SEER
14 - 14 SEER 15 - 15 SEER 17 - 17 SEER 20 - 20 SEER
18 - 18,000 [5.28 kW] 24 - 24,000 [7.03 kW] 30 - 30,000 [8.79 kW] 36 - 36,000 [10.55 kW] 42 - 42,000 [12.31 kW] 48 - 48,000 [14.07 kW] 60 - 60,000 [17.58 kW]
A - 1st Design J - 1ph, 208-230/60
C - 3ph, 208-230/60 D - 3ph, 460/60
1 - Single-stage 2 - Two-stage V - Inverter P - Piston
C - Communicating N - Non-Communicating
A - 1st Design N/A
RC F 24 17 ST A M C A *
Brand Product
Category
Type Capacity
BTU/HR
Width Efficiency Metering
Device
Major
Series*
Orientation Casing Minor Series** Option
Code
Ruud C - Evap Coil F - Furn Coil
H - Air-Handler
Coil
24 - 24,000 [7.03 kW] 36 - 36,000 [10.55 kW] 48 - 48,000 [14.07 kW] 60 - 60,000 [17.58 kW]
14 - 14" 17 - 17.5" 21 - 21" 24 - 24.5"
S- Standard Eff. M- Mid Eff. H- High Eff.
T-TXV E-EEV P-Piston
A - 1st Design M - Multipoise
V - Vertical only/
convertible
H - Ded.
Horizontal only
C - Cased U - Uncased
A - 1st Design N/A
Heat Pumps (For Reference)
Furnace Coils (For Reference)
Air Conditioners
[ ] Designates Metric Conversions
Model Number Identification
RA16 Series

Rely on Ruud.™ 7
R96 V A 70 2 3 17 M S A
Brand Series Motor Major Rev Input
BTU/HR
Stages Air Flow Cabinet
Width
Configuration Nox Minor Rev
Ruud 90 - 90 AFUE
92 - 92 AFUE 95 - 95 AFUE 96 - 96 AFUE 97 - 97 AFUE
V - Variable speed T - Constant
Torque (X-13)
P - PSC
A - 1st Design 040 - 42,000 [12.31 kW]
060 - 56,000 [16.41 kW] 070 - 70,000 [20.51 kW] 085 - 84,000 [24.62 kW] 100 - 98,000 [28.72 kW] 115 - 112,000 [32.82 kW]
1 - Single-stage 2 - Two-stage M - Modulating
3 - up to 3 ton 5 - 3 1/2 up to 5 ton
14 - 14" 17 - 17.5" 21 - 21" 24 - 24.5"
M - Multi X - Low Nox
S - Standard
A - 1st Design
R80 2 V A 075 3 17 M S A
Brand Series Stages Motor Major Rev Input
BTU/HR
Air Flow Cabinet
Width
Configuration Nox Minor Rev
Ruud 80 - 80+ AFUE 1 - Single-stage
2 - Two-stage
V - Variable speed T - Constant Torque (X-13) P - PSC premium S - PSC standard
A - 1st Design 050 - 50,000 [15 kW]
075 - 75,000 [22 kW] 100 - 100,000 [29 kW] 125 - 125,000 [37 kW] 150 - 150,000 [44 kW]
3 - up to 3 ton 4 - 2 1/2 to 4 ton 5 - 3 1/2 up to 5 ton
14 - 14" 17 - 17.5" 21 - 21" 24 - 24.5"
M - Multi D - Down Z - Down &
zero clearance down flow
X - Low Nox
S - Standard
A - 1st Design
RH 1 T 36 17 S T A N A A 000 *
Brand Product
Category
Stages of
Airflow
Motor Type Capacity
BTU/HR
Width Coil Size Metering
Device
Major
Series*
Controls Voltage Minor
Series**
Factory Heat
Cap
Option
Code
Ruud H - Air
Handler
1 - Single-Stage 2 - Two-Stage M - Modulating
V - Variable
Speed
T - Constant
Torque
P - PSC
24 - 24,000 [7.03 kW] 36 - 36,000 [10.55 kW] 48 - 48,000 [14.07 kW] 60 - 60,000 [17.58 kW]
14 - 14" 17 - 17.5" 21 - 21" 24 - 24.5"
S - Standard
Eff.
M -Mid Eff. H - High Eff.
T - TEV E - EEV P - Piston
A - 1st Design C -Communicating
N -Non-comm
A - 1ph, 115/60 J - 1ph, 208-240/60 D - 3ph, 480/60
A - 1st Design 00 - no
factory heat with option code
*TBD
90%+ AFUE Gas Furnaces (For Reference) 80% AFUE Gas Furnaces (For Reference)
Air Handlers (For Reference)
[ ] Designates Metric Conversions
Model Number Identification
RA16 Series

Rely on Ruud.™
8
Physical Data
PHYSICAL DATA
Model No. RA1618A RA1624A RA1630A RA1636A RA1642A RA1648A RA1660A
Nominal Tonnage 1.5 2.0 2.5 3.0 3.5 4.0 5.0
Valve Connections
Liquid Line O.D. – in. 3/8 3/8 3/8 3/8 3/8 3/8 3/8
Suction Line O.D. – in. 3/4 3/4 3/4 3/4 7/8 7/8 7/8
Refrigerant (R410A) furnished oz.¹ 82 87 113 108 150 174 201
Compressor Type Scroll
Outdoor Coil
Net face area – Outer Coil 12.1 14.8 16.2 18.8 24.2 28.3 32.3
Net face area – Inner Coil — — — — — — —
Tube diameter – in. 3/8 3/8 3/8 3/8 3/8 3/8 3/8
Number of rows 1111111
Fins per inch 22 22 22 22 22 22 22
Outdoor Fan
Diameter – in. 20 24 26 26 26 26 26
Number of blades 3233333
Motor hp 1/8 1/6 1/5 1/3 1/3 1/3 1/3
CFM 2405 2850 3915 4340 4450 4660 4775
RPM 1095 851 710 819 829 828 795
watts 155 147 102 131 193 198 239
Shipping weight – lbs. 147 149 159 177 212 232 247
Operating weight – lbs. 140 142 152 170 205 225 240
Electrical Data
Line Voltage Data (Volts-Phase-Hz) 208/230-1-60 208/230-1-60 208/230-1-60 208/230-1-60 208/230-1-60 208/230-1-60 208/230-1-60
Maximum overcurrent protection (amps)² 20 20 30 35 40 40 50
Minimum circuit ampacity³ 12 14 18 23 25 25 34
Compressor
Rated load amps 9 10.3 12.8 15.4 16.7 17 23.7
Locked rotor amps 47.5 61.6 67.3 83.9 109 123.9 152.5
Condenser Fan Motor
Full load amps 0.7 0.6 1.4 3.5 3.5 5.3 3.5
Locked rotor amps 1.3 1.5 2.3 — — 2.3 —
Line Voltage Data (Volts-Phase-Hz) — — — 208/230-3-60 208/230-3-60 208/230-3-60 208/230-3-60
Maximum overcurrent protection (amps)² — — — 25 25 30 35
Minimum circuit ampacity³ — — — 17 18 21 24
Compressor
Rated load amps — — — 10.4 11.2 13.6 15.9
Locked rotor amps — — — 73 88 83.1 110
Condenser Fan Motor
Full load amps — — — 3.5 3.5 3.5 3.5
Locked rotor amps — — — — — 2.3 —
¹Refrigerant charge sufficient for 15 ft. length of refrigerant lines. For longer line set requirements see the installation instructions for information about set length and additional
refrigerant charge required.
²HACR type circuit breaker of fuse.
³Refer to National Electrical Code manual to determine wire, fuse and disconnect size requirements.
General Data/Electrical Data
RA16 Series

Rely on Ruud.™ 9
Accessories
Model No. RA1618 RA1624 RA1630 RA1636 RA1642 RA1648 RA1660
Compressor crankcase heater* 44-17402-44 44-17402-44 44-17402-44 44-17402-44 44-17402-45 44-17402-45 44-17402-45
Low ambient control RXAD-A08 RXAD-A08 RXAD-A08 RXAD-A08 RXAD-A08 RXAD-A08 RXAD-A08
Compressor sound cover 68-23427-26 68-23427-26 68-23427-26 68-23427-26 68-23427-25 68-23427-25 68-23427-25
Compressor hard start kit SK-A1 SK-A1 SK-A1 SK-A1 SK-A1 SK-A1 SK-A1
Low pressure control RXAC-A07 RXAC-A07 RXAC-A07 RXAC-A07 RXAC-A07 RXAC-A07 RXAC-A07
High pressure control RXAB-A07 RXAB-A07 RXAB-A07 RXAB-A07 RXAB-A07 RXAB-A07 RXAB-A07
Heat pump Riser 6 in. 686020 686020 686020 686020 686020 686020 686020
Liquid Line Solenoid
(24 VAC, 50/60 Hz)
Solenoid Valve 200RD2T3TVLC 200RD2T3TVLC 200RD2T3TVLC 200RD2T3TVLC 200RD2T3TVLC 200RD3T3TVLC 200RD3T3TVLC
Solenoid Coil 61-AMG24V 61-AMG24V 61-AMG24V 61-AMG24V 61-AMG24V 61-AMG24V 61-AMG24V
Liquid Line Solenoid
(120/240 VAC, 50/60 Hz)
Solenoid Valve 200RD2T3TVLC 200RD2T3TVLC 200RD2T3TVLC 200RD2T3TVLC 200RD2T3TVLC 200RD3T3TVLC 200RD3T3TVLC
Solenoid Coil 61-AMG120/240V 61-AMG120/240V 61-AMG120/240V 61-AMG120/240V 61-AMG120/240V 61-AMG120/240V 61-AMG120/240V
Achiever Top Cap w/Label 91-101123-21 91-101123-21 91-101123-21 91-101123-21 91-101123-21 91-101123-21 91-101123-21
*Crankcase Heater recommended with Low Ambient Kit.
Weighted Sound Power Level (dBA)
Unit Size - Voltage, Series Standard
Rating (dBA)
TYPICAL OCTAVE BAND SPECTRUM (dBA without tone adjustment)
125 250 500 1000 2000 4000 8000
RA1618A 76.6 53.4 60 65.7 66.3 64.2 58.8 52.6
RA1624A 75.5 49.9 58.4 61.4 64.1 61.6 57.3 50.8
RA1630A 74.3 48.4 57.4 62.6 64.5 61.5 56.5 51.5
RA1636A 76.4 54.5 62.7 67.1 66.5 62.7 58.5 54.3
RA1642A 70.7 47.5 51 60.2 60.7 59.7 53.6 50.4
RA1648A 74.3 51.2 56.1 64.5 65.6 60.7 56.6 52.6
RA1660A 74.6 50.1 55.1 65.6 64.8 63.2 57.4 56.4
NOTE: Tested in accordance with AHRI Standard 270-08 (not listed in AHRI)
Thermostats
* Photos are representative. Actual models may vary.
For detailed thermostat match-up information,
see specification sheet form number T22-001.
300-Series *
Deluxe
Programmable
400-Series *
Special Applications/
Programmable
500-Series *
Communicating/
Programmable
200-Series *
Programmable
Accessories/Weighted Sound Power/Thermostats
RA16 Series

Rely on Ruud.™
10
Unit Dimensions
MODEL
NO.
OPERATING SHIPPING
H (Height) L (Length) W (Width) H (Height) L (Length) W (Width)
INCHES mm INCHES mm INCHES mm INCHES mm INCHES mm INCHES mm
RA1618 27 685 29.75 755 29.75 755 27.375 695 32.25 819 32.25 819
RA1624 27 685 33.75 857 33.75 857 27.375 695 36.25 921 36.25 921
RA1630 27 685 35.75 908 35.75 908 27.375 695 38.25 972 38.25 972
RA1636 31 787 35.75 908 35.75 908 31.375 797 38.25 972 38.25 972
RA1642 39 990 35.75 908 35.75 908 39.375 1000 38.25 972 38.25 972
RA1648 45 1143 35.75 908 35.75 908 45.375 1153 38.25 972 38.25 972
RA1660 51 1295 35.75 908 35.75 908 51.375 1305 38.25 972 38.25 972
[ ] Designates Metric Conversions ST-A1226-02-00
Unit Dimensions
RA16 Series

Rely on Ruud.™ 11
6⬙
(152.4)
24⬙
(609.6)
Service
12⬙
(304.8)
6⬙
(152.4)
24⬙
(609.6)
Service
24⬙
(609.6)
24⬙recommended 6⬙minimum
12⬙
(304.8)
12⬙
(304.8)
6⬙
(152.4)
24⬙
(609.6)
Service
24⬙
(609.6)
Service
24⬙
(609.6)
Service
18⬙
(457.2)
WALL
WALL
WALL
WALL
NOTE: NUMBERS IN () = mm
CLEARANCES
IMPORTANT: When installing multiple units in an alcove, roof well or partially enclosed area, ensure there is adequate ventillation to prevent re-circulation of discharge air.
ST-A1225-01-00
24⬙
(609.6)
24⬙recommended 6⬙minimum
Clearances
RA16 Series

Rely on Ruud.™
12
FIGURE 2
CONTROL WIRING FOR GAS OR OIL FURNACE
FOR TYPICAL ELECTRIC HEAT
FOR TYPICAL GAS OR OIL HEAT
C
Y
G
W
R
W/BL
R
W/BK
G/BK
YL
BR
PU
YGWR
TYPICAL THERMOSTAT
SUBBASE
TYPICAL GAS OR
OIL FURNACE
TYPICAL CONDENSING
UNIT
BR – BROWN WIRE
YL – YELLOW WIRE
X – WIRE CONNECTION
BR – BROWN WIRE
R – RED WIRE
YL – YELLOW WIRE
W/BK – WHITE WIRE WITH BLACK STRIPE
G/BK – GREEN WIRE WITH BLACK STRIPE
PU – PURPLE WIRE (NOT USED)
X – WIRE CONNECTION
*IF MAXIMUM OUTLET TEMPERATURE RISE IS DESIRED, IT IS RECOMMENDED THAT
W1 (W/BK) AND W2 (W/BL) BE JUMPERED TOGETHER.
YL
BR
TYPICAL CONDENSING
UNIT
YL
BR
X
X
X
XX
X
X
X
X
YGWR
TYPICAL THERMOSTAT
SUBBASE
X
TYPICAL ELECTRIC HEAT
LOW VOLTAGE JUNCTION BOX
•
*
Application Guidelines
1. Intended for outdoor installation with free air inlet and outlet. Outdoor fan external static pressure available is less than 0.01 -in. wc.
2. Minimum outdoor operation air temperature for cooling mode without low-ambient operation accessory is 55°F (12.8°C).
3. Maximum outdoor operating air temperature is 125°F (51.7°C).
4. For reliable operation, unit should be level in all horizontal planes.
5. Use only copper wire for electric connections at unit. Aluminum and clad aluminum are not acceptable for the type of connector
provided.
6. Do not apply capillary tube indoor coils to these units.
7. Factory – supplied filter drier must be installed.
Control Wiring
Wiring Diagram/Application Guidelines
RA16 Series

Rely on Ruud.™ 13
R-410A System
Capacity Model
Liquid Line Size
Connection Size
(Inch I.D.) [mm]
Liquid Line Size
(Inch O.D.) [mm]
Liquid Line Selection Chart
Elevation (Above or Below) Indoor Coil
Total Equivalent Length - Feet [m]
25 [7.62] 50 [15.24] 75 [22.86] 100 [30.48] 125 [45.72] 150 [45.72] 175 [53.34] 200 [60.96] 225 [68.58] 250 [76.20] 275 [83.82] 300 [91.44]
Maximum Vertical Separation – Feet [m]
18 3/8" [9.53]
1/4 [6.35] 25 [7.62] 50 [15.24] 60 [18.29] 45 [13.72] 30 [9.14] 15 [4.57] N/R N/R N/R N/R N/R N/R
5/16 [7.94] 25 [7.62] 50 [15.24] 75 [22.86] 85 [25.91] 85 [25.91] 80 [24.38] 75 [22.86] 70 [21.34] 70 [21.34] 65 [19.81] 60 [18.29] 55 [16.76]
3/8 [9.53] 25 [7.62] 50 [15.24] 75 [22.86] 95 [28.96] 95 [28.96] 95 [28.96] 90 [27.43] 90 [27.43] 90 [27.43] 90 [27.43] 85 [25.91] 85 [25.91]
7/16 [11.12] 25 [7.62] 50 [15.24] 75 [22.86] 100 [30.48] 100 [30.48] 100 [30.48] 100 [30.48] 95 [28.96] 95 [28.96] 95 [28.96] 95 [28.96] 95 [28.96]
1/2 [12.71] 25 [7.62] 50 [15.24] 75 [22.86] 100 [30.48] 100 [30.48] 100 [30.48] 100 [30.48] 100 [30.48] 100 [30.48] 100 [30.48] 100 [30.48] 100 [30.48]
24 3/8" [9.53]
1/4 [6.35] 25 [7.62] 50 [15.24] 35 [10.67] 10 [3.05] N/R N/R N/R N/R N/R N/R N/R N/R
5/16 [7.94] 25 [7.62] 50 [15.24] 75 [22.86] 80 [24.38] 75 [22.86] 70 [21.34] 60 [18.29] 55 [16.76] 50 [15.24] 45 [13.72] 40 [12.19] 30 [9.14]
3/8 [9.53] 25 [7.62] 50 [15.24] 75 [22.86] 95 [28.96] 95 [28.96] 90 [27.43] 90 [27.43] 90 [27.43] 85 [25.91] 85 [25.91] 80 [24.38] 80 [24.38]
7/16 [11.12] 25 [7.62] 50 [15.24] 75 [22.86] 100 [30.48] 100 [30.48] 100 [30.48] 100 [30.48] 100 [30.48] 95 [28.96] 95 [28.96] 95 [28.96] 95 [28.96]
1/2 [12.71] 25 [7.62] 50 [15.24] 75 [22.86] 100 [30.48] 105 [32] 100 [30.48] 100 [30.48] 100 [30.48] 100 [30.48] 100 [30.48] 100 [30.48] 100 [30.48]
30 3/8" [9.53]
1/4 [6.35] 25 [7.62] 30 [9.14] N/R N/R N/R N/R N/R N/R N/R N/R N/R N/R
5/16 [7.94] 25 [7.62] 50 [15.24] 70 [21.34] 65 [19.81] 55 [16.76] 45 [13.72] 35 [10.67] 25 [7.62] 20 [6.1] 10 [3.05] N/R N/R
3/8 [9.53] 25 [7.62] 50 [15.24] 75 [22.86] 85 [25.91] 85 [25.91] 80 [24.38] 80 [24.38] 75 [22.86] 70 [21.34] 70 [21.34] 65 [19.81] 60 [18.29]
7/16 [11.12] 25 [7.62] 50 [15.24] 75 [22.86] 95 [28.96] 95 [28.96] 90 [27.43] 90 [27.43] 90 [27.43] 90 [27.43] 85 [25.91] 85 [25.91] 85 [25.91]
1/2 [12.71] 25 [7.62] 50 [15.24] 75 [22.86] 95 [28.96] 95 [28.96] 95 [28.96] 95 [28.96] 95 [28.96] 95 [28.96] 95 [28.96] 95 [28.96] 90 [27.43]
36 3/8" [9.53]
1/4 [6.35] 25 [7.62] N/R N/R N/R N/R N/R N/R N/R N/R N/R N/R N/R
5/16 [7.94] 25 [7.62] 50 [15.24] 60 [18.29] 45 [13.72] 35 [10.67] 20 [6.1] 5 [1.52] N/R N/R N/R N/R N/R
3/8 [9.53] 25 [7.62] 50 [15.24] 75 [22.86] 80 [24.38] 75 [22.86] 70 [21.34] 65 [19.81] 60 [18.29] 60 [18.29] 55 [16.76] 50 [15.24] 45 [13.72]
7/16 [11.12] 25 [7.62] 50 [15.24] 75 [22.86] 90 [27.43] 90 [27.43] 85 [25.91] 85 [25.91] 85 [25.91] 80 [24.38] 80 [24.38] 75 [22.86] 75 [22.86]
1/2 [12.71] 25 [7.62] 50 [15.24] 75 [22.86] 95 [28.96] 95 [28.96] 95 [28.96] 90 [27.43] 90 [27.43] 90 [27.43] 90 [27.43] 90 [27.43] 85 [25.91]
42 3/8" [9.53]
1/4 [6.35] 20 [6.1] N/R N/R N/R N/R N/R N/R N/R N/R N/R N/R N/R
5/16 [7.94] 25 [7.62] 50 [15.24] 40 [12.19] 20 [6.1] N/R N/R N/R N/R N/R N/R N/R N/R
3/8 [9.53] 25 [7.62] 50 [15.24] 75 [22.86] 70 [21.34] 60 [18.29] 55 [16.76] 50 [15.24] 45 [13.72] 40 [12.19] 30 [9.14] 25 [7.62] 20 [6.1]
7/16 [11.12] 25 [7.62] 50 [15.24] 75 [22.86] 85 [25.91] 80 [24.38] 80 [24.38] 75 [22.86] 70 [21.34] 70 [21.34] 65 [19.81] 65 [19.81] 60 [18.29]
1/2 [12.71] 25 [7.62] 50 [15.24] 75 [22.86] 90 [27.43] 85 [25.91] 85 [25.91] 85 [25.91] 85 [25.91] 80 [24.38] 80 [24.38] 80 [24.38] 80 [24.38]
48 3/8" [9.53]
1/4 [6.35] 15 [4.57] N/R N/R N/R N/R N/R N/R N/R N/R N/R N/R N/R
5/16 [7.94] 25 [7.62] 50 [15.24] 35 [10.67] 15 [4.57] N/R N/R N/R N/R N/R N/R N/R N/R
3/8 [9.53] 25 [7.62] 50 [15.24] 75 [22.86] 65 [19.81] 60 [18.29] 55 [16.76] 45 [13.72] 40 [12.19] 30 [9.14] 25 [7.62] 20 [6.1] 10 [3.05]
7/16 [11.12] 25 [7.62] 50 [15.24] 75 [22.86] 85 [25.91] 80 [24.38] 80 [24.38] 75 [22.86] 70 [21.34] 70 [21.34] 65 [19.81] 65 [19.81] 60 [18.29]
1/2 [12.71] 25 [7.62] 50 [15.24] 75 [22.86] 90 [27.43] 90 [27.43] 85 [25.91] 85 [25.91] 85 [25.91] 85 [25.91] 80 [24.38] 80 [24.38] 80 [24.38]
60 3/8" [9.53]
1/4 [6.35] N/R N/R N/R N/R N/R N/R N/R N/R N/R N/R N/R N/R
5/16 [7.94] 25 [7.62] 30 [9.14] N/R N/R N/R N/R N/R N/R N/R N/R N/R N/R
3/8 [9.53] 25 [7.62] 50 [15.24] 60 [18.29] 50 [15.24] 40 [12.19] 30 [9.14] 20 [6.1] 5 [1.52] N/R N/R N/R N/R
7/16 [11.12] 25 [7.62] 50 [15.24] 75 [22.86] 70 [21.34] 70 [21.34] 65 [19.81] 60 [18.29] 55 [16.76] 50 [15.24] 45 [13.72] 40 [12.19] 40 [12.19]
1/2 [12.71] 25 [7.62] 50 [15.24] 75 [22.86] 80 [24.38] 80 [24.38] 75 [22.86] 75 [22.86] 75 [22.86] 70 [21.34] 70 [21.34] 65 [19.81] 65 [19.81]
Refrigerant Line Size Information
NOTES: [ ] Designates Metric Conversions N/R = Application not recommended. Grey =This application is acceptable, but the long line guidelines must be followed. Reference Long Line Set section in the I&O
Refrigerant Line Size Information
RA16 Series

Rely on Ruud.™
14
R-410A System
Capacity Model
Vapor Line
Connection Size
(Inch I.D.) [mm]
Vapor Line Size
(Inch O.D.) [mm]
Vapor Line Selection Chart
Capacity Multiplier Table
Total Equivalent Length - Feet [m]
25 [7.62] 50 [15.24] 75 [22.86] 100 [30.48] 125 [45.72] 150 [45.72] 175 [53.34] 200 [60.96] 225 [68.58] 250 [76.20] 275 [83.82] 300 [91.44]
18 3/4" [19.06]
5/8 [15.88] 1.00 0.99 0.99 0.99 0.98 0.98 0.97 0.97 0.97 0.96 0.96 0.96 3/4 [19.05] 1.00 1.00 1.00 0.99 1.00 1.00 0.99 0.99 0.99 0.99 0.99 0.99 7/8 [22.23] N/R N/R N/R N/R N/R N/R N/R N/R N/R N/R N/R N/R
1 [25.4] N/R N/R N/R N/R N/R N/R N/R N/R N/R N/R N/R N/R
1-1/8 [28.58] N/R N/R N/R N/R N/R N/R N/R N/R N/R N/R N/R N/R
24 3/4" [19.06]
5/8 [15.88] 1.01 0.99 0.98 0.98 0.97 0.96 0.95 0.95 0.94 0.93 0.93 0.92 3/4 [19.05] 1.00 1.00 1.01 0.99 0.99 1.00 0.98 0.98 0.98 0.98 0.98 0.98 7/8 [22.23] 1.00 1.01 1.00 1.00 1.00 1.01 1.00 1.00 1.00 0.99 0.99 1.00
1 [25.4] N/R N/R N/R N/R N/R N/R N/R N/R N/R N/R N/R N/R
1-1/8 [28.58] N/R N/R N/R N/R N/R N/R N/R N/R N/R N/R N/R N/R
30 3/4" [19.06]
5/8 [15.88] 1.01 0.99 0.98 0.97 0.96 0.95 0.95 0.94 0.93 0.92 0.91 0.91 3/4 [19.05] 1.00 1.01 1.01 1.00 1.00 0.99 0.99 0.98 0.98 0.98 0.97 0.97 7/8 [22.23] 1.01 1.00 1.00 1.01 1.01 1.01 1.01 1.01 1.00 1.00 1.00 1.00
1 [25.4] 1.01 1.01 1.01 1.00 1.00 1.01 1.00 1.01 1.00 1.00 1.00 1.00
1-1/8 [28.58] N/R N/R N/R N/R N/R N/R N/R N/R N/R N/R N/R N/R
36 3/4" [19.06]
5/8 [15.88] 0.99 0.97 0.95 0.94 0.93 0.93 0.91 0.91 0.9 0.89 0.87 0.86 3/4 [19.05] 1.00 0.99 0.99 0.98 0.98 0.97 0.96 0.96 0.95 0.95 0.94 0.94 7/8 [22.23] 1.00 1.00 0.99 1.00 0.99 0.99 0.99 0.98 0.98 0.98 0.97 0.97
1 [25.4] 1.01 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 0.99 0.99
1-1/8 [28.58] 1.01 1.01 1.01 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00
42 7/8" [22.23]
5/8 [15.88] 0.98 0.97 0.95 0.92 0.91 0.9 0.89 0.86 0.85 0.84 0.83 0.83 3/4 [19.05] 1.00 0.98 0.98 0.97 0.96 0.96 0.95 0.95 0.93 0.93 0.93 0.92 7/8 [22.23] 1.00 1.00 0.99 0.99 0.98 0.98 0.98 0.97 0.97 0.96 0.96 0.96
1 [25.4] N/R N/R N/R N/R N/R N/R N/R N/R N/R N/R N/R N/R
1-1/8 [28.58] N/R N/R N/R N/R N/R N/R N/R N/R N/R N/R N/R N/R
48 7/8" [22.23]
5/8 [15.88] 0.98 0.97 0.94 0.92 0.91 0.89 0.87 0.86 0.84 0.83 0.82 0.81 3/4 [19.05] 1.00 0.99 0.98 0.97 0.97 0.96 0.96 0.95 0.94 0.94 0.93 0.92 7/8 [22.23] 1.00 1.00 1.00 1.00 0.99 0.98 0.98 0.98 0.98 0.98 0.97 0.97
1 [25.4] N/R N/R N/R N/R N/R N/R N/R N/R N/R N/R N/R N/R
1-1/8 [28.58] N/R N/R N/R N/R N/R N/R N/R N/R N/R N/R N/R N/R
60 7/8" [22.23]
5/8 [15.88] 0.98 0.95 0.92 0.88 0.88 0.86 0.85 0.82 N/R N/R N/R N/R 3/4 [19.05] 1.00 0.99 0.98 0.97 0.96 0.95 0.94 0.94 N/R N/R N/R N/R 7/8 [22.23] 1.01 1.00 1.00 1.00 0.99 0.99 0.98 0.97 N/R N/R N/R N/R
1 [25.4] 1.02 1.01 1.01 1.00 1.00 1.01 0.99 1.00 N/R N/R N/R N/R
1-1/8 [28.58] N/R N/R N/R N/R N/R N/R N/R N/R N/R N/R N/R N/R
Refrigerant Line Size Information (con’t.)
NOTES: [ ] Designates Metric Conversions N/R = Application not recommended. All calculations assume a 3/8" liquid line
Refrigerant Line Size Information
RA16 Series

Rely on Ruud.™ 15
Performance Data @ AHRI Standard Conditions – Cooling
High Sales Volume Tested Combination (HSVTC)
Outdoor
Unit Indoor Coil Total Capacity BTU/H [kW]
Net Sensible
BTU/H [kW]
Net Latent
BTU/H [kW] SEER EER Indoor CFM [L/s] AHRI#
RA1618AJ1 RCF2417STAM+RXMD-C04 18000 [5.3] 13500 [4.0] 4500 [1.3] 14.50 12.20 600 [283.2] 7940358
RA1624AJ1 RCF2417STAM+RXMD-C04 24000 [7.0] 17500 [5.1] 6500 [1.9] 14.50 12.20 800 [377.6] 7940647
RA1630AJ1 RCF3617STAM+RXMD-C04 28400 [8.3] 21600 [6.3] 6800 [2.0] 14.50 12.20 1025 [483.7] 7940930
RA1636AC1 RCF3617STAM+RXMD-C04 34800 [10.2] 24300 [7.1] 10500 [3.1] 14.50 12.20 1000 [471.9] 7941381
RA1636AJ1 RCF3617STAM+RXMD-C04 34800 [10.2] 24300 [7.1] 10500 [3.1] 14.50 12.20 1000 [471.9] 7941816
RA1642AC1 RCF4821STAM+RXMD-C04 41000 [12.0] 30300 [8.9] 10700 [3.1] 14.50 12.20 1425 [672.5] 7942269
RA1642AJ1 RCF4821STAM+RXMD-C04 41000 [12.0] 30300 [8.9] 10700 [3.1] 14.50 12.20 1425 [672.5] 7942605
RA1648AC1 RCF4821MTAM+RXMD-C04 46000 [13.5] 35700 [10.5] 10300 [3.0] 15.10 12.50 1600 [755.1] 7943765
RA1648AJ1 RCF4821MTAM+RXMD-C04 46000 [13.5] 35700 [10.5] 10300 [3.0] 15.10 12.50 1600 [755.1] 7943766
RA1660AC1 RCF6024STAM+RXMD-C04 56500 [16.6] 39100 [11.5] 17400 [5.1] 15.10 12.50 1525 [719.7] 7943825
RA1660AJ1 RCF6024STAM+RXMD-C04 56500 [16.6] 39100 [11.5] 17400 [5.1] 15.10 12.50 1525 [719.7] 7943604
Coil Only Ratings
Outdoor
Unit Indoor Coil Total Capacity BTU/H [kW]
Net Sensible
BTU/H [kW]
Net Latent
BTU/H [kW] SEER EER Indoor CFM [L/s] AHRI#
RA1618AJ1
RCF2414STAM+RXMD-C04 18000 [5.3] 13500 [4.0] 4500 [1.3] 15.10 12.50 600 [283.2] 7940295
RCF2417HTAM+RXMD-C04 18000 [5.3] 12400 [3.6] 5600 [1.6] 15.10 12.50 600 [283.2] 7940316
RCF2417MTAM+RXMD-C04 18000 [5.3] 12400 [3.6] 5600 [1.6] 15.10 12.50 600 [283.2] 7940337
RCF2421MTAM+RXMD-C04 18000 [5.3] 12400 [3.6] 5600 [1.6] 15.10 12.50 600 [283.2] 7940410
RCF2421HTAM+RXMD-C04 18000 [5.3] 12400 [3.6] 5600 [1.6] 15.10 12.50 600 [283.2] 7940384
RA1624AJ1
RCF2414STAM+RXMD-C04 24000 [7.0] 17500 [5.1] 6500 [1.9] 14.50 12.20 800 [377.6] 7940574
RCF2417HTAM+RXMD-C04 24000 [7.0] 17500 [5.1] 6500 [1.9] 14.00 12.20 800 [377.6] 7940598
RCF2417MTAM+RXMD-C04 24000 [7.0] 17500 [5.1] 6500 [1.9] 14.00 12.20 800 [377.6] 7940622
RCF2421MTAM+RXMD-C04 24000 [7.0] 17500 [5.1] 6500 [1.9] 14.00 12.20 800 [377.6] 7940713
RCF2421HTAM+RXMD-C04 24000 [7.0] 17500 [5.1] 6500 [1.9] 14.00 12.20 800 [377.6] 7940680
RA1630AJ1
RCF3621MTAM+RXMD-C04 29600 [8.7] 21000 [6.2] 8600 [2.5] 14.50 12.20 1025 [483.7] 7940974
RCF3621STAM+RXMD-C04 28400 [8.3] 21600 [6.3] 6800 [2.0] 14.50 12.20 1025 [483.7] 7941018
RCF3624HTAM+RXMD-C04 30000 [8.8] 22800 [6.7] 7200 [2.1] 15.10 12.50 1025 [483.7] 7941049
RCF3624MTAM+RXMD-C04 29600 [8.7] 21000 [6.2] 8600 [2.5] 14.50 12.20 1025 [483.7] 7941080
RA1636AC1
RCF3621MTAM+RXMD-C04 36000 [10.6] 25100 [7.4] 10900 [3.2] 15.10 12.50 1200 [566.3] 7941425
RCF3621STAM+RXMD-C04 34800 [10.2] 24300 [7.1] 10500 [3.1] 14.50 12.20 1000 [471.9] 7941469
RCF3624HTAM+RXMD-C04 36000 [10.6] 25100 [7.4] 10900 [3.2] 15.10 12.50 1200 [566.3] 7941502
RCF3624MTAM+RXMD-C04 36000 [10.6] 25100 [7.4] 10900 [3.2] 15.10 12.50 1200 [566.3] 7941535
RA1636AJ1
RCF3621MTAM+RXMD-C04 36000 [10.6] 25100 [7.4] 10900 [3.2] 15.10 12.50 1200 [566.3] 7941860
RCF3621STAM+RXMD-C04 34800 [10.2] 24300 [7.1] 10500 [3.1] 14.50 12.20 1000 [471.9] 7941904
RCF3624HTAM+RXMD-C04 36000 [10.6] 25100 [7.4] 10900 [3.2] 15.10 12.50 1200 [566.3] 7941937
RCF3624MTAM+RXMD-C04 36000 [10.6] 25100 [7.4] 10900 [3.2] 15.10 12.50 1200 [566.3] 7941970
RA1642AC1 RCF4824HTAM+RXMD-C04 42000 [12.3] 31100 [9.1] 10900 [3.2] 15.10 12.50 1425 [672.5] 7942305
RCF4824STAM+RXMD-C04 41000 [12.0] 30300 [8.9] 10700 [3.1] 14.50 12.20 1425 [672.5] 7942342
RA1642AJ1 RCF4824HTAM+RXMD-C04 42000 [12.3] 31100 [9.1] 10900 [3.2] 15.10 12.50 1425 [672.5] 7942641
RCF4824STAM+RXMD-C04 41000 [12.0] 30300 [8.9] 10700 [3.1] 14.50 12.20 1425 [672.5] 7942678
RA1648AC1
RCF4821STAM+RXMD-C04 44000 [12.9] 32600 [9.6] 11400 [3.3] 15.10 12.50 1375 [648.9] 7942932
RCF4824HTAM+RXMD-C04 46500 [13.6] 34400 [10.1] 12100 [3.5] 15.50 13.00 1600 [755.1] 7942967
RCF4824STAM+RXMD-C04 44000 [12.9] 32600 [9.6] 11400 [3.3] 15.10 12.50 1375 [648.9] 7943004
RA1648AJ1
RCF4821STAM+RXMD-C04 44000 [12.9] 32600 [9.6] 11400 [3.3] 15.10 12.50 1375 [648.9] 7943258
RCF4824HTAM+RXMD-C04 46500 [13.6] 34400 [10.1] 12100 [3.5] 15.50 13.00 1600 [755.1] 7943293
RCF4824STAM+RXMD-C04 44000 [12.9] 32600 [9.6] 11400 [3.3] 15.10 12.50 1375 [648.9] 7943330
RA1660AC1 RCF6024HTAM+RXMD-C04 56500 [16.6] 39100 [11.5] 17400 [5.1] 15.10 12.50 1525 [719.7] 7943796
RA1660AJ1 RCF6024HTAM+RXMD-C04 56500 [16.6] 39100 [11.5] 17400 [5.1] 15.10 12.50 1525 [719.7] 7943575
[ ] Designates Metric Conversions
Performance Data
RA16 Series

Rely on Ruud.™
16
Performance Data @ AHRI Standard Conditions – Cooling (con’t.)
R801T: Achiever Plus Single-Stage X-13 80% Furnace Ratings
Outdoor
Unit Furnace Indoor Coil Total Capacity BTU/H [kW]
Net Sensible
BTU/H [kW]
Net Latent
BTU/H [kW] SEER EER Indoor CFM [L/s] AHRI#
RA1618AJ1 R801TA050314MSA
RCF2414STAM 18000 [5.3] 13500 [4.0] 4500 [1.3] 16.00 13.00 625 [295.0] 7940294
RCF2417HTAM 18000 [5.3] 13500 [4.0] 4500 [1.3] 16.00 13.00 625 [295.0] 7940296
RCF2417MTAM 18000 [5.3] 13500 [4.0] 4500 [1.3] 16.00 13.00 625 [295.0] 7940317
RCF2417STAM 18000 [5.3] 13500 [4.0] 4500 [1.3] 16.00 13.00 625 [295.0] 7940338
RA1618AJ1 R801TA075317ZSA
RCF2417HTAM 18000 [5.3] 13500 [4.0] 4500 [1.3] 16.00 13.00 650 [306.8] 7940297
RCF2417MTAM 18000 [5.3] 13500 [4.0] 4500 [1.3] 16.00 13.00 650 [306.8] 7940318
RCF2417STAM 18000 [5.3] 13500 [4.0] 4500 [1.3] 16.00 13.00 650 [306.8] 7940339
RCF2421MTAM 18000 [5.3] 13500 [4.0] 4500 [1.3] 16.00 13.00 650 [306.8] 7940385
RCF2421HTAM 18000 [5.3] 13500 [4.0] 4500 [1.3] 16.00 13.00 650 [306.8] 7940359
RA1624AJ1 R801TA050314MSA
RCF2414STAM 24000 [7.0] 17500 [5.1] 6500 [1.9] 16.00 13.00 800 [377.6] 7940573
RCF2417HTAM 24000 [7.0] 17500 [5.1] 6500 [1.9] 16.00 13.00 875 [413.0] 7940575
RCF2417MTAM 24000 [7.0] 17500 [5.1] 6500 [1.9] 16.00 13.00 850 [401.2] 7940599
RCF2417STAM 24000 [7.0] 17500 [5.1] 6500 [1.9] 16.00 13.00 825 [389.4] 7940623
RA1624AJ1 R801TA075317ZSA
RCF2417HTAM 24000 [7.0] 17500 [5.1] 6500 [1.9] 16.00 13.00 650 [306.8] 7940576
RCF2417MTAM 24000 [7.0] 17500 [5.1] 6500 [1.9] 16.00 13.00 650 [306.8] 7940600
RCF2417STAM 24000 [7.0] 17500 [5.1] 6500 [1.9] 16.00 13.00 850 [401.2] 7940624
RCF2421MTAM 24000 [7.0] 17500 [5.1] 6500 [1.9] 16.00 13.00 650 [306.8] 7940681
RCF2421HTAM 24000 [7.0] 17500 [5.1] 6500 [1.9] 16.00 13.00 650 [306.8] 7940648
RA1630AJ1 R801TA050314MSA RCF3617STAM 28800 [8.4] 21900 [6.4] 6900 [2.0] 16.00 13.00 1000 [471.9] 7940904
RA1630AJ1 R801TA075317ZSA
RCF3617STAM 28400 [8.3] 21100 [6.2] 7300 [2.1] 16.00 13.00 875 [413.0] 7940905
RCF3621MTAM 29600 [8.7] 20500 [6.0] 9100 [2.7] 16.00 13.00 875 [413.0] 7940931
RCF3621STAM 28400 [8.3] 21100 [6.2] 7300 [2.1] 16.00 13.00 875 [413.0] 7940975
RA1630AJ1 R801TA075417MSA
RCF3617STAM 29000 [8.5] 22100 [6.5] 6900 [2.0] 16.00 13.00 1000 [471.9] 7940906
RCF3621MTAM 30000 [8.8] 22800 [6.7] 7200 [2.1] 16.00 13.00 1050 [495.5] 7940932
RCF3621STAM 29000 [8.5] 22200 [6.5] 6800 [2.0] 16.00 13.00 1025 [483.7] 7940976
RA1630AJ1 R801TA075521ZSA
RCF3621MTAM 30000 [8.8] 22800 [6.7] 7200 [2.1] 16.00 13.00 1000 [471.9] 7940933
RCF3621STAM 28800 [8.4] 21800 [6.4] 7000 [2.1] 16.00 13.00 975 [460.1] 7940977
RCF3624HTAM 30000 [8.8] 22800 [6.7] 7200 [2.1] 16.00 13.00 1025 [483.7] 7941019
RCF3624MTAM 30000 [8.8] 22800 [6.7] 7200 [2.1] 16.00 13.00 1000 [471.9] 7941050
RA1630AJ1 R801TA100521MSA
RCF3621MTAM 30000 [8.8] 22800 [6.7] 7200 [2.1] 16.00 13.00 1050 [495.5] 7940934
RCF3621STAM 29000 [8.5] 22100 [6.5] 6900 [2.0] 16.00 13.00 1000 [471.9] 7940978
RCF3624MTAM 30000 [8.8] 22800 [6.7] 7200 [2.1] 16.00 13.00 1050 [495.5] 7941051
RA1630AJ1 R801TA100521ZSA
RCF3621MTAM 30000 [8.8] 21200 [6.2] 8800 [2.6] 16.00 13.00 975 [460.1] 7940935
RCF3621STAM 28800 [8.4] 21800 [6.4] 7000 [2.1] 16.00 13.00 975 [460.1] 7940979
RCF3624HTAM 30000 [8.8] 22800 [6.7] 7200 [2.1] 16.00 13.00 1025 [483.7] 7941020
RCF3624MTAM 30000 [8.8] 21200 [6.2] 8800 [2.6] 16.00 13.00 975 [460.1] 7941052
RA1630AJ1 R801TA125524ZSA RCF3624HTAM 30000 [8.8] 22800 [6.7] 7200 [2.1] 16.00 13.00 975 [460.1] 7941021
RCF3624MTAM 29800 [8.7] 20900 [6.1] 8900 [2.6] 16.00 13.00 925 [436.6] 7941053
RA1636AC1 R801TA050314MSA RCF3617STAM 35200 [10.3] 24700 [7.2] 10500 [3.1] 15.10 12.50 1000 [471.9] 7941355
RA1636AC1 R801TA075317ZSA
RCF3617STAM 35400 [10.4] 25100 [7.4] 10300 [3.0] 15.10 12.50 1050 [495.5] 7941356
RCF3621MTAM 36000 [10.6] 25100 [7.4] 10900 [3.2] 16.00 13.00 1075 [507.3] 7941382
RCF3621STAM 35400 [10.4] 25100 [7.4] 10300 [3.0] 15.10 12.50 1050 [495.5] 7941426
RA1636AC1 R801TA075417MSA
RCF3617STAM 35000 [10.3] 24400 [7.2] 10600 [3.1] 15.50 13.00 975 [460.1] 7941357
RCF3621MTAM 36000 [10.6] 25100 [7.4] 10900 [3.2] 16.00 13.00 1275 [601.7] 7941383
RCF3621STAM 35200 [10.3] 24700 [7.2] 10500 [3.1] 15.50 13.00 1000 [471.9] 7941427
[ ] Designates Metric Conversions
Performance Data
RA16 Series

Rely on Ruud.™ 17
Performance Data @ AHRI Standard Conditions – Cooling (con’t.)
R801T: Achiever Plus Single-Stage X-13 80% Furnace Ratings
Outdoor
Unit Furnace Indoor Coil Total Capacity BTU/H [kW]
Net Sensible
BTU/H [kW]
Net Latent
BTU/H [kW] SEER EER Indoor CFM [L/s] AHRI#
RA1636AC1 R801TA075521ZSA
RCF3621MTAM 36000 [10.6] 25100 [7.4] 10900 [3.2] 16.00 13.00 1225 [578.1] 7941384
RCF3621STAM 35000 [10.3] 24300 [7.1] 10700 [3.1] 15.50 13.00 950 [448.4] 7941428
RCF3624HTAM 36000 [10.6] 25100 [7.4] 10900 [3.2] 16.00 13.00 1250 [589.9] 7941470
RCF3624MTAM 36000 [10.6] 25100 [7.4] 10900 [3.2] 16.00 13.00 1225 [578.1] 7941503
RA1636AC1 R801TA100521MSA
RCF3621MTAM 36000 [10.6] 25100 [7.4] 10900 [3.2] 16.00 13.00 1050 [495.5] 7941385
RCF3621STAM 35400 [10.4] 24900 [7.3] 10500 [3.1] 15.50 13.00 1000 [471.9] 7941429
RCF3624HTAM 36000 [10.6] 25100 [7.4] 10900 [3.2] 16.00 13.00 1100 [519.1] 7941471
RCF3624MTAM 36000 [10.6] 25100 [7.4] 10900 [3.2] 16.00 13.00 1050 [495.5] 7941504
RA1636AC1 R801TA100521ZSA
RCF3621MTAM 36000 [10.6] 25100 [7.4] 10900 [3.2] 16.00 13.00 1225 [578.1] 7941386
RCF3621STAM 35000 [10.3] 24300 [7.1] 10700 [3.1] 15.50 13.00 950 [448.4] 7941430
RCF3624HTAM 36000 [10.6] 25100 [7.4] 10900 [3.2] 16.00 13.00 1250 [589.9] 7941472
RCF3624MTAM 36000 [10.6] 25100 [7.4] 10900 [3.2] 16.00 13.00 1225 [578.1] 7941505
RA1636AC1 R801TA125524MSA RCF3624HTAM 36000 [10.6] 25100 [7.4] 10900 [3.2] 16.00 13.00 1200 [566.3] 7941473
RCF3624MTAM 36000 [10.6] 25100 [7.4] 10900 [3.2] 16.00 13.00 1175 [554.5] 7941506
RA1636AC1 R801TA125524ZSA RCF3624HTAM 36000 [10.6] 25100 [7.4] 10900 [3.2] 16.00 13.00 1150 [542.7] 7941474
RCF3624MTAM 36000 [10.6] 25100 [7.4] 10900 [3.2] 16.00 13.00 1100 [519.1] 7941507
RA1636AJ1 R801TA050314MSA RCF3617STAM 35200 [10.3] 24700 [7.2] 10500 [3.1] 15.10 12.50 1000 [471.9] 7941790
RA1636AJ1 R801TA075317ZSA
RCF3617STAM 35400 [10.4] 25100 [7.4] 10300 [3.0] 15.10 12.50 1050 [495.5] 7941791
RCF3621MTAM 36000 [10.6] 25100 [7.4] 10900 [3.2] 16.00 13.00 1075 [507.3] 7941817
RCF3621STAM 35400 [10.4] 25100 [7.4] 10300 [3.0] 15.10 12.50 1050 [495.5] 7941861
RA1636AJ1 R801TA075417MSA
RCF3617STAM 35000 [10.3] 24400 [7.2] 10600 [3.1] 15.50 13.00 975 [460.1] 7941792
RCF3621MTAM 36000 [10.6] 25100 [7.4] 10900 [3.2] 16.00 13.00 1275 [601.7] 7941818
RCF3621STAM 35200 [10.3] 24700 [7.2] 10500 [3.1] 15.50 13.00 1000 [471.9] 7941862
RA1636AJ1 R801TA075521ZSA
RCF3621MTAM 36000 [10.6] 25100 [7.4] 10900 [3.2] 16.00 13.00 1225 [578.1] 7941819
RCF3621STAM 35000 [10.3] 24300 [7.1] 10700 [3.1] 15.50 13.00 950 [448.4] 7941863
RCF3624HTAM 36000 [10.6] 25100 [7.4] 10900 [3.2] 16.00 13.00 1250 [589.9] 7941905
RCF3624MTAM 36000 [10.6] 25100 [7.4] 10900 [3.2] 16.00 13.00 1225 [578.1] 7941938
RA1636AJ1 R801TA100521MSA
RCF3621MTAM 36000 [10.6] 25100 [7.4] 10900 [3.2] 16.00 13.00 1050 [495.5] 7941820
RCF3621STAM 35400 [10.4] 24900 [7.3] 10500 [3.1] 15.50 13.00 1000 [471.9] 7941864
RCF3624HTAM 36000 [10.6] 25100 [7.4] 10900 [3.2] 16.00 13.00 1100 [519.1] 7941906
RCF3624MTAM 36000 [10.6] 25100 [7.4] 10900 [3.2] 16.00 13.00 1050 [495.5] 7941939
RA1636AJ1 R801TA100521ZSA
RCF3621MTAM 36000 [10.6] 25100 [7.4] 10900 [3.2] 16.00 13.00 1225 [578.1] 7941821
RCF3621STAM 35000 [10.3] 24300 [7.1] 10700 [3.1] 15.50 13.00 950 [448.4] 7941865
RCF3624HTAM 36000 [10.6] 25100 [7.4] 10900 [3.2] 16.00 13.00 1250 [589.9] 7941907
RCF3624MTAM 36000 [10.6] 25100 [7.4] 10900 [3.2] 16.00 13.00 1225 [578.1] 7941940
RA1636AJ1 R801TA125524MSA RCF3624HTAM 36000 [10.6] 25100 [7.4] 10900 [3.2] 16.00 13.00 1200 [566.3] 7941908
RCF3624MTAM 36000 [10.6] 25100 [7.4] 10900 [3.2] 16.00 13.00 1175 [554.5] 7941941
RA1636AJ1 R801TA125524ZSA RCF3624HTAM 36000 [10.6] 25100 [7.4] 10900 [3.2] 16.00 13.00 1150 [542.7] 7941909
RCF3624MTAM 36000 [10.6] 25100 [7.4] 10900 [3.2] 16.00 13.00 1100 [519.1] 7941942
RA1642AC1 R801TA075317ZSA RCF4821STAM 40000 [11.7] 27400 [8.0] 12600 [3.7] 15.50 13.00 1075 [507.3] 7942224
RA1642AC1 R801TA075417MSA RCF4821STAM 41000 [12.0] 29500 [8.6] 11500 [3.4] 15.50 13.00 1275 [601.7] 7942225
RA1642AC1 R801TA075521ZSA
RCF4821STAM 41000 [12.0] 29200 [8.6] 11800 [3.5] 15.50 13.00 1225 [578.1] 7942226
RCF4824HTAM 42000 [12.3] 31100 [9.1] 10900 [3.2] 16.00 13.00 1450 [684.3] 7942270
RCF4824STAM 41000 [12.0] 29200 [8.6] 11800 [3.5] 15.50 13.00 1225 [578.1] 7942306
RA1642AC1 R801TA100521MSA
RCF4821STAM 41500 [12.2] 30300 [8.9] 11200 [3.3] 16.00 13.00 1325 [625.3] 7942227
RCF4824HTAM 42000 [12.3] 31100 [9.1] 10900 [3.2] 16.00 13.00 1425 [672.5] 7942271
RCF4824STAM 41500 [12.2] 30300 [8.9] 11200 [3.3] 16.00 13.00 1325 [625.3] 7942307
[ ] Designates Metric Conversions
Performance Data
RA16 Series

Rely on Ruud.™
18
Performance Data @ AHRI Standard Conditions – Cooling (con’t.)
R801T: Achiever Plus Single-Stage X-13 80% Furnace Ratings
Outdoor
Unit Furnace Indoor Coil Total Capacity BTU/H [kW]
Net Sensible
BTU/H [kW]
Net Latent
BTU/H [kW] SEER EER Indoor CFM [L/s] AHRI#
RA1642AC1 R801TA100521ZSA
RCF4821STAM 41000 [12.0] 29200 [8.6] 11800 [3.5] 15.50 13.00 1225 [578.1] 7942228
RCF4824HTAM 42000 [12.3] 31100 [9.1] 10900 [3.2] 16.00 13.00 1425 [672.5] 7942272
RCF4824STAM 41000 [12.0] 29200 [8.6] 11800 [3.5] 15.50 13.00 1225 [578.1] 7942308
RA1642AC1 R801TA125524MSA RCF4824HTAM 42000 [12.3] 31100 [9.1] 10900 [3.2] 16.00 13.00 1375 [648.9] 7942273
RCF4824STAM 41500 [12.2] 30400 [8.9] 11100 [3.3] 16.00 13.00 1350 [637.1] 7942309
RA1642AC1 R801TA125524ZSA RCF4824HTAM 42000 [12.3] 31100 [9.1] 10900 [3.2] 16.00 13.00 1375 [648.9] 7942274
RCF4824STAM 40500 [11.9] 28000 [8.2] 12500 [3.7] 16.00 13.00 1100 [519.1] 7942310
RA1642AJ1 R801TA075317ZSA RCF4821STAM 40000 [11.7] 27400 [8.0] 12600 [3.7] 15.50 13.00 1075 [507.3] 7942560
RA1642AJ1 R801TA075417MSA RCF4821STAM 41000 [12.0] 29500 [8.6] 11500 [3.4] 15.50 13.00 1275 [601.7] 7942561
RA1642AJ1 R801TA075521ZSA
RCF4821STAM 41000 [12.0] 29200 [8.6] 11800 [3.5] 15.50 13.00 1225 [578.1] 7942562
RCF4824HTAM 42000 [12.3] 31100 [9.1] 10900 [3.2] 16.00 13.00 1450 [684.3] 7942606
RCF4824STAM 41000 [12.0] 29200 [8.6] 11800 [3.5] 15.50 13.00 1225 [578.1] 7942642
RA1642AJ1 R801TA100521MSA
RCF4821STAM 41500 [12.2] 30300 [8.9] 11200 [3.3] 16.00 13.00 1325 [625.3] 7942563
RCF4824HTAM 42000 [12.3] 31100 [9.1] 10900 [3.2] 16.00 13.00 1425 [672.5] 7942607
RCF4824STAM 41500 [12.2] 30300 [8.9] 11200 [3.3] 16.00 13.00 1325 [625.3] 7942643
RA1642AJ1 R801TA100521ZSA
RCF4821STAM 41000 [12.0] 29200 [8.6] 11800 [3.5] 15.50 13.00 1225 [578.1] 7942564
RCF4824HTAM 42000 [12.3] 31100 [9.1] 10900 [3.2] 16.00 13.00 1425 [672.5] 7942608
RCF4824STAM 41000 [12.0] 29200 [8.6] 11800 [3.5] 15.50 13.00 1225 [578.1] 7942644
RA1642AJ1 R801TA125524MSA RCF4824HTAM 42000 [12.3] 31100 [9.1] 10900 [3.2] 16.00 13.00 1375 [648.9] 7942609
RCF4824STAM 41500 [12.2] 30400 [8.9] 11100 [3.3] 16.00 13.00 1350 [637.1] 7942645
RA1642AJ1 R801TA125524ZSA RCF4824HTAM 42000 [12.3] 31100 [9.1] 10900 [3.2] 16.00 13.00 1375 [648.9] 7942610
RCF4824STAM 40500 [11.9] 28000 [8.2] 12500 [3.7] 16.00 13.00 1100 [519.1] 7942646
RA1648AC1 R801TA075317ZSA RCF4821STAM 43500 [12.7] 29500 [8.6] 14000 [4.1] 15.50 13.00 1225 [578.1] 7942895
RA1648AC1 R801TA075417MSA RCF4821STAM 43500 [12.7] 29200 [8.6] 14300 [4.2] 16.00 13.00 1175 [554.5] 7942896
RA1648AC1 R801TA075521ZSA
RCF4821STAM 44000 [12.9] 29800 [8.7] 14200 [4.2] 16.00 13.00 1200 [566.3] 7942897
RCF4824HTAM 46000 [13.5] 33000 [9.7] 13000 [3.8] 16.00 13.00 1450 [684.3] 7942933
RCF4824STAM 44000 [12.9] 29800 [8.7] 14200 [4.2] 16.00 13.00 1200 [566.3] 7942968
RA1648AC1 R801TA100521MSA
RCF4821STAM 44500 [13.0] 31400 [9.2] 13100 [3.8] 16.00 13.00 1375 [648.9] 7942898
RCF4824HTAM 47000 [13.8] 35300 [10.3] 11700 [3.4] 16.00 13.00 1650 [778.7] 7942934
RCF4824STAM 44500 [13.0] 31400 [9.2] 13100 [3.8] 16.00 13.00 1375 [648.9] 7942969
RA1648AC1 R801TA100521ZSA
RCF4821STAM 44000 [12.9] 29800 [8.7] 14200 [4.2] 16.00 13.00 1200 [566.3] 7942899
RCF4824HTAM 46000 [13.5] 32800 [9.6] 13200 [3.9] 16.00 13.00 1425 [672.5] 7942935
RCF4824STAM 44000 [12.9] 29800 [8.7] 14200 [4.2] 16.00 13.00 1200 [566.3] 7942970
RA1648AC1 R801TA125524MSA RCF4824HTAM 47000 [13.8] 35300 [10.3] 11700 [3.4] 16.00 13.00 1650 [778.7] 7942936
RCF4824STAM 44500 [13.0] 31100 [9.1] 13400 [3.9] 16.00 13.00 1325 [625.3] 7942971
RA1648AC1 R801TA125524ZSA RCF4824HTAM 46000 [13.5] 32500 [9.5] 13500 [4.0] 16.00 13.00 1375 [648.9] 7942937
RCF4824STAM 44500 [13.0] 31100 [9.1] 13400 [3.9] 15.50 13.00 1325 [625.3] 7942972
RA1648AJ1 R801TA075317ZSA RCF4821STAM 43500 [12.7] 29500 [8.6] 14000 [4.1] 15.50 13.00 1225 [578.1] 7943221
RA1648AJ1 R801TA075417MSA RCF4821STAM 43500 [12.7] 29200 [8.6] 14300 [4.2] 16.00 13.00 1175 [554.5] 7943222
RA1648AJ1 R801TA075521ZSA
RCF4821STAM 44000 [12.9] 29800 [8.7] 14200 [4.2] 16.00 13.00 1200 [566.3] 7943223
RCF4824HTAM 46000 [13.5] 33000 [9.7] 13000 [3.8] 16.00 13.00 1450 [684.3] 7943259
RCF4824STAM 44000 [12.9] 29800 [8.7] 14200 [4.2] 16.00 13.00 1200 [566.3] 7943294
RA1648AJ1 R801TA100521MSA
RCF4821STAM 44500 [13.0] 31400 [9.2] 13100 [3.8] 16.00 13.00 1375 [648.9] 7943224
RCF4824HTAM 47000 [13.8] 35300 [10.3] 11700 [3.4] 16.00 13.00 1650 [778.7] 7943260
RCF4824STAM 44500 [13.0] 31400 [9.2] 13100 [3.8] 16.00 13.00 1375 [648.9] 7943295
RA1648AJ1 R801TA100521ZSA
RCF4821STAM 44000 [12.9] 29800 [8.7] 14200 [4.2] 16.00 13.00 1200 [566.3] 7943225
RCF4824HTAM 46000 [13.5] 32800 [9.6] 13200 [3.9] 16.00 13.00 1425 [672.5] 7943261
RCF4824STAM 44000 [12.9] 29800 [8.7] 14200 [4.2] 16.00 13.00 1200 [566.3] 7943296
[ ] Designates Metric Conversions
Performance Data
RA16 Series

Rely on Ruud.™ 19
Performance Data @ AHRI Standard Conditions – Cooling (con’t.)
R801T: Achiever Plus Single-Stage X-13 80% Furnace Ratings
Outdoor
Unit Furnace Indoor Coil Total Capacity BTU/H [kW]
Net Sensible
BTU/H [kW]
Net Latent
BTU/H [kW] SEER EER Indoor CFM [L/s] AHRI#
RA1648AJ1 R801TA125524MSA RCF4824HTAM 47000 [13.8] 35300 [10.3] 11700 [3.4] 16.00 13.00 1650 [778.7] 7943262
RCF4824STAM 44500 [13.0] 31100 [9.1] 13400 [3.9] 16.00 13.00 1325 [625.3] 7943297
RA1648AJ1 R801TA125524ZSA RCF4824HTAM 46000 [13.5] 32500 [9.5] 13500 [4.0] 16.00 13.00 1375 [648.9] 7943263
RCF4824STAM 44500 [13.0] 31100 [9.1] 13400 [3.9] 15.50 13.00 1325 [625.3] 7943298
RA1660AC1 R801TA075521ZSA RCF6024HTAM 56500 [16.6] 38500 [11.3] 18000 [5.3] 15.50 13.00 1450 [684.3] 7943768
RCF6024STAM 56500 [16.6] 38500 [11.3] 18000 [5.3] 15.50 13.00 1450 [684.3] 7943797
RA1660AC1 R801TA100521MSA RCF6024HTAM 58000 [17.0] 41600 [12.2] 16400 [4.8] 15.50 13.00 1650 [778.7] 7943769
RCF6024STAM 58000 [17.0] 41600 [12.2] 16400 [4.8] 15.50 13.00 1650 [778.7] 7943798
RA1660AC1 R801TA100521ZSA RCF6024HTAM 56500 [16.6] 38300 [11.2] 18200 [5.3] 15.50 13.00 1425 [672.5] 7943770
RCF6024STAM 56500 [16.6] 38300 [11.2] 18200 [5.3] 15.50 13.00 1425 [672.5] 7943799
RA1660AC1 R801TA125524MSA RCF6024HTAM 58000 [17.0] 41600 [12.2] 16400 [4.8] 15.50 13.00 1650 [778.7] 7943771
RCF6024STAM 58000 [17.0] 41600 [12.2] 16400 [4.8] 15.50 13.00 1650 [778.7] 7943800
RA1660AC1 R801TA125524ZSA RCF6024HTAM 57500 [16.9] 41300 [12.1] 16200 [4.7] 15.10 12.50 1675 [790.5] 7943772
RCF6024STAM 57500 [16.9] 41300 [12.1] 16200 [4.7] 15.10 12.50 1675 [790.5] 7943801
RA1660AJ1 R801TA075521ZSA RCF6024HTAM 56500 [16.6] 38500 [11.3] 18000 [5.3] 15.50 13.00 1450 [684.3] 7943547
RCF6024STAM 56500 [16.6] 38500 [11.3] 18000 [5.3] 15.50 13.00 1450 [684.3] 7943576
RA1660AJ1 R801TA100521MSA RCF6024HTAM 58000 [17.0] 41600 [12.2] 16400 [4.8] 15.50 13.00 1650 [778.7] 7943548
RCF6024STAM 58000 [17.0] 41600 [12.2] 16400 [4.8] 15.50 13.00 1650 [778.7] 7943577
RA1660AJ1 R801TA100521ZSA RCF6024HTAM 56500 [16.6] 38300 [11.2] 18200 [5.3] 15.50 13.00 1425 [672.5] 7943549
RCF6024STAM 56500 [16.6] 38300 [11.2] 18200 [5.3] 15.50 13.00 1425 [672.5] 7943578
RA1660AJ1 R801TA125524MSA RCF6024HTAM 58000 [17.0] 41600 [12.2] 16400 [4.8] 15.50 13.00 1650 [778.7] 7943550
RCF6024STAM 58000 [17.0] 41600 [12.2] 16400 [4.8] 15.50 13.00 1650 [778.7] 7943579
RA1660AJ1 R801TA125524ZSA RCF6024HTAM 57500 [16.9] 41300 [12.1] 16200 [4.7] 15.10 12.50 1675 [790.5] 7943551
RCF6024STAM 57500 [16.9] 41300 [12.1] 16200 [4.7] 15.10 12.50 1675 [790.5] 7943580
[ ] Designates Metric Conversions
Performance Data
RA16 Series

Rely on Ruud.™
20
Performance Data @ AHRI Standard Conditions – Cooling (con’t.)
R802V: Ultra 2-Stage 80% ECM Furnace Ratings
Outdoor
Unit Furnace Indoor Coil Total Capacity BTU/H [kW]
Net Sensible
BTU/H [kW]
Net Latent
BTU/H [kW] SEER EER Indoor CFM [L/s] AHRI#
RA1618AJ1 R802VA050317MSA
RCF2417HTAM 18000 [5.3] 13500 [4.0] 4500 [1.3] 16.00 13.00 675 [318.6] 7940298
RCF2417MTAM 18000 [5.3] 13500 [4.0] 4500 [1.3] 16.00 13.00 675 [318.6] 7940319
RCF2417STAM 18000 [5.3] 13500 [4.0] 4500 [1.3] 16.00 13.00 675 [318.6] 7940340
RCF2421MTAM 18000 [5.3] 13500 [4.0] 4500 [1.3] 16.00 13.00 675 [318.6] 7940386
RA1618AJ1 R802VA075317MSA
RCF2417HTAM 18000 [5.3] 13500 [4.0] 4500 [1.3] 16.00 13.00 675 [318.6] 7940299
RCF2417MTAM 18000 [5.3] 13500 [4.0] 4500 [1.3] 16.00 13.00 675 [318.6] 7940320
RCF2417STAM 18000 [5.3] 13500 [4.0] 4500 [1.3] 16.00 13.00 675 [318.6] 7940341
RCF2421MTAM 18000 [5.3] 13500 [4.0] 4500 [1.3] 16.00 13.00 675 [318.6] 7940387
RA1618AJ1 R802VA075317ZSA
RCF2417HTAM 18000 [5.3] 13500 [4.0] 4500 [1.3] 16.00 13.00 675 [318.6] 7940300
RCF2417MTAM 18000 [5.3] 13500 [4.0] 4500 [1.3] 16.00 13.00 675 [318.6] 7940321
RCF2417STAM 18000 [5.3] 13500 [4.0] 4500 [1.3] 16.00 13.00 675 [318.6] 7940342
RCF2421MTAM 18000 [5.3] 13500 [4.0] 4500 [1.3] 16.00 13.00 675 [318.6] 7940388
RA1618AJ1 R802VA075421ZSA RCF2421MTAM 18000 [5.3] 13500 [4.0] 4500 [1.3] 16.00 13.00 650 [306.8] 7940389
RA1618AJ1 R802VA050317MSA RCF2421HTAM 18000 [5.3] 13500 [4.0] 4500 [1.3] 16.00 13.00 675 [318.6] 7940360
RA1618AJ1 R802VA075317MSA RCF2421HTAM 18000 [5.3] 13500 [4.0] 4500 [1.3] 16.00 13.00 675 [318.6] 7940361
RA1618AJ1 R802VA075317ZSA RCF2421HTAM 18000 [5.3] 13500 [4.0] 4500 [1.3] 16.00 13.00 675 [318.6] 7940362
RA1618AJ1 R802VA075421ZSA RCF2421HTAM 18000 [5.3] 13500 [4.0] 4500 [1.3] 16.00 13.00 650 [306.8] 7940363
RA1624AJ1 R802VA050317MSA
RCF2417HTAM 24000 [7.0] 17500 [5.1] 6500 [1.9] 15.50 13.00 875 [413.0] 7940577
RCF2417MTAM 24000 [7.0] 17500 [5.1] 6500 [1.9] 15.50 13.00 850 [401.2] 7940601
RCF2417STAM 24000 [7.0] 17500 [5.1] 6500 [1.9] 16.00 13.00 725 [342.2] 7940625
RCF2421MTAM 24000 [7.0] 17500 [5.1] 6500 [1.9] 15.50 13.00 850 [401.2] 7940682
RA1624AJ1 R802VA075317MSA
RCF2417HTAM 24000 [7.0] 17500 [5.1] 6500 [1.9] 16.00 13.00 875 [413.0] 7940578
RCF2417MTAM 24000 [7.0] 17500 [5.1] 6500 [1.9] 16.00 13.00 875 [413.0] 7940602
RCF2417STAM 24000 [7.0] 17500 [5.1] 6500 [1.9] 16.00 13.00 875 [413.0] 7940626
RCF2421MTAM 24000 [7.0] 17500 [5.1] 6500 [1.9] 16.00 13.00 875 [413.0] 7940683
RA1624AJ1 R802VA075317ZSA
RCF2417HTAM 24000 [7.0] 17500 [5.1] 6500 [1.9] 16.00 13.00 800 [377.6] 7940579
RCF2417MTAM 24000 [7.0] 17500 [5.1] 6500 [1.9] 16.00 13.00 800 [377.6] 7940603
RCF2417STAM 24000 [7.0] 17500 [5.1] 6500 [1.9] 16.00 13.00 825 [389.4] 7940627
RCF2421MTAM 24000 [7.0] 17500 [5.1] 6500 [1.9] 16.00 13.00 800 [377.6] 7940684
RA1624AJ1 R802VA075421ZSA RCF2421MTAM 24000 [7.0] 17500 [5.1] 6500 [1.9] 15.50 13.00 875 [413.0] 7940685
RA1624AJ1 R802VA100521MSA RCF2421MTAM 24000 [7.0] 17500 [5.1] 6500 [1.9] 16.00 13.00 850 [401.2] 7940686
RA1624AJ1 R802VA050317MSA RCF2421HTAM 24000 [7.0] 17500 [5.1] 6500 [1.9] 15.50 13.00 850 [401.2] 7940649
RA1624AJ1 R802VA075317MSA RCF2421HTAM 24000 [7.0] 17500 [5.1] 6500 [1.9] 16.00 13.00 875 [413.0] 7940650
RA1624AJ1 R802VA075317ZSA RCF2421HTAM 24000 [7.0] 17500 [5.1] 6500 [1.9] 16.00 13.00 800 [377.6] 7940651
RA1624AJ1 R802VA075421ZSA RCF2421HTAM 24000 [7.0] 17500 [5.1] 6500 [1.9] 15.50 13.00 875 [413.0] 7940652
RA1624AJ1 R802VA100521MSA RCF2421HTAM 24000 [7.0] 17500 [5.1] 6500 [1.9] 16.00 13.00 850 [401.2] 7940653
RA1630AJ1 R802VA050317MSA
RCF3617STAM 28200 [8.3] 20900 [6.1] 7300 [2.1] 16.00 13.00 875 [413.0] 7940907
RCF3621MTAM 29800 [8.7] 21000 [6.2] 8800 [2.6] 15.50 13.00 975 [460.1] 7940936
RCF3621STAM 28200 [8.3] 20900 [6.1] 7300 [2.1] 16.00 13.00 875 [413.0] 7940980
RA1630AJ1 R802VA075317MSA
RCF3617STAM 29000 [8.5] 22200 [6.5] 6800 [2.0] 16.00 13.00 1025 [483.7] 7940908
RCF3621MTAM 30000 [8.8] 22800 [6.7] 7200 [2.1] 16.00 13.00 1075 [507.3] 7940937
RCF3621STAM 29000 [8.5] 22200 [6.5] 6800 [2.0] 16.00 13.00 1025 [483.7] 7940981
RA1630AJ1 R802VA075317ZSA
RCF3617STAM 28800 [8.4] 21900 [6.4] 6900 [2.0] 16.00 13.00 1000 [471.9] 7940909
RCF3621MTAM 30000 [8.8] 22800 [6.7] 7200 [2.1] 16.00 13.00 1000 [471.9] 7940938
RCF3621STAM 28800 [8.4] 21900 [6.4] 6900 [2.0] 16.00 13.00 1000 [471.9] 7940982
[ ] Designates Metric Conversions
Performance Data
RA16 Series
