Rx Count Rx-4 User manual
Rx-4
Automatic
Tablet & Capsule Counter
OPERATOR’S MANUAL
Page 2
Rx Count Corporation
TABLE OF CONTENTS
1. Table of Contents………………………………………………….…2
2. Package Contents…………………………………………………...3
3. Machine Description………………………………………………....3
4. Operating Instructions……………………………….………………4
5. Machine Components……………………………………………….5
6. Using the Vial Drawer…………………………………………….….6
7. Cleaning Instructions………………………………………………...7
8. Cleaning the Sensor…………………………………………………8
9. Operating Tips………………………………………………………..9
10. Troubleshooting Guide…………………………………………….10
11. Safety Considerations……………………………………………..11
Rx Count Corporation
Page 3
Thank you for purchasing the Rx Count Rx-4 Automatic Tablet & Capsule
Counter. This Operator's Manual describes the Rx-4, its functions and its method
of use. Please read this manual thoroughly before operating this machine.
PACKAGE CONTENTS
Please check to make sure you have received each of the following
items
(1) Rx-4 Automatic Tablet & Capsule Counter
(2) Collection Trays
(1) Vial Drawer
(1) Operator’s Manual
MACHINE DESCRIPTION
The Rx-4 provides an efficient and reliable method of accurately counting
tablets and capsules. The Rx-4 has been engineered to be easy to
operate, and will deliver accurate quantities of 99% of the solid
pharmaceuticals handled (minimum dimension 3mm).

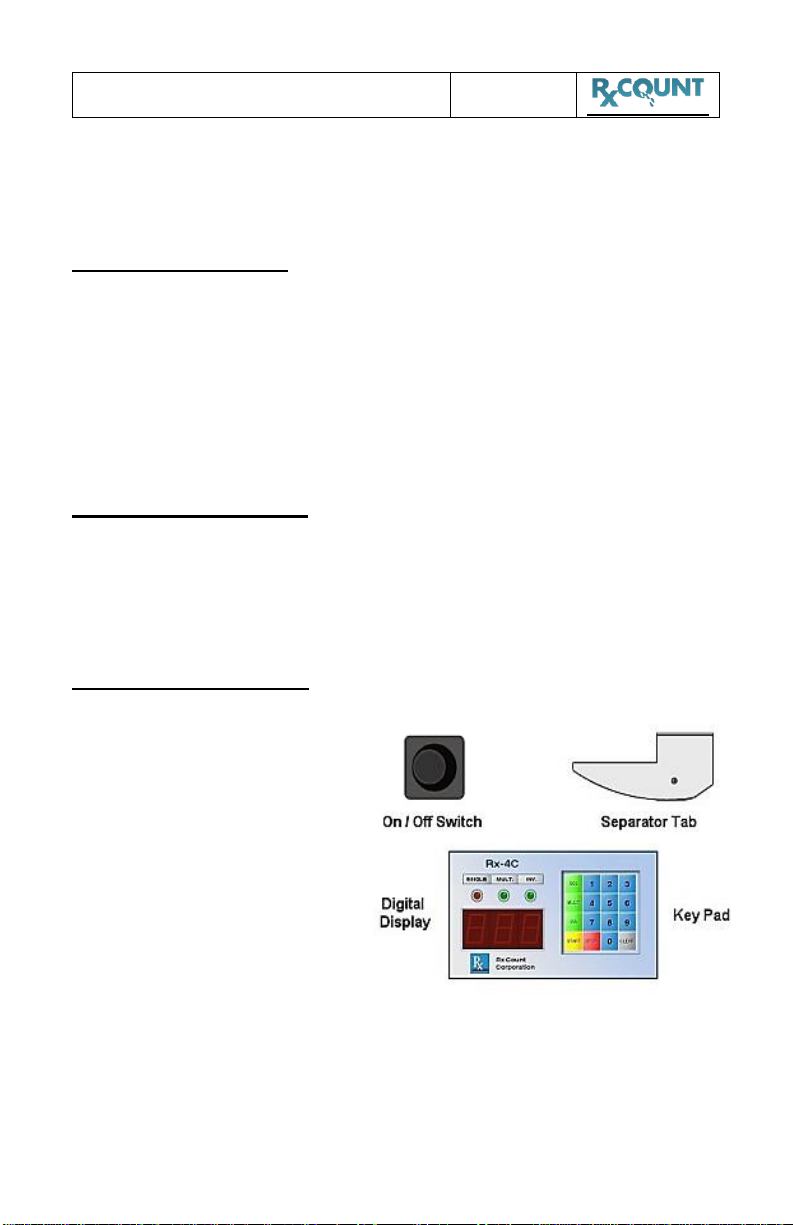

OPERATING CONTROLS
On/Off Switch
Separator Tab
Digital Display
Key Pad
Page 4
Rx Count Corporation
OPERATING INSTRUCTIONS
1. Turn machine ON
2. Be certain collection trays are properly inserted
3. Pour pills onto turntable disc. Eliminate stacked pills.
4. Adjust the Separator Tab.
a. Pointed end UP for capsules
b. Pointed end approximately the height of the pill for flat
and small sizes
5. Select Mode using the Key Pad
Single Mode (SGL)
Single mode is for counting a desired quantity of pills that will dispense
into the top collection tray. When the top tray is removed, excess pills
will drop into the bottom tray. DO NOT use the Vial Drawer in Single
Mode.
Multiple Mode (MULTI)
Multiple mode is for performing multiple counts of the same quantity of
the same pill. When the desired quantity is dispensed, simply press
START and the Rx-4 will count the same quantity again. You can do this
as many times as needed. To clear turntable after last count, leave top
drawer out and press CLEAR / INVENTORY / START.
Inventory Mode (INV)
Use this mode to count an entire quantity of pills. If the count surpasses
999, the display will roll-over to 000, 001, 002 etc.
6. Press START –the Auto-Gate will automatically open to adjust
for pill size/shape.
Rx Count Corporation
Page 5

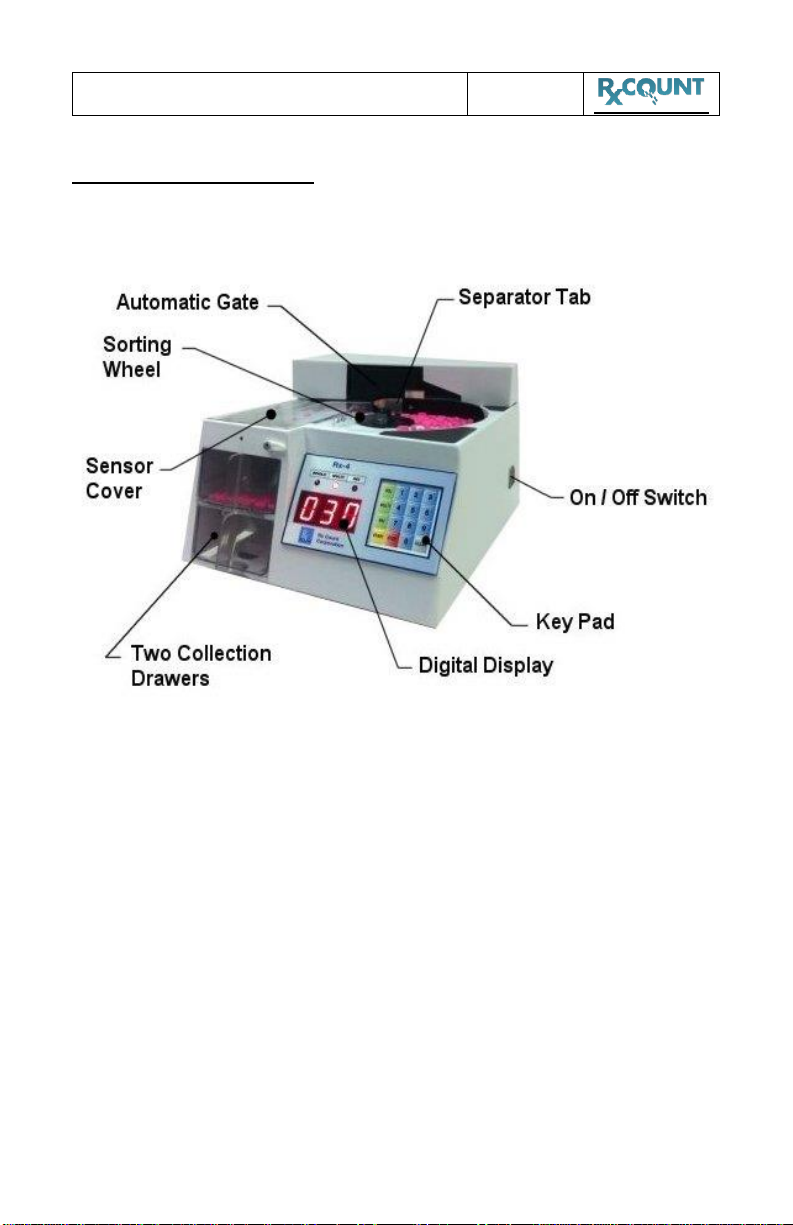

MACHINE COMPONENTS
Page 6
Rx Count Corporation
USING THE VIAL DRAWER
The vial drawer enables rapid, direct filling of prescription vials.
Remove both collection drawers and insert the vial drawer into upper
drawer slot.
Simply insert the vial onto the dispensing tube. The vial retaining tab will
hold the vial firmly in place. For large vials, insert all the way onto the
dispensing tube. For small vials, insert into the open front of the
dispensing tube.
Use the vial drawer only in Multi or Inventory count modes. DO NOT use
the funnel drawer in Single mode.
If the vial drawer was used in Single count mode, press STOP before
removing the drawer. To clear the turntable disc, replace top drawer,
press CLEAR / INVENTORY / START.
Rx Count Corporation
Page 7

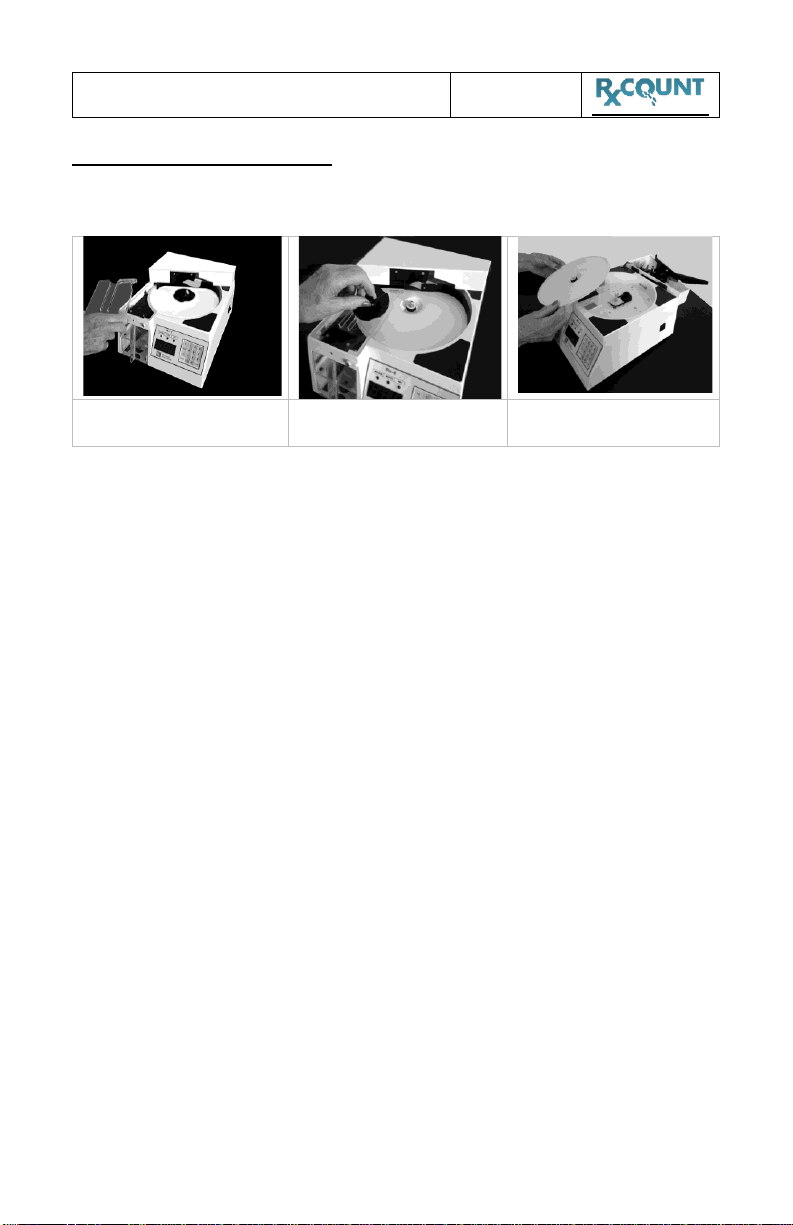

CLEANING INSTRUCTIONS
***TURN OFF POWER***
Remove
Sensor Cover
Remove
Sorting Wheel
Remove
Turntable Disc
1 Tilt back Auto-Gate Assembly
2 Remove any powder build-up off the bottom of gate.
3 Remove and clean Sensor Cover
4 Remove and clean Sorting Wheel
5 Remove and clean Turntable Disc
The discs and plastic parts may be cleaned with a lint-free damp cloth.
ALWAYS clean both top and bottom of removed parts. Drawers should
be cleaned often to avoid contamination. Before replacing, be certain
that all parts are dry.
DO NOT USE ACETONE
WHICH WILL DAMAGE PLASTIC ITEMS
Page 8
Rx Count Corporation

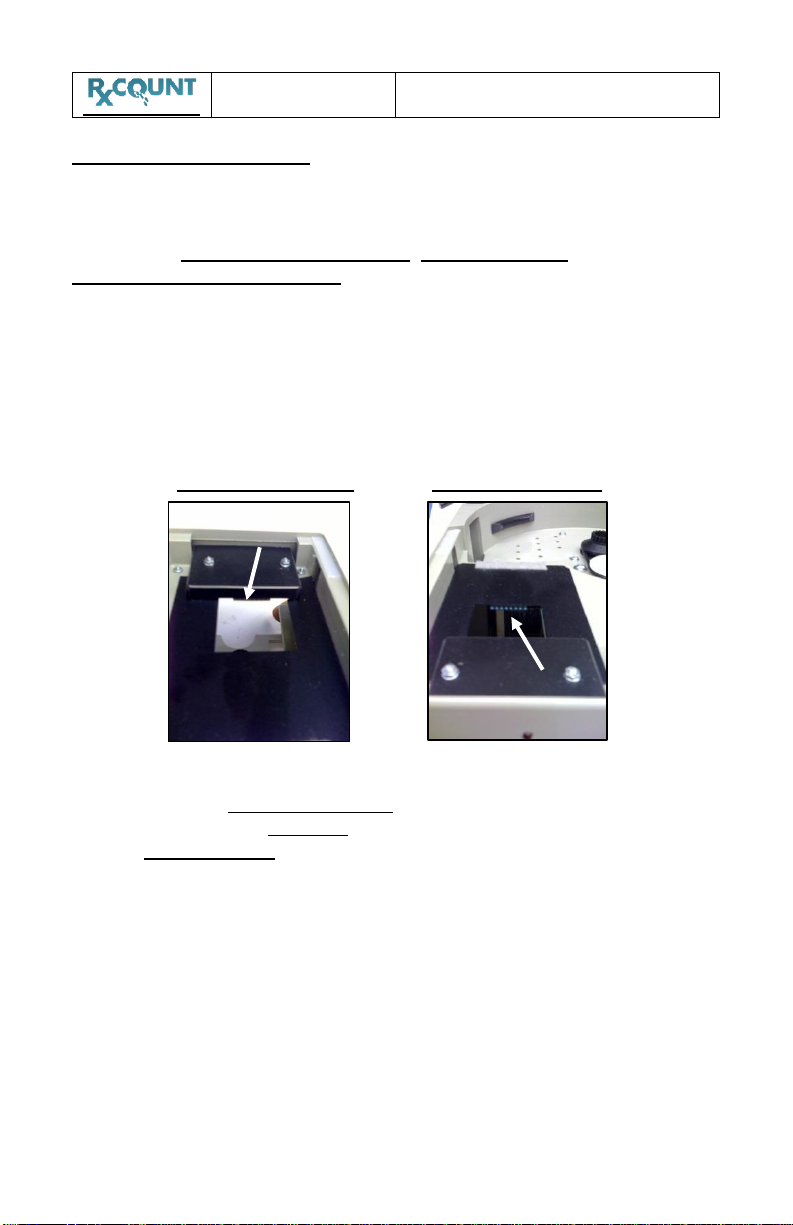

CLEANING THE SENSOR
***TURN OFF POWER***
If your Rx-4 does not count properly, counts by itself, or the
automatic gate will not open, follow the steps below to properly clean
the unit’s infrared sensors.
1. Locate the Sensor area in the front-left corner of the top of the
unit. The Sensor is located in the square hole ringed by black
plastic. The Sensor consists of two sets of glass eyes affixed
under the black plastic in the front and rear of the hole. See
photos below:
Front Sensor Eyes Rear Sensor Eyes
2. Using an alcohol-dampened cloth or wipe (DO NOT use a cotton
ball or swab), GENTLY scrub both sets of glass eyes in a
HORIZONTAL manner. Scrubbing in a vertical motion can
misalign the sensor eyes.
3. Visually inspect the sensor hole to ensure there are no other
hard-to-see items such as a fiber or hair obstructing the area
between the sets of glass eyes.
4. Reassemble the unit and resume counting.
Rx Count Corporation
Page 9
OPERATING TIPS
DO’s
1. Clean your Rx-4 daily with isopropyl alcohol.
DO NOT USE ACETONE
WHICH WILL DAMAGE PLASTIC ITEMS
2. Place pills on turntable before pressing START
3. Make sure the SEPARATOR TAB is in proper position (See Page 4)
4. Always ensure collection drawers are fully-inserted.
5. Eliminate stacks of pills on the turntable.
DO NOT’s
1. DO NOT use this machine to count Penicillin unless machine is
thoroughly cleaned afterwards.
2. DO NOT remove collection trays when the turntable is in operation.
3. DO NOT place machine under high intensity light or direct sunlight.
4. DO NOT plug the Rx4 into same receptacle with other high-powered
appliances, i.e. computer, refrigerator etc.
5. DO NOT allow liquids of any kind to enter the machine.
6. DO NOT remove the base plate of the machine. Removal will void the
warranty. All service must be performed by the manufacturer.
Page 10
Rx Count Corporation
TROUBLESHOOTING GUIDE
No Power
- Check power cord and be sure it is firmly inserted into a working,
grounded AC outlet.
- Check fuse in rear of the unit. Replace with 1 amp fuse only.
Pills are dispensed but unit does not count, OR, Sensor Signal
Lamp stays ON
- Turn off power, clean Sensor (see Page 8)
Miscounts / Undercounts
- Make sure pills are on the Turntable before pressing START.
- Separator Tab is in the wrong position. Adjust the Separator Tab
position accordingly (See Page 4)
Unit Counts by itself
- Foreign material or pill residue may be triggering sensor. Turn off
power, clean Sensor (see Page 8)
Auto-Gate does not open
- Turn off power, clean Sensor (see Page 8)
Rx Count Corporation
Page 11
SAFETY CONSIDERATIONS
To Prevent Possible Electric Shock:
Do Not allow liquids to enter machine, and
Do Not Use without Grounding Plug
The power requirements for the Rx4 is 120VAC or 220VAC 50/60
Cycles (Optional). A fuse is utilized to protect the electronics from
power overloads. A cooling fan prevents overheating of the motor
and the electronic components, DO NOT block the fan opening.
SERVICE
If your Rx-4 requires service, return the machine to Rx Count
Corporation in the original carton and packing, freight prepaid to Rx
Count Corporation. Please include a detailed description of the
problems with your machine.
DO NOT attempt to service the machine yourself. Service must be
performed by the manufacturer. Removal of the unit's base-plate will
void the Service Guarantee.
Rx COUNT SERVICE GUARANTEE
Your Rx-4 is guaranteed against defects in parts, materials and
workmanship for a period of one-year following the date of shipping
to the original user.
During the guarantee period, the machine will be repaired free of
charge at our factory provided it is returned in its original container.
Guarantee is VOID if the base plate of the machine has been
removed or user has neglected to properly clean and maintain the
machine.
Normal service and maintenance of this machine as set forth in this
Operator's Manual are the responsibility of the user. Labor costs
incurred due to improper maintenance or operation by the user will
be charged at our prevailing labor and parts costs, You will be
advised of any labor or material costs not covered by the guarantee
prior to the service repair.
