SERVICE CENTER ELECTRICAL SYSTEM TROUBLESHOOTING AND TESTING GUIDE
SERIES RY48130/131 RIDING LAWN MOWERS

Confidential & Proprietary –Property of Techtronic Power Equipment –DO NOT COPY or DISCLOSE
•WARNING
•DMM and Other Tools
•Component Locations Main Battery
•Connection Testing Main Fuse
•Testing Battery Voltage
•Control Panel
•Testing PTO Switch
•Testing RMO Switch
•Testing Cruise Switch
•Testing Fuel Gage / Hour Meter
•Testing Key Switch
•Testing Headlight Switch
•Testing LED Headlight Assembly
•Testing Accelerator (angular transducer)
•Testing Brake Switch
•Testing Beeper
•Testing Seat Switch
•Testing Primary Blade Deck Motor Controller Testing
•Secondary Blade Motor Controller
•Controller layout
•Testing Primary and Secondary Deck Motors
•Testing Drive Motor
•Testing 48V-12V Converter and fuse
•Relay Basics
•Testing Relay
•Testing Relay Diode
•Testing Charge port and interlock
•Testing DeltaQ Battery Charger
•Testing Temperature Sensor
•Wire Harness
•Troubleshooting
•Electronic Tips for the mechanical Small Engine Tech
•Electronics Terms, Symbols, and Tools
•Using the DMM to Measure Volts
•Using the DMM to Measure Resistance
TABLE OF CONTENTS

Confidential & Proprietary –Property of Techtronic Power Equipment –DO NOT COPY or DISCLOSE
WARNING
THIS MATERIAL INTENDED ONLY FOR TECHNICIANS TRAINED IN ELECTRICAL REPAIR.
Technicians should wear personal protective equipment, such as rubber
gloves and safety glasses.
Dangerous voltages /currents are present. Exercise caution at all times.
This manual assumes knowledge of basic electrical equipment such as DMM (Digital Multi Meter)
and clamping Amp Meter to measure voltage, current, resistance, continuity, and diodes.

Confidential & Proprietary –Property of Techtronic Power Equipment –DO NOT COPY or DISCLOSE
OVERVIEW
The RYOBI riding mower is completely electrical, consisting of 3brushless
motors and acontroller for each motor:
•Abrushless motor and controller for each of the 2blades
•Abrushless motor/controller to drive each rear wheel.These Drive Motor Controllers
also contains the “brains” that responds to various inputs such as the accelerators,
seat switch,etc.

Confidential & Proprietary –Property of Techtronic Power Equipment –DO NOT COPY or DISCLOSE
BRUSHLESS MOTORS
Brushless motors operate quite differently than brushed motors, which you may be
used to (i.e. a starter motor).
Abrushed motor can be quickly tested by applying voltage to the two terminals.
Brushless motors can be recognized by 3wires. These 3wires require a controller to
operate them and to turn on these 3 phases in a precise fashion similar to spark plugs
firing a 3-cylinder gas motor.
Applying avoltage directly to these phases will cause damage.

Confidential & Proprietary –Property of Techtronic Power Equipment –DO NOT COPY or DISCLOSE
USING THIS DOCUMENT
Any blue text can be clicked on to jump directly to the page of that topic. (This document
is also printer-friendly, so you can have it in front of you while servicing the mower.) If
you print this document, we recommend printing it in landscape mode and in color
ABlock Diagram shows the general flow to visualize how the mower is connected and
achart shows general symptoms/solutions for repairs.
Electronics tips ,Terminology and Using a Digital Multi-Meter (DMM) are included for
the technician familiar only with gas machines.

Confidential & Proprietary –Property of Techtronic Power Equipment –DO NOT COPY or DISCLOSE
TOOLS NEEDED
Torx
T27
T30
T40
Screwdrivers
Cross tip
Flat blade
Sockets and Wrenches
8 mm
10 mm
13 mm
14 mm
15 mm
17 mm
19 mm

Confidential & Proprietary –Property of Techtronic Power Equipment –DO NOT COPY or DISCLOSE
Batteries
Main
Fuse
Charge
Port/lockout/
battery temp
48V to 12V
(DC to DC)
converter Relay
Fuel
gage
Drive
Controller
Control Panel
Brake
Switch
Beep
Seat
switch
Fuse
Primary
Blade
Control
Secondary
Blade
Control
MotorMotor
Motor
Head
Lights
PTO
RMO
FNR
Cruz
Light
Gage
USB
Key
Switch
Accelerator
Note: A detailed wire harness diagram is
located later in this document
USB
Hall Sensors
Important: Primary and secondary
have Acommunication link. If one
blade Motor or controller fails,
BOTH will Shut down
48V

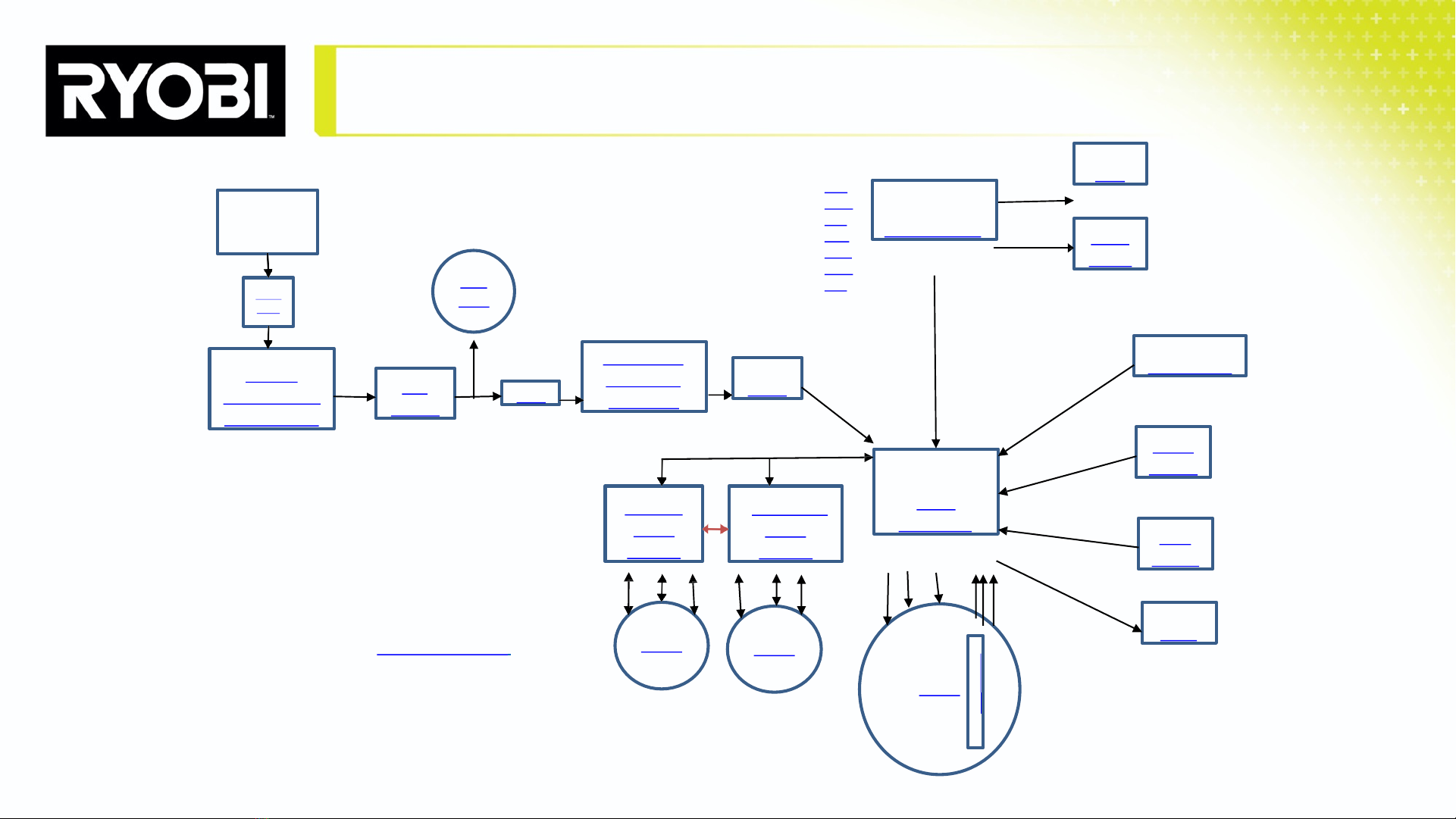

BLOCK DIAGRAM AND CONTROL FLOW

Confidential & Proprietary –Property of Techtronic Power Equipment –DO NOT COPY or DISCLOSE
TROUBLESHOOTING: GENERAL
•Follow the Block Diagram on the previous page.
•Check for loose/bad connections.
•Test the easiest components first. (power, key switch, DC-DC converter)
•Mower should be fully charged (if possible)
•Before disassembly:
–Attempt to charge mower (note any error LED indications)
–Check for voltage at charge port.
–Check USB Indicator and Headlights are functional (this tests the 48V-12V converter)
•Remove Instrument Panel cover
–Test Key Switch
–Check all other connections while panel is removed.

Confidential & Proprietary –Property of Techtronic Power Equipment –DO NOT COPY or DISCLOSE
TROUBLESHOOTING: DETAILED
Use the block diagram as aguide
Also refer to the beep diagnostic code chart
1. Verify the battery charger is functional by plugging it into the charge port on the back of the mower and let the mower fully
charge.
2. If necessary, further test the charger and charge port.Replace as needed.Charge port,Interlock, and temperature sensor
should be replaced together.
3. Test the key switch by operating it, making sure it has atactile “click” when turned on or off. Replace if necessary
4. Test and replace main relay and diode as necessary. (Note: when you turn the mower on, you should hear the relay click)
5. Check the main fuse.If it is blown, check the system for signs of ashort circuit before replacing the main fuse
6. If the fuel gauge has power, but no display or malfunctions, replace the fuel gauge
7. If ONLY the fuel gage works when the key is turned on, test/replace the 48-to-12V DC converter and 5A fuse as
necessary Note: this fuse is acommon part available at any automotive store

Confidential & Proprietary –Property of Techtronic Power Equipment –DO NOT COPY or DISCLOSE
TROUBLESHOOTING: DETAILED CONT…
8. If the mower will not drive
a. Make sure the seat switch is functional and activated.
b. Test the angular transducers.Replace if necessary.
c. Test the neutral switches.Replace if necessary.
d. Test the brake switch.Replace if necessary.
e. If the mower still will not drive, test the Drive Motor controllers.Replace if necessary.
f. Test the drive motors and Hall sensors,replace as necessary
9. Test the blade operation by pulling up on the PTO switch
a. Make sure the seat switch is functional and activated.
b. Test the primary and secondary motors.Replace as a pair if found bad
c. Test the primary blade and secondary blade controllers.Replace as apair if found bad.
d. If the mower blades still will not operate, replace the Drive motor controllers (same as step 8e above)
10. If the mower works except for the headlights, test the headlight switch and headlights.Replace as necessary

Confidential & Proprietary –Property of Techtronic Power Equipment –DO NOT COPY or DISCLOSE
DIGITAL MULTIMETER (DMM)
Typical DMM (Fluke 87). Note the dial is set to the
“DIODE” function.
this function will be used in
many of the following procedures.
Also note where the red and black jacks
of the test leads are connected to the DMM.
If you are unfamiliar with aDMM, please read the section
Electronics Tips for the Mechanical Small Engine Technician

Confidential & Proprietary –Property of Techtronic Power Equipment –DO NOT COPY or DISCLOSE
Headlights
Primary/secondary
Blade controllers
Drive
Controller
Seat
Switch
Beeper
DC-DC
converter
Brake Switch
Angular
Transducer
(FWD/REV)
Access panel
(under seat)
Charge port
COMPONETS LOCATION

Confidential & Proprietary –Property of Techtronic Power Equipment –DO NOT COPY or DISCLOSE
MAIN BATTERY CONNECTION
The main battery disconnect is located directly under the seat
access cover. It may take considerable pressure to separate the
halves.
If you can not separate by hand, you may need a blunt instrument
to push in the hole in the direction indicated.
NOTE THAT ONE HALF OF THE CONNECTOR IS
SCREWED TO THE FRAME AND WILL NOT MOVE.
BE CAREFUL NOT TO DAMAGE THE CONNECTOR.

Confidential & Proprietary –Property of Techtronic Power Equipment –DO NOT COPY or DISCLOSE
MAIN FUSE
IMPORTANT: If the main fuse is blown, find
the source of problem before replacing fuse
Where probes go
1.Disconnect main battery connection
2. Open the plastic box to access main fuse.
3. Set DMM to Resistance Ωsymbol on DMM
•Measure were indicated to the left.
•Ensure the nuts are tight, but not
•overtightened, as this can cause the fuse
•to twist and break.
If fuse is blown,
Replace only with the same physical size and same
Amperage.

Confidential & Proprietary –Property of Techtronic Power Equipment –DO NOT COPY or DISCLOSE
TESTING THE BATTERY VOLTAGE
1. Set DMM to “DC Volt” mode.
2. Turn mower on.
3. Pull PTO switch up (Power Take Off/Blade Engage knob) to load the battery for more accurate
measurement.
4. Place RED DMM probes indicated by red arrow, BLACK probe by black arrow
Charge Indicator LED (LED should blink in
similar pattern to charger when charger is
connected)
Charger Interlock
Note: New mowers have a different pattern of
Indexing pin. When requesting repair parts, send
a picture of this connector to ensure proper parts
For the charger and charge port
Note: If a valid voltage cannot be
read, the electronics built into the
charge port may be bad. In this
event, find the blue connector
which connects directly to the
batteries. Disconnect it, and
measure battery voltage

Confidential & Proprietary –Property of Techtronic Power Equipment –DO NOT COPY or DISCLOSE
Many of the connectors are sealed together with heat shrink tubing. To separate the connectors, soften the heat
shrink with a heat gun, then peel the heat shrink tubing off with pliers as shown.
Connector
Heat
Gun
Connector
When reassembling connectors, be sure to apply new heat shrink tubing and shrink with a heat gun to
protect against elements and hold the connections together.
Extra care is needed to avoid damaging surrounding parts by the heat. Be careful of the batteries.
SEPARATING CONNECTORS

Confidential & Proprietary –Property of Techtronic Power Equipment –DO NOT COPY or DISCLOSE
PTO
(Power Take Off)
RMO (Reverse
Mow Option)
Switch
Main Power Key Switch
Fuel Gauge/ Hour Meter
Headlight switch

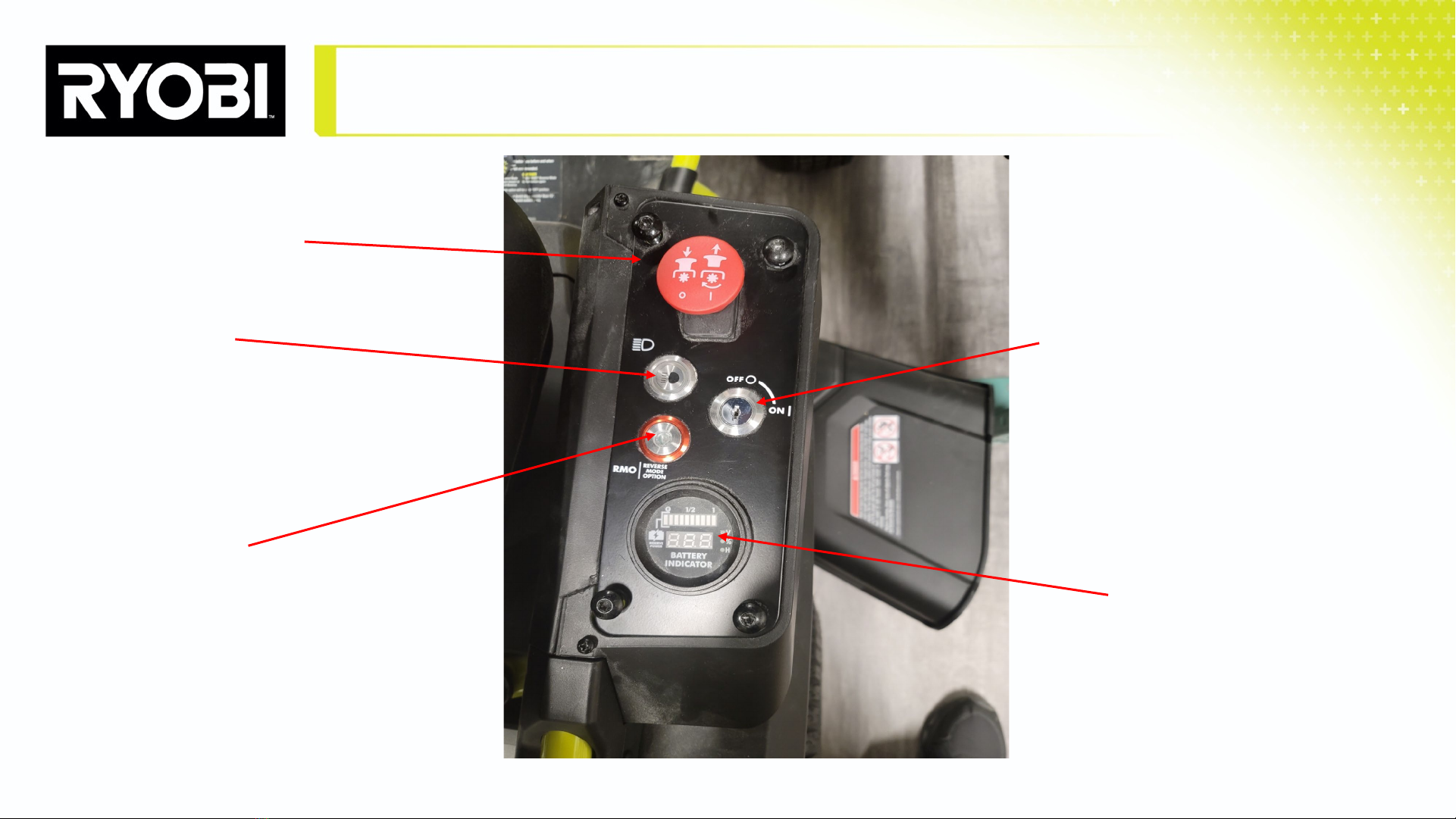

CONTROL PANEL

Confidential & Proprietary –Property of Techtronic Power Equipment –DO NOT COPY or DISCLOSE
TESTING THE PTO SWITCH
1. Mower Power OFF
2. DMM set to measure Resistance
3. Insert DMM probes where indicated. When red button is
PULLED OUT, the switch is CLOSED (very LOW resistance or
continuity)
4. When red button is PUSHED IN, the switch is OPEN (very
HIGH resistance or no continuity)
Note: these terminals
are not used
5
v
Note: Make sure spade plugs
are secure. They should be
locked in place and should
not come loose if the wires
are pulled on.

Confidential & Proprietary –Property of Techtronic Power Equipment –DO NOT COPY or DISCLOSE
2.5V
5-6V
TESTING THE RMO SWITCH
1. DISCONNECT MAIN POWER FROM MOWER.
2. Set DMM to “Diode”mode.
3. Touch leads where indicated. LED should light (polarity of
probes does not matter).
4. Set DMM to Resistance mode. Switch is normally open
(N.O.). Measure continuity when button held in. Measure
high resistance when released.
