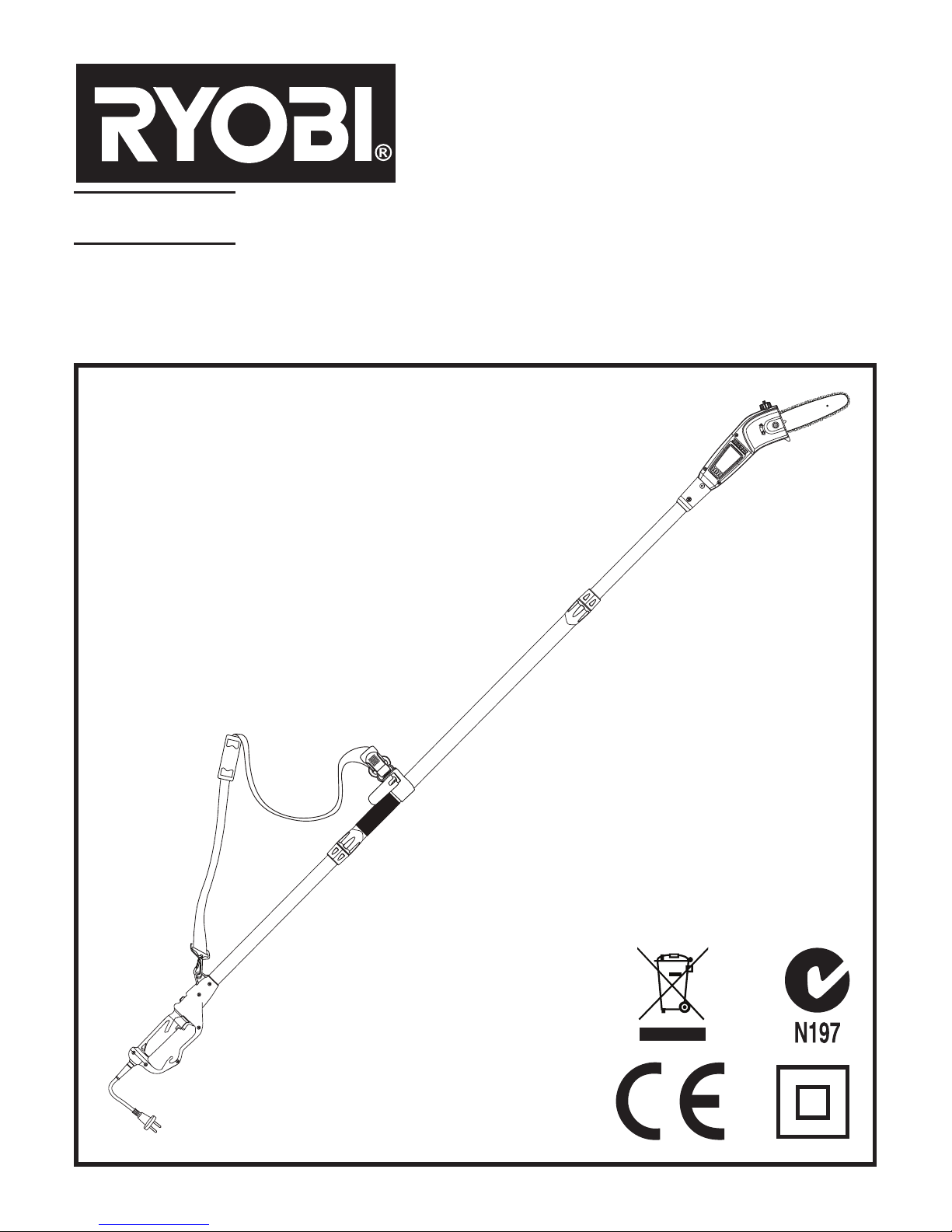

Ryobi RPP720 User manual

RPP720
ELECTRIC POLE PRUNER
OPERATOR’S MANUAL

Important!
It is essential that you read the instructions in this manual before
mounting and operating this machine.
Subject to technical modifications.

1
ENGLISH
GENERAL SAFETY RULES
WARNING
When using electric gardening appliances, basic
safety precautions should always be followed to
reduce the risk of fire, electric shock and personal
injury, including the following:
n This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety.
n Children should be supervised to ensure that they do
not play with the appliance.
ELECTRICAL SAFETY INSTRUCTIONS
n Use transport guard during transport and storage.
n The machine must be cleaned and maintained before
storage.
n Secure the unit during transport to prevent loss of oil,
injury or damage.
n Local regulations may restrict the age of the operator.
n Do not use the machine in any position that causes
any part to come within 15m of overhead electrical
lines.
n The operator should wear slip-resistant foot protection
as well as close fitting clothes, the use of PPE and
the need for adequate training, with PPE including
of hearing protection, eye protection, and head
protection .
n Do not use the unit if you are tired, ill or under
influence of alcohol or other drugs
n Hazards which may be encountered when using
the pruner and avoid them when carrying out typical
tasks, and keep bystanders away while operating the
machine.
n Beware of falling branches or those rebound after
hitting the ground, remove these branches in sections
and not operate in the dangerous positions.
n Keep a firm footing and balance during operation,
including the need to use the harness provided.
ADDITIONAL SAFETY RULES
n Never allow children or people unfamiliar with these
instructions to use the appliance.
n Only use in daylight or in good artificial light.
n The appliance should be inspected and maintained
regularly. Repairs should be carried out only by an
authorised repairer.
n For additional protection the installation of a residual
current device (RCD) with a rated residual operating
current not exceeding 30 mA is advisable.
n Remove plug immediately from main if the cord is
damaged or cut.
n After use, disconnect the machine from the mains and
check for damage.
n When not in use store the machine out of the reach of
children.
n Mains powered pruner should only be repaired by an
authorised repairer.
n Do not expose to moisture.
n Before use check the supply and extension cord for
signs of damage or ageing.
n If the cord becomes damaged during use, disconnect
the cord immediately from the supply.
DO NOT TOUCH THE CORD BEFORE
DISCONNECTING THE SUPPLY.
n Keep cords away from cutting elements.
n WARNING! Cutting elements continue to rotate after
motor is switched off.

2
ENGLISH
SYMBOLS
SYMBOL EXPLANATION
V Voltage
A Current
Hz Frequency(cycles per second)
W Power
hrs Time
no Rotational speed, at no load
double-insulated construction
.../min Revolutions, strokes, surface speed, orbits etc., per minute
Warning
Read the instruction manual
Don’t expose to moisture
Disconnect the mains plug if the cord is damaged or entangled
Keep bystanders away, be aware of the falling objects
Electrical hazard , at least 15m away from the overhead lines
Wear non-slip, heavy-duty protective gloves when handing the pole saw and the blade.
Wear the helmet to ear
15m
SPECIFICATIONS
Voltage :.............................................................220~240V
Power : ....................................................................720 W
Bar Length :..................................................20 cm/ 8 inch
Chain Pitch :..............................................10mm/ 3/8 inch
Chain type : ............... Low Profile Skip Tooth Narrow Kerf
Weight : .................................................................. 3.85kg
Measured sound power level : ............................89 dB(A)
Guaranteed sound power Level : ......................105 dB(A)
Vibration level :...................................................2,44 m/s²
DESCRIPTION
Fig.1
1. Cord Retainer
2. Back Handle
3. Lock-off Button
4. Shoulder Strap
5. Handle Grip
6. Telescoping Pole
7. Oil Cap
8. Blade Cover

3
ENGLISH
Fig.2
1. Pole
2. Button
3. Collar
4. Threaded Base
5. Cord
6. Intermediate Pole
7. Powerhead Pole
8. Strap Hanger
9. Handle Grip
Fig.3
1. Chain Lubricant
2. Oil Reservoir Cap
3. Quick View Oil Window
Figure 4:
1. Lock-Off Button
2. Switch Trigger
3. Cord Retainer
Figure 5:
1. Collar
Figure 6:
1. First Cut. ¼ Diameter
2. Second Cut
3. Final Cut
Figure 7:
1. Cutting Guide
Figure 10:
1. Flats
Figure 12:
1. Drivecase Cover
2. Chain
3. Bar
4. Bar Nut
Figure 13:
1. Sprocket
2. Chain Tensioning Pin
3. Bar Stud
4. Bar
5. Bar Stud Slot
6. Chain Tensioning Pin Hole
7. Bar Nut
8. Drivecase Cover
Figure 14:
1. Sprocket
2. Chain Rotation
3. Chain
4. Chain Tensioning Screw
Figure 15:
1. Bar Nut
Figure 16:
1. Remove Cap
2. Bar Lube
3. Reservoir
Figure 18:
1. Top Plate
2. Cutting Corner
3. Side Plate
4. Depth Gauge
5. Toe
6. Gullet
7. Heel
8. Rivet Hole
Figure 21:
1. Left Hand Cutters
2. Right Hand Cutters
Figure 22:
1. Blade Cover
ASSEMBLY
UNPACKING
This product requires assembly.
nCarefully remove the product and any accessories
from the box. Make sure that all items listed in the
packing list are included.
nInspect the product carefully to make sure no
breakage or damage occurred during shipping.
nDo not discard the packing material until you have
carefully inspected and satisfactorily operated the
product.
nIf any parts are damaged or missing, please contact
Customer Service on:
(AUS) 1300 557 442
(NZ) 9573 0230
PACKING LIST
nPole Saw
nBlade Cover
nOperator’s Manual

4
ENGLISH
WARNING
If any parts are damaged or missing, do not
operate this product until the parts are replaced.
Failure to heed this warning could result in
serious personal injury.
WARNING
Do not attempt to modify this product or create
accessories not recommended for use with this
product. Any such alteration or modification is
misuse and could result in a hazardous condition
leading to possible serious personal injury.
WARNING
Do not connect to power supply until assembly
is complete. Failure to comply could result in
accidental starting and possible serious personal
injury.
Connecting the Poles
See Figure 2
Before using the pole saw, a one-time assembly is
required. When removed from the box, the three poles
are connected by an electrical cord as shown in Figure 2.
nRemove packaging material from cord and discard.
nUnscrew the collar from the threaded base on the
intermediate pole and push back over the cord to the
handle pole shaft as shown.
nInsert the handle pole into the intermediate pole and
slide together until you hear the button click. The
tubes are egg-shaped and will only install one way.
nLower the collar on the handle pole to the threaded
base on the intermediate pole and rotate clockwise to
secure.
nRepeat this process to attach the intermediate pole to
the powerhead pole.
NOTE: Handle pole and powerhead pole should not
be able to separate from intermediate pole once
assembled correctly. Repeat above steps if poles can
be separated from intermediate pole.
WARNING
Failure to lock powerhead pole as directed above
could result in serious injury or death.
OPERTION
WARNING:
Do not allow familiarity with this product to make
you careless. Remember that a careless fraction
of a second is sufficient to inflict serious injury.
WARNING:
Always wear safety goggles or safety glasses
with side shields when operating power tools.
Failure to do so could result in objects being
thrown into your eyes, resulting in possible serious
injury.
WARNING:
Do not use any attachments or accessories not
recommended by the manufacturer of this product.
The use of attachments or accessories not
recommended can result in serious personal
injury.
APPLICATIONS
You may use this product for the purposes listed below:
nLimbing
nPruning
ADDING BAR AND CHAIN LUBRICANT
See Figure 3
Use Ryobi Bar and Chain Lubricant. It is designed for
chains and chain oilers, and is formulated to perform over
a wide temperature range with no dilution required.
NOTE: Pole saw comes from the factory with no bar and
chain oil added. Level should also be checked after every
20 minutes of use and refilled as needed.
nRemove oil cap.
nCarefully pour the bar and chain oil into the tank.
nWipe off excess oil.
nCheck and fill the oil tank when quick view oil indicator
is below the second to last indicator line.
nRepeat as needed.
NOTE: It is normal for oil to seep from the saw when not
in use. To prevent seepage, empty the oil tank after each
use then run for one minute. When storing the unit for a
long period of time (three months or longer) be sure the
chain is lightly lubricated; this will prevent rust on the
chain and bar sprocket.
CONNECTING TO POWER SUPPLY
See Figure 4
This product is designed with a cord retainer that prevents
the extension cord from being pulled loose while using.
nForm a loop with the end of the extension cord.
nInsert loop portion of extension cord through opening
in the bottom of the rear handle and place over cord
retainer.
nSlowly pull loop against cord retainer until the slack is
removed.
nPlug product into extension cord.

5
ENGLISH
NOTE: Failure to remove all excess cord slack from
extension cord retainer could result in plug loosening
from receptacle.
STARTING AND STOPPING
See Figure 4
To start the motor:
nConnect the pole saw to power supply.
nPlace your thumb on the lock-off button and pull it
completely towards you.
nFully depress the switch trigger.
To stop the motor:
nRelease the switch trigger.
ADJUSTING TELESCOPING POLE
See Figure 5.
nDisconnect the pole saw from the power supply.
nRotate the collar counterclockwise to loosen.
nPush poles towards each other to shorten the pole or
pull away from each other to lengthen the pole.
NOTE: Extend the pole only to the length required to
reach the limb being cut. Do not extend the handle
above waist height.
nWhen the desired length is achieved, rotate the collar
clockwise to secure.
NOTE: Adjust hand placement on the shaft of the
pole saw to keep proper balance. Do not attempt to
use the pole saw at a length which does not allow you
to achieve proper footing and balance at all times.
PREPARATION FOR CUTTING
See Figures 6 - 7.
nWear non-slip gloves for maximum grip and protection.
nMaintain a proper grip on the unit whenever the motor
is running. Use your right hand to firmly grip the rear
handle while your left hand has a firm grip on the pole
shaft.
nHold unit firmly with both hands. Always keep your
left hand on the pole shaft and your right hand on the
rear handle, so your body is to the left of the chain
line. Never use a left-handed (cross-handed) grip, or
any stance that places your body or arm across the
chain line.
nNever stand directly under the limb you are cutting.
nBe certain the collars are fully tightened before
operating equipment; check them periodically for
tightness during use to avoid serious injury.
BASIC CUTTING PROCEDURE
See Figures 6 - 7.
Follow the steps below to prevent damage to tree or
shrub bark. Do not use a back-and-forth sawing motion.
nMake a shallow first cut (1/4 of limb diameter) on the
underside of the limb close to the main limb or trunk.
nMake a second cut from the top side of the limb outboard
from the first cut. Continue the cut through the limb
until the limb separates from the tree. Be prepared to
balance the weight of the tool when the limb falls.
nMake a final cut close to trunk.
NOTE: For second and final cuts (from top of limb
or branch), hold front cutting guide against the limb
being cut. This will help steady the limb and make
it easier to cut. Allow chain to cut for you; exert
only light downward pressure. If you force the cut,
damage to the bar, chain, or motor can result.
nRelease the trigger as soon as the cut is completed.
Failure to follow proper cutting procedures will result
in the bar and chain binding and becoming pinched or
trapped in the limb. If this should happen:
nStop the motor and disconnect from power supply.
nIf the limb can be reached from the ground, lift the
limb while holding the saw. This should release the
“pinch” and free the saw.
nIf the saw is still trapped, call a professional for
assistance.
LIMBING AND PRUNING
See Figures 8 - 9.
This unit is designed for trimming small branches and
limbs up to 15cm in diameter. For best results, observe
the following precautions.
nPlan the cut carefully. Be aware of the direction in which
the branch will fall.
nBranches may fall in unexpected directions. Do not
stand directly under the branch being cut.
nThe most typical cutting application is to position the
unit at an angle of 60° or less, depending on the specific
situation, as shown in Figure 8 and 9. As the angle of
the pole saw shaft to ground increases, the difficulty of
making the first cut (from the underside of limb)
increases.
nRemove long branches in several stages.
nCut lower branches first to allow the top branches
more room to fall.
nWork slowly, keeping both hands on the saw with a
firm grip. Maintain secure footing and balance.
nKeep the tree between you and the chain while
limbing. Cut from side of tree opposite branch you are
cutting.
nDo not cut from a ladder; this is extremely dangerous.
Leave this operation for professionals.
nDo not make the flush cut next to the main limb
or trunk until you have cut off the limb further out

6
ENGLISH
to reduce the weight. Following proper cutting
procedures will prevent stripping the bark from the
main member.
nDo not use the pole saw for felling or bucking.
nTo prevent electrocution, do not operate within 15m of
overhead electrical lines.
nKeep bystanders at least 15m away.
MAINTENANCE
WARNING:
When servicing, use only identical replacement
parts. Use of any other parts may create a hazard
or cause product damage.
WARNING:
Always wear safety goggles or safety glasses with
side shields during power tool operation or when
blowing dust. If operation is dusty, also wear a
dust mask.
WARNING:
Before inspecting, cleaning or servicing the unit,
stop the motor, wait for all moving parts to stop,
and disconnect from power supply. Failure to
follow these instructions can result in serious
personal injury or property damage.
GENERAL MAINTENANCE
Avoid using solvents when cleaning plastic parts. Most
plastics are susceptible to damage from various types of
commercial solvents and may be damaged by their use.
Use clean cloths to remove dirt, dust, oil, grease, etc.
WARNING:
Do not at any time let brake fluids, petrol,
petroleumbased products, penetrating oils, etc.,
come in contact with plastic parts. Chemicals can
damage, weaken, or destroy plastic, which may
result in serious personal injury.
All chain saw service, other than the items listed in the
instruction manual maintenance instructions, should be
performed by competent chain saw service personnel.
CHAIN TENSION
See Figures 10-11
WARNING
To avoid possible serious injury, never touch or
adjust the chain while the motor is running. The
saw chain is very sharp; always wear protective
gloves when performing maintenance to the
chain.
nStop the motor and disconnect from power supply
before setting the chain tension. Make sure the
guide bar nut is loose to finger tight, turn the chain
tensioning screw clockwise to tension the chain.
Refer to Replacing the Bar and Chain for additional
information.
NOTE: A cold chain is correctly tensioned when there
is no slack on the underside of the guide bar, the
chain is snug, but it can be turned by hand without
binding.
nChain must be re-tensioned whenever the flats on
the drive links hang out of the bar groove as shown in
Fig. 10.
nDuring normal operation, the temperature of the chain
will increase. The drive links of a correctly tensioned
warm chain will hang approximately .050 in. out of the
bar groove, as shown in fig. 11.
NOTE: New chain tends to stretch; check chain
tension frequently and tension as required.
CAUTION:
Chain tensioned while warm, may be too tight
upon cooling. Check the “cold tension” before
next use.
REPLACING THE BAR AND CHAIN
See Figures 12-15
nRemove the bar nut (11mm) and drivecase cover.
nThe bar contains a bar stud slot that fits over the bar
stud. The bar also contains a chain tensioning pin
hole which fits over the chain tensioning pin.
nPlace the bar onto the bar stud so that the chain
tensioning pin fits into the chain tensioning pin hole.
nFit the chain over the sprocket and into the bar
groove. The cutters on the top of the bar should
face toward the bar tip, in the direction of the chain
rotation.
nReplace the drivecase cover and install the bar nut.
Tighten the bar nut finger tight only. The bar must be
free to move for tension adjustment.
nRemove all slack from chain by turning the chain
tensioning screw clockwise, assuring that the chain
seats into the bar groove during tensioning.
nLift the tip of the bar up to check for sag. Release the
tip of the bar, and turn the chain tensioning screw 1/2
turn clockwise. Repeat this process until sag does not
exist.
nHold the tip of the bar up and tighten the bar nut
securely.
nChain is correctly tensioned when there is no slack on
the underside of the bar, the chain is snug, but it can
be turned by hand without binding.

7
ENGLISH
NOTE: If chain is too tight, it will not rotate. Loosen
the bar nut slightly and turn adjusting screw 1/4
turn counterclockwise. Lift the tip of the bar up and
retighten bar nut.
CHAIN OILER
See Figure 16
nUse Premium Bar and Chain Lubricant. It is designed
for chains and chain oilers and is formulated to
perform over a wide temperature range with no
dilution required.
nRemove the cap and carefully pour approximately
60ml of bar and chain lubricant into the bar lube
reservoir.
nReplace the cap and tighten securely.
nCheck and refill the bar lube reservoir every time the
pole saw is used.
NOTE: Do not use dirty, used, or otherwise
contaminated lubricants. Damage may occur to the oil
pump, bar, or chain.
CHAIN MAINTENANCE
See Figure 17.
For smooth and fast cutting, the chain needs to be
maintained properly. The following conditions indicate
that the chain requires sharpening:
n Wood chips are small and powdery.
n Chain must be forced through the wood during
cutting.
n Chain cuts to one side.
During maintenance of the chain, consider the following:
n Improper filing angle of the side plate can increase
the risk of a severe kickback.
n Depth gauge (or raker clearance) setting determines
the height the cutter enters the wood and the size of
the wood chip that is removed. Too much clearance
increases the potential for kickback. Too little
clearance decreases the size of the wood chip thus
decreasing the chain’s cutting ability.
n If cutter teeth have hit hard objects such as nails and
stones, or have been abraded by mud or sand on the
wood, have service dealer sharpen chain.
HOW TO SHARPEN THE CUTERS
See Figures 18 - 21.
Be careful to file all cutters to the specified angles and
to the same length, as fast cutting can be obtained only
when all cutters are uniform.
nTighten the chain tension enough that the chain does
not wobble. Do all of your filing at the mid-point of the
bar. Wear gloves for protection.
nUse a 4mm(5/32), diameter round file and holder.
nKeep the file level with the top plate of the tooth. Do not
let the file dip or rock.
nUsing light but firm pressure, stroke towards the front
corner of the tooth. Lift file away from the steel on each
return stroke.
nPut a few firm strokes on every tooth. File all left hand
cutters in one direction. Then move to the other side
and file the right hand cutters in the opposite direction.
Occasionally remove filings from the file with a wire
brush.
CAUTION:
Dull or improperly sharpened chain can cause
excessive motor speed during cutting which may
result in severe motor damage.
WARNING:
Improper chain sharpening increases the potential
of kickback. Failure to replace or repair damaged
chain can cause serious injury.
STORING THE PRODUCT
See Figure 22.
nClean all foreign material from the product. Store
idle unit indoors in a dry, well-ventilated area that is
inaccessible to children. Keep away from corrosive
agents such as garden chemicals.
nAlways place the blade cover on the saw bar when
transporting or storing the pole saw. The blade cover
is a snug fit and must be attached very carefully due
to the sharp teeth on the saw chain. This is best done
by grasping the blade cover at one end, in the center
portion of the blade cover, and carefully sliding it over
the chain as shown. Use caution to avoid the sharp
teeth of the chain.
NOTE: The saw chain is very sharp. Always wear
protective gloves when handling the chain.

8
ENGLISH
DISPOSAL
TROUBLESHOOTING
This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent
possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote
the sustainable reuse of material resources. To return your used device, please use the return and collection systems or
contact the retailer where the product was purchased. They can take this product for environmental safe recycling.
PROBLEM POSSIBLE CAUSE REMEDY
Bar and chain running hot
and smoking.
Motor runs, but chain is
not rotating.
Check chain tension for overtightened
condition
Bar lube reservoir empty.
Chain tension too tight. Check guide bar
and chain assembly.
Check guide bar and chain for damage.
Tension chain. Refer to Chain Tension earlier in this
manual.
Check bar lube reservoir and re-fill.
Retention chain. Refer to Chain Tension earlier in this
manual.
Refer to Replacing the Bar and Chain earlier in this
manual.
Inspect guide bar and chain.

LIMITED WARRANTY
TTI warrants this outdoor product to be free of defects in material and workmanship for 24 months from the date of
purchase by the original purchaser, subject to the limitations below. Please keep your invoice as proof of date of
purchase.
This warranty is only applicable where the product is used for personal and non-commercial purposes. This warranty does
not cover damage or liability caused by / due to misuse, abuse, accidental or intentional acts by user, improper
handling, unreasonable use, negligence, failure by end user to follow operating procedures outlined in the user’s
manual, attempted repair by non-qualified professional, unauthorized repair, modification, or use of accessories and/or
attachments not specifically recommended by authorized party. Please see your local dealer for list of authorized
service centers in your area.
This warranty does not cover belts, brushes, bags, bulbs or any part which ordinary wear and tear results in required
replacement during warranty period. This warranty does not cover transportation cost or consumable items such as
fuses and batteries.
This limited warranty is void if the product’s original identification (trade mark, serial number, etc.) markings have been
defaced, altered or removed or if product is not purchased from an authorized reseller or if product is sold AS IS and /
or WITH ALL FAULTS.
Where permitted, the provisions of this limited warranty are in lieu of any other written warranty, whether express or
implied, written or oral, including any warranty of MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
IN NO EVENT SHALL WE BE LIABLE FOR SPECIAL, INCIDENTAL, CONSEQUENTIAL OR INCIDENTAL
DAMAGES. OUR MAXIMUM LIABILITY SHALL NOT EXCEED THE ACTUAL PURCHASE PRICE PAID BY YOU FOR
THE PRODUCT.
This warranty is valid only in the European Union, Australia and New Zealand. Outside these areas, please contact
your authorized Ryobi dealer to determine if another warranty applies.

Machine: ELECTRIC POLE PRUNER
Name of company: Homelite Far East Co., Ltd.
Address: 24/F, CDW Building,
388 Castle Peak Road,
Tsuen Wan, Hong Kong.
Type: RPP720
Name/Title: Andrew Eyre
Vice President, Engineering
Signature:
RYOBI TECHNOLOGIES (UK) LIMITED.
Medina House,
Fieldhouse Lane, Marlow,
Buckinghamshire,
SL7 1TB,
UNITED KINGDOM
Tel: + 44 (0) 1628 894400
Fax: + 44 (0) 1628 894401
Technical Helpline : + 44 (0) 800 389 0305
RYOBI TECHNOLOGIES SAS
Immeuble Le Grand Roissy
Z.A. du Gué - 35 rue de Guivry
77990 LE MESNIL AMELOT FRANCE
Phone: + 33(0)1 60 94 69 70
Fax: + 33(0)1 60 94 69 79
RYOBI BELGIUM
Avenue des Pâquerettes, 55
Zoning artisanal - bâtiment 5
B - 1410 Waterloo
BELGIQUE
Tel : + 32(0) 2357 8140
Fax : + 32(0) 2357 8149
RYOBI ITALIA
Via Vincenzo Borelli, 13
I - 41100 Modena
ITALIA
Tel : + 39(0) 5923 8408
Fax : + 39(0) 5924 6960
RYOBI IBÉRICA
Avenidad de la Industria 52
28820 Coslada - Madrid
ESPANA
Tel : + 34(0) 91 627 93 26
Fax : + 34(0) 91 627 93 29
TECHTRONIC INDUSTRIES (ASIA) CO., LTD.
24/F, CDW Building,
388 Castle Peak Road,
Tsuen Wan, Hong Kong.
Tel : + 852 2402 6888
RYOBI TECHNOLOGIES GMBH
Itterpark 4
D-40724 Hilden
DEUTSCHLAND
Tel: + 49 (0) 2103 2958-0
Fax: + 49 (0) 2103 2958-29
RYOBI TECHNOLOGIES GMBH
Vertriebsbüro Österreich
Schinitzgasse 13
A-8605 Kapfenberg
Tel.: + 43 (0) 3862 23590-0
Fax: + 43 (0) 3862 23590-25
TECHTRONIC INDUSTRIES AUSTRALIA PTY LIMITED.
Building B, Rosehill Industrial Estate,
3 Shirley Street,
Rosehill NSW 2142
AUSTRALIA
Tel: [phone] or 1300 361 505
Fax: [phone]
TECHTRONIC INDUSTRIES (NZ) LIMITED.
27 Clemow Drive, Mt Wellington
PO Box 12-806, Penrose, Auckland
NEW ZEALAND
Tel: + 64 (0) 9 573 0230
Free Call: [phone]
Fax: + 64 (0) 9 573 0231
A&M MIDDLE EAST FZCO
P.O.Box 61254
Jedel Ali, Dubai,
UNITED ARAB EMIRATES
Tel.: + 9714 8861399
Fax: + 9714 8861400
06/2008
